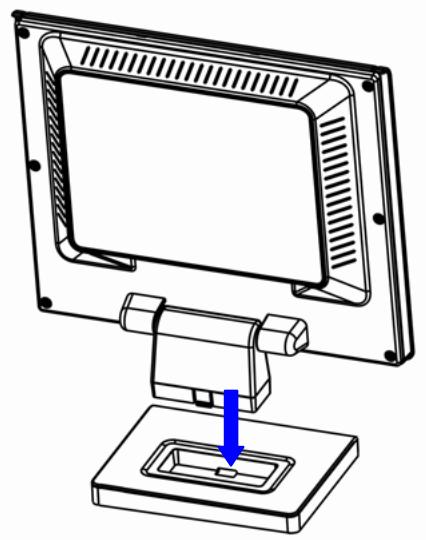

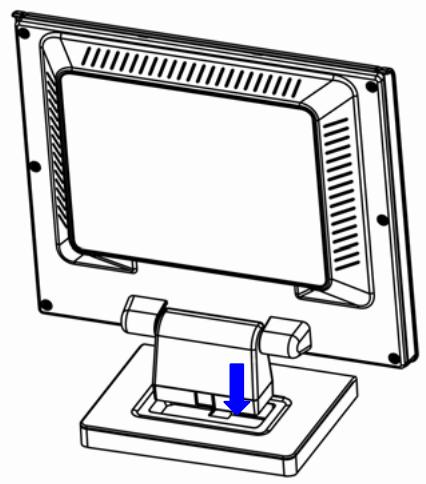

Before You Start ※ Assembling the base to your monitor step by step. STEP 1

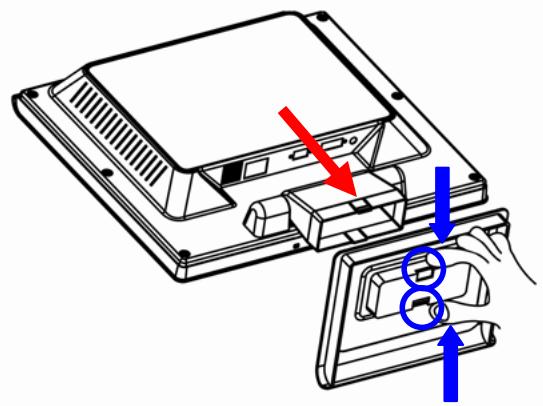

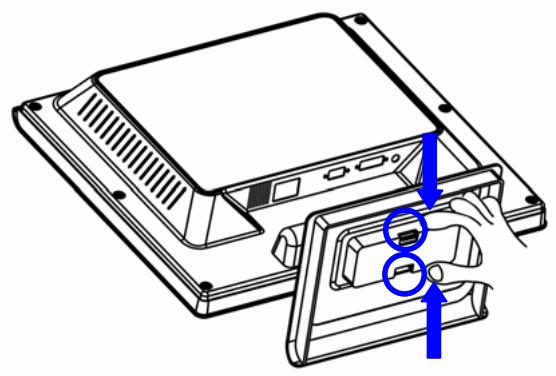

※ Disassembling your monitor and the base step by step.

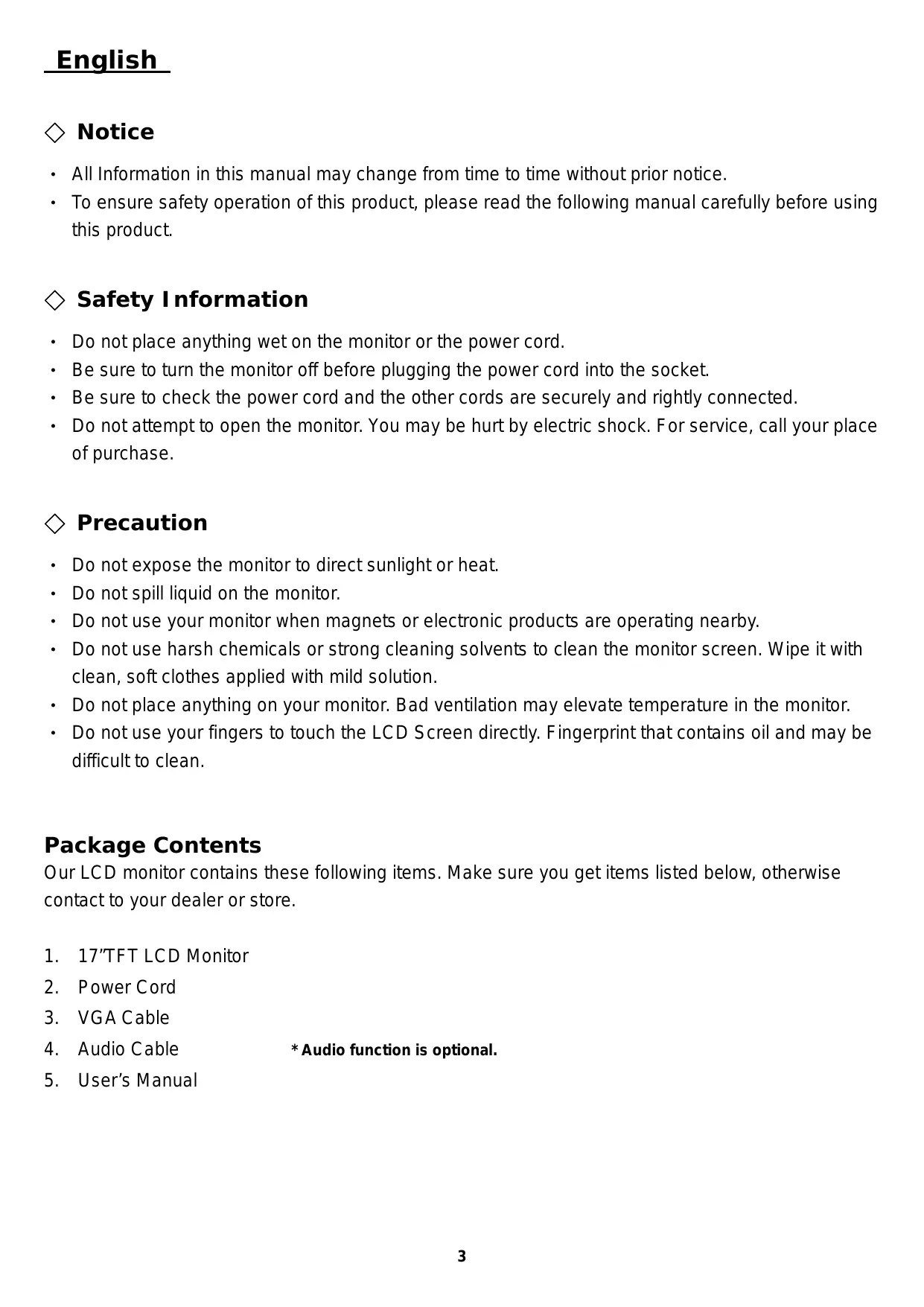

◇ Notice ‧ All Information in this manual may change from time to time without prior notice. ‧ To ensure safety operation of this product, please read the following manual carefully before using this product.
Do not place anything wet on the monitor or the power cord.
Be sure to turn the monitor off before plugging the power cord into the socket. Be sure to check the power cord and the other cords are securely and rightly connected. Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.
Do not expose the monitor to direct sunlight or heat.
Do not spill liquid on the monitor. Do not use your monitor when magnets or electronic products are operating nearby. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
‧ Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
‧ Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.
Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store. 1. 17”TFT LCD Monitor 2.
* Audio function is optional.
Hardware Installation
Be carefully to your LCD monitor, it’s very exquisite but easy to broken. Turn off LCD’s and PC’s power before you set it up. Follow our installation step by step. Input
AC input：This is for connecting the power cable.
VGA port : This can be connected with the D-Sub 15 pin signal Cable. DVI port : This can be connected with the DVI signal Cable. Audio In：This can be connected to the PC audio-out connector of sound resource. *NOTICE: DVI and Audio functions are optional features.
There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust <->", "Adjust <+>". The following descriptions are the introduction of these Keys. Auto Adjust (Function) A Function Select Button: This button allows you to select the control functions up in the OSD. Hotkey: Press this button to apply the monitor setting automatically. Menu (Function) M Function Select Button: This button allows you to select the control functions down in the OSD. Hotkey: Press this button to get a pop-up OSD menu. Power: Turn the LCD power on and off. When the power is on, the light is showing green, Stand by will be orange. -
Adjust < - >: Decrease the option value in the OSD menu.
+ Adjust < + >: Increase the option value in the OSD menu.
OSD (On-Screen Display) Menu Mode
adjust your Speaker Volume via your PC computer Speaker Volume control icon.
Please note that Sound will continue to play when your monitor is off, to turn off please turn off your * PC computer or mute the Speaker Volume control icon. Press the OSD button to access menu, and press Increase / Decrease button for adjustment. BRIGHTNESS
BRIGHTNESS CONTRAST Adjust the brightness of the display.

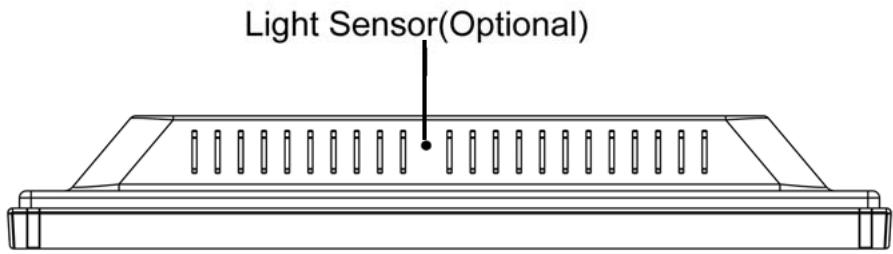

IBT (Light Sensor)-(Optional): This feature automatically adjust your monitor brightness base on ambient light changes. To activate this feature please select Auto icon within the main OSD Brightness icon. To deactivate please select Manual instead of Auto. Adjust the difference between light and dark area.
PHASE The phase of the dot clock is adjusted.
CLOCK The ratio of dividing frequency of the dot clock is adjusted.
H-POSITION Adjust the horizontal position of the display.
V-POSITION Adjust the vertical position of display.
Recall the default setting.
Adjust the color temperature. Adjust the Red color temperature. Adjust the Green color temperature. Adjust the Blue color temperature. Select the display language of the OSD Menu. 〝No〞will take you to the exit menu.〝Yes〞will bring you to the sub menus of the Miscellaneous menu. Saving and Leave.
Adjust the horizontal position of the OSD.
OSD V-POSITION Adjust the vertical position of the OSD.
OSD DURATION Adjust the timing of the OSD menu.
Adjust the color automatically.
Select input Video source:VGA or DVI Notice: * Source is optional feature.
Make sure that your monitor is properly installed if you have encountered any trouble using this product. ˙ There is no picture on the screen. Check: 1.Power saving mode. Press any key and move the mouse to deactivate the mode. 2.Signal cable connector pins. If there are bent or missing pins, consult your place of purchase. ˙ Characters look too dark or too light Check: Using OSD Menu to adjust the Brightness. ˙ When shall monitor be adjusted? Check: If the resolution of frequency is being changed. . The text appears on the screen are unclear. Check: Make sure the resolution or refresh rate match with the Display Mode.
Display Mode Resolution
