USER MANUAL YUR.VISION YV24WBH1 YURAKU

Package Contents 3
Hardware Installation 4
Input 4
Control Buttons 4
OSD (On-Screen Display) Menu Mode 5
Troubleshooting 6
Supported Timing 6
Specification 7

Francais 8

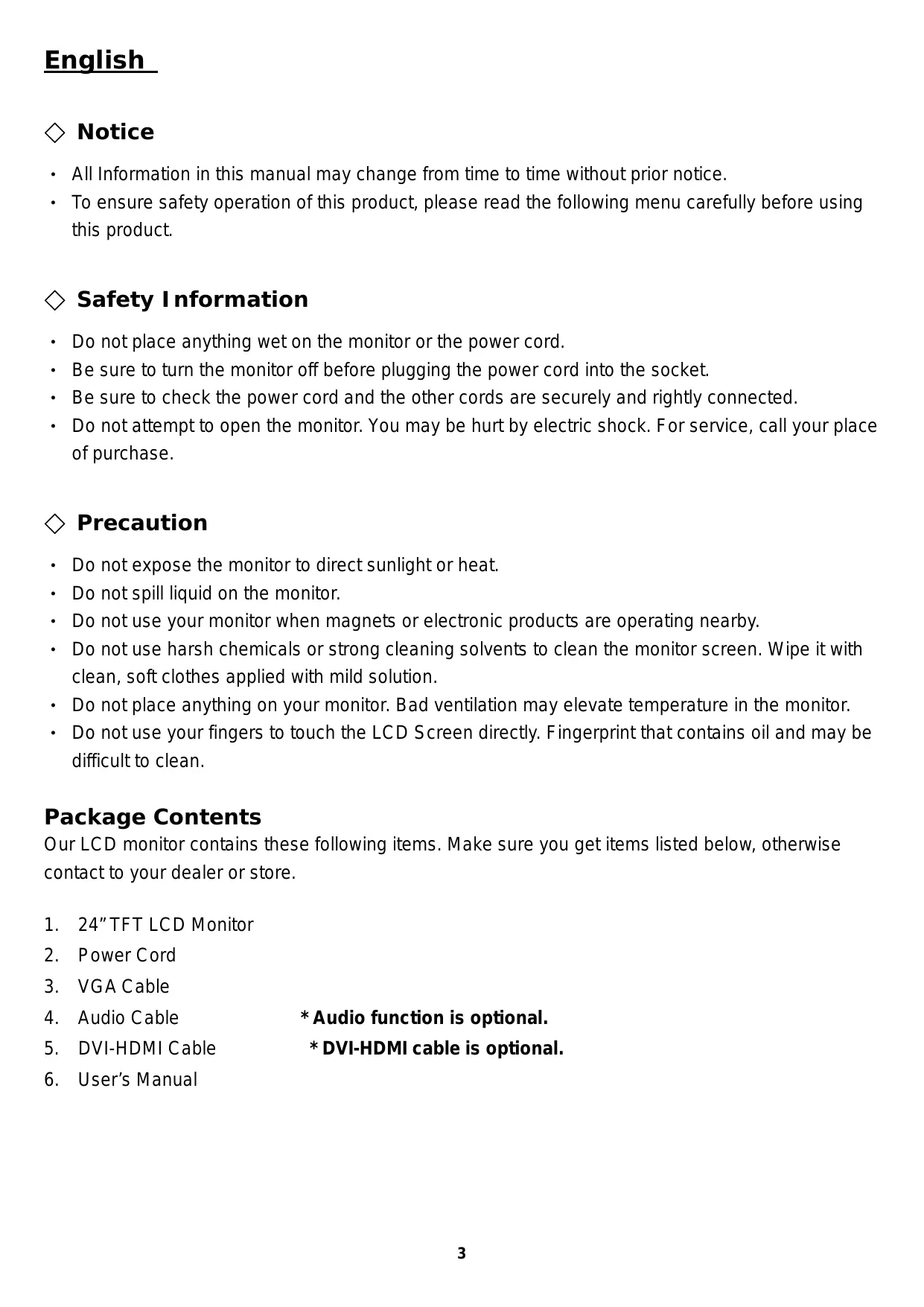

• All Information in this manual may change from time to time without prior notice.
• To ensure safety operation of this product, please read the following menu carefully before using this product.

Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

1. 24” TFT LCD Monitor
2. Power Cord
3. VGA Cable
4. Audio Cable * Audio function is optional.
5. DVI-HDMI Cable * DVI-HDMI cable is optional.
6. User's Manual

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

Input

AC input : This is for connecting the power cable.

VGA port : This can be connected with the D-Sub 15 pin signal Cable.

DVI port : This can be connected with the DVI signal Cable.

Audio In : This can be connected to the PC audio-out connector of sound resource.

*NOTICE: DVI and Audio functions are optional features.

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust < -> ", "Adjust < +> ". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)

A Function Select Button: This button allows you to select the control functions up in the OSD. Hotkey: Press this button to apply the monitor setting automatically.

Menu (Function)

M Function Select Button: This button allows you to select the control functions down in the OSD. Hotkey: Press this button to get a pop-up OSD menu.
Power: Turn the LCD power on and off. When the power is on, the light is showing green, Stand by will be orange.

• Adjust < -> : Decrease the option value in the OSD menu.
• Adjust < + > : Increase the option value in the OSD menu.

OSD (On-Screen Display) Menu Mode

Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

*

BRIGHTNESS

BRIGHTNESS

Adjust the brightness of the display.

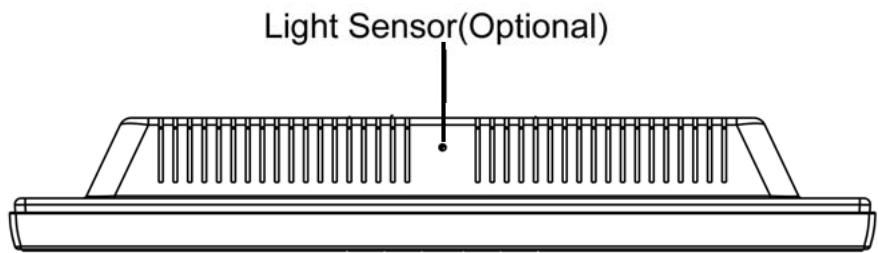

IBT (Light Sensor)-(Optional): This feature automatically adjust your monitor brightness base on ambient light changes. To activate this feature please select Auto icon within the main OSD Brightness icon.

To deactivate please select Manual instead of Auto.

CONTRAST

PHASE

CLOCK

H-POSITION

V-POSITION

RESET

COLOR TEMPERATURE

RED

GREEN

BLUE

LANGUAGE

MISCELLANEOUS

EXIT OSD

Adjust the difference between light and dark area.

The phase of the dot clock is adjusted.

The ratio of dividing frequency of the dot clock is adjusted.

Adjust the horizontal position of the display.

Adjust the vertical position of display.

Recall the default setting.

Adjust the color temperature.

Adjust the Red color temperature.

Adjust the Green color temperature.

Adjust the Blue color temperature.

Select the display language of the OSD Menu.

"No" will take you to the exit menu. "Yes" will bring you to the sub menus of the Miscellaneous menu.

Saving and Leave.

MISCELLANEOUS

RETURN

OSD H-POSITION

OSD V-POSITION

OSD DURATION

AUTO COLOR

VOLUME

SOURCE

Return to main menu.

Adjust the horizontal position of the OSD.

Adjust the vertical position of the OSD.

Adjust the timing of the OSD menu.

Adjust the color automatically.

Increase or decrease the sound volume.

Select input Video source:VGA or DVI

*

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1. Power saving mode. Press any key and move the mouse to deactivate the mode.

1. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

• When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Supported Timing

Display Mode
Resolution	Vertical Frequency (Hz)	Horizontal Frequency (KHz)
640x480	59.94	31.5
800x600	60.32	37.9
1024x768	60.00	48.4
1280x800	60.00	49.6
1440x900	60.00	55.9
1680x1050	59.94	65.29
1920x1200	59.88	74.55

Specification

Input Signals	VGA DVI*	VGA compatible analog RGB Composite sync supported DDWG compliant Single Link TMDS Digital Visual Interface (DVI)
Compatibility	PC	Up to 1920X1200@60Hz(Non-interlaced)
Connector	VGA DVI* Audio* Power	D-sub 15-pins DVI-D* Stereo Phone Jack A/C Input
Power	Voltage Consumption Power saving mode	Built-in universal power supply:100-240 VAC, 50/60 Hz Active < 100 Watt Max. Standby < 3 Watt
Internal Speaker		Speaker x2 *
User Interface	LED Indicator	Active - Blue Standby - Flash
Operating Condition	Temperature Humidity	Operating: 5°C to 40°C 20% ~ 80% R.H.
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)		UL/CUL, FCC, CE
Others		Light Sensor *

Notice: * DVI, Speaker and Light Sensor are optional.
