YUR.VISION YV19WB1 - Computer monitor YURAKU - Free user manual and instructions

Product Type	19" TFT LCD computer monitor
Brand	YURAKU
Model	YUR.VISION YV19WB1
Dimensions (W x H x D)	464 x 335 x 169 mm
Net weight	4.5 kg ± 1
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Active: < 45 W max, Standby: < 3 W
Maximum resolution	1440 x 900 @ 60 Hz
Video inputs	VGA (D-sub 15-pin), DVI (optional)
Audio input	3.5 mm stereo jack (optional)
Built-in speakers	2 x (optional)
OSD functions	Brightness, Contrast, Phase, Clock, H/V Position, Color temperature (R/G/B), Reset, Language, Auto adjustment
Power management	VESA DPMS
Certifications	UL/CUL, FCC, CE
Operating temperature	5°C to 40°C
Operating humidity	20% to 80% RH
Safety	Do not open the monitor, keep away from water and heat sources, disconnect before cleaning
Cleaning	Dry and soft cloth, do not use solvents (alcohol, benzene, thinner)
Package contents	LCD monitor, power cord, VGA cable, audio cable (optional), user manual
Repairability	Contact the dealer or an authorized service center for any maintenance

Frequently Asked Questions - YUR.VISION YV19WB1 YURAKU

How to adjust the screen brightness?

Press the OSD button to access the menu. Use the + and - buttons to navigate to the BRIGHTNESS option. Adjust the value using the adjustment buttons. You can also activate the optical sensor (optional) for automatic adjustment.

How to clean the screen without damaging it?

Use a dry and soft cloth (microfiber). Never use solvents such as alcohol, thinner or benzene. Avoid touching the screen with fingers as grease is difficult to remove.

What to do if the screen remains black and does not turn on?

First check that the monitor is in power saving mode: press a key on the keyboard or move the mouse. Make sure the power cord is properly connected. If the LED is orange, the monitor is in standby. If the problem persists, check the pins of the VGA/DVI connector.

What inputs are available on this monitor?

The monitor has a VGA input (D-sub 15-pin) and a DVI input (optional). It also has a audio input 3.5 mm stereo jack (optional). DVI and audio functions are optional depending on the model.

How to change the OSD menu language?

Press the OSD button to open the menu. Navigate to the LANGUAGE option using the + and - buttons. Select the desired language (e.g., English). The change is immediate.

What is the maximum resolution supported by the YUR.VISION YV19WB1?

The maximum resolution is 1440 x 900 pixels at a refresh rate of 60 Hz (non-interlaced). For best image quality, set your computer to this resolution.

How to reset to factory settings?

In the OSD menu, navigate to the RESET option and select it. All parameters (brightness, contrast, position, etc.) will return to their default values.

Can I use a DVI cable with this monitor?

Yes, if your model is equipped with the DVI option (check for the port). The DVI cable is not included in the standard package. You can purchase one separately.

Why is the image too bright or too dark?

Use the OSD menu to adjust the BRIGHTNESS and CONTRAST settings. If the image remains abnormal, check that the resolution and refresh rate match the supported modes.

How to save energy with this monitor?

The monitor complies with the VESA DPMS standard. It automatically switches to standby mode (consumption < 3 W) when the computer sends no signal. You can also manually turn off the monitor with the power button. Activating the optical sensor (optional) adjusts brightness according to ambient light.

USER MANUAL YUR.VISION YV19WB1 YURAKU

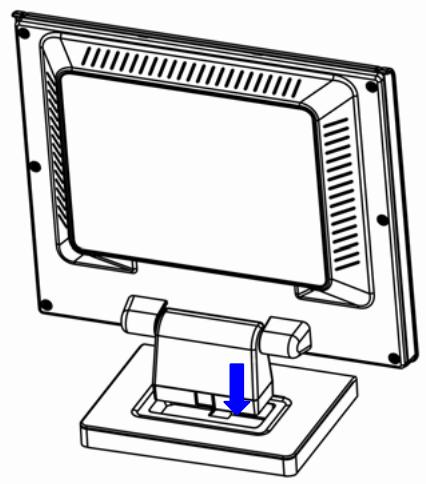

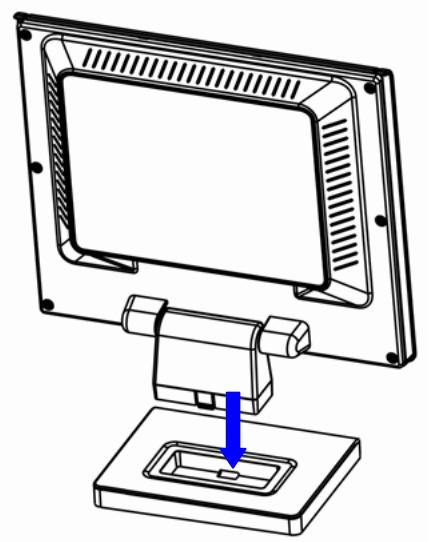

※ Assembling the base to your monitor step by step.

STEP1

STEP 2

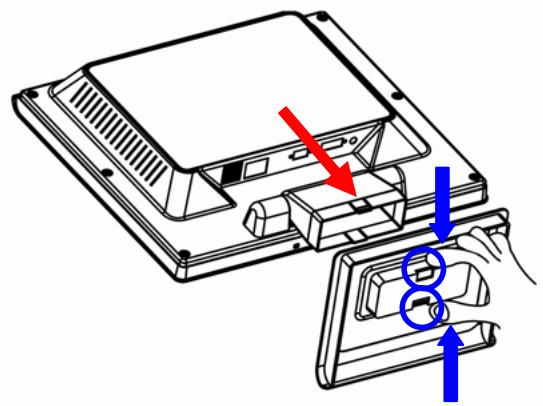

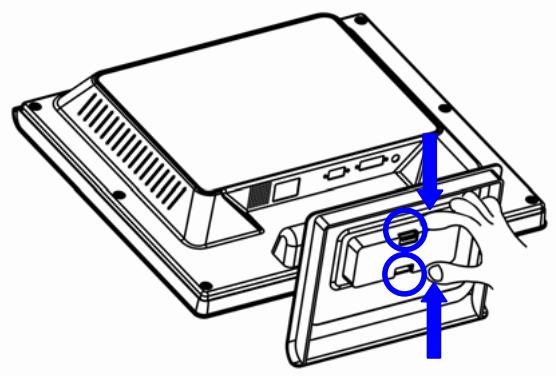

※ Disassembling your monitor and the base step by step.

STEP1

STEP 2

Contents

Contents 1

English 3

Notice. 3
Safety Information 3
Precaution 3

Package Contents 3

Hardware Installation 4

Input 4

Control Buttons 4

OSD (On-Screen Display) Menu Mode 5
Troubleshooting 6
Supported Timing 6
Specification 7

Francais 8

Avertissement 8
Information de securete 8
Precautions. 8

Limited Warranty Policy 33

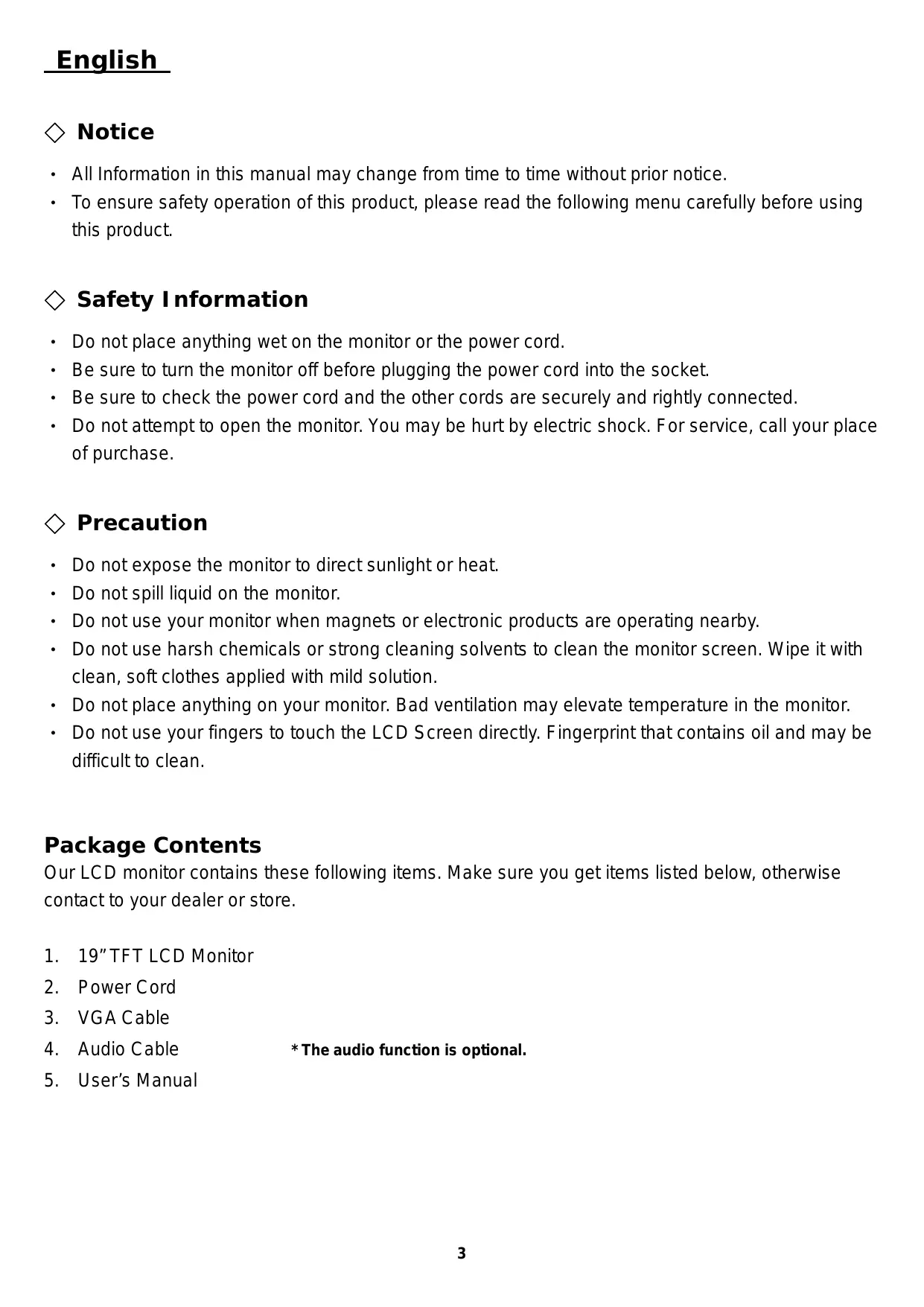

English

Notice

• All Information in this manual may change from time to time without prior notice.
• To ensure safety operation of this product, please read the following menu carefully before using this product.

Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

1. 19” TFT LCD Monitor
2. Power Cord
3. VGA Cable
4. Audio Cable * The audio function is optional.
5. User's Manual

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

Input

AC input : This is for connecting the power cable.

VGA port : This can be connected with the D-Sub 15 pin signal Cable.

DVI port : This can be connected with the DVI signal Cable.

Audio In : This can be connected to the PC audio-out connector of sound resource.

*NOTICE: DVI and Audio functions are optional features.

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust < -> ", "Adjust < +> ". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)

A Function Select Button: This button allows you to select the control functions up in the OSD.

Hotkey: Press this button to apply the monitor setting automatically.

Menu (Function)

M Function Select Button: This button allows you to select the control functions down in the OSD.

Hotkey: Press this button to get a pop-up OSD menu.

Power: Turn the LCD power on and off. When the power is on, the light is showing green, Stand by will be orange.

• Adjust < -> : Decrease the option value in the OSD menu.
• Adjust < + > : Increase the option value in the OSD menu.

OSD (On-Screen Display) Menu Mode

*Please adjust your Speaker Volume via your PC computer Speaker Volume control icon.

*Please note that Sound will continue to play when your monitor is off, to turn off please turn off your PC computer or mute the Speaker Volume control icon.

Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

*

BRIGHTNESS

BRIGHTNESS

CONTRAST

PHASE

CLOCK

H-POSITION

V-POSITION

RESET

COLOR TEMPERATURE

RED

GREEN

BLUE

LANGUAGE

MISCELLANEOUS

EXIT OSD

Adjust the brightness of the display.

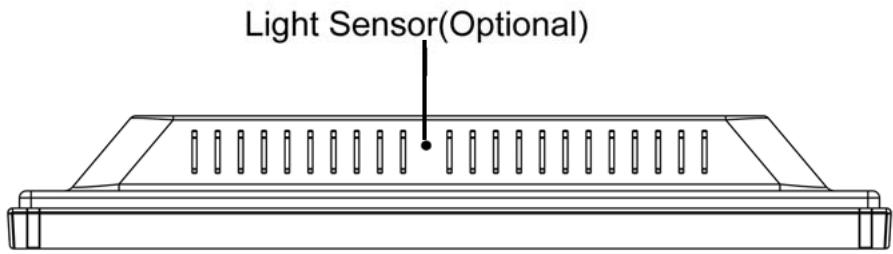

IBT (Light Sensor)-(Optional): This feature automatically adjust your monitor brightness base on ambient light changes. To activate this feature please select Auto icon within the main OSD Brightness icon. To deactivate please select Manual instead of Auto.

Adjust the difference between light and dark area.

The phase of the dot clock is adjusted.

The ratio of dividing frequency of the dot clock is adjusted.

Adjust the horizontal position of the display.

Adjust the vertical position of display.

Recall the default setting.

Adjust the color temperature.

Adjust the Red color temperature.

Adjust the Green color temperature.

Adjust the Blue color temperature.

Select the display language of the OSD Menu.

"No" will take you to the exit menu. "Yes" will bring you to the sub menus of the Miscellaneous menu.

Saving and Leave.

MISCELLANEOUS

RETURN

OSD H-POSITION

OSD V-POSITION

OSD DURATION

AUTO COLOR

SOURCE

Return to main menu.

Adjust the horizontal position of the OSD.

Adjust the vertical position of the OSD.

Adjust the timing of the OSD menu.

Adjust the color automatically.

Select input Video source:VGA or DVI

*

Notice: * Source is optional feature.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1.Power saving mode. Press any key and move the mouse to deactivate the mode.

1. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Supported Timing

Display Mode
Resolution	Vertical Frequency (Hz)	Horizontal Frequency (KHz)
640x480	72.81	37.9
640x480	75.00	37.5
800x600	56.25	35.2
800x600	60.32	37.9
800x600	72.19	50.0
800x600	75.00	46.9
1024x768	60.00	48.4
1024x768	70.07	56.5
1024x768	75.03	60.0
1280x800	60.00	49.6
1440x900	60.00	55.9

Specification

Input Signals	VGA DVI*	VGA compatible analog RGB Composite sync supported DDWG compliant Single Link TMDS Digital Visual Interface (DVI)
Compatibility	PC	Up to 1440X900@60Hz(Non-interlaced)
Connector	VGA Audio* Power	D-sub 15-pins Stereo Phone Jack A/C Input
Power	Voltage Consumption Power saving mode	Built-in universal power supply:100-240 VAC, 50/60 Hz Active < 45 Watt Max. Standby < 3 Watt
Internal Speaker		Speaker x2 *
User Interface	LED Indicator	Active - Blue Standby - Flash
Operating Condition	Temperature Humidity	Operating: 5°C to 40°C 20% ~ 80% R.H.
Dimensions	Physical	464mm(W) x 335mm(H) x 169mm(D)
Net Weight		4.5 Kg ± 1
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)		UL/CUL, FCC, CE
Others		Light Sensor *

Notice: * DVI, Speaker and Light Sensor are optional.
