USER MANUAL YCV20WR TRAYNOR

IMPORTANT SAFETY INSTRUCTIONS

This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product enclosure that may be of sufficiency

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Instructions pertaining to a risk of fire, electric shock, or injury to a person

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Read Instructions: The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference and heed all warnings.

Clean only with dry cloth.

Packaging: Keep the box and packaging materials, in case the unit needs to be returned for service.

Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or moisture. Do not use this apparatus near water!

Warning: When using electric products, basic precautions should always be followed, including the following:

Power Sources

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated. An apparatus with CLASS I construction shall be connected to a Mains socket outlet with a protective earthing ground. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Hazards

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. Only use attachments/accessories specified by the manufacturer

Note: Prolonged use of headphones at a high volume may cause health damage on your ears.

The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.

Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Power Cord

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. Protect the power cord from being walked on or pinched particularly at plugs. If the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle. The mains plug of the power supply cord shall remain readily operable.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Service

The unit should be serviced only by qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

SUVEZ TOUTES LES INSTRUCTIONS

The Traynor YCV20 is a professional all-tube guitar combo. It draws on the rich tradition of Traynor guitar amplifiers and combines the best of vintage design combined with modern principles, manufacturing techniques, and technology.

Features

• 100% Designed & Manufactured in North America!
• All-tube design with two 6BQ5 and three 12AX7A Premium tubes.
• A Single 12-inch Celestion® speaker for great classic sound and performance.
• Using all plywood for the construction of the cabinet guarantees the durability and rigidity that made Traynor famous.
• Classic Long-Style Accutronics® Reverb, with dual springs, for authentic vintage sound.
• A special DC powered filament supply on preamp tubes ensures reduced hum.
• Cathode bias for the classic tone.
• Fully regulated power supply ensures ultra low noise.
• The best warranty in the business: a 2-year unlimited, transferable "even if you break it" warranty (valid in the USA and Canada only).
• TraynorTFS-2B latching dual-footswitch, with 10-foot cable included.
• External Speaker jack and selectable defeat for disabling the internal speaker.
• Headphone jack for silent practicing.
  D.I. Output for connections straight to the 'board.

Channel 1 ① ② ⑤ ⑥

Channel 1 is the lead/overdrive channel and is selected either by the Channel Select switch on the control panel or by the Channel Select button on the footswitch* pedal. A Yellow LED located next to the Channel 1 Volume control illuminates when Channel 1 is active.

Note: Plugging in the footswitch deactivates the panel-mounted Channel and Boost controls.

Boost Switch (Ch 1) ③ ④

A boost circuit is provided to help achieve a-bit-more overdrive, especially for leads. The boost can be selected by the front panel switch or through the footswitch. A Red LED illuminates to indicate when the boost is active.

Traynor

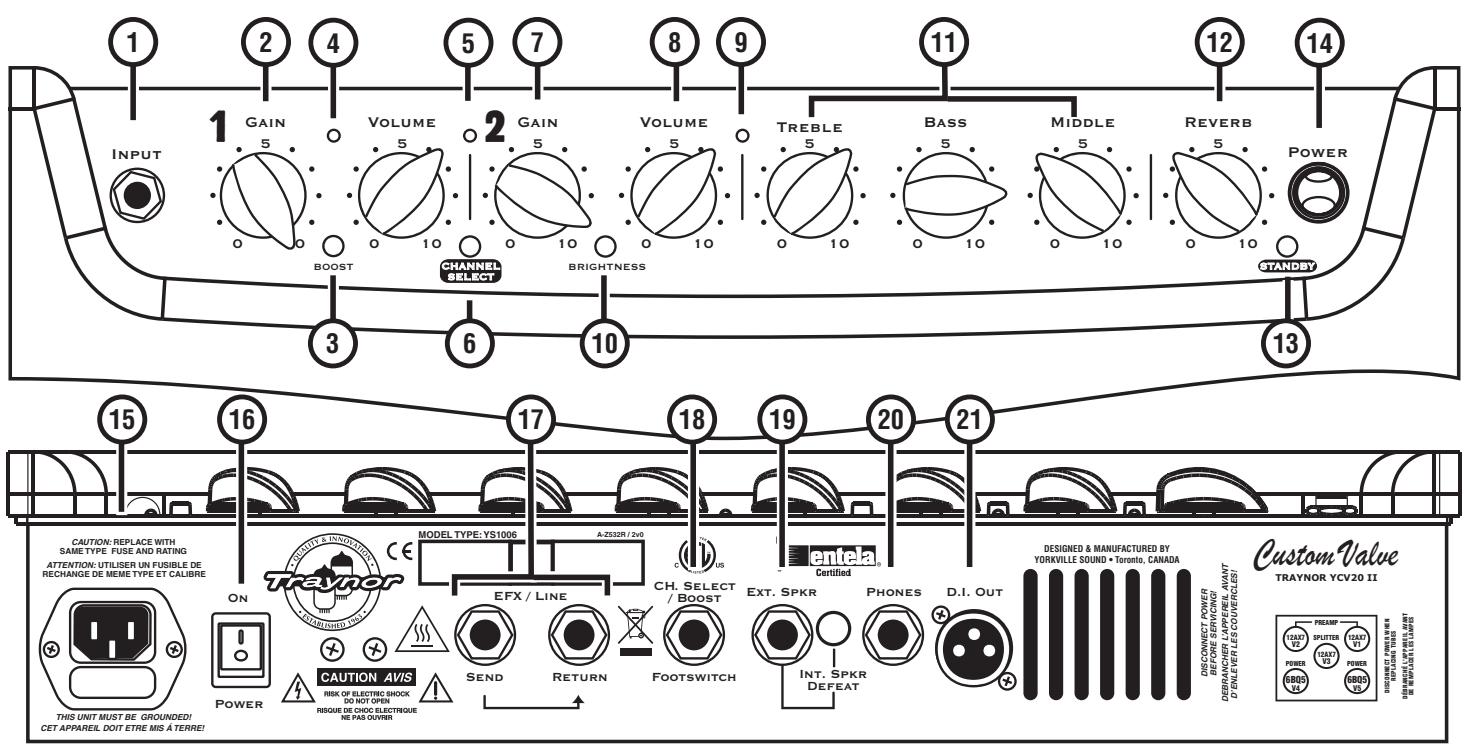

Chassis Layout

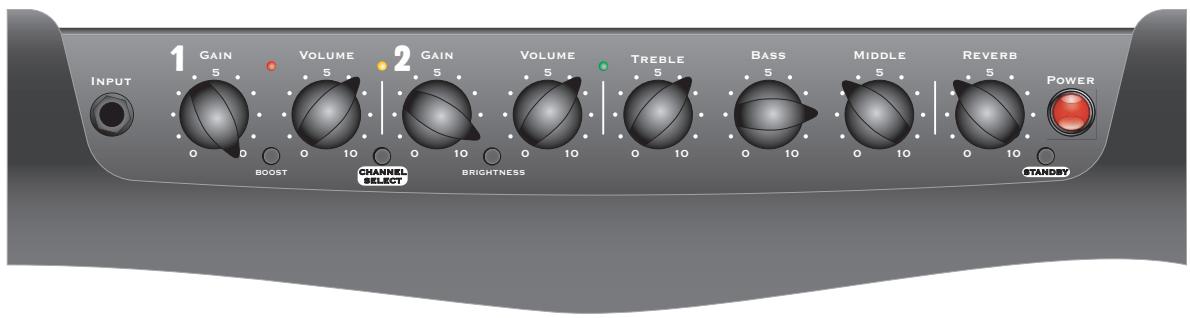

Top

① Input jack - 1/4 inch phone jack.
② Channel 1 Gain and Volume Controls.
③ Channel 1 Boost Switch - Activates the boost circuitry.
④ Boost LED - Illuminated Red when the boost is active.
⑤ Channel 1 Indicator LED - Illuminates Yellow when active.
⑥ Channel Select Switch - Channel 1 is optimized for lead, Channel 2 for clean
⑦ Channel 2 Gain Control
⑧ Channel 2 Volume Control.
Channel 2 Indicator LED - Illuminates Green when active.
Channel 2 Brightness Switch - Add sparkle to your clean sound.
① Main Tone Controls - Treble, Bass, and Middle
Reverb Control – Adjusts the Accutronics® reverb level for both channels
⑬ Standby Switch - Activates standby mode to keep the tubes warm while the amp is not in use
Power Indicator Jewel - Illuminates Red when in Active mode, and Yellow when in Standby mode

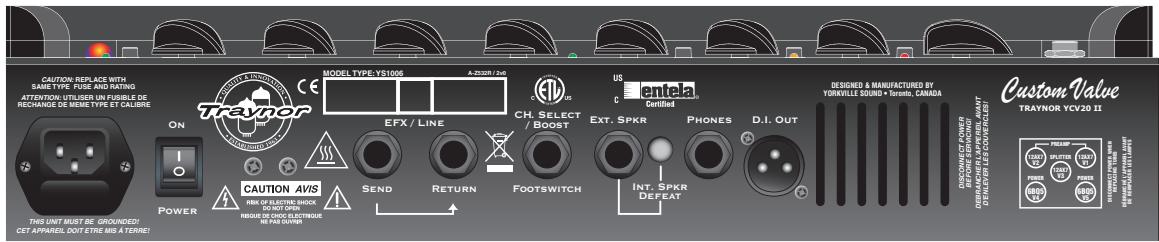

Rear

Fuse and Power Cord
Power Switch
⑦ Send / Return (Efx/Line) jacks - 1/4-inch phone Input and Output jacks.
Channel Select Footswitch jack - uses a 1/4-inch TRS standard latching dual-footswitch.
External Speaker jack and selectable defeat
② Headphone jack
D.I. Output for connections straight to the 'board'

Channel 2

Channel 2 has been optimized as 'the clean' channel. When channel 2 is active, the green LED located next to the Channel 2 Volume control is illuminated.

Gain & Volume Controls (Ch 2) ⑦ ⑧

Channel 2 uses a Gain control in conjunction with a Volume control to control the amount of tube-based overdrive and volume. The Gain control is used to adjust the amount of overdrive, while the Volume control allows you to set the actual loudness of the amplifier.

Brightness Switch 10

Channel 2 includes a Brightness switch that activates a circuit to provide additional treble boost to help make your tone sparkle.

Master Controls

Tone Controls ⑪

The Treble, Bass, and Middle tone controls are to help you shape your sound. They are post-gain and pre-volume.

Reverb Control 12

The Master Control section also includes a rotary Reverb control that adjusts the overall reverb level for both channels. The YCV20 is equipped with a long-style Accutronics® dual-spring reverb for authentic vintage reverb.

Standby Switch & Indicator 18

This switch controls the high voltage power being supplied to the tubes. This mode effectively keeps the tubes warmed up when the amp is not in use. The large, jewel indicator on the front panel glows Red when the amp is fully powered-up and changes to Yellow when the high voltage circuit has been turned off. Putting the amp into Standby mode (i.e. during set breaks) shuts off the amplifier output stage and effectively increases tube life by reducing wear on the tubes.

EFX / LINE Send & Return Jacks ⑦

The Send and Return jacks of the YCV20 allow convenient use of an external effect units. Simply connect a 1/4 inch phone cable to the Send jack of the YCV20 and then connect this cable to the Input of your effects unit. To send the processed signal back to the YCV20, connect the output of the effects unit to the Return jack of the YCV20.

The Send Jack can also be used as a direct line out (preamp-out). The -10dBu output is ideal for most guitar effects pedals and professional signal processors. You can also use this output to slave the YCV20 with another guitar amplifier by plugging into the Return jack of the slave amplifier.

The 1/4 inch TRS Return jack is usually used as the Return for your effects loop. It allows an input signal to pass directly to the power amplifier. The Master Control section regulates the signal, so you can add Reverb.

Footswitch Jack 18

Connecting a footswitch to the 1/4 inch TRS Footswitch jack deactivates the control panel mounted Channel Select and Boost switches. These functions are then activated exclusively by the pedal. The included footswitch features dual-latching switches, each with a separate LED indicator.

The switching is accomplished with internal relays so there is no audible noise flowing through the footswitch cable. Footswitch-induced noise is never an issue. The YCV20 is compatible with most aftermarket latching dual-footswitch pedals.

External Speaker Jack 19

The chassis mounted 14 inch jacks allow convenient connection of a 8 ohm external speaker cabinet. If you disconnect the internal 12-inch Celestion® speakers, you can connect up to two 8 ohm external cabinets.

Headphone Jack & Speaker Defeat 29

The headphone jack can be used with any stereo headphones. The headphone signal is post-preamp and pre-master. This means the signal is affected by all controls, including reverb, but not the Master Volume. For practicing silently, don't forget to disengage the speaker outputs by depressing the Speaker Defeat button.

D.I. Out ②

The D.I. signal is derived from the same source as the Headphones, the pre-amp. The balanced XLR output can be used to send the signal directly to a mixing console, poweramp or another line-level audio signal processor. Don't forget to disengage the speaker outputs (by depressing the Speaker Defeat button) if you like to record silently.

Specifications

Type YCV20 Class 'A' Tube Guitar Amplifier

Cabinet Impedance (ohms) 8

Power @ min. impedance (Watts) 15

Speaker Configuration - LF (Size / Power)

Single 12 inch Celestion Greenback

Input Channels 2

Channel 1 - inputs 1/4 inch phono

Channel 1 - controls Gain, Volume

Channel 1 - switches Boost

Channel 2 - inputs Shares Channel 1

Channel 2 - controls Gain, Volume

Channel 2-switches Channel Select, Brightness

Main Tone Controls Bass, Mid, Treble

Line Out (type / configuration)

1/4 inch TRS / Rear

Effects Loop / Location Yes / Rear

Effects Footswitch / Function

Yes / Channel Select / Boost

Internal Reverb / Effects

Spring Reverb

LED Indicators Channel / Boost / Power / Standby

Dimensions (DWH, inches)

9.5 × 18 × 17

Dimensions (DWH, cm)

24 × 47 × 43

Weight (Ibs/kg) 35/16

Warranty Two-year, unlimited (even if you break it!)

transferable warranty*

(valid in USA and Canada only)

Traynor YCV20

Introduction

Your Traynor two year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date, simply return it to your Traynor dealer with original proof of purchase and it will be repaired free of charge.

Freight charges, consequential damages, weather damage, damage as a result of improper installation, damages due to exposure to extreme humidity, accident or natural disaster are excluded under the terms of this warranty. Warranty does not cover consumables such as vacuum tubes, bulbs or batteries beyond 90 days of original purchase. See your Yorkville dealer for more details. Warranty valid only in Canada and the United States.

Garantie Illimitée

Voice: [phone] Voice: [phone]

Fax: [phone] Fax: [phone]

550 Granite Court 4625 Witmer Industrial Estate

Pickering, Ontario Niagara Falls, New York

L1W-3Y8 CANADA 14305 USA

WEB: www.yorkville.com

Niagara Falls, New York

14305 USA

Voice: [phone]

Fax: [phone]

Quality and Innovation Since 1963

Printed in Canada

Manual-Owners-YCV20-II-00-3v2 • February 2/2010
