RITUALE - Coffee machine ISOMAC - Free user manual and instructions

Product type	Manual espresso machine
Brand	ISOMAC
Model	RITUALE (also MILLENNIUM)
Dimensions (W x D x H)	290 x 425 x 420 mm
Weight	22 kg
Power supply	230 V - 50 Hz / 115 V - 60 Hz
Power	1400 W
Pump pressure	12-14 atm
Water tank capacity	3.1 L
Main materials	AISI 304 stainless steel structure, chrome-plated brass dispensing group, chrome-plated copper water/steam wands, stainless steel boiler
Coffee function	Manual dispensing via lever, single or double cup portafilter
Hot water function	Hot water wand with tap, temperature ~95°C
Steam function	Steam wand for frothing milk
Included accessories	Single cup portafilter, double cup portafilter, tamper, dosing scoop
Safety	Automatic shut-off in case of water shortage, mechanical pressure relief valve, safety microswitch
Routine maintenance	Daily cleaning of tank, filters, drip tray, steam wand; no abrasive detergents
Spare parts and repairability	Parts available from the manufacturer or its assistance centers
General information	Warranty void if instructions not followed; use only for intended purposes

Frequently Asked Questions - RITUALE ISOMAC

How to turn on the RITUALE machine?

Fill the tank with clean water, plug in the machine, press the main switch (1). The heating indicator (12) lights up. Raise the coffee lever (6) to let water flow, then lower it to fill the boiler. Wait 3 to 4 minutes for the coffee indicator (11) to light up, indicating the machine is under pressure.

How to prepare an espresso?

Ensure the machine is under pressure. Fill the portafilter with ground coffee, tamp lightly with the tamper. Insert the portafilter into the dispensing group and turn from left to right to lock it. Place one or two cups under the portafilter, then raise the coffee lever (6). Lower the lever when the desired amount is reached.

How to dispense hot water?

Check that the machine is under pressure. Place a container under the hot water wand (7). Turn the tap handle counterclockwise. Water at about 95°C flows out. Close the tap by turning clockwise once the desired amount is obtained.

How to use steam for a cappuccino?

Ensure the machine is under pressure. Fill a tall, narrow container half full with milk. Immerse the steam wand (8) about 1 cm into the milk. Open the steam tap by turning the handle counterclockwise to froth the milk. Close the tap once foam is obtained.

What to do if the machine does not turn on?

Check that the plug is properly inserted and the main switch (1) is pressed. If the machine still does not turn on, check the water tank: a safety microswitch stops the machine in case of water shortage. Fill the tank, then turn the machine off and on again.

How to clean the machine?

Before any cleaning, unplug the machine or turn off the main switch. Clean the water tank periodically and change the water frequently. Wash the filters with hot water to remove coffee residues. Clean the drip tray and grid with hot water. Wipe the steam wand to prevent blockages. Use a damp cloth for external parts, then dry.

How often should I change the water in the tank?

It is recommended to change the water in the tank daily, especially if the machine is used regularly. If the machine is used occasionally, change the water before each use to ensure fresh coffee.

What to do if steam does not come out properly?

Check that the water tank is full and the machine is under pressure. If the steam wand is clogged, clean it with a damp cloth after it has cooled. If the problem persists, consult a qualified assistance center.

How to descale the machine?

The manual does not mention a specific descaling procedure. To preserve the machine, use low-limescale water and clean the tank regularly. If needed, contact an authorized assistance center.

Where to find spare parts?

Spare parts are available from the manufacturer ISOMAC and its authorized assistance centers. For any order, contact after-sales service or visit the official website.

USER MANUAL RITUALE ISOMAC

The RITUALE/MILLENNIUM espresso coffee machine is designed and constructed with care to ensure quality, safety and reliability in time.

To be certain of exploiting its potential in the best possible way and maintaining top performance of the RITUALE/MILLENNIUM unaltered we recommend that you follow the instructions in this simple booklet very carefully to install and use the machine and perform daily maintenance correctly.

1. Parts of the machine
   1.1 Accessories
2. Characteristics and technical data
3. Safety recommendations and rules
4. Instructions for the user
   4.1 Starting the machine
   4.2 Preparation of coffee
   4.3 Distribution of hot water
   4.4 Distribution of steam
5. Recommendations and suggestions
6. Routine maintenance
7. Invalidation of the warranty

INDEX

1. Main switch
2. Power on light
3. Coffee distribution unit
4. Filter holder
5. Pressure/temperature gauge
6. Coffee lever
7. Hot water knob and nozzle

8. Steam knob and nozzle

9. Cup rack warmer

10. Drip tray with cup rack

11. Coffee light (green)
12. Heating element light (red)

1.1 Accessories

Two cup filter holder

One cup filter holder

Presser

Measure

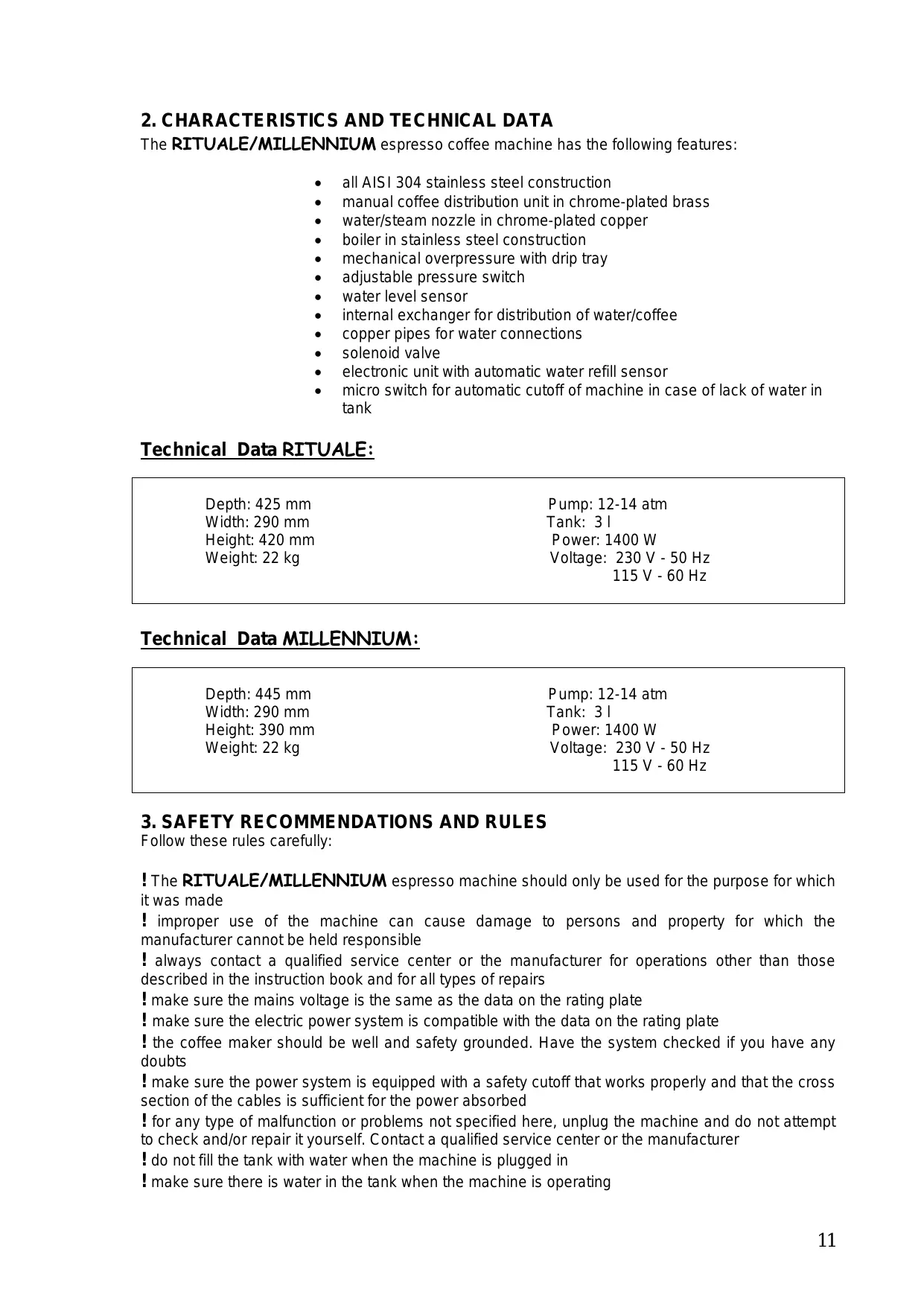

1.COMPOSANTS DE LA MACHINE

The RITUALE/MILLENNIUM espresso coffee machine has the following features:

all AISI 304 stainless steel construction
- manual coffee distribution unit in chrome-plated brass
water/steam nozzle in chrome-plated copper
- boiler in stainless steel construction
mechanical overpressure with drip tray
adjustable pressure switch
water level sensor
- internal exchanger for distribution of water/coffee
- copper pipes for water connections
- solenoid valve
- electronic unit with automatic water refill sensor
- micro switch for automatic cutoff of machine in case of lack of water in tank

Technical Data RITUALE:

Depth: 425 mm

Width: 290 mm

Height: 420 mm

Weight: 22kg

Pump: 12-14 atm

Tank: 31

Power: 1400 W

Voltage: 230V - 50Hz

115 V - 60 Hz

Technical Data MILLENNIUM:

Depth: 445 mm

Width: 290 mm

Height: 390 mm

Weight: 22kg

Pump: 12-14 atm

Tank: 31

Power: 1400 W

Voltage: 230V - 50Hz

115V-60Hz

3. SAFETY RECOMMENDATIONS AND RULES

Follow these rules carefully:

! The RITUALE/MILLENNIUM espresso machine should only be used for the purpose for which it was made
! improper use of the machine can cause damage to persons and property for which the manufacturer cannot be held responsible
! always contact a qualified service center or the manufacturer for operations other than those described in the instruction book and for all types of repairs
! make sure the mains voltage is the same as the data on the rating plate
! make sure the electric power system is compatible with the data on the rating plate
! the coffee maker should be well and safety grounded. Have the system checked if you have any doubts
! make sure the power system is equipped with a safety cutoff that works properly and that the cross section of the cables is sufficient for the power absorbed
! for any type of malfunction or problems not specified here, unplug the machine and do not attempt to check and/or repair it yourself. Contact a qualified service center or the manufacturer
I do not fill the tank with water when the machine is plugged in
! make sure there is water in the tank when the machine is operating

I never place your hands or other parts of the body in the path of the water/steam nozzle. Hot water and steam can cause serious burns
I never place your hands or other parts of the body or any other object inside the machine when it is plugged in
I never touch the machine with wet hands or feet
I never touch the hot parts of the machine (bottom of coffee distributor and water/steam nozzles)
! before performing any routine maintenance make sure the machine is unplugged, without pulling the power cable, or that the main circuit breaker is off
! if the power cable should be damaged and have to be replaced, order a new cable from the manufacturer and/or its service center
I never immerse the coffee machine in any type of liquid
! do not use detergents or abrasive substances to clean the machine
I do not leave the machine exposed to atmospheric agents
I do not leave the machine within reach of children or people who are not capable of using it
I keep the coffee maker away from any heat sources

4. INSTRUCTIONS FOR THE USER

4.1 Starting the machine

To start the RITUALE/MILLENNIUM espresso coffee maker, follow the instructions below:

• open the external packing and take the machine out. Inspect the machine to ascertain that it is intact and in good condition. Check for the presence of all the accessories supplied with the machine (see paragraph 1.1)
• position the machine on a flat surface
• remove the cover and take out the water tank (located inside the machine) and rinse it
• fill the container with clean water, return it to its housing and insert the silicon tubes. Close the cover on the machine
• plug in the machine
• press the main circuit breaker (1). The main power ON light (2) and the heating element light (12) will go on

Perform the following operations every time you switch the machine on and every time you draw steam:

• push the coffee lever (6) up so water comes out of the bottom of the coffee distribution unit (3)
• pull down the coffee lever (6). The boiler will automatically fill with water
• wait about 3-4 minutes for the machine to be pressurized. The heating element light (12) goes off and the coffee light (11) goes on

At this point the RITUALE/MILLENNIUM coffee machine is ready for use.

If the water in the tank is used up, a micro switch located under the tank plate will switch the machine off automatically.

To start the machine again proceed as follows:

• switch off the machine with the main circuit breaker (1)
• unplug it
  fill the tank with water
• plug in the power cable
• switch on the machine with the main circuit breaker (1). The power ON light (2) goes on
• push the coffee lever (6) up so water comes out of the bottom of the coffee distribution unit (3)

• pull down the coffee lever (6). The boiler will automatically fill with water

• wait about 3-4 minutes for the machine to be pressurized. The heating element light (12) goes off and the coffee light (11) goes on

4.2 Preparation of coffee

! Make sure the tank is always full of water

• make sure the machine is pressurized (see paragraph 4.1)
• fill a one cup filter holder (4) if you want one cup of coffee or a two cup filter holder if you want two cups at the same time, and press the coffee slightly with the presser
• fit the filter holder (4) in the coffee distribution unit (3) and twist from left to right to block it in place
• place one or two cups under the filter holder (4)
• push the coffee lever (6) up. Coffee will come out the bottom of the filter holder (4)
• lower the lever (6) when you have enough coffee
• if you want to make more coffee remove the filter holder (4) by turning it from right to left and empty out the used grounds. Repeat the above operations

4.3 Distribution of hot water

! Always make sure the tank is full of water

I never place your hands or other parts of the body in the path of the water/steam nozzle. Hot water and steam can cause serious burns

make sure the machine is pressurized (see paragraph 4.1)
- place a container under the hot water nozzle (7)
- turn the hot water tap knob (7) counter-clockwise . Hot water at about 95^ C will come out of the bottom part of the steam nozzle (7)
close the hot water tap (7) when you have enough hot water by turning the knob clockwise

At this point the boiler will recharge itself automatically. If this operation should need more than 90 seconds, the heating element will automatically disconnect itself and the heating element light (12) and the coffee light (11) will go off

• switch off the machine with the main circuit breaker (1)
• switch the machine on again with the main switch (1). The power ON light (2) and heating element light (12) will be lit
  the boiler will refill automatically
• wait about 3-4 minutes for the machine to be pressurized. The heating element light (12) goes off and the coffee light (11) goes on

4.4 Distribution of steam

! Always make sure the tank is full of water

I never place your hands or other parts of the body in the path of the water/steam nozzle. Hot water and steam can cause serious burns

make sure the machine is pressurized (see paragraph 4.1)
- place a container under the steam nozzle (8)
- turn the steam tap knob (8) counter-clockwise U. Steam will come out of the bottom part of the steam nozzle (8)
turn the steam tap (8) clockwise

5. RECOMMENDATIONS AND SUGGESTIONS

To enjoy excellent coffee:

o purchase a good brand of coffee in beans
o keep the coffee in beans in a dry place

O grind the coffee beans fresh when you make coffee
measure and press the ground coffee slightly to pack it more uniformly

For boiling hot coffee:

o leave the filter holder with the empty filter in the coffee distribution unit at all times
o rinse the filter holder and filter with boiling hot water by pressing the coffee switch
o use the same boiling water to pre-heat the cups

For a delicious cappuccino:

o use a tall narrow milk pitcher half full
immense the steam/hot water nozzle 1 cm into the milk
open the tap with the knob
the milk will be covered with a creamy froth

If you just want to heat the milk:

immense the steam/hot water nozzle all the way into the milk
open the steam/hot water tap with the knob
close the tap when the milk is hot enough

6. ROUTINE MAINTENANCE

! Before performing any routine maintenance make sure the machine is unplugged, without pulling the power cable, or that the main circuit breaker is off

! do not use detergents or abrasive substances to clean the machine

To ensure good upkeep of the RITUALE/MILLENNIUM machine we recommend cleaning it every day:

clean the water tank regularly
change the water in the tank frequently if the machine is only used occasionally
o remove the residues of coffee by soaking the filters in hot water
clean the drip tray and cup rack with hot water
clean the steam/hot water nozzle to prevent obstruction of the holes in the end
clean the structure and all the external parts of the machine with a damp cloth. Dry with a dry cloth to remove any halo and shine the machine
clean the funnel (bottom part of the coffee distribution unit) to remove all residues of coffee with a damp cloth and run water through it by pressing the coffee switch

7. INVALIDATION OF THE WARRANTY

The warranty will be invalidated and the manufacturer will not accept liability for any damage due to failure to follow the instructions in this manual.

For operations other than those described contact a qualified service center or the manufacturer.

Use of the machine in any other way than as contemplated in the instructions will relieve ISOMAC and all sales outlets of any liability for damage to persons or property.

ISOMAC assures the user of full collaboration for any clarification necessary.
