Product type	Espresso coffee machine
Brand	Isomac
Model	Venus
Dimensions (L x D x H)	230 x 330 x 400 mm
Weight	13 kg
Power supply	230V-50Hz or 115V-60Hz
Power	1200 W
Pump pressure	12-14 atm
Water tank capacity	3 L
Materials	AISI 304 stainless steel body, chrome-plated brass brewing group, chrome-plated copper water/steam wand, brass boiler
Main functions	Coffee dispensing, hot water, steam
Included accessories	Single shot filter holder, double shot filter holder, tamper, dosing scoop
Safety	Grounding required, automatic shut-off via main switch, burn protection (do not touch hot parts)
Maintenance and cleaning	Daily cleaning of filters, tank, drip tray, steam wand and body with a damp cloth, do not use abrasive detergents
Spare parts and repairability	Contact a qualified service center or the manufacturer for any repair or replacement of parts
Warranty	Warranty valid subject to compliance with the manual instructions

Frequently Asked Questions - Venus ISOMAC

How to turn on the Isomac Venus machine?

Fill the water tank, plug in the machine, press the main switch (1). Wait for the coffee indicator light (13) to go off (about 3-4 minutes). Before first use, run hot water through the steam wand to fill the boiler.

How to prepare coffee with this machine?

Make sure the machine is pressurized. Fill the filter holder with ground coffee, tamp lightly, insert it into the brewing group. Place a cup under the filter holder and press the coffee switch (12). Stop when the desired amount is obtained.

How to use the steam function?

Ensure the tank is full. Place a container under the steam wand. Press the steam switch (14) and wait 30 seconds. Immerse the wand into the liquid to be heated, then turn the knob (8) counterclockwise to release steam. Close after use and deactivate the steam switch.

How to dispense hot water?

Place a container under the water/steam wand. Turn the knob (8) counterclockwise, then press the hot water switch (6). Water at about 95°C comes out. Stop by pressing the switch again and close the valve.

What are the essential safety precautions?

Do not touch hot parts (brewing group, steam wand). Never immerse the machine in water. Use only on a grounded installation. Unplug before cleaning. Keep the machine out of reach of children.

How to clean the machine after use?

Clean the water tank, filters, drip tray and steam wand daily. Wipe the body with a damp cloth then dry. Do not use abrasive products. For the brewing group, clean the shower with a damp cloth and run water.

Why is coffee not coming out?

Check that the water tank is full and the machine is pressurized (coffee indicator light off). Make sure the filter holder is properly inserted and the ground coffee is not packed too tightly. If the problem persists, contact a service center.

How to get a perfect cappuccino?

Use a tall narrow container half-filled with cold milk. Immerse the steam wand 1 cm below the surface. Open the steam valve and froth until creamy foam forms. To heat milk without foam, immerse the wand to the bottom.

What to do in case of breakdown or malfunction?

Unplug the machine and do not attempt any repair yourself. Contact a qualified service center or the manufacturer Isomac. The warranty is void if instructions are not followed.

What accessories are provided with the machine?

The machine is supplied with a single shot filter holder, a double shot filter holder, a tamper, and a dosing scoop. Other accessories can be purchased separately from the manufacturer.

USER MANUAL Venus ISOMAC

The VENUSespresso coffee machine is designed and constructed with care to ensure quality, safety and reliability in time.

To be certain of exploiting its potential in the best possible way and maintaining top performance of the VENUSunaltered we recommend that you follow the instructions in this simple booklet very carefully to install and use the machine and perform daily maintenance correctly.

F

1. Parts of the machine
   1.1 Accessories

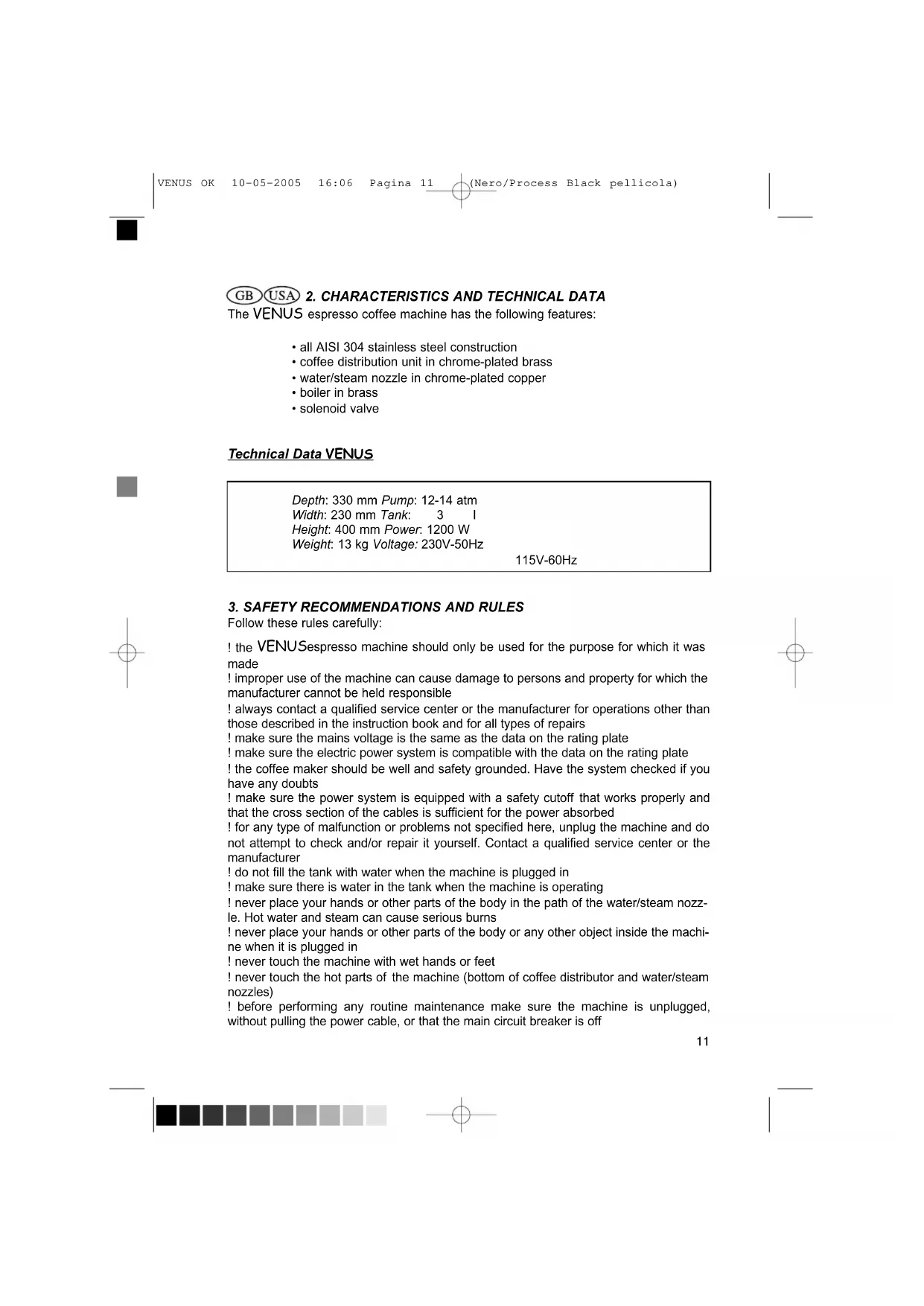

2. Characteristics and technical data
3. Safety recommendations and rules
4. Instructions for the user
   4.1 Starting the machine
   4.2 Preparation of coffee
   4.3 Distribution of hot water
   4.4 Distribution of steam

5. Recommendations and suggestions

6. Routine maintenance

7. nvalidation of the warranty

INDEX

1 Main switch
2 Power on light
3 Coffee distribution unit
4 Filter holder
5 Coffee/pump pressure gauge
6 Hot water switch
7 Hot water light
8 Hot water/steam knob
9 Hot water/stema nozzle

10 Cup rack warmer
11 Drip tray with cup rack
12 Coffee switch
13 Coffee light
14 Steam switch
15 Steam light

1.1 Accessories

Two cup filter holder

One cup filter

Presser

Measure

1.COMPOSANTSDELA MACHINE

The VENUS espresso coffee machine has the following features:

• all AISI 304 stainless steel construction
• coffee distribution unit in chrome-plated brass
• water/steam nozzle in chrome-plated copper
• boiler in brass
• solenoid valve

Technical Data VENUS

Depth: 330 mm Pump: 12-14 atm

Width: 230 mm Tank: 3 l

Height: 400 mm Power: 1200 W

Weight: 13kg Voltage: 230V - 50Hz

115V-60Hz

3. SAFETY RECOMMENDATIONS AND RULES

Follow these rules carefully:

! the VENUSespresso machine should only be used for the purpose for which it was made
! improper use of the machine can cause damage to persons and property for which the manufacturer cannot be held responsible
! always contact a qualified service center or the manufacturer for operations other than those described in the instruction book and for all types of repairs
I make sure the mains voltage is the same as the data on the rating plate.
! make sure the electric power system is compatible with the data on the rating plate
! the coffee maker should be well and safety grounded. Have the system checked if you have any doubts
I make sure the power system is equipped with a safety cutoff that works properly and that the cross section of the cables is sufficient for the power absorbed
! for any type of malfunction or problems not specified here, unplug the machine and do not attempt to check and/or repair it yourself. Contact a qualified service center or the manufacturer
I do not fill the tank with water when the machine is plugged in.
! make sure there is water in the tank when the machine is operating
I never place your hands or other parts of the body in the path of the water/steam nozzle. Hot water and steam can cause serious burns
I never place your hands or other parts of the body or any other object inside the machine when it is plugged in
I never touch the machine with wet hands or feet.
I never touch the hot parts of the machine (bottom of coffee distributor and water/steam nozzles)
! before performing any routine maintenance make sure the machine is unplugged, without pulling the power cable, or that the main circuit breaker is off

! if the power cable should be damaged and have to be replaced, order a new cable from the manufacturer and/or its service center

I never immerse the coffee machine in any type of liquid
! do not use detergents or abrasive substances to clean the machine
! do not leave the machine exposed to atmospheric agents
I do not leave the machine within reach of children or people who are not capable of using it.
! keep the coffee maker away from any heat sources

4. INSTRUCTIONS FOR THE USER

4.1 Starting the machine

To start the VENUS espresso coffee maker, follow the instructions below:

• open the external packing and take the machine out. Inspect the machine to ascertain that it is intact and in good condition. Check for the presence of all the accessories supplied with the machine (see paragraph 1.1)
• position the machine on a flat surface
• remove the cover and take out the water tank (located inside the machine) and rinse it
• fill the container with clean water, return it to its housing and insert the silicon tubes. Close the cover on the machine
• plug in the machine
• press the main circuit breaker (1). The main power ON light (2) and the coffee light (13) will go on

Perform the following operations every time you switch the machine on and every time you draw steam:

• place a container under the water/steam nozzle (9)
• turn the knob on the water/steam tap (8) counter-clockwise
• press the hot water switch (6). Water will come out of the water/steam nozzle (9)
• press the hot water switch again (6)
• turn the water/steam knob (8) clockwise to close the tap
• wait about 3-4 minutes until the machine is pressurized and coffee light (13) goes off

At this point the VENUS coffee machine is ready for use.

4.2 Preparation of coffee

! Make sure the tank is always full of water

make sure the machine is pressurized (see paragraph 4.1)
- fill a one cup filter holder (4) if you want one cup of coffee or a two cup filter holder if you want two cups at the same time, and press the coffee slightly with the presser
- fit the filter holder (4) in the coffee distribution unit (3) and twist from left to right to block it in place
- place one or two cups under the filter holder (4)
- press the coffee switch (12). Coffee will come out the bottom of the filter holder (4)
- press the coffee switch again (12) when you have enough coffee
- if you want to make more coffee remove the filter holder (4) by turning it from right to left and empty out the used grounds. Repeat the above operations

4.3 Distribution of hot water

! Always make sure the tank is full of water

I never place your hands or other parts of the body in the path of the water/steam nozzle. Hot water and steam can cause serious burns

• make sure the machine is pressurized (see paragraph 4.1)
• place a container under the steam/ hot water nozzle (9)
• turn the steam/hot water tap knob (8) counter-clockwise
• press the hot water switch (6). Hot water at about 95^ will come out of the bottom of the steam/hot water nozzle (9)
• turn the steam/hot water nozzle (8) clockwise
• press the hot water switch (6) again when you have enough hot water

4.4 Distribution of steam

! Always make sure the tank is full of water

I never place your hands or other parts of the body in the path of the water/steam nozzle. Hot water and steam can cause serious burns

make sure the machine is pressurized (see paragraph 4.1)
- place a container under the steam/ hot water nozzle (9)
- press the steam switch (14). The steam light (15) and the coffee light (13) will both light up together
- wait about 30 seconds
- immerse the water/steam nozzle (9) in the liquid to be heated
- turn the knob on the steam/hot water tap (8) counter-clockwise
- steam will come out of the bottom of the steam/hot water nozzle (9)
heat the liquid with the steam
- turn the knob on the steam/hot water tap (8) clockwise to stop the steam
- press the steam switch again (14)

! Do not forget to turn the steam switch (14) off after using the steam function. If it does not work this will be signaled by the steam light that stays lit (15)

Repeat the operations indicated in paragraph 4.1 to refill the water tank:

• place a container under the water/steam nozzle (9)
• turn the knob on the water/steam tap (8) counter-clockwise
• press the hot water switch (6). Water will come out of the water/steam nozzle (9)
• press the hot water switch again (6)
• turn the water/steam knob (8) clockwise to close the tap
• wait about 3-4 minutes until the machine is pressurized and the coffee light (13) goes off

5. RECOMMENDATIONS AND SUGGESTIONS

To enjoy excellent coffee:

• purchase a good brand of coffee in beans
  Okeep the coffee in beans in a dry place
  Grind the coffee beans fresh when you make coffee
  measure and press the ground coffee slightly to pack it more uniformly

For boiling hot coffee:

• leave the filter holder with the empty filter in the coffee distribution unit at all times
• rinse the filter holder and filter with boiling hot water by pressing the coffee switch

ouse the same boiling water to pre-heat the cups

For a delicious cappuccino:

ouse a tall narrow milk pitcher half full

immmerse the steam/hot water nozzle 1 cm into the milk

open the tap with the knob

the milk will be covered with a creamy froth

If you just want to heat the milk:

immense the steam/hot water nozzle all the way into the milk

open the steam/hot water tap with the knob

oclose the tap when the milk is hot enough

6. ROUTINE MAINTENANCE

! Before performing any routine maintenance make sure the machine is unplugged, without pulling the power cable, or that the main circuit breaker is off

I do not use detergents or abrasive substances to clean the machine

To ensure good upkeep of the VENUSmachine we recommend cleaning it every day:

clean the water tank regularly

change the water in the tank frequently if the machine is only used occasionally

remove the residues of coffee by soaking the filters in hot water

clean the drip tray and cup rack with hot water

clean the steam/hot water nozzle to prevent obstruction of the holes in the end

clean the structure and all the external parts of the machine with a damp cloth. Dry with a dry cloth to remove any halo and shine the machine

clean the funnel (bottom part of the coffee distribution unit) to remove all residues

of coffee with a damp cloth and run water through it by pressing the coffee switch

7. INVALIDATION OF THE WARRANTY

The warranty will be invalidated and the manufacturer will not accept liability for any damage due to failure to follow the instructions in this manual.

For operations other than those described contact a qualified service center or the manufacturer.

Use of the machine in any other way than as contemplated in the instructions will relieve ISOMAC and all sales outlets of any liability for damage to persons or property.

ISOMAC assures the user of full collaboration for any clarification necessary.
