USER MANUAL ELITE ES200P YORKVILLE

IMPORTANT SAFETY INSTRUCTIONS

CAUTION AVIS

MISK OF ELECTRIC SHOCK DO NOT OPEN

FISGUDEGHCGELECTRIGUE NE PASDUWIN

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

INSTRUCTIONS RELATIVES AU RISQUE DE FEU, CHOC ÉLECTRIQUE, OU BLESSURES AUX PERSONNES.

AVIS:

AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE, N'ENLEVEZ PAS LE COUVERT (OU LE PANNEAU ARRIERE). NE CONTIENT AUCUNE PIECE REPARABLE PAR L'UTILISATEUR.

CONSULTEZ UN TECHNICIEN QUALIFIE POUR L'ENTRETIENT.

Read Instructions:

The Owner's Manual should be read and understood before operation of your unit. Please, save these instructions for future reference.

Packaging:

Keep the box and packaging materials, in case the unit needs to be returned for service.

Warning:

When using electric products, basic precautions should always be followed, including the following:

Power Sources:

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated.

Hazards:

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer.

The apparatus should not be exposed to dripping or splashing water; no objects filled with liquids should be placed on the apparatus.

Terminals marked with the "lightning bolt" are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Power Cord:

The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT OPERATE THE UNIT.

Service:

The unit should be serviced only by qualified service personnel.

The ES200P powered subwoofer incorporates a 200 watt amplifier. It can be used to enhance the bottom end (bass) of a full-range speaker system and increase the overall output of the system. The inputs to the subwoofer can accept a single source either from a speaker/amplifier output or a line level output from a pre-amp or mixer.

The ES200P also has a built in limiter and thermal protection that make this product smooth and robust at high power levels. The internal limiter and the internal protection are factory set to maximize performance.

1. Power Switch

2. Volume

Set the volume control to a desired level as music is being played through the unit.

A setting of 0 dB on the SUBWOOFER LEVEL control is the correct starting point when setting up a sound system. From there the sound can be adjusted for best sound. The 0 dB mark refers to the setting that will give full power when the line input is used and the input signal is at a level of +4 dBV. This also is the setting to give a sensitivity of 2.83 Vrms (1 watt 8-ohms) for 100 dB SPL when set for speaker level input. With a typical full range companion speaker this will give flat response. In either line or speaker operation it will usually be desirable to set the control at +3 to +6 to give some bass boost at low power levels. At levels approaching full power the built-in limiter will automatically reduce the gain to prevent over powering the subwoofer. Operation with settings significantly above +12 may clip the circuitry in the subwoofer reducing the dynamics of the music. Setting the subwoofer gain above +12 is only appropriate at low operating levels.

3. Input Level Switch

Speaker

Normally, the input to the subwoofer is from a full-range speaker cabinet, or amplifier output. (See figure 2.0)

Line

In this case, the input to the subwoofer is from a line level source such as a mixer.

4. Ground Lift

If a hum, or buzz is detected from the subwoofer, try setting the switch to the GND LIFT position (OUT position). The switch should otherwise be left in the GND (IN position).

5. Input Jacks

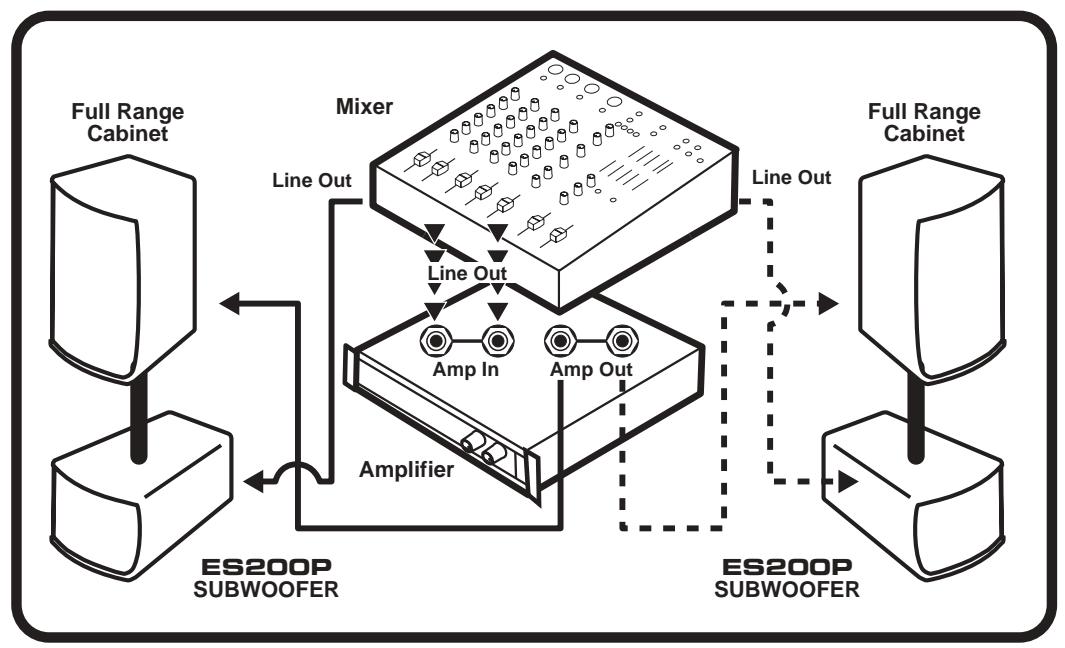

The two inputs are balanced 1/4-inch parallel jacks and can be connected as shown in figures 2 and 3, on the following page. Please note that there is no effect to the performance of the full-range speaker if it is used to supply a music signal to the ES200P.

6. Power ON LED

MULTIPLE ES200P's

As well as accommodating the full-range speakers, the parallel input jacks allow many ES200P's to be connected in a string. There is no practical limit to the number of ES200P's that may be connected together.

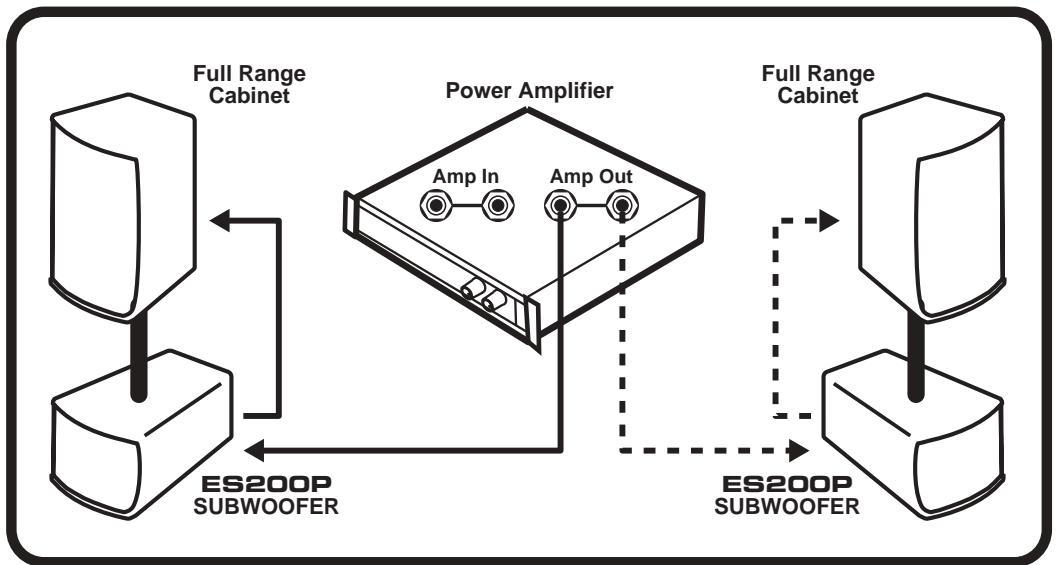

Figure 2

USER NOTE

For normal operation connect the ES200P just like any ordinary speaker along with the full-range speakers. The input level switch should be set to speaker. If the audio source does not have a U ground (a ground pin on the AC cord), the ground lift switch must be set to gnd. The ES200P may be wired before or after the full-range speakers. The ES200P does not alter the signal to the full-range speakers. The ES200P will not draw any power from the amplifier driving the full-range speakers. Please note that an external crossover is not necessary.

élite

ES200P

Note: The es200p built-in stand mounting adapter can be used with Yorkville SW-Teletube accessory to support our E160 cabinets. The support tube can be adjusted up to it's full 5^4'' extension safely as long as the es200p is not inclined more than 10^ (10 degrees).

WARNING: Larger/heavier cabinets should not be used with the stand mount!

Specifications

Power Requirements

North American: 117VAC 60 Hz

260 Watts Maximum

European: 230VAC 50 Hz

260 Watts Maximum

Power Amplifier Power (internal):

200 Watts

Frequency response: 50 ~Hz to 110 ~Hz

Input Impedance: 80 kohms

Speaker components: 10" 2-ohm, 200 Watts

Input Connections:

Tip: Positive

Ring(Shaft): Negative

Grounding:

The sleeves of the input are not grounded except when the input ground switch is set to GND. Grounding is done through a 10-ohm protection device in order to prevent damage due to miswiring.

Limiting:

Clipping, average voice coil current, thermal

Maximum SPL:

125 dB (50 Hz to 110 Hz)

Weight:

54 lb. (24.5 kg)

Dimensions:

(WxDxH): 17.5 x 27 x 14 inches

44.5 x 68.6 x 35.6 cm
