USER MANUAL CDM-8900 AUDIOVOX

TX9SCMP-121 144 BEA TE 204.128 32 PM MO A 1 —5— WELCOME Thank you for choosing the up-to-date CDM-8900, our new model, developed by top researchers to support the CDMA2000 1X system through Qualcomm-manufactured MSM6050 chips and CDMA technologies. This product allows for high speed communication services, such as web browsing, data & fax services, and a GUI animation menu. Among its many advanced features, the T9 input mode makes it much easier to enter letters. In addition, the VR (Voice Recognition) makes it more user friendly, with proven technologies including: = Full graphic display of 9 text input line and 1 icon line with variable font size. = Easy to dial through the VR feature. = Easy to enter letters through the T9 text input mode. = Enhanced for web browsing & data services (i.e.; wireless internet access, wireless fax send/receive, Openwave, UP browser) = GUI & Animation display compliant with CDMA2000 1X. = Full graphic main display - 65K color TFT. # Mobile Camera.(VGA 33Frames) # Navigation key and 25 keys aligned for more convenience. = Sophisticated features of speaker phone, and voice recognition. # Additional services of text messaging and Web browsing on top of authentication, call forwarding, call transfer, call waiting. IMPORTANT INFORMATION This CDM-8900 user guide contains very important information about how to handle and use the product. So please read this manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, which are related with the unauthorized use of components.

ERASING AN APPLICATION

DEFAULT CALLBACK. ALERT EDIT Si DIRECT VIEW. ENTRY MODE

“Licensed by QUALCOMM Incorporated under one or more of the following Patents : U.S.Patent No. 401,307 US-Patent No. 5,056,109 U.S.Patent No. 5,098,204 U.S. Patent No. 5,101,801 US. Patent No. 5,103489 US. Patent No. 5,107,225 U.S.Patent No. 5,109,390." (4)

BEFORE USING YOUR PHONE This chapter provides important information about using the CDM-8900 including:

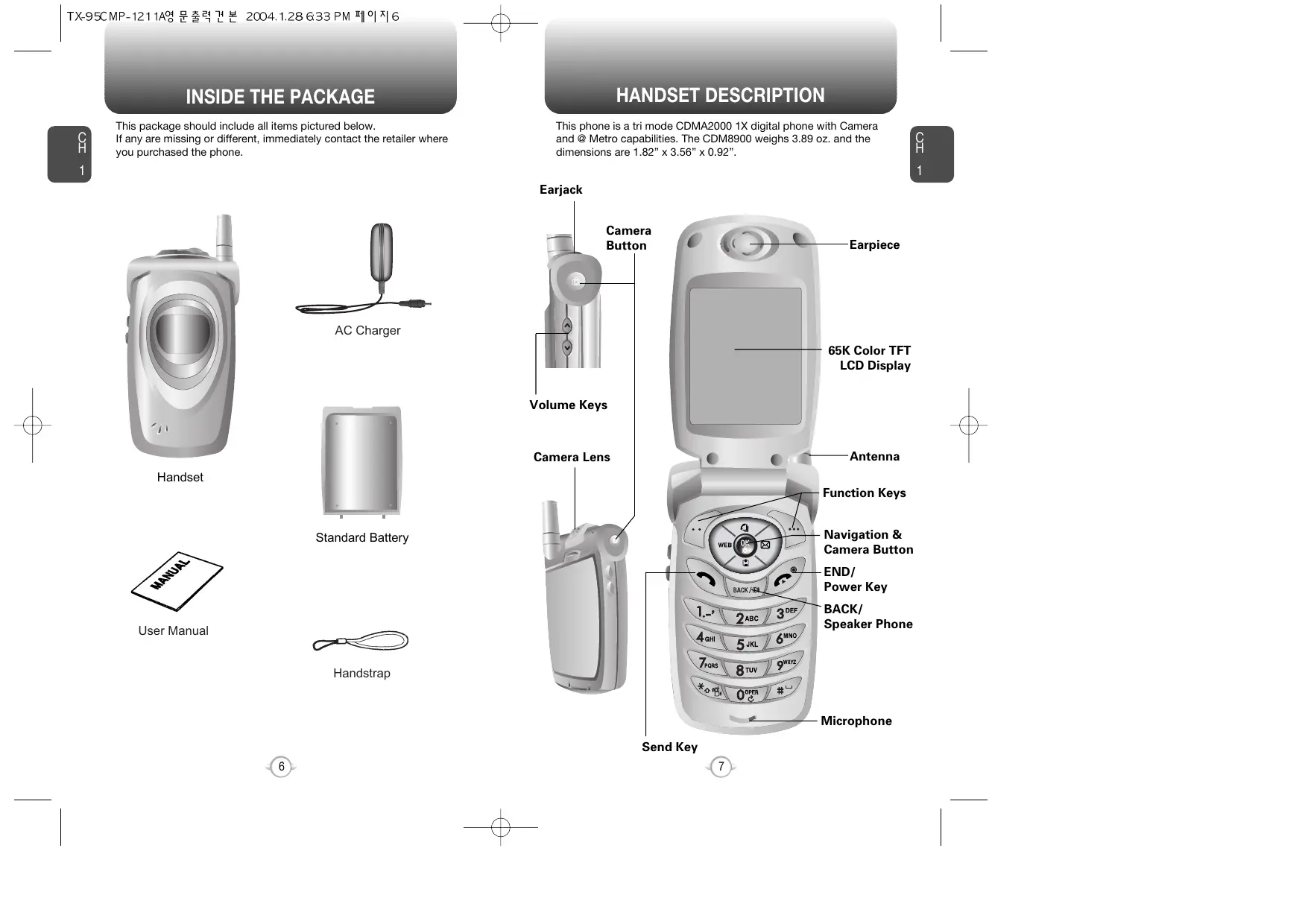

This package should include all items pictured below. This phone is a tri mode CDMA2000 1X digital phone with Camera C If any are missing or different, immediately contact the retailer where and @ Metro capabilities. The CDM8900 weighs 3.89 oz. and the H you purchased the phone. dimensions are 1.82” x 3.56” x 0.92”. Earjack Camera = Ü Button AC Charger 65K Color TFT LCD Display Volume Keys Tin Camera Lens © -———Antenna Handset n Keys Standard Battery E 2 Navigation & Camera Button 7 L END, = Power Key BACK/ User Manual Speaker Phone Handstrap #\e ? Microphone Send Key

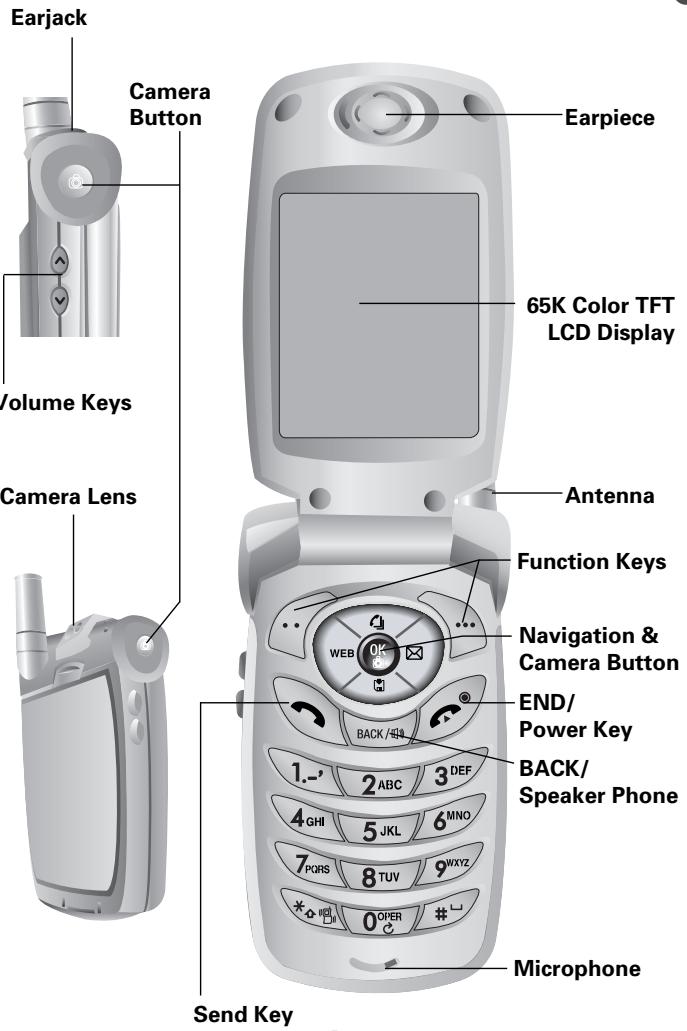

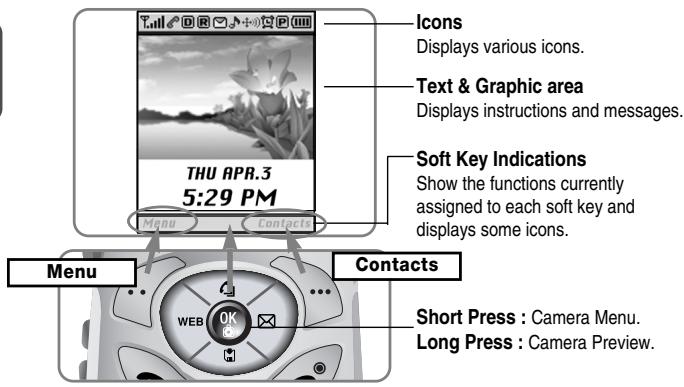

HANDSET DESCRIPTION Icons Displays various icons. 1 — Text & Graphic area [— Soft Key Indications Show the functions currently assigned to each soft key and displays some icons. | Short Press : Camera Menu. Long Press : Camera Preview. In Idle Mode - Press up to access the Recent Calls Logs, down to access @ Metro, right SAC for Messaging and left for Mobile Web. Œ) Messaghg| de the menu - Within a menu, use to scroll through menu options, or to select a function displayed on the screen. Press to make or receive a call. Press and hold to turn on VR mode. Press to turn the phone on, to terminate a call or to return to the initial page. Press and hold to turn the phone off. (Soft 1) Press to access the menu or function displayed on bottom line. (Soft 2) Press to access your phone book. Press to access internet service. Press to clear a digit from the display, to return to the previous page, or to enable speakerphone mode. EE NIEANE Press and hold to enter etiquette mode. RI# Press and hold to enter lock mode. (8) Displays instructions and messages. HANDSET DESCRIPTION [) DISPLAYAINDICAI EF ox Ë et se + pal r ae Signal Strength - Current signal strength - the more lines, the stronger the signal. Roaming 1 Phone is out of home area. Service Indicator & Indicates call is in progress, & indicates the phone cannot receive à signal from the system. Message New text or voice message. Digital mode Phone is operating in digital mode. Battery - Battery charging level - the more blocks, the stronger the charge. Mute Phone is mute during a call. Silent Appears when Silent is selected as the ring mode. Emergency Call À Blinks when an emergency call is in progress. VA Voice Memo New voice memo has been made. Answering machine Phone is in answering machine mode. Etiquette Phone will vibrate when call is received. Schedule Appears when either an event or an alarm is set. Ring Mode Appears when a ringer is set as a ringer mode. Dormant Indicates the phone is in disconnection condition while on “Server Connection”. Fax Only Receives a fax call as a voice call. Data Only Receives an async. call as a voice call. GPS Icon Indicates the Location Service of your phone is disabled/enabled.

Phone is in the 1x service area. 1 Analog Mode POWER CONNECTION Phone is operating in analog mode. 1 Plug the AC charger into a (2) BATTERY.INSTALLAI Sa standard outlet. & © Place the battery on the back of the handset and slide into place. @ Push the battery down until it locks into place. + These times are for a new battery. Talking and Standby times may decrease over time. + Full charge the battery before using - it is not charged when purchased. +_Itis more efficient to charge the battery with the phone tumed of.

The operating time is subject to your handset usage and configuration. Make sure the battery is securely placed to avoid slipping off during a cal. Battery DCS PCS AMPS BATTERY.REMOW & © Pull down the release latch, lift up the battery and @ remove the battery from the BATTERY STANDBY TIMES handset. a STD 1000 mAh 190m 200m 80m EXT 1700 mAh 310m 350m 130m The operating time is subject to your handset usage and configuration. Battery AMPS CDMA STD 1000 mAh 20hour 140hour EXT 1700 mAh 35hour 240hour These times are for a new battery. Talking and Standby times may decrease over time. If the battery is not correct placed in the compartment, the handset will not turn on and/or the battery may detach during use. + TO

[Dos Only use the battery and charger approved by the manufacturer. Only use the battery for its original purpose. Try to keep batteries in a temperature between 41°F (°C ) and 95°F (35°C). If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using. Completely drain the battery before recharging. lt may take one to four days to completely drain. Store the discharged battery in a cool, dark, and dry place. Purchase a new battery when its operating time gradually decreases after fully charging. Properly dispose of the battery according to local laws. (D) DONIEN] Don't attempt to disassemble the battery — it is a sealed unit with no serviceable parts. Don't accidentally short circuit the battery by carrying it in your pocket or purse with other metallic objects such as coins, clips and pens. This may critically damage the battery. Don't leave the battery in hot or cold temps. Otherwise, it could significantly reduce the capacity and lifetime of the battery. Don't dispose of the battery into a fire. BASIC OPERATION This chapter addresses and explains the basic features of your phone including mæ TURNING THE PHONE ON / OFF m ACCESSING THE MENU m MENU SUMMARY m BASIC FUNCTIONS = DURING À CALL m MAKING AN EMERGENCY CALL

& Press ©, until your “Power On” logo appears and the tone sounds. +_ If “Password” appears on the display enter your 4-digit password to unlock your phone. + The default password is the last 4 digits of your phone number.

() TURNING THE/PHONE1O

& Press and hold ff. + _ immediately change or recharge the battery when “Low Battery Warning Power Off” appears on the display. Memory may possibl} be damaged if the phone turns off due to the battery completely draining. + Tum the phone off before removing or replacing the battery. {the phone is on, unsaved data may be lost.

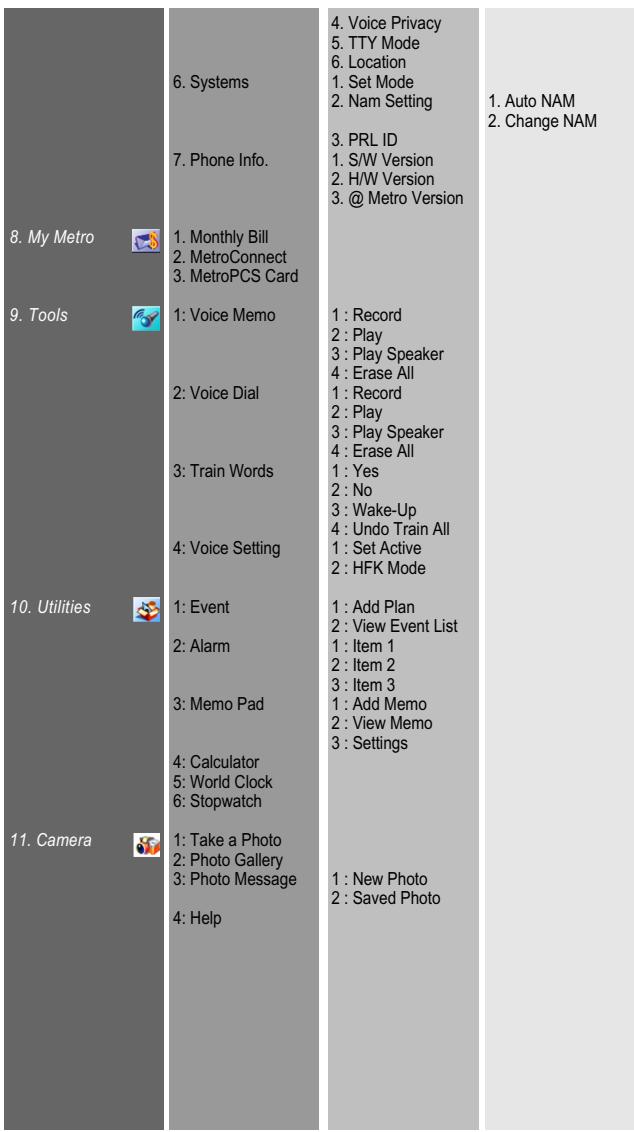

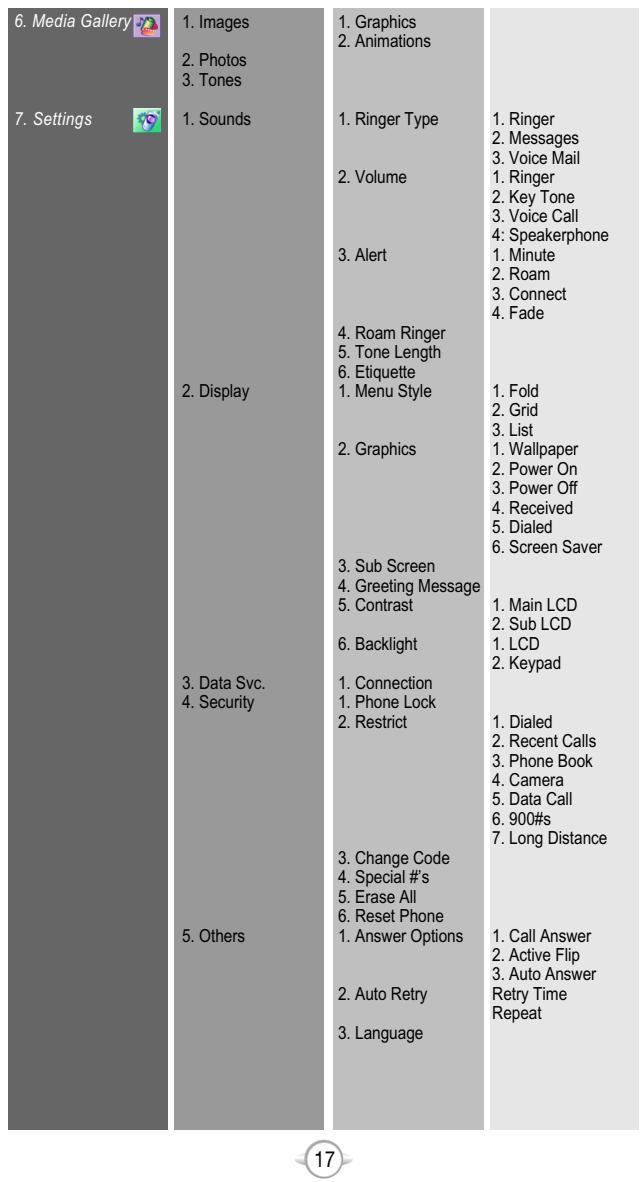

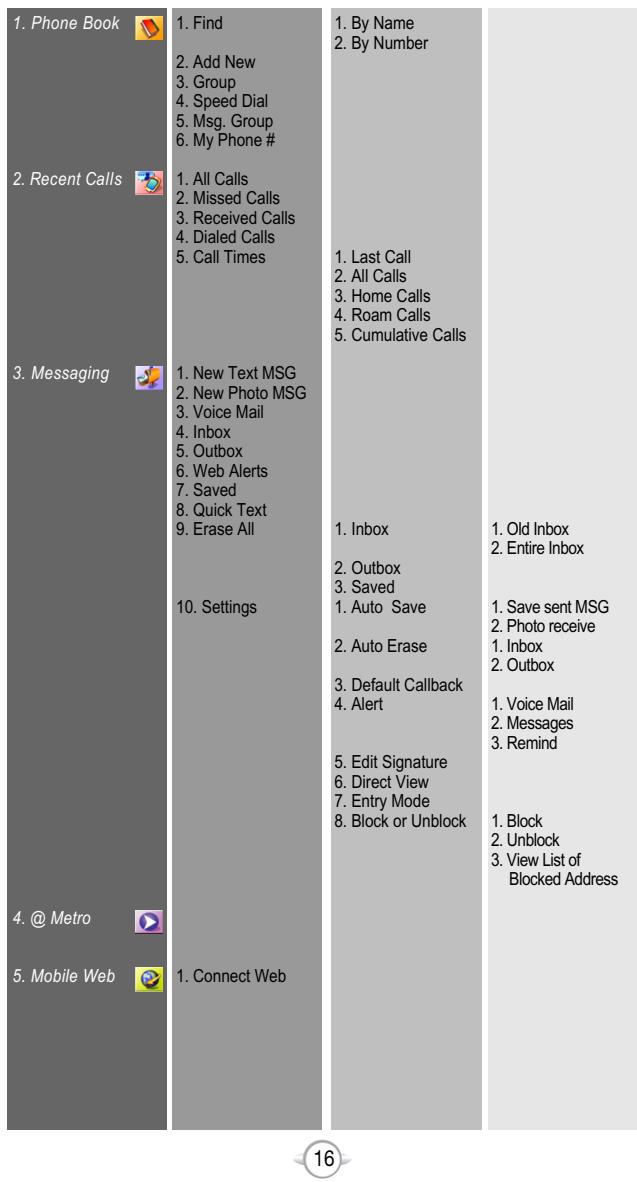

Your phone can be customized via the menu. Each function can be accessed by scrolling with the Navigation Key or by pressing the number that corresponds with the menu item. A Phone Book 5j Recent Calls F4 Messaging (1 e Metro @ Mobile Web Media Gallery Sans À mere (GG Tools (43 Utties |éfis Camera & To access the menu in idle mode,

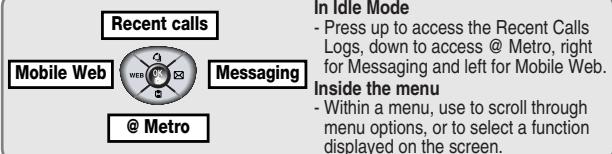

press (f [MENU]. Press the Navigation Key up and down to scroll through the menu. To return to the previous page, press &:9[BACK]. To exit the current menu and return to the idle mode, press ff). Press © [OK] to enter a function when its main page is displayed. Hotkey In idle mode, move the Navigation Key as follows to access these functions. + Upward movement - Recent Call Logs + Downward movement - @ Metro + Rightward movement - Messaging + _Leftward movement - Mobile Web

BASIC FUNCTIONS À) MAKING'AIGAEEN] Enter a phone number. To modify the phone number you have entered : + To erase one digit at a time press ta . + To erase the entire number, press and hold 2) Press Q The indicator, @, appears on the display. + If "CAL FAILED” appears on the display or the line is busy, press for À. + lfyou activate the “AUTO RETRY" function, the phone will automatically retry for the number of times you have selected. (refer to page 68). + Ifthe number you re calling is stored in the phone book, the name and number will appear when the call is placed. + There is another way to make a call through the VR mode, which is called “VAD (Voice Activated Dialingl”. Please refer to page 90 (Voice Service) for details on making calls using VAD. To end a call, press F7. Please refer to page 28 for more details about storing a phone number. Lo)

# 2004.1.28 633 PM #0] %| 20 BASIC FUNCTIONS SPEAKERPHOI GG To activate the speaker phone when the phone is in idle mode, answering mode, and calling mode press and hold tx. @ The phone returns to normal (Speaker phone off) after ending or call or when the phone is turned off and back on. [_) PAUSE FEATURI You can dial or save a phone number with pauses for use in the automated systems where you need to enter a credit card number, a social security number, and so on. This feature will be convenient when you are linked to ARS (Advanced Record System) GG To insert a pause, enter a phone number then press (7 [MENU]. Select either a Hard Pause (‘P” appears) or a Timed Pause (“T” appears). @ Press Qto dial or @ [STO] to store. Please refer to page 28 for more details about storing a phone number.

Identifies caller by displaying their phone number. f the caller's name and number are already stored in your phone book, they both will appear. This feature is system dependent. Please contact your service provider for details. The caller ID is stored in the call history.

LD GALL WAITINGEUNCHION]

Notifies you of an incoming call when you are on the phone by sounding a beep and displaying the caller's phone number on the screen. (QI To answer another call while on the phone, press Q. This places the first call on hold. To switch back to the first caller, press & again. Call Waiting is a system dependent feature. Please contact your service provider for details

BASIC FUNCTIONS Adjusts the volume of the ringer, key beep and speaker. & Press (7 [MENU] xt and select one of the following. Ringer - Controis the ringer volume. Key Tone - Controis the keypad tone. Voice Cal - Controls the Speaker & Earpiece volume. Speaker Phone - Controls the speaker phone volume. @ Adjusts volume and press @ [OK] to save it. Press the volume keys on the side of the phone to adjusts volume of microphone during à call ( ) ETIQUENTER)] Mutes key tones and activates the vibration mode to alert you of an incoming call or message. QG To turn etiquette mode on/off, press and hold &a. > LocIeN] Locks your phone and prevents unauthorized use. Phone can only be used after inputting the password. & To lock the phone, press and hold 7. @ To unlock the phone, press (7 then input the password. Lock feature will deactivate when the phone is powered off. Upon next powered up, you wil need to press 7 to lock phone again. The default password is the last 4 digits of your phone number.

To display menu options during a call, press (7. (> MESSAGINEN Enables you to send a message (SMS) during a call. Qi Press FIMENUI A.

Mutes any sounds from your side of the call. Qi Press FIMENUI >. To deactivate, press {7 [MENU] 7. The phone will automatically un-mute in Emergency Call or Callback mode. (>) SCRATCHPARI] Alows you to enter a phone number during a call so it can be dialed later. The other party cannot hear the key presses. Qu Press 7 IMENU 7. E Press (7 [MENU] 49 to deactivate it.

Automatically transmits your phone number to a pager during a call without manually entering the number. GG To transmit your phone number during a call, press (7 [MENU] a.

(_) MY PHONENUMBE Enables you to see your phone number while on a call. Please see page 42 for more details. Qi Press FIMENUIR>. [_) VOICE PRIVAG Enhances voice privacy during a call. Qi Press IMENU 7. L) LOCATION] Enables the network to locate your current location through Global Positioning System (GPS). (Refer to page 70 for more details.) Qi Press FIMENUI à. (D) PHONEINEON] Enables you to view handset information while on a call. Please see page 73 for more details. Qi Press MENU.

MAKING AN EMERGENCY CALL

This 911 feature puts your phone in the Emergency Call Mode when you dial the preprogrammed emergency number, 911. It also operates in the lock mode and out of the service area.

The 911 call service is available even in the lock mode. & Enter “911” and press Q\. @ The call connects. G The phone exits the Lock Mode for 5 minutes. E When the call ends, the phone returns to the Lock Mode. ©) 911 USING ANYAVAIEABLESYS & Enter “911” and press À. @ The call connects. G The phone maintains the Emergency Mode for 5 minutes. When the cal ends, the phone returns to the Lock Mode. ‘The phone continuously attempts to receive service from any available system. However, it can't make a call.

| MEMORY FUNCTION | This chapter addresses memory functions including: m STORING À PHONE NUMBER

The phone book stores up to 300 entries. & Enter phone # and press © [SAVE]. € Choose “New Contact” or “Existing Contact”. Press @ [OK] to select. G The Phone # will appear above a list of icons. The name of the icon is displayed below the list. Use the Navigation key to choose the type of # you're adding, as indicated by the icon. Press @ [OK] to select. QG Enter a name and press @1IOKI. Follow instructions for entering text on page 29. To change the input mode, press $\ [MODE]. & Group - Personal, Business, Etc. # Set Secret - Lock, Unlock. G Use the Navigation key to scroll through more options for the entry (group, other numbers, ringer). E The other fields are set to Numeric mode as a defaut. GG To store the entry, press @ [SAVE]. “New contact added!” or “Contact edited!” will be displayed. (28)

The input mode wi be automatically activated when necessary to enter letters and numbers. As shown below, there are 4 available modes ; Standard input mode (abc), Ta input mode (T3Word), Numeric mode (123), and Symbol mode(symbols). The input mode indicator appears on the lower right of the display when letters and numbers are entered. To select the desired input mode among the 4 modes below, press S) [MODE], then enter letters and numbers. Input mode indicator Abc : Abc mode NUM : Number mode T9Word : T9 mode Symbol : Symbol mode The following ilustrates the function assigned to each key in the input mode. KEY FUNCTION S Press to change mode. ce [T9Word][Abc][123]Symbol mode]. _ Press to view the next matching word if Next the highlighted word is not the word you intended. Æ Press to accept a word and add a space. Space Press to select a letter case of the standard text input or T9 text input mode. = [Abc], [ABC], and [abc] indicate the standard text input. [Taword], [T9Word], and [TWORD] indicate the predictive text input. Clear &9 | Press to delete a character to the left of the cursor. Save Q Store the letters and numbers you enter. (29)

Use the digit keys to enter letters, numbers and characters. The TS input mode incorporates a built-in-dictionary to determine a word based on the entered characters. À word can be entered more GG Enter letters using the keypad as follows: quickly by pressing a key once per character. Tor î Ropotitons [Ropattions [Ropettions [Ropautions & Select the T9Word mode with $) [MODE]. Time | 2times | Stimes | times | Stimes 1 1 @ - ! € Press a digit key once to enter the character 2ABC A B o 2 A you want and enter all the characters to input C DEF D E F 3 D the word you want. AGHI G H 1 a 3 7 7 7 ns NE To view the next matching word, press ter. ewxyz w x Y z o To change the input mode, press Ss [MODE]. Ga To accept matching word and enter a space, press 7. To enter a space, press 7. After two seconds, the cursor will automatically move to the next To enter a compound word. column. © Enter the first part of the word and press | «&] to accept it © Enter the last part of the word and press | ré] to enter the Repeat until letters are entered. word.

There is a 16-letter limit. QG To delete one digit, press &. To delete the To enter “phone book" in the T9 input mode. entire entry, press and hold is. - Press [ Ÿ) IIMODE] to select the T9 input mode and | al to « 5 To change from lowercase to uppercase, choose the small letter case (T3Wor). press &a. Select Abc mode, by pressing Sy [MODE]. When you select this mode, the Abc icon appears as a visual confirmation, - Find the Key that correspond to the letter you want to enter. - Press it as many times as needed for the letter to appear on the screen. - To enter the name “John” Press | eo Press | 67 6 | Press | EE Press | 9 7) - Press | 1767 69 l'and you will see “phone” highlighted. Press [te] to See the next matching word and [#7] to select it. - Press (79 El and you will see “book” highlighted. Press | ter} to move to the next matching word and [7] to select the compound word and enter a space.

F ME SwmsoL mobe 3 Allows you to enter symbols. & Press S) [MODE] until the “Symbol mode” appears. @ Select symbol you want to enter with the Navigation key. E Use the Navigation key to view a different line of symbois. Press [ a 1.

Dials a number simply by pressing and holding its Speed Dial location number. For a 2-digit location number, press the first number then press and hold the second number. To store a number in Speed Dial: Qi Press GIMENUI @ To assign a phone number to a location, select the location and press © [OK]. If a phone number is already assigned to the location, press Ÿ) [Erase] and the navigation key to delete. G The phone book list will be displayed alphabetically. Select a name and press © [OK]. GG “Speed dial # X edited” will be displayed. + “Unassigned" appears if the location pressed is available. + A phone number that is set as secret will not be displayed. + A call can be made by pressing its entry number and

MENU FUNCTION This chapter addresses accessing the menu and using its functions and features to customize your phone. m PHONE BOOK m RECENT CALLS = @ METRO = MOBILE WEB

PHONE BOOK Stores up to 300 entries, each of which can be assigned to a group. Entries can be retrieved by name, phone number or group. LD) FIND] Retrieves an entry by name or number, and calls the number by simply pressing BY NAME (1 Press 7 MENU] Ra. « The list of names in your phone book is displayed alphabetically. Use the Navigation key to select the name. U Enter a name or its character string or scroll through the list with the Navigation Key. Please refer to page 29 for instructions on entering letters, numbers and symbols. E Hthere is no match, “Cannot Find Name” will appear. Ua All matching entries will be displayed. Highlight an entry. Press @ [OK] to edit the entry. Press [MENU] to 1. delete the entry or 2. add a prefix. I the entry is set to secret, you will be asked for your password. CO To call the selected number, press K\.

PHONE BOOK BY NUMBER Press (7 [MENU] à %7. The list of phone numbers saved in your phone book will be displayed in numeric order. Enter a part of the phone number or scroll through the list with the Navigation Key. The name associated with that number will be displayed at the bottom of the screen. E Ifthere is no match, “Cannot Find Name” will appear.

All matching entries will be displayed. Highlight an entry and press @ [OK] to edit the entry. Press (7 [MENU] to 1. delete the entry or

Ifthe entry is set to secret, you will be asked for your password. To call the selected number, press Q.

PHONE BOOK (> ADD NE] Adds a new entry to the phone book. Please refer to page 28 for alternate way to add an entry to the phone book. GG To add a new entry to the phone book, press (7 [MENU] Gp. @ The first field highlighted is Name. Enter the name for the entry, then press @ [OK]. G Press the Navigation Key down to enter all the other information (group, phone number, etc.). PHONE BOOK FIELD : Name/Group/Mobile/Home/Office/Pager/Fax/E-mail/ Wireless Addr./Ringer/Msg.Ringer/Graphic/Memo/ Set Secret. GG When all information for the entry is entered, press @) [OK] to save the entry. LD) cROURM Allows you to classify phone entries into groups. Existing groups include Personal, Business, Etc. and AI.

o To add a new group, press (7 [MENU]: 57. A maximum of seven groups is allowed. e Press {7 [MENU] then select “Add Group”. G Input a new group name. (CO Press @ [OK] to save it.

Q Press MENU 7. Select an existing group name. ee Press (7 [MENU] then select “Rename”. G Input a new group name. G Press @ [OK] to save it. The default group names (Al, Personal, Business, Etc.) cannot be changed.

ERASE GROUP (1 Press MENU 7 Select an existing group name. Q2 Press D [ERASE] to delete it. “Erase this group?” will be displayed. G Press @IK again to confirm it. The default group names (All, Personal, Business, Etc.) cannot be erased.

PHONE BOOK Calls can be placed to numbers stored in speed dial by pressing its location number on the keypad. Qu Press FIMENUI ER @ To assign a phone number to a location, select the location and press @ [OK]. If a phone number is already assigned to the location, press Ÿ) [Erase] and the Navigation Key to delete. G The phone book list will be displayed alphabetically. Select a name and press © [OK]. B: QG “Speed dial # X edited” will be displayed. En Group allows saved Msgs. to be sent to people who are included in the MSG Group.

o To add a new group, press (7 [MENU]. A maximum of seven groups is allowed. @ Press (7 [MENU] to add a group. G Input a new group name. G Press @ [OK] to save it.

1 Press MENU RE. Highlight an existing group name. ee Press (7 [MENU] to rename the group. G Input a new group name. G Press @ [OK] to save it.

CO Press (7 [MENU] xt. Highlight an existing group name. ee Press (7 [MENU] 57 to send a message. G Input a message and phone number. G Press @ [OK] to send it. ERASE GROUP (O Press (7 [MENU] xt. Highlight the group name to be deleted. Q2 Press D IERASE] to delete it. “Erase this message group?” will be displayed. G Press @ [OK]. “This message group erased” will be displayed.

RECENT CALLS Access the recent call logs by pressing (7 [MENU] 7. ) ALL CALLS] isplays information about the 20 most recent numbers dialed, missed and received. Places a call to a selected number by simply pressing @\. QG To see a list of the 20 most recent numbers, press (7 [MENU] à. If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears. @ To view call details, press @ [OK]. Cal details include date, time, and phone number. G Press (7 [MENU] [SAVE] to save the number or press S) [ERASE] to delete it. After 20 incoming, outgoing or missed call, the oldest call will automatically be erased from the history.

TX9SCMP-1211AŸ E&% LÉ 2004.1.28 634 PM #0] X| 44 RECENT CALLS À M'SSED)CALLSM] isplays information of the 20 most recently missed calls. Place a call to a missed call number by simply pressing Q& To see a list of the 20 most recently missed calls, press (7 [MENU] 7. If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears. @ To view missed call details, press @ [OK]. Call details include date, time and phone number. G Press (7 [MENU] Rx [SAVE] to save the number or press S) [ERASE] to delete it. After the 20th missed cal, the oldest call will automatically. be erased from the history.

RECENT CALLS À RECEIVED CALESN isplays information of the 20 most recently answered call. Place a call to a received number by simply pressing y. QG To see a list of the 20 most recently answered calls, press (7 [MENU] 7 #7 If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears. @ To view incoming call details, press @10KkI. Call details include date, time and phone number. G Press (7 [MENU] [SAVE] to save the number or press S\ [ERASE] to delete it. After the 20th received cal, the oldest call will automatically be erased from the history.

Displays information of the 20 most recently dialed calls. Place a call to a received number by simply pressing Q. QG To see a list of the 20 most recently answered calls, press (7 [MENU] G Ra. If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears. @ To view outgoing call details, press [OK]. Call detais include type of cal, date, time and phone number. G Press (f [MENU] a [SAVE] to save the number or press S) [ERASE] to delete it. After the 20th dialed cal, the oldest call will automatically be erased from the history.

RECENT CALLS LD) CALLITIMES] Checks the talk time and manages your calls within the limit you set. The five timers include: LAST CALL Displays talk time of last call. G Press @ [MENU] 97 D. ee To return to the previous page, press © [OK]. ALL CALLS Displays talk time of all incoming and outgoing calls, excluding web access calls. oO Press (7 [MENU] tx7 tro tr. ee The time of the following items is displayed: - Voice Call - Data/Fax Call G To return to the previous page, press © [OK]. HOME CALLS Displays talk time of all calls made within Home area. oO Press (7 [MENU] Go 7. ee The time of the following items is displayed: - Voice Call - Data/Fax Call To reset the timer, press Ÿ [RESET]. To return to the previous page, press ©) [OK].

RECENT CALLS ROAM CALLS Displays talk time of roaming calls. oO Press (7 IMENUI 9 ee The time of the following items is displayed: Voice Call Data/Fax Call G To reset the timer, press S) [RESET]. To return to the previous page, press © [OK]. c CUMULATIVE CALLS Displays talk time of all incoming and outgoing calls, excluding web 4 access calls. oO Press (7 IMENU]T Go 7. @ The time of the following items is displayed: Voice Call Data/Fax Call G To reset the timer, press S) [RESET]. To return to the previous page, press © [OK]. @ METRO Your phone provides a unique feature “@ Metro” that enables you to download melody ringers, wallpapers, games and more from your network to your phone. Please contact your service provider for the availability of these services. (_) START.@IMETR & To launch “@ Metro” from the standby mode, press (7 [MENU] or press ® . @ The @ Metro application icons will appear. The shopping cart icon is @ Metro, the checkmark is for Settings, and the question mark is for Help. G Choose an application, then press @..

[_) DOWNLOADING'APPEIGANE & Press (7 [MENU] Rx or press ® . € Select @ Metro then press ©. G Select a folder in the catalog then press ©. QG The phone will access your service provider's server. Follow the prompt to download applications. When a prompt appears, press @ to proceed or (7 To select an option, highlight it then press ©. to cancel.

Before downloading melody ringers and wallpapers, you need to download the dedicated downloader. Please contact your service provider for details.

(_) APPLYING MELODIES/WALLPAPI

Downioaded melody ringers apply to several functions including the incoming call alert, new text message alert, alarm clock and scheduler alarm. See Ringer Type on page 54. Downioaded wallpapers apply to the standby mode. See Wallpaper on page 58.

L_) CHECKING DATA FOLDERIMEM

Downioaded melody ringers, wallpapers and applications are saved to the data folder in your phone. & Press (7 [MENU] Rx or press æ . @ Select Settings then press ©. GG Select Manage Apps then press ©. The memory status will be displayed. QG To exit, press ff).

(QI Press (f [MENU] &or press æ. @ Select Settings then press ©. G Select Manage Apps then press ©: The memory status will be displayed. GG Select the application to be erased then press @. GG Select “Remove” then press ©.

MOBILE WEB >) CONNECTER] You can use your phone to browse the Internet if you have obtained Internet service from your service provider and if over-the air Intemet access is available in your area. & Press (7 [MENU] or «@. @ Follow the procedures in “Chapter 7 WEB BROWSING” on page 113.

TX9SCMP-1211AŸ BE LÉ 2004.1.28 634 PM #0] X| 52 MEDIA GALLERY À IMAGES] GRAPHICS G Press (7 IMENU] 7 A. E Press (7 [MENU to select 1.Erase, 2.Erase Al, 8.Change Title. ee Scroll through the captured pictures to display the picture you want to send and press @ [SEND]. G 3.1 To send text message, press © [SEND].

3.2 To save text message, press (7 [MENU]

£ then select “Save to Outbox” and press @ [OK]. ANIMATIONS (O Press (7 [MENU] 7 at. E Press (7 [MENU] to select 1.Erase, 2.Erase Al, 3.Change Title. ee Scroll through the captured pictures to display the picture you want to send and press © [SEND]. G 3.1 To send text message, press @ [SEND].

3.2 To save text message, press (7 [MENU]

then select “Save to Outbox” and press @ [OK].

MEDIA GALLERY .) PHOTOS] Qu Press MENU 7%. E Press (7 [MENU] to select 1.Frase, 2.Erase All 3.Change Title. @ Scroll through the captured pictures to display the picture you want to send and press @) ISEND]. G 3.1 To send text message, press © [SEND].

3.2 To save text message, press (7 [MENU]

then select “Save to Outbox” and press @ [OK].

then select the “Save to Outbox” and press @ [OK].

SETTINGS Customizes your phone and optimizes performance through a variety of settings. @EUL | Sets Ringer Type, Volume, Alert, Roam Ringer, Tone Length and Etiquette Mode. RINGER TYPE To select a ringer type for incoming calis: RINGER (1 Press FMI RRR- ee Select from one of the 10 pre-installed ringers or 5 ring tones. G To confirm, press @ [OK]. MESSAGES (CO Press (7 MENU] at. ee Select a tone (1-5). G To confirm, press @ [OK]. VOICE MAIL (1 Press 7 IMENU a RR 7. ee Select a tone (1-5). G To confirm, press @ [OK].

SETTINGS VOLUME Controis the Ringer, Key and Voice Call volume and alerts you to incoming calls in a variety of modes. RINGER Controls the Ringer volume and alerts you to incoming calls in the following modes. C1 Press @ MENU BR e Select one of the following options: Ringer Off Vibrate On Ringer Mode - Volume Levels 1-5. High & Vibrate - The ringer sounds after vibration, press (Max). Silent - Mute the ringer, press (7 (Min).

SETTINGS SPEAKER PHONE To adjust speaker volume: oO Press (7 [MENU] nt a 2 Adjust the speaker phone volume using the Navigation Key. Æ Leven-5 (Min. G. Max-D) G To save, press @ [OK]. ALERT Allows you to set an alert that sounds when the following handset changes occur. MINUTE Sounds an alert every minute of a phone call. (CO Press (7 [MENU] a 7 @ Select “Off” or “On” and press @ [OK] to save it. ROAM Sounds an alert when leaving a service area and entering a roaming service area. oO Press ( IMENU] à 7 eo Select “Off” or “On” and press @ [OK] to save it. CONNECT Notifies you that a call has been successfully placed. oO Press (7 [MENU] a 7 57. eo Select “Off” or “On” and press © [OK] to save it.

SETTINGS FADE Sounds an alert when you are entering an area where calls cannot be made due to weak signal strength. The alert sounds in standby mode. C1 Press 7 MENU ER 7. « Select “Off” or “On” and press @10K] to save it. ROAM RINGER Sounds a different ringer when you are in a roaming service area. G Press (7 MENU] aa. @ Select “Distinctive” or “Normal” and press © [OK] to save it. Normal - Sounds the same ringer type as used in Home area. Distinctive - Sounds a different ringer type. TONE LENGTH To adjust tone length: QG Press (7 IMENU] Ra tr. 2 Select “Normal” or “Long” and press © [OK] to save it. ETIQUETTE To place the phone in Etiquette Mode so all phone sounds are muted: (1 Press (IMENU] ER 7. 2 Select “On” or “Off” and press [OK] to save it. Shortcut - Press and hold ato activate/deactivate this feature. (s7) (87)

SETTINGS DISPLANM] Allows you to customize the display. MENU STYLE To select an display menu style: oO Press (7 [MENU] a 7 a. 2 Select “Fold”, “Grid” or “List” and press @IOK] to saveit. = ES Para e Se FEES Be) Frs Fois (SAS) ra (eue | vist GRAPHICS To select an LCD display: WALLPAPER (1 Press IMENU 7 7 @ Select “Flower”, “Digital Clock1”, “Digital Clock 2”, “Analog Clock 1”, or “Analog Clock 2”. G Press @) [OK] to save it. SCREEN SAVER Q Press (7 [MENU] Rat 7 7. 2 Select “Time Setting” to set the amount of time the screensaver is displayed (Off, 5 sec, 10 sec, 20 sec, 30 sec). 3 Select a screensaver from the list. Press @ [OK] to save it.

BACKLIGHT Backlights the display and keypad for easy viewing in dark places. LCD/KEYPAD (1 Press FIMENU 7. @ Select “LCD” or “Keypad”. LCD - 5s/15s/30s/60s/Always On. Keypad - 5s/15s/30s/60s/Always On/Always Off. 3 To save, press (9 [OK].

SETTINGS L_) DATASUEN] Allows you to transfer data when your phone is connected to a PC. CONNECTION Select a connection mode based on the handset usage. 1 Press IMENUR ( 2 Select one of the following connection modes: Voice Call : To receive a voice call. Data Only : To receive data when connected to PC. Fax Only : To function as a fax when connected to PC. G Press @ [OK] to save.

This function is available only when the phone is connected to data cable.

SETTINGS SECURITE] Prevents others from using the phone without permission and allows access to security features only after inputting a password. PHONE LOCK Prevents others from using your phone without permission. When locked, calls cannot be made and the menu cannot be accessed without a password. (O Press (7 [MENU] GR and enter “Password”. The default password is the last 4 digits of your phone number. 2 Press Ta and select “Unlock”, “Lock Now” or “Lock On Power Up”. Lock Now Lock the phone now. Lock On Power Up — Lock the phone whenever it is tumed on. Unlock - Do not lock the phone. G To save, press (OKI. RESTRICT When you attempt to make a restricted call, “This phone is restricted" appears on the screen. DIALED Blocks al dialed calls - except emergency calls but allows incoming calls to be answered. (O Press (7 [MENU] Ra Rand enter “Password”. ui Press tx7 and select “Allow” or “Restrict”. Allow : Allows dialed calls. Restrict : Restricts dialed calls. 3 To save, press @ [OK].

SETTINGS RECENT CALLS Blocks access to Recent Call List. oO Press (7 [MENU] Ra a and enter “Password”. ee Press tx7 ty and select “Allow” or “Restrict”. Allow : Allows access to the recent calls menu. Restrct : Restricts access to the recent calls menu. G To save, press @ [OK]. PHONE BOOK Blocks access to, and protects data in your phone book. … C QU Press (7 [MENU] Ça Rx and enter “Password”. ul _ 4 « Press 7 and select “Allow” or “Restrict”. Allow : Allows access to the phone book. Restrict : Restricts access to the phone book. (3 To save, press @10KI. CAMERA Restricts access to camera mode. oO Press (7 [MENU] aa and enter “Password”. ee Press 7 Qx and select “Allow” or “Restrict”. Allow : Allows access to the camera. Restrct : Restricts access to the camera. (3 To save, press @10KI.

SETTINGS DATA CALL Restricts data calls from being placed. QG Press (7 [MENU] GA Raand enter “Password”. e Press 7 C7 and select “Allow” or “Restrict”. Allow : Alows data calls. Restrict : Restricts data calls. 3 To save, press @ [OK].

900 #S PA Resticts caling 900 dal service numbers. " oO Press (7 [MENU]RA Rand enter “Password”.

ue Press 7 #7 and select “Allow” or “Restrict”. Allow : Allows calls to 900-dial services. Restrct : Restricts calls to 900-dial services. G To save, press @ [OK]. LONG DISTANCE Restricts calling long distance numbers — the phone is limited to calling numbers within the area. oO Press (7 [MENU] RARA and enter “Password”. @ Press 7 Qx and select “Allow” or “Restrict”. Allow : Allows a long distance call. Restrct : Restricts a long distance call. G To save, press © [OK].

SETTINGS CHANGE CODE Changes your 4-digit password QG Press (7 [MENU] Rand enter “Password”. The default password is the last 4 digits of your phone number. « Press 47. G Enter a new password and press @) [OK]. 4 Enter the new password again and press @) [OK]. SPECIAL #S Stores 3 phone numbers that can be called even in the lock mode. (OU Press (7 [MENU] Ga Rand enter “Password”. The default password is the last 4 digits of your phone number. u Press x and select a location. 3 Press @ OK] and input a phone number, press @IOK] again to save. You can delete a special number by selecting it, pressing S> IErasel, then @) IOKI.

SETTINGS ERASE ALL Clears all phone book, downloads, and photo gallery entries. oO Press (7 [MENU] Ga Rand enter “Password”. The default password is the last 4 digits of your phone number. @ Press 7. 3 Select “Phone Book”, “Downloads” or “Photo Gallery” and press @ [OK] to erase all the items in those categories.

4 RESET PHONE Resets phone to default settings. (OU Press CP IMENU] Ra Rx and enter “Password”. The default password is the last 4 digits of your phone number. e Press 7. G Select “Yes” or “No”, then press @ [OK]. settings and power cycle” appear on the display. Press @ to When you select “yes” you wil see “Phone wil restore defaut begin Reset process.

SETTINGS ) OTHERS] ANSWER OPTIONS CALL ANSWER To select an answer mode: (O Press 7 IMENU] 7 a @ Select “Any Key” or “Send Key”. 9, 6), and @. ‘Any Key - Press any key to answer an incoming call except Send Key.- Press only yto answer a call. 3 To save, press () [OK].

ACTIVE FLIP Selects an Active Flip Answer mode as follows. (O Press ( [MENU] 7 Qt. @ Select “On” or “Off”. G To save, press ( [OK]. When Active Flip On is selected, an incoming phone call can be answered simply by opening the phone. When Active Flip Of is selected, you will need to open the phone and follow the Answer mode you have selected.

SETTINGS AUTO ANSWER Automatically answers a call after a preset number of rings. An ideal setting for the hands-free car kit. Auto Answer only works when the phone is open. Q1 Press FIMENU am 7 ee Select one of the following: JE 0/57 10/18econds. This function will not be active when you select Vibrate, Silent, Etiquette or Ringer after Vib as a ringer mode. G To save, press @ [OK].

AUTO RETRY Automatically redial a call up to 5 times after a set time interval. (O Press (7 [MENU] 7 7. e Under Retry Time, select a time interval option (Off, 3, 5, 7, 10 seconds). The Repeat Category will appear when a time frame is chosen. 3 Under Repeat, select a time interval option (1 time, 3 times, 5 times). 4 To save, press @) [OK].

SETTINGS LANGUAGE Selects the language in which letters are displayed on screen. oO Press (7 IMENU] at 57. @e Select either “English” or “Spanish”. G To save, press @ [OK]. VOICE PRIVACY Enhances voice privacy and avoids tapping during a call. QG Press (7 [MENU] 47 à.

@ Select “Standard” or “Enhanced”. G To save, press @ [OK]. E “Enhanced” - Makes it more difficult to wire tap.

TX9SCMP-1211AŸ B&% LÉ 2004.1.28 635 PM #0] X| 70 SETTINGS TTY MODE Your phone is able to operate with a TTY (Teletypewriter) device in both analog and digital modes. This feature is system dependent and may not be available in all areas. Q Press (7 MENU] tx 7.

LOCATION PR To determine whether or not the network system can detect your position: (O Press (F MENU] à 7 7 ee Select “Location On” or “911 Only”. 911 Only - Your location will be hidden from network & application except 911. Location On - Your location is now available to the network. G To save, press @ [OK].

SETTINGS LD) SYSTEMSR] SET MODE Selects the Preferred System. C1 Press GMENUR @ Select one of the following options: Automatic B, Automatic A, Home only. Press @ [OK]. Automatic B : Scan the radio channels based on the Automatic B setting. Automatic A : Scan the radio channels based on the Automatic À setting. Home only : Only within your home area or home affliated area.

NAM SETTING Enables Auto NAM (Number Assignment Modules) or manually selects a NAM. AUTO NAM Automatically switches phone to proper NAM when you have multiple NAM registrations. QG Press (MENU 2707 a @ Select “Yes” or “No”, then press @ [OK] to save it.

SETTINGS SETTINGS ) PHONE INFO] To display the version of your phone:

CHANGE NAM Changes the NAM used by the phone when you have multiple registrations. (1 Press MENU 909 >. 2 Select “NAM1-Audiovox” or “NAM2-Audiovox", Ki Press MENT ER: then press @) [OK] to save it. @ The software version appears. PRL ID GG Press @iok. Displays the phone's PRL (Prefered Roaming Lis. Q Press FIMENUIR 2715. HAW VERSION = " H K2 To return to the previous page, press @ [OK]. (O Press (7 [MENU] 7. @ The hardware version appears. G Press @ OKI. @ METRO VERSION C1 Press MENU Ra #7. @ The @ Metro software version appears. G Press @lOK].

TX9SCMP-1211AŸ E&% LÉ 2004.1.28 635 PM #0] X| 74 MY METRO My Metro shows users their balance, account information, and payment options. (D) MONTHEYIEIE This is where the Biling Message is saved and shows the user the balance, due date and account information. Qi Press (7 IMENUI&>, to enter the My Metro options. Then press Ka for “Monthly Bill”. @ When pressing ( [PAY], the screen which shows an option of Credit Card, MetroPCS Card, and Other Options shows up. c G After choosing an option from Credit Card,

MetroPCs, or Other Options, a call will be made 4 to make the payment. LD) METROCONNECR] & Press (7 [MENU] ww, to enter the My Metro options. Then press tx7 for “MetroConnect”. € When MetroConnect is selected, a message saying “Call now to request balance or add money?” will show up. If the user presses @ [OK], the call will be made. MY METRO (D) METROPCSICARDI] QG Press (7 [MENU] &7, to enter the My Metro options. Then press 7 for “MetroPCS Card”. € When the MetroPCS Card has been selected, the option of Request Balance and Pay Monthly Bill will show up. G If the user selects Request Balance, a message saying “Call now to request your MetroPCS Card balance?” will show up. If the user presses @ [OK], the call will be made.

QG If the user selects Pay Monthly Bill, the user can choose from an option of Credit Card, MetroPCS, and other options. The payment will be made accordingly to the option selected.

TX9SCMP-1211AŸ B&% LÉ 2004.1.28 635 PM #0] X| 76 o UTILITIES UTILITIES

Sets an event and reminds you of that event. ADD PLAN You can set up to 3 alarms. QG To display alarm entries, press (7 [MENU] tx. Q Press (7 [MENU] te nn. @ Select one of the entries. To set a new alarm, 2 Move the Navigation key to choose a date in choose item 1, 2 or 8. the calendar and press @10KI. To edit an existing alarm, select that alarm. Press @ [OK]. Date, Time and Plan fields are displayed. The date you chose from the calendar is automatically inputted into the JA To celte he existing one, press. Date field. Input the correct time for the event. Under Plan, enter the message for the event. Press the Navigation Key ÉD A IS NE G Date, Time and Setting fields are displayed. £ eee eee Enter the date using the keypad. Press @ [OK]. defaut ringer, press {7 IMENU] tÆ7 “Change”. When all Under Time, enter the time for the alarm, then 4 fields are completed, press © [SAVE]. press @IOK]. Under Setting, choose Daily, Weekly, Monthly, Off or Once. Press the > : Navigation Key down for more fields. Under 3 Press @ ISAVE] to save it or &37[BACK] to h k return to the calendar. Snooze Setting, choose from Off, 1 time after 5 min, 1 time after 10 min, 3 time by 5 min. Under Ringer, choose the ringer for the alarm. 4 The date of the event will be marked on your Under Plan, enter the message for the alarm. calendar. Press @ [OK] to save.

UTILITIES (D) MEMOIPADE) Your phone includes an internal memo pad that can be used to ‘compose and store reminders and notes. ADD MEMO To compose a memo (there is an 80-letter limit): QG Press (FIMENU] 7 x

2. Input a new text memo and press [OK].

(Please refer to page 29 for more details on entering letters, numbers and symbols.) VIEW MEMO To view a saved memo: oO Press (7 [MENU] vw 7. To erase all memos, press (7 [MENU] 7 “Erase Al!”. To add a new memo, press (7 [MENU] &à “Add New”. ee The list of all memos, in saved order, is displayed. Select a memo and press @10kI. KI The selected memo will appear. To edit it, press (7 [MENU], select “Edit” and input a new text memo. SETTINGS To select memo pad background image: (O Press (f [MENU] 77,7. @ Select “Paper”, “Pattern”, “Sea”, “Sky”, or “Flower”, then press @ [OK].

UTILITIES LL) CALCULATION To access the calculator: Qu Press MENU 09. @ Follow the instructions below to calculate (8*6)/4-2.5 Input 8. Move the Navigation key to the right. Input 6 and press the Navigation key to the left. Input 4 and press the Navigation key down. Input 2 and press the a to input (). Press 5, ©. G To reset, press Ÿ)[RESET]. WORLD: To display the time and date in pre-programmed cities: QG Press (7 [MENU] t27 7. NE] Select a city. G The world map appears with the city, its date and time. I Use the Navigation key to select another city.

TX9SCMP-1211AŸ EE À É 2004.1.28 635 PM 1°] X| 80 o UTILITIES (2 STOPWATCHE] Simultaneously times up to six different events. To operate the stopwatch: Qu Press FIMENU 077. @ To measure a time period.

2. To pause it, press ©.

to the previous page, press S) [EXIT]. G To time up to six events at once: . To start, press ©.

2. To stop a time period and continue

measuring another one, press (7 [CONT].

3. To stop the second and continue measuring

a third one, press (7 [CONT].

4. To measure up to six time periods, repeat the

CAMERA OO Take À PHOTON Taking pictures with your phone's built-in camera is as simple as choosing a subject, pointing the lens, and pressing a button. You can activate the Camera Mode and take pictures when the phone is open. TO TAKE A PICTURE FROM THE MENU oO Press (7 [MENU] then scroll down 11 items to Camera. Then pressQa. Point the camera lens at your subject. You can check the picture framing through the main display screen.

G Press © [OK] or the Side Camera button to

take the picture. To save the picture, press @ SAVE]. To go back to idle mode without saving the picture, press . To send the picture to someone, press @) ISEND]. You cannot place or receive calls while in Camera Mode. Allincoming voice calls will be forwarded to voicemail. TO TAKE A PICTURE IN IDLE MODE LU Press the Side Camera button to activate Camera Mode. u Point the camera lens at your subject. You can check the picture framing through the main display screen. G Press the Side Camera button to take the picture. U To save the picture, press @ [SAVE]. To go back to idle mode without saving the picture, press CA To send the picture to someone, press @ ISEND]. (1)

When the phone is open and in Camera Mode, several user options are available. GALLERY Press Ÿ) [GALLERY] to enter Review Mode. From there you can view the caplured pictures, view a running count of stored pictures and more. RESOLUTION Press the navigation key up or down to adjust the picture size from High (640x480 pixels) to Med (320x240 pixels) to Low (160x120 pixels). The current picture size appears at the bottom of the display screen. BRIGHTNESS Press the navigation key right (increase) or left (decrease) for the brightness level.

SUB LCD The sub LCD will show a representation of the picture to be taken. Use the sub LCD to help frame yourseff for a self portrait. You can also use the round mirror next to the camera lens for self portraits.

Select Flash to tum the cameras flash on or off. This is for use with the CKP8900 optional flash kit. E Do not use the flash close to eyes as it may cause visual impairment. CONTRAST Select “High”, “Normal”, “Low”. QUALITY Select High, Normal, Low picture quality, then fewer pictures can be stored when using the High setting, which requires more memory. (Default setting is Normal.) SHUTTER SOUND Select Shutter 1, Shutter 2, or Shutter 3. If your phone’s ringer is set to Silence, no shutter sound will be heard. ‘After taking a picture, all options except Shutter Sound return to their default settings.

CAMERA HOTO GALLEI GG Press (7 [MENU] and scroll down to option 11. Camera, then press t7. In Review Mode you can view all the pictures you have taken, store selected images in your phone, send pictures to the Pictures Web site, delete images and access additional picture options. Press (7 MENU] to display the following options :

1. Edit Title : Edit the pictures title.

2. Send Photo : Upload the current picture to the send

for specific tasks (Walipaper/Screen Saver/Picture Caller ID/Incoming Cal).

4. Erase : Erase the current picture from your phone.

5. Erase Al : Erase all captured pictures from your phone.

such as title, date/time, size, etc. À PHOTO MESSAGES] Once you've taken a picture, you can use the messaging capabilities of your phone to instantiy share it with family and friends. To send a picture to a recipient's email address or to their wireless phone: Press (f [MENU] and scroll down to option 11. Camera, then press 57. Press à for new photo and tz7 for a saved photo. If you are looking for a saved photo, scroll through the captured pictures to display the picture you want to send. Highlight the picture and press @ [OK].

Under Send To, enter the email address or mobile phone number and press © [OK]. (83)

|ressenr. 121118 #&% UE 2004.1.28635 PM 1°|%|84 CAMERA G Under Message, press %. The picture will come up with the flashing cursor underneath. Enter the message and press © [OK]. & Under Subject, enter a subject line for the message. Press @ [OK]. QG If you want to send the picture to any additional recipients, enter their information under CC: or

H & Press (7 [MENU] and scroll down to option 11. Camera, then press Ga. The following will be displayed: You can take a picture using the digital camera. When you are taking a picture, control resolution using up/doun key and the brightness using the left/right key. You can check your photo in the photo gallery.

4. Sub LCD : On taking a picture with sub LCD mode.

2. Flash : On/Off setting.

8. Contrast : Control of Photo's Contrast.

4. Quality : Control of Photo's Quality.

- Hold the flash unit securely between thumb and pointer finger. With other hand, place thumb over plastic protective cap and press downward. (similar to if you were breaking in half, see figure 1).

Open the earphone microphone terminal cap to expose the port.

Insert the flash into the earphone microphone port. The front of the flash should be facing the object of photography.

Press camera button. The flash will light when the picture is taken. Install the protective cap. The protective cap has CR securing feet on either side. Place (1) securing foot dy in one end of groove then press other foot (2) upwards into groove. You should be at least 2 feet [about 60cm) away from object of photography to ensure proper lighting. I you are too close the picture will come out white

CAMERA To prevent and protect the user, others and their property, carefuly read the following hints for safely using the flash

HINTS FOR USING FLASH

Use the flash at room temperature. it may not light or charge in temperatures under °C or above 35°C. ‘ Do not use in a damp area. Use in a high or low temperature area may cause the flash life to shorten or extend the charging time. © Clean the plug with a cotton stick. Dust in the plug may cause irregular charging. ‘+ If the flash repeats to radiate, the intensity of the radiation will shorten and the images will become darker, the intensity of radiation decreases, buy another flash. ‘ Remove the terminal of the flash from the ear phone jack during a cal. It may cause some noise while using phone. ‘ Do not use while driving a car. it may cause a car accident. ‘+ Do not flash near your eyes. ‘ Do not leave out in the reach of children. They may receive an electric shock by putting it in their mouths. © K intemal parts are exposed, do not touch the exposed parts. You may receive an electric shock. © it generates heat, smells bad, or is damaged, remove it from the phone immediately. There is a risk of fire or explosion. ‘ Do not disassemble, reconstruct or repair. The flash contains a high voltage circuit inside. Visit a nearby service center for repair. ‘+ Do not use or put the flash near fire, open flame or high temperature area. There is a risk of fire or explosion. ‘ Do not wet it by sweat, water or salt water. If the substrate gets wet, it may cause the heat, explosion or fring. When it wets, turn off the power and visit near service center. Do not allow any liquids to spil on the flash or expose it to rain, water or moisture. Do not place it in the damp area like bathroom. ‘® Do not heat or dry it with drier i it gets wet. ‘+ Do not place a cup or vase near it. Spilling liquid on it may cause the heat, explosion or firing. ‘+ Do not drop or shock it. ‘ Do not allow any metal objects to touch the flash's plug (metal par). There is a risk of fire or explosion. ‘ Use only with the CDM8900 phone. (86)

VOICE SERVICE This chapter addresses Voice Service, an advanced feature that allows you to place calls using your voice. With Voice Memo (VM) you can record voice messages and set the Answering Machine. Topics include:

Voice Recognition (VR) enables you to place calls using your voice and to record voice memos. QG Press and hold Quntil your phone turns to Voice Recognition mode. NE “Please say the name after the prompt tone” will be displayed and you will hear “Name please”. (D) AMEN QG Press and hold Q\until your phone turns to Voice Recognition mode. NE Say a name or tag that is already in the phone book. The number and name will appear on the display and you will hear “Calling (name)”.

Voice Memo allows you to record a reminder message that can be up to 60 seconds. To record a memo: CO Press (7 [MENU] 7 to start Tools menu. @ To enter a voice memo, press. G 11.70 record a voice memo, press. Instructions will be displayed and you will hear “Please record at the tone.”

1.8.Press (7 [MENU] after recording a voice

memo to “Review” or “Re-record.”

() TRAINWORD ‘Train allows you to use Control words to make a call without using the keypad. YES Use to train or untrain the Voice Recognition with the control words, “Yes”. C1 Press FIMENU #57 à. 2 “Please listen closely to hear instructions.” will be displayed and you will hear “Now training control words. Please say the word yes”. 3 Say “Yes”. You will hear “Again”. Say “Yes” again. You will hear “Training word successful”.

Use to train or untrain the Voice Recognition with the control words, “No”. QG Press (7 IMENU] 77 7. ee “Please listen closely to hear instructions.” will be displayed and you will hear “Now training control words. Please say the word no”. 3 Say “No”. You will hear “Again”. Say “No” again. You will hear “Training word successful”.

WAKE-UP Use to train or untrain the Voice Recognition with the control words, “Wake-up”. (CO Press (7 [MENU] 5. e “Please listen closely to hear instructions.” will be displayed and you will hear “Now training control words. Please say the word wake-up”. G Say “Wake-up”. You will hear “Again”. Say “Wake-up” again. You will hear “Training word successful”.

Undo Train All erases all “trained” words. C = H (1 Press MENU 757 à.

ee Select “Yes” or “No” and press @.

) VOICE SETTINGN] SET ACTIVE Allows the user to activate or deactivate voice dial service. K1 Press (7 [MENU] 57 Ra. 2 Select “Active Flip” or “Send Key” by pressing the Navigation Key left or right. G To save, press @ [OK]. HFK MODE While using the Hands Free Kit, activates or deactivates the voice recognition function. (1 Press MENU @ Scroll to HFK Mode. Select “On” or “Off” by pressing the Navigation Key left or right. G To save, press @ [OK].

MESSAGE ‘This chapter addresses Voice Mail and Text Messaging functions including: m WHEN À NEW MESSAGE ARRIVES

cece Press (7 [MENU] 7 Qa or press Ge x. Under Send To, input the phone number and press @) [OK]. You can look it up from the phone book by pressing (7 [MENU]. Under Message, input a new text message and press @) [OK]. (Please refer to page 29 for more details on entering letters, numbers and symbols.) The default call back number is automatically inputted into the Default CB# field. You can scroll to the number and edit it or simply press &» [OK]. Press the Navigation Key down for more fields. Under Priority, select Normal or Urgent. Under Insert Signature, select On or Off. To send the text message, press © [SEND]. To save the text message, press {7 [MENU] and select the “Save to Outbox” then press © [OK].

To send a new picture message:

Press (7 [MENU] £7tx7 or press Ga C7. Phone goes into camera mode automatically. Take a picture and press @ [SEND]. (Please refer to page 81 for more details on taking a photo.) Under Send To, input the phone number and press @ [OK]. You can look it up from the phone book by pressing 7 [MENU]. Under Message, input a new text message and press @ [OK]. (Please refer to page 29 for more details on entering letters, numbers and symbols.) Under Subject, input a message subject and press @IOKI. (Please refer to page 29 for more details on entering letters, numbers and symbols.) To send a message to another person, select the “CC” or “BCC” and input the phone numbers, then press @) [OK]. To send the text message, press © [SEND]. To save the text message, press (7 [MENU] and select “Save to Outbox” then press © [OK].

The Inbox manages received text messages. To access:

To reply to the text message, press Qx. Type your reply and press @) [OK]. (Please refer to page 29 for more details on entering letters, numbers and symbols.)

To reply to a received message and include the received message into the message, press t:7.

The default call back number is automatically inputted into the Default CB# field. You can scroll Kg to the number and edit it or simply press 3» [OK]. Press the Navigation Key down for more fields. Under Priority, select Normal or Urgent. Under Insert Signature, select On or Off. To send the text message, press @ [SEND]. To save the text message, press (7 [MENU] and select the “Save to Outbox” then press © [OK].

To forward the text message, press 7 “Forward”. Input the phone number of the person you are sending the message, then press @IOKI. Input any text message to go along with the forwarded message, then press @ [OK].

1 To save received text msg to “Quick text”, press 7 “Save to Quick Text”.

1 To save number to contact, press /#7 “Save to Contact”.

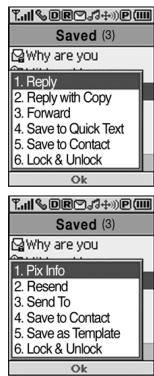

SAVED (_) SAVEDIN Manages saved messages from the Inbox/Outbox. QG Press (7 [MENU] 7 Ror press Ga. Select a text message then press ( [OK]. @ The text message is displayed. Press (7 [MENU]. G If the text message is saved [ui ose from the “Inbox” menu, this (Swry are you screen will be displayed. 2 Rey Copy [a Save 0 Qui Te (oka una | If the text message is saved fu Re | from the “Outbox” menu, this (AWry are you screen will be displayed. F2 Peso (Semito [1 Sao Cora (Sa Temps aka una |

E Erases entire outbox or old outbox.

8. To erase the saved messages, press 7.

G Select “OK” or “Cancel” with @ [OK] or [CANCEL]. Old: Deletes read Message(s). Entre: Deletes all the message(s in the Inbox (However, the locked Message(s) wi not be deleted).

SETTINGS Manages messaging features through various features. QE |

(OU @ Press &. Select “Disable” or “Enable”. Press (7 [MENU] £7 wwor press On tr. Then press tx7 for “Auto Erase”. G Press @ [OK].

Create a signature that can be automatically inserted at the end of a QL Press FIMENU) 7 wor presse vor. message. Then press &x7 for “Auto Erase”. QG Press (7 [MENU] £7 tex70r press Ge to77. ee Press y. Select “Disable” or “Enable”. Then press &7 for “Edit Signature”. « @ Select “Edit Signature” or “Insert Signature”. & Press LION EDIT SIGNATURE : Edit users signature. INSERT SIGNATURE : Select whether the signature will be included into sending message. (_) DEFAULTICALLBAI Edits a default call back number so that the recipient can cal G3 Press Oo. back or reply. & Press (7 [MENU] #7 wx7 or presse tes7. Ifthe Direct View is set to on, the user wi be able to view the Then press 7 for “Default Callback”. message by pressing the read key. If the Direct View is set to off, @ Input a call back number, then press © [OK]. the user can view the message by entering SMS Menu-> Inbox. Press (7 [MENU] Æ7 tyor press: (72 G Press (f [FIND] to find a number from the u a l press GE» Then press x for “Direct View”. @ Select “On” or “Off”. _) ALERTE] | ON : Set to read msg without entering inbox in SMS menu. c Enables phone to alert you of an incoming message. OFF : Set to read msg after entering inbox in SMS menu. & Press (7 [MENU] 57 tæJor press Ge tor7. GG Press [OK]. Then press Ga for “Alert”. phone book. @ Select Voice Mail, Messages or Remind. For Voice Mail and Messages, select tone 1-5. For Remind, select “On” or “Off”. Sets an Entry Mode as a default. The T9 mode indicator will appear whenever the input mode is activated if the T9 mode is the default. & Press (7 [MENU] Æ7 7 or press ne t77. G Press @10kI. Then press Ça for “Entry Mode”. @ Select “T9 Mode” or “Alpha Mode”. . G resO0 o 5

SETTINGS () BLOCK ORIUNEI GG Press (f [MENU] 7 teyor press me co. Then press Œ for “Block or Unblock”. @ Select “Block”, “Unblock”, or “View List” of Blocked Addresses. G3 Press Oo.

WEB BROWSING ‘This chapter addresses Internet services and web browsing. For more detailed information contact your service provider.

-RESTART BROWSER Causes the deck history and deck cache to be cleared and starts a new session with the UP.Link.

SAFETY AND WARRANTY This chapter addresses the safety guidelines and precautions to follow when operating your phone. Before operating your phone, please be aware of all the safety details. This chapter contains the terms and conditions of services and the warranty for your phone. Please review them thoroughy.

M SAFETY INFORMATION FOR WIRELESS

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992) * NCRP Report 86 (1986) * ICNIRP (1996) * Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C951). The design of your phone complies with the FCC guidelines (and those standards). ANTENNA CARE Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations. 1°: American National Standards Inst. 2: : National Counel on Raclation protection and measurements. 1 : International Commission on Nonionizing Radiation Protection.

HANDHELD PHONES (2 DRIVING SAFETM] Talking on the phone while driving is extremely dangerous and is illegal in some states. Remember, safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always obey them. Also, if using your phone while driving, please: © Give full attention to driving. Driving safely is your first responsibility. Use hands-free operation, if available. © Pull off the road and park before making or answering a call, if driving conditions so require. If you must use the phone while driving, please use one-touch, speed dialing, and auto answer modes. An airbag inflates with great force. DO NOT place objects, including both installed or portable wireless equipment, in the area over the airbag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

WARNING: Failure to follow these instructions may lead to serious

personal injury and possible property damage.

HANDHELD PHONES LD ELECTRONIC RENE) Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. PACEMAKERS The Health Industry Manufacturers Association recommends that a minimum separation of six (6) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers : ® ALWAYS keep the phone more than six inches from your pacemaker when the phone is turned on. ® Do not cany the phone in a breast pocket. e Use the ear opposite the pacemaker to minimize the potential for interference. © if you have any reason to suspect that interference is taking place, turn your phone OFF immediately.

OTHER MEDICAL DEVICES

If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy Your physician may be able to assist you in obtaining this information. Turn your phone OFF in healthcare facilities when any regulations posted in these areas instruct you to do so. Hospitals or healthcare facilities may be using equipment that could be sensitive to extemal REF energy. POSTED FACILITIES Turn your phone OFF where posted notices so require.

(D OTHER SAFETY GUIDELINES

AIRCRAFT FCC and Transport Canada Regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft. BLASTING AREAS To avoid interfering with blasting operations, turn your phone OFF when in a “blasting area” or in areas posted: “Turn off two-way radio." Obey all signs and instructions.

POTENTIALLY EXPLOSIVE ATMOSPHERES

Tum your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as gas stations: below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or articles, such as grain, dust, or metal powders: and any other area where you would normally be advised to turn off your vehicle's engine.

HANDHELD PHONES [) PRECAUTIO! Your Handheld Portable Telephone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on (1) AG Adaptor (2) Battery and (3) Product Using Battery. J}, DO NOT use this equipment in an extreme environment where Ÿ high temperature or high humidity exists. .DO NOT abuse the equipment. Avoid striking, shaking or ci shocking. When not using, lay down the unit to avoid possible damage due to instability. @ DO NOT expose this equipment to rain or spilled beverages. DO NOT use unauthorized accessories. DO NOT disassemble the phone or its accessories. If service or repair is required, return unit to an authorized Audiovox cellular service center. lf unit is disassembled, the risk of electric shock or fire may result

ΠDO NOT short-circuit the battery terminals with metal items etc.

WARNING! Read this Information before using In August 1996 the Federal Communications Commossion (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these intemational standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a demaged antenna. If a demaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. BODY-WORN OPERATION This device was tested for typical body-worn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user's body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metalli: components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

VEHICLE MOUNTED EXTERNAL ANTENNA

(OPTIONAL, IF AVAILABLE) A minimum separation distance of 7.9 inches (20cm) must be maintained between the user/bystander and the vehicle mounted extemal antenna to satisty FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www. fcc.gov

REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardiess of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the governmentadopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.15 W/Kg and when worn on the body, as described in this user guide, is 0.393W/Kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FOC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http:/www.fcc.gov/ oet/fccid after searching on PPATX-95C.

SAR INFORMATION Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http;//www.wow-com.com.

• In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements. (BA

Ei) \ U.S. Food and Drug Administration -Center for Devices and [ai YA Radiological Health Consumer Update on Wireless Phones

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, houever, that wireless phones are absolutely sae. Wireless phones emit low levels of radiotrequency energy (RF) in the microwave range whlle being used, They also emi very low leveis of RF when in the stand-by mode. Wereas high levels of RF can produce health sffects (by heating issue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research, In some cases, other ressarchers have had difficuly in reproducing those studies, or in determining the reasons for inconsistent results.

2. What is FDA's role conceming the safety of wireless phones?

Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wire- less phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists. Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following + Support needed research into possible biological effects of RF of the type emitted by wireless phones; + Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and + Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health. FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group: + National Institute for Occupational Safety and Health + Environmental Protection Agency + Federal Communications Commission + Occupational Safety and Health Administration + National Telecommunications and Information Administration ‘The National Institutes of Health participates in some inter-agency working group activites, as well. FDA shares regulatory responsible for wireless phones with the Federal Communications Commission (FCC). AI phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FC: relies on FDA and other health agencies for safety questions about wireless phones. FCC also regulates the base stations that the wireless phone networks rely upon. Whll these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are Wpically thousands of times lower than those they can get from wireless phones. Base stations are thus not the subject of the safety questions discussed in this document.

3. What kinds of phones are the subject of this update?

‘The term “wireless phone” refers here to handheld wireless phones with buil-in antennes, often called “cell “mobile,” or “PCS" phones. (28

‘These types of wireless phanes can expose the user lo measurable radiofrequency energy (RF) because of the short distance between the phone and the users head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because à person's RF exposure decreases rapidiy with increasing distance from the source, The so-called “cordiess phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower pouer levels, and thus produce RF exposures far below the FOC safety limits.

4. What are the results of the research done already?

‘The research done thus far has produced conflcting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiolrequency energy (RF) exposures characteristic of wireless phones have yielded conflcting results that often cannot be repeated in other laboratores. À few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals s0 as to be predispased to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not Similar to the conditions under which people use wireless phones, so we don't Know with certainty what the results of such studies mean for human health, Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neu- roma, tumors of the brain or salivary gland, leukemia, or other cancers. Nane of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years. $. What research is needed to decide whether RF exposure from wireless phones poses a health risk? {A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promating effect if one exists. Epidemiological stud-ies can provide data that is directly applicable to human populations, but 10 or more years’ follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to à cancer- causing agent and the time tumors develop - if they do -may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.

6. What is FDA doing to find out more about the possible health effects of

wireless phone RF? FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address Important questions about the effects of exposure to radiofrequency energy (RF). FDA has been a leading participant in the World Health Organization Intemational Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research pro- grams around the world.

‘The Project has also helped develop a series of public information documents on EMF issues. FDA and the Cellular Telecommunications & Internet Association {CTIA) have a formal Cooperative Research and Development Agreement (GRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic or- ganizations. CTIA-funded research is conducted through contracts Lo independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.

7. How can ! find out how much radiofrequency energy exposure | can get by

using my wireless phone? Al phones sold in the United States must comply with Federal Communications Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC: established these guidelines in consultation with FDA and the other federal health and safety agencies. The FOC limit for RF exposure from wireless telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is consistent with the safety standards developed by the Institute of Electrical and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body's ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF exposure level for each model of phone to the FCO. The FCC website (http/www.fcc.gov/oet/rfsafety) gives directions for locating the FCC identification number on your phone so you can find your phone's RF exposure level in the online listing,

8. What has FDA done to measure the radiofrequency energy coming from

wireless phones ? The Institute of Electrical and Electronic Engineers (IEEE) ls developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and leader-ship of FDA Scientists and engineers. The standard, “Recom-mended Practice for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques,” sets forth the first consistent test methodology for measuring the rate at which RF Is deposited in the heads of wireless phone users. The test method uses 2 lissue-simulating model of the human head. Standardized SAR test methodology Is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the mea-surement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. I is measured in watts/Kg (or millwatts/g) of matter, This measurement Is used to determine whether a wireless phone complies with safety guidelines.

9. What steps can l take to reduce my exposure to radiofrequency energy

from my wireless phone? I there is à risk from these products—and at this point we do not know that there is—it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure. + If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and camy the wireless phone away from your body or use à wireless phone connected to a remote antenna.

Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concemed about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use. 10.What about children using wireless phones? The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure. Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, he government in the United King-dom distributed leaflets containing such à recommendation in December 2000. They noted that no evidence exists that us- ing a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; itwas not based on scientific evidence that any health hazard exists. 11What about wireless phone interference with medical equipment? Radiofrequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detalled test method to measure electromagnelic interference (EM) of implanted cardiac pacemakers and deflrilators from wireless telephones. This test method Is now part of à standard sponsored by the Association for the Advancement of Medical instrumentation {AAMD. The final draft, à joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrlators are safe from wireless phone EMI. FDA has tested hearng aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearng aids and wireless phones s0 that hat no interference occurs when a person uses à ‘compatible” phone and a “compatible” hearing aid at the same time. This standard was approved by the IEEE in 2000. FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmul interlerence be found to ccur, FDA will conduct testing to assess the interference and work to resolve the problem. 12.Where can | find additional information? For additional information, please refer to the following re-sources: + FDA web page on wireless phones (http://wvnn.fda.gov/cdrh/ phones/index.htrni) + Federal Communications Commission (FC RF Safety Program (tp: fec.gov/oet/safety) + International Commission on Non-lonizing Radiation Protection (tp: icnirp.de) + Worid Health Organization (WHO) International EMF Project tp: no intem + National Radiological Protection Board (UK) (nttp://wnt.nrpb.org.uk/)

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit. “Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandiing misuse, neglect or accident”. Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Audiovox product. Be careful. Some of these products may not be compatible to use with your Audiovox product and may damage the unit or cause it to malfunction. If service is required on your unit and it is determined that a non-Audiovox accessory has created the problem with your unit, the Warranty will not appiy. In addition, if the unit has already suffered irreversible damage by reason of a non- compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Audiovox product. AUDIOVOX. COMMUNICATIONS CORP. AUDIOVOX COMMUNICATIONS CORP. 555 Wireless Blvd. Hauppauge, New York 11788, 800-229-1235 16808 Marquardt Avenue, Cerritos, California 90703, 562-802-5100 Audiovox Communications Canada Co. 5155 Spectrum Way, Unit #5, Mississauga, Ontario Canada LAW 5A1, 800-465-9672

Audiovox Communications Corp. (the Company) warrants to the original retail purchaser of this Audiovox handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuiïlt parts) at the Company's option, without charge for parts or labor directly related to the defect(s). The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable. This Warranty does not apply to: a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage: b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced. {c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions; (a) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Compan {e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts; (9 Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source. The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole. To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage {e.g. dated bill of sale), the consumer’ return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company at the address shown below or to the place of purchase for repair or replacement processing.

In addition, for reference to an authorized Warranty station in your area, you may telephone in the United States (800) 229-1235, and in Canada (800) 465-9672 (in Ontario call 905-712-9299). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN À PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED. No person or representative is authorized to assume for the Company any liabilty other than expressed herein in connection with the sale of this product. Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. IN USA : AUDIOVOX COMMUNICATIONS CORP. 555 Wireless Blvd. Hauppauge, NY 11788 (800) 229-1235 IN CANADA : AUDIOVOX COMMUNICATIONS CANADA CO. 5156 Spectrum Way, Unit #5 Mississauga, Ontario LAW SA (800) 465-9672
