USER MANUAL CDM-8615 AUDIOVOX

COMMUNICATIONS CORP.

WELCOME

Thank you for choosing the up-to-date CDM-8615, our new model, developed by top researchers to support the CDMA2000 1X system through Qualcomm-manufactured MSM6050 chips and CDMA technologies. This product allows for high speed communication services, such as web browsing, data services, and a GUI animation menu.

T9 input mode makes it much easier to enter text, while VR (Voice Recognition) makes the CDM-8615 more user friendly. Other proven technologies include:

Full graphic display with 9 text input lines and 1 icon line with variable font size.
Easy to dial through the VR feature.
■ Enhanced for web browsing & data services (i.e.; wireless internet access, UP browser)
GUI & Animation display compliant with CDMA2000 1X.
CSTN 65K Color LCD.
Navigation Key and 21 keys aligned for more convenience.
Sophisticated features of speaker phone, and voice recognition.
Additional services of text messaging and Web browsing on top of authentication, call forwarding, call transfer, call waiting.

IMPORTANT INFORMATION

This CDM-8615 user guide contains very important information about how to handle and use the product. Please read this manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, which are related with the unauthorized use of components.

TABLE OF CONTENTS

CHAPTER 1. BEFORE USING YOUR PHONE .5

DISPLAY INDICATORS 9

BATTERY USAGE 11

BATTERY INSTALLATION 11

BATTERY REMOVAL 11

BATTERY CHARGING 12

POWER CONNECTION 12

PCS AND 1X BATTERY TIMES. 13

BATTERY LIFE (FOR NEW BATTERY) 13

BATTERY HANDLING INFORMATION 14

DOs. 14

DON'Ts 14

CHAPTER 2. BASIC OPERATION 15

MAKING A CALL THROUGH THE PHONE BOOK 35

DOWNSLOADING APPLICATIONS 52

DOWNSLOADING MELODIES/WALLPAPERS 52

APPLYING MELODIES/WALLPAPERS 53

CHECKING DATA FOLDER MEMORY 53

ERASING AN APPLICATION 53

MOBILE WEB 54

CONNECT WEB 54

MEDIA GALLERY 55

IMAGES 55

GRAPHICS 55

ANIMATIONS 55

TONES 56

SETTING57

SOUNDS 57

RINGER TYPE 57

VOLUME 58

ALERT 59

ROAM RINGER 60

TONE LENGTH 60

ETIQUETTE 60

DISPLAY 61

MENUSTYLE 61

GRAPHICS 61

SUB SCREEN 63

GREETINGMESSAGE 64

CONTRAST 64

BACKLIGHT 65

DATA SVC. 66

CONNECTION 66

SECURITY 67

PHONE LOCK 67

RESTRICT 67

CHANGE CODE 69

SPECIAL #'S 70

ERASEALL 70

RESETPHONE 70

OTHERS 71

ANSWER OPTIONS 71

AUTO RETRY 72

LANGUAGE 73

VOICE PRIVACY 73

TTY MODE 74

LOCATION 74

TABLE OF CONTENTS

SYSTEM 75

SET MODE 75

NAM SETTING 75

PRL ID. 76

PHONE INFO. 77

S/W VERSION 77

H/W VERSION 77

@ METRO VERSION 77

MY METRO 78

MONTHLY BILL 78

METROCONNECT 78

ETROPCS CARD 79

UTILITIES 80

EVENT 80

ADD NEW PLAN 80

VIEW PLAN 81

ALARM 81

MEMO PAD. 83

ADD MEMO 83

VIEW MEMO 83

SETTING 83

CALCULATOR 84

WORLD CLOCK 84

STOP WATCH 85

CHAPTER 5. VOICE SERVICE .87

VOICE TOOLS MENU 88

VOICE MEMO 88

VOICE DIAL. 89

TRAIN WORDS 90

YES 90

NO 90

WAKE-UP 91

UNDO TRAIN ALL. 91

VOICE SETTING 92

SET ACTIVE 92

HFK MODE 92

VOICE RECOGNITION MODE 93

NAME 93

CHAPTER 6. VOICE MAIL AND TEXTMESSAGE .95

WHEN A NEWMESSAGE ARRIVES 96

VOICE MAIL 96

NEW TEXT MSG 97

INBOX 98

REPLY 98

REPLY WITH COPY 98

FORWARD 99

SAVE TO CONTACT 99

SAVE TO SAVED 99

SAVE TO QUICK TEXT 99

BLOCK SENDER 99

LOCK&UNLOCK 99

OUTBOX 100

CHECKING SENT TEXT MESSAGES 100

RESEND 100

EDITMESSAGE 100

SAVE TO CONTACT 101

SAVE TO SAVED 101

LOCK & UNLOCK 101

STATE 101

WEB ALERTS 102

SAVED 103

QUICK TEXT 104

ERASE ALL 105

ERASE MESSAGES. 105

TABLE OF CONTENT

SETTINGS 106

AUTO SAVE 106

SAVE SENT MSG. 106

AUTO ERASE 106

INBOX 106

OUTBOX 106

DEFAULTCALLBACK 107

EDIT VOICE callback 107

REMIND 107

EDIT SIGNATURE 108

DIRECT VIEW 108

ENTRY MODE 109

BLOCK OR UNBLOCK 109

CHAPTER 7. MOBILE WEB 111

LAUNCHING MOBILE WEB 112

ACCESS THE INTERNET 112

BROWSER MENU 112

HOME 112

BACK 112

FORWARD 112

REFRESH. 113

HISTORY 113

ADDRESS 113

CLEAR MEMORY 113

SETTING 114

ADVANCED 114

EXIT 114

CHAPTER 8. SAFETY AND WARRANTY 115
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES 116
DRIVING SAFETY 117
ELECTRONIC DEVICES 118
OTHER SAFETY GUIDELINES 119
PRECAUTIONS 120
SAFETY INFORMATION FOR FCC RF EXPOSURE 121
CAUTIONS 121
SAR INFORMATION 122
FDA CONSUMER UPDATE 124
PROTECT YOUR WARRANTY 128
12 MONTH LIMITED WARRANTY 129

Chapter 1

BEFORE USING YOUR PHONE

This chapter provides important information about using the CDM-8615 including:

INSIDE THE PACKAGE
HANDSET DESCRIPTION
BATTERY USAGE
BATTERY HANDLING INFORMATION

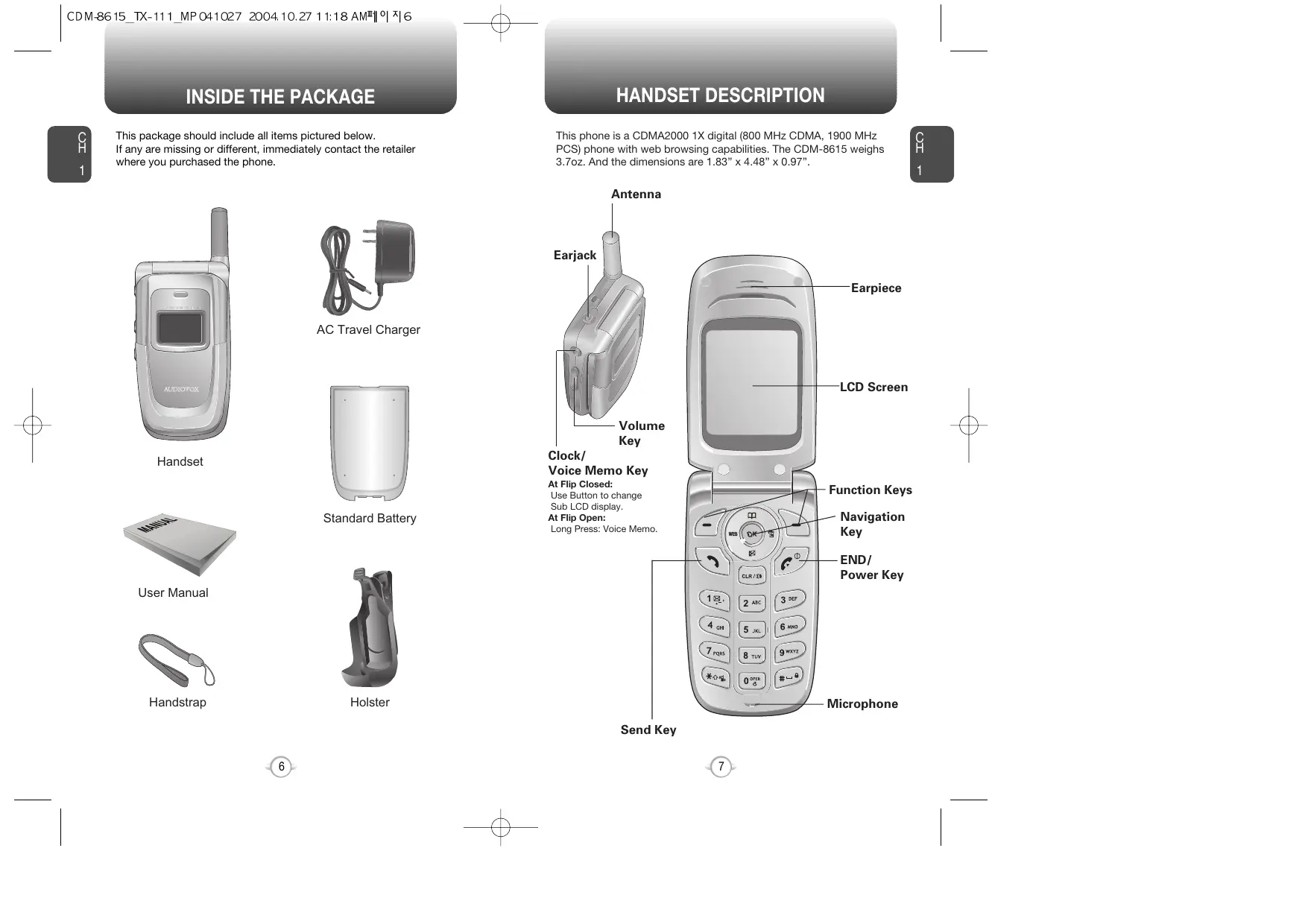

INSIDE THE PACKAGE

This package should include all items pictured below. If any are missing or different, immediately contact the retailer where you purchased the phone.

Handset

AC Travel Charger

Standard Battery

User Manual

Holster

HANDSET DESCRIPTION

This phone is a CDMA2000 1X digital (800 MHz CDMA, 1900 MHz PCS) phone with web browsing capabilities. The CDM-8615 weighs 3.7oz. And the dimensions are 1.83'' × 4.48'' × 0.97'' .

Display Indicators

See page 9 for a list of icons.

Text & Graphic area

Soft Key Indications

Shows the functions currently assigned to each soft key and displays some icons.

THE FUNCTION KEYS

@ Metro

In Idle Mode

• Press Up to access the Phone Book, Down to access the Messaging, Right for @ Metro and Left for Mobile Web.

Inside the menu

• Within a menu, use to scroll through menu options, or to select a function displayed on the screen.

Press to make or receive a call.

Press and hold to turn on VR mode.

Press to turn the phone on/off, to terminate a call or to return to the initial page.

(Left Soft Key) Press to access the menu or function displayed on bottom line.

(Right Soft Key) Press to access contact menu or function displayed on bottom line.

Press to clear a digit from the display or to return to the previous page.

Press and hold to enable speaker phone mode.

Press and hold to enter etiquette mode.

Press and hold to enter lock mode.

DISPLAY INDICATORS

T.11

Signal Strength - Current signal strength: the more lines, the stronger the signal.

Roaming

Phone is out of home area.

Service Indicator

Indicates call is in progress, indicates the phone cannot receive a signal from the system.

Message

New text or voice message.

Digital mode

Phone is operating in digital mode.

Battery

Battery charging level – the more blocks, the stronger the charge.

Mute

Phone is mute during a call.

Silent

Appears when Silent is selected as the ring mode.

Emergency Call

Blinks when an emergency call is in progress.

Auto Answer

Phone is in answering machine mode.

Speaker phone

Phone is in speaker phone mode.

Etiquette

Phone will vibrate when call is received.

Event

Appears when either an event or an alarm is set.

Ring Mode

Appears when ringer is selected as the ring mode.

Data Only

Receives an async. call as a voice call.

Dormant

Indicates your phone is in a dormant state during a data call. Your phone goes to Dormant mode when you have no had any activity on a page for some time - your connection is still active and now you can make and receive calls.

GPS Icon

Indicates the Location Service of your phone is disabled/enabled.

1X

Phone is in the 1x service area.

Scratch Pad

Displays when scratchpad is in use during a call.

Unread Web Message

Phone has new Web Alert message.

Web Message + Text Message

Phone has Web Alert Msg and Text Msg.

Web Message + Voice Message

Phone has Web Alert Message and Voice Message.

Web Message + Text Message + Voice Message

Phone has Web Alert Message, Text Message and Voice Message.

UP Browser

UP Browser is in progress.

BATTERY INSTALLATION

1 Place the battery on the back of the handset and slide into place. 2 Push the battery down until it locks into place.

BATTERY REMOVAL

1 Pull down the release latch, lift up the battery and 2 remove the battery from the handset.

If the battery is not correctly placed in the compartment, the handset will not turn on and/or the battery may detach during use.

BATTERY CHARGING

POWER CONNECTION

Plug the AC Charger into a standard outlet.
Plug the other end of the AC Charger into the bottom of your phone. The battery must be attached to the phone.

NOTE

• When you charge the battery with the phone power off, you will see a charging status screen. You cannot operate the phone until it is powered on.
  The battery is not charged at the time of purchase.
  Fully charge the battery before use.
• It is more efficient to charge the battery with the handset powered off.
• The battery must be connected to the phone in order to charge it.
• Battery operating time gradually decreases over time.
• If the battery fails to perform normally, you may need to replace the battery.

PCS AND 1X BATTERY TIMES

The operating time is subject to your handset usage and configuration.

Battery Capacity	DCS	PCS
STD 1000 mAh	200m	190m
EXT 1700 mAh	330m	310m

BATTERY LIFE (FOR NEW BATTERY)

The operating time is subject to your handset usage and configuration.

Battery Capacity	CDMA
STD 1000 mAh	190 Hours
EXT 1700 mAh	310 Hours

These times are for a new battery. Usage and Standby time may decrease over time.

D0s

• Only use the battery and charger approved by the manufacturer.
• Only use the battery for its original purpose.
• Try to keep batteries in a temperature between 41^ (5^) and 95^ (35^) .
• If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using.
• Completely drain the battery before recharging. It may take one to four days to completely drain.
• Store the discharged battery in a cool, dark, and dry place.
  Purchase a new battery when its operating time gradually decreases after fully charging.
• Properly dispose of the battery according to local laws.

DON'Ts

• Don't attempt to disassemble the battery - it is a sealed unit with no serviceable parts.
• Don't accidentally short circuit the battery by carrying it in your pocket or purse with other metallic objects such as coins, clips and pens. This may critically damage the battery.
• Don't leave the battery in hot or cold temps. Otherwise, it could significantly reduce the capacity and lifetime of the battery.
• Don't dispose of the battery into a fire.

Chapter 2

BASIC OPERATION

This chapter addresses and explains the basic features of your phone including:

TURING THE PHONE ON / OFF
■ ACCESSING THE MENU
■ MENU SUMMARY
BASIC FUNCTIONS
DURING A CALL
MAKING AN EMERGENCY CALL

TURNING THE PHONE ON

Press and hold ^0 until your "Power On" logo appears and the tone sounds.

To select a logo, refer to page 61 for more details. (Settings>Display>Graphics) for more detail.
- If "Password" appears on the display enter your 4-digit password to unlock your phone.
- The default password is the last 4 digits of your phone number.

Press and hold (c^0) until your "Power Off" logo appears.

• Immediately change or recharge the battery when "Low Battery Warning Power Off" appears on the display. Memory may possibly be damaged if the phone turns off due to the battery completely draining.
• Turn the phone off before removing or replacing the battery. If the phone is on, unsaved data may be lost.

ACCESSING THE MENU

Your phone can be customized via the menu. Each function can be accessed by scrolling with the Navigation Key or by pressing the number that corresponds with the menu item.

To access the menu in the idle mode, press [MENU].

Use the Navigation Key to scroll through the menu.

To search through the menu in numerical order, press the Navigation Key down.

To return to the previous page, press [CLR]. To exit the current menu and return to the idle mode, press ±bc^

Press the Navigation Key to enter a function when its main page is displayed or press its assigned number to have direct access to the function.

Hotkey

In idle mode, move the Navigation Key as follows to access these functions:

• Upward movement: Phone Book
• Downward movement: Messaging
  Rightward movement : @ Metro
• Leftward movement : Mobile Web

1. Phone Book	1. Find 2. Add New 3. Group 4. Speed Dial 5. Msg. Group 6. My Phone #	1. By Name 2. By Number		7. Settings	6. Media Gallery	1. Images 2. Tones	1. Graphics 2. Animations
2. Recent Calls	1. All Calls 2. Missed Calls 3. Received Calls 4. Dialed Calls 5. Call Timers	1. Last Call 2. All Calls 3. Home Calls 4. Roam Calls 5. Cumulative Calls				1. Sounds	1. Ringer Type 2. Volume	1. Ringer 2. Messages 3. Voice Mail 1. Ringer 2. Key Tone 3. Voice Call 4. Speaker Phone
3. Messaging	1. New Text Msg 2. Voice Mail 3. Inbox 4. Outbox 5. Web Alerts 6. Saved 7. Quick Text	1. Inbox 2. Auto Save 3. Save SMS 4. Auto Erase 5. Default Callback 6. Edit Signature 7. Direct View 8. Entry Mode 9. Block or Unblock				2. Display	4. Roam Ringer 5. Tone Length 6. Etiquette 1. Menu Style 2. Graphics	1. Minute 2. Roam 3. Connect 4. Fade
							3. Sub Screen 4. Greeting Message 5. Contrast 6. Backlight	1. Wallpaper 2. Power On 3. Power Off 4. Received 5. Dialed 6. Screen Saver
							3. DataSvc 4. Security	1. Connection 1. Phone Lock 2. Restrict
								1. Dailed 2. Recent Calls 3. Phone Book 4. Data Call 5. 900#s 6. Long Distance
							3. Change Code 4. Special #'s	1. Special #1 2. Special #2 3. Special #3
4. @ Metro	1. Connect web		1. Block 2. Unblock 3. View List of Blocked Address				5. Others	1. Answer Options 2. Auto Retry 3. Language 4. Voice Privacy 5. TTY Mode 6. Location
5. Mobile Web

8. My Metro	6. System	1. Set Mode 2. Nam Setting	1. Auto NAM 2. Change NAM
	7. Phone Info	3. PRL ID 1. S/W Version 2. H/W Version 3. @ Metro Version
	1. Monthly Bill 2. MetroConnect 3. metroPCS Card	1. Request Balance 2. Pay Monthly Bill	1. Credit Card 2. metroPCS Card 3. Other options
9. Tools	1. Voice Memo	1. Record 2. Play 3. Play Speaker 4. Erase All
	2. Voice Dial	1. Record 2. Play 3. Play Speaker 4. Erase All
	3. Train Words	1. Yes 2. No 3. Wake-Up 4. Undo Train All
	4. Voice Setting
10. Utilities	1. Event	1. Add New Plan 2. View Plan
	2. Alarm	1. Alarm 1 2. Alarm 2 3. Alarm 3
	3. Memo Pad	1. Add Memo 2. View Memo 3. Settings
	4. Calculator 5. World Clock 6. Stop Watch

MAKING A CALL

1 Enter a phone number.

To modify the phone number you have entered:

To erase one digit at a time press
To erase the entire number, press and hold

Press

The indicator, , appears on the display.

NOTE

• If "CALL Failed" appears on the display or the line is busy, press ^* or .
• If you activate the "AUTO RETRY" function, the phone will automatically retry for the number of times you have selected. (refer to page 72).
• When you place or receive a call from stored phone numbers, both the name and phone number will be displayed.
• There is another way to make a call through the VR mode, which is called "VAD (Voice Activated Dialing)". Please refer to page 89 (Voice Service) for more details.

3 To end a call, press

SPEAKERPHONE

The speaker phone feature lets you hear audio through the speaker and talk without holding the phone.

1 To activate the speaker phone in idle, answering or calling modes, press and hold
2 The phone returns to normal (speaker phone off) after ending a call or when the phone is turned off and back on.

PAUSE FEATURE

Pauses are used for automated systems (i.e., voice mail, calling cards). Insert a pause after a phone number then enter another group of numbers. The second set of numbers is dialed automatically after the pause. This feature is useful for dialing into systems that require a code.

1 To insert a pause, enter a phone number then press [MENU]. Select either a Hard Pause ("P" appears) or a Timed Pause ("T" appears).
Press to dial or [SAVE] to store the number.

Please refer to page 30 for more details about storing a phone number.

ANSWERING A CALL

1 To answer a call, press any key except ^0 - or

• By pressing 7_start 5_start 1_start 1_start , you can select either "Any Key" or "Send Key" to answer a call. If "Send Key" is selected, the phone can only be answered by pressing . See page 71 for more information.

2 To end the call, press

In Auto Answer Mode a call is automatically answered after a preset number of ring tones. See page 72 for more details.

3-WAY CALLING

With Three-Way Calling, you can talk to two people at the same time. When using this feature, the normal airtime rates will be applied for each of the two calls.

1 Enter the number you wish to call then press
Once you have established the connection, enter the second number you wish to call then press 2 .
3 When you're connected to the second party, press again to begin your three-way call.

If one of the people you called hangs up during your call, you and the remaining caller stay connected. If you initiated the call and are the first to hang up, all three callers are disconnected.

BASIC FUNCTIONS

CALLER ID FUNCTION

Identifies caller by displaying their phone number. If the caller's name and number are already stored in your phone book, they both will appear.

The caller ID is stored in the call history.

CALL WAITING FUNCTION

Notifies you of an incoming call when you are already on a call by sounding a beep tone and displaying the caller's phone number.

1 To answer another call while on the phone, press l . This places the first call on hold. To switch back to the first caller, press again.

Call Waiting is a system dependent feature. Please contact your service provider for details.

ADJUSTING VOLUME

Adjusts the volume of the ringer, key beep and speaker.

Press [MENU] 182 abc then select one of the following.

Ringer:Controls the ringer volume
Key Tone: Controls the key pad tone.
Voice Call: Controls the earpiece volume.
- Speaker Phone : Controls the speaker volume.

Adjust volume then press OK [OK] to save it.

To adjust earpiece volume during a call, press the Navigation Key up or down.

BASIC FUNCTIONS

ETIQUETTE

Mutes key tones and activates the vibration mode to alert you of an incoming call or message.

To turn etiquette mode on/off, press and hold 空心 .
will be displayed to indicate etiquette mode is active an audible tone sounds when etiquette is turned off.

PHONE LOCK

The Key guard feature of your cellular telephone locks the keypad to protect against accidental key presses when the phone is turned on and no call is in progress. You can still answer or silence an incoming call.

To lock the phone, press and hold

To unlock the phone, press or then input your password.

DURING A CALL

To display menu options during a call, press [MENU].

MESSAGE

Enables you to send a message (SMS) during a call.

Press [MENU] 18.

MUTE (UNMUTE)

The caller cannot hear you or any sounds from your side but you can still hear them.

Press [MENU] 2.

To deactivate, press [MENU] 2

The phone will automatically un-mute in Emergency Call or Callback mode.

SCRATCHPAD

Stores a new phone number during a call without the calling party hearing the key pad tones.

Press [MENU]

To deactivate it, press [MENU]

SEND MY PHONE #

Automatically transmits your phone number to a pager during a call. (Dependent on pager service)

Press [MENU]

DURING A CALL

MY PHONE #

Displays your phone number.

Press [MENU] 5

VOICE PRIVACY

Increases security during a call.

Press [MENU]

LOCATION

Enables the network to locate your current location through Global Positioning System (GPS). (Refer to page 74 for more details.)

Press [MENU]

PHONE INFO.

Displays the software and hardware version of your phone.

Press [MENU]

MAKING AN EMERGENCY CALL

This 911 feature puts the phone in the Emergency Call Mode when you dial the preprogrammed emergency number, 911. It also operates in the lock mode and out of the service area.

911 IN LOCK MODE

The 911 call service is available even in the lock mode.

Enter "911" then press

The call connects.

The phone exits the Lock Mode for 5 minutes.

When the call ends, the phone returns to the Lock Mode.

911 USING ANY AVAILABLE SYSTEM

Enter "911" then press

The call connects.

The phone maintains the Emergency Mode for 5 minutes.

The phone returns to the Lock Mode.
While the phone is in the emergency mode for 5 minutes, the phone can receive an incoming call from any available system. However, it can't make a call.

The 911 call is not recorded in the recent call list.

Chapter 3

MEMORY FUNCTION

This chapter addresses memory functions including:

STORING A PHONE NUMBER
ENTERING LETTERS, NUMBERS & SYMBOLS
■ MAKING A CALL THROUGH THE PHONE BOOK

STORING A PHONE NUMBER

The phone book stores up to 300 entries.

1 Enter phone # then press OK [SAVE].
2 Choose "New Contact" or "Existing Contact". Press OK [OK] to select.
3 The Phone # will appear above a list of icons. The name of the icon is displayed below the list. Use the Navigation Key to choose the type of # you're adding, as indicated by the icon. Press OK [OK] to select.
4 Enter a name then press OK [OK]. Please refer to page 31 for more details on entering letters, numbers & symbols. To change the input mode, press [Abc]. Press the Navigation Key down to select the group. Press the Navigation Key down to select other options (secret, email).
5 To store the entry, press [SAVE]. "New contact added!" or "Contact edited!" will be displayed.

ENTERING LETTERS, NUMBERS & SYMBOLS

The input mode (Alpha editor) will be automatically activated when necessary to enter letters and numbers. As shown below, there are 4 available modes; Standard input mode (Abc), T9 input mode (T9Word), Numeric mode (NUM), and Symbol mode (Symbols).

The input mode indicator appears on the upper right of the display when letters and numbers are entered. To select the desired input mode among the 4 modes below, press [Abc], then enter letters and numbers.

Input mode indicator

T9Word:T9mode

Abc:Abc mode

NUM : Number mode

Symbols : Symbol mode

The following illustrates the function assigned to each key in the Alpha Editor.

KEY	FUNCTION
Abc	Press to change mode. [T9Word][Abc][NUM][Symbols]
0° Next	In T9 mode press to view the next matching word if the highlighted word is not the word you intended.
Space	Press to accept a word and add a space.
Caps Lock	Press to select a letter case of the standard text input or T9 text input mode. [Abc], [ABC], and [abc] indicate the standard text input. [T9Word], [T9WORD], and [T9word] indicate the predictive text input.
Clear CLR/0	Press to delete a character to the left of the cursor.
Save OK	Store the letters and numbers you enter.

STANDARD INPUT MODE

Use the digit keys to enter letters, numbers and characters.

Enter letters using the key pad as follows:

Key Pad	1 Time	Repetitions 2 times	Repetitions 3 times	Repetitions 4 times	Repetitions 5 times
1	1	.	@	-	'
2ABC	A	B	C	2	A
3DEF	D	E	F	3	D
4GHI	G	H	I	4	G
:	:	:	:	:	:
9WXYZ	W	X	Y	Z	9

To change the input mode, press [Abc].

To enter a space, press . The cursor will automatically move to the next column.

Repeat until letters are entered. There is a 16-letter limit.

To delete one digit, press .n. . To delete the entire entry, press and hold .n. .

To change from lowercase to uppercase, press # +# .

Select Abc mode by pressing [Abc].

When you select this mode, the Abc icon appears as a visual confirmation.

• Find the key that corresponds to the letter you want to enter.
• Press it as many times as needed for the letter to appear on the screen.
• To enter the name "John":

Press [5m]	J
Press [6m]	o
Press [4m]	h
Press [6m]	n

T9 INPUT MODE

The T9 input mode incorporates a built-in-dictionary to determine a word based on the entered characters. A word can be entered more quickly by pressing a key once per character.

Select the T9Word mode by pressing [Abc].

Press a digit key once to enter the character you want then enter all the characters to input the word you want.

To view the next matching word, press 0_e^opt

To accept the matching word then enter a space, press # - 1 .

To enter a compound word:

• Enter the first part of the word then press ⑧ to accept it.
• Enter the last part of the word then press # + to enter the word.

To enter "Fun fare" in the T9 input mode.

• After you enter the 1st letter, press [Abc] to select T9 mode and ( ) to choose the lower case (T9Word).
• Press 3~w~ 8~v~w~ 6~w~ and you will see "Fun" highlighted. Press - 9 to select it.
• Press 3 & 2 & 7 & 3 & and until you see "ease" highlighted. Press 0 & 0 & to select the next matching word, you will see "fare" then enter a space.

ENTERING LETTERS, NUMBERS & SYMBOLS

NUMERIC MODE

Allows you to enter numbers.

1 To enter Numeric Mode, press [Abc] and select "NUM."
2 To enter a number, press a digit key.

SYMBOL MODE

Allows you to enter symbols.

1 To enter Symbol Mode, press [Abc] and select "Symbols."
2 Select symbol you want to enter with the Navigation Key.

Use the Navigation Key to view a different line of symbols.

MAKING A CALL THROUGH THE PHONE BOOK

Ideal for frequently dialed numbers, this feature allows phone book entries to be dialed via the keypad with only one or two key presses.

ONE-TOUCH DIALING:

1-9 : Press and hold the corresponding memory number for more than 1 second.

TWO-TOUCH DIALING:

10-20 : Press the first digit and second digits of the memory number short and long respectively.

• If no phone number is stored in the location entered, "There is no number" will appear on the screen.
• If a phone number is stored in secret, you will have to enter the password to make a call.

Chapter 4

MENUFUNCTION

This chapter addresses accessing the menu and using its functions and features to customize your phone.

PHONE BOOK
RECENT CALLS
@ METRO
MOBILE WEB
MEDIA GALLERY
SETTINGS
MY METRO
■ UTILITIES

PHONE BOOK

Stores up to 300 entries, each of which can be assigned to a group. Entries can be retrieved by name, phone number or group.

FIND

Retrieves an entry by name and calls by simply pressing . You can review all the entries stored in your phone book list or quickly find an entry by entering a name or phone number.

FIND BY NAME

Lists contacts alphabetically so you can quickly find a name.

1 Press [MENU] 1 1 1
2 The list of names in your phone book is displayed alphabetically.
3 Enter a name or its character string or scroll through the list with the Navigation Key. Please refer to page 31 for more details on entering letters, numbers & symbols.
4 All matching entries will be displayed. Highlight an entry. To edit the entry, press OK [OK]. Press [MENU] to 1. Send Text Msg, 2. Prefix or 3. Erase.

If the entry is set to secret, you will be asked for your password.

Please refer to page 97 for more details on "New Text Msg".

5 To call the selected number, press

PHONE BOOK

FIND BY NUMBER

Lists contacts numerically so you can quickly find a number.

Press [MENU] 18.18.2.
The list of phone numbers saved in your phone book will be displayed in numerical order.
3 Enter a part of the phone number or scroll through the list with the Navigation Key. The name associated with that number will be displayed at the bottom of the screen.
4 All matching entries will be displayed. Highlight an entry. To edit the entry, press OK [OK]. Press [MENU] to 1. Send Text Msg, 2. Prefix or 3. Erase.

If the entry is set to secret, you will be asked for your password.

Please refer to page 97 for more details on "New Text Msg".

5 To call the selected number, press

ADD NEW

Adds a new entry.

1 To add a new entry to the phone book, press [MENU] 2.
2 To enter a name or number, use the Navigation Key to select the phone book field.

• PHONE BOOK FIELDS: Name/Mobile/Home/Office/Pager/Fax/E-Mail/ Wireless Addr./Group/Ringer/Msg.Ringer/Graphic/Memo/ Set Secret.

Please refer to page 31 for more details on entering letters, numbers & symbols.

3 3.1 To save the entry, press [SAVE].
3.2 To return to the previous page, press CLN

GROUP

Allows you to classify phone entries into groups. Existing groups include Personal, Business, Etc. and All. A maximum of seven groups is allowed.

ADD NEW GROUP

1 To add a new group, press [MENU] A maximum of seven groups is allowed.
2 To select "Add Group", press [MENU].
3 Input a new group name.
4 To save it, press OK [OK].

CHANGE GROUP NAME

Press [MENU] 3w.
2 Select an existing group name that you have added with the Navigation Key.
3 To select "Rename", press [MENU].
4 Input a new group name.
5 To save it, press OK [OK].

The default group names (All, Personal, Business, Etc.) cannot be changed.

ERASE GROUP

Press [MENU] 300.
2 Use the Navigation Key to select, then delete the group.
3 To delete it, press - [ERASE].
4 To erase it, press OK [OK].

• The default group names (All, Personal, Business, Etc.) cannot be erased.
• When executing erase group, the saved entries are moved to the Etc. group.

SPEED DIAL

In idle mode, calls can be placed to numbers stored in speed dial by pressing & holding the location number on the key pad. For a 2-digit location number, press the first number, then press and hold the second number.

1 Press -

[MENU]

2 To assign a phone number to a location, select the location then press [SET].

If a phone number is already assigned to the location, press [ERASE] and OK [OK] to delete.

3 Select the entry with the Navigation Key and press OK [OK].

If the entry is set to secret, you will be asked for your password.

NOTE

• "Unassigned" appears if the location is available.
• If a phone number is set as Secret, you will have to enter the password.
• To call an assigned number, press & hold the last digit of the speed dial #.
• "1" key is used for One-Touch voicemail feature.

4 "Speed dial # X edited" will be displayed.

MSG. GROUP

Allows the user to group up to 10 phone number. The user can add, change, and delete Msg.Group .

ADD NEW MSG. GROUP

1 To add a new group, press [MENU]5 A maximum of five groups is allowed.
2 To select "Add Group", press [MENU].
3 Input a new group name.
4 To save it, press OK [OK].

CHANGE MSG. GROUP NAME

Press [MENU]5.
2 Select an existing group name with the Navigation Key.
3 To select "Rename", press [MENU].
4 Input a new group name.
5 To save it, press OK [OK].

SEND TEXT MSG. GROUP

Press [MENU]5.
2 Select an existing group name with the Navigation Key.
3 To select "Send Text Msg.", press [MENU].
4 Input a "Message", "Default CB#", "Priority", and "Insert Signature".
5 5.1. To send the text message, press [MENU], select "Send" then press OK [OK].
5.2. To send the text message, press [MENU], select "Save to Outbox" then press OK [OK]. Please refer to page 97 for more details on "New Text Msg".

ERASE MSG. GROUP

Press [MENU]5.
2 Select an existing group name with the Navigation Key.
3 To delete it, press [ERASE].
4 To erase it, press OK [OK].

MYPHONE#

To display your phone number and service provider:

Press [MENU] 6
To return to the previous page, press OK [OK].

RECENT CALLS

In idle mode, you can access recent calls by pressing [MENU] 2.

ALL CALLS

Displays information about the most recent incoming, outgoing and missed calls.

1 To see a list of the 60 most recent incoming, outgoing and missed calls, press [MENU] 2 ABC 1. If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears.

2 To view details, press OK [OK].

NOTE

Call details include type of call, date, time and phone number.

3 Press [MENU] then select "SAVE" to save it or press [ERASE] to delete it.

• Save: To store the phone number in your phone book.

• Prefix: The user may add the desired number before the number. It is useful when you add "1" during a long distance call.

You may save it in the phone book after entering the Prefix.

Send Text Msg: To send a Text message, insert the phone number.

Erase All: To erase all recent calls list.

NOTE

After the 20^th received, dialed or missed call, the oldest call will automatically be erased from the history.

RECENT CALLS

MISSED CALLS

Displays information about the 20 most recently missed calls. Place a call to a missed call number by simply pressing l

1 To see a list of the 20 most recently missed calls, press [MENU] 2 abc 2 abc . If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears.

2 To view missed call details, press OK [OK].

NOTE

Call details include date, time and phone number.

3 Press [MENU] then select "SAVE" to save it or press [ERASE] to delete it.

• Save: To store the phone number in your phone book.
• Prefix: The user may add the desired number before the number. It is useful when you add "1" during a long distance call. You may save it in the phone book after entering the Prefix
• Send Text Msg: To send a Text message, insert the phone number.
• Erase All: To erase all missed calls list.

NOTE

After 20 missed calls, the oldest call will automatically be erased from the history.

RECEIVED CALLS

Displays information about the 20 most recently answered calls.

Place a call to a received call by simply pressing

To see a list of the 20 most recently answered calls, press [MENU] 2 abc 3. If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears.

2 To view incoming call details, press OK [OK].
NOTE Call details include date, time and phone number.
3 Press [MENU] then select "SAVE" to save it or press [ERASE] to delete it.

• Save: To store the phone number in your phone book.
• Prefix: The user may add the desired number before the number. It is useful when you add "1" during a long distance call. You may save it in the phone book after entering the Prefix
• Send Text Msg: To send a Text message, insert the phone number.
• Erase All: To erase all received calls list.

After 20 received calls, the oldest call will automatically be erased from the history.

DIALED CALLS

Displays information about the 20 most recently dialed numbers.

Place a call to a dialed call by simply pressing

1 To see a list of the 20 most recently dialed numbers, press [MENU] 2ABC 4.
If the number is already stored in your phone book, only the name appears. If the number is not stored, only the phone number appears.
2 To view dialed call details, press OK [OK].

Call details include type of call, date, time and phone number.

Press [MENU] then select "SAVE" to save it or press [ERASE] to delete it.

• Save: To store the phone number in your phone book.
• Prefix: The user may add the desired number before the number. It is useful when you add "1" during a long distance call. You may save it in the phone book after entering the Prefix.
• Send Text Msg: To send a Text message, insert the phone number.
• Erase All: To erase all dialed calls list.

After 20 dialed calls, the oldest call will automatically be erased from the history.

CALL TIMERS

Checks the usage time and manages your calls within the limit you set. The five timers include:

LASTCALL

Displays usage time of last call.

Press [MENU] 2asc 5xL 1s.
2 To return to the previous page, press OK [OK].

ALL CALLS

Displays usage time of all incoming and outgoing calls, excluding web access calls.

Press [MENU] 255 256.
2 View the time of the following items:

Voice Call Data Call
3 To return to the previous page, press OK [OK].

HOME CALLS

Displays usage time of all calls made within Home area.

Press [MENU] 5 def.
2 View the time of the following items:

Voice Call Data Call

3 To reset the timer, press [RESET]. To return to the previous page, press OK [OK].

ROAM CALLS

Displays talk time of roaming calls.

Press [MENU] 2 ABC 5 JKL 4 gdl.
2 View the time of the following items:

Voice Call Data Call

3 To reset the timer, press [RESET].

To return to the previous page, press OK [OK].

CUMULATIVE CALLS

Displays talk time of all incoming and outgoing calls, excluding web access calls.

Press [MENU] 2ABC 5JL 5JL.
2 View the time of the following items:

Voice Call Data Call

3 To reset the timer, press [RESET].

To return to the previous page, press OK [OK].

@ METRO

Your phone provides a unique feature "@Metro" that enables you to download melody ringers, wallpapers, games and more from your network to your phone.

Please contact your service provider for the availability of these services.

START @ METRO

1 To launch "@Metro" from the standby mode, press [MENU] or press
The @ Metro application icons will appear. The shopping cart icon is @ Metro, the checkmark is for Settings, and the question mark is for Help.
3 Choose an application, then press OK.

DOWNLOADING APPLICATIONS

Press [MENU] or press
2 Select @ Metro then press OK.
3 Select a folder in the catalog then press OK.
4 The phone will access your service provider's server. Follow the prompt to download applications.

To select an option, highlight it then press OK. When a prompt appears, press OK to proceed or to cancel.

DOWNLOADING MELODIES/WALLPAPERS

Before downloading melody ringers and wallpapers, you need to download the dedicated downloader.

Please contact your service provider for details.

@ METRO

APPLYING MELODIES/WALLPAPERS

Downloaded melody ringers apply to several functions including the incoming call alert, new text message alert, alarm clock and scheduler alarm.

See Ringer Type on page 57.

Downloaded wallpapers apply to the standby mode.

See Wallpaper on page 61.

CHECKING DATA FOLDER MEMORY

Downloaded melody ringers, wallpapers and applications are saved to the data folder in your phone.

Press [MENU] or press 念
2 Select "Settings" then press OK.
3 Select "Manage Apps" then press OK. The memory status will be displayed.
4 To exit, press ^

ERASING AN APPLICATION

Press [MENU] or press 念
2 Select "Settings" then press OK.
3 Select "Manage Apps" then press OK. The memory status will be displayed.
4 Select the application to be erased then press OK.
5 Select "Remove" then press OK [OK].

CONNECT WEB

Your CDM-8615 allows you to browse various Internet websites directly from your phone. This provides you with access to up-to-date information such as news, sports, weather and stock quotes when you subscribe to Internet service with your service provider. Please contact your service provider for a list of available websites and service details.

Press [MENU] or ←
2 For more information, see Chapter 7: Mobile Web, on page 111.

IMAGES

GRAPHICS

To display the list of downloaded still images:

Press [MENU] 6 and 18. 18.
- Press [MENU] to select 1.Erase, 2.Erase All, 3.Change Title.
2 Scroll through the captured pictures to display the picture you want to send then press _OK [SEND].
3 Enter your picture message.
4.1 To send the text message, press [MENU], select "Send" then press OK [OK].
4.2 To send the text message, press [MENU], select "Save to Outbox" then press OK [OK].

ANIMATIONS

To display the list of downloaded animations:

Press [MENU] 1g.2 ABC.
- Press [MENU] to select 1.Erase, 2.Erase All, 3.Change Title.
2 Scroll through the captured pictures to display the picture you want to send then press [SEND].
3 Enter your picture message.
4.1 To send the text message, press [MENU], select "Send" then press OK [OK].
4.2 To send the text message, press [MENU], select "Save to Outbox" then press OK [OK].

TONES

Press [MENU] 6w2aC.
2 Scroll to the saved voice memo you want to send then press OK [SEND].
3 Enter your picture message,

3.1 To send the text message, press [MENU], select "Send" then press OK [OK].
3.2 To send the text message, press [MENU], select "Save to Outbox" then press OK [OK].

Customizes your phone and optimizes performance through a variety of settings.

SOUNDS

Sets Ringer Type, Volume, Alert, Roam Ringer, Tone Length and Etiquette.

RINGER TYPE

To select a ringer type for incoming calls:

RINGER

Press [MENU] 1. 1. 1.
2 Select your desired ringer type.

• Left or Right key: Select "Ring Tones", "Music Bells" or "Downloads."
  Up or Down key: Select "Ringer."
• Downloads: Downloaded ringer types and familiar music.

3 Select one of the available ring types. To confirm, press OK [SELECT].

MESSAGE

To select a ringer type for receiving messages:

1 Press [MENU] 7ggs 18 18 2ABC.
2 Press the Navigation Key up or down to select "Tone 1, 2, 3, 4, 5".
3 To confirm, press OK [SELECT].

VOICE MAIL

To select a ringer type for receiving voice mail:

Press [MENU] 1 1 3
2 Press the Navigation Key up or down to select "Tone 1, 2, 3, 4, 5".
3 To confirm, press OK [SELECT].

VOLUME

Controls the Ringer, Key tone, Voice Call and Speaker Phone volume.

RINGER

Controls the Ringer volume and alerts you to incoming calls in the modes listed in the gray box below.

Press [MENU] 1B2 ABC 1B.
2 Select one of the following options by pressing the Navigation Key to the right or left.

Silent: Mute the ringer, press (Min).
Ringer Off
Vibrate On
Ringer Mode:Level 1\~5
High & Vib : The ringer sounds after vibration, press _Max

3 To confirm, press OK [OK].

KEY TONE

To adjust key pad tone:

Press [MENU] 18.2 ABC 2 ABC
2 Adjust the key pad tone with the Navigation Key.

• Off (Min-< )
• Level 1 - 5 (level 5, Max-)

3 To save, press OK [OK].

VOICE CALL

To adjust earpiece volume:

Press [MENU] 7p83 18.2 ABC 3DEF.
2 Adjust the earpiece volume with the Navigation Key.

Level 1 - 5 (Min- 一 Max-

3 To save, press OK [OK].

SPEAKERPHONE

To adjust speaker phone volume:

Press [MENU] 12 ABC 4GH.
2 Adjust the speaker phone volume using the Navigation Key.

Level 1 - 5 (Min- 一 _ i Max-)

3 To save, press OK [OK].

ALERT

When selected, this setting alerts you to the following handset changes:

MINUTE

Sounds an alert every minute during a call.

Press [MENU] 1 3 1
2 Select "Off" or "On" with the Navigation Key then press OK [OK] to save it.

ROAM

Sounds an alert when leaving a service area and entering a roaming service area.

Press [MENU] 1 3 2 ABC.
2 Select "Off" or "On" with the Navigation Key then press OK [OK] to save it.

CONNECT

Notifies you that a call has been successfully placed.

Press [MENU] 13 3DEF.
2 Select "Off" or "On" with the Navigation Key then press OK [OK] to save it.

SETTINGS

FADE

Sounds an alert when entering an area where calls cannot be made due to weak signal strength.

Press [MENU] 134 gH.
2 Select "Off" or "On" with the Navigation Key then press OK [OK] to save it.

ROAM RINGER

Sounds a different ringer when you are in a roaming service area.

Press [MENU] 184
2 Select "Distinctive" or "Normal" with the Navigation Key then press OK [OK] to save it.

• Normal : Sounds the same ringer type as used in Home area.
• Distinctive : Sounds a different ringer type.

TONE LENGTH

To adjust tone length:

Press [MENU] 18.5
2 Select "Normal" or "Long" with the Navigation Key then press OK [OK] to save it.

ETIQUETTE

To place the phone in Etiquette Mode so all phone sounds are muted:

Press [MENU] 18.6
2 Select "On" or "Off" with the Navigation Key, then press OK [OK] to save it.

On:Etiquette Mode on. Off: Etiquette Mode off.

SETTINGS

DISPLAY

Allows you to customize display.

MENUSTYLE

To select a display menu style:

Press [MENU] 7PQs 24sc 18.
2 Select "Fold", "Grid" or "List" with the Navigation Key then press OK [OK] to save it.

GRAPHICS

To select an LCD display:

WALLPAPER

Press [MENU] 2 ABC 1.
2 Select Default to choose a pre-installed display, or Downloads to choose a display you have downloaded to your phone.
3 Select a display from the Animation and the Graphic list using the Navigation Key and press OK [SELECT] to save it.

POWER ON

Press [MENU] 2 ABC 2 ABC
2 Select Default to choose a pre-installed display, or Downloads to choose a display you have downloaded to your phone.
3 Select a display from the Animation and the Graphic list using the Navigation Key and press OK [SELECT] to save it.

POWER OFF

Press [MENU] 2 ABC 3DEF.
2 Select Default to choose a pre-installed display, or Downloads to choose a display you have downloaded to your phone.
3 Select a display from the Animation and the Graphic list using the Navigation Key and press OK [SELECT] to save it.

RECEIVED

Press [MENU] 2 ABC 4GH.
2 Select Default to choose a pre-installed display, or Downloads to choose a display you have downloaded to your phone.
3 Select a display from the Animation list using the Navigation Key then press OK [SELECT] to save it.

DIALED

Press [MENU] 2 ABC 5
2 Select "Default" with the Navigation Key.
Press [SELECT] to save it.

SCREENSAVER

Sets the time of Screen Saver and selects the images to be displayed on the LCD.

Press [MENU] 7PORS 2ABC 2ABC 6WNO.
2 Select "Time Setting" or "Screen Saver" with the Navigation Key.

Time Setting: Off, 5 Secs, 10 Secs, 20 Secs, 30 Secs.
- Screen Saver : Select picture image.(Multimedia/Images). By pressing ( < - / MEDIUM ) ,the user can choose from the following

1. Erase: To erase pictures saved in the current album.
2. Erase All: To erase all pictures saved in the current album.
3. Change Title: To edit the title of a picture file.

3 To save, press OK [SELECT].

SUB SCREEN

Press [MENU] 7Rg2ABC3
2 Select "Digital" or "Analog" with the Navigation Key.
3 To save, press OK [OK].

GREETINGMESSAGE

To input a personal greeting:

Press [MENU] 74G
The Message field will be highlighted. Press the Navigation Key left or right to choose between on and off. Press the Navigation Key down to move to the next field, font. Press the Navigation Key left or right to choose a font color. Press the Navigation Key down to move to the next field, Bg. Press the Navigation Key left or right to choose a Bg color. Repeat for both fields. Press the Navigation Key down for the entry message field. Enter your greeting.

• Message : On/Off.
• Font : White, Blue, Dark blue, Magenta, Gray, Black.
• Bg : Transparent, White, Blue, Yellow, Gray, Black.
• Entry Message : Enter message (Default-Metro PCS).

3 To save, press OK [SAVE].

CONTRAST

To adjust the display contrast:

MAIN LCD/SUB LCD

Press [MENU] 7R5 2ABC 5JL.
2 Select "Main LCD" or "Sub LCD" then select one of the following options with the Navigation Key.

• Main LCD: Level 1~5.
• Sub LCD: Level 1~5.

3 To save, press OK [OK].

BACKLIGHT

Backlights the display and key pad and activates dimming for easy viewing in dark places.

LCD/KEY PAD/DIMMING

Press [MENU] 7P0S 246 8wO.
2 Select "LCD", "Key Pad" or "Dimming" then select one of the following options with the Navigation Key.

LCD:5 Secs/15 Secs/30 Secs/60 Secs/Always On. Key Pad:5 Secs/15 Secs/30 Secs/60 Secs/ AlwaysOn/AlwaysOff. Dimming:On/Off.

3 To save, press OK [OK].

DATA SVC.

CONNECTION

Choose the connection mode for the usage of your phone.

Press [MENU] 3
2 Select one of the following connection modes with the Navigation Key.

• Voice Call: To receive a voice call.
• Data Only: To receive data when connected to PC.
  3 To save it, press OK [OK].

NOTE

This function is available only when the phone is connected to a data cable.

SECURITY

Prevents unauthorized use of your phone. The following settings can be restricted:

PHONE LOCK

Prevents the phone from being used without entering the password first.

Press [MENU] 4 then enter your password.

The default password is the last 4 digits of your phone number.

2 Press then select "Lock Now", "Lock On Power Up" or "Unlock".

• Lock Now: Lock the phone now.
• Lock On Power Up: Not locked, but it is automatically locked when power is recycled.
• Unlock: Do not lock the phone.

3 To save, press OK [OK].

RESTRICT

When you attempt to make a restricted call, "This phone is restricted" appears on the screen.

DIALED

Blocks all dialed calls – except emergency calls – but allows an incoming call to be placed.

Press [MENU] 4 then enter your password.
Press 2_ABC then select "Allow" or "Restrict" with the Navigation Key.

• Allow: Allows a dialed call.
• Restrict: Restricts a dialed call.

3 To save, press OK [OK].

RECENT CALLS

Blocks access to Recent Call List.

Press [MENU] 7_reg54_g4 then enter your password.
Press 2ABC then select "Allow" or "Restrict" with the Navigation Key.

• Allow: Allow access to the recent call list.
• Restrict: Restrict access to the recent call list.

3 To save, press OK [OK].

PHONE BOOK

Blocks access to, and protects data in your phone book.

Press [MENU] 4 then enter your password.
Press 2_ABC3^DEF and select "Allow" or "Restrict".

• Allow: Allows access to the phone book.
• Restrict: Restricts access to the phone book.

3 To save, press OK [OK].

DATA CALL

Restrict a data call from being placed.

Press [MENU] 7_pore 4 then enter your password.
Press 2_ABC4_on then select "Allow" or "Restrict" with the Navigation Key.

• Allow: Allows a data call.
• Restrict: Restricts a data call.

3 To save, press OK [OK].

900#S

Restricts calling 900 dial service numbers.

Press [MENU] then enter your password.
Press 2ABC 5.0 then select "Allow" or "Restrict" with the Navigation Key.

• Allow: Allows calls to a 900-dial service.
• Restrict: Restricts calls to a 900-dial service.

3 To save, press OK [OK].

LONG DISTANCE

Restricts calling long distance numbers - the phone is limited to calling numbers within the area.

Press [MENU] 4 then enter your password.
Press 2_ABC then select "Allow" or "Restrict" with the Navigation Key.

• Allow : Allow a long distance call.
• Restrict : Restrict a long distance call.

3 To save, press OK [OK].

CHANGE CODE

Changes your 4-digit password.

Press [MENU] then enter your password.
Press 3DEF
3 Enter a new password then press OK [OK].
4 Enter the new password again and press OK [OK].

SPECIAL #'S

Stores 3 phone numbers that can be called even in the lock mode.

Press [MENU] 4 then enter your password.
Press 4_con then select a location with the Navigation Key.
3 Press [SET] and input a phone number, press [OK] again to save.

ERASE ALL

Clearly all phone book entries and downloaded entries.

Press [MENU] 4 then enter your password.
Press5
3 Press to check "Phonebook" or "Downloads" then press OK [OK] to erase all the items in those categories.

RESETPHONE

Resetshophoneotodefault settings.

Press [MENU] then enter your password.
2 Press 6w0.
3 Select "Yes" or "No" with the Navigation Key. Press OK [OK].

When you select "Yes" and OK [OK], you will see "Reset Phone! this will reset to default settings" on the display.

OTHERS

ANSWER OPTIONS

CALL ANSWER

To select an answer mode:

Press [MENU] 5.1RL 1.18
2 Select "Any Key" or "Send Key" with the Navigation Key.

Any Key:Press any key to answer an incoming call except
- Send Key: Press only to answer a call.

3 To save, press OK [OK].

ACTIVEFLIP

To select Active Flip Answer mode:

Press [MENU] 7PORS 5JRL 12L 2ABC.
2 Select "On" or "Off" with the Navigation Key.
3 To save, press OK [OK].

• When Active Flip On is selected, an incoming phone call can be answered simply by opening the phone.
• When Active Flip Off is selected, you will need to open the phone and use the Answer mode you have selected.

SETTINGS

AUTO ANSWER

Automatically answers a call after a preset amount of time.

Auto Answer only works when the phone is open.

Press [MENU] 5.18.3
2 Select one of the following with the Navigation Key.

• Off/5 Secs/10 Secs/18 Secs.

This function will not be active when you select Vibrate, Silent, Etiquette or Ringer off as a ringer mode.

3 To save, press OK [OK].

AUTO RETRY

Automatically redials a call up to 5 times after a set time interval.

Press [MENU] 7PQ5 5 xL 246
The Retry Time field is displayed. Press the Navigation Key left or right to choose the amount of time. (Off, 3 Secs, 5 Secs, 7 Secs or 10 Secs.)
3 When a time is chosen for retry time, the repeat field is shown. Press the Navigation Key down to highlight the repeat field. Press the Navigation Key left or right to choose the number of repeats. (1 time, 3 times or 5 times).
4 To save, press OK [OK].

SETTINGS

LANGUAGE

Selects the language in which letters are displayed on screen.

Press [MENU] 5 3
2 Select either "English" or "Spanish" with the Navigation Key.
3 To save, press OK [OK].

VOICE PRIVACY

Enhances voice privacy and avoids tapping during a call.

Press [MENU] 5 xL 4 gH.
2 Select "Standard" or "Enhanced" with the Navigation Key.
3 To save, press OK [OK].

"Enhanced": Makes it more difficult to wire tap.

TTY MODE

Your phone is able to operate with a TTY (Teletypewriter) device in both analog and digital modes. This feature is system dependent and may not be available in all areas.

Press [MENU] 5 5
2 Select one of the following options (TTY Off / TTY+TALK / TTY+HEAR / TTY Full) with the Navigation Key then press OK [OK].

LOCATION

To determine whether or not the network system can detect your position:

Press [MENU] 7_RQS 5_SL 6_SWQ.
2 Select "911 Only" or "Location On" with the Navigation Key.

• 911 Only: Your location will be hidden from network & application except 911.
• Location On: Your location is now available to the network.
  3 To save, press OK [OK].

SYSTEM

SET MODE

Selects the Preferred System.

Press [MENU] 7 p8 6 w8 1同
2 Select one of the following options (Automatic B /Automatic A /Home only) with the Navigation Key then press OK [OK].

Automatic B : Scan the radio channels based on the Automatic B setting.
Automatic A: Scan the radio channels based on the Automatic A setting.
Home only: Only within your home area or home affiliated area.

NAM SETTING

Enables Auto NAM (Number Assignment Modules) or manually selects a NAM.

AUTO NAM

Automatically switches phone to proper NAM when you have multiple NAM registrations.

Press [MENU] 7PORS 6 MND 2 ABC 1B.
2 Select "Yes" or "No" then, press OK [OK] to save it.

CHANGE NAM

Changes the NAM used by the phone when you have multiple registrations.

Press [MENU] 6 ABC 2 ABC
2 Select "NAM1-Metro PCS" or "NAM2-Metro PCS" then press OK [OK] to save it.

PRLID

Displays the phone's PRL (Preferred Roaming List).

Press [MENU] 6 3
To return to the previous page, press OK [OK].

PHONE INFO.

Displays the version of your phone:

S/W VERSION

Press [MENU] 788 788 18.
2 The software version appears.
3 Press OK [OK].

H/W VERSION

Press [MENU] 7qs 2.4s
The hardware version appears.
3 Press OK [OK].

@ METRO VERSION

Press [MENU] 7e8s 7e8s 3ref.
The “@ Metro” software version appears.
3 Press OK [OK].

MY METRO

My Metro shows users their balance, account information, and payment options.

MONTHLY BILL

This is where the Billing Message is saved and shows the user the balance, due date and account information.

1 Press [MENU] 8nw 182.
Press [PAY]. "Credit Card", "MetroPCS Card" and "Other Options" appear on the display.
3 After making your selection, the call will be placed to make the payment.

METROCONNECT

1 Press [MENU] 8 nW 2.
2 When MetroConnect is selected, the message "Call now to request balance or add money?" appears. To complete the call, press OK [OK].

MY METRO

METROPCS CARD

1 Press [MENU] 8w 3DEF.
2 When the MetroPCS Card is selected, "Request Balance" and "Pay Monthly Bill" appear on the display.
3 When you select Request Balance, "Call now to request your MetroPCS Card balance?" will appear. To complete the call, press OK [OK].
4 If the user selects Pay Monthly Bill, the user can choose from an option of Credit Card, MetroPCS, and other options. The payment will be made accordingly to the option selected.

EVENT

Sets an event and reminds you of that event.

ADD NEW PLAN

Press [MENU] 18.18
2 Move the Navigation Key left, right, up or down to choose a date in the calendar then press OK [OK].
3 The date field is highlighted. Press the Navigation Key down to set the alarm options.

DATE SETTING

Use the keypad to change or enter the date then press OK [OK].

TIME SETTING

Use the keypad to set a time and - to select "AM" or "PM" then press OK [OK].

PLAN SETTING

Use the keypad to input a plan message then press OK [OK].

SETTING

Select an alert time interval option (On Time, 10 Min Before, 30 Min Before, 1 Hour Before, No Alarm) by pressing the Navigation Key left or right.

RINGER SETTING

To set a Ringer, press [MENU], then select "Default" or "Change" using the Navigation Key. To save it press [SELECT].

• Default: To set default ringer type.
• Change: Choose a ringer type from the list.

Press SAVE] to save it or [CLR] to return to the calendar.
The date of the event will be marked on your calendar.

VIEW PLAN

1 To view the Event List, press [MENU] 0_^min 1eq.2mck.
Use the Navigation Key to choose an event then press OK [OK] or ERASE. Press [MENU], then select "Erase All" using the Navigation Key, "Erase all plans?" will appear. Press OK [OK] to delete.

ALARM

You can set up to 3 alarms.

1 To display alarm entries, press - [MENU] 0w42 ABC.
2 Select one of the entries using the Navigation Key. To set a new alarm, choose alarm 1, 2 or 3. To edit an existing alarm, select that alarm. Press OK [OK].
3 The setting field will be highlighted. Press the Navigation Key down to select alarm options.

SETTING

Use the Navigation Key to select a setting for the alarm (Once, Daily, Weekly, Monthly, Off).

DATE SETTING

Use the keypad to change or enter the date for the alarm then press OK [OK].

If weekly is chosen for setting, date field becomes day of the week field.

Once: Enter a date.
Daily: Select a time.
Weekly: To select "Monday", "Tuesday", "Wednesday", "Thursday", Friday", "Saturday", "Sunday".
Monthly: Select 1^st - 31^st Off

TIME SETTING

Use the keypad to set a time for the event and to select "AM" or "PM", then press OK [OK].

SNOOZE SETTING

Use the Navigation Key to select a Snooze setting (Off, 1 time after 5 min, 1 time after 10 min, 3 times by 5 min).

RINGER SETTING

To set a "Ringer" press [MENU], then select "Default" or "Change" using the Navigation Key. To save it, press [SELECT].

Default:To set default ringer type.
- Change: To select a custom ringer from the list.

PLAN SETTING

Using the keypad, input an alarm message then press OK [OK].

4 To save an alarm setting press [SAVE].

MEMO PAD

Your phone includes an internal memo pad that can be used to compose and store reminders and notes.

ADD MEMO

To compose a memo (there is an 80-letter limit):

Press [MENU] 3 18.
2 Input a new text memo.

(Pleases refer to page 31 for more details on entering letters, numbers & symbols.)

3 To save memo, press OK [OK].

VIEW MEMO

To view a saved memo:

1 1.1. Press [MENU] 3 abc

1.2. To erase a memo, press [ERASE].
1.3. To add a new memo, press [MENU] "New Memo".
1.4. To erase all memos, press [MENU] "Erase All".

The list of all memos, in saved order, is displayed. Select a memo then press OK [OK].
3 The selected memo will appear. To edit it, press [MENU], select "Edit" and input a new text memo, then press OK [OK] to save it.

SETTINGS

To select memo pad background image:

Press [MENU] 3DEF 3DEF.
2 Select (Paper/Pattern/Sea/Sky/Flower) by pressing Navigation Key left or right then press OK [OK].

CALCULATOR

To access the calculator:

1 Press

• [MENU]

0ore 4GH

2

Follow the instructions below to calculate 8^*6÷ 4 - 2.5 = 9.5

Input 8.

Move the Navigation Key rightward.

Input 6 then press the Navigation Key.

Move it leftward.

Input 4 then press the Navigation Key.

Move it downward.

Input 2 then press the ____ to input ().

Press 5.

Then press () and you will see the answer.

NOTE

3

To reset, press

[RESET].

WORLD CLOCK

To display the time and date in pre-programmed cities:

1 Press

2

Select a city with the Navigation Key.

3

The world map appears with the city, its date and time.

Use the Navigation Key to select another city.

NOTE

As the daylight saving time is not applied, the time may be different from the actual time during DST.

4

To return to the previous page, press OK [OK].

STOP WATCH

Simultaneously times up to six different events. To operate the stop watch:

1 Press

2 To measure a time period.

1. To start the stop watch, press OK [START].
2. To pause it, press OK [STOP].
3. To resume it, press OK.
   To reset it, press [RESET].

To return to the previous page, press [EXIT].

3 To time up to six events at once:

1. To start, press [START].
2. To stop a time period and continue measuring another one, press [CONT].
3. To stop the second and continue measuring a third one, press [CONT].
4. To measure up to six time periods, repeat the above steps.
5. To stop the stop watch, press OK [STOP].
6. To review the results, press [VIEW].
7. To return to the stop watch, press OK [OK].
8. To reset it, press [RESET].

Chapter 5

VOICE SERVICE

This chapter addresses Voice Service, an advanced feature that allows you to place calls using your voice. With Voice Memo (VM) you can record voice messages and set the Answering Machine. Topics include:

Voice Memo allows you to record a reminder message that can be up to 60 seconds. To record a memo:

1 To start Tools menu, press [MENU]

2 To enter a voice memo, press 18.
3 1.1.To record a voice memo, press 1. Instructions will be displayed and you will hear "Please record at the tone."
1.2.To stop recording a memo, press OK [STOP] or - [PAUSE/RESUME].
1.3. Press [MENU] after recording a voice memo to "Review" or "Re-record."
1.4. Press [SAVE] to input a "Voice Memo" title, then press [OK]. (See page 31 for more information on entering letters, numbers and symbols.)
2.To play voice memo,press 2ABC. Select the message you want to play then press [PLAY] or press [MENU] to 1.Edit Title. Press ERASE] to erase the memo.
3.To play speaker mode,press 3DEF Select the message you want to play then press [PLAY] or press [MENU] to 1. Edit Title. Press [ERASE] to erase the memo.
4.To erase all voice memos, press ④ . "Erase all voice memos?" will be displayed. Press (0) [OK] to erase all voice memos.

VOICE DIAL

Voice Dial allows you to call a person by simply saying their name. To access Voice Dial:

1 To start Voice Tools menu, press [MENU]

2 To enter a voice dial, press 2.

3 1.1. To record a voice dial, press ① . The phone book list will be displayed alphabetically. Select a name then press OK [OK]. Instructions will be displayed and you will hear "Name Please".

1.2. Say the name for the voice tag and repeat the name when prompted. You will hear "Added".
2. To play a voice dial, press 2. OK. Highlight the voice tag you want to play then press OK [PLAY] or press ERASE].
3. To play speaker mode, press 3^step . Highlight the voice tag you want to play then press OK [PLAY] or press ERASE.
4. To erase all voice dials, press 4_ on . "Removing all voice tags Proceed?" will be displayed. Press OK [OK] to erase all voice dials.

TRAIN WORDS

Train allows you to use Control words to make a call without using the keypad.

YES

Use to train or untrain the Voice Recognition with the control word, "Yes".

Press [MENU] 3 183
2 "Please listen closely to hear instructions" will be displayed and you will hear "Now training control words. Please say the word yes".
3 Say "Yes". You will hear "Again". Say "Yes" again. You will hear "Training word successful".

NO

Use to train or untrain the Voice Recognition with the control word, "No".

Press [MENU] 3 2 ABC.
2 "Please listen closely to hear instructions" will be displayed and you will hear "Now training control words. Please say the word no".
3 Say "No". You will hear "Again". Say "No" again. You will hear "Training word successful".

WAKE-UP

Use to train or untrain the Voice Recognition with the control word, "Wake-Up".

Press [MENU] 3DEF 3DEF.
2 "Please listen closely to hear instructions" will be displayed and you will hear "Now training control words. Please say the word Wake-Up".
3 Say "Wake-Up". You will hear "Again". Say "Wake-Up" again. You will hear "Training word successful".

UNDO TRAIN ALL

Undo Train All erases all "trained" words.

Press [MENU] 3DEF 4GH.
2 "Undo voice recognition for all procedures?" will be displayed. Press OK [OK] to undo all trained words.

VOICE SETTING

SET ACTIVE

Allows the user to activate or deactivate voice dial service.

Press [MENU] 4GH.
2 Select "Active Flip" or "Send Key" by pressing the Navigation Key left or right.
3 To save, press OK [OK].

HFK MODE

While using the Hands Free Kit, activates or deactivates the voice recognition function.

Press [MENU] 4.
2 Scroll to HFK Mode. Select "On" or "Off" by pressing the Navigation Key left or right.
3 To save, press OK[OK].

VOICE RECOGNITION MODE

Voice Recognition (VR) enables you to place calls using your voice and to record voice memos.

Only phone numbers with saved voice tags can be called in VR mode. See page 91 for more on creating voice tags.

Press and hold until your phone turns to Voice Recognition mode.
NOTE If there are no recorded voice dials, "No entries recorded" message will be displayed.
2 "Please say the name after the prompt tone" will be displayed and you will hear "Name please".

NAME

Press and hold until your phone turns to Voice Recognition mode.
2 If you say a name or tag that is already in the phone book, the number and name will be displayed and you will hear "Calling (name)."

Chapter 6

VOICE MAIL AND TEXTMESSAGE

This chapter addresses Voice Mail and Text Messaging functions including:

WHEN A NEWMESSAGE ARRIVES
VOICE MAIL
NEW TEXT MSG
INBOX
OUTBOX
WEB ALERTS
SAVED
■ QUICK TEXT
ERASE ALL
SETTINGS

WHEN A NEWMESSAGE ARRIVES

1 The following display appears when a new message arrives.

2 To display the message, press [READ].

VOICE MAIL

Displays the number of voice mails and accesses them by pressing

1 To access your voice mail, press [MENU] 3 DEF 2 ABC or 2 ABC.

FIRST TIME USER

1 Dial *86 then press [SEND].
2 At the recording, press
3 To set up your account follow the voice tutorial.

EXISTING USER

1 Dial *86 then press [SEND].
2 At the recording, enter your 4 digit password, then press
3 To listen to new messages, press 18.

NEW TEXT MSG

To send a new message:

Press [MENU] or 1 或 1
2 Under "Send To", input the phone number and press OK [OK].

• By pressing [MENU], you can choose from the following: 1. Find : Search the phone number which is stored in the phone book.
• Save : Stores the phone number the message was sent to.
• Msg. Group : Select all the phone numbers in a group.

3 Under "Message", input a new text message then press OK [OK].

(Pleases refer to page 31 for more details on entering letters, numbers and symbols.)

• By pressing -[MENU] , in the message input screen you can choose from the following:

• Insert Quick Text: Inserts canned text into a Text Msg.

• Insert Sound: Inserts sound in Text Msg.
• Insert Picture: Inserts picture in Text Msg.
• Insert Animation: Inserts Animation in Text Msg.
• Save to Quick Text: Saves the written sentences into Quick Text.

4 The default call back number is automatically included into the Default CB# field. You can scroll to the number and edit it or simply press OK [EDIT].

5 Press the Navigation Key down for more fields. Under "Priority", select "Normal" or "Urgent".
6 Under "Insert Signature", select "On" or "Off".
7 7.1. To send the text message press [MENU], select "Send", then press OK [OK].
7.2. To save the text message press [MENU], select "Save to Outbox", then press OK [OK].

The Inbox manages received text messages. To access:

Press [MENU] 3 def 3 def or 3 def.

2 Select a message then press OK [OK]. The message is displayed. To delete a message, press ERASE].
3 Press [MENU].

REPLY

1 Type your reply then press OK [OK].

REPLY WITH COPY

To reply to a received message and include the received message into the message:
The default call back number is automatically included into the Default CB# field. You can scroll to the number and edit it.
3 Under "Insert Signature", select "On" or "Off".
To send the text message, press [MENU] then select "Send", then press OK [OK].
5 To save the text message, press [MENU] and select "Save to Outbox", then press OK [OK].

FORWARD

To forward the text message:
2 Input the phone number of the person you are sending the message, then press OK [OK].
3 Input any text message to go along with the forwarded message, then press OK [OK].

SAVE MEDIA

1 Select to save a picture to the media gallery folder.

"Save Media" menu appears only when you receive a picture message or EMS message.

SAVE TO CONTACT

1 Select to save number to contacts.

SAVE TO SAVED

1 Select to save the text message to your phone.

SAVE TO QUICK TEXT

1 Select to save received text msg to "Quick Text".

BLOCK SENDER

1 Select to block all incoming messages from addresses on block list.

LOCK & UNLOCK

1 Select "Lock" to lock the message or "Unlock" to unlock the message, then press OK.

Manages sent text messages or messages waiting to be sent.

CHECKING SENT TEXT MESSAGES

Press [MENU] 3^m or 4^m

2 2.1. Select a message, then press OK [OK]. The text message is displayed.
2.2. To erase message, press [ERASE].
3 Press [MENU].

RESEND

1 Resends a text message.

EDITMESSAGE

To send a message to another person:
2 Input a text message then press OK.
3 Input the phone number then press OK.

SAVE TO CONTACT

1 Select to save number to contacts.

SAVE TO SAVED

1 Select to save the text message to your phone.

LOCK & UNLOCK

1 Select "Lock" to lock the message or "Unlock" to unlock the message, then press OK [OK].

STATE

1 Select to display the status of an outbox message.

"State" menu appears only when you receive a text message.

WEB ALERTS

Press [MENU] 3DP 5JL or 5JL.
2 To select GoTo, press - . To select Erase Message, press -
3 The Web Alerts message will be displayed.

• [Lv]: Read Message.
• [ ] : Unread Message.
• [ ] : Displays the remaining text.
• GoTo : Connecting to Selected Site.
• Erase : Erase Selected Message.

SAVED

Manages saved messages from the Inbox/Outbox.

Press [MENU] 3 DE6 NMO or 6 NMO.

2 2.1. Select a text message then press OK [OK]. The text message is displayed.
2.2. To erase message, press [ERASE].
3 Press [MENU].
4 The following menu options will appear, if the text message is saved from the " Inbox" menu.

To select inbox menu: Reply, Reply With Copy, Forward, Save to Quick Text, Block Sender, Save to Contact, Lock & Unlock

The following menu options will appear, if the text message is saved from the "Outbox" menu.

To select outbox menu: Resend, Edit Message, Save to Contact, Lock & Unlock, State

5 Select one by pressing OK [OK].

"Save Media" menu appears only when you receive a picture message or EMS message.
- "State" menu appears only when you receive a text message.

QUICK TEXT

To edit the Quick Text message you have saved:

Press [MENU] 3DEF 7pore or 7pore

2 2.1. Select a message from the list. Press [MENU].
2.2. To add a new Quick Text message, press [ADD NEW]. To edit the Quick Text message you have selected, press [EDIT].
3 To erase the saved Quick Text message, press [ERASE].

ERASE MESSAGES

Press [MENU] 3DEF 8tw or 8tw.
2 1. To erase all the inbox messages, press 168 .

• Old Inbox : To erase all messages already read. (However, the locked Message(s) will not be deleted).
• Entire Inbox : To erase all messages.
• To erase all the outbox messages, press 2* .
• To erase the saved messages, press 3 def

3 Select "OK" or "Cancel" with OK [OK] or [CANCEL].

SETTINGS

Manages messaging features through various features.

AUTO SAVE

SAVE SENT MSG

Press [MENU] or 18. wercs 18.
2 Press 1. Select either "Off", "On" or "Prompt" with the Navigation Key.
3 Press OK [OK].

AUTO ERASE

Automatically erases inbox/outbox messages when new messages arrive.

INBOX

Press [MENU] 9wys 2 ABC or 9wys 2 ABC.
2 Press 1% Select "Disable" or "Enable" with Navigation Key.
3 Press OK [OK].

OUTBOX

Press [MENU] 3DEF 9WXY 2 ABC or 9WXY 2 ABC
2 Press ② . Select "Disable" or "Enable" with Navigation Key.
3 Press OK [OK].

SETTINGS

DEFAULTCALLBACK

Edits a default callback number so that the recipient can callback or reply.

Press [MENU] 3 def 9wzy or 9wzy.
2 Press 3DEF. Input a callback number, then press OK [OK].

• You can look it up from the phone book by pressing [FIND].

EDIT VOICE callback

Press [MENU] 3 def 9w or 9w
Press 4. Input a new voice call back number or edit voice call back number.

• You can look it up from the phone book by pressing [FIND].

3 Press OK [OK].

REMIND

Press [MENU] or 9w0
2 Press 5. Select "On" or "Off" with the Navigation Key.
3 Press OK [OK].

EDIT SIGNATURE

Create a signature that can be automatically inserted at the end of a message.

Press [MENU] 3 def gwxv or gwxv
Press 6. To input "Signature", put the cursor on Edit Signature then enter Signature Edit window by using right or left direction keys.
3 To activate Signature function, put the cursor on Insert Signature then select "On" by using right or left direction keys. To deactivate Signature function, select "Off".
4 Press OK [OK].

DIRECT VIEW

If the Direct View is set to on, the user will be able to view the message by pressing the read key. If the Direct View is set to off, the user can view the message by entering SMS Menu-> Inbox.

Press [MENU] 3DEF 9wxy or 9wxy
2 Press T_POS . Select "On" or "Off" with the Navigation Key.

ON: Set to read msg without entering inbox in SMS menu. OFF: Set to read msg after entering inbox in SMS menu.

3 Press OK [OK].

ENTRY MODE

Sets an Entry Mode as a default. For example, if T9 Mode is the default, its icon will appear.

Press [MENU] 3 DER 9 way or 9 way
2 Press 8tw. Select "Alpha Mode" or "T9 Mode" with the Navigation Key.
3 Press OK [OK].

BLOCK OR UNBLOCK

Press [MENU] 3 def 9wyc or 9wyc
2 Then press 9. Select "Block", "Unblock" or "View List of Blocked Address" with the Navigation Key.

• BLOCK: Enter the address to block.
• UNBLOCK: Enter the address to remove from block.
  VIEW LIST OF BLOCKED ADDRESS : Display the blocked list on LCD.

3 Press OK [OK].

Chapter 7

MOBILE WEB

This chapter addresses Internet services and web browsing. For more detailed information contact your service provider.

LAUNCHING MOBILE WEB
BROWSER MENU

ACCESS THE INTERNET

To start your Internet browser and access websites through your wireless handset press [MENU] 5 or

BROWSER MENU

The browser menu lists the actions necessary to operate the browser. To access press [MENU] [5.. 18] [2.. or press [2..

HOME

When the home item is selected from the browser menu, the phone displays the home page.

1 To display the homepage, press [MENU] 5 1 or 一 _ 一 , then press 1号.

BACK

1 To return to the previous page, press [MENU] 5 ABC 1 or 2 ABC , then press 2ABC .

FORWARD

1 To forward to the next page, press [MENU] 5 ABC 2 ABC or 2ABC, then press 3DEF.

REFRESH

Selecting the refresh item from the browser menu refreshes the current page.

1 To select "Refresh", press [MENU] 5 ABC or 一 _ 一 , then press 4.

HISTORY

When the history item is selected from the browser menu, the browser is displayed with the browser version and copyright information. The device layer version is also displayed.

1 To select "History", press [MENU] 5 ABC or 2ABC, then press 5.

ADDRESS

Selecting the "Address" action displays the URL of the current page.

1 To select "Address", press [MENU] 5 ABC or 一 _ 一 , then press 6

CLEAR MEMORY

1 To clear browser memory, press [MENU] 5 ABC or 一 _ 一 ^ 一 , then press Tpors

SETTINGS

To select "Settings", press [MENU]

5 ABC or 2ABC, then press 8vP.

Downloads
- Restart Browser
- Scroll Mode
- Send Referrer
Key Press Timeout
- Connection Timeout

ADVANCED

Selecting the advanced item in the browser menu displays the advanced menu items.

To select "Advanced", press [MENU]

5 ABC 1 or 2ABC, then press 9wY.

About...

• Encryption: 1. Authentication
• Root Certificate
• Current Certificate

EXIT

To exit browser, press [MENU]

5 ABC or 2 ABC, then press 0.

Chapter 8

SAFETY AND WARRANTY

This chapter addresses the safety guidelines and precautions to follow when operating your phone. Before operating your phone, please be aware of all the safety details.

This chapter contains the terms and conditions of services and the warranty for your phone. Please review them thoroughly.

■ SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES
■ SAFETY INFORMATION FOR FCC RF EXPOSURE
SAR INFORMATION
FDA CONSUMER UPDATE
PROTECT YOUR WARRANTY
12 MONTH LIMITED WARRANTY

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES

Read This Information Before Using Your Handheld Portable Cellular Telephone

EXPOSURE TO RADIO FREQUENCY SIGNALS

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals.

In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:

ANSIC95.1 (1992)

NCRP Report 86 (1986) *

ICNIRP (1996)

Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C951).

The design of your phone complies with the FCC guidelines (and those standards).

ANTENNA CARE

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations.

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES

DRIVING SAFETY

Talking on the phone while driving is extremely dangerous and is illegal in some states. Remember, safety comes first. Check the laws and regulations on the use of phones in the areas where you drive. Always obey them.

Also, if using your phone while driving, please:

Give full attention to driving. Driving safely is your first responsibility.
Use hands-free operation, if available.
Pull off the road and park before making or answering a call, if driving conditions so require.

If you must use the phone while driving, please use one-touch, speed dialing, and auto answer modes.

An airbag inflates with great force. DO NOT place objects, including both installed or portable wireless equipment, in the area over the airbag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

WARNING: Failure to follow these instructions may lead to serious personal injury and possible property damage.

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES

ELECTRONIC DEVICES

Most modern electronic equipment is shielded from RF energy. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone.

PACEMAKERS

The Health Industry Manufacturers Association recommends that a minimum separation of six (6") inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers :

• ALWAYS keep the phone more than six inches from your pacemaker when the phone is turned on.
• Do not carry the phone in a breast pocket.
  Use the ear opposite the pacemaker to minimize the potential for interference.
  If you have any reason to suspect that interference is taking place, turn your phone OFF immediately.

OTHER MEDICAL DEVICES

If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn your phone OFF in healthcare facilities when any regulations posted in these areas instruct you to do so. Hospitals or healthcare facilities may be using equipment that could be sensitive to external RF energy.

POSTED FACILITIES

Turn your phone OFF where posted notices so require.

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES

OTHER SAFETY GUIDELINES

AIRCRAFT

FCC and Transport Canada Regulations prohibit using your phone while in the air. Turn your phone OFF before boarding an aircraft.

BLASTING AREAS

To avoid interfering with blasting operations, turn your phone OFF when in a "blasting area" or in areas posted: "Turn off two-way radio." Obey all signs and instructions.

POTENTIALLY EXPLOSIVE ATMOSPHERES

Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as gas stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you would normally be advised to turn off your vehicle's engine.

SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES

PRECAUTIONS

Your Handheld Portable Telephone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on (1) AC Adaptor (2) Battery and (3) Product Using Battery.

DO NOT use this equipment in an extreme environment where high temperature or high humidity exists.

DO NOT abuse the equipment. Avoid striking, shaking or shocking. When not using, lay down the unit to avoid possible damage due to instability.

DO NOT expose this equipment to rain or spilled beverages.

DO NOT use unauthorized accessories.

DO NOT disassemble the phone or its accessories. If service or repair is required, return unit to an authorized Audiovox cellular service center. If unit is disassembled, the risk of electric shock or fire may result.

DO NOT short-circuit the battery terminals with metal items etc.

SAFETY INFORMATION FOR FCC RF EXPOSURE

WARNING! Read this Information before using

CAUTIONS

In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result.

Please contact your local dealer for replacement antenna.

BODY-WORN OPERATION

This device was tested for typical body-worn operations with the back of the phone kept 2.0~cm from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0~cm . separation distance between the user's body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly.

The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

For more information about RF exposure, please visit the FCC website at www.fcc.gov

SAR INFORMATION

THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W / kg . * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.15 W/Kg and when worn on the body, as described in this user guide, is 0.393W/Kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure.

The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on PP4TX-110C.

SAR INFORMATION

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) website at http://www wow-com.com.

• In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements.

U.S. Food and Drug Administration -Center for Devices and Radiological Health Consumer Update on Wireless Phones

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.

2. What is FDA's role concerning the safety of wireless phones?

Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wire-less phones are shown to emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists. Although the existing scientific data do not justify FDA regula-tory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:

• Support needed research into possible biological effects of RF of the type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF ex-posure to the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.

FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:

National Institute for Occupational Safety and Health
Environmental Protection Agency
Federal Communications Commission
Occupational Safety and Health Administration
National Telecommunications and Information Administration

The National Institutes of Health participates in some inter-agency working group activities, as well. FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones. FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF expo-sures that people get from these base stations are typically thousands of times lower than those they can get from wire-less phones. Base stations are thus not the subject of the safety questions discussed in this document.

3. What kinds of phones are the subject of this update?

The term "wireless phone" refers here to hand-held wireless phones with built-in antennas, often called "cell," "mobile," or "PCS" phones.

FDA CONSUMER UPDATE

These types of wireless phones can expose the user to measurable radiofrequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF expo-sures far below the FCC safety limits.

4. What are the results of the research done already?

The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radiofrequency energy (RF) exposures characteristic of wire-less phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, how-ever, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-dis-posed to develop cancer in the absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health. Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phone RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.

5. What research is needed to decide whether RF expo-sure from wireless phones poses a health risk?

A combination of laboratory studies and epidemiological stud-ies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological stud-ies can provide data that is directly applicable to human populations, but 10 or more years' follow-up may be needed to pro-vide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a can-cer- causing agent and the time tumors develop - if they do -may be many, many years. The interpretation of epidemiologi-cal studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many fac-tors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.

6. What is FDA doing to find out more about the possible health effects of wireless phone RF?

FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radiofrequency energy (RF). FDA has been a leading participant in the World Health Orga-nization International Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world.

FDA CONSUMER UPDATE

The Project has also helped develop a series of public information documents on EMF issues. FDA and the Cellular Telecommunications & Internet Asso-ciation (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.

7. How can I find out how much radiofrequency energy exposure I can get by using my wireless phone?

All phones sold in the United States must comply with Federal Communications Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures. FCC established these guidelines in consultation with FDA and the other federal health and safety agencies. The FCC limit for RF exposure from wire-less telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC limit is consistent with the safety standards developed by the Institute of Electri-cal and Electronic Engineering (IEEE) and the National Council on Radiation Protection and Measurement. The exposure limit takes into consideration the body's ability to remove heat from the tissues that absorb energy from the wireless phone and is set well below levels known to have effects. Manufacturers of wireless phones must report the RF expo-sure level for each model of phone to the FCC. The FCC website (http://www.fcc.gov/eot/rfsafety) gives directions for locating the FCC identification number on your phone so you can find your phone's RF exposure level in the online listing.

8. What has FDA done to measure the radiofrequency en-ergy coming from wireless phones?

The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical standard for measuring the radiofrequency energy (RF) exposure from wireless phones and other wireless handsets with the participation and leader-ship of FDA scientists and engineers. The standard, "Recommended Practice for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques," sets forth the first consistent test methodology for measuring the rate at which RF is deposited in the heads of wireless phone users. The test method uses a tissue-simulating model of the human head. Standardized SAR test methodology is expected to greatly improve the consistency of measurements made at different laboratories on the same phone. SAR is the mea-surement of the amount of energy absorbed in tissue, either by the whole body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of matter. This measurement is used to determine whether a wireless phone complies with safety guidelines.

9. What steps can I take to reduce my exposure to radiofrequency energy from my wireless phone?

If there is a risk from these products—and at this point we do not know that there is—it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.

• If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote an-tenna.

FDA CONSUMER UPDATE

Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wire-less phone use.

10.What about children using wireless phones?

The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radiofrequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wire-less phone use and increasing the distance between the user and the RF source will reduce RF exposure. Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United King-dom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.

11.What about wireless phone interference with medical equipment?

Radiofrequency energy (RF) from wireless phones can inter-act with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Ad-vancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested hearing aids for interference from handheld wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engi-neers (IEEE). This standard specifies test methods and per-formance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a "com-patible" phone and a "compatible" hearing aid at the same time. This standard was approved by the IEEE in 2000. FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.

12.Where can I find additional information?

For additional information, please refer to the following re-sources:

• FDA web page on wireless phones (http://www.fda.gov/cdrh/ phones/index.html)
  Federal Communications Commission (FCC) RF Safety Pro-gram (http://www.fcc.gov/oet/rfsafety)
  International Commission on Non-Ionizing Radiation Protection (http://www.icnirp.de)
  World Health Organization (WHO) International EMF Project (http://www.who.int/emf)
  National Radiological Protection Board (UK) (http://www.nrpb.org.uk/)

PROTECT YOUR WARRANTY

Read your Warranty carefully, with the special consideration to paragraph seven of the Limited Warranty for your unit.

"Warranty does not apply to... or to any product or part thereof which has suffered through alteration... mishandling misuse, neglect or accident".

Many companies are making look alike accessories and in some cases, promoting that their product is equal to or better than the Audiovox product. Be careful. Some of these products may not be compatible to use with your Audiovox product and may damage the unit or cause it to malfunction. If service is required on your unit and it is determined that a non-Audiovox accessory has created the problem with your unit, the Warranty will not apply. In addition, if the unit has already suffered irreversible damage by reason of a non-compatible accessory, the Warranty will be voided. To protect your Warranty, use only compatible accessories which cannot damage or interfere with the functioning of your Audiovox product.

AUDIOVOX

COMMUNICATIONS CORP.

AUDIOVOX COMMUNICATIONS CORP.

555 Wireless Blvd., Hauppauge, New York 11788, 800-229-1235

16808 Marquardt Avenue, Cerritos, California 90703, 562-802-5100

Audiovox Canada

5155 Spectrum Way, Unit #5, Mississauga, Ontario

Canada L4W 5A1, 800-465-9672

12 MONTH LIMITED WARRANTY

Audiovox Communications Corp. (the Company) warrants to the original retail purchaser of this Audiovox handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) months period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company's option, without charge for parts or labor directly related to the defect(s).

The antenna, key pad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase.

This Warranty extends only to consumers who purchase the product in the United States or Canada and it is not transferable or assignable.

This Warranty does not apply to:

(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;
(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts;
(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.

The Company disclaims liability for removal or reinstallation of the product, for geographic coverage, for inadequate signal reception by the antenna or for communications range or operation of the cellular system as a whole.

To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer's return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company at the address shown below or to the place of purchase for repair or replacement processing.

12 MONTH LIMITED WARRANTY

In addition, for reference to an authorized Warranty station in your area, you may telephone in the United States [phone], and in Canada [phone] (in Ontario call 905-712-9299).

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LAIBILITIES EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

ANY IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

IN USA: AUDIOVOX COMMUNICATIONS CORP.

555 Wireless Blvd.

Hauppauge, NY 11788

[phone]

IN CANADA: AUDIOVOX COMMUNICATIONS CANADA CO.

5155 Spectrum Way, Unit #5

Mississauga, Ontario L4W 5A1

[phone]
