USER MANUAL SKY XL HARTAN

Suitable from 6 months, up to 15kg

Under 6 months only in connection with an appropriate carrycot.

SKY XL

Suitable from 0 to 3 years, up to 15kg

Folding carrycot in conformity with DIN EN 1466:2008

Base length: 76,5 × 33,5cm

These models may not be used while jogging or skating.

1 Handle
2 Handlebar catch
3 Twist grip for telescopic adjustment
4 Wheel retention
5 Lock-type-swivel wheels
6 Swivel wheel holder
7 Parking brake
8 Adjustable suspension system
9 Bolt for leg latch
10 Climatic zone
11 Safety bar adjustment
12 Hood bar and safety bar removal
13 Tilt-adjustable backrest
14 Safety belts
15 Adjustable footrest
16 Footrest extension
17 Automatic lock for upper section

18+19 Fall-out protection

20 Sun visor
21 Chassis unlatching
22 Carrying-bar lock
23 Canopy attachment
24 Carrying bar
25 Washable internal lining
26 Silently adjustable hood
27 Sun canopy

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purchased a Xanan high-quality product. You have made an excellent choice.

Materials products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will provide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the industry's own 'Öko-Tex-Standard 100' to guarantee that all the fabric parts of your pram are safe for your baby.

Please do not use this pram before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer.

Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

For the safety of your child

WARNING! Before use, conduct an initial check of the carriage, and do not use it if it is damaged or if parts are torn or broken.

WARNING! When folding and unfolding the stroller, make sure that your child is clear of any moving parts, in order to avoid any injury.

WARNING! Never leave your child unattended in the pram.

WARNING! Before using the pram, make sure the catches are locked in place and the carriage top is secured properly.

WARNING! Negotiating stairs or steps as well as overloading may damage the pram and endanger your child.

WARNING! When parking the pram, make sure the brake is engaged.

When using public transport, ensure the pram stands safely.

WARNING! A pram, stroller or carrycot is not a substitute for a cradle or a bed. It is intended to be used exclusively as a means of transport.

WARNING! Using this pram while jogging, skating, etc. can be dangerous and is therefore not allowed.

WARNING! Do not allow children to play either near or with the pram.

WARNING! Use the safety belt for your child.

WARNING! Shopping bags must not be hung on the handle as this may affect the stability of the pram.

WARNING! This model has been designed for 1 child.

WARNING! A second child seat is not allowed for this model.

WARNING! The carriage top, the seat unit, and the carrycot may not be used as a child car seat in vehicles.

WARNING! The rain cover hood may not be used when the hood is taken off (danger of suffocation). Never expose the rain cover hood to sun while the child is in the carriage (overheating).

WARNING! Keep the carriage away from open fires or other sources of heat.

WARNING! Remove immediately all film packaging, and do not allow your child to play with it (asphyxiation).

WARNING! For safety reasons, only use Hartan accessories and replacement parts.

Instructions for use

WARNING! When folding and unfolding the chassis there is a risk of injuries due to jamming. Take care that you keep your child's body parts at a safe distance.

Unfolding the carriage

Lift the handle 1 until the two lateral handle catches 2 have engaged. WARNING! Before using the pram, make sure all catches are locked.

Folding the pram

Turn the twist grip 3 inwards and push at the same time the telescopic handle to the stop. Then, pull the two unlocking levers 21 at the same time upwards and fold the chassis downwards.

Height-adjustable Telescopic handle

Turn the twist grip 3 inwards and slide the handle 1 in the desired position until it engages on both sides.

Changing the rear wheels

Release the parking brake 7. Depress push button 4 and pull the wheel off. Push the wheel right to the axle's stop, while pressing down the button. Make sure, all wheels are held in place properly.

Lock-type-swivel wheels

Turn the caps 5 so that the red point becomes visible to pre-select the straight-line motion mode, which will be activated the moment the wheels point in forward direction. Turn the caps 5 so that the green point becomes visible to release the swivel lock. To remove the wheel, press the push-button 6 in the centre of the cap 5 and pull the wheel off the holding device. To assemble the wheel, insert the fastening pin in the holding device, and engage it by a forcible push, which is indicated by a click sound. On extremely uneven surfaces, and when going very fast, we recommend locking the swivel movement, to prevent the wheels from blocking.

Parking brake

Push the red brake button 7 to engage the brake. Having parked the pram, try to

push it to check the brake. Push the green brake button 7 to release the brake.

WARNING! Make sure the brake is always closed when placing the baby in the carriage or taking it out of it.

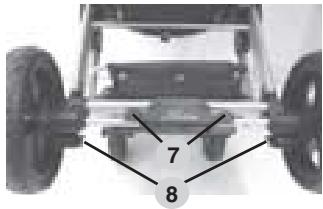

Adjustable suspension system

By turning the selector 7, a "hard" or "soft" position can be selected for suspension.

Instructions for use

Climatic zone 10 - Sun visor

To provide good ventilation to the hood and to prevent heat from accumulating inside, open the two zip fasteners and fold up the hood flap. Use the Velcro band below the additional tap to secure the flap to the hood. As an additional protection, the sun visor 20 can be pulled out. Press the two front hood bows 26 together to adjust the hood. Adjusting the hood can be effected silently. By taking off the rear hood section 27, the hood can be converted into a sun canopy by means of a zip fastener.

Hood and safety bar

By pressing the bayonet joint, the hood or the safety bar 12 can be pulled out. When inserting it, make sure the safety bar locks into place correctly and be careful not to pinch any of the fabric parts. By pressing the buttons 11, the safety bar position can be changed. WAR

NING! The hood bar of the stroller and the safety bar are not suitable for carrying the pram.

Additional tap

Adjusting the backrest

By lifting the back clip 13 at the rear, the backrest can be adjusted from sitting to reclining position in close steps. WARNING! When adjusting the backrest, take care that no movable parts jam the baby's limbs or fingers, etc. Finally, make sure the backrest has reengaged properly.

Fall-out protection WARNING!

As an additional protection preventing the baby from falling out of the carriage, secure the hood to the metal back. To do this, join the grommets 18 to their respective turn-lock fasteners, and the hook lock 19 to the metal ring on the back plate as well.

Adjusting the footrest

First, press the two buttons 15, located at the right and left side respectively, to fold the footrest down. Then raise the footrest to the required position. A number of settings up to the horizontal position can be selected. To prolong the footrest, press the two buttons 16, and pull it out. WARNING! In case the carrycot is attached to the frame, the footrest should always be in horizontal position, as an additional protection preventing it from slipping out.

Instructions for use

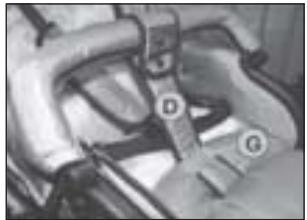

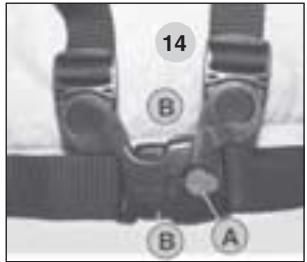

Safety belt WARNING!

Use the safety belt 14 for your child. Always use the crotch belt D in combination with the waist strap E. Remember to tighten the seat belt when it slacks, which is done by means of the adjuster buckle.

For reasons of safety, pass the belt buckle through the shackle F when closing the safety belt. As an additional protection preventing babies from slipping out, pass the crotch belt D through the loop G on the seat. Unfasten the belt: To unfasten the belt, press the red point A and the two latches B as well. To unfasten the shoulder straps, press the buttons C.

Canopy attachment

Turn the canopy attachment clip so that the opening faces upwards. Remove the lower part of the canopy 23. Insert then the fixing peg of the canopy in the slot of the canopy attachment.

Instructions for use

Automatic lock for upper section 17

Place the stroller unit or carrycot upon the chassis in a way that the openings of the handles fit the locking studs. The two locks engage by pressing lightly, which is indicated by a click sound. Check by lifting the carriage top to make sure the two locks are engaged securely. To remove the carriage tops, depress the two red lock levers in the respective handle at the same time, and take off the carriage tops.

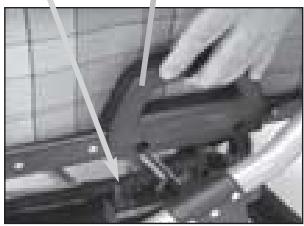

Carrying and folding the carriage top VIP XL

The carrying bar 24 is suitable for carrying the folding carrycot. Make sure the carrying bar is correctly engaged in carrying position. To fold the bar back, depress the red safety button 22 and place the bar back, which can be done in several steps. The folding carrycot can be folded up flat, to cram it in the boot. Fold the carrying bar 24 back. Then remove the folding carrycot from the chassis. The carrycot folds by applying a light pressure on its bottom from underneath. Push the lateral aluminium braces on the bottom until they engage in the plastic fasteners. To open the folding carry cot, fold the carrying bar in carrying position, and push down forcibly the bottom of the carry cot using the palm of your hand. The carry cot underlining can be washed (follow the care and maintenance instructions). To remove it, open the zip fastener.

Locking studs Handle

Instructions for use

Suitability for your child

The SKY stroller unit is designed to carry a child from the age of 6 months, and up to 15kg in weight.

WARNING! Only use this seat unit when your child is able to sit independently.

Not suitable for children under the age of 6 months except in connection with an appropriate carrycot.

The SKY XL carriage unit is designed to carry a child from birth – up to the age of 12 months, and up to 9kg in weight.

WARNING! Do not use mattresses that have more than 2cm in depth.

WARNING! This carrycot is suitable for holding only one baby, which cannot yet sit up on its own, or roll on its side or support itself on hands and knees. Maximum baby weight: 9 kg.

WARNING! Never place this carrycot on a stand. Always place the carrycot on a solid, horizontal base.

WARNING! Do not use the carrycot if any part is torn or broken. Check the handles and the base regularly for signs of wear or damage.

WARNING! Be aware of the risks posed by open fires or other sources of heat, such as electric heaters, gas flames etc., if these are in the immediate vicinity of the carrycot.

All the materials we use can easily be cared for.

Care of the fabric parts

Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30^ . Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer's. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.

Care of the chassis

The chassis requires regular care. You should clean and slightly lubricate the wheel axles at a regular 4-weeks interval. Use a silicone based lubricant spray for all moving plastic parts to maintain them in an operative condition. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator. Do not use high-pressure cleaners when cleaning your carriage, due to risk of damaging the ball bearings of the wheels (greased) and other functional parts (grinding and creaking noise). Wheels: When using pneumatic wheels, make sure they have got enough air in the tire. Specified tire inflation pressure should be between 1.2 and 1.5bar max. WARNING! Max. tire pressure will be reached quickly. Overpressure may result in accidents and personal injuries. Replace worn plain wheel bearings and springs in time. Whenever possible, do not park carriages using pneumatic tired wheels for a longer period of time on light PVC or linoleum as rubber tires may rub off on the floor covering. Little stones in the thread, etc. may just as well damage the floor covering. When parking the carriage in the blazing sun or cramming it in the boot at temperatures of above 40^ , the semi pneumatic tires may flatten or become deformed.

Tire air loss

Tires tend to lose air over time. When blowing up a flat tire, inflate it only halfway first, and make sure the tire is evenly seated, to avoid "wobble". Then continue to inflate it to the proper pressure.

Quality agreement

2 YEARS WARRANTY

This product is guaranteed for a period of 2 years by your contract partner. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

IN CASE OF WARRANTY CLAIM

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER ....

We disclaim liability for defects in the object of purchase that are beyond our control. This especially applies to:

natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
defects due to improper or inappropriate use (see Instructions)
defects due to incorrect assembly or operation
defects due to negligent handling or lack of maintenance of the product
defects due to improper alteration of the product.

WARRANTYCLAIM-YESORNO?

Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty. Scratches: Scratches caused by wear and tear will not be covered by the warranty. Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty. Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty. Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine. Tearing of seams, fabrics, press studs : At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered. Wheels: As wheels used on prams will not be balanced, they may show slight runouts ("wobbles"). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a "flat". This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.

Quality agreement

WHAT TO REMEMBER WHEN BUYING YOUR PRAM

Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the handover check.

WHAT TO DO IN CASE OF A COMPLAINT

Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer's within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.

USE, CARE AND MAINTENANCE

To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.

Dealer

SKY

18+19 Protection anti-chute

Uitvalbeveiliging - WAARSCHUWING!

Veiligheidsgordel WAARSCHUWING!

not applicable

2. Function check

Folding mechanism

checked/OK

not applicable

Road behaviour

checked/OK

not applicable

Wheels

checked/OK

not applicable

Adjusting mechanism

checked/OK

not applicable

Brakes check

checked/OK

not applicable

Suspension check

checked/OK

not applicable

3. Intactness

Frame check

checked/OK

not applicable

Fabric check

checked/OK

not applicable

Plastic parts check

checked/OK

not applicable

I have checked the product and have ascertained that it is supplied complete, has no external, visible faults and that all functions are intact.

I have received sufficient information concerning the product and its functions before purchase and have been instructed on care and maintenance.

Übergabe-Protokoll

Acceptance Certificate

Name / Name:

StraBe / Road:

Phone (with area code):

e-mail:

Colour of fabric (design):

Zubehor / Accessories:

Kaufdatum / Date of purchase:

Salesperson (name in block letters)

Note: signing this acceptance certificate does not restrict the legal rights of the purchaser.

Handler / Dealer:
