USER MANUAL RS ONE S HARTAN

1 Handle
2 Chassis-base catch
3 Safety turn lock
4 Securing button
5 Handle-folding lock button
6 Wheel retention
7 Parking brake lever
8 Adjustable suspension system
9 Silently adjustable hood
10 Sun canopy
11 Safety bar adjustment
12 Hood bar and safety bar removal
13 Tilt-adjustable backrest
14 Safety belt
15 Adjustable footrest
16 Footrest extension
17 Automatic lock for upper section

18+19 Fall-out protection

20 Sun visor
21 Swivel wheel lock

Congratulations on your purchase

You want your baby to feel safe and secure, that's why you have purchased a 'Nanat' high-quality product. You have made an excellent choice. 'Nanat' products are manufactured with the greatest possible care and monitored constantly by rigorous quality control assuring that your pram will provide life-long satisfaction. The textiles used for our products have been tested for harmful substances (chemical residues) according to the industry's own 'Oko-Tex-Standard 100' to guarantee that all the fabric parts of your pram are safe for your baby.

Please do not use this pram before reading the instructions carefully, and keep these instructions for queries or future reference. Your child's safety may be affected if you do not follow these instructions.

If you do not understand the instructions or if you require more detailed information, contact your dealer.

Please ensure that other users are also informed about the functions of the carriage and the notes on safety.

For the safety of your child

WARNING! Before use, conduct an initial check of the carriage, and do not use it if it is damaged or if parts are torn or broken.

WARNING! Never leave your child unattended in the pram.

WARNING! Before using the pram, make sure the catches are locked in place and the carriage top is secured properly.

WARNING! Negotiating stairs or steps as well as overloading may damage the pram and endanger your child.

WARNING! When parking the pram, make sure the brake is engaged.

When using public transport, ensure the pram stands safely.

WARNING! A pram, stroller or carrycot is not a substitute for a cradle or a bed. It is intended to be used exclusively as a means of transport.

WARNING! Using this pram while jogging, skating, etc. can be dangerous and is therefore not allowed.

WARNING! Do not allow children to play either near or with the pram.

WARNING! Use the safety belt for your child.

WARNING! Shopping bags must not be hung on the handle as this may affect the stability of the pram.

WARNING! This model has been designed for 1 child.

WARNING! A second child seat is not allowed for this model.

WARNING! The carriage top, the seat unit, and the carrycot may not be used as a child car seat in vehicles.

WARNING! For safety reasons, only use Hartan accessories and replacement parts.

Unfolding the pram

By pushing the lock buttons 5, unfold the handle and bring its two sections in line. Pull handle 1 upwards until chassis-base catch 2 has engaged.

WARNING! Before using the product, make sure all catches are locked.

Folding the pram

Important! Swing the handlebar 1 that the red securing buttons 4 are visible from above. Turn the safety lock 3 inwards to unlock the chassis-base catch 2 and push down the handlebar.

Push the lock buttons 5 and fold the handle's upper section 1 down toward the bottom.

WARNING! There is always a chance of jamming one's limbs, fingers, etc. when folding or unfolding the chassis, swinging the handle, or adjusting the backrest, so we ask you to proceed with caution.

Swinging the handlebar

Push the red securing button 4 and pull the safety turn lock 3 upwards to unlock the handlebar. After you have put the handlebar into the desired position, make sure the handlebar locks on both sides are latched.

Height adjustment of handlebar

Press the two handle-folding lock buttons 5 to bring the upper section of the handlebar 1 in the desired position.

Changing of wheels

Release the parking brake 7. Push the button 6 to release the retention, and pull off the wheel. Push the wheel right to the axle's stop while pressing down the button. Make sure, all wheels are held in place properly.

Parking brake

To lock the wheels, depress the red securing button on the brake lever 7 and swing the lever down. The two toothed brake-crown wheels engage, which is indicated by a click sound. To release the brake, swing the lever up until it snaps into place. Having parked the pram, try to push it to check the brake.

WARNING! Make sure the brake is always closed when placing the baby in the carriage or taking it out of it.

Hood and safety bar

By pressing the bayonet joint 12, the hood or the safety bar can be pulled out. When inserting it, make sure the safety bar locks into place correctly and be careful not to pinch any of the fabric parts. By pressing the buttons 11, the safety bar position can be changed. WARNING! The hood bar 9 of the stroller and the safety bar are not suitable for carrying the pram.

Sun canopy — Silently adjustable hood

Press the two front hood bows together 9 to adjust the hood. By taking off the rear hood section 10, the hood can be converted into a sun canopy by means of a zip fastener. As an additional protection, the sun visor 20 can be pulled out.

Lock-type-swivel wheels

Turn the cap 21 so that the red point faces forward to pre-select the straight-line motion mode, which will be activated the moment the wheels point in forward direction. Turn the cap 21 so that the green point faces in forward direction to release the swivel lock. There is a push-button inside the cap 21. To remove the wheel, depress this button and pull the wheel off the holding device. To assemble the wheel, insert the fastening pin in the holding device, and engage it by a forcible push, which is indicated by a click sound.

Adjustable suspension system

By turning the selector 8, a "hard" or "soft" position can be selected for suspension.

Automatic lock for upper section

Place the stroller unit upon the chassis and pull it into the upper-section lock slots on each side 17 until the catching pins on both sides have engaged, which is indicated each time by a click sound.

WARNING! By pulling the upper section horizontally, check before use whether it is fixed correctly! When removing the upper-section, the lock will close automatically. To release the upper-section lock, push the locking cap (see the arrow) back and press the red securing button downwards until it has engaged. WARNING! When the locking cap is in pushed back position and the red safety point can still be seen, the upper-section lock has not yet closed completely.

Adjusting the footrest

First, press the two buttons 15, located at the right and left side respectively, to fold the footrest down. Then raise the footrest to the required position. A number of settings up to the horizontal position can be selected. To prolong the footrest, press the two buttons 16, and pull it out. WARNING! In case the carrycot is attached to the frame, the footrest should always be in horizontal position, as an additional protection preventing it from slipping out.

Adjusting the backrest

By lifting the back clip 13 at the rear, the backrest can be adjusted from sitting to reclining position in close steps. WARNING! When adjusting the backrest, take care that no movable parts jam the baby's limbs, or fingers, etc. Finally, make sure the backrest has reengaged properly.

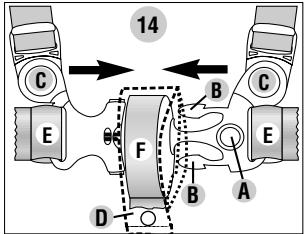

Safety belt

WARNING! Use the safety belt 14 for your child. Always use the crotch belt D in combination with the waist strap E.

Remember to tighten the seat belt when it slacks, which is done by means of the adjuster buckles. For reasons of safety, pass the belt buckle through the shackle F when closing the safety belt.

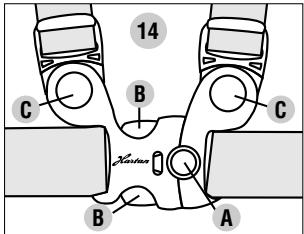

Unfasten the belt:

To unfasten the belt, press the red point A and the two latches B as well.

To unfasten the shoulder straps, press the buttons C.

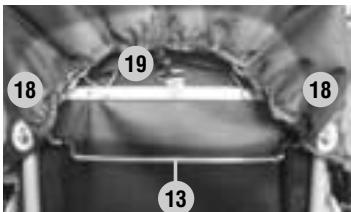

Fall-out protection.

As an additional protection preventing the baby from falling out of the carriage, secure the hood to the metal back. To do this, join the two hood grommets 18 to their respective turn-lock fasteners, and the back hooks 19 to the metal ring at the back plate as well.

Suitability for your child

The RS one S stroller unit is designed to carry a child from the age of 6 months, and up to 15kg in weight. WARNING! Only use this seat unit when your child is able to sit independently. The RS one S stroller is not suitable for children under the age of 6 months except in connection with an appropriate carrycot.

All the materials we use can easily be cared for.

Care of the fabric parts

Clean soiled fabrics when dry using a clothes-brush or lukewarm water (then use hair dryer). Do not rub fabrics extensively. Remove tenacious stains using a soft detergent. All removable fabric parts may be machine washed in lukewarm water at a gentle setting and reduced agitation, at 30^ . Let's say you have encountered a heavy rain shower. Dry your carriage with the hood still on in a dry and airy room using a cloth. This prevents marking as well as the underlining fabrics from moist soaking in through the seams. As a guaranteed protection against rain, we recommend that you use our rain cover, which is either included or can be purchased at your dealer's. Our fabrics have quite a number of distinctive features. However, they are very sensitive to excessive sunlight. That's why you should park your carriage in the shade whenever possible.

Care of the chassis

The chassis requires regular care. You should clean and slightly lubricate the wheel axles at a regular 4-weeks interval. Use a silicone based lubricant spray for all moving plastic parts to maintain them in an operative condition. Keep all coated and chrome-plated metal parts in dry condition, and use a finish restorer or chrome paste if necessary. Remove smaller chassis paint damages by means of a touch-up applicator. Wheels: When using pneumatic wheels, make sure they have got enough air in the tire. Specified tire inflation pressure should be between 1.2 and 1.5bar max. WARNING! Max. tire pressure will be reached quickly. Overpressure may result in accidents and personal injuries. Replace worn plain wheel bearings and springs in time. Whenever possible, do not park carriages using pneumatic tired wheels for a longer period of time on light PVC or linoleum as rubber tires may rub off on the floor covering. Little stones in the thread, etc. may just as well damage the floor covering. When parking the carriage in the blazing sun or cramming it in the boot at temperatures of above 40^ , the semi pneumatic tires may flatten or become deformed.

Tire air loss

Tires tend to lose air over time. When blowing up a flat tire, inflate it only halfway first, and make sure the tire is evenly seated, to avoid "wobble". Then continue to inflate it to the proper pressure.

Quality agreement

2 YEARS WARRANTY

This product is guaranteed for a period of 2 years beginning on the date it is handed over by the dealer. For possible submission of proof, please keep your receipt, the completed warranty card as well as the hand-over check bearing your signature for the length of the warranty period. These documents must be submitted to qualify for service under the warranty.

WHAT WILL BE COVERED BY THE WARRANTY?

This product is warranted against defects in materials and workmanship that existed at the time it was handed over.

THIS WARRANTY DOES NOT COVER ....

We disclaim liability for defects in the object of purchase that are beyond our control. This especially applies to:

natural wear and tear (wear-related defects) and defects due to excessive stress
■ consequential defects, originally caused by neglect of defects/damages but developing into conditions necessitating a more difficult repair
defects due to improper or inappropriate use (see Instructions)
defects due to incorrect assembly or operation
defects due to negligent handling or lack of maintenance of the product
defects due to improper alteration of the product.

WARRANTYCLAIM-YESORNO?

Rust: To provide a proper basic protection of the chassis, it has undergone a rust-proofing treatment. However, rust-stains may be found when lacking maintenance. This case will not be covered by the warranty. Scratches: Scratches caused by wear and tear will not be covered by the warranty. Mould formation: Fabric parts, having become wet, should be dried properly to prevent mould formation (see Instructions). Mould formation will not be covered by the warranty. Bleaching of the fabrics: We confirm that the fabrics comply with the established standards. It cannot be ruled out that colours of the fabrics may fade while the parts are exposed to direct sunlight, washed too frequently, come into contact with sweat and detergents, or suffer abrasive wear (especially on those parts where the pram is handled). Consequently, colour fading is excluded from the warranty. It is unavoidable that colours sometimes differ slightly from one individual batch to the next, which is why this case will not be covered under the warranty. Knob formation on fabrics: We recommend that you apply general clothes care. As with woollen sweaters, the knobs can easily be removed by using a clothes-brush or burling machine. Tearing of seams, fabrics, press studs : At the time of purchase, please check carefully that all the fabric parts, seams and snap fasteners have properly been sewn and fastened. In case of a possible complaint concerning seams/defective snap fasteners, a claim must immediately be reported to your dealer after the defect has been discovered. Wheels: As wheels used on prams will not be balanced, they may show slight runouts ("wobbles"). Worn tires will be regarded as natural wear and tear. No claim can be raised if your pram, using pneumatic tired wheels, has a "flat". This will be attributed to extraneous causes — a small hole caused by a pointed object, or pushing the pram about when it has not got enough air in the tire. This case will not be covered by the warranty.

Quality agreement

WHAT TO REMEMBER WHEN BUYING YOUR PRAM

Check that your pram is complete when it is handed over and no parts are missing. Check the function of all parts and confirm this by signing the handover check.

WHAT TO DO IN CASE OF A COMPLAINT

Call your dealer, from whom you bought the pram, to file the complaint and to discuss how to handle the matter. In case of defects concerning safety regulations, your complaint must be filed at your dealer's within a 30 days period from the date the defects have occurred, otherwise these defects will not be warranted for. When handling your warranty claims, we will apply product-specific depreciation rates. We refer you to our general terms and conditions displayed at our premises.

USE, CARE AND MAINTENANCE

To maintain the original quality of your pram as a means of transportation for your child, it requires care and maintenance according to the instructions.

Kartan

18+19 Protection anti-chute

not applicable

2. Function check

Folding mechanism

checked/OK

not applicable

Road behaviour

checked/OK

not applicable

Wheels

checked/OK

not applicable

Adjusting mechanism

checked/OK

not applicable

Brakes check

checked/OK

not applicable

Suspension check

checked/OK

not applicable

3. Intactness

Frame check

checked/OK

not applicable

Fabric check

checked/OK

not applicable

Plastic parts check

checked/OK

not applicable

I have checked the product and have ascertained that it is supplied complete, has no external, visible faults and that all functions are intact.
I have received sufficient information concerning the product and its functions before purchase and have been instructed on care and maintenance.

Übergabe-Protokoll

Acceptance Certificate

Name / Name:

StraBe / Road:

Stoff-Farbe (Design): Colour of fabric (design):

Zubehör / Accessories:

Kaufdatum / Date of purchase:

Salesperson (name in block letters)

Note: signing this acceptance certificate does not restrict the legal rights of the purchaser.

Handler / Dealer:
