USER MANUAL LED SPOT BEGLEC

Copyright © 2006-2007 by BEGLEC cva. Reproduction or publication of the content in any manner, without express permission of he publisher, is prohibited LED SPOT LED WASH

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

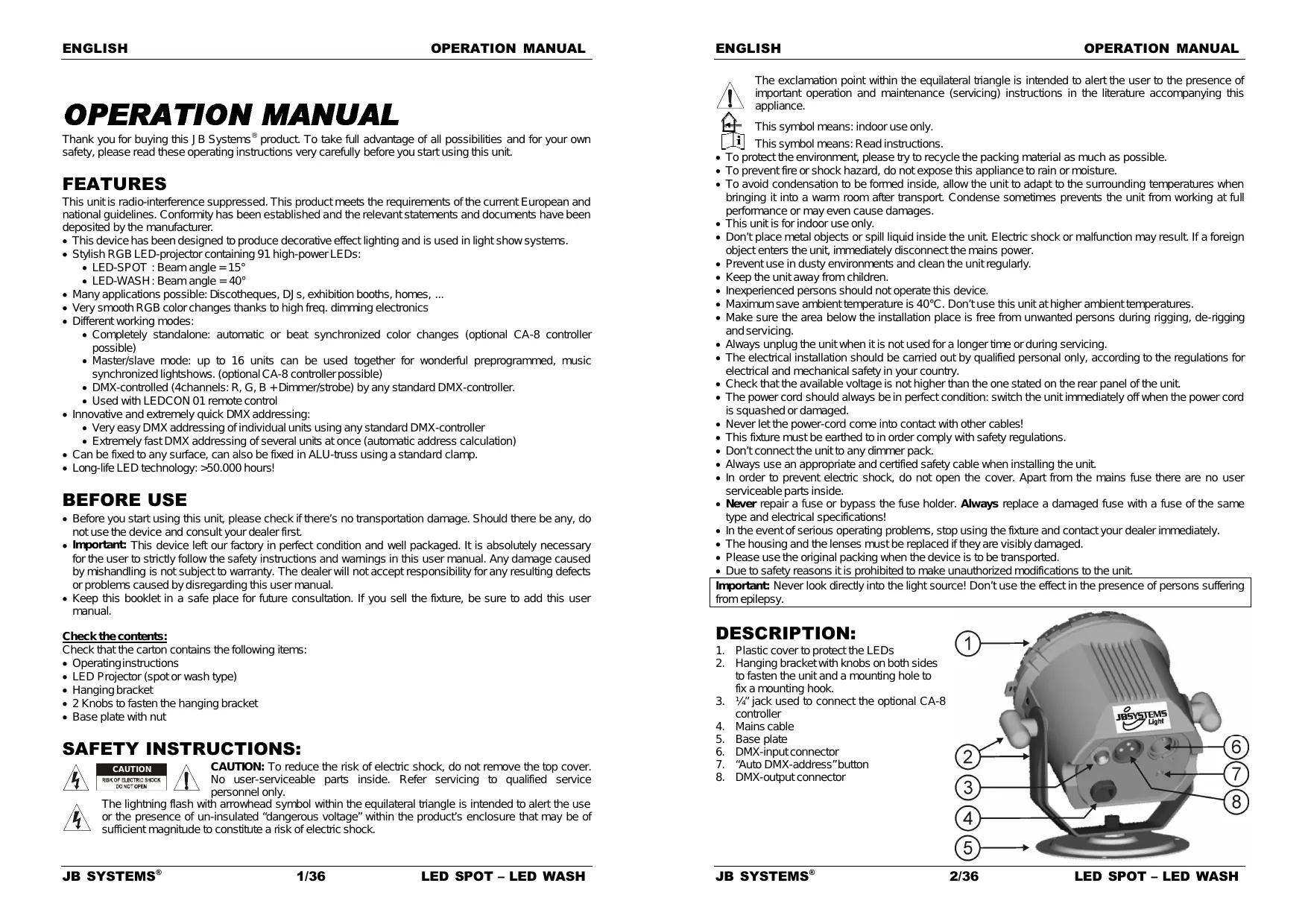

ENGLISH OPERATION MANUAL

OPERATION MANUAL Thank you for buying this JB Systems * product. To take full advantage of all possibilties and for your onn safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unitis radic-interference suppressed. This product meets the requirements ofthe current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. + This device has been designed to produce decorative effect lighting and is used in light show systems. + Stylish RGB LED-projector containing 91 high-power LEDs: + LED-SPOT : Beam angle = 15° + LED-WASH: Beam angle = 40° + Many applications possible: Discotheques, DJ s, exhibition booths, homes, … + Very smooth RGB color changes thanks to high freq. dimming electronics + Different working modes: + Completely standalone: automatic or beat synchronized color changes (optional CA-8 controller possible)

• Master/slave mode: up to 16 units can be used together for wonderful preprogrammed, music synchronized lightshows. (optional CA-8 controller possible) + DMX-controlled (4channels: R, G, B +Dimmer/strobe) by any standard DMX-controller. + Used with LEDCON O1 remote control + Innovative and extremely quick DMX addressing: + Very easy DMX addressing ofindividual units using any standard DMX-controller + Extremely fast DMX addressing of several units at once (automatic address calculation) + Can be fixed to any surface, can also be fixed in ALU-tuss using a standard clamp. + Long-life LED technology: >50.000 hours! BEFORE USE + Before you start using this unit, please check ifthere's no transportation damage. Should there be any, do not use the device and consult your dealer first. + Important This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and wamings in this user manual. Any damage caused by mishandiing is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. + Keep this booklet in a safe place for future consultation. If you sel the fixture, be sure to add this user manual. Check the contents: Check that the carton contains the following items: + Operatinginstructions + LED Projector (spot or wash type) + Hangingbracket + 2 Knobs to fasten the hanging bracket + Base plate with nut SAFETY INSTRUCTIONS: 4 CAUTION: To reduce the risk of elechic shock, do not remove the top cover. A RTE Â No user-serviceable parts inside. Refer servicing to qualified service < personnel only. The lightning flash with arronhead symbol within the equilateral triangle is intended to alert the use /B\._ orthe presence of ur-insulated ‘dangerous voltage” within the products enclosure that may be of ZE suficient magnitude to constitute a risk of elechic shock. JB SYSTEMS® 1/36 LED SPOT - LED WASH

ENGLISH OPERATION MANUAL

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (sevicing) instructions in the literature accompanying this appliance. 8 This symbol means: indoor use only. À] This symbol means: Read instructions. + To protectthe environment, please ty to recycle the packing material as much as possible. + To prevent fire or shock hazard, do not expose this appliance to rain or moisture. + To avoid condensation to be fomed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full perfomance or may even cause damages. This unitis for indoor use only. Don't place metal objects or spil liquid inside the unit. Electric shock or malfunction may result If a foreign object enters the unit, immediately disconnectthe mains power. Prevent use in dusty environments and clean the unit regularty. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 40°C. Don'tuse this unit athigher ambienttemperatures. Make sure the area below the installation place is free from unwanted persons during rigging, de-igging andservicing. Always unplug the unitwhen itis not used for à longer time or during servicing. + The electical installation should be carried out by qualfied personal only, according to the regulations for electical and mechanical safety in your country. Check thatthe available voltage is not higher than the one stated on the rear panel ofthe unit. + The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged. Never letthe power-cord come into contact with other cables! This fidure must be earthed ton order comply with safety regulations. Don't connect the unitto any dimmer pack. AWays use an appropriate and certfied safety cable when installing the unit. In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable part inside. Never repair a fuse or bypass the fuse holder. Always replace à damaged fuse with a fuse ofthe same type and electrical specifications! In the eventof serious operating problems, stop using the fixture and contact your dealer immediately. The housing and the lenses mustbe replaced ifthey are visibly damaged. Please use the original packing when the device is to be transported. + Due to safety reasons itis prohibited to make unauthorized modifications to the unit Important: Never look directy into the light source! Don't use the effect in the presence of persons suffering from epilepsy. DESCRIPTION: Plastic cover to protectthe LEDS à Hanging bracketwith knobs on both sides to fasten the unit and a mounting hole to fix a mounting hook.

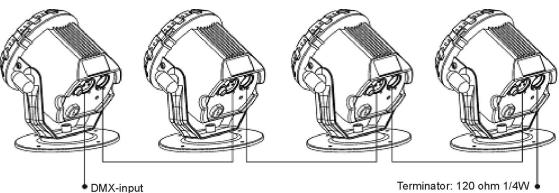

Important The electrical installation should be carried out by qualified personal only, À\ according t the regulations for electrical and mechanical safety in your country. Electrical installation for 1 standalone unit: + Justinsertthe mains cable. The unitstarts working immediately in stand-alone mode Rerark You can connect a CA-8 remote controller to the unit if you want to have more control. Refer to section“C"to learn how to do this. Electrical installation for two or more units in master/slave: Connect 2 to maximum 16 units together using good quality balanced microphone cables (like for example jB Systems ref. 7-0063). The unit that has no cable connected to is DMX-input will react as “master” the others are the slave units. Make sure that all units are connected to the mains. Done! Rerark: You can connect a CA-8 remote controller to the master unit if you want to have more control overthe master/slave operation. You can also connect the LEDCON 01 remote controller, in this case all units will respond equallÿ (all units have the same color) Electrical installation for two or more units in DMX-mode: + The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to “daisy chain” your DMX controller and all the connected units with a good quality balanced cable (ex. JB Systems ref. 7-0063). To prevent strange behavior of the light effects, due to interferences, you must use a 900 to 400 terminator at the end of the chain. Never use Y-spliter cables, this simply won't work! + Make sure that all units are connected to the mains. + Each light eflect in the chain needs to have is proper starting address so itknons | Zi s0-120 om which commands from the controller it has to decode. In the next section you will LeZresistor leam how to setthe DMX addresses. How to setthe DMX addresses: There are 2 ways to setthe DMX-address ofthe units A. Setting individual DMX-addresses per projector: + Make sure the DMX cables of all units are connected. Connectthe first unit to a universal DMX controler. Connect all units to the mains so they are switched on. Set all DMX-channels on your DMX-controller to zero (value 000). Set the DMX-channel, that you want to assign as DMX-start address on you projector, tot maximum (value 255) + Press the ‘Auto DMX address” button (7) on the projector shortiy. + If you want to set another projector to the same DMX-start address, simply press its “Auto DMX address” button (7) and it will receive the same address. to make things c We will setthe DMX start address of a projector to 106: + Connect the projector to the DMX-contrller as described above and make sure all is switched on. Set all DMX-channels on the controllerto zero (000) Now setDMX-channel 106 to maximum (255) Press the ‘Auto DMX address” button (7)_on the projector shortiy. Done! -> Your projector now has DMX address 106! JB SYSTEMS® 3/36 LED SPOT - LED WASH

ENGLISH OPERATION MANUAL

B. Automatic DMX-addressing, starting from any given start address: To save a lot of time (imagine the time it takes to setthe DIP switches of 16 units.) you can setthe DMX addresses of all units in the DMX-chain just by the push of a button. No need to calculate the starting address of each individual unit, this will be done for

Make sure the DMX cables ofall units are connected. Connectthe first unit to a universal DMX controller. Connectall units to the mains so they are switched on. Set all DMX-channels on your DMX-controller to zero (value 000). Set the DMX-channel, that you want to assign as DMX-start address on you projector, tot maximum (value 255) Press the ‘Auto DMX address” button (7) on the first projector in the chain for about 5seconds. Done! > The first projector in the chain will receive the DMX-start address you chose and it will automatically calculate and programthe DMX addresses of all the other units in the DMX-chain! le to make We want to set the Di be 202: Connect all projectors to the DMX-controller as described above and make sure all are switched on. Set all DMX-channels on the controllerto zero (000) Now set DMX-channel 202 to maximum (255) Press the ‘Auto DMX address” button (7) on the first projector in the chain for about 5seconds. Done! > The first projector in the chain wil receive DMX-start address 202 and it will automatically calculate and program the DMX addresses of all the other units in the DMX-chain! This means that the 2" projector automatically receives address 206, the 3" has address 210, … until the 16° projector who automatically receives start address 262. You just programmed 16 projectors, this took you about 10seconds!!! Remerkc you can mix the units with other DMX-effects that don't have the automatic DMX- addressing option. In that case you stil have to set the DMX-addresses of these DMX-effects manual! addresses of 16 units, the DMX start address of the first projector must OVERHEAD RIGGING + Important The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging andservicing. The device should be installed out of reach of people and outside areas where persons may walk by or be seated. Before rigging make sure that the installation area can hold a minimum point load of 10times the device's weight. Always use a certfied safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in à way that no part of the installation can drop more than 20cm if the main attachment fails. The device should be well fixed: a free-swinging mounting is dangerous and may notbe considered! The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them forthe firsttime. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. 3 different fixing methods are possible: + Fed to ALU truss: use an optional truss clamp. + Fixed to wall or celing: use 2 adapted screws to fixthe base plate (5) to a wall or ceiling. + On a horizontal surface: just fx the unit on the included base plate (5) and putit on a stable, horizontal surface. JB SYSTEMS® 4136 LED SPOT - LED WASH

Placedonahorizontal Fixedto wallor surface ceiling OPERATING INSTRUCTIONS À. Standalone lunit: + Just connectthe unitto the mains and put on some music. The unit starts working automatically to the rhythm ofthe music. Rerark: You can connect a CA-8 remote controller to the unit if you wantto have more control B. Two or more units in master/slave setup: + Connect 2 to maximum 16 units together. Refer to the chapter “electrical installation" to leam how to do this (don't forget to address all units properiy!) + Connect all units to the mains and put on some music. The units will start working automatically to the rhythm ofthe music and showthe intemal chase programs. Rerark You can connect a CA-8 remote controller to the master unit if you wantto have more control overthe master/slave operation. C. Connectthe optional CA-8 controller for more control: The CA:8 controller can only be used in standalone or master/slave mode. Connectthe controller to the CA-8 input of the first unit (master). Now you can control all the connected units: IMPORTANT REMARK: When you use this LED PROJ ECTOR with a CA-8 controller and you select MANUAL mode (mode LED =ON), the projector reminds the last setting used with controller, even after disconnecting the controller and/or the mains voltage. If you don't want this, make sure to select another working mode (mode LED must blink or off) before you unplug the controller. BUTTON ACTIONS STANDEY Tobiackoutallthe fures Strobe SColor select Color Chase ColorFade 1.Synchronous strobe | Whie-BRed> LL Thesame color 1. Fastspeed FUNCHION | in white color Blue>Purpe> | 2. Differentcolor 2. Middle speed 2.Thesame color OrangeGreen> | 3. Onelight chase 3. Slow speed chase Yelow->Magenta _ | 4. Twolights chase 3.Differentcolor Cyan 5. Four lights chase Strobe MODE | Soudi Manual Sound AuiD (LED OFF) (LED ON) {LED slow biinking) (LED fast blinking) JB SYSTEMS® 5/36 LED SPOT - LED WASH

ENGLISH OPERATION MANUAL

. DMX512 Configuration D. Controlled by universal DMX-controller: nn ns as che + Connect all units together. Refer to the chapter Green BLuE GÉTE “Elechical installation for two or more units in . DMX-mode” to leam how to do this (don't forget | æ # = to address all units property!) 2e + Connect all units to the mains and tum on the DMX controller. Since each unit has its own DMX-address, you _ can control them individually. Remember that each unit uses 4 DMX-channels as shown in the DMX : chart below. MAINTENANCE Make sure the area belowthe installation place is free from unwanted persons during servicing. Switch the unit off and unplugthe mains cable. During inspection the following points should be checked: Al screws used for installing the device and any of its parts should be tightly fastened and may not be corroded. Housings, foations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation. When an optical part is visibly damaged due to cracks or deep scratches, it mustbe replaced The mains cables must be in impeccable condition and should be replaced immediately when even a small problems detected. The interior of the device should be cleaned annually using a vacuum cleaner or air-jet. The cleaning of intemal and extemal optics must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fxture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the units optics. + Clean with a soft cloth using normal glass cleaning products. + Always dry the parts carefull. + Clean the extemal optics at least once every 30 days. + Clean the intemal optics at least every 90 days: Attention: We strongly recommend intemal cleaning to be carried out by qualified personnel! JB SYSTEMS® 6/36

_ 2106 LED SPOT 1150 288 130(Lux) ra Om( ©) o ï 2 3 Distance(m) LED WASH s e 4 q Om ï 2 3 Distance(m) Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com

22/36 LED SPOT - LED WASH
