USER MANUAL 2019SW1 AOC

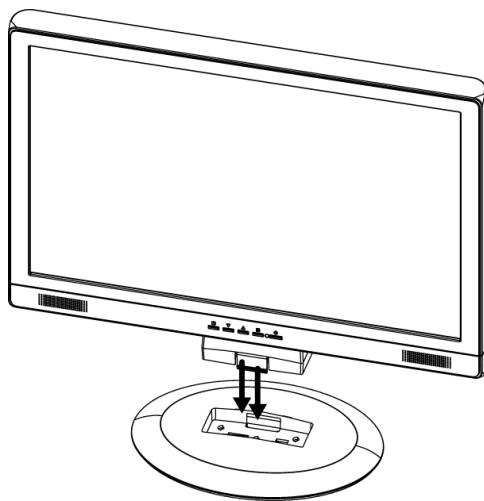

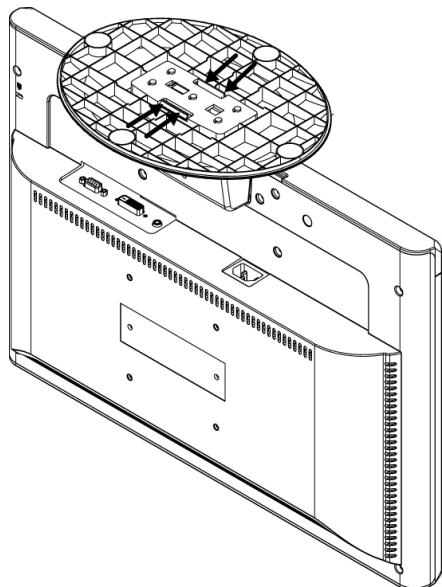

Installing & Removing the Base

Install

Remove

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide proper protection against harmful interference to a residential installation. This monitor generates, uses, and can radiate radio frequency energy. Harmful interference to radio communication may be led as a result if it's not properly installed and used. However, there is no guarantee that interference will not occur in a particular installation. If this monitor does cause serious interference to radio or television reception, resetting the monitor may determine it. Moreover, users are encouraged to correct interference by doing one or more of the following:

• Reorient or relocate the receiving antenna.
• Move the monitor and the receiver further away from each other.
• Connect the monitor into an outlet on a circuit different from that to which the receiver is connected.
• Consult your local dealer or an qualified technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power supply cord and the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes or modifications to this monitor would void the user's authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the emission level limits.

LAMP(s) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONICS INDUSTRIES ALLIANCE AT WWW.EIAE.ORG.

Content

Safety Precautions 1
Installation 2-3
Control Panel Buttons 4
OSD Menu Functions 5-7
Technical Information 8
Care and Maintenance 9
Troubleshooting 9

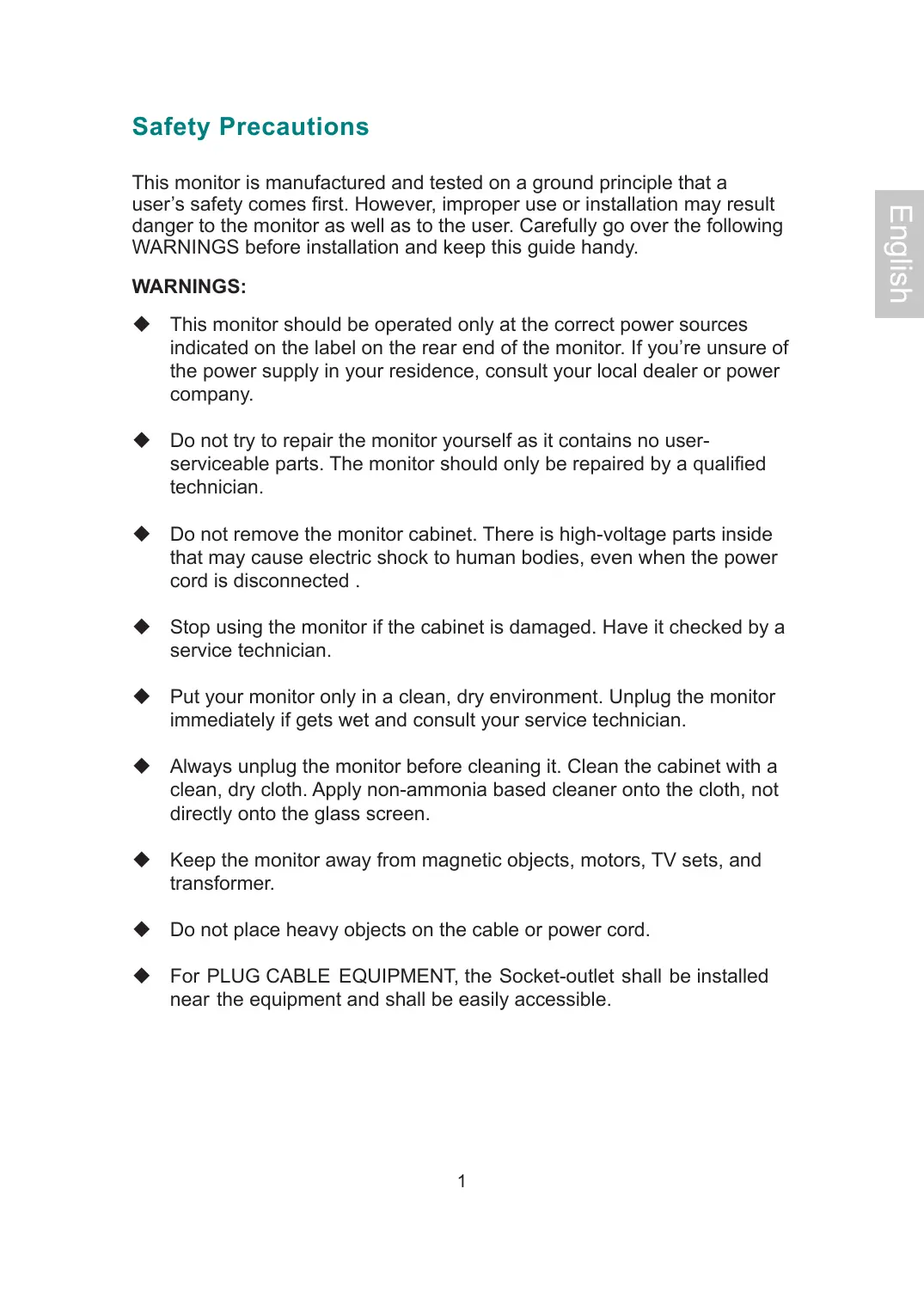

Safety Precautions

This monitor is manufactured and tested on a ground principle that a user's safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy.

WARNING:

This monitor should be operated only at the correct power sources indicated on the label on the rear end of the monitor. If you're unsure of the power supply in your residence, consult your local dealer or power company.
Do not try to repair the monitor yourself as it contains no user-serviceable parts. The monitor should only be repaired by a qualified technician.
Do not remove the monitor cabinet. There is high-voltage parts inside that may cause electric shock to human bodies, even when the power cord is disconnected.
Stop using the monitor if the cabinet is damaged. Have it checked by a service technician.
Put your monitor only in a clean, dry environment. Unplug the monitor immediately if gets wet and consult your service technician.
Always unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
Keep the monitor away from magnetic objects, motors, TV sets, and transformer.
Do not place heavy objects on the cable or power cord.
For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed near the equipment and shall be easily accessible.

Installation

Congratulations for purchasing this monitor of high performance! This monitor comes with the following accessories :

Power cable
D-Sub cable
- User's guide
Warranty Documents

Optional contents (depends on connectors of monitor):

Audio cable

Connecting the Monitor

1. Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

2. Connect Analog video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video cable (D-Sub cable) to the computer.

3. Connect DVI cable (Optional)

Connect the DVI cable from DVI output of computer to the DVI input of the monitor.

4. Connect audio cable*

Connect one end of the audio cable to the back of the monitor and connectthe other end to the computer's audio out port.

5. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

6. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1680 × 1050 @ 60Hz

Resolution Right-click on the Windows desktop > Properties > Settings > "Desktop Area". Set the resolution.

Refresh Rate (vertical frequency) See your graphic card's user guide for instructions.

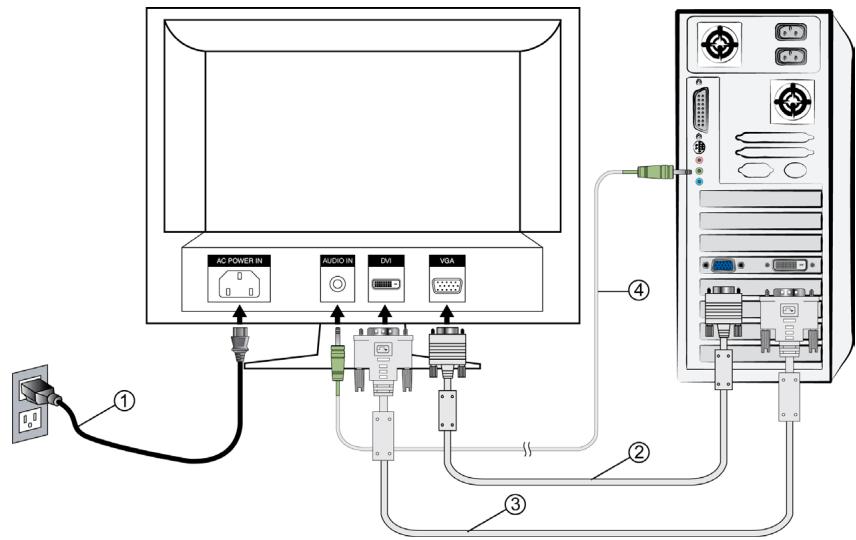

Connection Diagram (For example)

(Pleases be advised that some illustrations are simulated for your reference)

Note:

Audio function is optional feature,its depend on your purchased monitor.

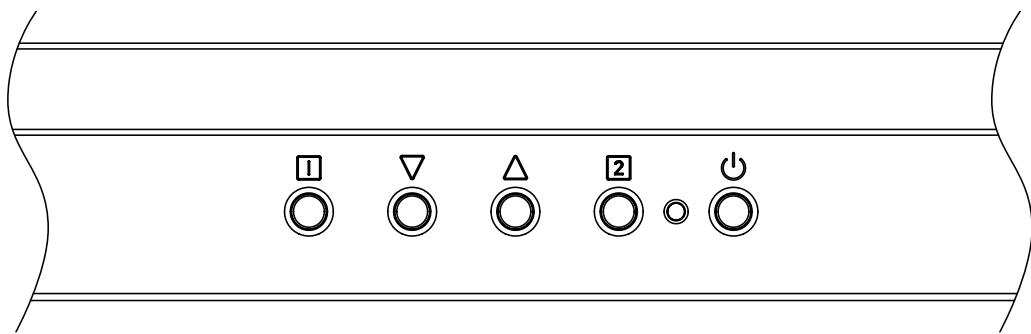

Control Panel Buttons

Use the control buttons on the LCD Monitor to display the On Screen Display(OSD) menu. Below is a list of the control button functions.

Note: Please be advised that some illustrations are simulated for your reference.

1. 1	Display main menu.
	Exit from OSD menu.
2.▼	Select the desired item when in OSD menu.
	When not in OSD menu, it is to immediately activate Contrast/ Brightness menu.
3.▲	Select the desired item when in OSD menu.
	When not in OSD menu, it is to immediately activate Contrast/ Brightness menu.
4. 2	Auto adjust the image when not in OSD menu.
	Confirm the selection.
5. 0	Power ON/OFF.
6.▼+▲	Recall both of Contrast and Brightness.
7. 1+▼	Power Lock (when not in OSD menu).
8. 1+▲	OSD Lock (when not in OSD menu).

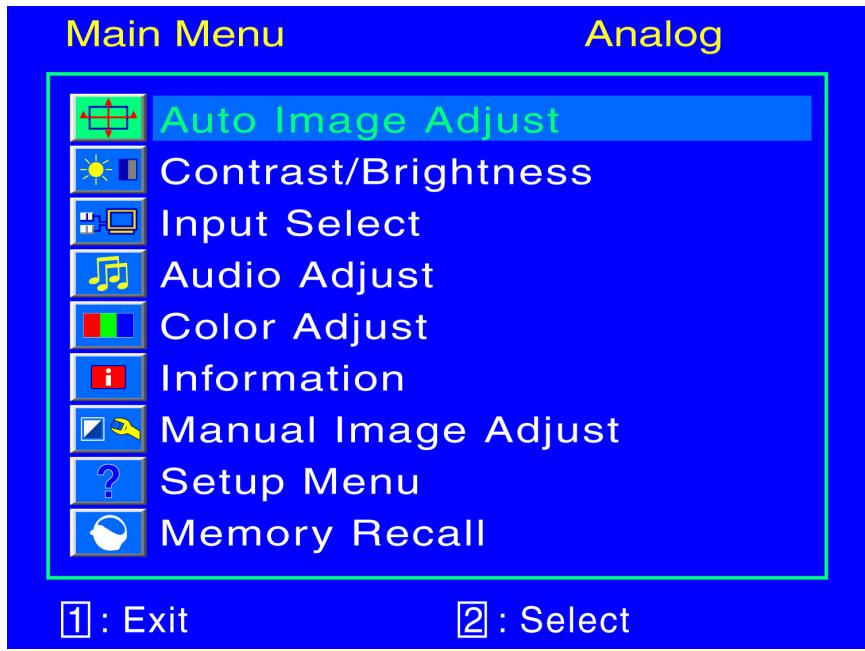

OSD Menu Functions

This LCD Monitor has been adjusted to optimal setting before shipment. If needed, adjustment to the monitor setting can also be made using the OSD menu.

(Example)

Note: Audio Menu will not appear if you purchased unit has not built-in speaker.

Short Cuts Function from the button(s)

Auto Image Adjust: To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen.

Contrast : To adjust the foreground white level of screen image.

: increase contrast, : decrease contrast.

Brightness : To adjust the luminance of the video.

: increase brightness, : decrease brightness.

DCR : Allow the user to turn the DCR On or Off.

Note: DCR function depends on product spec.

Input Select : Select Analog (D-sub) or Digital (DVI) Input.

Audio Adjust : To adjust the audio functions.

Volume : To adjust the volume of speaker output.

Mute : To turn the Mute ON/OFF.

Note: Audio Adjust function depends on product spec.

Color Adjust : To select the color for improving brightness and color saturation between sRGB, 9300K, 6500K, 5400K, and User Color.

sRGB : This is quickly becoming the industry standard for color management, with support being included in many of the latest applications. Enabling this setting allows the LCD display to more accurately display colors the way they were originally intended. Enabling the sRGB setting will cause the Contrast and Brightness adjustments to be disabled.

9300K : Adds blue to screen image for cooler white.

6500K : Adds red to screen image for warmer white and richer red.

5400K : Adds green to screen image for a darker color.

User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press or button to adjust selected color.

Information : To display the information, regarding the current input signal coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about changing the resolution and refresh rate.

Horizontal Size : To adjust the width of the screen image.

: decrease the width of screen image, : increase the width of screen image.

H./V. Position : To adjust the horizontal and vertical position of the video.

H. Position : ▲ : move screen to the right, ▼ : move screen to the left.

V. Position : ▲ : move screen up, ▼ : move screen down.

Fine Tune : To adjust the delay time of data and clock.

Press or to adjust to your preference.

Sharpness : To adjust the clarity of a non-WSXGA (1680 x 1050 @ 60Hz)

signal with or button.

Setup Menu : To set up Language Select, OSD Position, OSD Time Out,

OSD Background and/or Resolution Notice.

Language Select : To allow users to choose from available languages.

Resolution Notice : Resolution Notice is to remind the user to set the

resolution for best image quality.

• Choose "On": Every 30 seconds, it will show a notice to remind the user to set the resolution for best image quality.
• Choose "Off": It will not show a notice to remind the user to set the resolution for best image quality.

Note: Resolution Notice function depends on product spec.

OSD Position : Press ▲ or ▼ button to select between horizontal and

vertical OSD Position adjustment.

H. Position : Adjust the OSD position horizontally.

: move OSD to the right, : move OSD to the left .

V. Position : Adjust the OSD position vertically.

: move OSD up, : move OSD down.

OSD Time Out : To automatically turn off On Screen Display(OSD)after a

preset period of time.

OSD Background : Allows the user to turn the OSD Background On or

Off

Memory Recall : To recall factory settings for Video and/or Audio controls.

Press button 2 to select the Memory Recall menu option.

Technical Information

LCD Panel	20"(20.1" Viewable Image Size) TFT
Power Management	Energy Star compliant VESA DPMS compatible < 1 W
Displayable Resolution	WSXGA 1680 x 1050 max. Vertical Frequency 60Hz max.
Pixel Dimension	0.258 x 0.258mm
Tilt	0°~20°
Active Display Area	433.44mm x 270.9 mm
Temperature	Operating: 0°C ~ +40°C Storage: -20°C ~ + 60°C
Compliance	cULus, CE, FCC-B, Energy Star,ISO 13406-2
Power	Input Voltage AC100-240 V
*Speaker (Optional)	1W x 2
Supported Timing	720 x 400 @ 70 Hz 640 x 480 @ 60, 67, 75 Hz 800 x 600 @ 56, 60, 72, 75 Hz 832 x 624 @ 75 Hz 1024 x 768 @ 60, 70, 75 Hz 1152 x 864 @ 75 Hz 1280 x 960 @ 60 Hz 1280 x 768 @ 60, 75 Hz 1280 x 1024 @ 60,75 Hz 1440 x 900 @ 60,75 Hz 1680 x 1050 @ 60 Hz
Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor.

*Note: Product Specifications are subject to change without notice.

Care and Maintenance

Care

• Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare.
• Put your monitor in a well ventilated area.
• Do not place any heavy things on top of your monitor.
• Make certain your monitor is installed in a clean and moisture-free area.
• Keep your monitor away from magnets, motors, transformers, speakers, and TV sets.

Safety Tips

• If smoke, abnormal noise or odor came out from your monitor, caution you should remove the power cord immediately and call your service center.
• Never remove the rear cover of your monitor cabinet. The display unit inside contains high-voltage parts and may cause electric shock to human bodies.
• Never try to repair your monitor yourself. Always call your service center or a qualified technician to fix it.

Troubleshooting

No power

• Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the monitor.
• Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage.
• Make sure all signal cables are installed.

Power on but no screen image

• Make sure the video cable supplied with the monitor is tightly secured to the video output port on back of the computer. If not, tightly secure it.
• Adjust brightness.

Wrong or abnormal colors

• If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
• Connect the monitor to another computer.

Audio function is optional feature,its depend on your purchased monitor.

Use the control buttons on the LCD Monitor to display the On Screen Display(OSD) menu. Below is a list of the control button functions.

Note: Resolution Notice function depends on product spec.

: increase brightness, : decrease brightness.

Fundo OSD (OSD Background): Permite ao'utilizar activar (On) oudesactivar (Off) a opçao do Fundo OSD Off.
