USER MANUAL GHD 2500 ATIKA

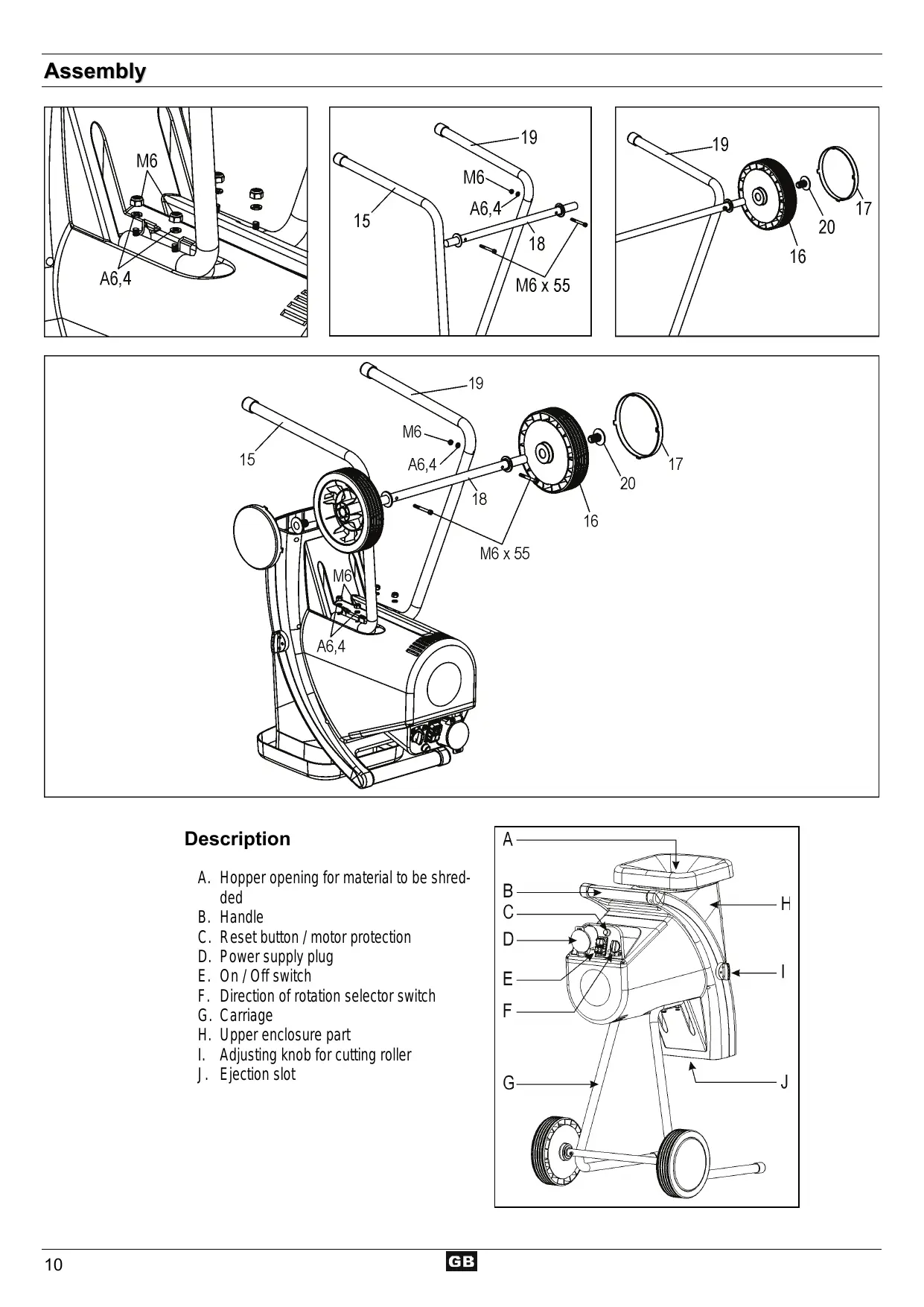

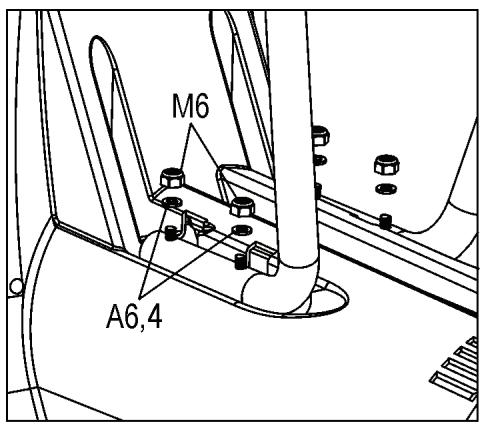

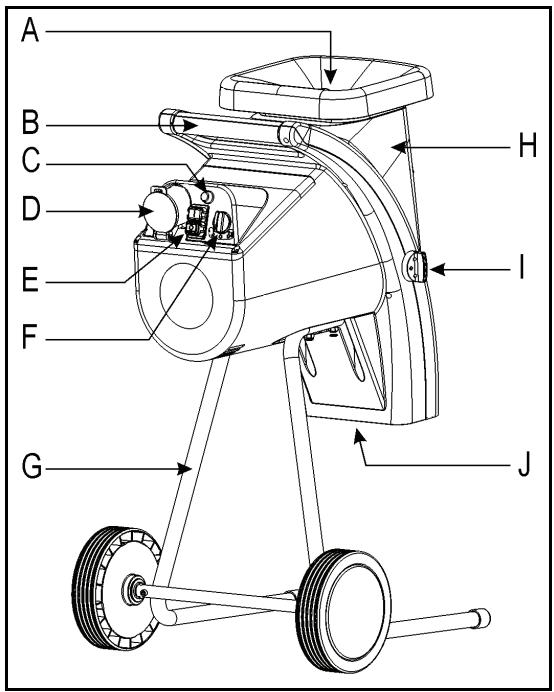

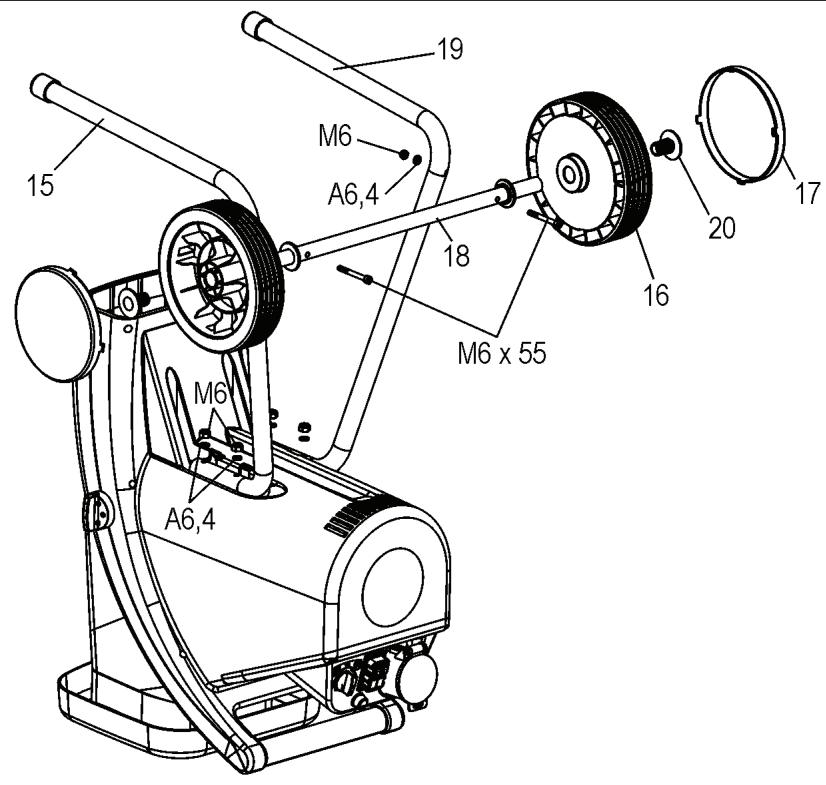

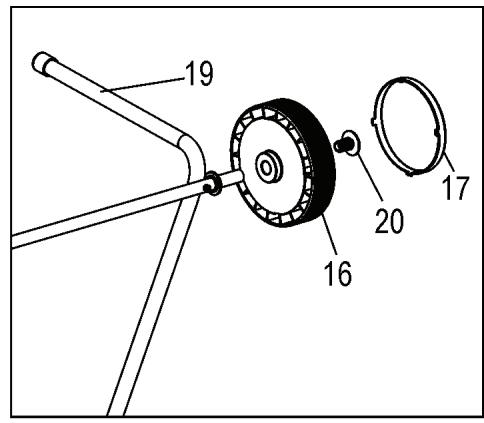

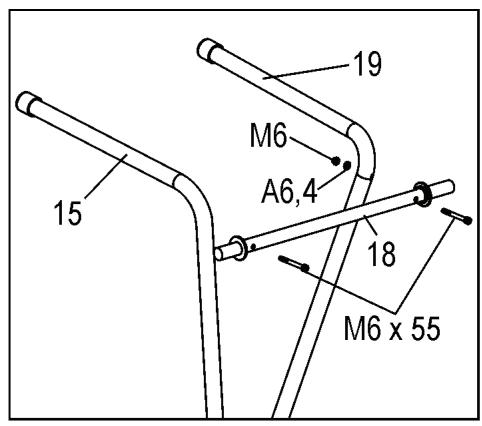

Assembly Description A. Hopper opening for material to be shredded B. Handle C. Reset button / motor protection D. Power supply plug E. On / Off switch F. Direction of rotation selector switch G. Carriage H. Upper enclosure part

You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described! Keep the instructions in a safe place for future use. Contents Assembly EC Declaration of Conformity Symbols on the machine Symbols in the operating manual Operating times Extent of delivery Proper use Residual risks Safety instructions Commissioning Working with the garden shredder Adjusting the fixed counter blade Maintenance and cleaning Guarantee Operational faults Technical data Spare parts

EC Declaration of Conformity according to Directive 98/37 EC ATIKA GmbH & Co. KG Schinkelstraße 97, 59227 Ahlen - Germany Symbols on the machine Carefully read the operating manual and the safety instructions before starting the machine and observe the instructions when operating. Danger – objects may be thrown out at high speed when motor is running. Keep bystanders, pets and domestic animals out of the danger area. Danger – rotating blades. Keep hands and feet out of openings while machine is running. Wear eye and ear Wear protective Protect against protection. gloves. humidity. Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling. Symbols Operating instructions declare under our sole responsibility, that the products Garden Shredder type AH 600 to which this declaration relates corresponds to the relevant basic safety and health requirements of the Directive 98/37/EC, and to the requirements for the other relevant Directives: 2004/108/EC, 2006/95/EC, 2000/14/EC conformity assessment procedure: 2000/14/EC - Appendix V. Measured level of the acoustic output LWA Guaranteed level of the acoustic output LWA Switch off the motor and disconnect the mains plug before performing cleaning, maintenance or repair work. 91 dB (A) 92 dB (A)

Potential hazard or hazardous situation. Failure to observe this instruction may lead to injuries or cause damage to property. Important information on proper handling. Failure to observe this instruction may lead to faults. User information. This information helps you to use all the functions optimally. Assembly, operation and servicing. Here you are explained exactly what to do. Operating times Ahlen, 02.03.2007 A. Pollmeier, Geschäftsführung Please observe as well the regional regulations for noise protection.

Extent of delivery After unpacking, check the contents of the box

That it is complete Check for possible transport damage Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

1 pre-assembled device unit 1 standing leg (left) 1 standing leg (right) 1 axle 2 wheels 2 wheel covers 1 screw bag 1 collection sack 1 operating instructions Proper use The proper use includes the shredding of - all types of branches up to a max. diameter (depending on wood species and freshness) - wilted, moist garden refuse that has already been stored for several days, alternating with branches Shredding of glass, metal, plastic parts, plastic bags, stones, fabric cut-offs, roots with soil, waste without solid consistency (e.g. kitchen scraps) is explicitly excluded. The garden shredders are suitable for private use in gardens and allotments. As garden shredders for private gardens and allotments are considered such devices that are not applied in public facilities, parks, and sports facilities as well as in agriculture and forestry on a commercial basis. The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions. Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk. Unauthorised modifications on the garden shredder exclude a liability of the manufacturer for damages of any kind resulting from it. Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.

Residual risks Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose. Residual risks can be minimised if the “Safety information” and the “Intended usage” as well as the whole of the operating instructions are observed. Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment. ƒ Risk of injury to the fingers and hands, if your hand grasps through an opening and reaches the blade unit. ƒ Risk of injury to the fingers and hands, when carrying out assembly work and cleaning on the blade unit. ƒ Injury by the chopped material spinning away near the hopper. ƒ Risk from electricity when using improper electrical connections. ƒ Touching live parts of opened electrical components. ƒ Impairment of hearing when working on the machine for longer periods of time without ear protection. In addition, in spite of all the precautionary measures taken, nonobvious residual risks can still exist. Safety instructions Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Pass the safety instructions on to all persons who work with the machine. Keep these safety instructions in a safe place. Repair works on the shredder must be carried out by the manufacturer or by companies appointed by the manufacturer respectively. ƒ Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions. ƒ Do not use the machine for unsuitable purposes (see 'Normal intended use' and 'Working with the garden shredder'). ƒ Provide a safe standing position and keep at any time the balance. Do not lean forward. When placing material into the shredder, always stand on the same level as the machine. When placing material into the shredder, always stand on the same level as the machine. ƒ Be observant. Attend to what you do. Start working with rationality. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries. ƒ Wear protective goggles, gloves and noise protection while working with the machine. ƒ Wear suitable work clothes: - do not wear loose-fitting clothes - slip-proof shoes ƒ Within his area of work the operator is responsible for third parties. ƒ The machine must not be operated by children or young people under 16 years of age. ƒ Keep children away form machine. ƒ Never operate the machine if other persons are in the immediate vicinity. ƒ Never leave the device unattended. ƒ Keep your workplace in an orderly condition! Untidiness can result in accidents. ƒ Choose a working position alongside the equipment or behind it. Never stand near the ejection opening. ƒ Never reach into the filling or ejection opening. ƒ Keep your face and body away from the filling opening. ƒ Do not overload the machine! You work better and safer in the given performance range. ƒ Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety. ƒ Do not alter the revolution speed of the motor, since this controls the safe maximum operating speed, and protects the motor and all rotating parts against damage due to excess speed. ƒ Do not operate without the funnel. ƒ Do not modify the device or parts of the device respectively. ƒ Close machine properly before enabling motor. ƒ Do not hose down the device with water. (Origin of danger electric current). ƒ Take into consideration environmental influences: − Do not use the device in moist or wet ambience. − Do not leave the machine standing in the rain or use when raining. − Provide for good illumination. ƒ To prevent danger of injury to fingers during assembly or cleaning operations wear protecting gloves. ƒ Switch the machine off and remove the mains plug from the socket when − Performing maintenance and cleaning work. − Eliminating faults. − Checking connecting lines, whether these are knotted or damaged. − Transporting. − Carrying out repair work. − Leaving unattended (even during short interruptions). ƒ If the machine’s filling funnel or ejection slot is blocked switch off the motor and disconnect the mains plug before removing material from the filling funnel or ejection slot. ƒ Check the machine for possible damage: − Before further use of the machine the safety devices must be checked carefully for their proper and intended function. − Check whether movable parts function perfectly and do not stick or whether parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the machine. − Damaged safety devices and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use. − Damaged or illegible safety labels have to be replaced. ƒ Store unused equipment in a dry, locked place out of the reach of children. Electrical safety ƒ Design of the connection cable according to IEC 60 245 (H 07 RN-F) with a core cross-section of at least − 1.5 mm2 for cable lengths up to 25 m − 2.5 mm2 for cable lengths over 25 m ƒ Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced. ƒ Plugs and coupler outlets on connection cables must be made of rubber, plasticised PVC or other thermoplastic material of same mechanical stability or be covered with this material. ƒ The connector of the connection cable must be splash-proof. ƒ When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet. ƒ Wind off completely the cable when using a cable drum. ƒ Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket. ƒ Regularly check the extension cables and replace them if they are damaged. ƒ Do not use any defective connection cables. ƒ When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use. ƒ Do not set up any provisional electrical connections. ƒ Never bypass protective devices or deactivate them. ƒ Only hook up the machine by means of a fault-current circuit breaker (30 mA). The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations – especially regarding protective measures – must be observed. Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points. Use only original spare. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action. Commissioning ƒ Check that the machine is completely and correctly assembled. ƒ To avoid toppling, place the shredder on a firm horizontal surface. ƒ Do not place the equipment on ground which is paved or surfaced with gravel. ƒ The machine should only be operated in the open. Always maintain a safe distance (at least 2 m) from walls or other fixed objects. ƒ Before each use, check − Connection cables for defects (cracks, cuts, etc.). Do not use any defective cables.

There are no damage at the machine (see safety instructions). All screws are tight. Direction of rotation selector switch Only actuate the direction of rotation selector switch while the shredder is switched off. L Mains connection ƒ Compare the voltage given on the machine model plate e.g. 230 V with the mains voltage and connect the machine to the relevant and properly earthed plug. ƒ Only use extension cables with sufficient core cross-section. Position Mains fuse Position The material is drawn in by the cutting roller and shredded. Switzerland

The blades operate in the opposite direction and jammed material is released. 10 A time-lag 13 A time-lag Keep depressing the green button of the on/off switch once you have placed the direction of rotation selector switch into the position. The cutting roller is placed into the opposite direction. If you release the on/off switch, the shredder automatically stops. 2200 W 16 A time-lag 2500 W 16 A time-lag 13 A time-lag 2800 W 16 A time-lag 13 A time-lag Hints

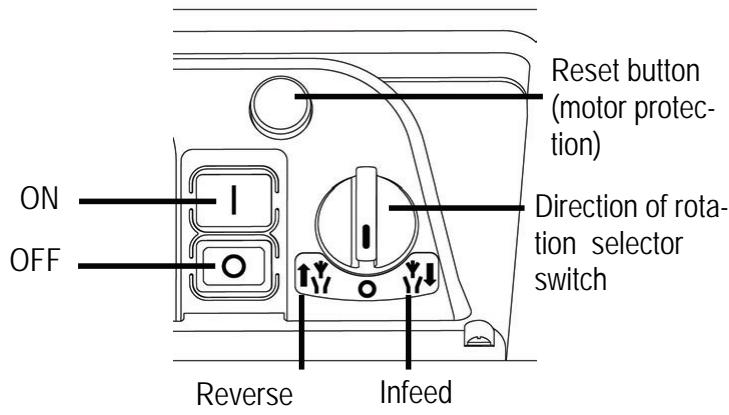

On / Off switch Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service. Reset button (motor protection)

OFF Reverse Switch on Press the green button I . Infeed Always wait until the shredder has come to a complete standstill before restarting it. Electrical mains supply impedance When conditions in the electrical mains supply are un-favourable, voltage reductions for short periods can occur during the process Direction of rota- of turning on the equipment, which can adversely affect other tion selector equipment (e.g., the flickering of a lamp). switch No breakdowns are to be expected if the maximum, electrical mains supply impedances given in the table are met. Power consumption P1 (W) Electrical mains supply impedance Zmax (W) 0,21 0,21 0,19 Switch off Press the red button 0 . Restart protection in case of power failure In case of a power failure, the device switches off automatically (zero-voltage initiator). To restart, press the green button again. Motor protection The motor is equipped with a safety switch and switches off automatically when overloaded. After a cooling-down break (approx. 5 min), the motor may be restarted. Press the

1. reset button (motor protection)

2. green button I to restart.

Large objects or pieces of wood may be removed after the shredder has been operated several times both in cutting and in release direction. Use a tamper or hook to remove jammed objects from the hopper or ejection slot. Working with the garden shredder ƒ Choose a working position alongside the equipment or behind it. Never stand near the ejection opening. Longer material that is protruding from the device could spring back when it is drawn in by the blades! Observe safety distance! ƒ Never reach into the filling or ejection opening. ƒ Keep your face and body away from the filling opening. ƒ Never place hands, other parts of the body or clothing into the filler funnel, ejection channel or in the vicinity of other moving parts. ƒ Check that no chopped residues are in the filling hopper before switching on the equipment. ƒ Do not tip or tilt the machine when the motor is running. ƒ When filling, be careful that no pieces of metal, stones, bottles or other objects unintended for processing, enter the filling hopper. ƒ Immediately switch off the equipment and allow it to come to a stop, if foreign objects enter the filling hopper or if the equipment starts to make unusual noises or vibrates. Remove the mains plug and carry out the following checks: − inspect for damage, − replace or repair damaged parts, − check the equipment and tighten loose parts. You must not repair the equipment yourself if you are unauthorized to do so. What can I shred? Yes:

• organic household and garden waste e. g. hedge and tree cuttings, dead flowers and vegetable kitchen waste. No:
• glass, metal, plastic, plastic bags, stones, cloth, roots with soil, food left-overs, fish or meat. Special tips on shredding: ¾ Always fill the material to be shredded into the filling hopper from the right. ¾ Branches, twigs and wood should be broken down immediately after they have been cut. − Material of this kinds gets very hard when it is dry, and the maximum allowed branch diameter to be processed has to be reduced. ¾ Remove any side shoots from branches with a large number of twigs. ¾ How to shred garden and kitchen waste with hight water content and a tendency to clog − to prevent the machine from clogging, alternate waste with wood containing material. ¾ Do not allow the shredded material to pile up too high in the area of the ejection opening. This can lead to shredded material blocking the ejection channel, and backing up to the filler opening. ¾ Clean out the filler opening and ejection channel thoroughly if the machine becomes blocked. Before doing this, switch the motor off and disconnect the machine from the mains power supply. ¾ Please do not exceed the maximum branch diameter specified (cutting fresh wood) for your appliance (∅ see p. 18). Depending on the wood’s nature and freshness the maximum branch diameter the machine can process may be smaller. ¾ The cutter automatically draws the shredding material into the machine through the slow rotation of the cutting rollers. ¾ Automatic switch-over in the direction of rotation: If the unit suddenly clogs, the blades may start to turn in the opposite direction and push the shredded material back out. − Switch off unit − Wait until the blades come to a standstill − Switch unit back on and use material which is easier to process. ¾ If the machine is overloaded, a protective motor switch ensures that the machine turns itself off automatically. − Turn the shredder on again after about 5 minutes. − If you cannot turn on the machine after this waiting time refer to „Operational faults“. Adjusting the fixed counter blade It is possible to adjust the counter blade B at the cutting roller A free of clearance. For an effective operation, an as small as possible clearance should be maintained. Soft material or wet branches may tear instead of being cut. A counter blade that is worn after repeated use may also lead to this problem. Setting the clearance. Switch on the device. There is an adjustment device on the right hand side of the plastic housing. To adjust the distance turn the adjusting knob (D) clockwisely so that the screw (C) moves toward the cutting roller. Turn until fine aluminium chips are falling from the ejection slot.

Maintenance and cleaning

• Each time before starting maintenance work: − Switch off the motor and pull out the mains plug. − Wear protective gloves to prevent injury. The cutters will not come to a standstill immediately after cut-off. Before starting any service work wait until all parts are stationary. Be sure to have removed any tools from the machine after completion of service work.

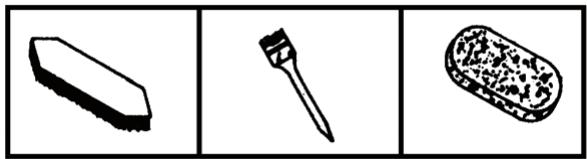

• Generally garden shredders require little maintenance. To maintain their efficiency and a long life, observe the following: − Keep vent slits clean and free from obstructions. − Check the locking screws (tighten where necessary). − Clean the device after shredding. To clean your product only use a warm moist cloth and a soft brush. Never use cleaning agents or solvents. Otherwise the device may be damaged irreversibly. Plastic parts may be corroded by chemicals. − Do not clean the machine with running water or high-pressure cleaners. − After each operation treat bare metal parts with an environment-compatible biodegradable spray oil to protect them against corrosion. − the cutting roller and shaving plate are expendable parts, though with normal use and correct adjustment they have a service life of many years Guarantee Please observe the enclosed terms of guarantee.

Operational faults Before each fault elimination: − Switch off device. − Wait for standstill of the device. − Pull out mains plug. Fault Possible cause Remedy Motor does not start - No power supply - Mains cable defective - Machine overloaded (motor protection) - Check fuses - have these checked (electrician) - Allow the device to cool down. Press the

1. reset button (motor protection)

2. green button I to restart.

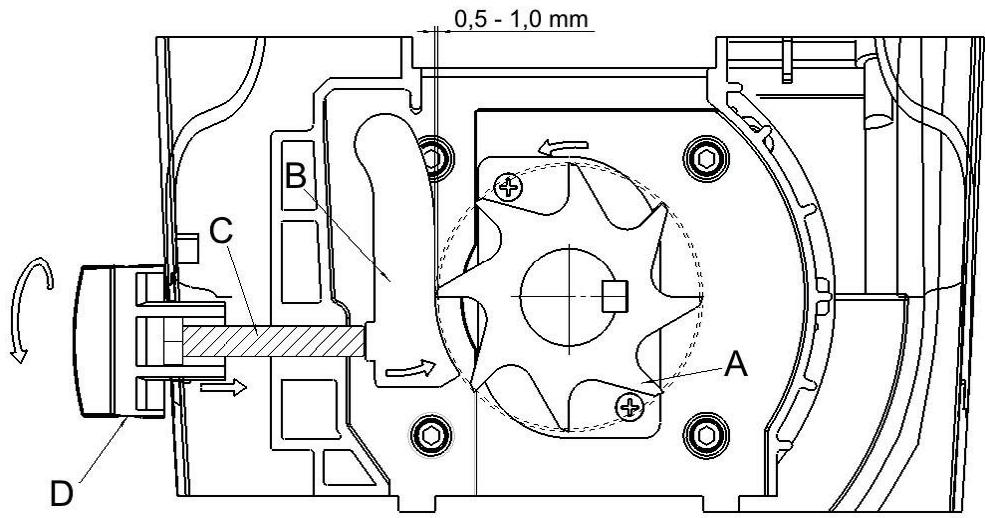

Motor hums but does not - Cutting roller blocked start - Switch off the device. Turn the direction of rotation selector switch into position . Switch on device until the jam has been cleared. Switch device off again. Turn back the - Capacitor faulty Shredding material is not - The cutting roller is running in reverse. drawn into the shredder Wrong switch position - Shredding material caught in funnel direction of rotation selector switch to position - Bring machine to manufacturer or authorised workshop for repair - Switch off device and switch over direction of rotation selector switch. - Switch off device. Switch the direction of rotation selector switch into position . Switch on device to release the material to be shredded, remove any foreign matter. Switch off device again. To continue work, place the direction of rotation selector switch back into posi- - Shredding material too soft or wet - Cutting roller worn Shredding material not cut - Fixed counter blade not adequately adcleanly justed Device starts but blocks Extension cable too long or cross-section to under as slight load and small. switches off via protective Socket too far from mains supply and crossmotor switch. section of mains cable too small tion - Push down with a branch and shred - Adjust fixed counter blade as described under „adjusting the fixed counter blade“. In case of severe wear, replace cutting roller. - Adjust fixed counter blade Extension cable at least 1.5 mm², maximum 25 m long. If a longer cable is used, minimum cross-section 2.5 mm².

Name AH 600 AH 600 AH 600 Motor Motor rating P1 S6 - 40 % AC-Motor 230 V~, 50 Hz, 2800 rpm 2200 W Weight 2800 W 40 min-1 Rotational speed cutting roller ON/OFF-switch with 2500 W overload protection; cutting and reverse function, zero-voltage initiator 24 kg 24,5 kg 25 kg Sound pressure level at work LPA (measured to 2000/14/EC) 83,8 dB (A) 84,2 dB (A) 82,5 dB (A) Measured sound power level LWA (measured to 2000/14/EC) 91 dB (A) 91 dB (A) 91 dB (A) Guaranteed sound power level LWA (measured to 2000/14/EC) 92 dB (A) 92 dB (A) 92 dB (A) ∅ max. 35 mm ∅ max. 40 mm ∅ max. 44 mm Max. branch diameter (only for freshly cut wood) Safety class

Protection class IP X4 Mains fuse 16 A time-lag Switzerland 10 A time-lag

2004/108/EF, 73/23/EWG, 2000/14/EF

2004/108/ES, 73/23/EGS, 2000/14/ES

• Spare parts no. / Designation
• Garden shredder model
