USER MANUAL LED DJ-BAR JBSYSTEMS LIGHT

Copyright © 2009 by BEGLEC comm.v.a.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

Version: 1.0

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This device has been designed to produce decorative effect lighting and is used in light show systems.

• Stylish and extremely compact powered 4BAR containing 4 ultra thin RGB LED-projectors

Each LED-projector contains 212 high-power 5mm LEDs (70 red + 71 green + 71 blue) for exceptional high light output (exceeding the output of traditional PAR56 300W lamps!)

• High quality "Hewlett Packard® / Agilent®" LED technology!

LED-Projector beam angles = 15^

• Energy saving: uses only 67W (instead of 1200W for traditional 4x PAR56-300W)

• Perfect for mobile applications: only 106cm long, 9cm thick and 8kg!

• Many applications possible: Discotheques, DJs, hiring companies, ...

• Very smooth RGB color changes thanks to high freq. dimming electronics

• 0-100% dimming and ultra fast strobe function (no additional strobes needed!)

Excellent built-in programs for wonderful, ever changing, light shows!

• Different working modes:

• Standalone: automatic or beat synchronized color patterns (optional CA-8 controller possible)

• Master/slave mode: up to 42 sets can be used together for wonderful preprogrammed, music synchronized lightshows.
• DMX-controlled (4, 13 or 16 channel mode for maximum flexibility)

• Controlling up to 42 units is child's play using the optional LEDCON 02 remote!

• 4-digit menu driven display to select all possible functions

• Black anodized ALU enclosure with sliding mechanism: can be fixed in ALU-truss using standard clamps.
• Standard 35mm stand adapter included.
• 5m mains cable included.

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• LED DJ-BAR, including 4 passive LED panels
• 1pc DMX signal cable 10m
• 1pc Power cable 5m
• 1pc 35mm stand adapter

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

• To protect the environment, please try to recycle the packing material as much as possible.
• A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Always unplug the unit when it is not used for a longer time or before you start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don't connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Don't use the effect in the presence of persons suffering from epilepsy.

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.
• Always use a certified safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

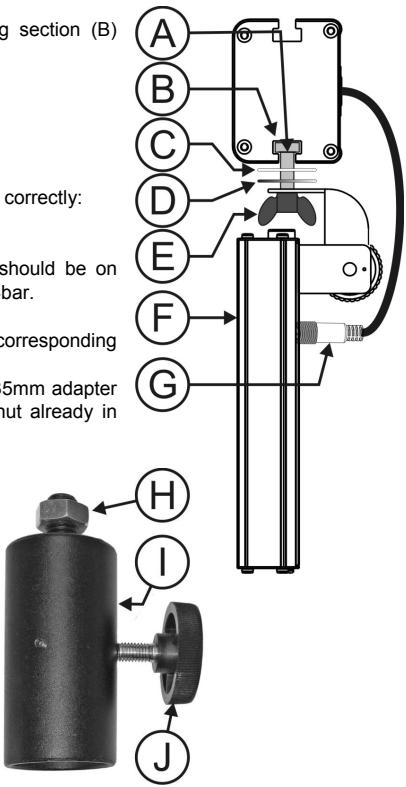

BUILDING TOGETHER AND INSTALLING ON A LIGHT STAND:

• Unpack all parts and put them on a table.

• Push the following parts in the correct order in the sliding section (B) located on the bottom of the 4BAR:

• Bolt (A) for LED panel1

• Bolt (A) for LED panel2
• Nut for 35mm Adapter (H)
• Bolt (A) for LED panel3
• Bolt (A) for LED panel4

Refer to the drawing to see how the 4 panels should be fixed correctly:

• First add the leather washer (C)
• Add the metal washer (D)
• Add the LED PANEL (F) Important: the connector should be on the same side as the LED power signal cable (G) of the 4bar.
• Add the black knob (E) and fasten well.

• Insert the LED power cable (G) in the back of the four corresponding panels.

• When the 4 panels are fixed to the 4bar, you can install the 35mm adapter (I) simply turn the thread of the adapter in the nut (H) (nut already in place) until it is well tightened.

• Open the knob of the adapter (J) and put the assembled LED DJ-BAR on top of a stable light stand.
• Tighten the knob of the adapter (J) and connect all cables (see later)
• You can still align the panels in different directions.
• Done!

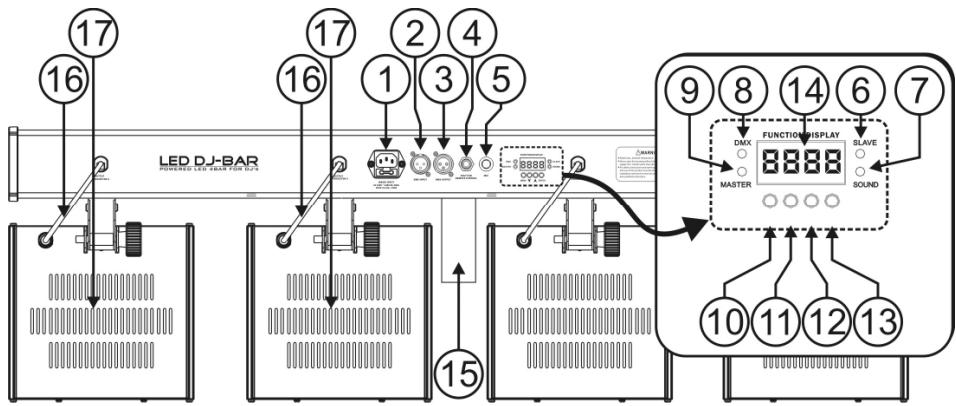

DESCRIPTION:

1. Mains input with IEC socket and integrated fuse holder, connect the supplied mains cable here.
2. DMX input
3. DMX output
4. 1 / 4 Jack input for the optional CA-8 hand controller
5. Internal microphone
6. Slave LED: is lit when the unit is in slave mode
7. Sound LED: blinks to the rhythm of the music while the unit is in audio mode
8. DMX LED: is lit when the unit receives a DMX-signal
9. Master LED: is lit when the unit is switched as master
10. MENU button: used to select the different menu items
11. DOWN button: to go back in the menu and to lower the values shown on the display.
12. UP button: to go up in the menu and to increase the values shown on the display.
13. ENTER button: used to confirm your choice.
14. DISPLAY shows the various menus and the selected functions.
15. 35mm STAND ADAPTER: used to put the LED 4Bar easily on top of a light stand
16. Special cables with LED power signal for the passive LED panels
17. Passive LED panels

HOW TO SETUP:

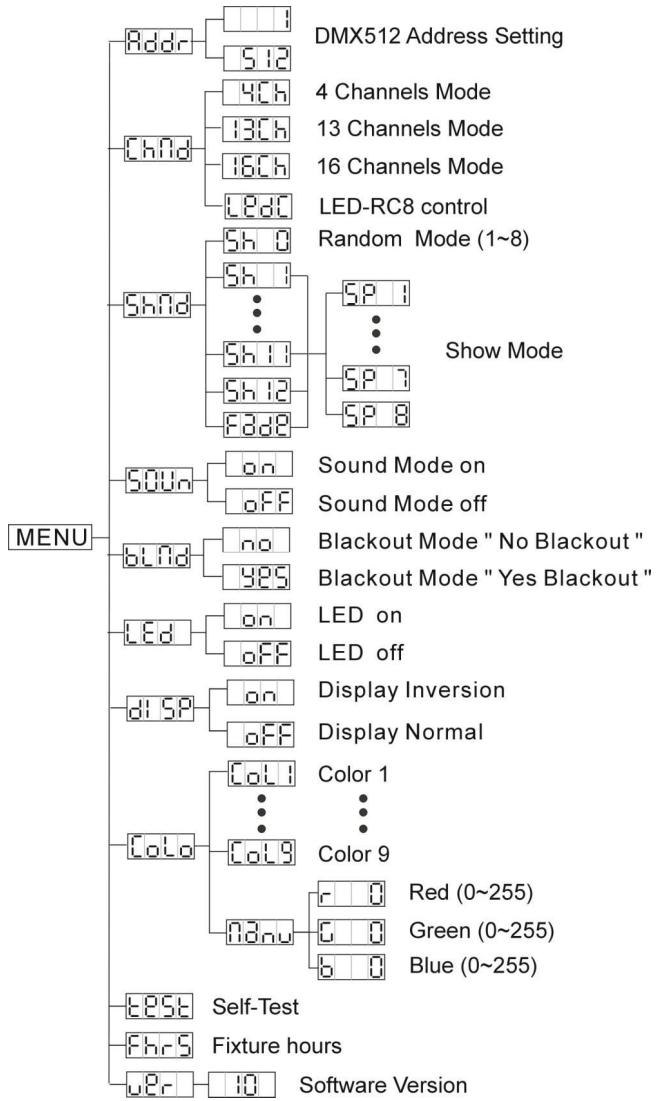

MAIN MENU:

• To select any of the menu options, press the MENU button up to when the required option is shown on the display.
• Select the function with the ENTER button. The display will blink.
• Use DOWN and UP button to choose the desired menu option.
• Once the required menu option is selected, press the ENTER button to select. To go back to the functions without any change press the MENU button for about 2 seconds or just wait 8 seconds. The menu structure is shown below.

Addr DMX512 Address Setting

Used to set the starting address in a DMX setup.

• Press the MENU button until Rddr is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to change the DMX512 address.
• Once the correct address shows on the display, press the ENTER button to save it.

(or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2seconds.

• Press the MENU button until [hfd] is shown on the display.

• Press the ENTER button, the display starts blinking.

• Use DOWN and UP button to select one of the available channel modes.

• Once the mode is selected, press the ENTER button to setup (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2seconds.

IMPORTANT: select mode when the LED DJ-BAR is used with the LEDCON-02 controller!

Used to choose to select one of the preprogrammed shows when used in standalone or master/slave mode.

• Press the MENU button until 5hnd is showing on the display.

• Press the ENTER button, the current show starts blinking in the display. Use DOWN and UP buttons to select one of the preprogrammed shows:

• Sh 0 → all shows played in random mode.

• Sh 1 to Sh 12 → 12 different built-in shows.

• fading from one color to another.

• Except for the random show (Show 0) you will also be asked to select a running speed for the static mode. With the UP/DOWN buttons you can select SP1 (slow) to SP8 (fast).

• Press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2seconds.

Used to choose the desired sound mode to trigger the shows.

• Press the MENU button until 50% is shown on the display.
• Press the ENTER button, the display starts blinking.

• Use DOWN and UP button to select one of the available channel modes:

• (sound mode ON) the shows are triggered by the internal microphone.

• FF (sound mode OFF) the shows are triggered by the speed selected with the shows.

• Once the mode is selected, press the ENTER button to setup (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2seconds.

Blackout Mode

Blackout mode: when no DMX-signal is detected, the unit goes in blackout.

No blackout mode: when no DMX-signal is detected, the unit automatically switches to master mode.

ALWAYS set to "No Blackout" when the unit is used in master (or master/slave) mode!!

• Press the MENU button until bl nd is shown on the display.
• Press the ENTER button, the current selection starts blinking in the display.
• Use DOWN and UP button to select YES (blackout) or NO (no blackout) mode.
• Once the mode is selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2seconds.

Display on: display is always on.

Display off: display is off when not used.

• Press the MENU button until the display shows
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select on (display always on) or OFF (display off when not used).
• Once the mode is selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2seconds.

Display Inversion

Display normal: display is readable when the unit is on the floor.

Display inversion: display is readable when the unit is mounted upside down.

• Press the MENU button until the display shows
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select on (display inversion) or OFF (normal display).
• Once the mode is selected, press the ENTER button to save it.

(or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again for about 2 seconds.

Color Mode

Used to put a certain color on all 4 LED panels.

• Press the MENU button until the display shows [Color]
• Press the ENTER button, the display starts blinking.
• Use the DOWN and UP buttons to select one of the 9 pre-programmed colors (Col1 to Col9) and press ENTER to confirm.

• You can also choose the manual color mode (display = 100) if you want to compose your own custom color. Once you press ENTER the following screens appear:

• Brightness of RED color can be changed from 0% to 100% (r..0 to r255)

• Brightness of GREEN color can be changed from 0% to 100% (G..0 to G255)

• Brightness of BLUE color can be changed from 0% to 100% (b..0 to B255)

• Press the MENU button for about 2 seconds to save the settings and return to normal working mode. (or automatically return to the main functions without any change after 8 seconds)

Self-Test

Run a built-in self-test program

• Press the MENU button until the display shows
• Press the ENTER button, the display starts blinking: the unit runs abuilt-in self-test program.

To go back to the functions without any change press the MENU button again for about 2seconds.

Fixture Hours

Used to show the number of working hours of the unit.

• Press the MENU button until FhrS is blinking on the display.
• Press the ENTER button to show the number of working hours in the display.
  To go back to the functions without any change press the MENU button again for about 2seconds.

Software version:

Used to show the software version of the unit.

• Press the MENU button until Upr blinks on the display.
• Press the ENTER button to show the software version of the unit.
  To go back to the functions without any change press the MENU button again for about 2 seconds.

ELECTRICAL INSTALLATION + ADDRESSING

Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

Electrical installation for 1 standalone unit:

• Just insert the mains cable. The unit starts working immediately in stand-alone mode.

Remark1: You can connect a CA-8 remote controller to the unit if you want to have more control. Refer to "how to operate the unit" to learn how to do this.

Remark2: if there's no output, please make sure to set the unit in master mode and set the blackout mode to "NO" (see previous chapter)

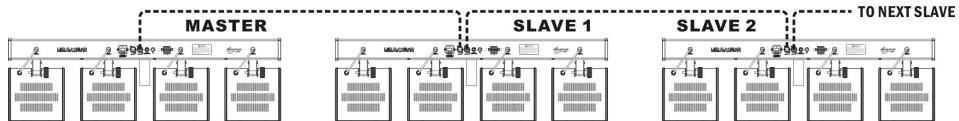

Electrical installation for two or more units in master/slave:

• Connect 2 to maximum 16 units together using good quality balanced microphone cables. The first unit in the chain will automatically act as master, the other units will act automatically as slaves.
• Make sure that all units are connected to the mains.
• Done!

Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control over the master/slave operation

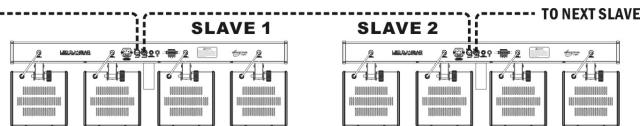

Electrical installation in Master/slave-mode with the LEDCON-02 remote:

LEDCON-02

• Up to 42 LED DJ-BAR units can be daisy chained and connected to the output of an optional LEDCON02 remote using a good quality balanced cable.
• All connected units are automatically switched as slaves.

IMPORTANT REMARK: to make sure everything works well you MUST set the LED DJ-BAR in "LEDc" channel mode and perform the "automatic address distribution" feature on the LEDCON-02 before using the set for the first time!!! (check the user manual of your LEDCON-02 to see how this is done)

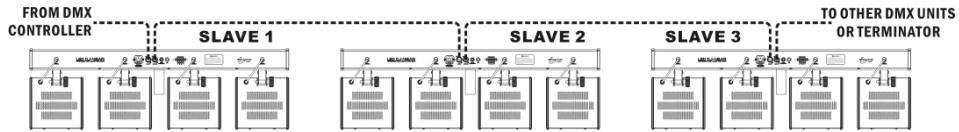

Electrical installation in DMX-mode:

• The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected units with a good quality balanced cable.
• Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more popular because these cables are compatible with balanced audio cables.

Pin layout XLR-3pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+)
Pin layout XLR-5pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+) ~ Pins4+5 not used.

• To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!
• Make sure that all units are connected to the mains.
• Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses.

HOW TO SET THE RIGHT STARTING ADDRESS:

Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which starting addresses you have to set because this completely depends on the controller you will use... So please refer to the user manual of your DMX-controller to find out which starting addresses you must set.

DIFFERENT DMX-CONFIGURATIONS OF TAURUS:

• 4 CHANNEL MODE:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4
Red	Green	Blue	Dimmer/Strobe
255 100%	255 100%	255 100%	248-255 ON Fast NN N Slow Sound 191-200 2-190 0% OFF
0%	0%	0%

13 CHANNEL MODE:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6
Red	Green	Blue	Red	Green	Blue
255 100% 0%	255 100% 0%	255 100% 0%	255 100% 0%	255 100% 0%	255 100% 0%
Channel 7	Channel 8	Channel 9	Channel 10	Channel 11	Channel 12	Channel 13
Red	Green	Blue	Red	Green	Blue	Dimmer/ Strobe
255 100% 0%	255 100% 0%	255 100% 0%	255 100% 0%	255 100% 0%	255 100% 0%	248-255 ON Fast NNN 201-247 NNN N N Slow 191-200 Soud 100% 0% OFF

16 CHANNEL MODE:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0%	255 100% 0%	255 100% 0%	2-255 0-1 OFF	255 100% 0%	255 100% 0%	255 100% 0%	2-255 0% OFF
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0%	255 100% 0%	255 100% 0%	2-255 0-1 OFF	255 100% 0%	255 100% 0%	255 100% 0/0%	2-255 0% OFF

HOW TO OPERATE THE UNIT

By master/slave built-in preprogram function
By CA-8 easy controller
By universal DMX controller
By LEDCON-02 controller

BY MASTER/SLAVE BUILT-IN PREPROGRAM FUNCTION:

Select this function when you want an instant show. By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music.

Remark1: All functions should be selected on the master unit.

Remark2: A CA-8 "easy controller" can eventually be used on the master unit.

Just connect this small controller to the 1/4 jack of the master unit, and you will be able to control the following

FUNCTIONS:

BUTTON	ACTIONS
STANDBY	To blackout all LED panels
FUNCTION	1. Synchronous strobe in white color 2. Synchronous strobe in rainbow colors 3. Sound strobe in white 4. Sound strobe in rainbow colors PS: In this mode random show (Sh 0) is active	Red→Orange→Yellow→Green→Cyan→Blue→Purple→Magenta→White→Manual color	Show1→Show2→...→Show12→Fade	1. Slow speed 2. Middle speed 3. Fast speed
MODE	Strobe select (LED OFF)	Color select (LED ON)	Show select (LED slow blinking)	Speed setting (LED fast blinking)

You can use any standard DMX-controller. First choose the desired DMX-channel mode and give the unit the correct DMX start address. (see earlier to learn how this should be done)

BY LEDCON-02 CONTROLLER:

Make sure the LED DJ-BAR channel mode is set to "LEDc" (see earlier) and perform the automatic address function on the LEDCON-02 before you start using the set! Further explanations and instructions can be found in the user manual of the LEDCON-02.

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input: AC 100V - 240V, 50Hz/60Hz

Power consumption: Max. 67 Watt

Fuse: T3,15A / 250V slow blow (20mm glass)

Sound Control: Internal microphone

DMX connections: 3pin XLR male / female

DMX channels used: 4/13/16 channels

Lamp: 848 LEDs (4x 212 LEDs)

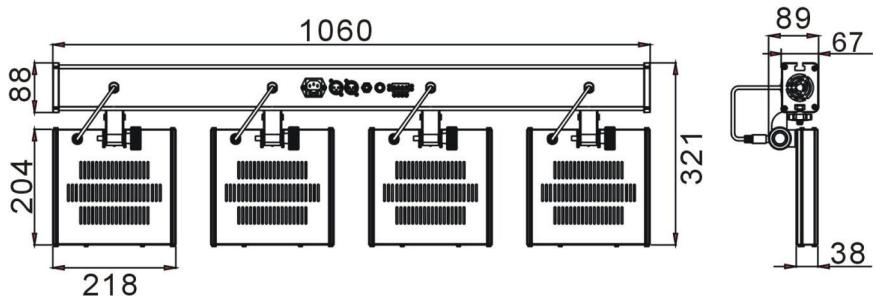

Size: see drawing

Weight: 8 kg

Every information is subject to change without prior notice
You can download the latest version of this user manual on our website: www.beglec.com

MODE D'EMPLOI

Channel Mode (Mode canal)

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6
Red	Green	Blue	Red	Green	Blue
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%
Channel 7	Channel 8	Channel 9	Channel 10	Channel 11	Channel 12	Channel 13
Red	Green	Blue	Red	Green	Blue	Dimmer/ Strobe
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	248-255 ON Fast NNN N N N Slow Sound 191-200 2-190 0% OFF

Modes à 16 canaux :

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0-1 OFF	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0% OFF
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0-1 OFF	255 100% 0 0%	255 100% 0 0%

COMMENT UTILISER L'APPAREIL

HET APPARAAT OPHANGEN

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6
Red	Green	Blue	Red	Green	Blue
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%

Channel 7	Channel 8	Channel 9	Channel 10	Channel 11	Channel 12	Channel 13
Red	Green	Blue	Red	Green	Blue	Dimmer/ Strobe
255 100%	255 100%	255 100%	255 100%	255 100%	255 100%	248-255 ON Fast NNN N N Slow 191-200 0% 0% 0-1 OFF

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0%	255 100% 0%	255 100% 0%	2-255 0-1 OFF	255 100% 0%	255 100% 0%	255 100% 0%	2-255 0% OFF
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0%	255 100% 0%	255 100% 0%	2-255 0-1 OFF	255 100% 0%	255 100% 0%	255 100% 0)%	2-255 0% OFF

BEDIENING VAN HET TOESTEL

U KUNT HET TOESTEL OP 4 MANIEREN GEBRUIKEN:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6
Red	Green	Blue	Red	Green	Blue
255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%
Channel 7	Channel 8	Channel 9	Channel 10	Channel 11	Channel 12	Channel 13
Red	Green	Blue	Red	Green	Blue	Dimmer/ Strobe
255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	248-255 ON Fast N/N N/N SLOW Sound 100% OFF

16 KANAL-MODUS:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0-1 OFF	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	100% 2-255 0-1 OFF
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0-1 OFF	255 100% 0 0%	255 100% 0 0%

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6
Red	Green	Blue	Red	Green	Blue
255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%
Channel 7	Channel 8	Channel 9	Channel 10	Channel 11	Channel 12	Channel 13
Red	Green	Blue	Red	Green	Blue	Dimmer/ Strobe
255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	255 100% 0 0% 0%	248-255 ON Fast N/N N N N Sow Slown 191-200 100% 0% OFF

• MODO DE 16 CANALES:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0%	255 100% 0%	255 100% 0%	2-255 0-1 OFF	255 100% 0%	255 100% 0%	255 100% 0%	2-255 0% OFF
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0%	255 100% 0%	255 100% 0%	2-255 0-1 OFF	255 100% 0%	255 100% 0%	255 100% 0/0%	2-255 0% OFF

MANEJO DE LA UNIDAD

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4
Red	Green	Blue	Dimmer/Strobe
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	248-255 ON Fast N N NN N Slow Sound 191-200 100% 0% OFF

• MODOS DE CANAL 13:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6
Red	Green	Blue	Red	Green	Blue
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%

Channel 7	Channel 8	Channel 9	Channel 10	Channel 11	Channel 12	Channel 13
Red	Green	Blue	Red	Green	Blue	Dimmer/ Strobe
255 100%	255 100%	255 100%	255 100%	255 100%	255 100%	248-255 ON Fast NNN N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N

• MODOS DE CANAL 16:

DMX 512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0-1 OFF	255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	100% 2-255 0-1 OFF
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Red	Green	Blue	Dimmer	Red	Green	Blue	Dimmer
255 100% 0 0%	255 100% 0 0%	255 100% 0 0%	2-255 0-1 OFF	255 100% 0 0%	255 100% 0 0%
