USER MANUAL FX 1700 JBSYSTEMS LIGHT

Copyright © 2008 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

C

Version: 2.1

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This device has been designed to produce decorative effect lighting and is used in light show systems.

• Very powerful all-round fogger.

• High pressure pump for strong fog output
• Equipped with a diecast 1600W heater
• Equipped with DMX 2 channels (interval + duration)

• Timer remote control included:

• Adjustable interval time: 9 to 275 seconds

• Adjustable duration time: 0,5 to 13 seconds

• Manual operation

• Optional RC-1 wireless remote controller available

• Extremely reliable

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• Operating instructions
  FX1700fogger
• Timer remote control

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ION: To reduce the risk of electric shock, do not remove the top cover. User-serviceable parts inside. Refer servicing to qualified service channel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only.

This symbol means: Read instructions.

This symbol determines: the minimum distance from objects. The minimum distance between fogger output and objects must be more than 1 meter. NEVER hold your hands close to the fogger output, the fog is very hot and can cause serious burnings !!!

• To protect the environment, please try to recycle the packing material as much as possible.

• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the unit in a well ventilated spot, away from any flammable materials and/or liquids.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• The units' surface temperature may reach up to 85^ . Don't touch the housing with bare hands during its operation.
• Make sure to always place the unit on a stable surface, never install the fogger above the audience, a little liquid can always drip from the fog output.
• Allow the device about 10 minutes to cool down before you start servicing.
• Always unplug the unit when it is not used for a longer time or before you start servicing.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This unit must be earthed in order comply with safety regulations.
• In order to prevent electric shock, do not open the cover.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

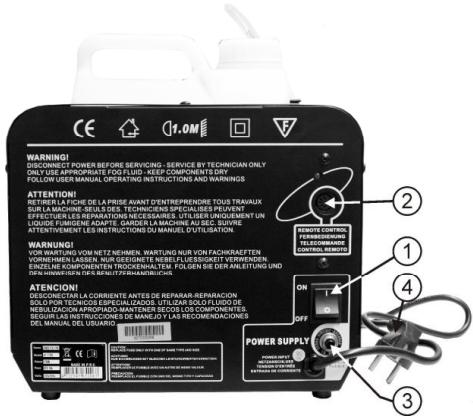

DESCRIPTION:

1. MAINS SWITCH: Used to turn the fogger on and off.
2. REMOTE CONTROL INPUT: Used to connect the supplied remote controller or the optional wireless remote controller.
3. INPUT FUSE: This is an automatic circuit breaker. When the fuse is blown, first locate and solve the problem that caused the fuse to blow. When the problem is solved, simply push the button to reset the circuit breaker.
4. MAINS CABLE: to be plugged in a mains wall socket with earth connection.

OPERATING INSTRUCTIONS

• Put the fogger on a flat and very stable surface. Make sure that nobody can put their hands just in front of the output. The fog is very hot and can cause serious burnings!!!
• Make sure the fog liquid tank is not empty. Always use good quality fog liquid to fill up the tank. Close the tank immediately to prevent dirt to enter the reservoir!

• Plug the supplied remote in the "remote control" input (2) on the back of the unit. Don't insert or remove the remote while the fogger is connected to the mains!

• Make sure to plug the fogger in a mains wall socket with earth connection

• Switch the fogger on and wait for about 8 minutes. (warm up time)

IMPORTANT: Please note that the fogger is ready when the green LED on top of the "manual fogging" button (n°3 on the remote) is on.

Used with the supplied timer/dmx remote controller:

1. REMOTE CABLE: connect the special 5pin connector (1) to the remote input on the back of the fogger.
2. DMX OUTPUT: 3-pin female connector, used to connect the fogger with the next unit in the DMX chain.
3. DMX INPUT: 3-pin male connector, used to connect the fogger directly to a DMX-controller or another unit in the DMX chain.
4. DMX DIP-SWITCHES: used to set the DMX start address.
5. INTERVAL KNOB: while the fogger is in timer mode, this knob is used to set the time it takes (interval) between 2 bursts of fog (range = 9s ~ 27s).
6. DURATION KNOB: while the fogger is in timer mode, this knob is used to set how long the fogger will produce fog (range = 0,5s ~ 10s)
7. MANUAL FOGGING BUTTON: for as long as the green LED is on, you can press this button at any time to produce fog. (regardless of the operation mode selected with the timer on/off button [8])

8. TIMER ON/OFF BUTTON: used to switch the timer function on/off:

9. LED is green: timer function is activated, use the interval + duration knobs.

10. LED is off: timer is switched off, the fogger can be used in DMX or manual mode.

11. ON/OFF BUTTON: used to switch the controller on/off:

12. LED is on: the controller can be used.

13. LED is off: the fog machine will continuously produce smoke. (until it needs to warm up again)

Some extra information:

• Manual operation: switch the timer off (button "8")
• Timer operation: switch the timer function on (button "8")
• DMX operation: switch the timer off (button "8"), see the next chapter to learn how to install and setup the fogger for DMX operation.

Hint: you can press the "manual fogging" button (7) at any time to produce some extra fog if needed.

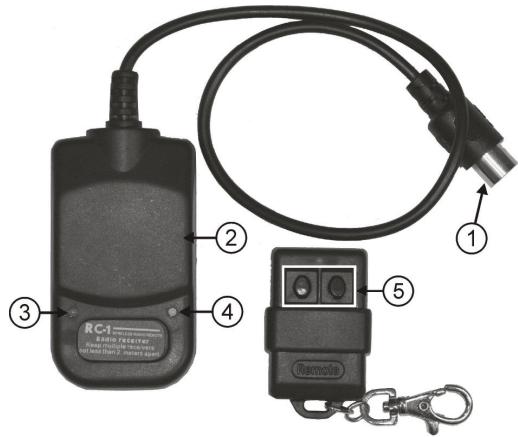

Used with the optional wireless RC-1 controller:

• Connect the special 5pin connector (1) to the remote input on the back of the fogger: the red LED (3) turns on.
  Fix the remote receiver (2) with its magnetic surface to the back of the fogger.
• When the fogger is ready for operation, the green LED (4) turns on.
• The fogger produces fog as long as you press one of the 2 buttons (5) on the wireless remote. (after some time the green LED on the receiver will turn off to indicate that the fogger is warming up again, during this time you can't produce any fog)

Remark: the maximum distance between the wireless remote and the fogger is about 25m .

DMX-OPERATION:

Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

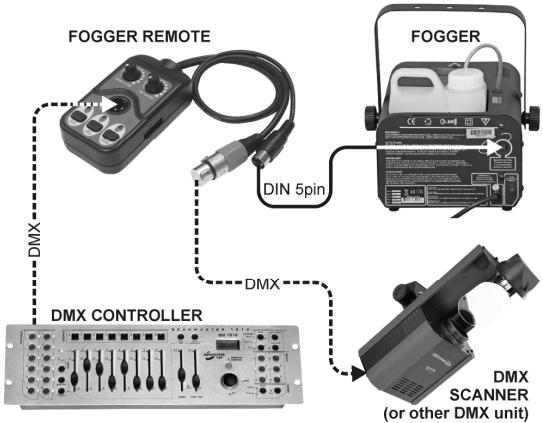

Electrical installation:

• The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected units with a good quality balanced cable.
• Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more popular because these cables are compatible with balanced audio cables.

Pin layout XLR-3pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+)

Pin layout XLR-5pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+) ~ Pins4+5 not used.

• To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!
• Make sure that all units are connected to the mains
  Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses.
  90~120 ohm resistor

How to set the DIP-switches to obtain the right starting address:

Each of the first 9 DIP-switches correspond to a certain DMX-value:

DIP	#1	#2	#3	#4	#5	#6	#7	#8	#9	#10
Value	1	2	4	8	16	32	64	128	256	Terminator for last unit

You can combine the values of these switches to become any starting address between 1 and 512:

Begin address = 01 switch 1=ON values: 1

Begin address = 04 switch 3=ON values:4
Begin address = 07 switch 1 + 2 + 3 = ON values: 1 + 2 + 4 = 7
Begin address = 10 switch 2 + 4 = ON values: 2 + 8 = 10

··

Begin address = 62

switch 2 + 3 + 4 + 5 + 6 = ON

values: 2 + 4 + 8 + 16 + 32 = 62

IMPORTANT NOTE: DIP-switch #10 is a built-in 100 ohm DMX terminator. You can set it to ON-position when the fogger is the LAST unit in the DMX-chain. Otherwise it should ALWAYS be set to OFF-position!

DMX CHART:

CHANNEL 1 = DURATION

DMX VALUE	FOGGING TIME
0-15	No fogging
16-31	Constant fogging
32	0.5 sec
35	0.7 sec
40	1.0 sec
45	1.5 sec
50	1.6 sec
55	1.8 sec
60	2.0 sec
65	2.3 sec
70	2.5 sec
75	2.8 sec
80	3.0 sec
85	3.3 sec
90	3.7 sec
95	4.0 sec
100	4.2 sec
105	4.4 sec
110	4.8 sec
115	5.0 sec
120	5.2 sec
125	5.5 sec
130	5.7 sec
135	6.0 sec
140	6.2 sec
145	6.5 sec
150	7.0 sec
155	7.2 sec
160	7.6 sec
165	7.8 sec
170	8.0 sec
175	8.4 sec
180	8.6 sec
185	8.8 sec
190	9.0 sec
195	9.5 sec
200	9.8 sec
205	10.0 sec
210	10.2 sec
215	10.5 sec
220	10.8 sec
225	11.0 sec
230	11.3 sec
235	11.5 sec
240	11.8 sec
245	12.0 sec
250	12.5 sec
255	12.7 sec

CHANNEL 2 = INTERVAL

DMX VALUE	INTERVAL TIME
0-15	9 sec
16-31	10 sec
32-47	20-23 sec
48-63	33-36 sec
64-79	46-49 sec
80-95	60-63 sec
96-111	75-78 sec
112-127	92-96 sec
128-143	110-114 sec
144-159	130-133 sec
160-175	150-154 sec
176-191	170-176 sec
192-207	193-200 sec
208-223	213-220 sec
224-239	233-248 sec
240-255	268-278 sec

MAINTENANCE

• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked:
• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.

Cleaning the fogger:

To prevent obstructions in the heater, pump and tubes, the fogger should be cleaned on a regular basis: every 100h of continuous operation is a good reference.

• Switch the fogger off
• Remove the nozzle (metal part where the fog leaves the foggger)
• Remove the fog liquid from the tank
• Fill the tank with about 1 liter of a solution containing 80% distilled water and 20% white vinegar.
• Switch the fogger on and wait for about 8minutes (warm up time)
• Put the fogger in continuous operation mode until the tank is empty
• Put the nozzle back in place
• Remove the eventual residues of the cleaning solution and refill the tank with fog liquid.

Remark: cleaning should be done outside; an awful smell is produced by the vinegar solution!

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input: AC 230V, 50Hz

Power consumption: 1600 Watt

DMX Channels: 2 (fog time + interval time)

Fuse: 10A "auto reset" thermal circuit breaker

Output: 21000 cubic ft/min

Warm up time: 8 min

Tank size: 5L

Size: 435 × 280 × 290 ~mm

Weight: 10 kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com
