USER MANUAL BT-575S JBSYSTEMS LIGHT

Copyright © 2008 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

C

Version: 1.1

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this BriteQ® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• Powerful intelligent moving head for use in discotheques and hiring companies
• 16 DMX channels (pan - tilt - pan/tilt speed - dimmer - shutter/strobe - color - gobo1 - gobo2 - gobo rotation - prism - prism rotation - focus - pan 16bit - tilt 16bit - reset + lamp on/off)
• Can be switched to 8 or 16 DMX channels (iSolution compatibility)
  Remote DMX addressing
• Smooth 540^ panning and 270^ tilt movements with automatic position correction
• 7 rotating, interchangeable gobos + open + 9 fixed, interchangeable gobos (D=26,8mm)
• 9 dichroic colors + white and variable speed rainbow effect
• 3-facet prism, rotating in both directions at variable speed
• Menu driven blue LED display can be switched on/off

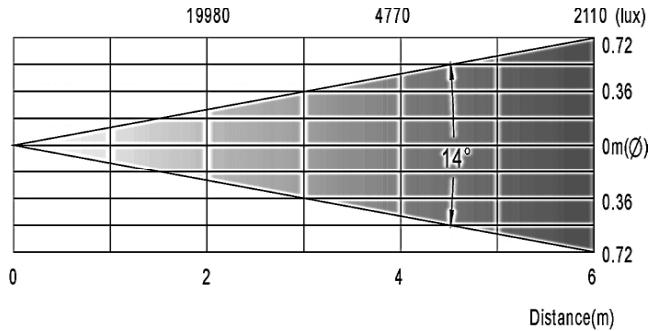

• 14^ beam angle with focus adjustment by DMX control.
• Blackout and fast strobe effect up to 10 flashes/second
• Smooth dimming 0-100%
• Can be used in Master/slave mode with built-in microphone triggered programs.
• Optional CA-8 controller available for different operating modes, including: blackout, different strobe programs, manual color/gobo selection, program selection and slow/fast mode.
  Fan cooling and electronic overheat protection

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• BT575S unit
• Operating instructions
• 2 Hanging brackets

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only.

This symbol means: Read instructions.

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meters.
- To protect the environment, please try to recycle the packing material as much as possible.
- A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes.
- To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
- To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
- This unit is for indoor use only.
- Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
- Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
- Don't cover any ventilation openings as this may result in overheating.
- Prevent use in dusty environments and clean the unit regularly.
- Keep the unit away from children.
- Inexperienced persons should not operate this device.
Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
- The units' surface temperature may reach up to 85^ . Don't touch the housing with bare hands during its operation.
- Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
- Allow the device about 10 minutes to cool down before replacing the bulb or start servicing.
- Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
- The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
- Check that the available voltage is not higher than the one stated on the rear panel of the unit.
- The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged.
- Never let the power-cord come into contact with other cables!
- This fixture must be earthed to in order comply with safety regulations.
- Don't connect the unit to any dimmer pack.
- Always use an appropriate and certified safety cable when installing the unit.
- In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no user serviceable parts inside.
- Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
- In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
- The housing and the lenses must be replaced if they are visibly damaged.
- Please use the original packing when the device is to be transported.
- Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

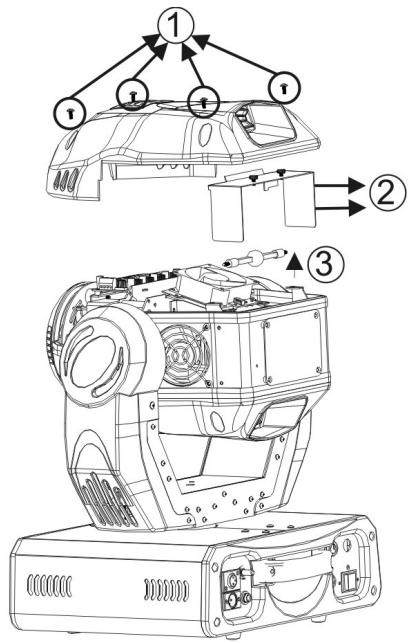

LAMP (RE)PLACEMENT

In case of replacement of the lamp or maintenance, do not open the fixture within 10 minutes until the unit cools down after switching off. Always unplug

the unit before servicing! Always use the same type of spare parts (bulbs, fuses, etc.) When replacing parts, please only genuine spare parts.

• Switch off the main supply and unplug the unit.
• Wait for about 15 minutes until the unit has been cooled down.
• Open the plastic top cover (4screws) ( n^1 on the photo below )
• Remove the metal plate that covers the lamp (2screws) See the drawing (n^2) for the exact location.
• Remove the old lamp (never handle the lamp when it is hot) ( n^3 on the drawing)

Attention! Check the label on the backside of the device or see the technical specifications in this manual to know which lamp should be used. Never install lamps with a higher wattage!

• Don't touch the bulb with bare hands! This drastically shortens the lifespan of the lamp. If you touched the lamp, clean it with a cloth and a little denatured alcohol. Wipe the lamp off before installing.
• Put the new lamp back inside the unit. Be sure that the wires don't touch the lamp.
• Put the metal cover plate back in place and fix it with the 2 screws.
• Put the plastic top cover back in place and fix the 4 screws.
• Done!

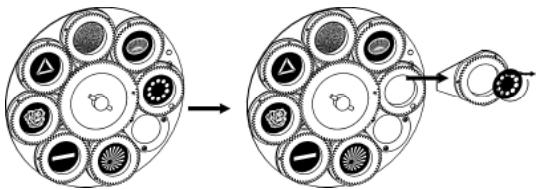

EXCHANGING/ROTATING GOBOS

ATTENTION: Install the gobos only when the unit is switched off!

Never unscrew the screws of the rotating gobo as the ball bearing will be opened. Repairing this is very difficult!

• Switch off the main supply and unplug the unit.
• Open the plastic top cover (4screws)
• Locate the gobo wheel and remove the fixation ring of the gobo you want to change with an appropriate tool.
• Remove the goto and insert the new goto.
• Press the fixation-ring together and insert it in the front of the gobo.
• Done!

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.
• Always use a certified safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

HOW TO SET UP THE UNIT

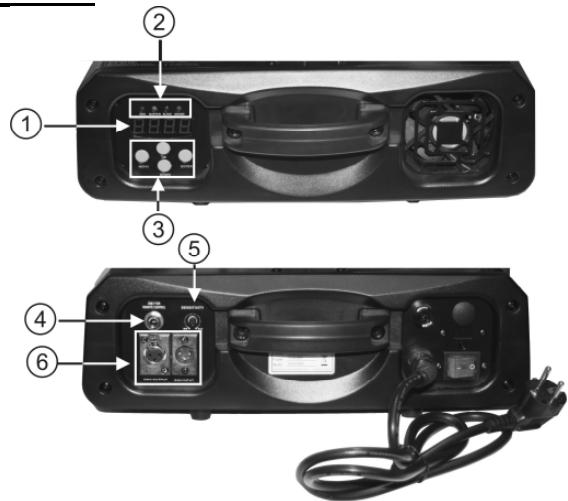

• CONTROL PANEL:

1. DISPLAY shows the various menus and the selected functions.

2.LEDS

DMX	On	DMX input present
MASTER	On	Master mode
SLAVE	On	Slave mode
SOUND	Flashing	Sound activation

1. BUTTONS

MENU	To select the programming functions
DOWN	To go backward in the selected functions
UP	To go forward in the selected functions
ENTER	To confirm the selected functions

1. REMOTE CONTROL INPUT: Used to connect a simple CA-8 hand controller while the unit is used in standalone or master/slave mode.
2. SENSITIVITY: Used to adjust the sensitivity of the micro when the unit is used in standalone or master/slave mode.

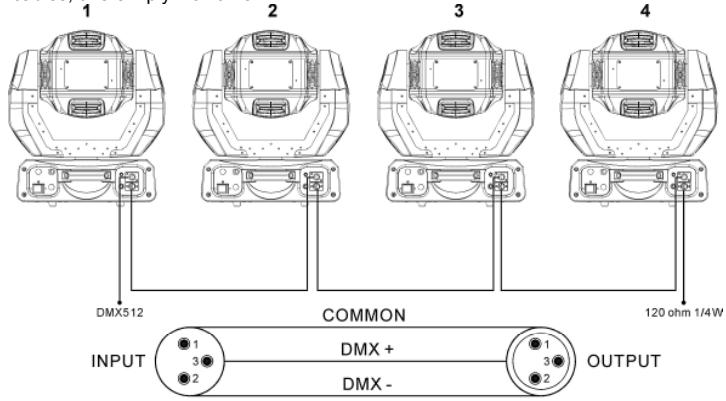

3. DMX INPUT/OUTPUT: used for DMX512 linking. Use good quality 3pin XLR M/F balanced cable to link the units together.

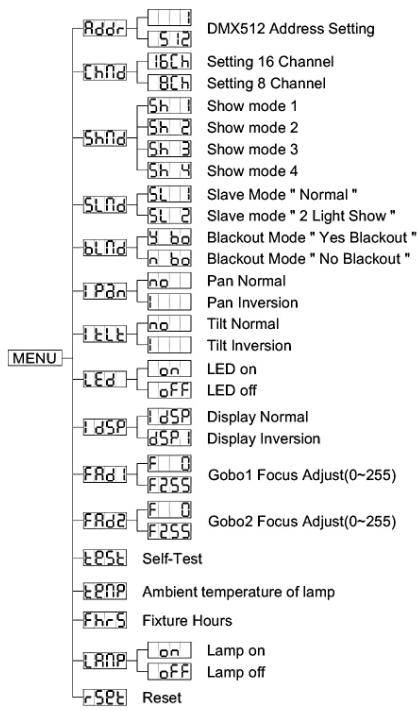

MAIN MENU:

• To select any of the pre-set functions, press the MENU button up to when the required one is shown on the display.
• Select the function with the ENTER button. The display will blink.
• Use DOWN and UP button to change the mode.
• Once the required mode has been selected, press the ENTER button to select. After 8 seconds the display will automatically return to the main functions without any change. To go back to the functions without any change press the MENU button. The main functions are shown on the right.

DMX512 Address Setting

Used to set the starting address in a DMX setup.

• Press the MENU button until Rddr is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to change the DMX512 address.
• Once the correct address shows on the display, press the ENTER button to save it.

(or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

Channel Mode

• Press the MENU button until chhd is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use DOWN and UP button to select the 16ch (16 Channel) or 8ch (8 Channel) mode.
• Once the mode is selected, press the ENTER button to setup (or automatically return to the main functions without any change after 8 seconds.)

To go back to the functions without any change press the MENU button again.

Show Mode

Used to choose the Show mode when used in standalone or master/slave mode.

• Press the MENU button until Shnd is showing on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select 5h1 (show 1), 5h2 (show 2), 5h3 (show 3) or 5h4 (show 4) mode.
• Once the right mode shows on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

Show 1 mode- Fixture is placed on the floor. Tilt movement angle 210^ .

Show 2 mode-Fixture is fixed under ceiling. Tilt movement angle 90^ .

Show 3 mode - Fixture is placed on a podium, in front of the audience

The spot is always projecting to the audience's direction; i.e in front of the stage. Pan movement angle (left to right to left): 160^ . Tilt movement angle: 90^ ( 60^ above horizon; 30^ below horizon.)

Show 4 mode - Fixture is fixed under ceiling.

The spot is mainly projecting in front of the stage. Pan movement angle ( left to right to left ) :160°. Tilt movement angle: 90° ( vertically, front 75°; back 15°)

Slave Mode

Used to make the slave unit work in opposite to the master or to work in complete sync.

• Press the MENU button until Sl nd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select (normal) or (2 light show) mode.
• Once the mode has been selected, press the ENTER button save it. (or automatically return to the main functions without any change after 8 seconds)
  To go back to the functions without any change press the MENU button again.

Blackout Mode

Blackout mode: when no DMX-signal is detected, the unit goes in blackout and waits for the DMX-signal.

No blackout mode: when no DMX-signal is detected, the unit automatically switches to standalone mode.

• Press the MENU button until b1fd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select (yes blackout) or (no blackout) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
  To go back to the functions without any change press the MENU button again.

Color Mode

Normal: only full colors can be selected.

Split colors: you can select full colors and 2 colors that are next to each other on the color wheel.

• Press the MENU button until Lnd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select no (normal) or SC (split color) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

Pan Inversion

Normal: Panning movement is not inversed.

Pan inversion: Panning movement is inversed

• Press the MENU button until Pa is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select no (normal) or pan inversion) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

Tilt Inversion

Normal: Tilt movement is not inversed.

Tilt inversion: tilt movement is inversed

• Press the MENU button until is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select no (normal) or (tilt inversion) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

LED Led Display

Display on: display is always on.

Display off: display is off when not used.

• Press the MENU button until the display shows Ed
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select on (display always on) or OFF (display off when not used).
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

IDSP Display Inversion

Display normal: display is readable when the unit is on the floor.

Display inversion: display is readable when the unit is mounted upside down.

• Press the MENU button until ldsp is blinking on the display. (normal display)
• Use the ENTER button to change to the mode dSP (display inversion), the option will be automatically stored after 8 seconds. Or press the ENTER button again return to the mode dSP (normal display).
• To go back to the functions press the MENU button.

FAD Gobo1 focus Adjust

Used to help you adjusting the focus of the gobos situated on gobowheel 1

• Press the MENU button up to until the FRd! sign is blinking on the display.
• Press the ENTER button and the unit will focus on "tilt 135" position
• Press the ENTER button and the unit will focus on "tilt 45^ " position
• Press the ENTER button and the unit will focus on "pan 0^ " position
• Press the ENTER button and the unit will focus on "pan 90^ " position
• Press the ENTER button and the unit will focus on "pan 180^ " position
• Press the ENTER button and the unit will focus on "pan 270" position
• In the Previous 6 steps you are able to adjust the focus with the UP/DOWN buttons on the unit
• To go back to the functions press the MENU button again.

FRd2 Gobo2 focus Adjust

Used to help you adjusting the focus of the gobos situated on gobowheel 2

• Press the MENU button up until the Fad2 sign is blinking on the display.
• Press the ENTER button and the unit will focus on "tilt 135" position
• Press the ENTER button and the unit will focus on "tilt 45^ " position
• Press the ENTER button and the unit will focus on "pan 0^ " position
• Press the ENTER button and the unit will focus on "pan 90^ " position
• Press the ENTER button and the unit will focus on "pan 180" position
• Press the ENTER button and the unit will focus on "pan 270^ " position
• In the Previous 6 steps you are able to adjust the focus with the UP/DOWN buttons on the unit
• To go back to the functions press the MENU button again.

ESE Self-Test

Used to activate the internal "self-test" program which shows all possibilities of the unit.

• Press the MENU button until ESE is blinking on the display.
• Press the ENTER button to start the internal self-test program
• To go back to the functions press the MENU button.

E N P Ambient temperature of lamp

Used to show the temperature inside the lamp compartment

• Press the MENU button until the LBNP sign is blinking on the display.
• Press the ENTER button and the ambient temperature of lamp will show on the display.
• To go back to the functions press the MENU button again.

Fhr5 Fixture Hours

Used to show the n^ of working hours of the unit.

• Press the MENU button until FhrS is blinking on the display.
• Press the ENTER button to show the n^ of working hours in the display.
• To go back to the functions press the MENU button.

LAMP Lamp Display

Used to switch the lamp ON/OFF so you can cool the lamp with the internal fans before transportation

• Press the MENU button until Lrnp is blinking on the display.
• Press ENTER button so the display starts blinking.
• Use DOWN and UP button to select the on (Lamp on) or off (Lamp off) mode.
• Once the mode is selected, press the ENTER button to setup (or automatically return to the main functions without any change after 8 seconds)
• To go back to the functions without any change press the MENU button again.

rSET Reset

Used to force a reset of the unit.

• Press the MENU button until _SPE is blinking on the display.
• Press the ENTER to reset all channels to their standard position.
• To go back to the functions press the MENU button.

Please also check the chapter about the DMX-channel configuration of the unit to find out how you can force a reset by DMX.

Home Position Adjust

• Press MENU button for at least 5 seconds to go into offset mode
  Now you can adjust the home position ( this is the zero position )
• When you want to adjust gobo and color home position, you should run FRed mode first

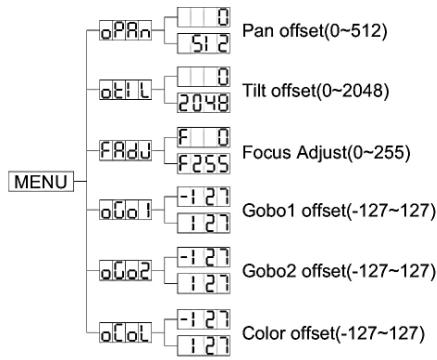

  The functions are shown below:

Pan offset

• Press the MENU button for at least 5 seconds to activate offset mode
• Use DOWN and UP button until P R n is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use DOWN and UP button to adjust the pan home position.
• Once the position has is selected, press the ENTER button to setup OR Automatically return to the offset functions without any changes by pressing the MENU button
• To go back to the main functions without any change wait 8 seconds.

Tilt offset

• Press the MENU button for at least 5 seconds to activate offset mode
• Use DOWN and UP button until obt is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use DOWN and UP button to adjust the tilt home position.
• Once the position has is selected, press the ENTER button to setup OR Automatically return to the offset functions without any changes by pressing the MENU button
• To go back to the main functions without any change wait 8 seconds.

Focus Adjust

• Press the MENU button for at least 5 seconds to activate offset mode
• Use DOWN and UP button until FAdU is shown on the display.
• Press the ENTER button and the unit will focus on "tilt 135^ " position
• Press the ENTER button and the unit will focus on "tilt 45^ " position
• Press the ENTER button and the unit will focus on "pan 0^ " position
• Press the ENTER button and the unit will focus on "pan 90^ " position
• Press the ENTER button and the unit will focus on "pan 180^ " position
• Press the ENTER button and the unit will focus on "pan 270^ " position
• In the Previous 6 steps you are able to adjust the focus with the UP/DOWN buttons on the unit. To go back to the main functions without any change wait 8 seconds.

Gobo1 offset

• Press the MENU button for at least 5 seconds to activate offset mode
• Use DOWN and UP button until 0.01 is shown on the display.
• Press the ENTER button and the display starts blinking.
• Use DOWN and UP button to adjust the gobo home position.
• Once the gobo1 is selected, press the ENTER button to setup OR automatically return to the offset functions without any changes by pressing the MENU button
• To go back to the main functions without any change wait 8 seconds.

Gobo2 offset

• Press the MENU button for at least 5 seconds to activate offset mode
• Use DOWN and UP button until go2 is shown on the display.
• Press the ENTER button and the display starts blinking
• Use DOWN and UP button to adjust the gobo home position.
• Once the goto2 is selected, press the ENTER button to setup OR automatically return to the offset functions without any changes by pressing the MENU button
• To go back to the main functions without any change wait 8 seconds.

Color offset

• Press the MENU button for at least 5 seconds to activate offset mode
• Use DOWN and UP button until is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use DOWN and UP button to adjust the color home position.
• Once the color is selected, press the ENTER button to setup OR automatically return to the offset functions without any changes by pressing the MENU button
• To go back to the main functions without any change wait 8 seconds.

HOW TO CONNECT THE UNIT BY DMX

The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected light effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!

Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode.

HOW TO SET THE RIGHT STARTING ADDRESS:

Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which starting addresses you have to set because this completely depends on the controller you will use... So please refer to the user manual of your DMX-controller to find out which starting addresses you must set.

DMX-CONFIGURATION OF BT575S:

16 channel mode

16 Channels DMX-512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Pan	Tilt	Pan/Tilt speed select	Dimmer	Shutter/Shaking	Color	No function	Gobo1
540°	270°	255° Slow	255° 100%	248-255 Open	255 Fast	255 Fast	255 Fast
				240-247	192 Slow	192 Slow	192 Slow
				239 Fast shaking (gobo2)	191 Slow	191 Slow	191 Slow
				186 Slow shaking (gobo2)	186 Slow	186 Slow	186 Slow
				185 Fast shaking (gobo1)	128 Fast	128 Fast	128 Fast
				132 Slow shaking (gobo1)	115-127 Pink	115-127 Pink	115-127 Pink
					102-114 Light green	102-114 Light green	102-114 Light green
					089-101 UV purple	089-101 UV purple	089-101 UV purple
				131 Fast shutter	077-088 Blue	077-088 Blue	077-088 Blue
				N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N
270°	135°	0 Fast	0%	131 Slow shutter	077-088 Blue	077-088 Blue	077-088 Blue
				16 Slow shutter	064-076 Red	064-076 Red	064-076 Red
				16 Slow shutter	051-063 Yellow	051-063 Yellow	051-063 Yellow
				008-015 Open	039-050 Light blue	039-050 Light blue	039-050 Light blue
				000-007 Blackout	026-038 Magenta	026-038 Magenta	026-038 Magenta
				000-007 Blackout	013-025 Green	013-025 Green	013-025 Green
				000-007 Blackout	000-012 White	000-012 White	000-012 White
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Gobo2	Gobo2 Rotation	Prism	Prism Rotation	Focus	Pan 16 bit	Tilt 16 bit	Reset Lamp On/Off
255 Fast	246-255 Stopped	171-255	246-255 Stopped	255	255	255	Reset
192 Slow	245 Fast	Prism effect 2	245 Fast				Reset
191 Slow							Reset
128 Fast							Reset
112-127	135 Slow		135 Slow				Reset
096-111	121-134 Stopped	086-170	121-134 Stopped	121-134 Stopped	120 Slow	120 Slow	120 Slow
080-095	120 Slow	Prism effect 1	120 Slow	0	0	0	Normal
064-079							Normal
048-063							Normal
032-047							Normal
016-031	010 Fast		010 Fast				Normal
000-015	000-009 Stopped	000-085 Open	000-009 Stopped	000-009 Stopped	000-009 Stopped	000-009 Stopped	000-009 Stopped

1. For DMX reset, put DMX value of CH-8 & CH-16 to 255, the unit will reset after about five seconds.
   For lamp on, put DMX value of CH-8 to 247 & CH-16 to 255.
   For lamp off, put DMX value of CH-8 to 239 & CH-16 to 255.
2. For color sound activated, put DMX value of CH-6 & CH-7 to 255.
   For gobo sound activated, put DMX value of CH-8 & CH-9 to 255.

8 channel mode

8 Channels DMX-512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Pan	Tilt	Shutter/Shaking	Gobo	Color	Gobo rotation	Prism/Prism rotation/Dimmer	Focus
540°	270°	240-255 Open	248-255	248-255	248-255 Stopped	255	100%	255
		240-247	247Fast	247Fast
		239 Fast shaking(gobo2)	218Slow	218Slow
			217Slow	217Slow
			Gobo2	Gobo2
			189Fast	189Slow
			187Fast	187Slow
		186 Slow shaking(gobo2)	158Slow	158Slow
			157Slow	157Slow
			Gobo1	Gobo1
			128Fast	128Fast
			124-127 G15+G9	124-127 Pink
			120-123 G15+G7	120-123 Light green
		185 Fast shaking(gobo1)	116-119 G15+G5	116-119 UV purple
			112-115 G15+G3	112-115 Dark
			108-111 G15+G1	108-111 Dark
			104-107 G13+G9	104-107 Dark
		132 Slow shaking(gobo1)	100-103 G13+G7	100-103 UV purple
			098-099 G13+G5	098-101 UV purple
			092-095 G13+G3	092-095 Dark
			089-091 G13+G1	089-101 UV purple
		131 Fast shutter	084-087 G10+G9	084-087 Dark
			080-083 G10+G7	080-083 Dark
			076-079 G10+G5	076-079 Dark
			072-075 G10+G3	072-075 Dark
			068-071 G10+G1	068-071 Dark
			064-067 G16	064-067 Red
			060-063 G15	060-063 Dark
			056-059 G14	056-059 Dark
			052-055 G13	052-055 Dark
			048-051 G12	048-051 Dark
			044-047 G11	044-047 Dark
			040-043 G10	040-043 Dark
			036-039 G9	036-039 Dark
			032-035 G8	032-035 Dark
			028-031 G7	028-031 Dark
			024-027 G6	024-027 Dark
			020-023 G5	020-023 Dark
			016-019 G4	016-019 Dark
			012-015 G3	012-015 Dark
			008-011 G2	008-011 Dark
			004-007 G1	004-007 Dark
			000-003 Open	000-003 Open

HOW TO OPERATE THE UNIT

Every time you turn the unit on, it will show 1575 on the display and move all the motors to their 'home' position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in programs.

YOU CAN OPERATE THE UNIT IN FOUR WAYS:

By master/slave built-in preprogram function
By CA-8 easy controller
By universal DMX controller ( 8 & 16 channel DMX mode )
。 By iLead controller ( The BT575S must be switched to 8 channel DMX mode )

BY MASTER/SLAVE BUILT-IN PREPROGRAM FUNCTION:

• Select this function when you want an instant show. By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music.

Important! This function only works when the blackout mode in the menu of the master is set to OFF, otherwise nothing will happen! Read more about this option in the "MainMenu" paragraph.

• MASTER has 4 built-in shows: You can select Sh (show 1), Sh (show 2), Sh (show 3) or Sh (show 4) directly in the menu of the master.

• SLAVES have 2 working options: The other units are set to slave mode (slaveLED is constantly on). In order to create a great light show you can introduce contrast movements (pan/tilt of slave is inversed) In the menu of the slave units you can go to option SLNd and select:

Normal slave: slave works in sync with the master.
2 light show: slave works in opposite with the master.

BY EASY CONTROLLER:

When used in Master/slave mode we strongly advice you to use the CA-8 "Easy controller" Just connect this small controller to the 1/4 jack of the master unit, and you will be able to control the following FUNCTIONS:

Stand by	Blackout the unit
Function	Strobe 1.Gobo/Color sync. strobe 2.Sync. strobe 3.Two-light strobe	X/Y moving show mode selection (Show 1 ~ Show 4)	Color/Gobo selection 1. Hold on for gobo change. 2. Press shortly for color change.	X/Y moving setting 1.Pan position 2.Tilt position 3.Dimmer First set Master unit, then set Slave units' position.
Mode	Sound 1 (LED off)	Sound 2 (LED normal blinking)	Slow/Sound 3 (LED on)	Position/ Latch (LED fast blinking)

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input:	AC 230V, 50Hz
Fuse:	10 A/250V
Sound Control:	Internal microphone
Pan/Tilt:	540° / 270° with automatic correction
Beam angle:	14°
DMX connections:	3pin XLR male / female
Lamp:	HMI 575W or HMI 575/2
Size:	427 x 478 x 396mm
Weight:	27 kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.briteq-lighting.com

MODE D'EMPLOI

Channel Mode (Mode canal)

Ambient temperature of lamp

Home Position Adjust

Ambient temperature of lamp

Some Position Adjust:

Lamp: HMI 575W of HMI 575/2

Afmetingen: 427 × 478 × 396 ~mm

Gewicht: 27 kg

FRd Gobo1 focus Adjust

Tcnp Ambient temperature of lamp

Home Position Adjust
