USER MANUAL BT-700S JBSYSTEMS LIGHT

Copyright © 2007 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

C

Version: 1.0

Operation Manual EN

Mode d'emploi FR

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this BriteQ® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• Powerful moving head, based on HTI-700 discharge lamp!

• Extremely high optical output and precision for razor sharp gobos

• Extremely silent ventilation system, perfect for TV-studio and stages

• Modular design for easy servicing

• 2x16 character LCD display for menu driven setup.

16 or 22 DMX control channels:

16 DMX channels (pan, tilt, pan/tilt speed, dimmer, shutter/shaking, color1, color2, gobo1, gobo1 rotation, gobo2, prism/prism macros, prism rotation, focus, iris, special functions)
- 22 DMX channels (pan, tilt, pan/tilt speed, dimmer, shutter/shaking, color1, color2, gob01, gob01 rotation, gob02, prism/prism macros, prism rotation, focus, iris, special functions, pan 16bit, tilt 16bit, movement macros, movement size, iris macros, dimmer macros)

Pan 540^ in 2,8sec and tilt 270^ in 1,6sec (both in 8 or 16 bit)

Automatic pan/tilt sensor correction with home position adjustment

Pan/tilt lock function during transport

• 2 gobo wheels with sensor index system and gobo mixing:

Gobo wheel1: 5 exchangeable, rotating, indexed gobos plus white
Gobo wheel2: 5 exchangeable fixed gobos

2 color wheels with sensor index system and color mixing:

Color wheel1: 6 colors + white, with bi-directional rainbow effect
Color wheel2: 6 colors + white, with bi-directional rainbow effect

• Prism with bi-directional rotation
• 0-100% mechanical linear dimmer with macro functions
• 0-100% motorized linear iris with macro functions
  High speed strobe: 1 ~ 12 flash/second

.

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

BT700S unit
- Operating instructions
2 Omega clamps

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 2 meters

The device is suitable for mounting on standard flammable surfaces. Standard flammable surfaces include building materials such as wood and wood-based materials more than 2mm thick.

• To protect the environment, please try to recycle the packing material as much as possible.
• A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• The units' surface temperature may reach up to 85^ . Don't touch the housing with bare hands during its operation.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Allow the device about 10 minutes to cool down before replacing the bulb or start servicing.
• Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don't connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. Apart from the lamp and gobos there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit

Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

LAMP (RE)PLACEMENT

In case of replacement of the lamp or maintenance, do not open the fixture within 10 minutes until the unit cools down after switching off. Always unplug the unit before servicing! Always use the same type of spare parts (bulbs, fuses, etc.) When replacing parts, please only genuine spare parts.

• Switch off the main supply and unplug the unit.
• Wait for about 15 minutes until the unit has been cooled down.
• Open the plastic top cover (5screws) (n^1 on the photo)

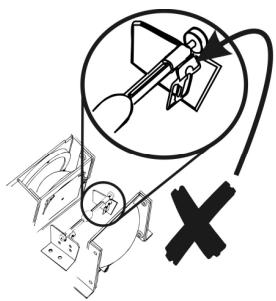

• Remove the screws and open the metal lamp cover (2screws) See the drawing (n^2) for the exact location.
• Remove the old lamp (never handle the lamp when it is hot)

Attention! Check the label on the backside of the device or see the technical specifications in this manual to know which lamp should be used. Never install lamps with a higher wattage!
- Don't touch the bulb with bare hands! This drastically shortens the lifespan of the lamp. If you touched the lamp, clean it with a cloth and a little denatured alcohol. Wipe the lamp off before installing.
- Put the new lamp back inside the unit. Be sure that the 2 metal spring clips are on the front (lens) side of the lamp (see drawing).

• Important: the bulge in the middle of the lamp has a small nipple (n° 3 on the photo). It's very important that this nipple points down when you install the lamp!!!
• Put the metal cover plate back in place and fix it with the 2 screws.
• Put the plastic top cover back in place and fix the 5 screws.
• Done!

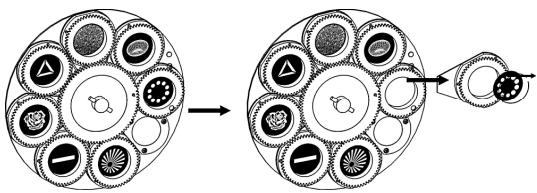

EXCHANGING/ROTATING GOBOS

ATTENTION: Install the gobos only when the unit is switched off!

Never unscrew the screws of the rotating gobo as the ball bearing will be opened. Repairing this is very difficult!

• Switch off the main supply and unplug the unit.
• Open the plastic top cover (5screws)
• Locate the gobo wheel and remove the fixation ring of the gobo you want to change with an appropriate tool.
• Remove the gobo and insert the new gobo.
• Press the fixation-ring together and insert it in the front of the gobo.
• Done!

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.
• Always use a certified safety cable that can hold 12 times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

HOW TO SET UP THE UNIT

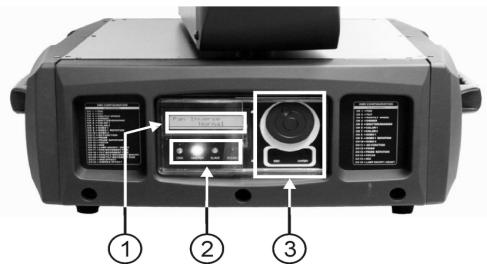

CONTROL PANEL:

1. DISPLAY shows the various menus and the selected functions.
   1.LEDS

DMX	On	DMX input present
MASTER	On	Master mode
SLAVE	On	Slave mode
SOUND	Flashing	Sound activation

2.BUTTONS

ESC	To go back to the previous functions
ENTER	To confirm the selected functions
JOG WHEEL	To select the functions

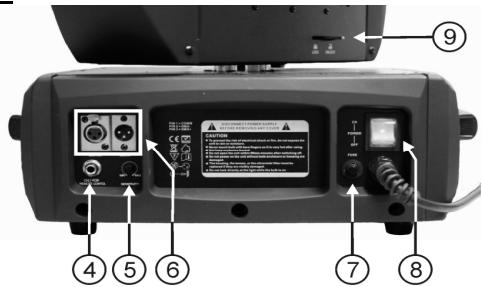

1. REMOTE CONTROL INPUT: Used to connect a simple CA-8 hand controller while the unit is used in standalone or master/slave mode.
2. SENSITIVITY: Used to adjust the sensitivity of the micro when the unit is used in standalone or master/slave mode.

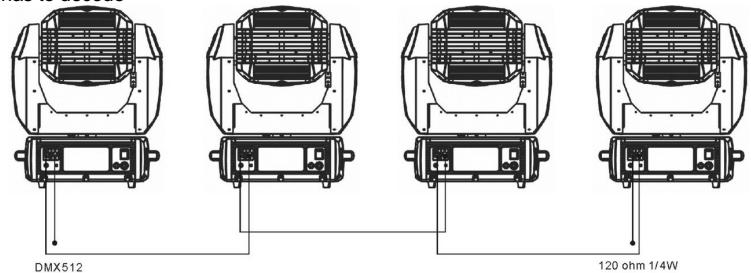

3. DMX INPUT/OUTPUT: used for DMX512 linking. Use good quality 3pin XLR M/F balanced cable to link the units together.
4. FUSE RESET Button
5. MAIN POWER SWITCH
6. PAN LOCK: Can be used to lock the pan movement of the head (ex. During maintenance)

MAIN MENU:

• To select any of the pre-set functions, press the ESCAPE button (if you are not yet in the main menu), then turn the Jog Wheel to when the required Menu is shown on the display.
• Select the function with the ENTER button. The display will blink.
• Use the Jog Wheel to change the mode.
• Once the required mode has been selected, press the ENTER button to select. After 30 seconds the display will automatically return to the main functions without any change. To go back to the functions without any change press the ESC button. The main functions are shown on the right.

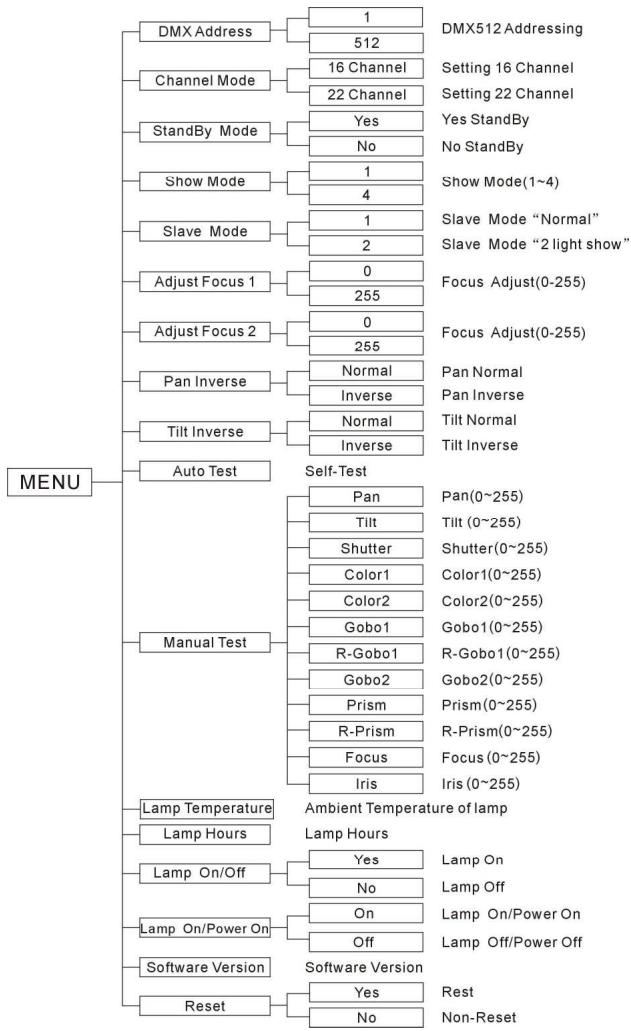

DMX512 Address Setting

Used to set the starting address in a DMX setup.

• Press the ESC button and turn the Jog Wheel until DMX Address is shown on the display.
• Press the ENTER button, the DMX value starts blinking on the display.
• Use the Jog Wheel to change the DMX512address.
• Once the correct address shows on the display, press the ENTER button to save it.

(or automatically return to the main functions without any change after 30 seconds)

To go back to the functions without any change press the ESC button.

Channel Mode

Used to set the DMX working mode to 16 or 22 channels

• Press the ESC button and turn the jog wheel until Channel Mode is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the 16 Channel or 22 Channel mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Standby mode

Used to place the unit in standby mode.

• Press the ESC button and turn the jog wheel until StandBy Mode is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the Yes or No mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Show Mode

Used to choose the Show mode when used in standalone or master/slave mode.

• Press the ESC button and turn the jog wheel until Show Mode is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select one of the four preprogrammed show modes.
• Once the show mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Slave Mode

Used to make the slave unit work in opposite to the master or to work in complete sync.

• Press the ESC button and turn the jog wheel until Slave Mode is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the 1 (normal) or 2 (inverse) mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)
  To go back to the functions without any change press the ESC button.

Adjust Focus 1

Used to help you adjusting the focus of the gobos situated on gobowheel 1

• Press the ESC button and turn the jog wheel until Adjust Focus1 is shown on the display.
• Press the ENTER button so the display starts blinking.
• Every time you press the ENTER button, the light beam will point into another direction.
• Use one of the 2 tilt positions or one of the 4 pan positions to adjust your focus.
  Use the Jog Wheel to select a value between 0 and 255
• Once the value is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Adjust Focus 2

Used to help you adjusting the focus of the gobos situated on gobowheel 2

• Press the ESC button and turn the jog wheel until Adjust Focus2 is shown on the display.
• Press the ENTER button so the display starts blinking.
• Every time you press the ENTER button, the light beam will point into another direction.
• Use one of the 2 tilt positions or one of the 4 pan positions to adjust your focus.
  Use the Jog Wheel to select a value between 0 and 255
• Once the value is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.) To go back to the functions without any change press the ESC button.

Pan Inversion

Normal: Panning movement is not inversed.

Pan inversion: Panning movement is inversed

• Press the ESC button and turn the jog wheel until Pan Inverse is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the Normal or Inverse mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Tilt Inversion

Normal: Tilt movement is not inversed.

Tilt inversion: tilt movement is inversed

• Press the ESC button and turn the jog wheel until Tilt Inverse is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the Normal or Inverse mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Auto Test

Used to activate the internal "self-test" program which shows all possibilities of the unit.

• Press the ESC button and turn the jog wheel until Auto Test is shown on the display.
• Press the ENTER button to start the internal self-test program.

Manual Test

Used to activate the internal functions of the unit manually.

• Press the ESC button and turn the jog wheel until Manual Test is shown on the display.
• Press the ENTER button
• Use the jog wheel to select one of the functions of the unit (pan, tilt, shutter, etc...)
• Press the ENTER button so the display starts blinking
• Use the Jog Wheel to select a value (0~255) for this function
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Lamp temperature

Used to show the temperature inside the lamp compartment

• Press the ESC button and turn the jog wheel until Lamp Temperature is shown on the display.
• You can now read the ambient temperature of the lamp.

Lamp Hours

Used to show the working hours of the unit
- Press the ESC button and turn the jog wheel until Lamp Hours is shown on the display.
- The number of working hours of the unit is shown on the display.

Lamp On/Off

Used to switch the lamp ON/OFF so you can cool the lamp with the internal fans before transportation.

• Press the ESC button and turn the jog wheel until Lamp On/Off is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the Yes (lamp on) or No (lamp off) mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Lamp On/Power On

"ON" is selected: When you switch the mains power on, the lamp will also go on
"OFF" is selected: When you switch the mains power on, the lamp will not go on
- Press the ESC button and turn the jog wheel until Lamp On/Power On is shown on the display.

• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the On (lamp on/Power on) or Off (lamp off/Power off) mode.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

Software Version

Used to check the software version of the unit.

• Press the ESC button and turn the jog wheel until Software Version is shown on the display.
• The software version of the unit is shown on the display.

Reset

Used to force a reset of the unit.

• Press the ESC button and turn the jog wheel until Reset is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use the Jog Wheel to select the Yes (Reset) or No.
• Once the mode is selected, press the ENTER button to confirm your choice. (or automatically return to the main functions without any change after 30 seconds.)

To go back to the functions without any change press the ESC button.

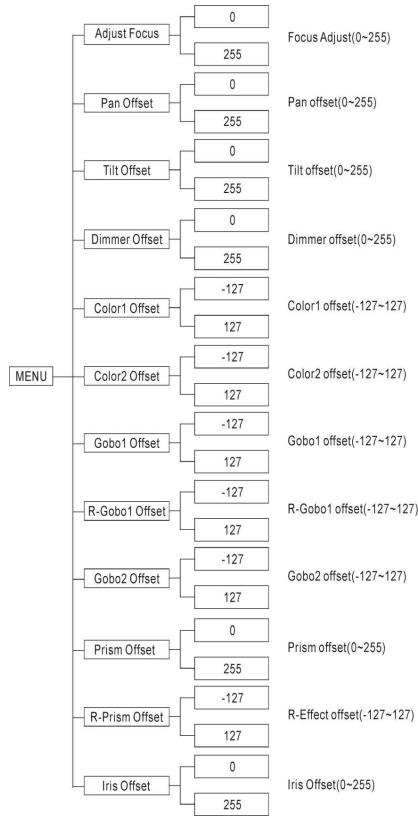

Home Position Adjust

• Press ENTER for at least 12 seconds to go into offset mode
  Now you can adjust the home position ( this is the zero position )
• When you want to adjust gobo and color home position, you should run |Adjust Focus|mode first
  The functions are shown below:

Adjust Focus

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Adjust Focus is shown on the display
• Press the ENTER button so the display starts blinking.
• By pressing the ENTER button several times, the unit will focus on different positions.
  ENTER > "tilt 135^ position, ENTER > "tilt 45^ position, ENTER > "pan 90^ position, ENTER > "pan 180^ position, ENTER > "pan 270^ position
• Use the jog wheel to adjust the focus

Pan offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Pan Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the Pan home position.

Tilt offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Tilt Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the Tilt home position.

Dimmer offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Dimmer Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the dimmer home position.

Color 1 offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Color 1 Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of color wheel 1

Color 2 offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Color 2 Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of color wheel 2.

Gobo 1 offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Gobo 1 Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of gobo wheel 1.

Gobo Rotation offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until R-Gobo Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of gobo rotation.

Gobo 2 offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Gobo 2 Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of gobo wheel 2.

Prism offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Prism Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of the prism.

Prism Rotation offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until R-Prism Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of Prism Rotation.

Iris offset

• Press ENTER for at least 12 seconds to go into offset mode and turn the jog wheel until Iris Offset is shown on the display
• Press the ENTER button so the display starts blinking.
• Use the jog wheel to adjust the home position of the iris.

HOW TO CONNECT THE UNIT BY DMX

The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected light effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!

Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode

HOW TO SET THE RIGHT STARTING ADDRESS:

Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which starting addresses you have to set because this completely depends on the controller you will use... So please refer to the user manual of your DMX-controller to find out which starting addresses you must set.

DMX-CONFIGURATION OF BT700S:

16 channel mode

16 Channels DMX-512 Configuration
Channel 1	Channel 2	Channel 3	Channel 4	Channel 5	Channel 6	Channel 7	Channel 8
Pan	Tilt	Pan/Tilt speed selection	Dimmer	Shutter/Shaking	Color 1	Color 2	Gobo1
540°	270°	255 Slow	255 100%	248-255 Open	255 Slow	248-255 Macro 6	255 Slow
				240-247 Random strobe		240-247 Macro 5
				239 Fast shaking (gobo2)	192 Fast	232-239 Macro 4	192 Fast
				186 Slow shaking (gobo2)	191 Fast	224-231 Macro 3	191 Fast
				185 Fast shaking (gobo1)		208-215 Macro 1	191 Fast
				132 Slow shaking (gobo1)	128 Slow	168 Fast	128 Slow
				131 Fast strobe	064-127 Position	167 Fast	106-127
					055-063 5600K	128 Slow	085-105
				016 Slow strobe	046-054 3200K	064-127 Position	064-084
				008-015 Open	037-045 Light green	055-063 Red	043-063
				000-007 Blackout	028-036 UV Purple	037-045 Magenta	022-042
					019-027 Pink	028-036 Orange	000-021
Channel 9	Channel 10	Channel 11	Channel 12	Channel 13	Channel 14	Channel 15	Channel 16
Gobo1 Rotation	Gobo2	No Function	Prism	Prism Rotation	Focus	Iris	Lamp on/off/reset
255 Slow	255 Slow		232-255 Macro(10)	255 Slow	255 Min.	255 Min.	200-209 Reset fixture
192 Fast	192 Fast		208-231 Macro(9)				230-239 Lamp off
			184-207 Macro(8)				130-139 Lamp on
			160-183 Macro(7)	192 Fast		120-129 disable shutter off while gobo1 or gobo2 change	110-119 enable shutter off while gobo1 or gobo2 change
191 Fast	191 Fast		136-159 Macro(6)	191 Fast			100-109 disable shutter off while color 1 or color 2 change
			112-135 Macro(5)				090-099 enable shutter off while color 1 or color 2 change
			088-111 Macro(4)	128 Slow			080-089 disable shutter off while pan or tilt move
128 Slow	106-127		064-087 Macro(3)	128 Slow			070-079 enable shutter off while pan or tilt move
127 Gobo1 Index 360°	085-105		040-063 Macro(2)	127 Prism Index 360°			070-079 enable shutter off while pan or tilt move
	064-084		016-039 Macro(1)				070-079 enable shutter off while pan or tilt move
	043-063		008-015 Prism				070-079 enable shutter off while pan or tilt move
000 Gobo1 Index 0°	022-042		000-007 No prism No macro	000 Prism Index 0°			070-079 enable shutter off while pan or tilt move

22 channel mode

In 22channel mode the 6 additional channels below are added to the standard 16 channels of the BT-700S.

Channel 17	Channel 18	Channel 19	Channel 20	Channel 21	Channel 22
Pan movement fine	Tilt movement fine	Pan/Tilt movement macro	P an / T i l t movement size	Iris effect	Dimmer effect
255OFF	25516BIT PANTILT	248-255 Macro 16240-247 Macro 20232-239 Macro 19224-231 Macro 18216-223 Macro 17208-215 Macro 16200-207 Macro 20192-199 Macro 19184-191 Macro 18176-183 Macro 17168-175 Macro 16160-167 Macro 20152-159 Macro 19144-151 Macro 18136-143 Macro 17128-135 Macro 16120-127 Macro 15112-119 Macro 14104-111 Macro 13096-103 Macro 12088-095 Macro 11080-087 Macro 10072-079 Macro 9064-071 Macro 8056-063 Macro 7048-055 Macro 6040-047 Macro 5032-039 Macro 4024-031 Macro 3016-023 Macro 2008-015 Macro 1000-007 No Macro	255Min.	255Shutter openFast173Shutter openSlow172FastMax091Slow090FastMin008Slow000-007 no macro	255FastClose132Slow131Open008Slow000-007 no macro

HOW TO OPERATE THE UNIT

Every time you turn the unit on, it will show "Resetting" on the display and move all the motors to their 'home' position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in programs.

YOU CAN OPERATE THE UNIT IN 3 WAYS:

By master/slave built-in preprogram function
By CA-8 easy controller
By universal DMX controller ( 16 & 22 channel DMX mode )

BY MASTER/SLAVE BUILT-IN PREPROGRAM FUNCTION:

Select this function when you want an instant show. By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music.

• MASTER has 4 built-in shows: You can select Show Mode 1, Show Mode 2, Show Mode 3 or Show Mode 4 directly in the menu of the master.
• SLAVES have 2 working options: The other units are set to slave mode (slave-LED is constantly on). In order to create a great light show you can introduce contrast movements (pan/tilt of slave is inversed) In the menu of the slave units you can go to option Slave Mode and select:

Slave Mode 1 slave works in sync with the master.
Slave Mode 2 slave works opposite from the master.

BY EASY CONTROLLER:

When used in Master/slave mode we strongly advice you to use the CA-8 "Easy controller" Just connect this small controller to the 1/4 jack of the master unit, and you will be able to control the following

FUNCTIONS:

Stand by	Blackout the unit
Function	Strobe 1. Sync. strobe 2. Two-light strobe	X/Y moving show pattern selection (Show 1 ~ Show 4)	Gobo/Color selection 1.Hold on for goto selection 2.Press for color change	X/Y moving setting 1.Pan position 2.Tilt position 3.Dimmer First set Master unit, then set Slave units' position
Mode	Sound 1 (LED off)	Sound 2 (LED slow blinking)	Slow/Sound 3 (LED on)	Position/Latch (LED fast blinking)

Important! Don't forget to select "On" for the "Lamp On/Power On" function in the main menu, otherwise you will only see the movements with the lamp off! Read more about this option in the "Main Menu" paragraph.

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Power Supply:

AC 230V, 50/60Hz

Sound Control:

Internal microphone

Pan/Tilt:

540^ / 270^ with automatic correction

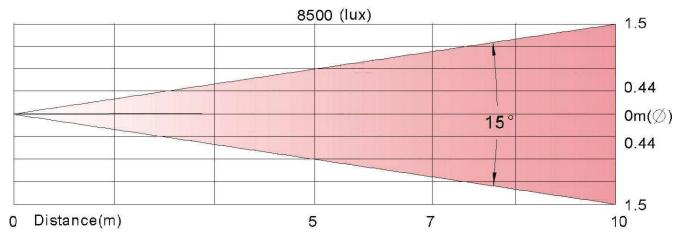

Beam angle:

15^

DMX connections:

3pin XLR male / female

Lamp:

HTI700WD4-75

Size:

674× 471× 406mm

Weight:

32,6 kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.briteq-lighting.com

MODE D'EMPLOI

Channel Mode (Mode canal)

Prism Rotation offset

Home Position Adjust

Prism Rotation offset

Prism Rotation offset
