Product Type	Front-load Washer
Brand	Frigidaire
Model	CFPWD15N
Wash Capacity	4.5 ft³ (127 L)
Maximum Spin Speed	1200 rpm
Number of Programs	12 cycles
Power Supply	120 V, 60 Hz, 15 A
Annual Energy Consumption	Approximately 295 kWh/year
Water Consumption per Cycle	Approximately 45 L (12 gal)
Dimensions (H × W × D)	96.5 × 68.6 × 76.2 cm (38 × 27 × 30 in)
Net Weight	Approximately 82 kg (180 lb)
Sound Level (Wash/Spin)	55/72 dB
Drum Material	Stainless Steel
Special Features	Delayed Start, Steam Option, Child Lock
Pedestal Compatibility	38 cm (15 in) Pedestal Optional
Mechanical Parts Warranty	1 year
Country of Manufacture	United States
Energy Class	A+++ (per EU standards)

Frequently Asked Questions - CFPWD15N FRIGIDAIRE

How to install the pedestal under the washer?

Follow the instructions provided with the pedestal. Level the pedestal, attach the front and rear brackets, then tilt the washer onto the pedestal, aligning the mounting holes. Do not use the detergent drawer as a lifting point.

What is the maximum capacity of the pedestal drawer?

The total weight in a closed drawer or the combined weight in and on an open drawer must not exceed 29.5 kg (65 lb).

How to level the pedestal?

Adjust each leveling foot of the pedestal, then check stability by rocking the pedestal from corner to corner. Tighten the lock nuts once the pedestal is level and stable.

Can I stack a dryer on a washer already installed on a pedestal?

No, it is forbidden to stack a dryer on a washer already installed on a pedestal. The pedestal is designed for a single appliance.

What tools are required to install the pedestal?

You will need an adjustable wrench, a 9/16 in (14 mm) socket wrench, and a carpenter's level. An optional universal wrench may be used.

What to do if the washer or dryer is already installed?

Unplug the power supply, turn off the water if it is a washer, remove hoses and ducts, then reinstall the shipping supports to move the appliance.

How to attach the rear brackets to the pedestal?

The rear brackets have tabs marked A and B. Arrange them according to the appliance type and side panel style, then attach each with two screws in the appropriate slots.

Is there a warranty on the pedestal?

Yes, the pedestal has a full one-year warranty on mechanical parts, provided it is installed with a compatible appliance and used in accordance with the instructions.

How to maintain the pedestal?

Clean the pedestal with a damp cloth and mild detergent. Avoid abrasive products. Periodically check stability and level.

Where to find spare parts for the pedestal?

Spare parts are available from the dealer where the pedestal was purchased. Also consult the use and care guide of your washer or dryer.

USER MANUAL CFPWD15N FRIGIDAIRE

Installation Instructions

15" Pedestal

A 2 Front brackets.
B 2 Rear brackets.

A

COMPOSANTS DU NÉCESS. VERT:

C 14 #10 (16 x .500) screws.

COMPOSANTS DU NÉCESSAIRE DE VIS:

C 14 vis n^10 (16 x .500).

PIEZAS DEL KIT (TORNILLOS):

C 14 tornillos n.° 10 (16 x .500).

C

IMPORTANT

Total weight IN closed drawer or combination of IN

and ON TOP OF open drawer should not exceed 65 lb. (29.5 kg).

IMPORTANT

Optional universal wrench available from dealer

9/16" or 14 mm box wrench

Phillips screwdriver

Tournevis Phillips

Destornillador Phillips

AND ET Y

Carpenter's level

• Failure to disconnect from power source before stacking could result in personal injury or even death.
• Improper installation of dryer venting could result in personal injury or damage to property.
• To avoid back or other injury, have more than one person move or lift the washer or dryer.
• Do not stack a dryer on top of washer already installed on pedestal.

AVENTISSEMENT

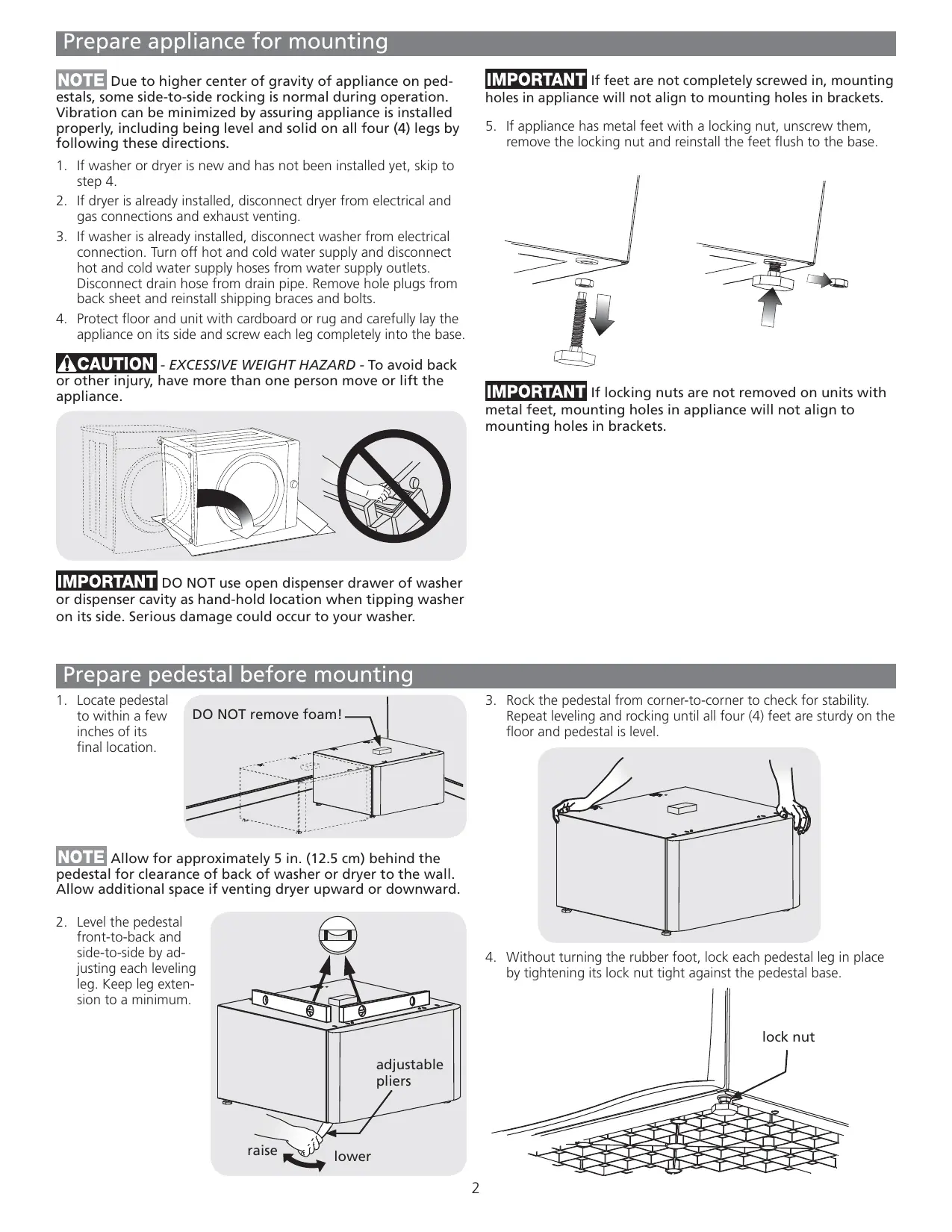

NOTE Due to higher center of gravity of appliance on pedestals, some side-to-side rocking is normal during operation. Vibration can be minimized by assuring appliance is installed properly, including being level and solid on all four (4) legs by following these directions.

1. If washer or dryer is new and has not been installed yet, skip to step 4.
2. If dryer is already installed, disconnect dryer from electrical and gas connections and exhaust venting.
3. If washer is already installed, disconnect washer from electrical connection. Turn off hot and cold water supply and disconnect hot and cold water supply hoses from water supply outlets. Disconnect drain hose from drain pipe. Remove hole plugs from back sheet and reinstall shipping braces and bolts.

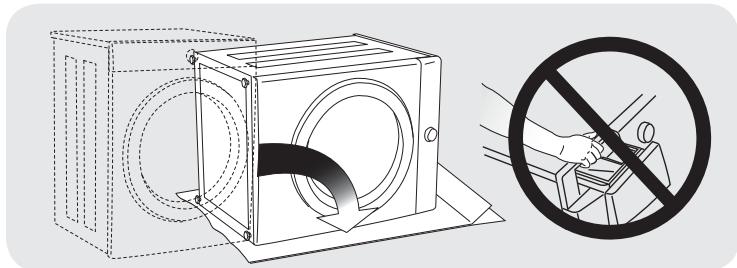

4. Protect floor and unit with cardboard or rug and carefully lay the appliance on its side and screw each leg completely into the base.

CAUTION - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the appliance.

IMPORTANT DO NOT use open dispenser drawer of washer or dispenser cavity as hand-hold location when tipping washer on its side. Serious damage could occur to your washer.

IMPORTANT If feet are not completely screwed in, mounting holes in appliance will not align to mounting holes in brackets.

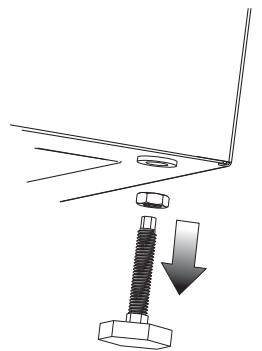

1. If appliance has metal feet with a locking nut, unscrew them, remove the locking nut and reinstall the feet flush to the base.

IMPORTANT If locking nuts are not removed on units with metal feet, mounting holes in appliance will not align to mounting holes in brackets.

Prepare pedestal before mounting

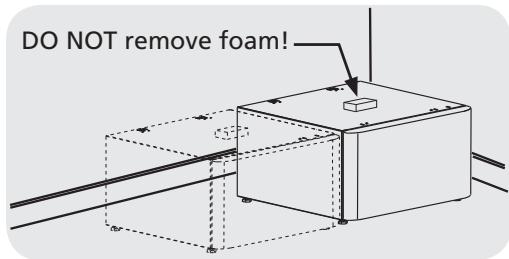

1. Locate pedestal to within a few inches of its final location.

NOTE Allow for approximately 5 in. (12.5 cm) behind the pedestal for clearance of back of washer or dryer to the wall. Allow additional space if venting dryer upward or downward.

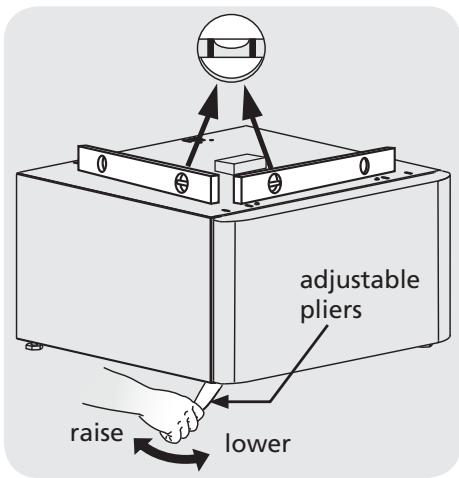

1. Level the pedestal front-to-back and side-to-side by adjusting each leveling leg. Keep leg extension to a minimum.

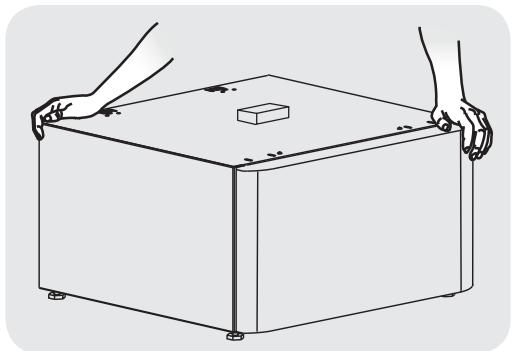

1. Rock the pedestal from corner-to-corner to check for stability. Repeat leveling and rocking until all four (4) feet are sturdy on the floor and pedestal is level.

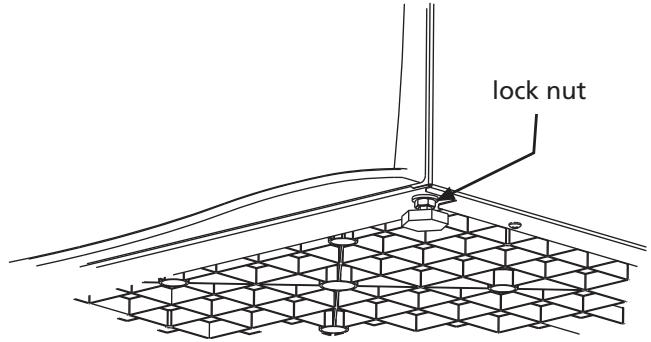

1. Without turning the rubber foot, lock each pedestal leg in place by tightening its lock nut tight against the pedestal base.

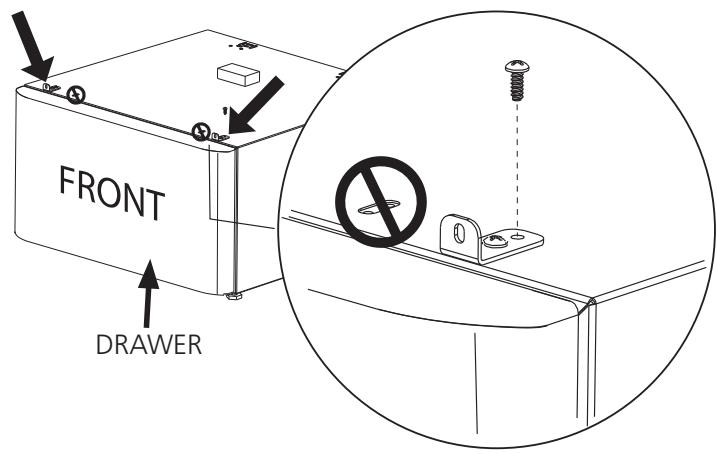

1. Attach each front clip to outer-most set of holes with 2 screws.

Front brackets from GREEN kit.

Attach rear mounting brackets

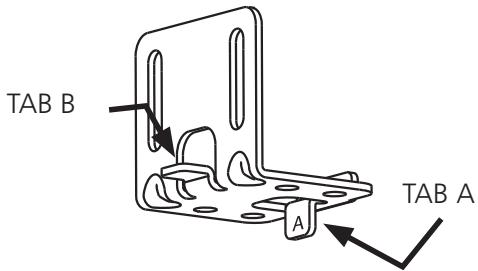

Each rear bracket has tabs marked "A" and "B".

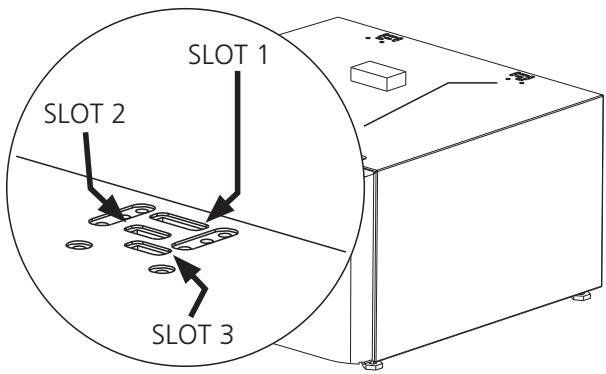

Each pedestal has slots in the rear marked "1", "2" and "3".

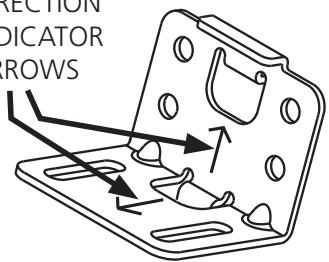

Each rear bracket also has 2 arrows indicating bracket direction when mounted on the pedestal.

DIRECTION INDICATOR ARROWS

1. Determine your appliance type (washer or dryer) and style of side panel according to columns 1 and 2 in table below.
2. Orient rear brackets according to column 3 for your particular model.
3. Attach each bracket with 2 screws through the holes that line up on pedestal.

1 - Appliance	2 - Side panel style of your appliance	3 - Rear bracket orientation
DRYER	3 indents on side.	• Rear brackets from GREEN kit • Tab A into • Slot 1 • Arrow pointing to back
DRYER	2 indents on side and 4 inch knockout for side venting.	• Rear brackets from GREEN kit • Tab B into • Slot 3 • Arrow pointing to front
WASHER	3 indents on side.	• Rear brackets from GREEN kit • Tab A into • Slot 2 • Arrow pointing to back
WASHER	3 indents on side in shape of “IOI”.	• Rear brackets from GREEN kit • Tab A into • Slot 1 • Arrow pointing to front

Attach pedestal to appliance

1. Turn pedestal on its side to match orientation to appliance.
2. Slide pedestal up to appliance and line up holes in mounting brackets with holes in appliance base.

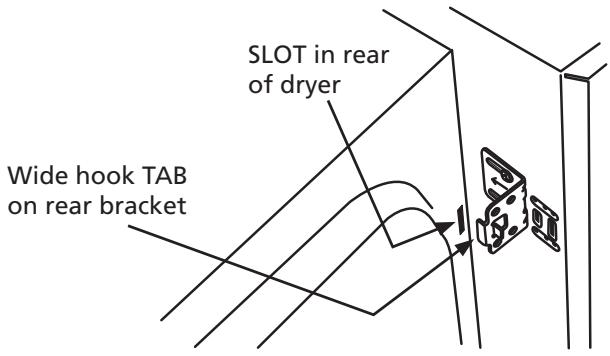

NOTE Special instructions for mounting a dryer with side pane style of 2 indents and 4 inch knockout (see image to right).

• Rear bracket mounts to dryer with wide tabs on bracket into slots on rear of dryer.

• Engage hook tabs of rear bracket into slots of dryer before aligning front bracket with holes in dryer base.

• Continue with instructions below for attaching front bracket to dryer base.

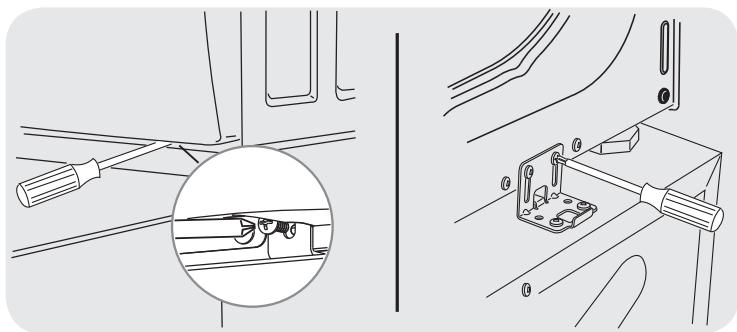

• Attach rear and front brackets to appliance base with supplied screws into aligning holes - one in each front bracket and two in each rear bracket.

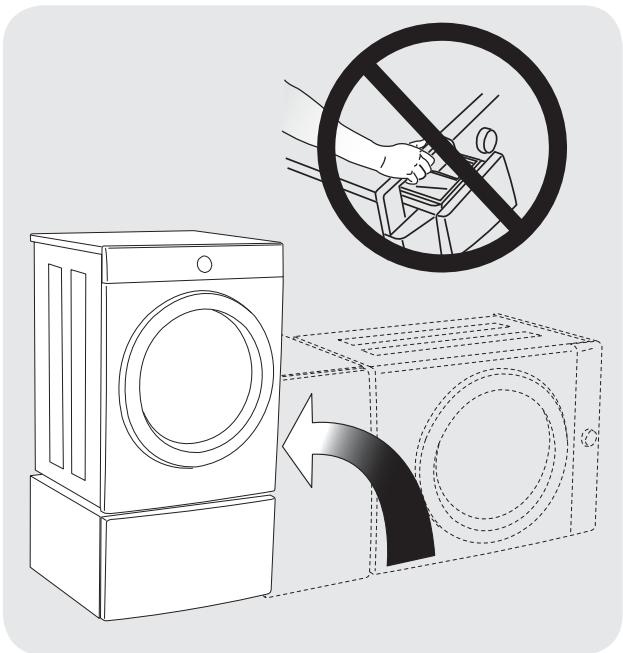

• Using more than one person, carefully return appliance and pedestal to upright position.

CAUTION - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the appliance.

IMPORTANT DO NOT use open dispenser drawer of washer or dispenser cavity as hand-hold location when tipping washer upright. Serious damage could occur to your washer.
5. After retuning appliance upright, loosen each mounting screw going into appliance base. Allow the appliance to settle in the brackets and retighten each mounting screw.

Installing or re-installing appliance

Washer on pedestal:

1. Slide washer/pedestal into place.
2. Check for levelness and rock all four (4) legs again. Repeat until level and solid.
3. Refer to Washer Installation Instructions for complete details on installing water, drain, or electrical.

Dryer on pedestal:

1. Slide dryer/pedestal into place.
2. Check for levelness and rock all four (4) legs again. Repeat until level and solid.
3. Refer to Dryer Installation Instructions for complete details on installing electrical, gas, or exhaust venting.

Full One Year Warranty on Mechanical Parts

For one year from date of purchase, when this pedestal is installed with the listed washer or dryer (see owners manual for specific model) and operated according to the information in the Use and Care Guide, Operating Instructions and Installation Instructions, the supplier will repair or replace any of its mechanical parts if they are defective in workmanship or material. Keep your bill of sale. The date of the bill establishes the warranty period should parts be required. This written warranty gives you specific rights. You may also have other rights which vary from state to state.

Warranty Restriction

If the pedestal is used for any other purpose than private family use or used with any product that requires modification for installation, the warranty is null and void.

Warranty Parts

Warranty parts are available by contacting the supplier where the pedestal was purchased or refer to the Use and Care Guide that came with the washer or dryer that is installed on the pedestal for contact information.

PRODUCT RECORD

In the space below, record the date of purchase and model number of the product.

Model No.:

Date of Purchase:

Save these instructions and your sales receipt for future reference.
