Product type	Dryer (clothes dryer)
Brand	Frigidaire
Model	FFSE5115P

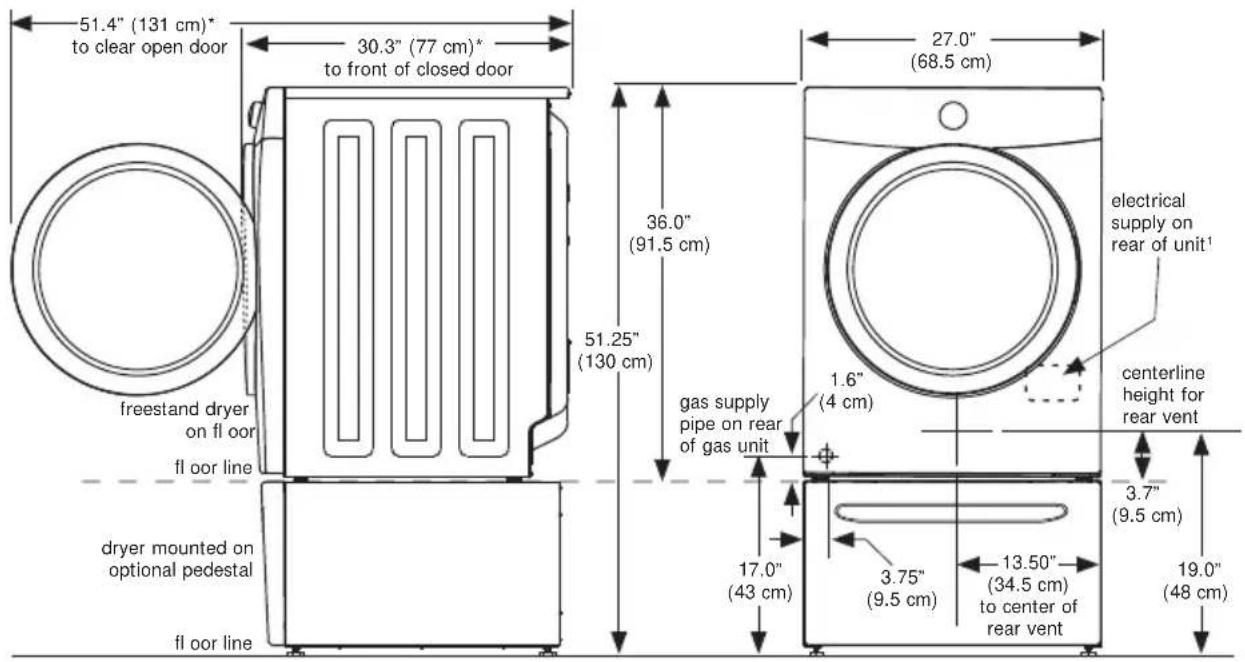

Dimensions (H x W x D)	130 cm x 68.5 cm x 91.5 cm (without door)
Depth with door open	131 cm

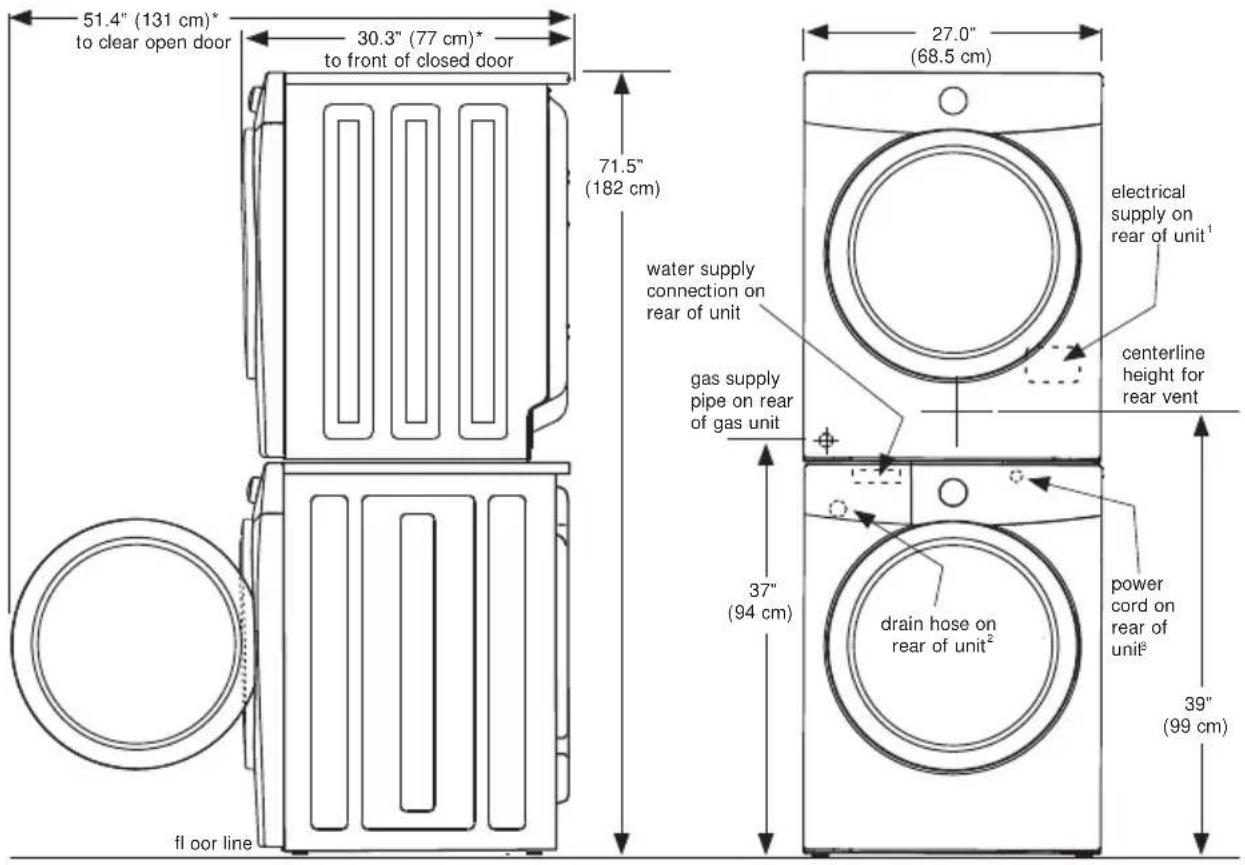

Height with optional pedestal	Approximately 182 cm
Power supply (electric model)	240 V, 30 A, 60 Hz, single-phase
Power supply (gas model)	120 V, 15 A, 60 Hz, single-phase
Recommended electrical outlet	NEMA 10-30R or 14-30R (electric), grounded outlet (gas)
Gas supply (gas model)	Natural gas or liquid propane (with conversion kit)
Exhaust duct diameter	10.2 cm (4 in) rigid or semi-rigid metal
Maximum duct length	Up to 19.5 m (64 ft) depending on number of elbows
Capacity	Not specified (estimated 7-8 kg)
Main functions	Rotary drum drying, timer, multiple temperatures
Door reversal	Possible (instructions provided)
Included accessories	Stacking kit, drying rack available as options
Safety	Automatic timer shut-off, grounding required, lint detection
Maintenance	Regular cleaning of lint filter and exhaust system
Estimated weight	Approximately 60 kg
Spare parts available	Yes, through the merchant or after-sales service
Repairability	Wiring diagram under top panel, servicing by qualified technician
Standards	ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (domestic use)

Frequently Asked Questions - FFSE5115P FRIGIDAIRE

How to properly install the FFSE5115P dryer?

Installation must be performed by a qualified professional. Make sure you have a suitable electrical outlet (240 V for electric, 120 V for gas), a rigid metal exhaust duct of 10.2 cm diameter, and a gas shut-off valve. Level the appliance and check for gas leaks with soapy water.

What type of exhaust duct should I use?

Use a rigid or semi-rigid metal duct of 10.2 cm (4 in) diameter. Never use plastic or flexible metal foil, as they can accumulate lint and cause a fire.

Can I install the dryer in a closet?

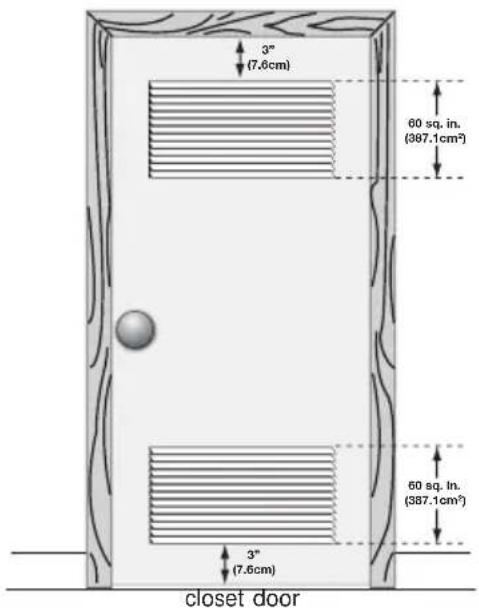

Yes, provided the closet has a door with ventilation openings of at least 774 cm² (120 in²), equally distributed at the top and bottom. The dryer must vent to the outside.

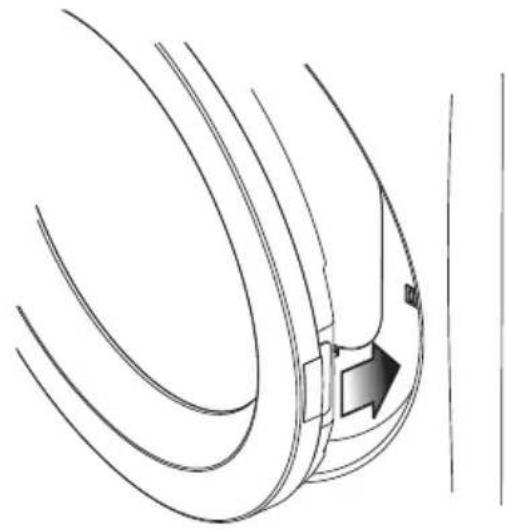

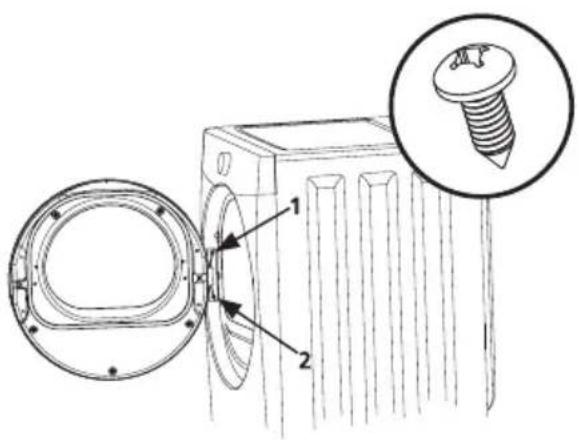

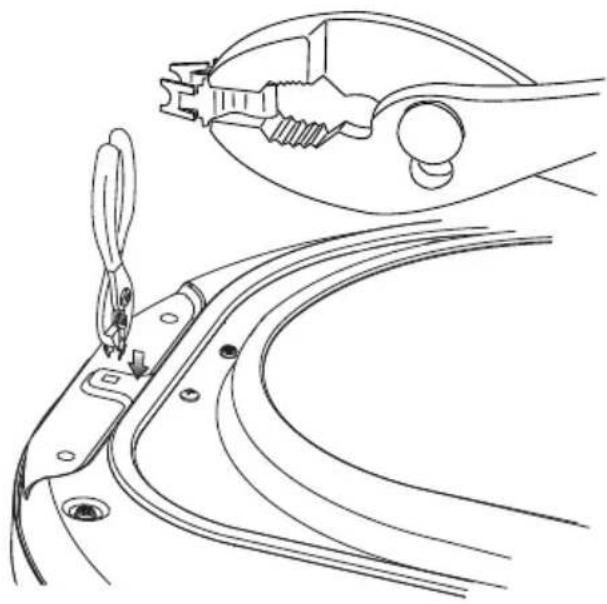

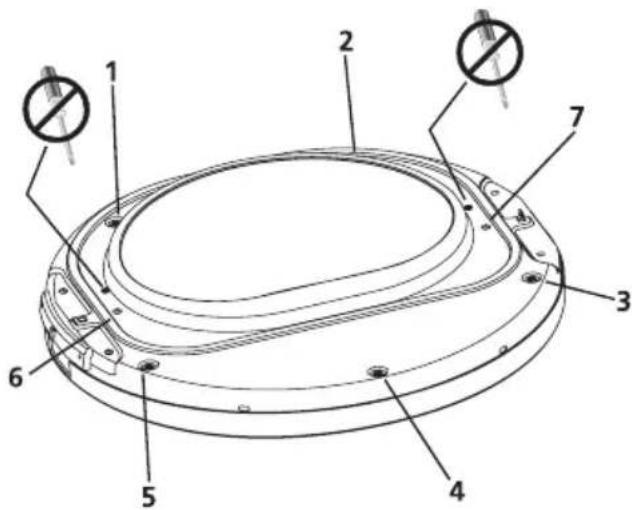

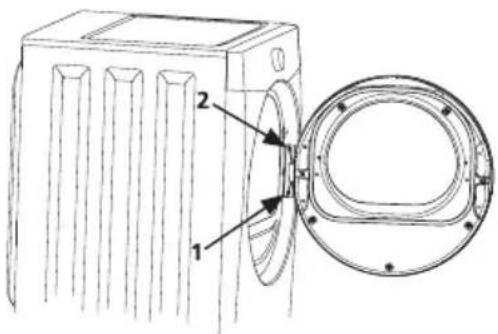

How to reverse the dryer door?

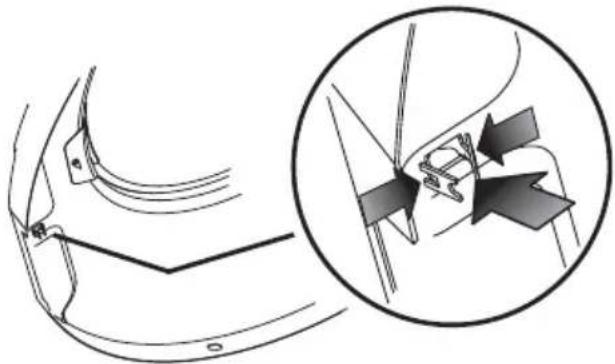

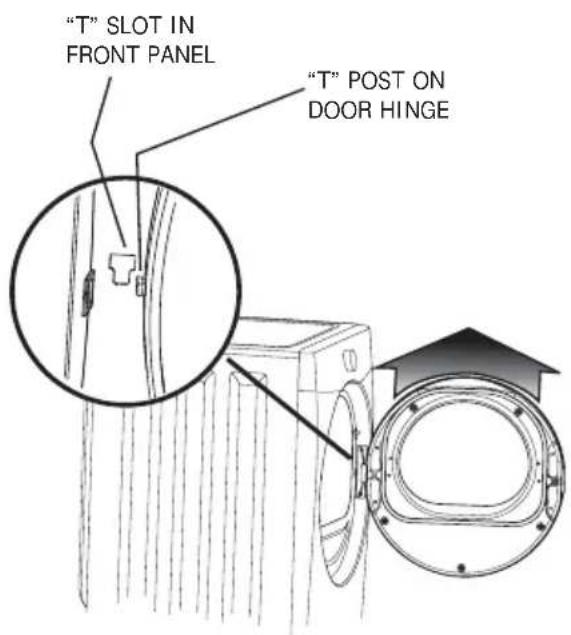

Follow the steps in the manual: remove the door, disassemble the hinge, install the plugs, reposition the hinge on the other side, and reassemble the door. Use the provided screws and check the latch function.

What is the required electrical supply for the electric model?

A dedicated 30 A, 240 V, 60 Hz circuit with a NEMA 10-30R (3-wire) or NEMA 14-30R (4-wire) outlet. Use a UL certified SRDT type power cord.

Can I use an extension cord?

No, never use an extension cord. The dryer must be plugged directly into a grounded wall outlet. Extension cords are not designed for high current and may cause a fire.

How to maintain my dryer to prevent fire hazards?

Clean the lint filter after each use. Regularly inspect the exhaust duct and remove any lint buildup. Have the system checked at least every 18 months.

Can the FFSE5115P model run on propane?

Yes, but an LPG conversion kit (ref. PCK4200) must be installed by a qualified technician before use. Do not connect to propane without conversion.

What accessories are available for this dryer?

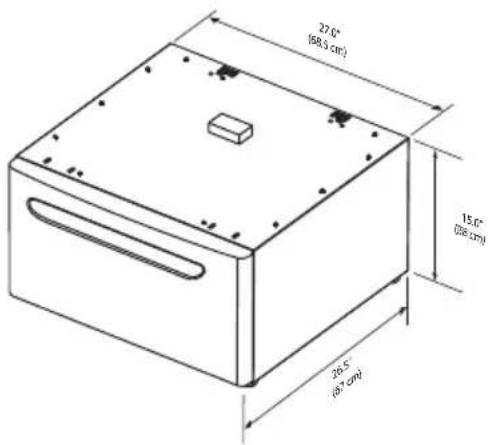

A storage pedestal (CFPWD15W or CFWD15A), a stacking kit (STACKIT4X), a drying rack (137067300), a mobile home installation kit (137067200), and a universal wrench (137019200).

What to do if I smell gas?

Do not operate any appliances, do not touch any switches, evacuate the area, then call your gas supplier from a nearby phone. If necessary, call the fire department.

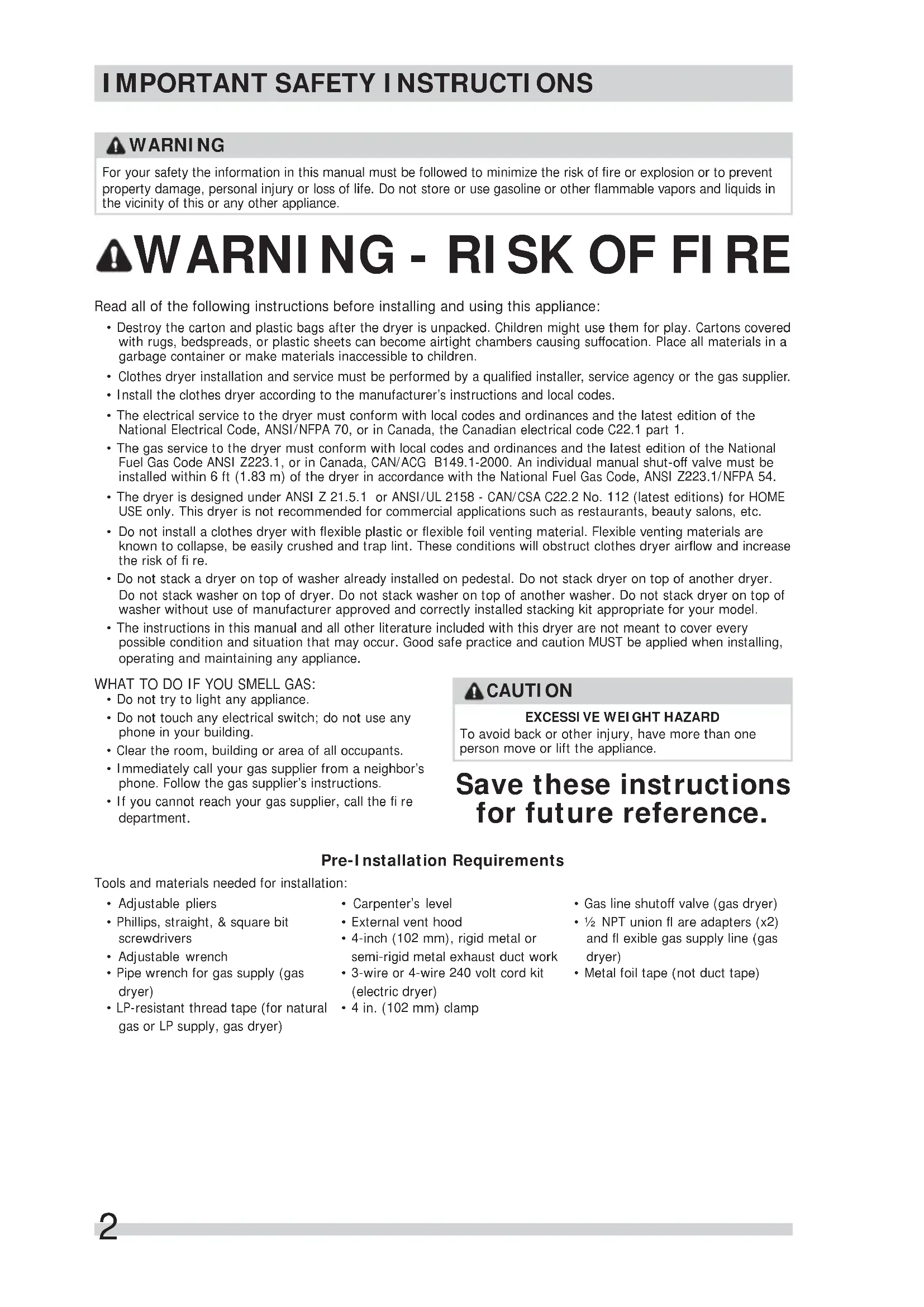

USER MANUAL FFSE5115P FRIGIDAIRE

Silhouette illustration of various household appliances including washing machines, refrigerators, and a refrigerator (no text or symbols)

TABLE OF CONTENTS

Important Safety Instructions 2-3

Installation Requirements 4-11

Installation Instructions 12-19

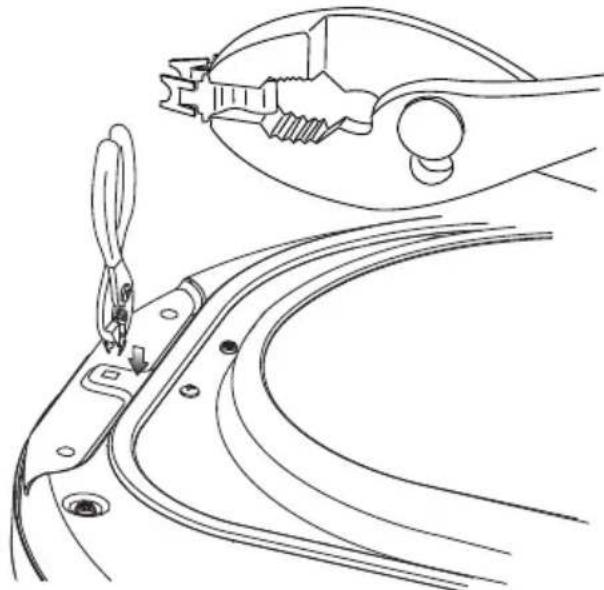

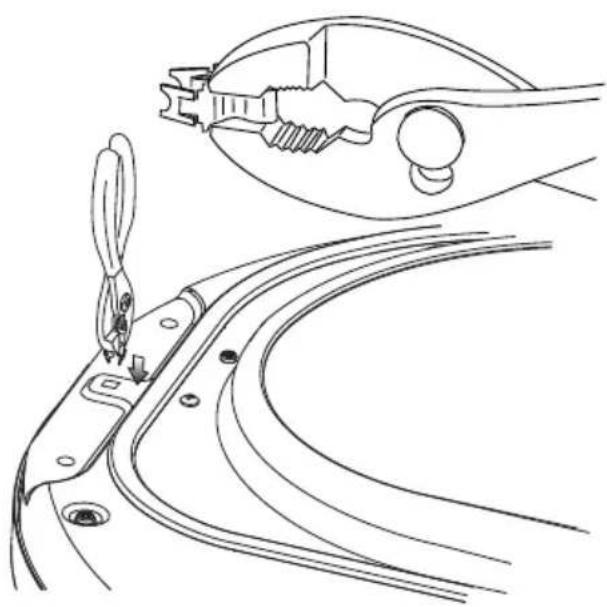

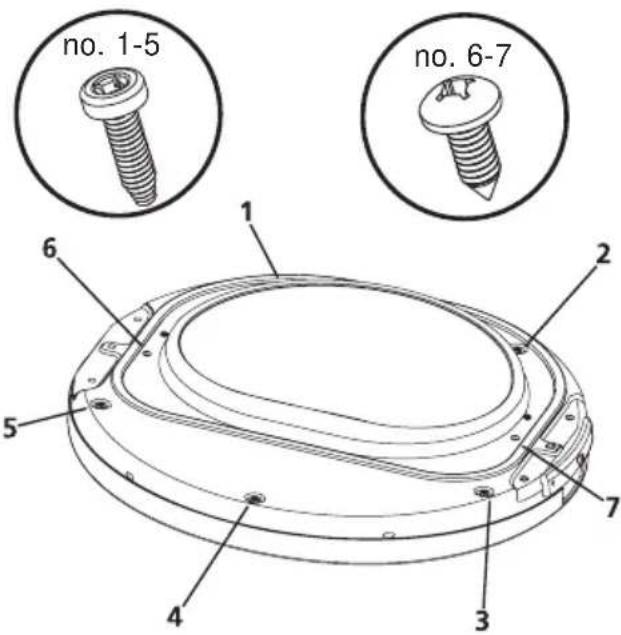

Reversing Door 20-23

Accessories 24

Français 25

Español 49

WARNING

For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

⚠ WARNING - RISK OF FIRE

Read all of the following instructions before installing and using this appliance:

• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a garbage container or make materials inaccessible to children.
• Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
• The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. An individual manual shut-off valve must be installed within 6 ft (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
• The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
• Do not install a clothes dryer with flexible plastic or flexible foil venting material. Flexible venting materials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fi re.
• Do not stack a dryer on top of washer already installed on pedestal. Do not stack dryer on top of another dryer. Do not stack washer on top of dryer. Do not stack washer on top of another washer. Do not stack dryer on top of washer without use of manufacturer approved and correctly installed stacking kit appropriate for your model.
• The instructions in this manual and all other literature included with this dryer are not meant to cover every possible condition and situation that may occur. Good safe practice and caution MUST be applied when installing, operating and maintaining any appliance.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

CAUTI ON

EXCESSIVE WEIGHT HAZARD

To avoid back or other injury, have more than one person move or lift the appliance.

Save these instructions for future reference.

Pre-Installation Requirements

Tools and materials needed for installation:

• Adjustable pliers
• Phillips, straight, & square bit screwdrivers
• Adjustable wrench
• Pipe wrench for gas supply (gas dryer)

• LP-resistant thread tape (for natural gas or LP supply, gas dryer)

• Carpenter's level

• External vent hood
  • 4-inch (102 mm), rigid metal or semi-rigid metal exhaust duct work
  • 3-wire or 4-wire 240 volt cord kit (electric dryer)
  • 4 in. (102 mm) clamp

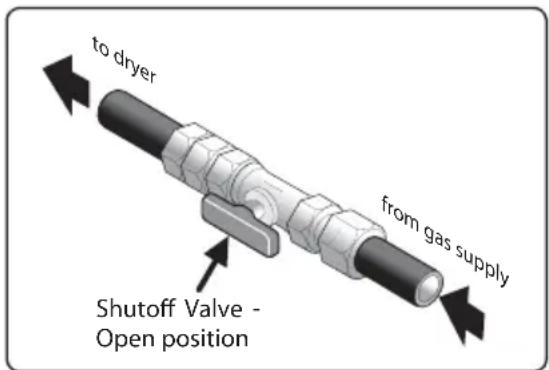

• Gas line shutoff valve (gas dryer)
- 1/2 NPT union fl are adapters (x2) and fl exible gas supply line (gas dryer)
• Metal foil tape (not duct tape)

WARNING

Please read all instructions before using this dryer.

Recognize safety symbols, words and labels

Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type as described below:

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

Installation Checklist

Exhaust Venting

☐ Free-flowing, clear of lint buildup
☐ 4 inch (102 mm) rigid or semi-rigid ducting of minimal length and turns
☐ NO foil or plastic venting material
□ Approved vent hood exhausted to outdoors

Leveling

☐ Dryer is level, side-to-side and front-to-back
□ Cabinet is setting solid on all corners

Gas Supply (Gas Dryer)

☐ Manual shutoff valve present in supply
☐ All connections sealed with approved sealer and wrench tight
□ Conversion kit for LP system
☐ Gas supply turned on
☐ No leaks present at all connections - check with soapy water, NEVER check with flame

240v Electric Supply (Electric Dryer)

☐ Approved NEMA 10-30R or 14-30R service cord with all screws tight on terminal block
□ Approved strain relief installed
☐ Terminal access cover installed before initial operation

Door Reversal

☐ Follow detailed instructions in this guide
□ Test hinge and latch for function

Electrical Power

□ House power turned on
Dryer plugged in

Final Checks

☐ Installation Instructions and Use and Care Guide read thoroughly
☐ Door latches and drum tumbles when cycle starts
□ Registration card sent in

INSTALLATION REQUIREMENTS

NOTE

Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered generators, solar powered generators, wind powered generators or any other generator other than the local utility company is not recommended.

Electrical requirements for electric dryer

CIRCUIT - Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers. Use separately fused circuits for washer and dryer. DO NOT operate a washer and a dryer on the same circuit.

POWER SUPPLY - 3-wire or 4-wire, 240 volt, single phase, 60 Hz, Alternating Current.

IMPORTANT

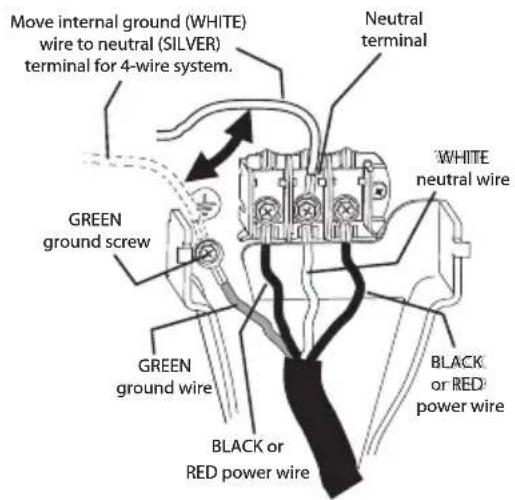

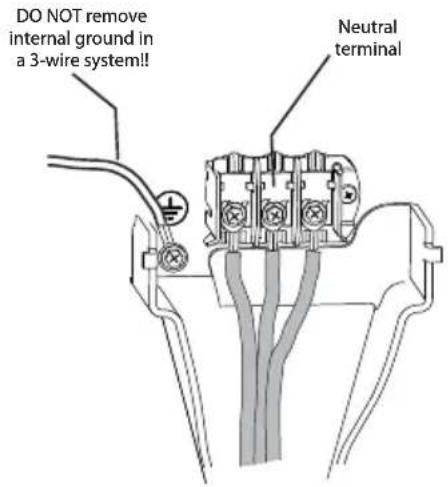

This dryer is internally grounded to neutral unless it was manufactured for sale in Canada.

Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral link is prohibited for: (1) new branch circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes do not permit grounding through the neutral.

OUTLET RECEPTACLE - NEMA 10-30R or NEMA 14-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position.

GROUNDING CONNECTION - See "Grounding requirements" in Electrical Installation section.

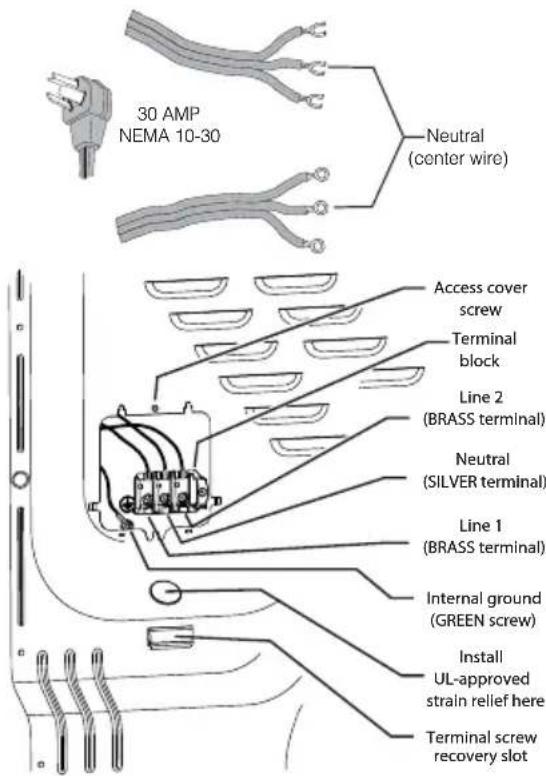

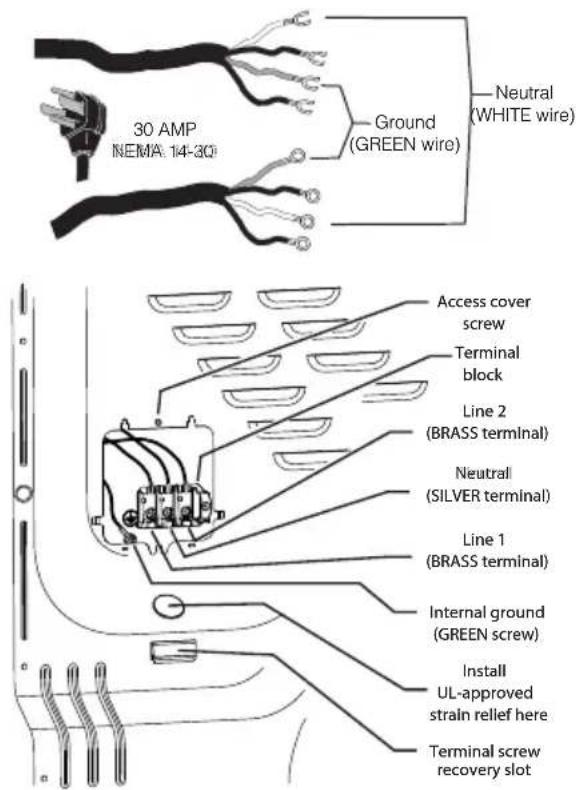

3-WIRE POWER SUPPLY CORD KIT (not supplied)

3-wire receptacle (NEMA type 10-30R)

The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type SRDT rated at 240 volt AC minimum, 30 amp, with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 3-wire cord connection instructions see ELECTRICAL CONNECTIONS FOR A 3-WIRE SYSTEM.

4-WIRE POWER SUPPLY CORD KIT (not supplied)

4-wire receptacle (NEMA type 14-30R)

The dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or ST (as required) rated at 240 volt AC minimum, 30 amp, with 4 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 4-wire cord connection instructions see ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM.

NOTE

Dryers manufactured for sale in Canada have factory-installed, 4-wire power supply cord (NEMA 14-30R).

Electrical requirements for gas dryer

CIRCUIT - Individual, properly polarized and grounded 15 amp. branch circuit fused with 15 amp. time delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120 volt, single phase, 60 Hz, Alternating Current.

POWER SUPPLY CORD - The dryer is equipped with a 120 volt 3-wire power cord.

GROUNDING CONNECTION - See "Grounding requirements" in Electrical Installation section.

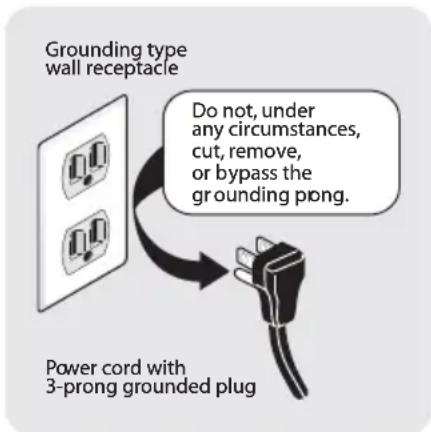

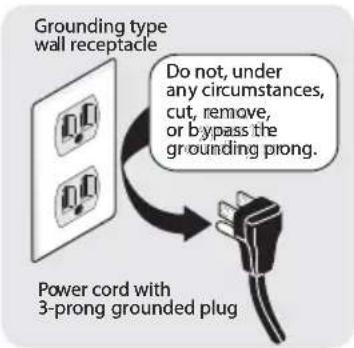

Grounding type wall receptacle

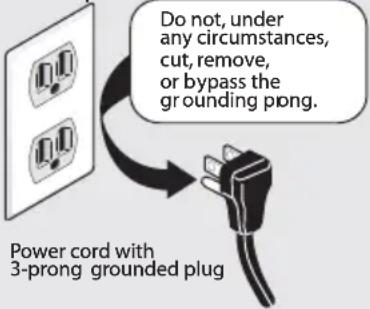

Do not, under any circumstances, cut, remove, or bypass the grounding piong. Power cord with 3-prong grounded plug

Gas supply requirements

WARNING

EXPLOSI ON HAZARD

Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plastic-coated brass piping for gas supply.

1 Installation MUST conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 (latest edition).
2 The gas supply line should be 1/2 inch (1.27 cm) pipe.

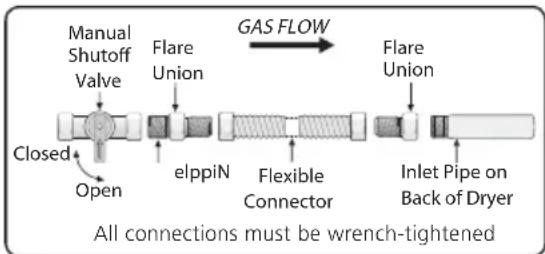

3 If codes allow, flexible metal tubing may be used to connect your dryer to the gas supply line. The tubing MUST be constructed of stainless steel or plastic-coated brass.

4 The gas supply line MUST have an individual shutoff valve installed in accordance with the B149.1, Natural Gas and Propane Installation Code.
5 A 1/8 inch (0.32 cm) N.P.T. plugged tapping, accessible for test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.
6 The dryer MUST be disconnected from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45 kPa).
7 The dryer MUST be isolated from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).
8 Connections for the gas supply must comply with the Standard for Connectors for Gas Appliances, ANSI Z21.24.

INSTALLATION REQUIREMENTS

Exhaust system requirements

Use only 4 inch (102 mm) diameter (minimum) rigid or fl exible metal duct and approved vent hood which has a swing-out damper(s) that open when the dryer is in operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet, maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood and the ground or any other obstruction.

WARNING

FIRE HAZARD

Failure to follow these instructions can create excessive drying times and fire hazards.

The following are specific requirements for proper and safe operation of your dryer.

WARNING

FIRE HAZARD

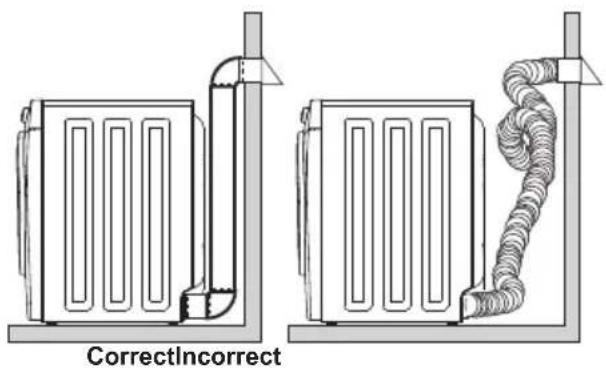

Do not install a clothes dryer with fl exible plastic or metal foil venting materials. Flexible venting materials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airfl ow and increase the risk of fi re.

If your present system is made up of plastic duct or metal foil duct, replace it with a rigid or semi-rigid metal duct. Also, ensure the present duct is free of any lint prior to installing dryer duct.

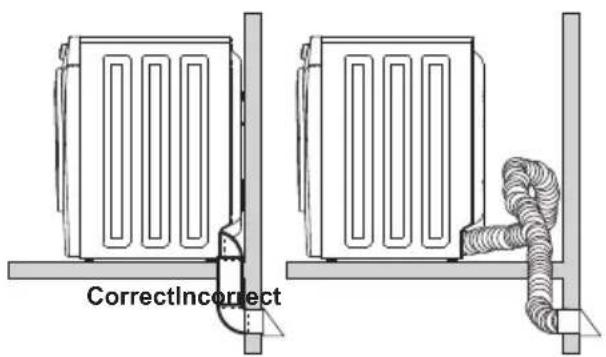

CorrectIncorrect

CorrectIncorrect

Exhaust system requirements, continued

WARNING

FIRE HAZARD

A clothes dryer must be exhausted outdoors. Do not exhaust dryer into a chimney, a wall, a ceiling, an attic, a crawl space or any concealed space of a building. A clothes dryer produces combustible lint. If the dryer is not exhausted outdoors, some fi ne lint will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fi re hazard.

The dryer must be connected to an exhaust outdoors. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.

WARNING

FIRE HAZARD

• Do not allow combustible materials (for example: clothing, draperies/curtains, paper) to come in contact with exhaust system. The dryer MUST NOT be exhausted into a chimney, a wall, a ceiling, or any concealed space of a building which can accumulate lint, resulting in a fi re hazard.
• Do not screen the exhaust ends of the vent system, or use any screws, rivets or other fasteners that extend into the duct to assemble the exhaust system. Lint can become caught in the screen, on the screws or rivets, clogging the duct work and creating a fire hazard as well as increasing drying times. Use an approved vent hood to terminate the duct outdoors, and seal all joints with metal foil duct tape. All male duct pipe fittings MUST be installed downstream with the flow of air.

WARNING

FIRE HAZARD

Exceeding the length of duct pipe or number of elbows allowed in the "MAXIMUM LENGTH" charts can cause an accumulation of lint in the exhaust system. Plugging the system could create a fire hazard, as well as increase drying times.

Number of 90° turns	MAXIMUM LENGTHof 4" (102mm) Rigid Metal Duct
	VENT HOOD TYPE
	(Preferred)
	(102mm) louvered		2.5"(6.35cm)
0 64	ft. (19.5 m) 48 ft. (14.6 m)
1 52	ft. (15.9 m) 40 ft. (12.2 m)
2 44	ft. (13.5 m) 32 ft. (9.8 m)
3 36	ft. (11 m) 24 ft. (7.3 m)
4 28	ft. (9.5 m) 16 ft. (4.9 m)

WARNING

FIRE HAZARD

• Do not install flexible plastic or flexible foil venting material.
• If installing semi-rigid venting, do not exceed 8 ft. (2.4 m) duct length.

INSTALLATION REQUIREMENTS

Exhaust system requirements, continued

Install male fittings in correct direction:

CORRECT INCORRECT

In installations where the exhaust system is not described in the charts, the following method must be used to determine if the exhaust system is acceptable:

1 Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.
2 Set the dryer timer and temperature to air fluff (cool down) and start the dryer.
3 Read the measurement on the manometer.
4 The system back pressure MUST NOT be higher than 0.75 inches of water column. If the system back pressure is less than 0.75 inches of water column, the system is acceptable. If the manometer reading is higher than 0.75 inches of water column, the system is too restrictive and the installation is unacceptable.

Although vertical orientation of the exhaust system is acceptable, certain extenuating circumstances could affect the performance of the dryer:

• Only rigid metal duct work should be used.
• Venting vertically through a roof may expose the exhaust system to down drafts causing an increase in vent restriction.
• Running the exhaust system through an uninsulated area may cause condensation and faster accumulation of lint.
• Compression or crimping of the exhaust system will cause an increase in vent restriction.
• The exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.

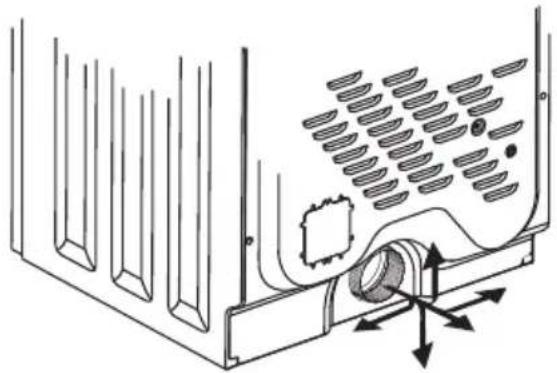

Exhaust direction

Directional exhausting can be accomplished by installing a quick-turn 90° dryer vent elbow directly to exhaust outlet of dryer. Dryer vent elbows are available through your local parts distributor or hardware store.

Technical line drawing of a vehicle air vent with airflow arrows indicating movement (no text or symbols)

See also Clearance Requirements on the next page.

NOTE

Use of 90° quick-turn elbow is required to meet minimum installation depth of free-standing dryer.

Technical line drawing of two mechanical components (no text or symbols)

Manufactured or mobile home installation

1 Installation MUST conform to current Manufactured Home Construction & Safety Standard, Title 24 CFR, Part 32-80 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280) or Standard CAN/CSAZ240 MH.
2 Dryer MUST be exhausted outside (outdoors, not beneath the mobile home) using metal ducting that will not support combustion. Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred.
3 If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust

system MUST terminate outside the enclosure with the termination securely fastened to the mobile home structure.

4 Refer to previous sections in this guide for other important exhaust venting system requirements.
5 When installing a gas dryer into a mobile home, a provision must be made for outside make up air. This provision is to be not less than twice the area of the dryer exhaust outlet.
6 Installer MUST anchor this (1) dryer or (2) dryer mounted on pedestal to the floor with approved Mobile Home Installation Kit - P/N 137067200.

Clearance requirements

WARNING

EXPLOSION HAZARD

Do not install the dryer where gasoline or other fl ammables are kept or stored. If the dryer is installed in a garage, it must be a minimum of 18 inches (45.7 cm) above the floor. Failure to do so can result in death, explosion, fire or burns.

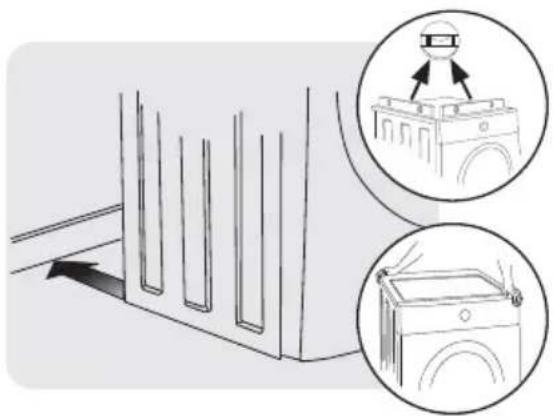

IMPORTANT

DO NOT INSTALL YOUR DRYER:

1 In an area exposed to dripping water or outside weather conditions.
2 In an area where it will come in contact with curtains, drapes, or anything that will obstruct the flow of combustion and ventilation air.
3 On carpet. Floor MUST be solid with a maximum slope of 1 inch (2.5 cm).

INSTALLATION REQUIREMENTS

Clearance requirements, continued

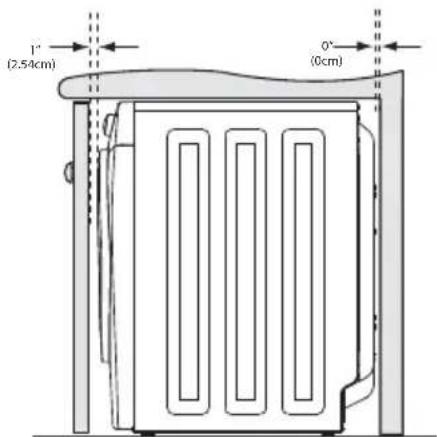

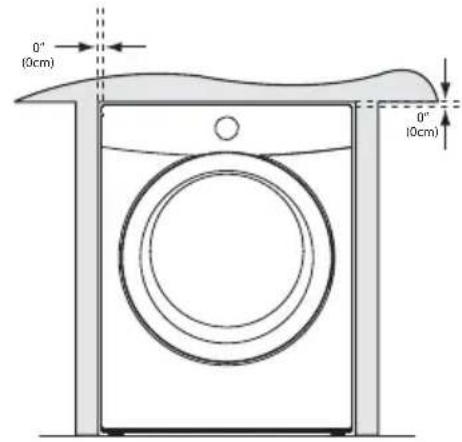

Installation in a Recess or Closet

1 A dryer installed in a bedroom, bathroom, recess or closet, MUST be exhausted outdoors.
2 No other fuel burning appliance shall be installed in the same closet as the gas dryer.
3 Your dryer needs the space around it for proper ventilation.

DO NOT install your dryer in a closet with a solid door.

4 Closet door ventilation required: A minimum of 120 square inches (774.2 cm²) of opening, equally divided at the top and bottom of the door, is required. Openings should be located 3 inches (7.6 cm) from bottom and top of door. Openings are required to be unobstructed when a door is installed. A louvered door with equivalent air openings for the full length of the door is acceptable.

3" (7.6cm) 60 sq. in. (387.1cm²) 3" (7.6cm) 60 sq. In. (387.1cm²) closet door

MINIMUM INSTALLATION CLEARANCES - Inches (cm)
	SIDES REAR TOP FRONT
Alcove 0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a
Under-Counter	0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a
Closet 0" (0 cm) 0" (0 cm)* 0" (0 cm) 1" (2.5 cm)

* For other than straight back venting, a quick-turn 90° dryer vent elbow (vented right or down in free-standing dryer or right on pedestal-mounted dryer) must be installed to achieve 0" (0 cm) installation.

0° (0cm) 0° (0cm)

1° (2.54cm) 0° (0cm)

NOTE

To achieve an installation with 0" (0 cm) clearance for the back of the dryer (for other than straight back venting), a quick-turn 90° dryer vent elbow must be installed as described previously in this manual.

Dryer Dimensions

51.4" (131 cm)* to clear open door 30.3" (77 cm)* to front of closed door 27.0" (68.5 cm) 36.0" (91.5 cm) 51.25" (130 cm) freestand dryer on fl oor fl oor line dryer mounted on optional pedestal fl oor line gas supply pipe on rear of gas unit electrical supply on rear of unit¹ 1.6" (4 cm) centerline height for rear vent 3.7" (9.5 cm) 17.0" (43 cm) 3.75" (9.5 cm) 13.50" (34.5 cm) to center of rear vent 19.0" (48 cm)

51.4" (131 cm)* to clear open door 30.3" (77 cm)* to front of closed door 71.5" (182 cm) 27.0" (68.5 cm) fl oor line water supply connection on rear of unit gas supply pipe on rear of gas unit electrical supply on rear of unit¹ centerline height for rear vent 37" (94 cm) drain hose on rear of unit² power cord on rear of unit⁵ 39" (99 cm)

* Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
^1 Power supply cord length on gas dryer approximately 60 inches (152.5 cm).
^2 Drain hose length on washer approximately 59 inches (150 cm).
^3 Power supply cord length on washer approximately 60 inches (152.5 cm).

INSTALLATION INSTRUCTIONS

Electrical installation

The following are specific requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or a fi re hazard.

WARNING

ELECTRICAL SHOCK HAZARD

• This appliance MUST be properly grounded. Electrical shock can result if the dryer is not properly grounded. Follow the instructions in this manual for proper grounding.
• Do not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electrical shock and/or fire hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the pre-installation requirements in this manual for the proper power cord to be purchased.

WARNING

ELECTRICAL SHOCK HAZARD

• A U.L.-approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.
• Do not use an aluminum wired receptacle with a copper wired power cord and plug (or vice versa). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired power cord with a copper wired receptacle.

NOTE

Dryers operating on 208 volt power supply will have longer drying times than dryers operating on 240 volt power supply.

Grounding requirements - Electric dryer (USA)

WARNING

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

For a grounded, cord-connected dryer:

1 The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least resistance for electrical current.
2 After you purchase and install a 3 wire or 4 wire power supply cord having an equipment-grounding conductor and a grounding plug that matches you

wiring system, the plug MUST be plugged into an appropriate, copper wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

3 DO NOT modify the plug you've installed on this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dryer:

1 The dryer MUST be connected to a grounded metal, permanent wiring system; or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Grounding requirements - Electric dryer (Canada)

WARNING

ELECTRICAL SHOCK HAZARD

Improper connection of the equipment grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

For a grounded, cord-connected dryer:

1 The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by a path of least resistance for electrical current.

2 Since your dryer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.
3 DO NOT modify the plug provided with this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Grounding requirements - Gas dryer (USA and Canada)

1 The dryer is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.
2 The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.
3 DO NOT modify the plug provided with this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Grounding type wall receptacle Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

INSTALLATION INSTRUCTIONS

Gas connection

1 Remove the shipping cap from gas pipe at the rear of the dryer.

IMPORTANT

DO NOT connect the dryer to L.P. gas service without converting the gas valve. An L.P. conversion kit must be installed by a qualified gas technician.

2 Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or approved pipe from gas supply line to the 3/8 inch (0.96 cm) pipe located on the back of the dryer. Use a 1/2 inch to 3/8 inch (1.27 cm to 0.96 cm) reducer for the connection. Apply an approved thread sealer that is resistant to the corrosive action of liquefi ed gases on all pipe connections.

IMPORTANT

The supply line must be equipped with an approved manual shutoff valve. This valve should be located in the same room as the dryer and should be in a location that allows ease of opening and closing. Do not block access to the gas shutoff valve.

3 Open the shutoff valve in the gas supply line to allow gas to flow through the pipe. Wait a few minutes for gas to move through the gas line.

to dryer from gas supply Shutoff Valve - Open position

4 Check for gas system leaks with a manometer. If a manometer is not available, test all connections by brushing on a soapy water solution.

WARNING

EXPLOSION HAZARD

NEVER test for gas leaks with an open flame.

Water connection (Steam Model only)

WATER SUPPLY REQUIREMENTS

Cold water faucet MUST be installed within 42 inches (107 cm) of your dryer's water inlet. The faucet MUST be 3/4 inch (1.9 cm) with threading for laundry hose connection. Water pressure MUST be between 30 and 120 psi. Your water department can advise you of your water pressure.

1 Turn off COLD water supply to washer.
2 Remove COLD inlet hose from COLD water supply and inspect for rubber washer. Replace washer if it is torn or worn out.

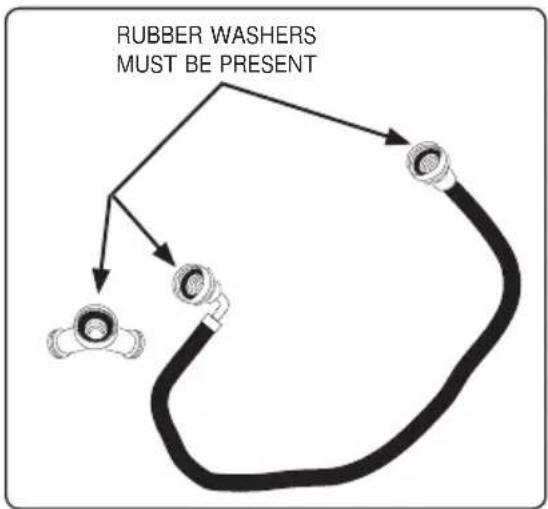

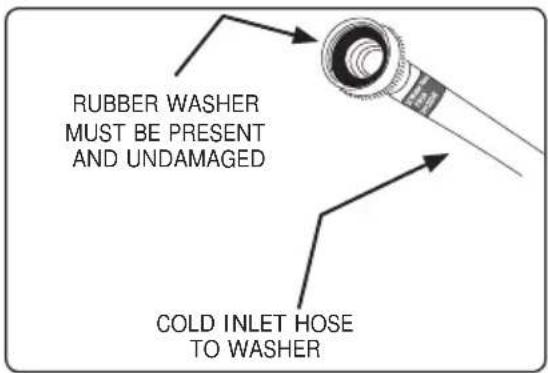

RUBBER WASHER MUST BE PRESENT AND UNDAMAGED COLD INLET HOSE TO WASHER

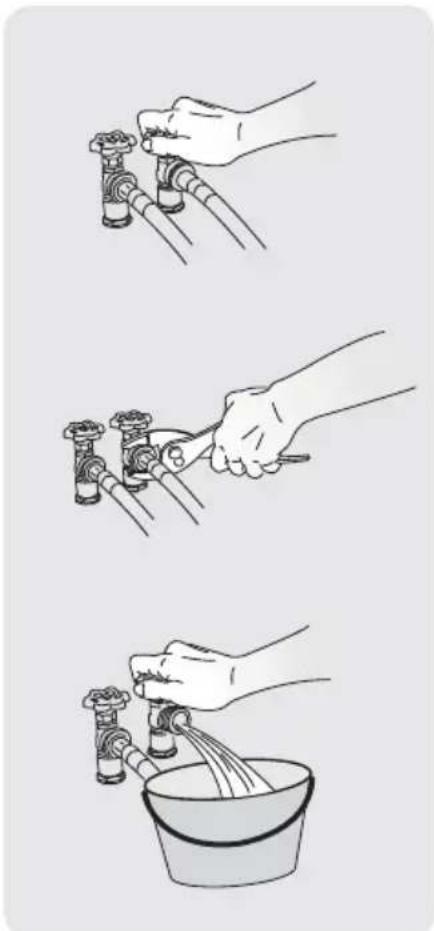

3 Momentarily turn on COLD supply and run some water into a bucket or container to clear any contaminants in the line.
4 Remove hose kit from dryer drum and inspect hose couplings for proper placement of rubber washers.

Three-step illustration showing hands using different pipe fittings to adjust a basin (no text or symbols present)

INSTALLATION INSTRUCTIONS

Water connection, continued (Steam Model only)

5 If your installation has room for the COLD water supply to accept the "Y" connector directly, thread the "Y" connector to the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

NOTE

If you were able to install the "Y" connector directly to the COLD water supply, please skip to step 8.

6 If there is not room to install the "Y" connector directly, thread a short extension hose on to the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

NOTE

Short extension available from your local hardware supplier. Extension hose must meet qualifications for use in laundry installation.

7 Thread the "Y" connector to the short extension hose and snug it by hand; then tighten it another 2/3 turn with pliers.
8 Connect the COLD inlet hose for the washer to the "Y" connector and snug it by hand; then tighten it another 2/3 turn with pliers.
9 Connect the straight end of the long hose from the kit to the other outlet on the "Y" connector and snug it by hand. Connect the hose's 90° coupling to the brass water inlet on the back of the dryer and snug it by hand. Tighten each connection of the dryer inlet hose another 2/3 turn with pliers.
10 Turn on the water and check for leaks at all connections.

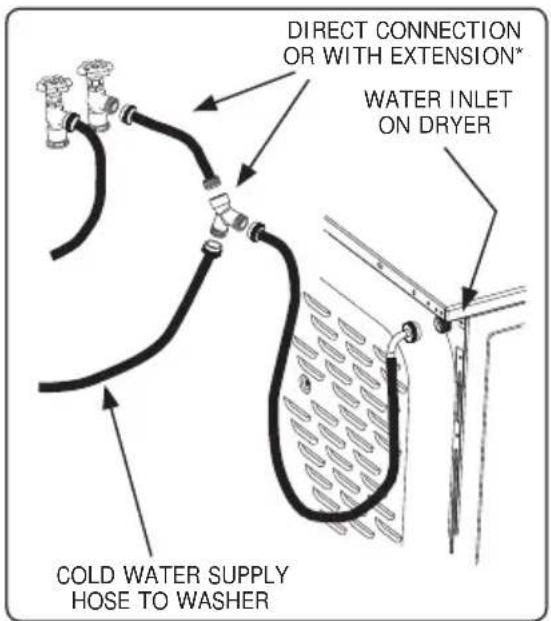

DIRECT CONNECTION OR WITH EXTENSION* WATER INLET ON DRYER COLD WATER SUPPLY HOSE TO WASHER

* Laundry hose extension not included with dryer.

Line drawing of a hand holding a valve with multiple ports (no text or symbols)

Line drawing of a hand holding two pipe fittings (no text or symbols)

Electrical connection (non-Canada) - 3 wire cord

3-wire receptacle (NEMA type 10-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

1 Turn off power supply to outlet.
2 Remove the screw securing the terminal block access cover in the lower corner on the back of the dryer.
3 Install a UL-approved strain relief according to the power cord/strain relief manufacturer's instructions in the power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 10-30 type SRDT, through the strain relief.
5 Attach the power cord neutral (center wire) conductor to the SILVER colored center terminal on the terminal block. Tighten the screw securely.
6 Attach the remaining two power cord outer conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.

WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/conductor at connections.

7 Follow manufacturer's guidelines for firmly securing the strain relief and power cord.
8 Reinstall the terminal block cover.

IMPORTANT

If moving dryer from a 4-wire system and installing it in a 3-wire system, move the internal ground from the center terminal back to the GREEN screw next to the terminal block.

30 AMP NEMA 10-30 Neutral (center wire) Access cover screw Terminal block Line 2 (BRASS terminal) Neutral (SILVER terminal) Line 1 (BRASS terminal) Internal ground (GREEN screw) Install UL-approved strain relief here Terminal screw recovery slot

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.

DO NOT remove internal ground in a 3-wire system!! Neutral terminal

INSTALLATION INSTRUCTIONS

Electrical connection (non-Canada) - 4 wire cord

4-wire receptacle (NEMA type 14-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

1 Turn off power supply to outlet.
2 Remove the screw securing the terminal block access cover in the lower corner on the back of the dryer.
3 Install a UL-approved strain relief according to the power cord/strain relief manufacturer's instructions in the power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 14-30 type ST or SRDT, through the strain relief.
5 Disconnect the internal (WHITE) dryer harness ground wire from the (GREEN) ground screw next to the terminal block.
6 Attach the ground (GREEN) power cord wire to the cabinet with the ground (GREEN) screw. Tighten the screw securely.
7 Move the internal dryer harness ground (WHITE) wire to the terminal block and attach it along with the neutral (WHITE) power cord wire conductor to the center, SILVER colored terminal on the terminal block. Tighten the screw securely.
8 Attach the RED and BLACK power cord conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.

WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/conductor at connections.

9 Follow manufacturer's guidelines for firmly securing the strain relief and power cord.

10 Reinstall the terminal block cover.

30 AMP NEMA 14-30 Ground (GREEN wire) Neutral (WHITE wire) Access cover screw Terminal block Line 2 (BRASS terminal) Neutral (SILVER terminal) Line 1 (BRASS terminal) Internal ground (GREEN screw) Install UL-approved strain relief here Terminal screw recovery slot

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.

Move internal ground (WHITE) wire to neutral (SILVER) terminal for 4-wire system. Neutral terminal GREEN ground screw WHITE neutral wire GREEN ground wire BLACK or RED power wire BLACK or RED power wire

General installation

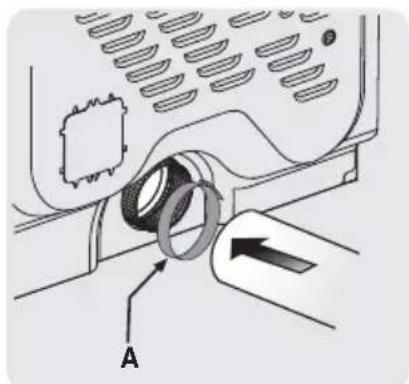

1 Connect the exhaust duct to the outside exhaust system. Use of a 4" (102 mm) clamp (item A) is recommended to connect the dryer to the exhaust vent system. Use metal foil tape to seal all other joints.
2 Use a carpenter's level to level your dryer front-to-back and side-to-side.
3 Use adjustable pliers to adjust the leveling legs so the dryer is level front-to-rear and side-to-side, and stable corner-to-corner.
4 Press down on alternate corners and sides and feel for the slightest movement. Adjust the appropriate leg(s) so the dryer sits solidly on the floor on ALL four legs. Keep the leveling leg extension at a minimum for best performance of the dryer.

A

IMPORTANT

Be sure the power is off at a circuit breaker/fuse box before plugging the power cord into an outlet.

5 Plug the power cord into a grounded outlet.

Grounding type wall receptacle Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

Illustration of three electrical plug symbols: three socket, one plug with three pins, and one plug with four pins (no text or labels)

Diagram showing a washing machine with two circular insets illustrating the components of the device (no text or symbols present)

6 Turn on the power at the circuit breaker/fuse box.
7 Read the Use & Care Guide provided with the dryer. It contains valuable and helpful information that will save you time and money.
8 If you have any questions during initial operation, please review the "Avoid Service Checklist" in your Use & Care Guide before calling for service.
9 Place these instructions in a location near the dryer for future reference.

NOTE

A wiring diagram and technical data sheet are located under the dryer top panel.

Removing the door

1 Protect flat work surface, such as top of dryer or floor near dryer, with a soft cloth or towel.
2 Open dryer door and remove the two hinge screws. Remove lower screw fi rst, then upper screw.

Technical diagram of a device with labeled parts, showing internal components and a close-up view of the outer ring.

3 Supporting door with both hands, squarely lift door and hinge upward approximately 3/8" (10 mm) so "T" post on back of hinge can slide out through "T" slot on front panel.

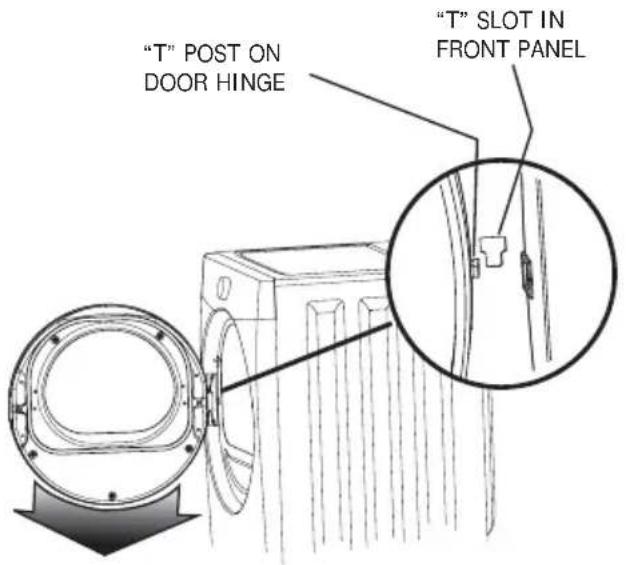

"T" SLOT IN FRONT PANEL "T" POST ON DOOR HINGE

4 Gently place dryer door face down on flat, covered work surface.
5 Locate the 5 indented head screws (no. 1-5) in the small, circular recesses (at 11, 1, 4, 6, and 8 o'clock positions) of the inner door. Remove and save these 5 screws.

Technical diagram of a circular mechanical component with numbered parts and measurement indicators

→ IMPORTANT

Do not attempt to remove the 2 "tamper-resistant" screws that hold the inner glass in place.

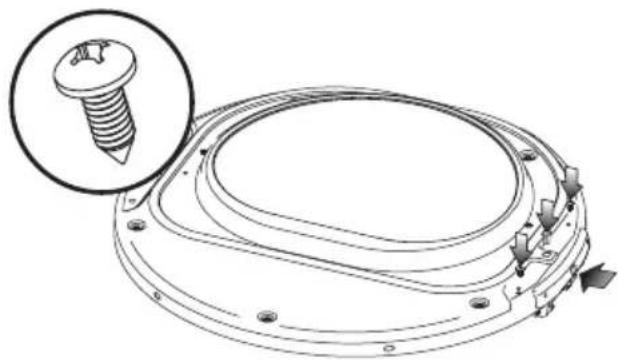

6 Locate the 2 pan head screws (no. 6-7) on the inner door nearest the metal strike and center of hinge (9 and 3 o'clock positions). Remove and save these 2 screws.
7 Separate inner door assembly from outer door assembly.

Reversing the hinge

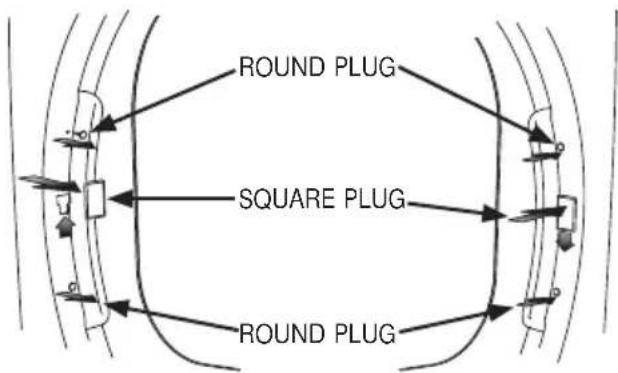

1 Carefully pull out the 2 small round hole plugs from the front panel and save. Remove and save the square "T" slot cover by sliding it up and pulling it out. Move all 3 plugs to the opposite side of the front panel and insert.


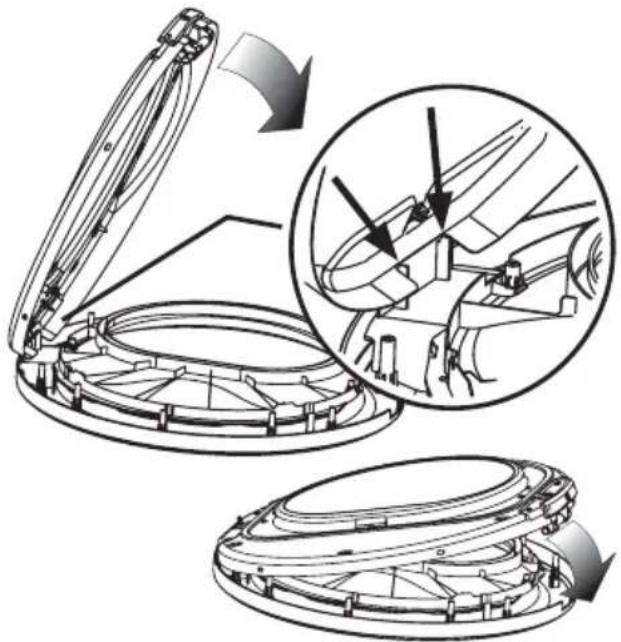

2 Turn inner door assembly over to expose retaining tabs of metal strike. Grip tabs fully with pliers to remove. Discard old metal strike.

Diagram showing a car interior with a close-up inset illustrating the hand holding a vehicle (no text or symbols present)

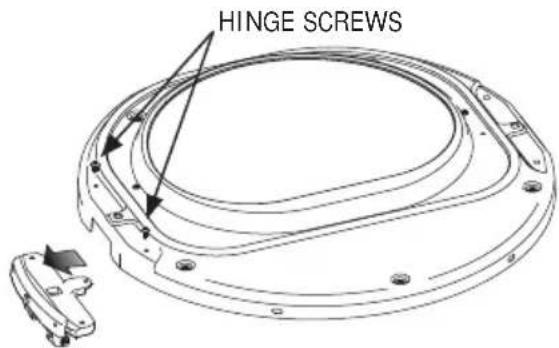

3 Turn the inner door assembly back over and locate the 2 pan head hinge screws. Remove and save the 2 screws and separate the hinge from inner door assembly.

HINGE SCREWS

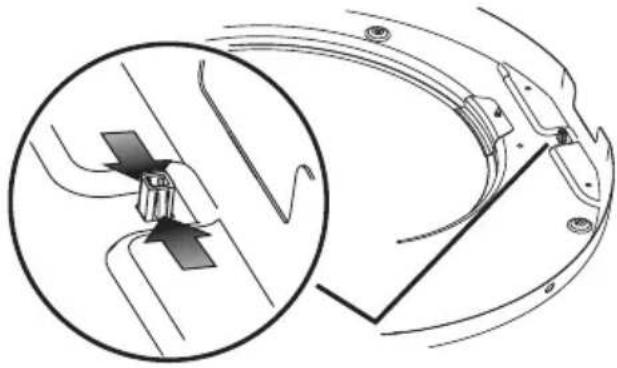

4 From the back side of the inner door, pinch the retaining tabs of the plastic square plug to release it. Save square plug for reinstallation.

Technical diagram showing a mechanical component with an inset close-up of a clamping mechanism (no text or symbols)

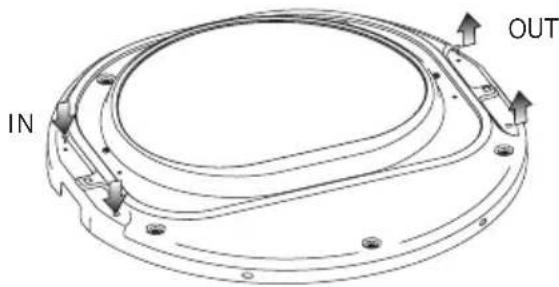

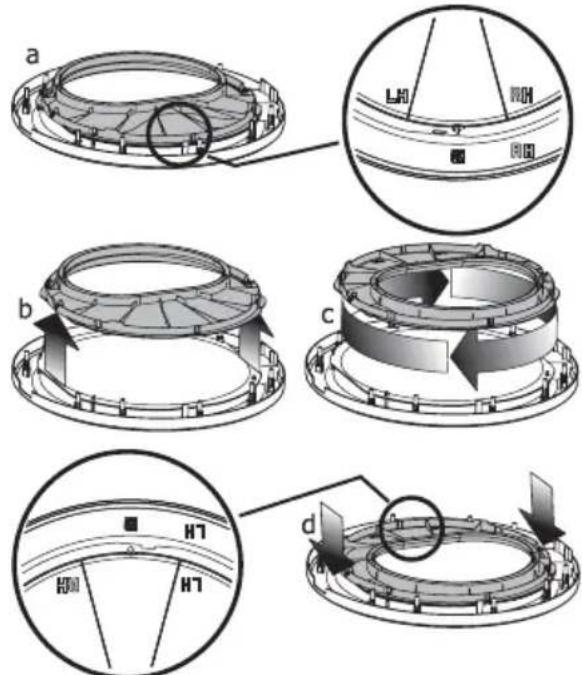

5 Carefully remove the 2 round plugs from the inner door and move them to the opposite holes and reinstall.

IN OUT

6 Rotate the hinge and move it to the opposite side of the inner door. Attach it with the 2 pan head screws removed previously. Reinstall plastic plug in the square hole next to the hinge.

Technical line drawing of a mechanical component with a magnified inset showing a screw (no text or symbols)

1 Lift the inner glass ring. Rotate it 180 degrees, reinstall on outer door, lining up indicators - "LH" for left-hand hinge or "RH" for right-hand hinge.

a b c d

2 Rest the opening of the inner door at a 90 degree angle on the supports for the hinge cutout cover. Pivot the inner door down onto the outer door.

Technical illustration of a mechanical device with open lid, showing internal components and assembly steps (no text or symbols)

3 Replace indented head screws (no. 1-5) removed earlier. Take care not to strip out the plastic holes.
4 Replace pan head screws (no. 6-7) removed earlier. Take care not to strip out the plastic holes.

no. 1-5 no. 6-7 1 2 6 5 7 4 3

5 Locate new metal strike supplied with dryer manuals. Grip new strike with pliers as shown below. Firmly insert the strike so it is oriented vertically.

Technical line drawing of a mechanical component with a magnified inset showing a tool interacting with a curved bracket (no text or symbols)

Reattaching the door

1 Holding the door in both hands, squarely insert the "T" post on the back of the hinge into the "T" slot on the front panel and lower it to align the mounting holes.

"T" POST ON DOOR HINGE "T" SLOT IN FRONT PANEL

2 While supporting the door, install the upper pan head screw first and then the lower one.

Technical diagram showing a screw assembly with labeled parts and an inset close-up of the screw detail

NOTE

Correctly installed hinge screws will press hinge flush to front panel. Any gap between hinge and front panel will cause misalignment of strike to latch.

3 Close the door and test operation of hinge, strike and latch.

Diagram of curved pipe sections with a directional arrow indicating flow or movement (no text or symbols)

ACCESSORI ES

MATCHING STORAGE PEDESTAL\*

Classic White Pedestal - P/N CFPWD15W Classic Silver Pedestal - P/N CFPWD15A

A storage pedestal accessory, specifically designed for this dryer may be used to elevate the dryer for ease of use. This pedestal will add about 15" (38 cm) to the height of your unit for a total height of 51.25" (130 cm).

* Other colors may be available. Contact the source where you purchased your dryer.

DRYER STACKING KIT

P/N STACKIT4X

Depending on the model you purchased, a kit for stacking this dryer on top of matching washer may have been included in the initial purchase of your dryer. If your model did not include a stacking kit or you desire another stacking kit, you may order one.

LP CONVERSION KIT

P/N PCK4200

Gas dryers intended for use in a location supplied with LP must use a conversion kit prior to installation.

MOBILE HOME INSTALLATION KIT

P/N 137067200

Installation in a mobile home requires the use of a MOBILE HOME INSTALLATION KIT.

DRYING RACK

P/N 137067300

Depending on the model you purchased, a drying rack may have been included in the initial purchase of your dryer. If your model did not include a drying rack or you desire another drying rack, you may order one.

UNIVERSAL APPLIANCE WRENCH

P/N 137019200

A UNIVERSAL APPLIANCE WRENCH is available to aid in dryer/washer/pedestal feet adjustment.

TOUCH UP PAINT PENS\*

Classic White Touch Up Pen - P/N 5304468812

Classic Silver Touch Up Pen - P/N 5304471228

* Other colors may be available. Contact the source where you purchased your dryer.

CAUTION

Failure to use accessories manufactured by (or approved by) the manufacturer could result in personal injury, property damage or damage to the dryer.

27.0° (68.5 cm²) 15.0° (28 cm²) 20.5° (87 cm²)

Line drawing of a grid-patterned metal rack or cage structure (no text or symbols)

Replacement parts:

If replacements parts are needed for your dryer, contact the source where you purchased your washer or refer to your Use and Care Guide for more information.

WARNING

ELECTRICAL SHOCK HAZARD

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

Tout à propos de

Installation

de votre Sécheuse

Silhouette illustration of various household appliances including washing machines, refrigerators, and a refrigerator (no text or symbols)

TABLE DES MATIÈRES

RI SQUE D'EXPLOSI ON

Technical line drawing of a mechanical component with internal structure and directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components (no text or symbols)

3" (7.6cm) 60 sq. in, (387.1cm²) 3" (7.6cm) 60 sq. In, (387.1cm²)

Porte de placard

DÉGAGEMENTS MINIMAUX - Centimètres (pouces)
	CÔTÉS ARRIÈRE DES SUS AVANT
Alcôve 0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a
Sous le comptoir	0" (0 cm) 0" (0 cm)* 0" (0 cm) n/a
Placard 0" (0 cm) 0" (0 cm)* 0" (0 cm) 1" (2.5 cm)

1" (2.54cm) 0" (0cm)

LEM REMARQUE

Three-step illustration showing hands using different pipe fittings to handle a basin (no text or symbols present)

INSTRUCTIONS D'INSTALLATION

Line drawing of a hand holding a tool interacting with a mechanical valve (no text or symbols)

Illustration of a hand connecting two pipe fittings to a valve (no text or symbols)

Diagram of a computer keyboard with a finger pressing a button labeled 'A', showing no text or symbols beyond the label.

IMPORTANT

Diagram showing a washing machine with two circular insets illustrating the components of the device (no text or symbols present)

Technical diagram of a device with labeled parts, showing a component with parts numbered 1 and 2, and an inset view of the circular housing.

Technical diagram of a circular mechanical component with numbered parts and measurement indicators

→ IMPORTANT

Diagram showing a car interior with structural details and a magnified inset of the handle mechanism (no text or symbols)

Technical diagram showing a mechanical component with an inset close-up of a clamping mechanism (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a screw (no text or symbols)

INVERSION DE LA PORTE

Technical illustration of a mechanical device with open lid, showing internal components and assembly steps (no text or symbols)

Line drawing of a tool interacting with a curved mechanical component, showing a magnified inset (no text or symbols)

Technical diagram showing a screw assembly with labeled parts and an inset close-up of the screw detail

Diagram of curved pipe sections with a directional arrow indicating flow or movement (no text or symbols)

REMARQUE

27.0" (68.5 cm) 15.0" (28 cm) 26.0" (67 cm)

Line drawing of a metal rack structure with grid pattern and support legs (no text or symbols)

Silhouette illustration of various household appliances including washing machines, refrigerators, and a refrigerator (no text or symbols)

ÍNDICE

Diagram of a vehicle interior showing airflow direction and component placement (no text or symbols)

Technical line drawing of two mechanical components (no text or symbols)

Three-step illustration showing hands using different pipe fittings to handle a water bottle, with no text or symbols present.

If you were able to install the "Y" connector directly to the COLD water supply, please skip to step 8.

Line drawing of a hand holding a tool interacting with a valve (no text or symbols)

Illustration of a hand connecting two pipe fittings to a valve (no text or symbols present)

Three electrical plug icons: three straight lines, one with three leads, and one open with a plug (no text or symbols)

Diagram of a device's internal components, showing a knob labeled 'A' and directional arrow (no text or symbols beyond label)

Diagram showing two views of a washing machine with arrows indicating direction (no text or symbols present)

Technical diagram of a device with labeled parts, showing a component with two numbered parts and an inset view.

Technical diagram of a circular mechanical component with numbered parts and measurement indicators

IMPORTANTE

Technical diagram showing a mechanical component with a magnified inset highlighting a joint detail (no text or symbols present)

Technical diagram showing a mechanical component with an inset close-up of a clamping mechanism (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a screw (no text or symbols)

no. 1-5 no. 6-7 1 2 6 5 7 4 3

Technical illustration of a mechanical device with open lid and internal components, showing assembly steps (no text or symbols)

Technical line drawing of a tool in use, showing a pliers and a bracket assembly (no text or symbols)

Diagram of curved pipe or duct with directional arrow indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and an inset image of a screw (screw).

NOTA

27.0" (68.5 cm) 15.0" (28 cm) 26.0" (67 cm)

Line drawing of a metal mesh structure with supports and a flat plate (no text or symbols)

Piezas de repuesto:
