10/12 cup filter coffee maker

Please read and keep these instructions

Getting the best from your new coffee maker...

WARNING: Hot water and steam

Safety first

Caution must be used when handling hot water, coffee or steam.

Run water through your machine before first use

It is important to run water through your coffee maker in order to rinse the machine. You can also run water through to warm your coffee machine.

Descale as appropriate for the hardness of the water in your area

It is important to descale as the performance of your coffee maker may be impaired by limescale and other impurities in the water supply.

Important safety instructions

The use of any electrical appliance requires the following common sense safety rules.

Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

WARNING: Danger to the person!

IMPORTANT: Damage to the appliance!

In addition we offer the following safety advice.

Location

• Remove all the packaging and retain for future reference.
• Ensure the coffee maker is used on a firm, flat surface.
• Do not use the coffee maker outdoors or in a bathroom.

• Do not place the coffee maker on a highly polished wooden surface as damage may occur to the surface.

• Do not place the coffee maker on or near hot surfaces such as a hot plate, radiant rings or near a naked flame.
  WARNING: Do not place the coffee maker onto a metal tray or metal surface whilst in use.

Mains lead

• Do not let the mains lead hang over the edge of the worktop where a child could reach it.
• Do not let the lead run across an open space, e.g. between a low socket and table.
• Do not let the lead run across a cooker or other hot area which might damage the cable.
• The mains lead should reach from the socket to the base unit without straining the connections.
  If the supply cord is damaged, it must be replaced by the manufacturer, it's service agent, or similarly qualified persons in order to avoid a hazard.

Other safety considerations

• Disconnect the coffee maker from the mains supply when filling, cleaning or not in use.
• When unplugging, turn any control to 'off', then remove the plug from the wall socket.
• Keep the outside of the coffee maker area clean and dry at all times.
• Do not touch hot surfaces. Always use handles or knobs on the coffee maker.
• Do not immerse the coffee maker itself in water and always ensure the electrical connections are kept dry.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Ring the helpline number for advice on examination and repair.

• The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury.

• Do not use the coffee maker for anything other than its intended purpose.

Product safety

• Never use warm or hot water to fill the water reservoir.
• Do not overfill the water reservoir.

Personal safety

Ensure the lid of the glass jug is securely in place before pouring.
Take care to pour hot coffee slowly and carefully without tipping the glass jug too fast.
- Do not fill above the capacity mark of the water level gauge marked on the jug.
- Do not use the glass jug in a microwave.
- Milk should not be reheated, only heat it when required.
- When heating milk, please use the stainless steel jug provided.
- Do not fill the milk jug above the MAX mark.
- Do not touch metal parts until the unit has cooled.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
WARNING: Do not open the lid while the coffee is brewing.

Children

Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.
Children should be supervised to ensure that they do not play with the appliance.

Treating scalds

• Run cold water over the affected area immediately. Do not stop to remove clothing, get medical help quickly.

Choice of coffee

Choose a finely ground espresso coffee to use with this machine.

Note: Avoid blends that are very powdery. When the coffee is too finely ground it may block the filter.

Electrical requirements

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).

WARNING: This appliance must be earthed.

UK only

If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

WARNING: The plug removed from the mains lead, if severed, must be destroyed as a plug with a bared flexible cord is hazardous if engaged into a live socket outlet.

Where used, should the fuse in the 13 amp plug require changing, a 13 amp BS1362 fuse must be fitted.

NOTE: Base will vary between models

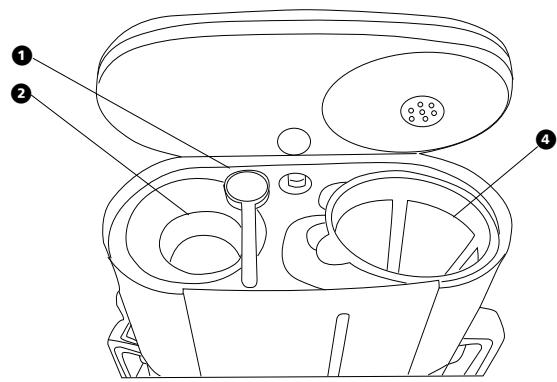

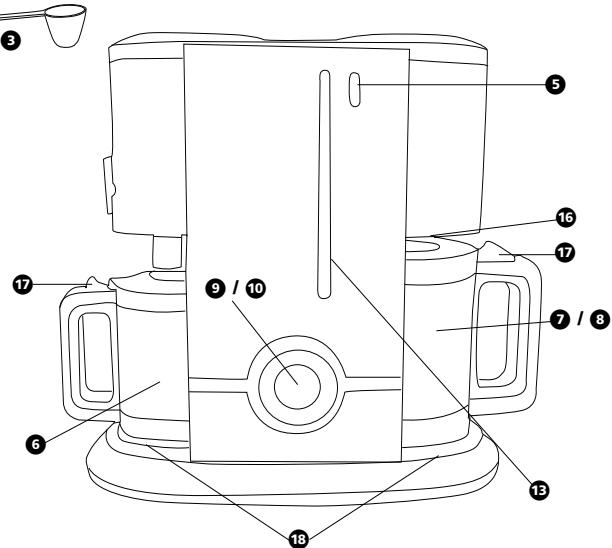

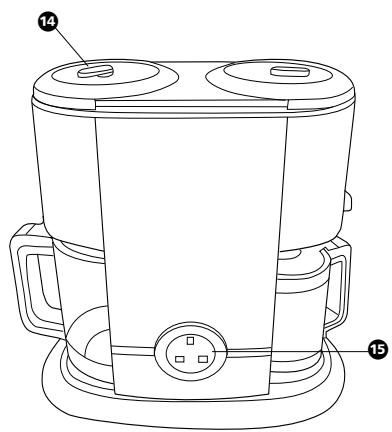

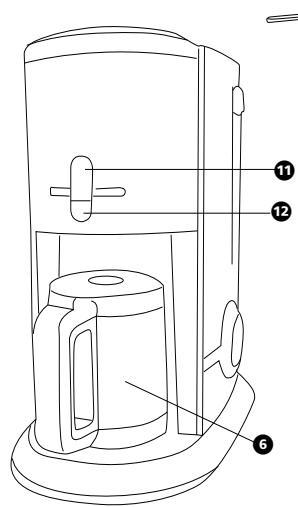

Features

1 Measuring spoon storage area
Water re-fill point
3 Measuring spoon
Filter holder and permanent mesh filter
Lid opening push button
6 Milk frother steel jug
12/15 cups glass coffee jug
8/10 cups steel thermal coffee jug

9 Manual interface (see overleaf)
Digital interface (see overleaf)
Brother control
Milk hot plate switch
Illuminated water level indicator
14 Coffee strength control
Plug storage
16 Anti drip
17 Lid release
Hot plates (on certain models)

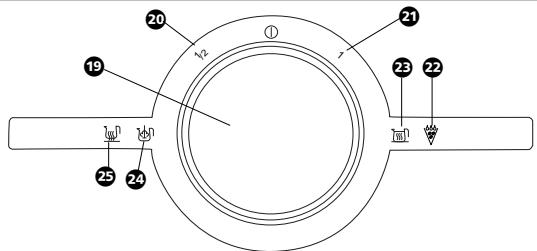

Manual interface version
19 Function selector
20 1/2 carafe indicator
1 carafe indicator

2 Power on indicator
23 Auto keep warm indicator
24 Milk frother device on indicator
Milk hot plate on indicator

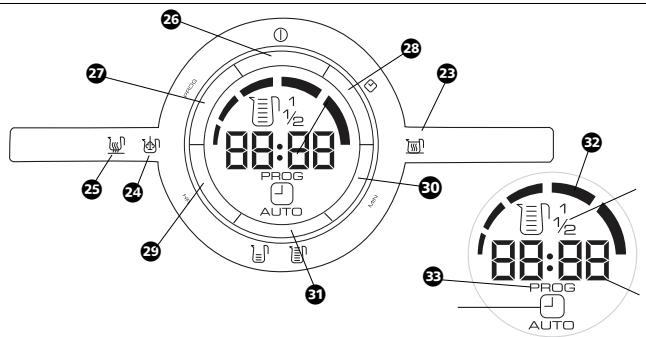

Digital interface version
Auto keep warm indicator
24 Milk frother device on indicator
25 Milk hot plate on indicator
Power on/off selection push button
Programme selection push button
28 Auto function push button

29 Hour function push button
Minute function push button
Cup selector push button
2 Quality and brew indicator
33 Programming mode indicator
Automatic timer function indicator
Cup selection indicator
24 hour clock

Milk hot plate on pilot light
Milk frother device on pilot light
1/2 carafe light
1 carafe light auto
Milk frother device off pilot light
Auto keep warm light
① Power on/off

OPERATING THE APPLIANCE

Before use

Before using your coffee maker for the first time or if you have not used it for some time, rinse the machine by running water through. Follow the procedure for making coffee, without coffee in the filter holder.

The product that you have purchased is available in four different versions:

• Manual version - Glass carafe
• Manual version - Thermal carafe
  24 hour automatic timer version - Glass carafe
  24 hour automatic timer version - Thermal carafe

For the complete understanding of how to use your machine please refer to the specific section related to your version.

Please note not all variants are available in all countries, please contact your retailer for more information.

MANUAL INTERFACE VERSIONS 9

Making coffee

1 Press the push button to open the hinged lid. The lid will automatically rise.
2 Using a jug, fill the water reservoir with the required amount of water using the level indicator as a guide. Both the jug and water level indicator are marked in cups A.
3 Spoon 3 the required amount of ground filter coffee into the mesh filter 4 spreading evenly. We suggest one level measuring spoon for every cup. Ensure the filter is sitting properly in the filter holder B.
4 Close the lid. Ensure the lid is closed and latched properly C, otherwise the machine will not function correctly.

5 Slide the jug 7/8 into the coffee maker ensuring it sits correctly on the hot plate D. The jug lid must be in place during the brewing process; otherwise the non drip valve will not open, causing the filter to flood.

Thermal Carafe Variant

NOTE:

Thermal carafe versions have no hot plate. Please ensure the jug sits correctly on the base recess.

• Ensure the jug lid is fully closed by turning the lid clockwise, this ensures the maximum temperature is maintained in the jug. To ensure the coffee is kept as warm as possible we advise you rinse your thermal carafe in hot water before use.

• Please note the jug lid must be in place during the brewing process; otherwise the non-drip valve will not open, causing the filter to flood.

6 Select the required strength of coffee using the strength selector on the lid E.

7 Plug the filter coffee maker in at the wall socket and switch on. Rotate the dial to select one of the two on positions available: 1/2 carafe or a full carafe, depending on the number of cups required. Refer to 'Cup selection function' page 10 for further information.

8 The cup selection indicator and the power on indicator 2 will light up. The hot water will start to flow through the coffee grounds and into the jug as coffee for you to enjoy.

Glass Carafe Variant

When the brewing process is complete the product will automatically switch to keep warm; the auto keep warm indicator will light up.

The automatic keep warm function will keep the coffee warm in the carafe until the product is switched off.

For safety reasons the coffee maker will automatically switch off after two hours.

The anti-drip valve 16 will prevent any remaining coffee dripping onto the hot plate during serving. Ensure that the jug is replaced on the hot plate after serving.

We suggest consuming your coffee within two hours, after this time we suggest brewing another jug of fresh coffee.

WARNING: The coffee maker and hot plates are hot and remain hot for some time after switching off.

NOTE:

• Remember to turn off the machine when you have finished.

• Allow the unit to cool.

• Remove the permanent filter and empty the used coffee grounds. Wash the filter immediately and dry thoroughly.

Thermal Carafe Variants

• When the brewing process is complete the product remains on, we recommend you switch off your coffee maker as soon as brewing is complete.

• The thermal carafe will keep the coffee warm in the jug for up to 7/8 four hours.

The anti drip valve will prevent any remaining coffee dripping onto the base recess during serving.

We suggest consuming your coffee within two hours, after this time we suggest brewing another jug of fresh coffee.

WARNING: The coffee maker and hot plates are hot and remain hot for some time after switching off.

NOTE:

• Remember to turn off the machine when you have finished.
• Allow the unit to cool.
• Remove the permanent filter and empty the used coffee grounds. Wash the filter immediately and dry thoroughly.

DIGITAL INTERFACE VERSIONS 10

Set the clock

• When the machine is plugged in, the display will flash 12:00 dimly.
• To set the time press the hour button 2 and minute buttons 30 to reach the desired time.

NOTE:

The clock is a 24 hour clock.

The clock will be reset, each time the product is unplugged at the wall.

Making coffee

1 Press the push button to open the hinged lid. The lid will automatically rise 6.

2 Using the jug, fill the water reservoir with the required amount of water using the level indicator as a guide. Both the jug and water level indicator are marked in cups H.

3 Spoon 3 the required amount of ground filter coffee into the mesh filter 4 spreading evenly. We suggest one level measuring spoon for every cup. Ensure the filter is sitting properly in the filter holder 1.

4 Close the lid. Ensure the lid is closed and latched properly, otherwise the machine will not function correctly.

5 Slide the jug 7/8 into the coffee maker ensuring it sits correctly on the hot plate K. The jug lid must be in place during the brewing process; otherwise the non drip valve will not open, causing the filter to flood.

Thermal Carafe Variant

NOTE:

Thermal carafe versions have no hot plate. Please ensure the jug sits correctly on the base recess.

• Ensure the jug lid is fully closed by turning the lid clockwise, this ensures the maximum temperature is maintained in the jug. To ensure the coffee is kept as warm as possible we advise you rinse your thermal carafe in hot water before use.

• Please note the jug lid must be in place during the brewing process; otherwise the non-drip valve will not open, causing the filter to flood.
  6 Select the required strength of coffee using the strength selector on the lid.
  7 Press the power on/off selection button 3. The display lights up brightly and the cup selection indicator will flash showing the previous selection.

NOTE:

If the machine has been unplugged from the wall socket since the last operation the previous selection will be cleared, the default setting will be applied (1 full carafe).

8 Press the cup selection button to select one of the available options, 1/2 carafe or full carafe depending on the number of cups required. Refer to 'Cup selection function' page 10 for further information. The selection indicator will stop flashing, if no buttons are pressed for 2 seconds the machine will begin the brewing process.

9 The brewing indicator 2 will start to illuminate from left to right indicating that brewing is in progress, hot water will start to flow through the coffee grounds and into the jug as coffee 3 .

Glass Carafe Variant

When the brewing process is complete the product will automatically switch to keep warm; the brewing indicator will stop illuminating from left to right. All segments will remain solidly illuminated indicating the machine is in keep warm state. The indicator has now changed from a brewing indicator to a quality indicator. Refer to 'Coffee Quality indicator' page 11 for further information.

The automatic keep warm 23 function will keep the coffee warm in the carafe until the product is switched off.

For safety reasons the coffee maker will automatically switch off after two hours.

The anti-drip valve 16 will prevent any remaining coffee dripping onto the hot plate during serving. Ensure that the jug is replaced on the hot plate after serving.

We suggest consuming your coffee within two hours, after this time we suggest brewing another jug of fresh coffee.

WARNING: The coffee maker and hot plates are hot and remain hot for some time after switching off.

NOTE:

• Remember to turn off the machine when you have finished.

• Allow the unit to cool.

• Remove the permanent filter and empty the used coffee grounds. Wash the filter immediately and dry thoroughly.

Thermal Carafe Variant

When the brewing process is complete the product remains on, the brewing indicator will stop illuminating from left to right, all segments will remain solidly illuminated, the indicator has now changed from a brewing indicator to a quality indicator. Refer to 'Coffee Quality indicator' page 11 for further information.

If the coffee is to be consumed immediately we recommend switching off your coffee maker as soon as brewing is complete.

NOTE:

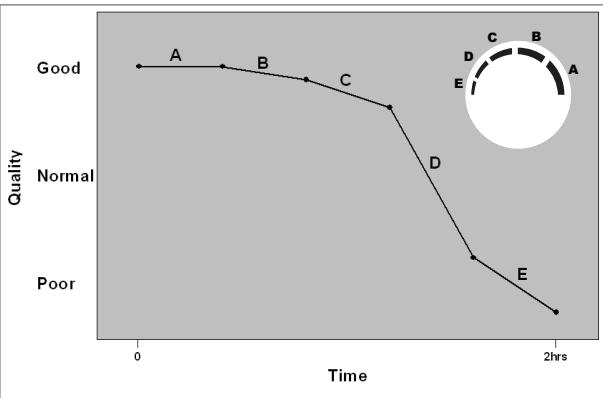

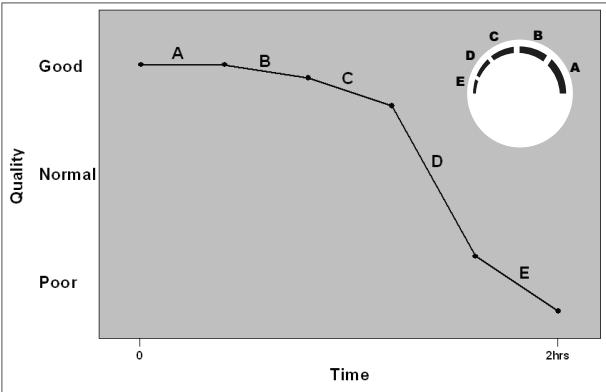

If you switch off your coffee maker the coffee quality indicator will turn off and reset.

The thermal carafe will keep the coffee warm in the jug for up to four hours.

For safety reasons the coffee maker will automatically switch off after two hours.

The anti drip valve will prevent any remaining coffee dripping onto the base recess during serving.

We suggest consuming your coffee within two hours, after this time we suggest brewing another jug of fresh coffee.

WARNING: The coffee maker and hot plates are hot and remain hot for some time after switching off.

NOTE:

• Remember to turn off the machine when you have finished.
• Allow the unit to cool.
• Remove the permanent filter and empty the used coffee grounds. Wash the filter immediately and thoroughly.

Set the automatic timer function

NOTE:

The timer function can be set when the coffee maker is brewing or when it is in standby.

1 Press the programme button. The display will change to show the previous set time and cup selection flashing. If no previous setting has been made or the machine has been unplugged from the socket since the last setting the default setting will be shown; 12:00 and full carafe.
2 Select the desired number of cups that want to be brewed, 1/2 or full carafe (see cup selection function on page 10). The cup selector indicator will stop flashing.
3 Press the hour 2 and minute 30 buttons to set the desired time. The start time will stop flashing.

NOTE:

The programming mode indicator continues to flash to show the display is still in programming mode.

4 If the programme button 7 is pressed again or if no buttons are pressed within 5 seconds the cup selection setting and the start time are memorised.
5 To activate the automatic timer function press auto button 28.
- The display will change to show the programmed time and cup selection setting for 5 seconds. The display will then change to show the time,

the automatic timer function indicator will illuminate to show the automatic timer function is set.

• With the automatic function activated the coffee maker will turn on at the desired time and start to brew the coffee.

NOTE:

If the auto button is pressed during the brewing process the machine will switch off and the automatic timer function will be activated.

If setting the automatic timer function during the brewing process, wait until the process is complete before pressing the auto button.

6 Press the auto button again to cancel the automatic function, the timer function indicator will disappear. The machine will keep in the memory the cup selection setting and the start time until it is unplugged from the mains socket.
7 To change the start time and the number of cups repeat steps 1-5.

WARNING: Remember to fill the water tank with water and the filter with coffee before activating the auto function.

NOTE:

The clock is a 24 hour clock.

If no buttons are pressed, the display will revert to the time display within 5 seconds.

Frothing milk

It is advised to start heating your milk ready for frothing when you start making the coffee. This helps to ensure the milk reaches its optimum frothing temperature.

1 Fill the stainless steel jug ⑥ with the required amount of milk. Do not exceed the maximum level.
2 Place the jug on the hot plate N and push the frother hot plate ON/OFF switch to the 'ON' 0 position, the hot plate indicator will light up.

3 Once the coffee is brewed (and the auto keep warm indicator lights up) the milk is ready to froth.
4 Engage the frother system by turning the frother control lever to the right, the motor will start automatically and the milk frother device on indicator will illuminate 24.

Frothing should take between 30-60 seconds.

NOTE:

Frothing time can vary depending on the type of milk used and its starting temperature. We recommend to use semi skimmed milk from the fridge.

5 Disengage the frother system from the jug by turning the frother control lever to the left ① ①, the motor will stop automatically. Push and release the milk hot plate switch to turn off the hot plate ②.

WARNING: Take care the milk will be very hot.

Remove the milk jug 6 from the hot plate and press the lid release button 7 to disengage the lid. The lid assembly can be removed for easy pouring and spooning off the milk.

NOTE:

The lid can be turned upside down and rest on the work surface. The inner lid is shaped to collect any dripping milk and froth for minimal mess.

Pour the coffee into the cups and then gently pour or preferably spoon the milk onto the coffee.

WARNING: The stainless steel jug and the hotplate will remain hot for sometime after switching the machine off.

NOTE:

The milk frother jug and lid can be disassembled for easy cleaning.

It is recommended that you disassemble and clean the milk frother jug and its components immediately after use, as dried milk can be difficult to remove.

NOTE:

All milk jug and coffee jug components are dishwasher safe for easy cleaning.

Cup selection function

1 This machine has a special selector that maintains the quality of coffee brewed in relation to the number of cups selected.

There are two options available:

1/2 carafe

(1-6 cups - Glass jug)

(1-4 cups - Thermal jug)

1 carafe

(7-12 cups - Glass jug)

(5-8 cups - Thermal jug)

2 The selection needs to be set in relation to the amount of water in the water tank and the amount of coffee powder in the filter.
3 The incorrect selection of this function will not affect the functionality of the machine however the quality and taste of the coffee brewed will be affected.
4 If you find the strength selector does not provide a weak or strong enough cup of coffee to suit your taste, the cup selection function can be used in conjunction to achieve a stronger or weaker cup of coffee.
- The table below shows the settings to use in relation to the volume of water in the tank to help achieve a stronger or weaker coffee. Feel free to experiment with different settings until you achieve the desired strength of coffee to suit your own personal taste.

	1-6	7-12
	1-4	5-8
1/2	Standard	Stronger
1	Weaker	Standard

Coffee quality indicator

The coffee quality indicator will show the quality of the coffee in the carafe in relation to the time since brewing was completed. Quality of the coffee is a personal choice. The quality indicator gives an indication of the quality and taste of coffee after the brewing process is complete.

It is not absolute and can differ due to personal taste, or type of coffee used.

The graph shown below gives an indication of the relation between each segment of the display in relation to both quality and time.

RECIPES

Cappuccino

1/3 espresso

1/3 hot milk

1/3 hot frothed milk

Chocolate powder for sprinkling

1 Prepare coffee as per 'making a coffee' instructions (Page 5, 6 or 7).
2 Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 7 minutes to reach the appropriate temperature.
3 Froth milk by lifting the milk jug up to the milk frothing blade ensuring that the blade is just under the surface of the milk and press the milk frothing button. The milk will take approx. 30 seconds to froth.
Pour the coffee in first and then the hot milk into a cappuccino cup, spoon over frothed milk.
5 Sprinkle with chocolate powder to serve.

Amaretto Coffee

250ml hot strong coffee

2 tablespoons of double or whipped cream

2 shots of Amaretto

Sugar to taste

1 Stir the coffee and alcohol together either with 2 tablespoons of double-cream, or top with a dollop of whipped cream.
2 Sprinkle with grated chocolate and serve.

Cafe Latte

1/2 espresso
1/2 hot frothed milk
1 Prepare coffee as per 'making a coffee' instructions (5, 6 or 7).

2 Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 7 minutes to reach the appropriate temperature.
3 Froth milk by lifting the milk jug up to the milk frothing blade ensuring that the blade is just under the surface of the milk and press the milk frothing button. The milk will take approx. 30-60 seconds to froth.
4 Pour the coffee into a tall glass and top with the frothed milk.

Moccacino

1/3 espresso
1/3 hot frothed milk
1/3 hot chocolate

1 Prepare coffee as per 'making a coffee' instructions (5, 6 or 7).
2 Fill the stainless steel milk jug with the required amount of milk, place on the hotplate and switch on. The milk will take approx. 7 minutes to reach the appropriate temperature.
3 Froth milk by lifting the milk jug up to the milk frothing blade ensuring that the blade is just under the surface of the milk and press the milk frothing button. The milk will take approx. 30 seconds to froth.
4 Prepare the hot chocolate according to the manufacturer's instructions.
5 Pour the coffee, hot milk and hot chocolate into a tall glass and serve.

Irish Coffee

Makes 2 servings

40ml of double cream

2 tsp sugar

4 shot measurements of Irish whisky

350ml hot strong coffee

1 Whip double cream until thick then chill.
2 Warm 2 Irish coffee glasses with hot water and place in each a teaspoon of sugar and 2 shots of Irish whisky in glass.
3 Divide coffee among the glasses.
4 Slowly dribble the chilled cream over the back of the spoon onto the top of the coffee.
5 Do not stir.

CLEANING AND MAINTENANCE

Refilling

1 Switch off the coffee maker, and allow 5 minutes to cool.
2 Lift the lid and refill with cold water.

Dscaling

• If you live in a harder water area, we recommend that your coffee maker is descaled at regular intervals, eg. every 2 - 3 months. In areas of moderately hard water you should descale every 6 months.
  If the water filters through more slowly than usual, it is a sign that descending is necessary.
  We recommend you to use proprietary liquid descaler which is especially made for coffee makers and plastic kettles. Follow the instructions on the bottle or sachet, and then operate the coffee maker with just water 3 times before making coffee.
• Do not use kettle descaler unless the packet specifically states it is suitable for coffee makers.

NOTE:

The permanent mesh filter should not be in place during descaling.

Cleaning care

1 Unplug the coffee maker, and allow to cool.
2 Do not immerse the coffee maker in liquid.
3 Rinse the water tank occasionally with cold water. Do not use a cloth as any residue or lint left behind may clog the coffee maker.
4 Remove the permanent filter 4 and filter holder discard the used coffee and wash with warm soapy water. Extended soaking is recommended at the same time as descending. Rinse and dry thoroughly.
5 Wash the coffee jug and milk jug including all frothing components, in warm soapy water. Rinse and dry all parts thoroughly.

NOTE:

Coffee jug, milk jug and frother parts are all dishwasher safe.

6 Wipe all external surfaces with a damp cloth and dry thoroughly.
- Care must be taken to ensure the non drip valve situated on the bottom of the filter holder is not damaged during cleaning.
- Never use harsh or abrasive cleaners.

Helpline

If you have any difficulty with your appliance, do not hesitate to call. We are more likely to be able to help than the store from where you bought it.

Please have the following information ready to enable our staff to deal with your enquiry quickly:

Name of the product.
- Model number as shown on the underside of the appliance.
- Serial number as shown on underside of the appliance.

YOUR TWO YEAR GUARANTEE

It is important to retain the retailers receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 24 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase

Subject to the exclusions set out below (see Exclusions) the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt.If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 2 year guarantee the appliance must have been used according to the manufacturers instructions. For example coffee makers should have been regularly descaled.

EXCLUSIONS

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturers recommendations or where the fault

has been caused by power surges or damage caused in transit.

2 The appliance has been used on a voltage supply other than that stamped on the products.
3 Repairs have been attempted by persons other than our service staff (or authorised dealer).
4 Where the appliance has been used for hire purposes or non domestic use.
5 Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.
6 Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee.
- This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

AUSTRALIAN WARRANTY

This appliance is guaranteed for 2 years against faulty material, components and workmanship.

This warranty is in addition and does not affect your statutory rights.

Proof of purchase must be produced for any warranty benefit.

In the unlikely event of any appliance proving to be faulty, securely pack and return the item to the place of purchase accompanied by the original receipt or invoice.

NOT COVERED BY THIS WARRANTY (Australian only)

If the appliance has not been used in accordance with the manufacturers' recommendations or Instructions.
If the fault is deemed to be caused by abuse, misuse, neglect, modifications or in proper use and or care Eg: Kettles: Excessive build up of scale.

Toasters: Excessive build up of crumbs or foreign matter etc.

• Connection to incorrect voltage to that stamped on the product
• Unauthorised repairs
• Appliance used other than for domestic purposes.
• Excluding bags, filters, glass, carafes, and cutting blades.
• Freight and insurance costs.

If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original receipt or invoice to indicate the date of original purchase.

Morphy Richards's policy is to continually improve quality design and product quality. The company therefore reserves the right to change any specifications or to carry out modifications as deemed worthy at any time.

The Australian supplier ASKO Appliances reserves the right to repair, modify, exchange or replace the faulty appliance with the same or similar model or product of equivalent value.

VERSIONS INTERFACE MANUELLE 9

Pour faire du café

	1-6	7-12
	1-4	5-8
1/2	Normal	Fort
1	Doux	Normal

VERSIONS CON INTERFAZ DIGITAL 10

Ajuste el reloj

VERSIE MET DIGITALE INTERFACE 10

De klok instellen

INTERFACCIA DIGITALE

ANVENDELS AF APPARATET

Før ibrugtagning

WARNING: Fara for person!

VIKTIGT: Fara for hushallsapparaten!

Dessutom erbjuder vi foljande sakerhetsråd.

Placering

MANUELL DISPLAY VERSION ⑨

Göra kaffe

DIGITAL DISPLAY VERSION

Stalla klockan

WERSJE Z PULPITEM ANALOGOWYM

Parzenie kawy

WERSJE Z PULPITEM CYFROWYM ⑩

Ustawianie zegara

WOJA DWULETNIA GWARANCJA

30 KhoIIka yctaHOBKn 3NaYeHIN MHHYT
1 KhoNka BbIbOpa KOINcHCTBa YauKe
2 INHdkaTopKaueCTBaN Bapkn
VHINDKaTOppeXIMApOprpAMMPOBaHIN
VHДИКATOP aBTOMaTNoeCKOrToTaimepa
3 INHdNkAToP BbIbopa YaWeK
33 YacbI 24-ycaBOrO fOpMaTa

KoHTpObHnA lamna BkIIOUeHnN nnatfOpMbI dInn noDorpeBa MOnoka

KoHTpObnhaJ lamna BbIKIoueHnB BCNEHNBATEJMOKa

KoHTpOJIbHaJ lamMa BkJIuOeHnB BCNEHNBaTeIa MOnIoka

IHHdNkatop aBtomat. noDepKaHnA TEmpepaTpybl

JIamna noJIOBHHHOEMKOCTHI

① Bbikluyatentb nItaHnI

JAMNA nonHOM EMKCTN ABTO

PABOTA C PIPNBOPOM

Ipeed npmmehenem

Ipeep nepBbIM nCnOlb3OBaHnEM KOFeBApKn IJIe ECnn BBy He NOL3OBaINcB eY TceHeN EONrTO BrPEMeHN, npOMoTHe KOFeBApKy npOTOnHoi BODoN 3NuHTpr. BInONHnTe npOeDpyP npINOToBnEHHo KoFe, He 3aKNaDbBaR KaOpE B DePcxTaTeNb dNtBpTa.

Данhoeизденип dednaeraetcв chebipex pa3nHybIX Bepcnix:

• Pунай Версан - Стекл�性ь EMKOCtB
  PyuHnA BepCnA -TePMoCTaTtueCeKaA eMKoCTb
• ABOTMATMHECKA BERCNA C TaIMePOM Ha 24 Haca -CTeKJIaHHaE EMKOCTb
• AYOMATUNeCKaBcPcNcTaNMePOM Ha 24 yaca - TepMOCTaUNeCKa EMKOCTb

TObI NOHOCbO yrCHNTb nopKoN oNb3OBaHn npi6bOpom, obpaTntecb K pa3dely, nocBraUeHHOMy BaAeI Bercnn.

6ObaHTe BnHmAHne, YTO B pa3hBIX cTpaHAX MOrY tpeJanaRaTbC H E BCE BapnaHTb, BlyaRCHNTe DeTaJIy y po3HHUHO rpoDABa.

BEPCN C PYHbIM YNPABJIENHEM

PnrotoBJIeHne KoΦe

1 Haxmnte KhoNky 5, YTo6bl OTKpbItb WapHnPHyO KpbIuKy. KpbIuKa OTKpoeTcA abTomaTuYeckn.
2 C NOMOJIbIO KUByIMHa 3aJIeIte 9 EMKOCtB IAN BOdI U Heo6XoINMOe KOINJECTBO BOdI, OPIENHTyRc Bo INHJIKATOPY yOBH8. MTKN Ha YauSe H INHJIKATOpE yOBH8 BOdI OOb3HauaOT COOTBETCBYIOuEE KOINJECTBO Qauek A.
3 IonoKnte 1noKoHnyKHOe KOJIueCTBO MONOTOr KOFe DnI ΦInbTp-KoFepaOk B CeTHaTbI ΦInbTp 4, pacnpedEnB erO pOBHbIM CLOem. PekomEnHyemaR

D03UPOBka:OJHa MePnaI IOKKa Ha yaAiky. Y6eIINTeCb, YTO fNtBtp npabInbHO NOMueH B depKatEnb DnI fNtBtpa B.

4 3akpoIte KpbIshky. Y6eIITecb, YTO KpbIsha 3akpbIta n npabInbHO 3a6NoKIpOBaHa C, INaHe MaunHna He 6dET npabInbHo pa6OtaTb.
5 Iomecnte pe3epByap 7/9 B KofeBaPky, y6bEnBImCb B TOM, YTO OH npaBnIbHO yCTaHOBJIe H NaatFopme dJr NODorpeBa D. B npOceCe npiroTOBHeHn KoFe KpbIshKa DOJXHa OCTaBaTcRa Ha CBOEm MecTe, INaHe rePMeTnHbI KNanAHe OE TKPOETCA, YTO npINBeDeT K 3aJIbBaHIno FmIbTaPa.
BapnaHT c TepMOCTaTHeCKoemKOCTbIO

ПРИМЕЧАНЕ:

B TepMoCTaTnuecknx BepCnX OTCyTCTByeT PnATfOpMa DnA NOOrpeBa. Y6EiNTeCb, YTO pe3epByapnpaBnIbHO pa3MeuH B BbIeMKe OCHOBAHnR.

Y6eDntEcB, YTO KpbIiKa 3 NIOTHO 3aKpbItA, NOBepHyB ee npOTNB 1aC0BOI CTpeKNH, 3A CHT ETO RIOdEPRXINBAETCR MAcCMmaJIbHaR TemepaTpa B pe3epByape.ДЯ NIOdEprKaHnMAkCMmaJIbHOI TemepaTypbI KoPe peKOMeHNyTeCR Nepei NCIOJIb3OBaHMe ONIOLOCHyTb TepMOCTATNHeCKYU EMKOCTb rOpJeu BOIoN.
B npocece npiroTOBlenn Kope KpbIka pe3epByapa DOnJkHa OCTaBatcH Ha CBOEM MeCTe, INauerePepMeTtNkI KLnAn He OTKPOeTc, TTo pInbEeTeK 3aINBaHIO fNbTpA.
6 BbIepeHte Heo6xoJIMMyo KpEnocTb KoPe C NOMOJIbU peYIaTOpa KpEnocTn Ha KpbIuKe 3.
7 BcTaBbTe BnIky KofoeBaPkn B po3eTKy IN BkIIIOHITe np6Op. IOBepHnTE pyKy 19 DnIa BblbOpa OndHO nDByX BO3MOKhbIX nOLOXKeHn: IIOBOINHHA EMKoCTb INI NOnHAR EMKOCTb, B 3aBNCMOCtN OT HxJHOr YoNCna qweK. IpoPo6Hy IOHfOpMaioHc M.ΦYHKUa BblbOpa KOnueCTBa qweK'Ha cTp.146.
8 3aropTcHnDnKaTOp BbIbopa YaWeK INDnKaTOp nITAHN

IopraaBoJa, npocauHBaCb CKB03b MONOTbI KOFe, NOCTyNaET B EMKoCTb yXe B VnDE roTOBOrO KoFe.

BapnaHT co cTeKJIaHHoEmKOCTbIO

По завершениnpoцeccаВарк npibop abTomatuvesckn pepeknouTcB pekm noДержанн TeINa;3arOpntc nHdNKATOP noDderjxanH TeNna.

ФИКИАВТOMATиЧЕСКО ПОДЕРДКИН TemEPAPTуbl COXPAHERT KOpe TENBIM 2 БЕМСКТУ, NOKA ппбор BKЛЮЧЕ.

B CEJAX 6e3oNaChOCTN KoPeBepKa aBTOMaTnHeckN BbIKIOHHTcYepe3 dBa Yaca.

IepMeTnHbI KJIanah He No3BOJNT OCTaTKam KoPe Ionoactb Ha NoDorpeBaOuOyU NpAtfOpMy BO BpemcBpOBKn. Nocne Toro, Kak KoPe pa3nT no qawkam, NoCTabBe emKoCTb Ha NpAtfOpMpy dIe NoDorpeBa.

PekomeHdyeTcBblntb npriTOBToHbHbKoFe B TeueHne DByx YAcOB, a3aTeM BApNTb yXe HOByIO NOpCIO KoFe.

PENEPYIPPEXDEHNE:Koepbapka I NpattfopmbI Jnla NOorpeBa RopyHMeN OCTaOTcR opryHmE eHe KekOTOpE Bpem NoCle BByKIOHcHNA.

ПРИМЕЧАНЕ:

He 3a6yIbTe BvIKHOnHT np6Op nocne OKOHaHnBapKn.
-ДаиTe npnbopy ocTbIb.
- CHMNTe NocTOrHHbIyΦnIbTp n ydaJInte n3 Hero KoFeiHyU rIyU. Cpa3y Xe bIMyoTe ΦnIbTp n xopoIo erO BbCyuNTe.
BapnantbI c tepmoctatnueckOn eMKoCTbIO
Iocne3aBepueHnBapKn npbOpOCTaETCBKJIUeHbIM,peKOMEHyeTcBAkJIQUHTbKoPeBapKy,KaK TOnbKO npiroTOBHeNE KoPe 3aBepueHO.
TeMPOCTATUNeCKAe EMKoCTb COxpaHNT KcOe TeNJIbIM B TceHeHne 7/8 YeTbIpex YacOB.

TepMeTNuHbI KJIanaH He NIO3BOJNT OCTaTKAM KOpe nOaNCTb Ha BbIeMKY BO OCHOBAHN BO BpEM cepBnOpBKN.
- PekomeHdyETcBblNTb nproTOBHeHHbKOpe B TeueHne DByx YacOB, a 3aTEM BaPITb yKe HObyo nopCIO KOpe.
I P E D Y U P E X K E H N E: K o f e b a p k a n p l a t f o p m b I d r I n o d o r p e B a r o p a y n e i o c t a h o t c a r o p r u m i e e s h e k o t o p oe B p e m a n o c l e B b i k l i o u c h e n.

ПОНМЕЧАНЕ:

He 3a6yIbTe BvIKHOnuTb np6Op nOcNe OKOHaHnBapKn.
JaTe np60pyocTbITb.
- CHINMTE NOCTOHHBly φnIbTp n YdAJIte n3 Hero KoFeHnyu ryu. Cpa3y Xe BbMOrTe φnIbTp n XopoIo oero BbcCyUHtne.

BEPCN C UNΦPOBBIM YNPABJIENHEM 10

YctaHOBka yacOB

PekomeHdyetc Bblntb npiroTOBHeHHkoFeBteHne

TePMOCTaTHeCKAЯ EMKOCTb COxPAHNT KOFte TENTbIM B TeYehne YeTbIeX YAcOB.

B cIeJx 6e3oIaChOCTN KoPeBapKa aBTOMATUNCeCK N BbIKIOHHTC Hpe3 dBa Yaca.

TepMeTNHbI KJIaHaH He NO3BOJNT OCTATKAM KOpe NOnaCTb Ha BbIeMKy B OCHOBAHN BO BpEMR CEPBnPOBKN.

PeKOMeHdyECh BblNTb npnroTOBLeHbN KoFe B TeueHne dByx YacB, a 3aTeM BapNTb yKe HOBYIO NOPcNIO KoFe.

IPEyIPEXJEHNE:KoFeBapka nIaTfOpMbI Jnla NpOrpeBa rOpYne N octaOTc RopYnMI eE HeKOTOpoe BpEma NocLe BbIKJIOUeHNe.

PIMMEYAHNE:

He 3a6ydbTe BbIKIOUHTb npIbOp nocJe OKOHaHnBapKn.
-Дайтприборуocтыт.
- CHIMNTE NOCTOHHbI ΦnIbTp IN ydaJIte n3 HERO KOpeHHyO rTuCy. Cpa3y Je TuaTeIbHO npOMoITe fnnIbTp.

YcTaHOBkaФyHKcnn aBTOMaTHueCKOro TaMepa

ПРИМЕЧАНЕ:

YacbI pa6oTaIO T B 24-ycobOM fopmatE.

EcnHn OndHa n3 KhoNOK He Haxkata, DncIeBepHTcK OTO6paXeHIO BpeMeHu YpeE 5 cekYHd.

BcneHbHne MoJoka

Mby peKOMeHdyem HaaytB NOdOrpeBaT MOnOKO DnA BCNEHbAHNIA, KOrDa Bbl HaunHaTe RoTOBnTB KoPe. BlanoDapr 3ToMy MOnKO DOCTNaert OTNImaJbHOI TEMnePaTypbI dJa BCNEHbAHNIA.

1 Fill the stainless steel jug with the required amount of milk. He npeBbIaIeMaKcIMaJIbHOro yPoBnH.

2 POMeCTNe EMcOCTb Na INaTΦOpMy ДЯ NOIOrOpBe 18 N NpeBéMeIte BbIKIOUcTeNb ПлaTΦOpMbI NOIOrOpBeA BcNEHbAteJI B NOJIOXeHne "BKN" O, 3aRopITcN INdNKaTOP ПлaTΦOpMbI NOIOrOpBeA.
3 Korda kope cBapeH (n 3aRopaETcH INdKaTOp NOIDepXaHINr TEMpepaTypb2), MOLOKO rOTOBOK BCNEHNBAHIO.
4 BkIIOUHTe CNTeMMy BCNEHnBaHNIOBOPOTOM PbUHa YnpaBJeHnI B1BnPaBO, ABTOMaTnHeCKN3aYNCITcA DBIrAteNs 3aROpNTcNHNiKNaTOP BKJIouYeHnBCNEHnBaTeNIA
BcneHbHHe DoJIxHo npOdoJXaTbcra 30-60 cekyHa.
BpeMa BCHeHbAHnMoKeT KOle6atbcra B 3aBcNIMoCTn OT BuHa MOnOka H erO hauAHLHOI TemnepaTypb. PeKoMeHdyETcN cNoJIb30BaTaH HexuHpHoE MOnOko N3 XJNOdINbHnKa.
5 N3BILEKNTe CNTeMY BCNEHBAHnI 13 EMKOCTN NOBOPOTOM PbYarA ynpaBLeHnRA BLEBO Q 1DIBrATeNB abTOMATHECCKOCTAHOBITcR.HaxMITE Ha BblKJIIOUATEnb PnATΦOpMbI Dnra IIOdORPeBa, YTO6bI OTKJIIOCHITb ee 17.
YdJIaTIe EMKOCtB dIy MONOKa c
NnATFOPMbl n HaxMNTe Ha KHONKy
OTKpbIBaHn KpbIbIK, 17 YTO6bI
CHrTb KpbIbIK. BNoK KpbIbIK
MOxHO CHrTb, YTO6bI bIIO neYe
pa3JINBaTB MONOKO.
KpbIshky MoXHO nepeBepHyb I nOIOXnTb Hn NOBepxHOCb CTOnA. Blaoradapr CneuAnbHoi fOpme KpbIshKn Hc BNYTpReHNe CTOpOHe cO6HpaOTcK KanJI MOnoKa N HeHa DnI yMeHbSeHn3 3aRp3HeHn.
Pa3neTe Koepe no YauKam n octopoXHO HaneHte NIN npeloxnTe loxKoM OLOKOHa Koepe.

ПРИМЕЧАНЕ:

PNEyIpyEKJEHHe:BybTeOCTOpOXhbl-MJIOKO OeHbROPuee.

ПРИМЕЧАНЕ:

RU

IPEyIPEXKDEHNE:EMKoCTb n3 HepxabeOeNe CTaJI N IplatfOpMa dIgNoIopOrpeBa 6ydt roPnM uEe heKOTOpoe BpEm yocne BvIKIOueHn.

ПРИМЕЧАНЕ:

EMKoCTB BCNEHINBAteTn IN KpbIbUk MyOxHO BByHTb DnA OBeJIeYHeHn IyCTKn.

PeKOMEHyETCAHrTbOCHNTbEMKOCTbNpyTNe YACTNCBcENHBaTeRcpa3yJxneNOCNENCN0JIb3OBAHn,TAKK3acOXUeMO1OKO CMBtTPdYHee.

ПОНМЕЧАНО:

Bce TaCTN EMKOCTN DnI MNOKoN I dIe KOFe MoKHO MbITb B NOcYDOMOeHOn MauINHe.

Функць Вьбopa

KOLINyEcTbA YaWeK

1 MaunHa OshaeHa CneuaJIbHbIM NepeKluOaTeIeM, KOTOpBIO NODepKINBaET KaeeCTBO CBapEHnHO KoPe IJN BbIbpaHnHO KOJINuCeTBA YaAWeK.
ImeetcIbBaBapnHaT:
- NOIOBUNHAR EMKOCtB (1-6 ue -CTEINHbpe3epByap) (1-4 ue - TepMOCTaPe3epByap)
1 nonhaemKoctb (7-12 yauek - cTeKJIaHHbI pe3epByap) (5-8 yauek - TepMoCTaTnueckn pe3epByap)

2 Hyxha yHKnB BbIbIpaTeCnB 3aBVCIMOCTN OT KONJIueCTBa BObl B EMKOctn DnBBoI N KOJIueCTBa KOpe B qINbTpe.
3 HenpaBnIbHo BbIbpaHna FyHKnHa He OtpKaeTcHa pa6ote np6opa, HO BInaTe Ha KaYeCTBO BVKc CBapeHOrO KoPe.
4 Ecnn peryIaTOp KpEnocTn He oBecneuBaET HxKHO KnpeocTn KoFe Ha Baaw Bkyc, MoxHo HcnoJIb3OaTB OJHOBPemEHo FyHKNUBbIbOpaKOnueCTBa qaWeK, YTO6bl NOnyUHb6Oonee Kpenik nIIN cIabbi KoPe.
B Ta5nue Hnke noka3aHbI NaCTpOKn pinnmHHTelbHO K 06bemy BoDy Bpe3epByape, KOtOpBle NOMOT DooNtCB6 OJee KpenKoro IIN Cna6oR Koce. 3KcnepnMENTnpYnte C pa3nnHbIMn NaCTpOkAm, YTO6bl NOnyUHTb KoPe HxhOro Bam Bkyca n KpenocTu.

HdNkaTOpKaueCTBa Kofoe

NdkaTOp KaeeCTBa KoPe NOKa3bIaBTe KaeeCTBO KoPe B EMKoCTn PnIMeHNTelbHO KBPemH, IPOwEduMeY C MOnHTA BapKn. KaeeCTBO KoPe - 3TO DeNo BKyca. INdkaTOp KaeeCTBa yKa3bIaBTe Ha KaeeCTBO N Bkyc KoPe nocne 3abepWeHn npoecca nprirotOBJHn.

3To He a6conIOHTbI NOKa3aTeNb, 3HaueHHe 3aBcNt OT IuHNO BkUca INbDA MCNoB3SyEMOrO KoFepe.

Ha rpaΦnke HnKe NOKa3Ha CBA3b KaKDoI OCEmHtA DnCnJIe C KaYeCTBOM INBpEmHeM.

4npuHpHaNDCKOrO BnCKn

350 mI ropeero kpenko Kofo

1 B36eTe CInBKn Do o6pa3oBaHnI rCyToM maccbl OxlaDnTe.
2 CnolochnTe ropeBvBoD0 2 ctakahd Ia npnaHdcKOro KoOfe, 3aCbIbTe B KaKdbIcTcAah OHy aHnylo JoxKy caxapa n BneTe 2 npCnn npHaNDCKOrO BnCKn.
3 Pa3neTe Kofo nO cTaKaHaM.
4 MeDJIeHNO BJIeTe B KoFe ToHKOI CTyIKoO xNJaXeHHeBc CnVBKn, HApBaJrA INx Ha oBaPaTHyO CTOpOHy JIoKKn.
5 He nepemewuBaIte.

YNCTKA N YXOJ

Повторhoeнолнене

1 BbIKIOHHTe KooBepaKy I daIte en OCTbITb B TeueHHe 5 MNHT.
2ПинОДнIMNTe KpbIshky 3aJIeITe XOJIOHyIO BDOy.

YdaJIeHne HAKnIIN

EcIN B BaWe MeCTHOcTn JecTKaB BOda, peKOMeHdyETcpeYJpRHO OHuATb KoPeEBAPKy OT HAKIN OIN pa3 B-2-3 Mecua. EcIN B BaWe m PAIOHE BOda cpeDHeJ XECTKOCTN, TO OHCTKY HUxHO npON3BOIDtB pa3 B pONrOda.
EcnB Oda Noctynaet Ype3 fNbTp MeIeHHe, Yem O6bIHo, 3aHuT HeoBXOIMn POBeCTN OHCTKy OT HAKIIIN.
- Pekomehdyetc noIb3ObaTbcn CNEUaJIbHOJ XNIOKCTbIO OT HaKNIN, npEHa3NaHEHNOH NO KOFeBAPOK I JNKeTPruecknx YauHKnOB. PnPdEprXnBaITecb HNCTpyKuIM NbOyTBUNke ININ NaKeTe, NoCne 8ero, nepeD TEM KAK BApNTb KOFe, 3 pa3a BKNIOHTe KOFeBapKy TOnbKO C BOIOJ.
He noIb3yI Tecb cpeCTBOM OT HAKINI DnA YNAHIKNO, ECNI Ha yNAKOBKe HE YKA3aHO, YTO OHO NOXODN I dNIA KOFEBAPOK.

ПРИМЕЧАНО:

Ha Bpema OHcTKn OT HaknIIN CneDyET ydAnITb NOCTOHHbI CEHTaBf QnIbTp.

Yxoid ounctka

1 BbIKIOUHTe KoPeBapKy I daIte eN OCTbITb.
2 He norpykaite kopebapky B XnIkoCTb.
3 Bpemr O T BpemEn npombIaBnTe p3eepByap IIN BObl XOJIOHOI BOIo. He NJIy3uYteB TKAHbU, NocKoIbKy ee qactHnKu INI BOPc MOrTy 3acOpITb KOpEbpKy.
4 CHIMNTE NOCTOHNHbI ΦINbTp 4 N DePKaTeNb ΦINbTpA, YdANlTe NCNOB3OBAHbH KoPe I npOMoITe TENIOJ BODO C MbIONM.

PeKOMeHdyETc3aMoOHTb Ha BpEma YdaJeHnA Haknn. TuaTeBnHO OonoCHnTe n npocuWnte.

5 BbIMoTe pe3epByapbl dIy KoFe mMOJOKa BMeCTe CO BCEMn DeTajmN BCHeHbATeJI B TeIIO, MblbHOB BoE. TuaTeBNoOnOCHNTe n npocyuHTe Bce TaCTn.

ПОНМЕЧАНО:

Pe3epByapI nI py Kope I MOnoka n DeTaN BCNHeNBaTeJI MoxHO MbITb B NOCDMOeHCHM MaSHne

6 PnOtpTne BCE hapyXhIbe nOBepxHOCTn BIAJXHO TpIaNKO uTuATeNbHO npocUHNTe.
CneJeYet CO6JIIOdaTb OCToP0XHOCtB, YTO6bl He NOBPeIHT Bo BPEM OCHCTKN rePMTeHN KJIaNaH, HAXOJaUNiCBn3y DepeXaTeJn DnA FInlbTpa.
HkoTda He noIb3yITeB xEcSTKIMn nIa6pa3NHBblMn YnCTraUMM cpeDCTBAMn.

CJYX6A IIOIDEPJKN

Ecni y Bac cctb kaKHe-Ni60
TpyDIOCTN CmOJb3OBaHHeM
daHHoro pnp6ope, HemeNeHHO
no3BOnHTeHAM. B 6onbluHnCTBe
ClyuaeB MbI CMOxEM POMOyBaM
6onblye, Yem npOdABUBy B
MaRa3InE, B KOTOPM Bbl Kynnnn
daHHnI np6Op.

4 OTCyTCTByOT oCHOBaHnIДЯ npOBeDEHnI KAKOrO-NiHoR rapaHTnHOro pEmoHTa KOMPAnHeMorphyRichards.

IapaHTnHa paacnpocTpaHReTcHa
pacXOJIbHe MaTePnAInbI, TaKHe
KaKNaKeTbI, qINbTpbl N
CTeKJIaHHbHe COcYdbI.

Данног rapaHTnHe
npedocTbIeT KaNX-лбOpyrnx
npab, KpOME TeK, KOTOpbe YeTko
N3IOXBeHbIWe, pni 3TOM
N3ROTOBHTeHb He npINHMaET KaNX-
L6O npTeH3n, CB3aHHbIX C
KOCBEHbIMu yUep6aMn I
y6bITkAMn.ДanHnaR rapaHTnR
npedNaRaTeCn B KaYeCTBe
DONHNtJIbHOJ bIgTObl N He
OrpAnuHMaEaT BaUHX
npabnotpe6nteHa.

Morphy Richards products are intended for household use only. Morphy Richards has a policy of continuous improvement in product quality and design.
The Company, therefore, reserves the right to change the specification of its models at any time.

The After Sales Division,

Morphy Richards Ltd, Mexborough, South Yorkshire, England, 664 8AJ Helpline (office hours) UK 0844 871 0946 Republic of Ireland 1800 40919

AUS Australia - Service centre locations

Asko Appliances (Australia) Pty Ltd. Victoria

35 Sunmore Close, Moorabbin. 3189 T: 03 8551 2200

New South Wales

F3/ 3-9 Birnie Ave., Lidcombe.2141 T:0287482900

Queensland

2/112 Fison Ave., Eagle Farm. 4009 T: 07 3868 2989

South Australia

45 Hampton Road, Keswick. 5035 T:08 8293 1833

Western Australia

15 Walters Drive, Osborne Park. 6017 T: 08 9244 4366

www.morphyrichards.be

63 For electrical products sold within the European Community.

At the end of the electrical products useful life it should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice in your country.
