Contents of the package

The PCR-30/50/80 includes the following items. When you open the package, first make sure that all items are included. If any are missing, contact the dealer where you purchased the PCR-30/50/80.

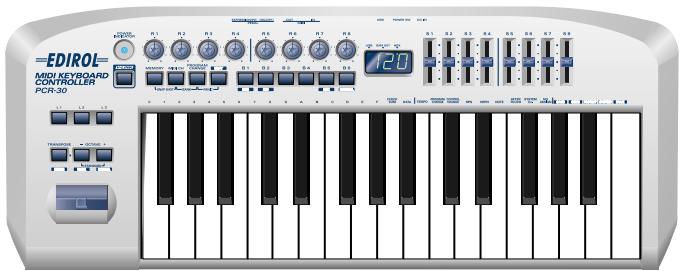

●MIDI Keyboard Controller

PCR-30/50/80

*This figure is the PCR-30.

AC adaptor

This is the only AC adaptor you should use with the PCR-30/50/80. Do not use any AC adaptor other than the supplied one, since doing so may cause malfunction.

USB cable

Use this to connect the USB connector of your computer with the USB connector of the PCR-30/50/80. For details on connections and driver installation, refer to Installation (p. 15).

• Please use only the included USB cable. If you require a replacement due to loss or damage, please contact a "EDIROL/Roland Service Center" listed in the "Information" section at the end of this manual.

-CD-ROM

This contains drivers and editors for use with the PCR-30/50/80.

- Template sheets (two sheets)

One of these templates lists the messages that are assigned to the knobs and sliders (controllers) by GM2 memory (memory no. 0). A blank sheet is also included for you to make a note of your own controller settings.

Owner's Manual

This is the manual you are reading. Please keep it on hand for reference.

Names of things and what they do

Panel

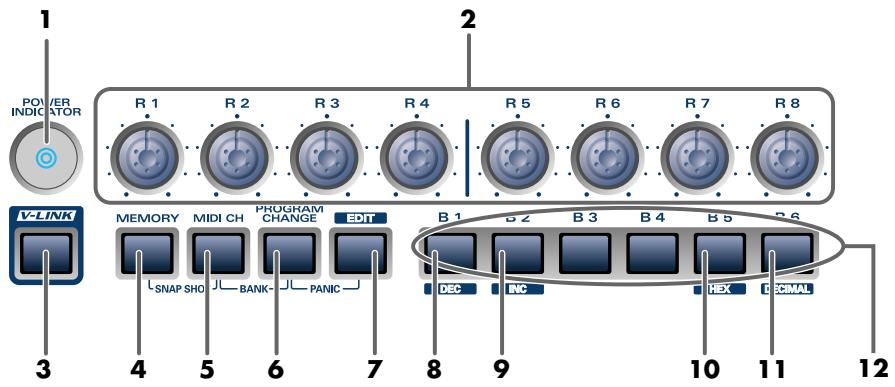

1. Power Indicator

Lights when the power is on.

1. Controllers [R1]-[R8]

You can assign MIDI messages to these controllers.

1. V-LINK Button

Press the V-LINK button to enter V-LINK mode (p. 83). When V-LINK mode is on, the V-LINK button will light.

V-LINK

V-LINK ( V-LINK ) is a function that lets you play music and images. By using this with a V-LINK compatible video device, you can enjoy various video effects that are linked to your performance.

1. MEMORY Button

Accesses memories that are stored within the PCR-30/50/80.

1. MIDI CH Button

Specifies the transmission channel ("current channel") for the keyboard and bender.

1. PROGRAM CHANGE Button

Transmits program change messages on the current channel.

7.EDITButton

Used to assign MIDI messages to the controllers.

1. DEC Button

Decreases the value of a setting by one (except in PLAY mode (p. 36)).

1. INC Button

Increases the value of a setting by one (except in PLAY mode (p. 36)).

1. HEX Button

When not in PLAY mode, sets the input mode to hexadecimal (HEX input mode).

11. DECIMAL Button

When not in PLAY mode, sets the input mode to decimal (DECIMAL input mode).

12. Controllers [B1]-[B6]

You can assign MIDI messages to these controllers.

13.Display

Indicates the current status and various other information.

USB	Lights if the PCR-30/50/80 is connected to your computer via USB.
DATA OUT	This will blink when MIDI messages are transmitted via USB or MIDI OUT.
HEX	Lights when the value shown in the display is hexadecimal.

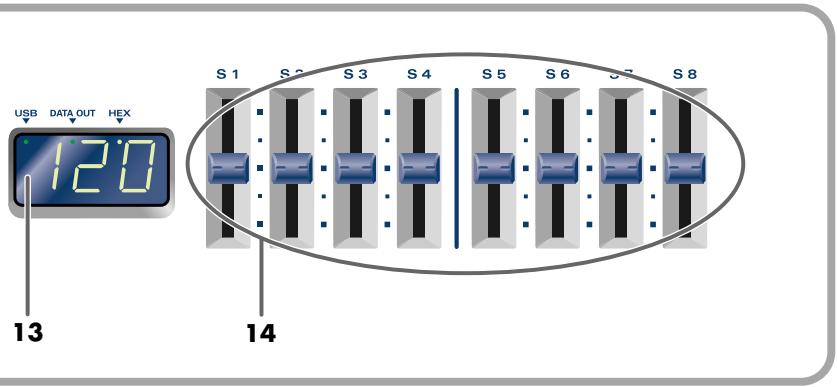

14. Controllers [S1]-[S8]

You can assign MIDI messages to these controllers.

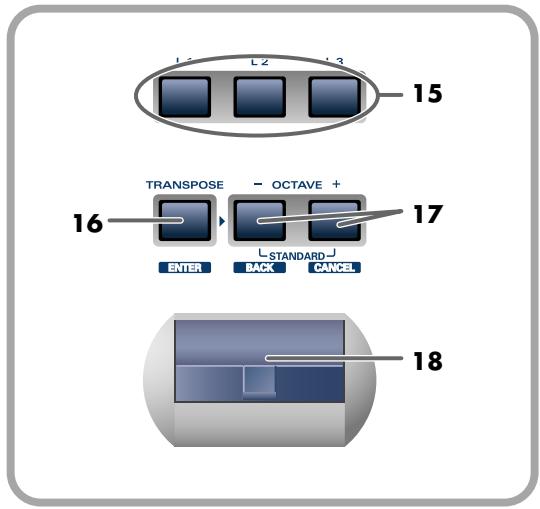

15.Controllers [L1]-[L3]

You can assign MIDI messages to these controllers.

16.TRANSPOSE/ENTER Button

Use [TRANSPOSE] + [OCTAVE -/+] to transpose the pitch of the keyboard in semitone steps. Also, in any mode except PLAY mode, it functions as the [ENTER] button, which you need to press to confirm the settings you've made.

17.OCTAVE-/+

Press [OCTAVE -/+] to shift the pitch of the keyboard up or down in steps of an octave. When not in PLAY mode, use these buttons to return to the previous setting item (the [BACK] button) or to cancel the setting and return to PLAY mode (the [CANCEL] button).

18.BENDER Lever

This lever can be used to modify the pitch or apply vibrato.

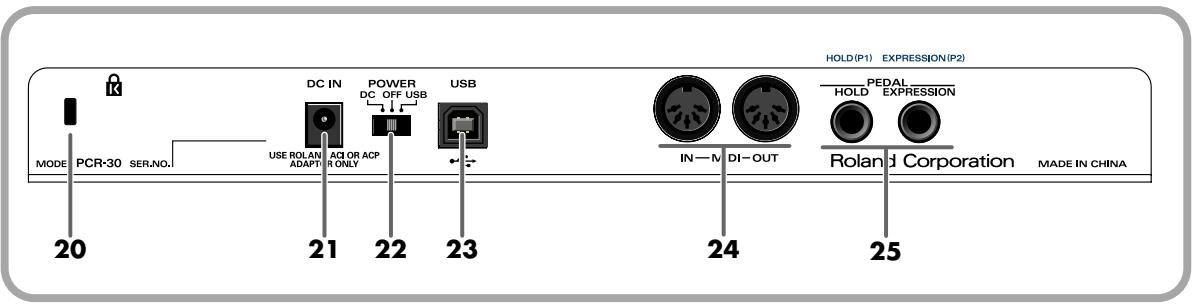

20. Security Slot (R)

A commercially available security lock can be attached here.

http://www.kensington.com/

21.AC adaptor jack

Connect the include AC adaptor to this jack. Insert the plug firmly so it won't get unplugged accidentally.

22. Power switch

DC	Power on using the AC adaptor
OFF	Power is off
USB *1	Power on using a USB cable (when not using the AC adaptor)

*1 Bus power (USB)

BUS power can be used when the PCR-30/50/80 is connected to your computer via a USB cable. In this case, the power will be supplied from your computer via the USB cable. To use the PCR-30/50/80 with bus power, set the power switch to USB.

• For some computers, the PCR-30/50/80 may not operate if bus power is used. In this case, use the included AC adaptor.

23. USB connector

Use this when connecting the PCR-30/50/80 to your computer via a USB cable.

24. MIDI IN/OUT connectors

These can be connected to the MIDI connectors of other MIDI devices to transmit and receive MIDI messages.

25. Controller [P1] and [P2]

You can connect the appropriate type of pedals to these jacks and use them as controllers.

HOLD	Connect a pedal switch to this jack and use it as a Hold pedal.
EXPRESSION	Connect an expression pedal to this jack and use it to control tone or volume in real time.

You can also assign MIDI messages to these controllers as desired.

Installation

"Driver required for USB device 'unknown device' is not available. Search for driver on the Internet?" Cliquez sur [Cancel].

"Software required for using device 'unknown device' cannot be found. Please refer to the manual included with the device, and install the necessary software"

This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications. Click Cancel to leave your disks untouched.

Cancel

Continue

AppleTalk is on. It is used for connecting your computer to network services, such as file servers and printers. But it can make MTDI communication less reliable.

If you choose Turn It Off, don't disconnect AppleTalk yet.

CAUTION: OMS may not turn off AppleTalk as reliably as Apple's system software.

Options..

Leave It On

Turn It Off

A diamond mark () indicate in the settings are enabled.

10

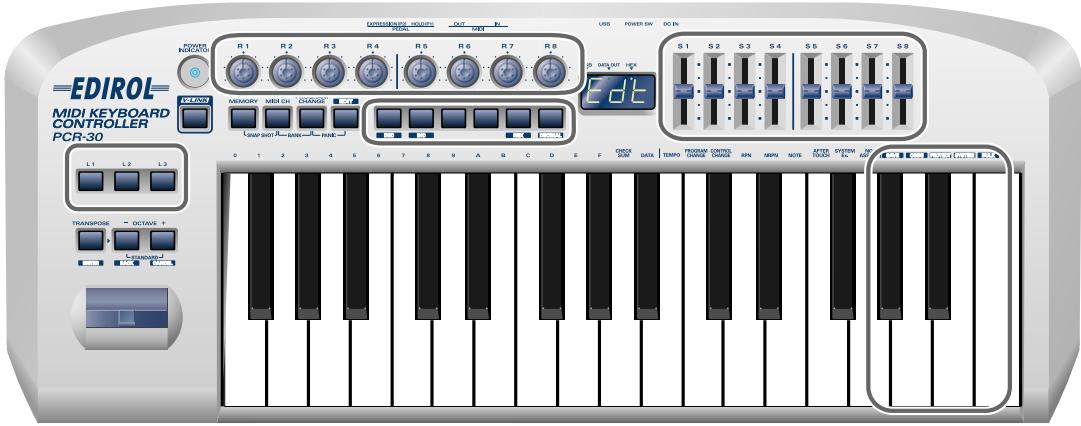

Press the [EDIT] button to enter Edit mode. In Edit mode you can make the following settings.

Selected item	Display	Refer to	Description
[R1--R8][S1--S8][B1--B6][L1--L3][P1, P2]	Indicates the number of the selected controller	“Controller settings”(p. 46)	Assign a desired MIDI message to the controller.
Keyboard [BULK]	BLF	“BULK” (p. 71)	Transmit or receive the contents of a memory set as bulk data.
Keyboard [SYSTEM]	540	“SYSTEM” (p. 74)	Make system settings for the PCR.
Keyboard [SAVE]	SAU	“SAVE” (p. 68)	Save the current memory settings into a memory.
Keyboard [OMNI]	OII	“OMNI” (p. 69)	Specify whether the output channel and output port for messages will follow the setting of the controller or the system setting.
Keyboard [PROTECT]	PBC	“PROTECT” (p. 70)	Specify whether ALL BULK reception and SAVE operations will be prohibited.

For details, refer to the explanation of how to set each item.

Controller settings

You can assign the following functions to a controller.

• After you have modified the controller settings, perform the "SAVE" (p. 68) operation as needed. If you turn off the power without executing "SAVE", your changes will be lost.

NOTE		“NOTE ASSIGN” (p. 47)
AFTERTOUCH		“AFTERTOUCH ASSIGN” (p. 49)
CONTROL CHANGE		“CONTROL CHANGE ASSIGN” (p. 52)
PROGRAM CHANGE		“PROGRAM CHANGE ASSIGN” (p. 55)
RPN		“RPN/NRPN ASSIGN” (p. 58)
NRPN		“RPN/NRPN ASSIGN” (p. 58)
SYSTEM Ex.		“SYS EX. ASSIGN” (p. 60)
TEMPO		“TEMPO ASSIGN” (p. 66)
NO ASSIGN		“NO ASSIGN” (p. 66)

A Copy function is also available. For the procedure, refer to "ASSIGN COPY" (p. 67).

• For NOTE, AFTERTOUCH, CONTROL CHANGE, PROGRAM CHANGE, RPN, NRPN, and SYSTEM Ex., the rightmost digit (third place) in the display is a number that indicates the mode (Basic mode or Advanced mode).
• If you want to assign a single-byte system message (system realtime message, tune request) or a freely specified message of up to 24 bytes, refer to "SYS EX. ASSIGN" (p. 60).

How Basic mode and Advanced mode differ

Each assignment can be made either in Basic mode or Advanced mode.

Use the mode that is appropriate for your purpose.

Basic mode

You can make assignments easily, with the minimum number of steps.

Advanced mode

A greater number of steps are required, but you can specify more parameters and make more sophisticated assignments.

NOTE ASSIGN

Here's how to assign a Note message to a controller. In addition to being used to play sounds, note messages can also be used to control a sequencer.

Mode	Keyboard	Velocity	Port
Basic mode	0	100 (64H)	PCR 1
Advanced mode	1	Assignable	Assignable

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign a Note message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Verify that the display shows the correct controller number, and press the [ENTER] button.

4

Press the [NOTE] key.

The display will indicate "NT0".

5

Press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

The display will indicate "N--".

*1 Reference

8

Input the note number. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the note number.

9

Press the [ENTER] button.

10

If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

Advanced mode

Advanced mode 1 of NOTE ASSIGN lets you specify the velocity value in addition to the items of Basic mode.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign a Note message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

1. Verify that the display indicates the correct controller, and press the [ENTER] button.
2. Press the [NOTE] key and then press key [1].

The display will indicate "NT1".

1. Press the [ENTER] button.
2. Input the channel.
3. Press the [ENTER] button.
4. Input the note number.
5. Press the [ENTER] button.

The display will indicate "V--".

*1 Reference

1. Input the velocity.
2. Press the [ENTER] button.

The display will indicate "P--".

*1 Reference

1. Specify the output port. ( "Specifying the port" (p. 79))
2. If you are making an assignment for a button, specify the button mode.

( "Specifying the button mode" (p. 78))

• If you set [S1--S8], [R1--R8], or [P2] to NOTE ASSIGN, setting the controller to the maximum position will transmit the specified velocity value. Setting the controller to the minimum position will transmit a note message with a velocity of 0.
• If you assign this to [B1--B6] or [P1], the specified velocity value will be transmitted when you turn the controller on. When you turn the controller off, a note message with a velocity value of 0 will be transmitted.

■ AFTERTOUCH ASSIGN

Here's how to assign an Aftertouch message to a controller.

Mode	Keyboard	Message	Value range	Port
Basic mode	0	Channel Pressure	00-7FH	Port 1
Advanced mode 1	1	Channel Pressure	Assignable	Assignable
Advanced mode 2	2	Polyphonic Key Pressure	00-7FH	Port 1
Advanced mode 3	3	Polyphonic Key Pressure	Assignable	Assignable

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign an Aftertouch message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Verify that the display shows the correct controller number, and press the [ENTER] button.

4

Press the [AFTERTOUCH] key.

The display will indicate "AT0".

5

Verify that the display is correct, and press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

8

If you are making an assignment for a button, specify the button mode. () "Specifying the button mode" (p. 78))

Advanced mode 1-3

Advanced mode 1 of AFTERTOUCH ASSIGN lets you specify the upper and lower limits of the afttouch value in addition to the items of Basic mode. Advanced modes 2 and 3 let you specify an aftouch message for an individual note (Polyphonic Key Pressure) instead of specifying the channel.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign an Aftertouch message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

1. Verify that the display indicates the correct controller, and press the [ENTER] button.
2. Press the [AFTERTOUCH] key and then press a key [1]-[3].

The display will indicate the selected mode.

1. Press the [ENTER] button.
2. Input the channel.
3. Press the [ENTER] button.
4. If you are using Advanced modes 2 or 3, input the note number.
5. If you are using Advanced modes 2 or 3, Press the [ENTER] button.
6. If you are using Advanced modes 1 or 3, specify the upper limit and lower limit of the value as described in "Aftertouch Assign upper/ lower limit and port settings" (p. 51), and specify the output port.
7. If you are making an assignment for a button, specify the button mode.

() "Specifying the button mode" (p.78))

Aftertouch Assign upper/ lower limit and port settings

In the case of Aftertouch Assign 1 or 3, you can set the upper limit and lower limit of the value, and specify the port.

1. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the upper limit.
2. Press the [ENTER] button.

The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the lower limit.
2. Press the [ENTER] button.

The display will indicate "P--".

*1 Reference

1. Specify the output port. ( "Specifying the port" (p. 79))

■ CONTROL CHANGE ASSIGN

Here's how to assign a control change message to a controller.

Mode	keyboard	Value range	Port
Basic mode	0	00-7FH	PCR 1
Advanced mode 1	1	Assignable	Assignable
Advanced mode 2	2	Simulates a rotary encoder	Assignable

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign a Control Change message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [CONTROL CHANGE] key.

The display will indicate "CC0".

5

Confirm what's indicated, and press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

The display will indicate "N--".

*1 Reference

8

Use the [DEC][INC] buttons or the [0]-[F] keys to specify the control change number.

9

Press the [ENTER] button.

10

If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

Advanced mode 1

Advanced mode 1 of CONTROL CHANGE ASSIGN lets you specify the upper and lower limits of the control change value in addition to the items of Basic mode.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign a Control Change message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

1. Confirm what's indicated, and press the [ENTER] button.
2. Press the [CONTROL CHANGE] key and then press key [1].

The display will indicate "CC1".

1. Press the [ENTER] button.
2. Input the channel.
3. Press the [ENTER] button.
4. Input the control change number.
5. Press the [ENTER] button.
6. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the upper limit value.
2. Press the [ENTER] button.
3. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the lower limit value.
2. Press the [ENTER] button.
3. The display will indicate "P--".

*1 Reference

1. Specify the output port. () "Specifying the port" (p. 79))
2. If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

Advanced mode 2

Advanced mode 2 simulates the operation of a conventional rotary encoder. If this is assigned to a controller, moving that controller toward the right (upward) of center will have the same effect as turning the encoder clockwise, and moving the controller toward the left (downward) of center will have the same effect as turning the encoder counterclockwise. As the controller is moved further away from the center, the result will be the same as if the rotary encoder were moved more quickly. You can assign advanced mode 2 to a button, but it will not function.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign a Control Change message. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [CONTROL CHANGE] key and then press key [2]. The display will indicate "CC2".
5. Press the [ENTER] button.
6. Input the channel.
7. Press the [ENTER] button.
8. Input the control change number. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the control change number.
9. Press the [ENTER] button.
10. The display will indicate "P--".

*1 Reference

1. Specify the output port. ( "Specifying the port" (p. 79))

■ PROGRAM CHANGE ASSIGN

Here's how to assign a program change message to a controller.

Mode	Number	Effect	Bank	Port
Basic mode	0	Fixed value	Not output	PCR 1
Advanced mode 1	1	Assignable range of values	Not output	PCR 1
Advanced mode 2	2	Fixed value	Output	Assignable
Advanced mode 3	3	PC DEC	Not output	KEYBOARD PORT (p. 74)
Advanced mode 4	4	PC INC	Not output	KEYBOARD PORT (p. 74)

Basic mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign a Program Change message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [PROGRAM CHANGE] key.

The display will indicate "PC0".

5

Confirm what's indicated, and press the [ENTER] button.

The display will indicate "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

The display will indicate "N--".

*1 Reference

8

Use the [DEC][INC] buttons or the [0]–[F] keys to specify the program change number.

9

Press the [ENTER] button.

• If you assign Basic mode to [S1--S8], [R1--R8], or [P2], moving the controller from the minimum to the maximum position will transmit the assigned control change messages.

Advance mode 1, 2

Advanced mode 1 of PROGRAM CHANGE ASSIGN lets you specify the upper and lower limits of the program change value. Advanced mode 2 lets you transmit BANK LSB/MSB settings in addition to the program change.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign a Program Change message. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.

Advanced mode 1 —Specifying the range of values

1. Press the [PROGRAM CHANGE] key and then press key [1].
2. Press the [ENTER] button.
3. Input the channel.
4. Press the [ENTER] button.
5. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the upper value limit.
2. Press the [ENTER] button.
3. The following display will appear.

*1 Reference

1. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the lower value limit.
2. Press the [ENTER] button.

Advanced mode 2 —Transmitting bank data

1. Press the [PROGRAM CHANGE] key and then press key [2].
2. Press the [ENTER] button.
3. Input the channel.
4. Press the [ENTER] button.
5. Specify the bank select MSB (CC#00). Use the [DEC][INC] buttons or the [0]-[F] keys to specify the MSB.

*1 Reference

1. Press the [ENTER] button.
2. Specify the bank select LSB (CC#32). Use the [DEC][INC] buttons or the [O]-[F] keys to specify the LSB.

*1 Reference

1. Press the [ENTER] button.
2. Input the program change number.
3. Press the [ENTER] button.
4. The display will indicate "P--".

*1 Reference

1. Specify the output port. ( "Specifying the port" (p. 79))

Advanced modes 3 and 4

Advanced mode 3 lets you assign the Program Change Decrement function (PC DEC) to a controller.
Advanced mode 4 lets you assign the Program Change Increment function (PC INC) to a controller.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign Program Change DEC/INC. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [PROGRAM CHANGE] key and then press key [3] or [4].
5. Press the [ENTER] button.

Program Change Decrement function (PC DEC)

This transmits a program change that is one less than the previously transmitted program change number.

Program Change Increment function (PC INC)

This transmits a program change that is one greater than the previously transmitted program change number.

The PC DEC or PC INC is transmitted on the current channel, just as in "Mode Program Change (PROGRAM CHANGE)" (p. 39). The value that is actually transmitted will appear in the display.

• In the explanation here, the "previously transmitted program number" refers to the one that was last transmitted by Advanced Mode 3 or 4 or in "Mode Program Change (PROGRAM CHANGE)" (p. 39).
• Program changes transmitted by basic mode or advanced modes 1 and 2 will not affect the increment/ decrement functions.

RPN/NRPN ASSIGN

Here's how you can assign an RPN or NRPN message to a controller.

Mode	Keyboard	Data entry MSB (CC#6) range	Data entry LSB (CC#38) range	Port
Basic mode	0	00-7FH	Not transmitted	PCR 1
Advanced mode 1	1	Assignable	00-7FH	Assignable

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign an RPN or NRPN message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [RPN] key.

The display will indicate "RP0".

• If you want to assign an NRPN message, press the [NRPN] key. The following procedure is the same as for RPN.

5

Confirm what's indicated, and press the [ENTER] button.

The display will blink "C--".

*1 Reference

6

Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.

7

Press the [ENTER] button.

8

Use the [DEC][INC] buttons or the [0]-[F] keys to specify the RPN MSB (CC#101) or NRPN MSB (CC#99). *1 Reference

9

Press the [ENTER] button.

10 Use the [DEC][INC] buttons or the [O]-[F] keys to specify the RPN LSB (CC#100) or NRPN LSB (CC#98).

*1 Reference

11 Press the [ENTER] button.
12 If you are making an assignment for a button, specify the button mode. () "Specifying the button mode" (p. 78))

Advanced mode

In Advanced mode for RPN/NRPN, you can specify the upper and lower limit of the data entry MSB (CC#6) value when the RPN/NRPN message is transmitted, as well as the various settings available in Basic mode.

1. Press the [EDIT] button.
2. Slightly move the controller to which you want to assign the RPN or NRPN message. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.

4. Press the [RPN] key and then press key [1].

5. If you want to assign an NRPN message, press the [NRPN] key. The following procedure is the same as for RPN.

6. Press the [ENTER] button.
7. Input the channel. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the channel.
8. Press the [ENTER] button.
9. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the RPN MSB (CC#101) or NRPN MSB (CC#99).
10. Press the [ENTER] button.

11. Use the [DEC][INC] buttons or the [0]-[F] keys to specify the RPN LSB (CC#100) or NRPN LSB (CC#98).

12. Press the [ENTER] button.

13. The following display will appear.

*1 Reference

1. Use the [0]–[F] keys to specify the upper limit of the data entry MSB (CC#6) value.
2. Press the [ENTER] button.
3. The following display will appear.

*1 Reference

1. Use the [0]–[F] keys to specify the lower limit of the data entry MSB (CC#6) value.
2. Press the [ENTER] button.
3. The display will indicate "P--".

*1 Reference

1. Specify the output port. () "Specifying the port" (p. 79))
2. If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

■ SYS EX. ASSIGN

Here's how you can assign a system exclusive message to a controller. Advanced mode 2 lets you assign a single-byte system message (System realtime message, tune request).

Advanced modes 3 and 4 let you assign any desired message.(Input up to 24 bytes)

Mode number	Key-board	Mode	Value range	Required ending	Notes/restrictions
Basic mode	0	Sys Ex. message	Default range	Input F7	1st byte fixed at F0
Advanced mode 1	1	Sys Ex. message	Assignable	Input F7	1st byte fixed at F0
Advanced mode 2	2	Single byte system message	-	-	[0-5, 7, 9, D, E][DATA][CHECKSUM] buttons are invalid
Advanced mode 3	3	Any desired MIDI message	Default range	Specified number of bytes	[CHECKSUM] button is invalid
Advanced mode 4	4	Any desired MIDI message	Assignable	Specified number of bytes	[CHECKSUM] button is invalid

SYS EX. ASSIGN can calculate the checksum automatically, and lets you specify a variable (data) range or embed a channel/block number within the message. ("Sys Ex. ASSIGN items" (p. 80)) In SYS EX. ASSIGN, the input mode will be HEX mode.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated, and press the [ENTER] button.

4

Press the [SYSTEM Ex.] key.

5

If you want to select an Advanced mode, press a key from [1] to [4].

The selected mode will blink in the display.

6

Confirm what's indicated, and press the [ENTER] button.

For Basic mode or Advanced mode 1

The display will blink "F0", which is the first byte (starting status byte) of a system exclusive message. (This cannot be changed.)

7

Confirm what's indicated, and press the [ENTER] button.

8

Use the [0]–[F] keys to input the second byte.

9

Press the [ENTER] button.

10 Input the third and subsequent bytes in the same way.
When you have finished inputting the message, use the keyboard to enter [F] and [7], specifying the ending status byte "F7".
12 Press the [ENTER] button.
13 Specify the output port. ( "Specifying the port" (p. 79))
14 If you are making an assignment for a button, specify the button mode. () "Specifying the button mode" (p. 78))

For Advanced mode 2

The display will indicate "F-".

7 Use the [6], [8], [A]–[C], [F] keys to specify the system message.
Press the [ENTER] button.
9 Specify the output port. ( "Specifying the port" (p. 79))

For Advanced modes 3 or 4

The display will indicate "L--".

7 Use the [0]–[F] keys of the keyboard to specify the number (decimal) of bytes you want to input.

*1 Reference

Press the [ENTER] button.
9 Use the [0]-[F] keys to input the first byte.
10 Press the [ENTER] button.
11 Input the second and subsequent bytes in the same way.
12 After you have input the number of bytes you specified in step 7, the PCR-30/50/80 will check whether the messages you've input are indeed valid MIDI messages. If there is a problem, the display will indicate "ERR".

In this case, you should press the [ENTER] button, which takes you back to step 7, where you can input the values over again.

13 In the case of Advanced mode 4, specify the upper and lower limits.
14 Specify the output port. ( "Specifying the port" (p. 79))
15 If you are making an assignment for a button, specify the button mode. () "Specifying the button mode" (p. 78))

Here are some examples of inputting various actual system exclusive messages.

GM2 System On

F0 7E 7F 09 03 F7

Here's how to assign a GM2 System On system exclusive message in Basic mode.

1. Press the [EDIT] button. The display will indicate "EDT".
2. Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button. The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [SYSTEM Ex.] key. The display will indicate "SE0".
5. Confirm what's indicated, and press the [ENTER] button. The display will indicate "F0", which is the first byte (beginning status) of a system exclusive message. This cannot be changed. (This cannot be changed.)
6. Confirm what's indicated, and press the [ENTER] button.
7. Use the [7] and [E] keys to input the second byte "7E".
8. Confirm what's indicated, and press the [ENTER] button.
9. Use the [7] and [F] keys to input the third byte "7F".
10. Confirm what's indicated, and press the [ENTER] button. Input the fourth and fifth bytes in the same way.
11. Finally, use the [F] and [7] keys to input the ending status byte "F7".
12. Confirm what's indicated, and press the [ENTER] button.
13. Specify the output port. ( "Specifying the port" (p. 79))
14. If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

The GM2 System On message has now been assigned.

- Master Volume

F0 7F 7F 04 01 vL vM F7

Since a Master Volume message has a data range of 00 00-7F 7F and we do not need to specify the range, we will use Basic mode. Since the two bytes of data are in the order of LSB and then MSB, we will select "DT3" when we input the data.

1. Press the [EDIT] button.
   The display will indicate "EDT".
2. Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.
   The display will indicate the number of the selected controller.
3. Confirm what's indicated, and press the [ENTER] button.
4. Press the [SYSTEM Ex.] key.

The display will blink "SE0".

1. Confirm what's indicated, and press the [ENTER] button.

The display will indicate "F0", which is the first byte (beginning status) of a system exclusive message. (This cannot be changed.)

1. Confirm what's indicated, and press the [ENTER] button.
2. Use the [7] and [F] keys to input the second byte "7F".
3. Confirm what's indicated, and press the [ENTER] button.

Input the third, fourth and fifth bytes in the same way.

1. Since the sixth byte is the data area, press the [DATA] key, and then press [3].

The display will indicate "DT3".

1. Confirm what's indicated, and press the [ENTER] button.
2. Since we selected "DT3" as the sixth byte, the seventh byte will automatically be allocated as the data area and cannot be modified.
3. Confirm what's indicated, and press the [ENTER] button.
4. Use the [F] and [7] keys to input the ending status byte "F7".
5. Confirm what's indicated, and press the [ENTER] button.
6. Specify the output port. ( "Specifying the port" (p. 79))
7. If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

The Master Volume message has now been assigned.

Bend Pitch Control

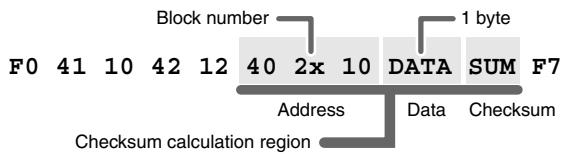

Since the GS Bend Pitch Control message has a data range of 40H-58H (0-24 semitones), we will select Advanced mode 1, which lets us specify the range. Since the data format is one byte, we will select "DT0" (p. 81) when inserting the data.

1. Press the [EDIT] button.
   The display will indicate "EDT".
2. Slightly move the controller to which you want to assign the system exclusive message. In the case of a button, press that button.
   The display will indicate the number of the selected controller.
3. Confirm what's indicated and press [ENTER].
4. Press the [SYSTEM Ex.] key, and then press the [1] key.

The display will indicate "SE1".

1. Confirm what's indicated and press [ENTER].

The display will blink "F0", which is the first byte (beginning status) of a system exclusive message.

(This cannot be changed.)

1. Confirm what's indicated and press [ENTER].
2. Use the [4] and [1] keys to input the second byte "41".
3. Confirm what's indicated and press [ENTER].

Input the third, fourth and fifth bytes in the same way.

1. Since the sixth byte is the beginning of the checksum calculation area, press the [CHECKSUM] key to specify this byte as the beginning of the area for which the checksum will be calculated.
2. Confirm what's indicated and press [ENTER].
3. Input the sixth byte.
4. Since the seventh byte will have "2" in the upper bits and the block number in the lower bits, press [DATA] three times.

The display will indicate "0BL".

1. To specify "2" for the upper bits, press the [2] key. The display will indicate "2BL".
2. Confirm what's indicated and press [ENTER].
3. In the same way, enter bytes 8.
4. Since the ninth byte is the data area, press the [DATA] key. The display will indicate "DT0".
5. Confirm what's indicated and press [ENTER].
6. Since the ten byte will contain the checksum, press the [CHECKSUM] key to specify the location at which the checksum will be input. The display will blink "CS1" (Checksum Type 1).
7. Confirm what's indicated and press [ENTER].
8. Press the [F] and then [7] keys to input the ending status "F7."
9. Confirm what's indicated and press [ENTER].
10. Next, specify an upper limit value of "58" for the data area.
11. Press [ENTER].
12. Specify a lower limit value of "40" for the data area.
13. Press [ENTER].
14. Specify the output port. ()^ Specifying the port" (p. 79))
15. If you are making an assignment for a button, specify the button mode. ( "Specifying the button mode" (p. 78))

The GS Bend Pitch Control message has been assigned.

TEMPO ASSIGN

You can assign a controller to adjust the speed (20-250) of the F8 Clock message.

• In order to transmit F8 Clock messages, the F8 CLOCK setting must be "ON".

( "F8 CLOCK ON/OFF" (p. 74))

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to assign TEMPO. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated and press the [ENTER] button.

4

Press the [TEMPO] key.

The display will indicate "TMP".

5

Confirm what's indicated and press the [ENTER] button.

6

If you are making the assignment for a button, specify the button mode.

() "Specifying the button mode" (p. 78))

• In the case of a button, the value will be fixed at maximum (250) for ON, and minimum (20) for OFF.

NO ASSIGN

Here's how you can cancel the message assigned to a controller. Once its assignment is cancelled, no message will be transmitted when you operate that particular controller.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller whose assignment you want to cancel. In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated and press the [ENTER] button.

4

Press the [NO ASSIGN] key.

The display will indicate "NOA".

5

Press the [ENTER] button.

6

The display will blink "YES", so press the [ENTER] button once again.

■ ASSIGN COPY

Here's how a message assigned to a controller can be copied to another controller.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Slightly move the controller to which you want to copy the assignment (the "copy destination"). In the case of a button, press that button.

The display will indicate the number of the selected controller.

3

Confirm what's indicated and press the [ENTER] button.

4

Slightly move the controller whose assignment you want to copy (the "copy source"). In the case of a button, press that button.

The display will indicate "CPY".

5

Press the [ENTER] button.
The display will blink the copy-source controller number.

6

Confirm what's indicated and press the [ENTER] button.

SAVE

Here's how to save the settings of the current memory into internal memory.

You can save settings into internal memory numbers 1-F.

You cannot save to memory number 0 (GM2).

• After you edit the settings, perform the "SAVE" (p. 68) operation as needed. If you turn off the power without performing "SAVE", your changes will be lost.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [SAVE] key.

The display will blink "SAV."

3

Confirm what's indicated and press the [ENTER] button.

• If the display indicates "PTC", it means that the Save could not be carried out because the PROTECT setting (p. 62) is on. Turn PROTECT off, and then try the operation once again from step 1.

4

Select a memory number 1-F. Use the [DEC] [INC] buttons or the [1]-[F] keys to specify the save-destination memory number.

The specified memory number will blink in the display.

5

Confirm what's indicated and press the [ENTER] button.

About the memories of the PCR

The PCR has the following sixteen memories.

Memory number 0	GM2 SET	Cannot be saved
Memory number 1 : Memory number F	User memories (15)	Can be saved

"Current memory" is a location into which you can recall one of these memories.

In order to use one of the saved memories, you must recall it into current memory as described in "Mode Mémoire (MEMORY)" (p. 41).

The contents of current memory will be lost when you turn off the power. If you have modified the settings in current memory, perform the "SAVE" operation if you want to keep your changes.

You can set the "STARTUP MEMORY" (p. 74) setting to specify the memory that will be loaded into current memory when you turn on the power.

If you turn the Omni setting ON, all messages will be transmitted on the current channel (p. 38) regardless of the channel that is specified for each controller.

Also, all messages will be transmitted to the "KEYBOARD PORT SET" (p. 74) regardless of the port that is specified for each controller.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [OMNI] key.

The display will blink "OMN".

3

Confirm what's indicated and press the [ENTER] button.

4

The display will show the current setting.

0		OMNI OFF	Messages will be transmitted on the channel and port specified for each controller.
1		OMNI ON	Messages will be transmitted on the current channel from the Keyboard Port, regardless of the channel and port specified for each controller.

5

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

6

Press the [ENTER] button.

If you turn the Protect setting ON, All Bulk (p. 71) reception and Save (p. 68) operations will be disabled.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [PROTECT] key.

The display will blink "PTC".

3

Confirm what's indicated and press the [ENTER] button.

4

The display will show the current setting.

0	OFF	PROTECT OFF	Allow changes.
1	ON	PROTECT ON	Prohibit changes.

5

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

6

Press the [ENTER] button.

Controller assignments can be received or transmitted as bulk data.

• When you transmit or receive Bulk data, the contents of the current memory will be lost. Save the current memory settings as needed before you perform this operation.

Receive mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [BULK] key.

The display will blink "BLR" (Bulk Receive).

3

Confirm what's indicated and press the [ENTER] button.

The display will indicate "RS", and the "S" will blink.

4

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

0	SINGLE BULK	A memory will be received as bulk data. The received data will overwrite the current memory. Memories 1-F will not be affected.
1	ALL BULK	All memories will be received as bulk data. The received data will overwrite memories 1-F.

5

Confirm what's indicated and press the [ENTER] button.

The third digit of the display will blink, and the PCR-30/50/80 will wait to receive bulk data.

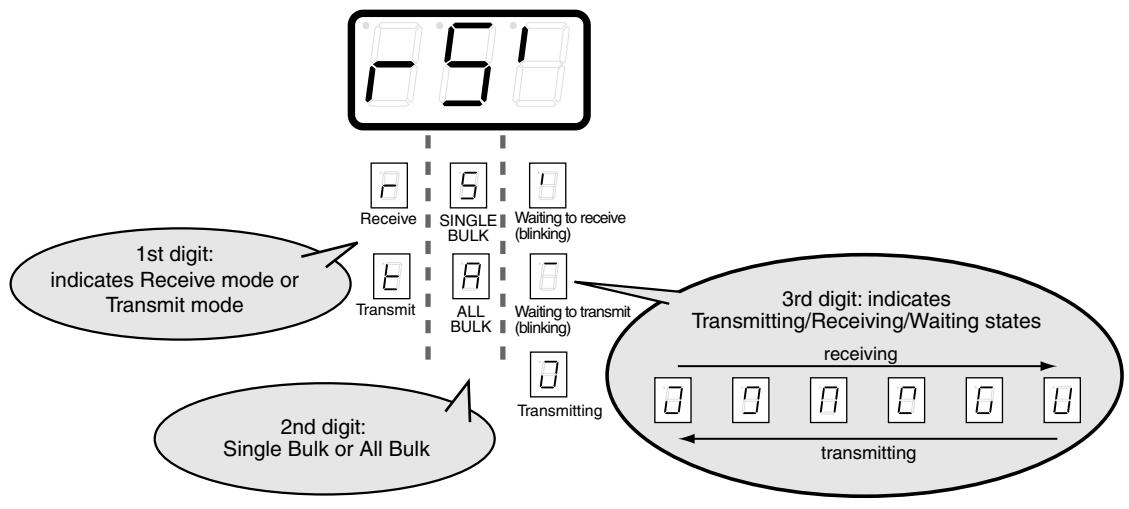

About the display in Bulk mode

Transmit bulk data from your sequencer or other device.

Specify "PCR" (Mac OS 9/8: PCR 1) as the MIDI output device for your sequencer software. For details on this setting, refer to the manual of your sequencer software.

For details on the port that will be used to transfer bulk data, refer to "About the ports when using a USB connection" (p. 79).

When the PCR finishes receiving the bulk data, the display will indicate "END".

Error display

If the data could not be received correctly, the display will blink "ERR".

If this occurs, press the [CANCEL] button to cancel the "ERR" display.

Once "ERR" has been dismissed, perform the bulk reception procedure over again, from step 1.

Confirm what's indicated and press the [ENTER] button.

Transmit mode

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [BULK] key.

3

Press the [1] key.

The display will blink "BLT" (Bulk Transmit).

4

Confirm what's indicated and press the [ENTER] button.

The display will indicate "TS", and the "S" will blink.

5

Use the [DEC] [INC] buttons or the [0] [1] keys to select the mode.

0	E5	SINGLE BULK	The currently recalled memory (the current memory) will be transmitted as bulk data
1	E4	ALL BULK	All memories (memories 1–F) will be transmitted as bulk data.

6

Confirm what's indicated and press the [ENTER] button.

7

The third digit of the display will blink, and the PCR-30/50/80 will wait to transmit bulk data.

8

Press the [ENTER] button.

On your sequencer software, specify "PCR 2" as the MIDI input device. For details on this setting, refer to the manual of your sequencer software.

For details on the port that will be used to transfer bulk data, refer to "About the ports when using a USB connection" (p. 79).

9

When the PCR finishes receiving the bulk data, the display will indicate "END".

10

Confirm what's indicated and press the [ENTER] button.

Here's how you can make various system settings for the PCR-30/50/80.

1

Press the [EDIT] button.

The display will indicate "EDT".

2

Press the [SYSTEM] key.

The display will indicate "SY0".

3

Use the [0]–[8] keys to specify the System setting that you want to set, and then press the [ENTER] button.

Confirm what's indicated and use the appropriate method to make the setting.

Key-board	Mode	Content of the setting	Default	Setting method
0	F8 CLOCK ON/OFF	Specify whether F8 Clock is to be transmitted.	OFF	A (p. 75)
1	F8 CLOCK DEFAULT TEMPO	If “F8 CLOCK ON/OFF” is ON, specify the default value of the F8 Clock. After the power is turned on, this tempo will continue to be output until you move a controller to which TEMPO is assigned.	120	B (p. 75)
2	F8 CLOCK PORT SET	If “F8 CLOCK ON/OFF” is ON, specify the port from which the F8 Clock is to be transmitted.	PCR 1	C (p. 75)
3	VELOCITY OFFSET	The value you specify here will be added to the velocity of the notes played from the keyboard. * If the result of the addition would exceed 7FH, the velocity will be 7FH.	0	B (p. 75)
4	KEYBOARD PORT SET	Specify the port from which messages produced by the BENDER lever of the keyboard are to be transmitted.	PCR 1	C (p. 75)
5	H-ACTIVITY ON/OFF	Turn this ON if you are using certain applications (such as Pro Tools LE). When ON, “90 00 7F” will be output from PCR 2 approximately every 500 ms.	OFF	A (p. 75)
6	USB DRIVER MODE	Specify the type of driver used for USB connection.	Original Driver	D (p. 76)
7	STARTUP MEMORY	Specify the memory that will be selected when the power is turned on.	GM2	E (p. 76)
8	FACTORY RESET	Restore all settings of the PCR-30/50/80 to their factory-set condition.	-	F (p. 76)

Setting method A

Perform steps 1-3.

Use the [DEC][INC] buttons or the [0] or [1] keys to switch F8 CLOCK or H-ACTIVITY on/off.

0	OFF
1	ON

The display will indicate either "ON" or "OFF".

Press the [ENTER] button.

Setting method B

Perform steps 1-3.

Use the [DEC][INC] buttons or the [0]–[F] keys to specify the F8 CLOCK DEFAULT TEMPO or the VELOCITY OFFSET value.

Keyboard	Mode	Value range
1	F8 CLOCK DEFAULT TEMPO	20-250
3	VELOCITY OFFSET	0-127

The display will indicate the value.

Press the [ENTER] button.

Setting method C

Perform steps 1-3.

Use the [DEC][INC] buttons or the [0]–[F] keys to specify F8 CLOCK PORT SET or KEYBOARD PORT SET. (→“Specifying the port” (p. 79))

The specified port will indicate in the display.

Press the [ENTER] button.

Setting method D

Perform steps 1-3.

Use the [DEC][INC] buttons or the [0] or [1] keys to specify the USB DRIVER MODE.

0	Original driver	FPT technology is used to perform high-speed MIDI transfer. Normally, we recommend that you use this mode.
1	Generic driver	Select this if you are using the standard MIDI driver provided by your operating system.

• FPT = Fast Processing Technology for MIDI Transmission:

Effective use is made of the USB bandwidth according to the amount of MIDI data to be transmitted, ensuring that MIDI data processing will always occur optimally.

Press the [ENTER] button.

Setting method E

Perform steps 1-3.

Use the [DEC][INC] buttons or the [0] or [1] keys to specify the GM2/LAST ACCESS MEMORY setting.

0		GM2 MEMORY	When the PCR starts up, memory number 0 (GM2) will be loaded into current memory (p. 68) regardless of the state in which the power was turned off.
1		LAST ACCESS MEMORY	Upon power-up, the PCR-30/50/80 will recall the memory that was last recalled or saved into current memory (p. 68).

Press the [ENTER] button.

Setting method F

Perform steps 1-3.

The display will indicate "RST".

Press the [ENTER] button.

The display will blink "YES".

Press the [ENTER] button.

Appendixes

This section contains troubleshooting information and explanations of convenient functions. You may read this material as necessary.

Convenient functions. p. 78

Memory sets. p. 84

Troubleshooting. p. 90

MIDI implementation. p. 94

Main specifications.. p. 99

Convenient functions

Setting the input mode

If you are not in Play mode, you can use one of two ways to input a numerical value into the PCR-30/50/80; Decimal input mode or Hexadecimal input mode.

If you want to input decimal numbers, press the [DECIMAL] button. If you want to input hexadecimal numbers, press the [HEX] button. When you turn on the power, the PCR-30/50/80 will start up in Decimal mode.

Decimal and hexadecimal numbers correspond as follows.

Decimal: 0-127

Hexadecimal: 00-7F

However, for MIDI CH and PROGRAM CHANGE, the values are as follows.

	Decimal	Hexadecimal
MIDI CH	1-16	0-F
PROGRAM CHANGE	1-128	00-7F

• Normally, the display will show three digits when using Decimal input mode. For this reason, there will be no indication of the parameter you are now inputting, and you may lose track of what you are doing. If this occurs, you can temporarily switch back to Hexadecimal mode to check the parameter you are inputting. Then switch back to Decimal mode and continue.

Specifying the button mode

When you make Assign settings (p. 46) in Edit mode to assign a message to a button, you must specify the operating mode of the button (button mode).

1. Press the [0] or [1] key to select either Latch mode or Toggle mode.

0		Latch mode	The setting will turn on when you press the button, and off when you release it. The button will remain lit while you are pressing it.
1		Toggle mode	The setting will alternate on/off each time you press the button. The button will light when an On message is transmitted, and will go dark when an Off message is transmitted.

1. Press the [ENTER] button.

2. When you use a button as a controller, turning the button on will transmit the maximum specified value, and turning it off will transmit the minimum value.

Specifying the port

When you are making Assign settings (p. 39) in Edit mode and have selected Advanced mode, you must specify the USB port to which the message assigned to the controller will be sent when using a USB connection.

1. Press a key [1]–[3] to select the port.

1		PORT 1	Messages will be sent to “PCR 1”.
2		PORT 2	Messages will be sent to “PCR 2”.
3		PORT 1,2	Messages will be sent to both “PCR 1” and “PCR 2”.

1. Press the [ENTER] button.

2. If you are using the PCR-30/50/80 with a MIDI connection, the messages will be transmitted from the MIDI OUT connector regardless of this port setting.

About the ports when using a USB connection

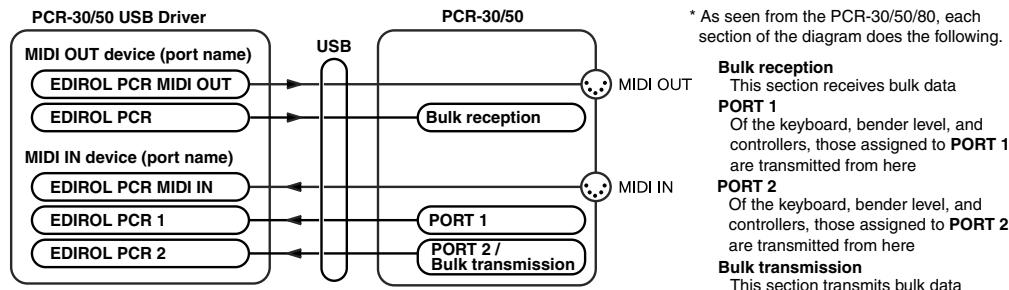

The ports correspond to the PCR-30/50/80 as follows.

MIDI OUT device

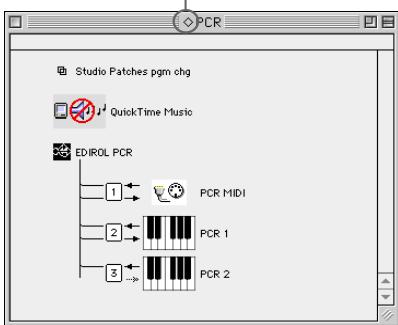

PCR MIDI OUT (Mac OS 9/8: PCR MIDI)	If you specify PCR MIDI OUT as the output port for your sequencer software, the MIDI messages will be sent from the MIDI OUT connector of the PCR-30/50/80.
PCR (Mac OS 9/8: PCR 1)	This is the Bulk reception port. When receiving bulk data into the PCR-30/50/80, specify PCR as the output port for your sequencer software.
MIDI IN device
PCR MIDI IN (Mac OS 9/8: PCR MIDI)	If you specify PCR MIDI IN as the input port for your sequencer software, MIDI messages from the MIDI IN connector of the PCR-30/50/80 can be received.
PCR 1 PCR 2	This is the port at which messages from the keyboard, BENDER lever, and control-lers will be input. The keyboard, BENDER lever, and controllers will be mapped to PCR 1 and/or PCR 2 according to the port setting. You may find it convenient to specify PCR 1 for messages used to play a software synthesizer or for realtime recording on a sequencer track, and specify PCR 2 for messages used to control the sequencer, such as sequencer play/stop or track fader control. PCR 2 is the bulk transmission port. When transmitting bulk data from the PCR-30/50/80, specify PCR 2 as the input port for your sequencer software.

Sys Ex. ASSIGN items

■ Specifying the checksum

The PCR-30/50/80 can automatically calculate the checksum of a system exclusive message and embed it in the message. In order to use this function, you must use the following procedure to specify the starting location from which the checksum is calculated, and the location at which the checksum is inserted. You can also select the type of checksum.

For an actual example, please read the Sys Ex. ASSIGN section "Bend Pitch Control" (p. 64)

1. Press the [CHECKSUM] key before you input the byte at which checksum calculation should begin.

The display will indicate "CSS" (Checksum Start).

If you press the [CHECKSUM] key once again, "CSS" (Checksum Start) will be cancelled.

1. Press the [ENTER] button.
2. Continue inputting data.
3. Press the [CHECKSUM] key at the location where the checksum should be inserted.

The display will indicate "CS1" (Checksum type 1).

1. Press the [ENTER] button.

Checksum types

There are two types of checksum, as follows.

1		CHECKSUM TYPE 1	This is the method used by Roland and most other manufacturers
2		CHECKSUM TYPE 2	Select this if the method other than type 1 is used

Switching the type

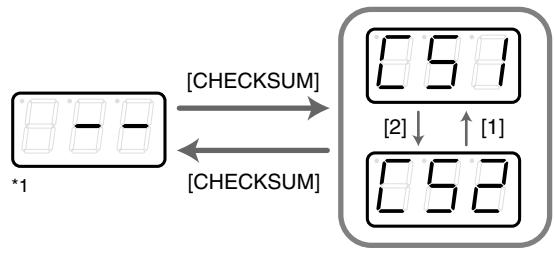

If you want to switch to type 2, press the [2] key after you press [CHECKSUM] in step 4. To switch back to type 1, press the [1] key.

■ Specifying the location of the data

Here's how to specify the location and data type of the variable portion (data) within a system exclusive message.

The range of data values will be the default range in the case of Basic mode or Advanced mode 3. In the case of Advanced modes 1 and 4, you can specify the range of data values.

For an actual example, please read the Sys Ex, ASSIGN section "Master Volume" (p. 63).

1. Press the [DATA] key at the location where you want to input the data.

The display will indicate "DT0".

1. Use the [0]-[4] keys to select the type of data.

Data number	Data type	Default range	Target of range setting	Example (specified upper/ lower limits)
DT0	7bit	00H-7F	Specify the range of data (00-7FH)	04-45 (lower limit 4H, upper limit 45H)
DT1	4bit/4bit	0H/0H-FH/FH	Specify the range of the first byte (0-FH), second byte is fixed at 0-FH	0/0-D/F (lower limit 0H, upper limit DH)
DT2	7bit/7bit (MSB/LSB)	00H/00H-7FH/7FH	Specify the MSB range (00-7F), LSB is fixed at 00-7F	23/00-68/7F (lower limit 23H, upper limit 68H)
DT3	7bit/7bit (LSB/MSB)	00H/00H-7FH/7FH	Specify the MSB range (00-7F), LSB is fixed at 00-7F	00/23-7F/68 (lower limit 23H, upper limit 68H)
DT4	4bit/4bit/ 4bit/4bit	7H/FH/0H/1H-8H/0H/FH/FH	Specify the limits of positive/negative change as a value from 00H to FFH, centered on 8000H. min 8000H max FFF	7/F/0/2-8/0/5/0 (lower limit FEH, upper limit 50H)

• In the case of DT1--DT4 (data consisting of two or more bytes), a data location will automatically be allocated for the next byte, and "-DT" will be displayed. (This cannot be changed.)

• Press the [ENTER] button.

• If you selected DT1 through DT4, the display will indicate "-DT".

Press the [ENTER] button.

■ Inputting channel/block data

If a system exclusive message includes a channel or GS block number, here's how to specify the type and the value of the upper bits. For the channel and block number, the setting of the current channel (p. 38) will be inserted as the lower bits. (The block number is not actually a channel, but corresponds to the "part" within a GS sound module. On the PCR-30/50/80, this corresponds to the channel for the sake of convenience.)

Current channel	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
CH	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
BL	1	2	3	4	5	6	7	8	9	0	A	B	C	D	E	F

For an actual example, refer to "Bend Pitch Control" (p. 64) in the section on the Edit Mode.

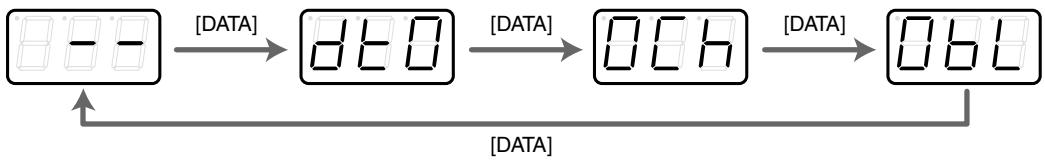

1. Press the [DATA] key several times at the location where you want to input the channel/block number, to select "0CH" for the channel or "0BL" for the block.

1. Use the [0]–[7] keys to input the value of the upper four bits.

The "0" in the display will change to the numerical value that you input.

1. Press the [ENTER] button.

When you press the [V-LINK] button, the PCR will transmit a V-LINK ON message and will enter V-LINK mode. When you press the [V-LINK] button once again, the PCR will transmit a V-LINK OFF message and will exit V-LINK mode.

When the PCR enters V-LINK mode, it will transmit the following parameters to the V-LINK host.

• Clip Ctrl Rx MIDI ch : 16
  Color Ctrl Rx MIDI ch : 16
• Sender Model Name : EDIROL PCR

In V-LINK mode, the PCR will operate as follows.

• Messages from the PCR itself will be transmitted to both the MIDI connector and the USB connector.
• In V-LINK mode, you cannot use the MIDI connectors as a USB MIDI interface.
• When you play the keyboard, program change messages or bank select MSB messages will be transmitted in addition to note messages.
• The program change messages and bank select MSB messages will be transmitted on channel 16.

Note	Number	Pro-gram Change	Bank Select MSB
C2	36	1
C#2	37		0
D2	38	2
D#2	39		1
E2	40	3
F2	41	4
F#2	42		2
G2	43	5
G#2	44		3
A2	45	6
A#2	46		4
B2	47	7
C3	48	8
C#3	49		5
D3	50	9
D#3	51		6
E3	52	10
F3	53	11
F#3	54		7
G3	55	12
G#3	56		8
A3	57	13
A#3	58		9
B3	59	14
C4	60	15
C#4	61		10
D4	62	16
D#4	63		11
E4	64	17
F4	65	18
F#4	66		12
G4	67	19
G#4	68		13
A4	69	20
A#4	70		14
B4	71	21
C5	72	22
C#5	73		15
D5	74	23
D#5	75		16
E5	76	24
F5	77	25
F#5	78		17
G5	79	26
G#5	80		18
A5	81	27
A#5	82		19
B5	83	28
C6	84	29
C#6	85
D6	86	30
D#6	87
E6	88	31
F6	89	21

Memory sets

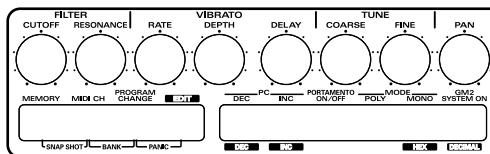

With the factory settings, the GM2 set shown in the illustration is assigned to the controllers.

Use the included template.

The following memory sets are also provided.

GM2 set (MEMORY: 0) (p. 84)

MCR-8 MODE 3(SONAR 2) SET. (p. 85)

MCR-8 MODE 3(SONAR 2) - A (MEMORY: 1)....(p. 85)
MCR-8 MODE 3(SONAR 2) - B (MEMORY: 2) .........(p. 85)
MCR-8 MODE 3(SONAR 2) - C (MEMORY: 3)............(p. 85)
MCR-8 MODE 3(SONAR 2) - D (MEMORY: 4).... (p. 85)

MCR-8 MODE 4(Cubase 5/SX) SET. (p. 86)

MCR-8 MODE 4(Cubase 5/SX)-A (MEMORY: 5)....(p. 86)

MCR-8 MODE 4(Cubase 5/SX)-B (MEMORY: 6) ....(p. 86)

MCR-8 MODE 4(Cubase 5/SX) - C (MEMORY: 7)....(p. 86)

MCR-8 MODE 4(Cubase 5/SX)-D (MEMORY: 8)....(p. 86)

H-COMPATIBLE (ProTools LE, Digital Performer) SET

(MEMORY: 9) (p. 87)

GS SET (p.87)

GS-A (MEMORY: A) (p. 87)

GS-B (MEMORY: B) (p. 88)

GS-C (MEMORY: C) (p. 88)

XG SET. (p. 89)

XG-A (MEMORY: D). (p. 89)

XG-B (MEMORY: E) (p. 89)

For details on settings for actually using each memory set with your application, refer to the Read Me file for each memory set, located in the Memory Files folder of the CD-ROM.

You can download the latest additional memory sets from the following website.

GM2 set (MEMORY: 0)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	FILTER CUTOFF	CC 74(4A)	0(00) - 127(7F)	1	1
R2	FILTER RESONANCE	CC 71(47)	0(00) - 127(7F)	1	1
R3	VIBRATO RATE	CC 76(4C)	0(00) - 127(7F)	1	1
R4	VIBRATO DEPTH	CC 77(4D)	0(00) - 127(7F)	1	1
R5	VIBRATO DELAY	CC 78(4E)	0(00) - 127(7F)	1	1
R6	COARSE TUNING	RPN 0/2(00/02)	0/-(00/-) - 127/-(7F/-)	1	1
R7	FINE TUNING	RPN 0/1(00/01)	0/0(00/00) - 127/127(7F/7F)	1	1
R8	PAN (CHANNEL)	CC 10(0A)	0(00) - 127(7F)	1	1
S1	PORTAMENTO TIME	CC 5(05)	0(00) - 127(7F)	1	1
S2	AFTERTOUCH	CHANNEL PRESSURE	0(00) - 127(7F)	1	1
S3	ENVELOPE ATTACK	CC 73(49)	0(00) - 127(7F)	1	1
S4	ENVELOPE DECAY	CC 75(4B)	0(00) - 127(7F)	1	1
S5	ENVELOPE RELEASE	CC 72(48)	0(00) - 127(7F)	1	1
S6	CHORUS	CC 93(5D)	0(00) - 127(7F)	1	1
S7	REVERB	CC 91(5B)	0(00) - 127(7F)	1	1
S8	VOLUME (CHANNEL)	CC 7(07)	0(00) - 127(7F)	1	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1(00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128(7F)	-	-
B3	PORTAMENTO ON/OFF	CC 65(41)	0(00) / 127(7F)	1	1
B4	POLY MODE ON	B0 7F 00	-	1	1
B5	MONO MODE ON	B0 7E 01	-	1	1
B6	GM2 SYSTEM ON	F0 7E 7F 09 03 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

MCR-8 MODE 3(SONAR 2) SET

When using this memory set, turn the PCR-30/50/80's OMNI (p. 69) setting OFF.

• To display the external controller toolbar, open Display | Toolbars, and select External Controllers.

MCR-8 MODE 3(SONAR 2) - A (MEMORY: 1)

	Parameter		Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 1	*1	CC 16(10)	0(00) - 127(7F)	1	2
R2	TRACK 2	*1	CC 16(10)	0(00) - 127(7F)	2	2
R3	TRACK 3	*1	CC 16(10)	0(00) - 127(7F)	3	2
R4	TRACK 4	*1	CC 16(10)	0(00) - 127(7F)	4	2
R5	TRACK 5	*1	CC 16(10)	0(00) - 127(7F)	5	2
R6	TRACK 6	*1	CC 16(10)	0(00) - 127(7F)	6	2
R7	TRACK 7	*1	CC 16(10)	0(00) - 127(7F)	7	2
R8	TRACK 8	*1	CC 16(10)	0(00) - 127(7F)	8	2
S1	TRACK 1	*2	CC 17(11)	0(00) - 127(7F)	1	2
S2	TRACK 2	*2	CC 17(11)	0(00) - 127(7F)	2	2
S3	TRACK 3	*2	CC 17(11)	0(00) - 127(7F)	3	2
S4	TRACK 4	*2	CC 17(11)	0(00) - 127(7F)	4	2
S5	TRACK 5	*2	CC 17(11)	0(00) - 127(7F)	5	2
S6	TRACK 6	*2	CC 17(11)	0(00) - 127(7F)	6	2
S7	TRACK 7	*2	CC 17(11)	0(00) - 127(7F)	7	2
S8	TRACK 8	*2	CC 17(11)	0(00) - 127(7F)	8	2
B1	TRACK 1	*3	CC 80(50)	0(00) / 127(7F)	1	2
B2	TRACK 2	*3	CC 80(50)	0(00) / 127(7F)	2	2
B3	TRACK 3	*3	CC 80(50)	0(00) / 127(7F)	3	2
B4	TRACK 4	*3	CC 80(50)	0(00) / 127(7F)	4	2
B5	TRACK 5	*3	CC 80(50)	0(00) / 127(7F)	5	2
B6	TRACK 6	*3	CC 80(50)	0(00) / 127(7F)	6	2
L1	<<		CC 82(52)	0(00) / 127(7F)	13	2
L2	■ Stop		CC 82(52)	0(00) / 127(7F)	14	2
L3	> Play		CC 82(52)	0(00) / 127(7F)	15	2
P1	HOLD		CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION		CC 11(0B)	0(00) - 127(7F)	1	1

MCR-8 MODE 3(SONAR 2) - B (MEMORY: 2)

	Parameter		Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 1	*1	CC 16(10)	0(00) - 127(7F)	1	2
R2	TRACK 2	*1	CC 16(10)	0(00) - 127(7F)	2	2
R3	TRACK 3	*1	CC 16(10)	0(00) - 127(7F)	3	2
R4	TRACK 4	*1	CC 16(10)	0(00) - 127(7F)	4	2
R5	TRACK 5	*1	CC 16(10)	0(00) - 127(7F)	5	2
R6	TRACK 6	*1	CC 16(10)	0(00) - 127(7F)	6	2
R7	TRACK 7	*1	CC 16(10)	0(00) - 127(7F)	7	2
R8	TRACK 8	*1	CC 16(10)	0(00) - 127(7F)	8	2
S1	TRACK 1	*2	CC 17(11)	0(00) - 127(7F)	1	2
S2	TRACK 2	*2	CC 17(11)	0(00) - 127(7F)	2	2
S3	TRACK 3	*2	CC 17(11)	0(00) - 127(7F)	3	2
S4	TRACK 4	*2	CC 17(11)	0(00) - 127(7F)	4	2
S5	TRACK 5	*2	CC 17(11)	0(00) - 127(7F)	5	2
S6	TRACK 6	*2	CC 17(11)	0(00) - 127(7F)	6	2
S7	TRACK 7	*2	CC 17(11)	0(00) - 127(7F)	7	2
S8	TRACK 8	*2	CC 17(11)	0(00) - 127(7F)	8	2
B1	TRACK 1	*4	CC 81(51)	0(00) / 127(7F)	1	2
B2	TRACK 2	*4	CC 81(51)	0(00) / 127(7F)	2	2
B3	TRACK 3	*4	CC 81(51)	0(00) / 127(7F)	3	2
B4	TRACK 4	*4	CC 81(51)	0(00) / 127(7F)	4	2
B5	TRACK 5	*4	CC 81(51)	0(00) / 127(7F)	5	2
B6	TRACK 6	*4	CC 81(51)	0(00) / 127(7F)	6	2
L1	<<		CC 82(52)	0(00) / 127(7F)	13	2
L2	■ Stop		CC 82(52)	0(00) / 127(7F)	14	2
L3	> Play		CC 82(52)	0(00) / 127(7F)	15	2
P1	HOLD		CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION		CC 11(0B)	0(00) - 127(7F)	1	1

MCR-8 MODE 3(SONAR 2) - C (MEMORY: 3)

	Parameter		Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 9	*1	CC 16(10)	0(00) - 127(7F)	9	2
R2	TRACK 10	*1	CC 16(10)	0(00) - 127(7F)	10	2
R3	TRACK 11	*1	CC 16(10)	0(00) - 127(7F)	11	2
R4	TRACK 12	*1	CC 16(10)	0(00) - 127(7F)	12	2
R5	TRACK 13	*1	CC 16(10)	0(00) - 127(7F)	13	2
R6	TRACK 14	*1	CC 16(10)	0(00) - 127(7F)	14	2
R7	TRACK 15	*1	CC 16(10)	0(00) - 127(7F)	15	2
R8	TRACK 16	*1	CC 16(10)	0(00) - 127(7F)	16	2
S1	TRACK 9	*2	CC 17(11)	0(00) - 127(7F)	9	2
S2	TRACK 10	*2	CC 17(11)	0(00) - 127(7F)	10	2
S3	TRACK 11	*2	CC 17(11)	0(00) - 127(7F)	11	2
S4	TRACK 12	*2	CC 17(11)	0(00) - 127(7F)	12	2
S5	TRACK 13	*2	CC 17(11)	0(00) - 127(7F)	13	2
S6	TRACK 14	*2	CC 17(11)	0(00) - 127(7F)	14	2
S7	TRACK 15	*2	CC 17(11)	0(00) - 127(7F)	15	2
S8	TRACK 16	*2	CC 17(11)	0(00) - 127(7F)	16	2
B1	TRACK 9	*3	CC 80(50)	0(00) / 127(7F)	9	2
B2	TRACK 10	*3	CC 80(50)	0(00) / 127(7F)	10	2
B3	TRACK 11	*3	CC 80(50)	0(00) / 127(7F)	11	2
B4	TRACK 12	*3	CC 80(50)	0(00) / 127(7F)	12	2
B5	TRACK 13	*3	CC 80(50)	0(00) / 127(7F)	13	2
B6	TRACK 14	*3	CC 80(50)	0(00) / 127(7F)	14	2
L1	Automation Write		CC 82(52)	0(00) / 127(7F)	12	2
L2	■ Stop		CC 82(52)	0(00) / 127(7F)	14	2
L3	Rec		CC 82(52)	0(00) / 127(7F)	11	2
P1	HOLD		CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION		CC 11(0B)	0(00) - 127(7F)	1	1

MCR-8 MODE 3(SONAR 2) - D (MEMORY: 4)

	Parameter		Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 9	*1	CC 16(10)	0(00) - 127(7F)	9	2
R2	TRACK 10	*1	CC 16(10)	0(00) - 127(7F)	10	2
R3	TRACK 11	*1	CC 16(10)	0(00) - 127(7F)	11	2
R4	TRACK 12	*1	CC 16(10)	0(00) - 127(7F)	12	2
R5	TRACK 13	*1	CC 16(10)	0(00) - 127(7F)	13	2
R6	TRACK 14	*1	CC 16(10)	0(00) - 127(7F)	14	2
R7	TRACK 15	*1	CC 16(10)	0(00) - 127(7F)	15	2
R8	TRACK 16	*1	CC 16(10)	0(00) - 127(7F)	16	2
S1	TRACK 9	*2	CC 17(11)	0(00) - 127(7F)	9	2
S2	TRACK 10	*2	CC 17(11)	0(00) - 127(7F)	10	2
S3	TRACK 11	*2	CC 17(11)	0(00) - 127(7F)	11	2
S4	TRACK 12	*2	CC 17(11)	0(00) - 127(7F)	12	2
S5	TRACK 13	*2	CC 17(11)	0(00) - 127(7F)	13	2
S6	TRACK 14	*2	CC 17(11)	0(00) - 127(7F)	14	2
S7	TRACK 15	*2	CC 17(11)	0(00) - 127(7F)	15	2
S8	TRACK 16	*2	CC 17(11)	0(00) - 127(7F)	16	2
B1	TRACK 9	*4	CC 81(51)	0(00) / 127(7F)	9	2
B2	TRACK 10	*4	CC 81(51)	0(00) / 127(7F)	10	2
B3	TRACK 11	*4	CC 81(51)	0(00) / 127(7F)	11	2
B4	TRACK 12	*4	CC 81(51)	0(00) / 127(7F)	12	2
B5	TRACK 13	*4	CC 81(51)	0(00) / 127(7F)	13	2
B6	TRACK 14	*4	CC 81(51)	0(00) / 127(7F)	14	2
L1	Automation Write		CC 82(52)	0(00) / 127(7F)	12	2
L2	■ Stop		CC 82(52)	0(00) / 127(7F)	14	2
L3	Rec		CC 82(52)	0(00) / 127(7F)	11	2
P1	HOLD		CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION		CC 11(0B)	0(00) - 127(7F)	1	1

Generic Surface Preset	*1	*2	*3	*4
Roland MCR-8 (Aus Send 1)	Aux Send 1 Pan	Aux Send 1 Level	Aux Send 1 Pre/Post	Aux Send 1 Enable
Roland MCR-8 (Aus Send 2)	Aux Send 2 Pan	Aux Send 2 Level	Aux Send 2 Pre/Post	Aux Send 2 Enable
Roland MCR-8 (Mute + Solo)	Pan	Volume	Mute	Solo
Roland MCR-8 (Record Arming)	Pan	Volume	White Arm	Record Arm

MCR-8 MODE 4(Cubase 5/SX) SET

When using this memory set, turn the PCR-30/50/80's OMNI (p. 69) setting OFF.

MCR-8 MODE 4(Cubase 5/SX) - A (MEMORY: 5)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 1 PAN	CC 72(48)	0(00) - 127(7F)	16	2
R2	TRACK 2 PAN	CC 73(49)	0(00) - 127(7F)	16	2
R3	TRACK 3 PAN	CC 74(4A)	0(00) - 127(7F)	16	2
R4	TRACK 4 PAN	CC 75(4B)	0(00) - 127(7F)	16	2
R5	TRACK 5 PAN	CC 76(4C)	0(00) - 127(7F)	16	2
R6	TRACK 6 PAN	CC 77(4D)	0(00) - 127(7F)	16	2
R7	TRACK 7 PAN	CC 78(4E)	0(00) - 127(7F)	16	2
R8	TRACK 8 PAN	CC 79(4F)	0(00) - 127(7F)	16	2
S1	TRACK 1 FADER	CC 64(40)	0(00) - 127(7F)	16	2
S2	TRACK 2 FADER	CC 65(41)	0(00) - 127(7F)	16	2
S3	TRACK 3 FADER	CC 66(42)	0(00) - 127(7F)	16	2
S4	TRACK 4 FADER	CC 67(43)	0(00) - 127(7F)	16	2
S5	TRACK 5 FADER	CC 68(44)	0(00) - 127(7F)	16	2
S6	TRACK 6 FADER	CC 69(45)	0(00) - 127(7F)	16	2
S7	TRACK 7 FADER	CC 70(46)	0(00) - 127(7F)	16	2
S8	TRACK 8 FADER	CC 71(47)	0(00) - 127(7F)	16	2
B1	TRACK 1 SOLO	CC 0(00)	0(00) / 127(7F)	16	2
B2	TRACK 2 SOLO	CC 1(01)	0(00) / 127(7F)	16	2
B3	TRACK 3 SOLO	CC 2(02)	0(00) / 127(7F)	16	2
B4	TRACK 4 SOLO	CC 3(03)	0(00) / 127(7F)	16	2
B5	TRACK 5 SOLO	CC 4(04)	0(00) / 127(7F)	16	2
B6	TRACK 6 SOLO	CC 5(05)	0(00) / 127(7F)	16	2
L1	<<	CC 19(13)	0(00) / 127(7F)	16	2
L2	■ Stop	CC 21(15)	0(00) / 127(7F)	16	2
L3	> Play	CC 22(16)	0(00) / 127(7F)	16	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

MCR-8 MODE 4(Cubase 5/SX) - C (MEMORY: 7)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 9 PAN	CC 56(38)	0(00) - 127(7F)	16	2
R2	TRACK 10 PAN	CC 57(39)	0(00) - 127(7F)	16	2
R3	TRACK 11 PAN	CC 58(3A)	0(00) - 127(7F)	16	2
R4	TRACK 12 PAN	CC 59(3B)	0(00) - 127(7F)	16	2
R5	TRACK 13 PAN	CC 60(3C)	0(00) - 127(7F)	16	2
R6	TRACK 14 PAN	CC 61(3D)	0(00) - 127(7F)	16	2
R7	TRACK 15 PAN	CC 62(3E)	0(00) - 127(7F)	16	2
R8	TRACK 16 PAN	CC 63(3F)	0(00) - 127(7F)	16	2
S1	TRACK 9 FADER	CC 48(30)	0(00) - 127(7F)	16	2
S2	TRACK 10 FADER	CC 49(31)	0(00) - 127(7F)	16	2
S3	TRACK 11 FADER	CC 50(32)	0(00) - 127(7F)	16	2
S4	TRACK 12 FADER	CC 51(33)	0(00) - 127(7F)	16	2
S5	TRACK 13 FADER	CC 52(34)	0(00) - 127(7F)	16	2
S6	TRACK 14 FADER	CC 53(35)	0(00) - 127(7F)	16	2
S7	TRACK 15 FADER	CC 54(36)	0(00) - 127(7F)	16	2
S8	TRACK 16 FADER	CC 55(37)	0(00) - 127(7F)	16	2
B1	TRACK 9 SOLO	CC 32(20)	0(00) / 127(7F)	16	2
B2	TRACK 10 SOLO	CC 33(21)	0(00) / 127(7F)	16	2
B3	TRACK 11 SOLO	CC 34(22)	0(00) / 127(7F)	16	2
B4	TRACK 12 SOLO	CC 35(23)	0(00) / 127(7F)	16	2
B5	TRACK 13 SOLO	CC 36(24)	0(00) / 127(7F)	16	2
B6	TRACK 14 SOLO	CC 37(25)	0(00) / 127(7F)	16	2
L1	<<	CC 20(14)	0(00) / 127(7F)	16	2
L2	■Stop	CC 21(15)	0(00) / 127(7F)	16	2
L3	Rec	CC 23(17)	0(00) / 127(7F)	16	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(OB)	0(00) - 127(7F)	1	1

MCR-8 MODE 4(Cubase 5/SX) - B (MEMORY: 6)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 1 PAN	CC 72(48)	0(00) - 127(7F)	16	2
R2	TRACK 2 PAN	CC 73(49)	0(00) - 127(7F)	16	2
R3	TRACK 3 PAN	CC 74(4A)	0(00) - 127(7F)	16	2
R4	TRACK 4 PAN	CC 75(4B)	0(00) - 127(7F)	16	2
R5	TRACK 5 PAN	CC 76(4C)	0(00) - 127(7F)	16	2
R6	TRACK 6 PAN	CC 77(4D)	0(00) - 127(7F)	16	2
R7	TRACK 7 PAN	CC 78(4E)	0(00) - 127(7F)	16	2
R8	TRACK 8 PAN	CC 79(4F)	0(00) - 127(7F)	16	2
S1	TRACK 1 FADER	CC 64(40)	0(00) - 127(7F)	16	2
S2	TRACK 2 FADER	CC 65(41)	0(00) - 127(7F)	16	2
S3	TRACK 3 FADER	CC 66(42)	0(00) - 127(7F)	16	2
S4	TRACK 4 FADER	CC 67(43)	0(00) - 127(7F)	16	2
S5	TRACK 5 FADER	CC 68(44)	0(00) - 127(7F)	16	2
S6	TRACK 6 FADER	CC 69(45)	0(00) - 127(7F)	16	2
S7	TRACK 7 FADER	CC 70(46)	0(00) - 127(7F)	16	2
S8	TRACK 8 FADER	CC 71(47)	0(00) - 127(7F)	16	2
B1	TRACK 1 MUTE	CC 40(28)	0(00) / 127(7F)	16	2
B2	TRACK 2 MUTE	CC 41(29)	0(00) / 127(7F)	16	2
B3	TRACK 3 MUTE	CC 42(2A)	0(00) / 127(7F)	16	2
B4	TRACK 4 MUTE	CC 43(2B)	0(00) / 127(7F)	16	2
B5	TRACK 5 MUTE	CC 44(2C)	0(00) / 127(7F)	16	2
B6	TRACK 6 MUTE	CC 45(2D)	0(00) / 127(7F)	16	2
L1	<<	CC 19(13)	0(00) / 127(7F)	16	2
L2	■ Stop	CC 21(15)	0(00) / 127(7F)	16	2
L3	> Play	CC 22(16)	0(00) / 127(7F)	16	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(OB)	0(00) - 127(7F)	1	1

MCR-8 MODE 4(Cubase 5/SX) - D (MEMORY: 8)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	TRACK 9 PAN	CC 56(38)	0(00) - 127(7F)	16	2
R2	TRACK 10 PAN	CC 57(39)	0(00) - 127(7F)	16	2
R3	TRACK 11 PAN	CC 58(3A)	0(00) - 127(7F)	16	2
R4	TRACK 12 PAN	CC 59(3B)	0(00) - 127(7F)	16	2
R5	TRACK 13 PAN	CC 60(3C)	0(00) - 127(7F)	16	2
R6	TRACK 14 PAN	CC 61(3D)	0(00) - 127(7F)	16	2
R7	TRACK 15 PAN	CC 62(3E)	0(00) - 127(7F)	16	2
R8	TRACK 16 PAN	CC 63(3F)	0(00) - 127(7F)	16	2
S1	TRACK 9 FADER	CC 48(30)	0(00) - 127(7F)	16	2
S2	TRACK 10 FADER	CC 49(31)	0(00) - 127(7F)	16	2
S3	TRACK 11 FADER	CC 50(32)	0(00) - 127(7F)	16	2
S4	TRACK 12 FADER	CC 51(33)	0(00) - 127(7F)	16	2
S5	TRACK 13 FADER	CC 52(34)	0(00) - 127(7F)	16	2
S6	TRACK 14 FADER	CC 53(35)	0(00) - 127(7F)	16	2
S7	TRACK 15 FADER	CC 54(36)	0(00) - 127(7F)	16	2
S8	TRACK 16 FADER	CC 55(37)	0(00) - 127(7F)	16	2
B1	TRACK 9 MUTE	CC 88(58)	0(00) / 127(7F)	16	2
B2	TRACK 10 MUTE	CC 89(59)	0(00) / 127(7F)	16	2
B3	TRACK 11 MUTE	CC 90(5A)	0(00) / 127(7F)	16	2
B4	TRACK 12 MUTE	CC 91(5B)	0(00) / 127(7F)	16	2
B5	TRACK 13 MUTE	CC 92(5C)	0(00) / 127(7F)	16	2
B6	TRACK 14 MUTE	CC 93(5D)	0(00) / 127(7F)	16	2
L1	<<	CC 20(14)	0(00) / 127(7F)	16	2
L2	■Stop	CC 21(15)	0(00) / 127(7F)	16	2
L3	Rec	CC 23(17)	0(00) / 127(7F)	16	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(OB)	0(00) - 127(7F)	1	1

H-COMPATIBLE (ProTools LE, Digital Performer) SET (MEMORY: 9)

When using this memory set, turn the PCR-30/50/80's OMNI (p. 69) setting OFF, and turn the H-ACTIVITY (p. 74) setting ON.

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	ROTARY ENCODER 1	B0 40 dd	DEC(01) / INC(41)	-	2
R2	ROTARY ENCODER 2	B0 41 dd	DEC(01) / INC(41)	-	2
R3	ROTARY ENCODER 3	B0 42 dd	DEC(01) / INC(41)	-	2
R4	ROTARY ENCODER 4	B0 43 dd	DEC(01) / INC(41)	-	2
R5	ROTARY ENCODER 5	B0 44 dd	DEC(01) / INC(41)	-	2
R6	ROTARY ENCODER 6	B0 45 dd	DEC(01) / INC(41)	-	2
R7	ROTARY ENCODER 7	B0 46 dd	DEC(01) / INC(41)	-	2
R8	ROTARY ENCODER 8	B0 47 dd	DEC(01) / INC(41)	-	2
S1	FADER 1	B0 0F 00 B0 2F 40 B0 00 dd B0 20 00 B0 0F 00 B0 2F 00	0(00) - 127(7F)	-	2
S2	FADER 2	B0 0F 01 B0 2F 40 B0 01 dd B0 21 00 B0 0F 01 B0 2F 00	0(00) - 127(7F)	-	2
S3	FADER 3	B0 0F 02 B0 2F 40 B0 02 dd B0 22 00 B0 0F 02 B0 2F 00	0(00) - 127(7F)	-	2
S4	FADER 4	B0 0F 03 B0 2F 40 B0 03 dd B0 23 00 B0 0F 03 B0 2F 00	0(00) - 127(7F)	-	2
S5	FADER 5	B0 0F 04 B0 2F 40 B0 04 dd B0 24 00 B0 0F 04 B0 2F 00	0(00) - 127(7F)	-	2
S6	FADER 6	B0 0F 05 B0 2F 40 B0 05 dd B0 25 00 B0 0F 05 B0 2F 00	0(00) - 127(7F)	-	2
S7	FADER 7	B0 0F 06 B0 2F 40 B0 06 dd B0 26 00 B0 0F 06 B0 2F 00	0(00) - 127(7F)	-	2
S8	FADER 8	B0 0F 07 B0 2F 40 B0 07 dd B0 27 00 B0 0F 07 B0 2F 00	0(00) - 127(7F)	-	2
B1	MUTE 1	B0 0F 00 B0 2F dd	ON(42) / OFF(02)	-	2
B2	SOLO 1	B0 0F 00 B0 2F dd	ON(43) / OFF(03)	-	2
B3	REC 1	B0 0F 00 B0 2F dd	ON(47) / OFF(07)	-	2
B4	WRITE 1	B0 0F 00 B0 2F dd	ON(44) / OFF(04)	-	2
B5	TRACK <	B0 0F 0A B0 2F dd	ON(40) / OFF(00)	-	2
B6	TRACK >	B0 0F 0A B0 2F dd	ON(42) / OFF(02)	-	2
L1	REWIND	B0 0F 0E B0 2F dd	ON(41) / OFF(01)	-	2
L2	STOP	B0 0F 0E B0 2F dd	ON(43) / OFF(03)	-	2
L3	PLAY	B0 0F 0E B0 2F dd	ON(44) / OFF(04)	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(OB)	0(00) - 127(7F)	1	1

GS SET

When using this memory set, you will find it convenient to turn the PCR-30/50/80's OMNI (p. 69) setting ON.

GS-A (MEMORY: A)

	Parameter	Message (Hex.)	Range (Hex.))	Ch.	Port
R1	REVERB MACRO	F0 41 10 42 12 40 01 30 dd SUM F7	0(00) - 7(07)	-	1
R2	REVERB CHARACTER	F0 41 10 42 12 40 01 31 dd SUM F7	0(00) - 7(07)	-	1
R3	REVERB PRE-LPF	F0 41 10 42 12 40 01 32 dd SUM F7	0(00) - 7(07)	-	1
R4	REVERB TIME	F0 41 10 42 12 40 01 34 dd SUM F7	0(00) - 127(7F)	-	1
R5	REVERB PREDELAY TIME	F0 41 10 42 12 40 01 37 dd SUM F7	0(00) - 127(7F)	-	1
R6	REVERB DELAY FEEDBACK	F0 41 10 42 12 40 01 35 dd SUM F7	0(00) - 127(7F)	-	1
R7	REVERB LEVEL	F0 41 10 42 12 40 01 33 dd SUM F7	0(00) - 127(7F)	-	1
R8	PART PANPOT	F0 41 10 42 12 40 1x 1C dd SUM F7	1(01) - 127(7F)	BLOCK	1
S1	VIBRATO RATE	F0 41 10 42 12 40 1x 30 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S2	VIBRATO DEPTH	F0 41 10 42 12 40 1x 31 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S3	VIBRATO DELAY	F0 41 10 42 12 40 1x 37 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S4	TVF&TVA ENVattaCK	F0 41 10 42 12 40 1x 34 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S5	TVF&TVA ENV.DecAY	F0 41 10 42 12 40 1x 35 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S6	TVF&TVA ENV.RELEASE	F0 41 10 42 12 40 1x 36 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S7	REVERB SEND LEVEL	F0 41 10 42 12 40 1x 22 dd SUM F7	0(00) - 127(7F)	BLOCK	1
S8	PART LEVEL	F0 41 10 42 12 40 1x 19 dd SUM F7	0(00) - 127(7F)	BLOCK	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	NRPN ON/OFF	F0 41 10 42 12 40 1x 0A dd SUM F7	OFF(00) / ON(01)	BLOCK	1
B4	RANDOM PAN	F0 41 10 42 12 40 1x 1C 00 SUM F7	-	BLOCK	1
B5	MODE POLY/MONO	F0 41 10 42 12 40 1x 13 dd SUM F7	MONO(00) / POLY(01)	BLOCK	1
B6	GS RESET	F0 41 10 42 12 40 00 7F 00 41 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

GS-B (MEMORY: B)
GS-C (MEMORY: C)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	CHORUS MACRO	F0 41 10 42 12 40 01 38 dd SUM F7	0(00) - 7(07)	-	1
R2	CHORUS PRE-LPF	F0 41 10 42 12 40 01 39 dd SUM F7	0(00) - 7(07)	-	1
R3	CHORUS DELAY	F0 41 10 42 12 40 01 3C dd SUM F7	0(00) - 127(7F)	-	1
R4	CHORUS RATE	F0 41 10 42 12 40 01 3D dd SUM F7	0(00) - 127(7F)	-	1
R5	CHORUS DEPTH	F0 41 10 42 12 40 01 3E dd SUM F7	0(00) - 127(7F)	-	1
R6	CHORUS FEEDBACK	F0 41 10 42 12 40 01 3B dd SUM F7	0(00) - 127(7F)	-	1
R7	CHORUS LEVEL	F0 41 10 42 12 40 01 3A dd SUM F7	0(00) - 127(7F)	-	1
R8	PART PANPOT	F0 41 10 42 12 40 1x 1C dd SUM F7	1(01) - 127(7F)	BLOCK	1
S1	CHORUS SEND LEVEL TO REVERB	F0 41 10 42 12 40 01 3F dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S2	CHORUS SEND LEVEL TO DELAY	F0 41 10 42 12 40 01 40 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S3	TVF CUTOFF FREQ	F0 41 10 42 12 40 1x 32 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S4	TVF RESONANCE	F0 41 10 42 12 40 1x 33 dd SUM F7	0(00) - 64(40) - 127(7F)	BLOCK	1
S5	MODULATION DEPTH	F0 41 10 42 12 40 2x 04 dd SUM F7	0(00) - 127(7F)	BLOCK	1
S6	BEND RANGE	F0 41 10 42 12 40 2x 10 dd SUM F7	64(40) - 88(58)	BLOCK	1
S7	CHORUS SEND LEVEL	F0 41 10 42 12 40 1x 21 dd SUM F7	0(00) - 127(7F)	BLOCK	1
S8	PART LEVEL	F0 41 10 42 12 40 1x 19 dd SUM F7	0(00) - 127(7F)	BLOCK	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	NRPN ON/OFF	F0 41 10 42 12 40 1x 0A dd SUM F7	OFF(00) / ON(01)	BLOCK	1
B4	RANDOM PAN	F0 41 10 42 12 40 1x 1C 00 SUM F7	-	BLOCK	1
B5	MODE POLY/MONO	F0 41 10 42 12 40 1x 13 dd SUM F7	MONO(00) / POLY(01)	BLOCK	1
B6	GS RESET	F0 41 10 42 12 40 00 7F 00 41 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	DELAY MACRO	F0 41 10 42 12 40 01 50 dd SUM F7	0(00) - 9(09)	-	1
R2	DELAY PRE-LPF	F0 41 10 42 12 40 01 51 dd SUM F7	0(00) - 7(07)	-	1
R3	DELAY TIME RATIO LEFT	F0 41 10 42 12 40 01 53 dd SUM F7	1(01) - 120(78)	-	1
R4	DELAY TIME CENTER	F0 41 10 42 12 40 01 52 dd SUM F7	1(01) - 115(73)	-	1
R5	DELAY TIME RATIO RIGHT	F0 41 10 42 12 40 01 54 dd SUM F7	1(01) - 120(78)	-	1
R6	DELAY FEEDBACK	F0 41 10 42 12 40 01 59 dd SUM F7	0(00) - 64(40) - 127(7F)	-	1
R7	DELAY LEVEL	F0 41 10 42 12 40 01 58 dd SUM F7	0(00) - 127(7F)	-	1
R8	PART PANPOT	F0 41 10 42 12 40 1x 1C dd SUM F7	1(01) - 127(7F)	BLOCK	1
S1	DELAY SEND LEVEL TO REVERB	F0 41 10 42 12 40 01 5A dd SUM F7	0(00) - 127(7F)	-	1
S2	DELAY LEVEL LEFT	F0 41 10 42 12 40 01 56 dd SUM F7	0(00) - 127(7F)	-	1
S3	DELAY LEVEL CENTER	F0 41 10 42 12 40 01 55 dd SUM F7	0(00) - 127(7F)	-	1
S4	DELAY LEVEL RIGHT	F0 41 10 42 12 40 01 57 dd SUM F7	0(00) - 127(7F)	-	1
S5	EQ LOW GAIN	F0 41 10 42 12 40 02 01 dd SUM F7	22(34) - 64(40) - 76(4C)	-	1
S6	EQ HIGH GAIN	F0 41 10 42 12 40 02 03 dd SUM F7	22(34) - 64(40) - 76(4C)	-	1
S7	DELAY SEND LEVEL	F0 41 10 42 12 40 1x 2C dd SUM F7	0(00) - 127(7F)	BLOCK	1
S8	PART LEVEL	F0 41 10 42 12 40 1x 19 dd SUM F7	0(00) - 127(7F)	BLOCK	1
B1	EQ ON / OFF	F0 41 10 42 12 40 4x 20 dd SUM F7	OFF(00) / ON(01)	BLOCK	1
B2	EQ LOW FREQ (200Hz/400Hz)	F0 41 10 42 12 40 02 00 dd SUM F7	200Hz(00) / 400Hz(01)	-	1
B3	EQ HIGH FREQ (3kHz/6kHz)	F0 41 10 42 12 40 02 02 dd SUM F7	3kHz(00) / 6kHz(01)	-	1
B4	RANDOM PAN	F0 41 10 42 12 40 1x 1C 00 SUM F7	-	BLOCK	1
B5	MODE POLY/MONO	F0 41 10 42 12 40 1x 13 dd SUM F7	MONO(00) / POLY(01)	BLOCK	1
B6	GS RESET	F0 41 10 42 12 40 00 7F 00 41 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

XG SET

When using this memory set, you will find it convenient to turn the PCR-30/50/80's OMNI (p. 69) setting ON.

XG-A (MEMORY: D)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	BEND PITCH CONTROL	F0 43 10 4C 08 0ch 23 dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R2	BEND FILTER CONTROL	F0 43 10 4C 08 0ch 24 dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R3	BEND AMPLITUDE CONTROL	F0 43 10 4C 08 0ch 25 dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R4	PITCH EG INITIAL LEVEL	F0 43 10 4C 08 0ch 69 dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R5	PITCH EG ATTACK TIME	F0 43 10 4C 08 0ch 6A dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R6	PITCH EG RELEASE LEVEL	F0 43 10 4C 08 0ch 6B dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R7	PITCH EG RELEASE TIME	F0 43 10 4C 08 0ch 6C dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R8	PAN	F0 43 10 4C 08 0ch 0E dd F7	1(01) - 64(40) - 127(7F)	CURRENT CH	1
S1	BEND LFO PMOD DEPTH	F0 43 10 4C 08 0ch 26 dd F7	0(00) - 127(7F)	CURRENT CH	1
S2	BEND LFO FMOD DEPTH	F0 43 10 4C 08 0ch 27 dd F7	0(00) - 127(7F)	CURRENT CH	1
S3	BEND LFO AMOD DEPTH	F0 43 10 4C 08 0ch 28 dd F7	0(00) - 127(7F)	CURRENT CH	1
S4	REVERB SEND	F0 43 10 4C 08 0ch 13 dd F7	0(00) - 127(7F)	CURRENT CH	1
S5	CHORUS SEND	F0 43 10 4C 08 0ch 12 dd F7	0(00) - 127(7F)	CURRENT CH	1
S6	VARIATION SEND	F0 43 10 4C 08 0ch 14 dd F7	0(00) - 127(7F)	CURRENT CH	1
S7	DRY LEVEL	F0 43 10 4C 08 0ch 11 dd F7	0(00) - 127(7F)	CURRENT CH	1
S8	VOLUME	F0 43 10 4C 08 0ch 0B dd F7	0(00) - 127(7F)	CURRENT CH	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	PART MODE NORMAL/DRUM	F0 43 10 4C 08 0ch 07 dd F7	OFF(00) / ON(01)	CURRENT CH	1
B4	RANDOM PAN	F0 43 10 4C 08 0ch 0E 00 F7	-	CURRENT CH	1
B5	MONO/POLY MODE	F0 43 10 4C 08 0ch 05 dd F7	MONO(00) / POLY(01)	CURRENT CH	1
B6	XG SYSTEM ON	F0 43 10 4C 00 00 7E 00 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

XG-B (MEMORY: E)

	Parameter	Message (Hex.)	Range (Hex.)	Ch.	Port
R1	MW PITCH CONTROL	F0 43 10 4C 08 0ch 1D dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R2	MW FILTER CONTROL	F0 43 10 4C 08 0ch 1E dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R3	MW AMPLITUDE CONTROL	F0 43 10 4C 08 0ch 1F dd F7	0(00) - 64(40) - 127(7F)	CURRENT CH	1
R4	REVERB PAN	F0 43 10 4C 02 01 0D dd F7	0(00) - 64(40) - 127(7F)	-	1
R5	CHORUS PAN	F0 43 10 4C 02 01 2D dd F7	0(00) - 64(40) - 127(7F)	-	1
R6	VARIATION PAN	F0 43 10 4C 02 01 57 dd F7	0(00) - 64(40) - 127(7F)	-	1
R7	SEND VARIATION TO REVERB	F0 43 10 4C 02 01 58 dd F7	0(00) - 127(7F)	-	1
R8	SEND VARIATION TO CHORUS	F0 43 10 4C 02 01 59 dd F7	0(00) - 127(7F)	-	1
S1	MW LFO PMOD DEPTH	F0 43 10 4C 08 0ch 20 dd F7	0(00) - 127(7F)	CURRENT CH	1
S2	MW LFO FMOD DEPTH	F0 43 10 4C 08 0ch 21 dd F7	0(00) - 127(7F)	CURRENT CH	1
S3	MW LFO AMOD DEPTH	F0 43 10 4C 08 0ch 22 dd F7	0(00) - 127(7F)	CURRENT CH	1
S4	REVERB RETURN	F0 43 10 4C 02 01 0C dd F7	0(00) - 127(7F)	-	1
S5	CHORUS RETURN	F0 43 10 4C 02 01 2C dd F7	0(00) - 127(7F)	-	1
S6	VARIATION RETURN	F0 43 10 4C 02 01 56 dd F7	0(00) - 127(7F)	-	1
S7	SEND CHORUS TO REVERB	F0 43 10 4C 02 01 2E dd F7	0(00) - 127(7F)	-	1
S8	VOLUME	F0 43 10 4C 08 0ch 0B dd F7	0(00) - 127(7F)	CURRENT CH	1
B1	PROGRAM CHANGE DEC	PROGRAM CHANGE	min:1 (00)	-	-
B2	PROGRAM CHANGE INC	PROGRAM CHANGE	max:128 (7F)	-	-
B3	PART MODE NORMAL/DRUM	F0 43 10 4C 08 0ch 07 dd F7	OFF(00) / ON(01)	CURRENT CH	1
B4	RANDOM PAN	F0 43 10 4C 08 0ch 0E 00 F7	-	CURRENT CH	1
B5	MONO/POLY MODE	F0 43 10 4C 08 0ch 05 dd F7	MONO(00) / POLY(01)	CURRENT CH	1
B6	XG SYSTEM ON	F0 43 10 4C 00 00 7E 00 F7	-	-	1
L1	STOP	FC	-	-	2
L2	START	FA	-	-	2
L3	CONTINUE	FB	-	-	2
P1	HOLD	CC 64(40)	0(00) / 127(7F)	1	1
P2	EXPRESSION	CC 11(0B)	0(00) - 127(7F)	1	1

Troubleshooting

Problems common to Windows and Macintosh

Problems occurring only in Windows

Problems occurring only in Macintosh

Problems related to the USB driver

Cannot install the driver correctly

• Is the CD-ROM correctly inserted into your CD-ROM drive?

Installation is not possible unless the CD-ROM included with the PCR-30/50/80 is inserted in your CD-ROM drive. Make sure that the CD-ROM is correctly inserted into your CD-ROM drive.

Is the CD-ROM or the lens of the CD-ROM dirty?

If the CD-ROM or the lens of the CD-ROM drive is dirty, the installer may not work correctly. Clean the disc and/or lens using a commercially-available CD cleaner or lens cleaner.

• Are you installing the software from a networked CD-ROM drive?

The software cannot be installed from a networked CD-ROM drive.

Is there sufficient free space on your hard disk?

Delete unneeded files to increase the amount of free space. After deleting the unneeded files, empty the recycling bin.

Is the PCR-30/50/80 connected correctly?

Make sure that the USB connector of your computer is connected to the PCR-30/50/80 by a USB cable.

Is the power of the PCR-30/50/80 turned on?

• The power switch of the PCR-30/50/80 may have been set to the USB position.

Make sure that the power switch of the PCR-30/50/80 is set to the DC position. Do not use bus power while installing the driver. Check this, and if you are using Windows, close the Sound and Multimedia Properties dialog box (Sounds and Audio Devices Properties in Windows XP, and Multimedia Properties in Windows 98), re-open the same dialog box once again, and specify the MIDI input/output destinations.

• Using the procedure for "Deleting the driver" (p. 93), delete the USB audio device driver installed in your computer, and then re-install the PCR-30/50/80 driver as described in "Installation" (p. 15). Also check whether there is any "Other devices" in "Device Manager" or "Unknown device" in "Universal Serial Bus Controllers". If you find any, delete them.

Is OMS or FreeMIDI installed?

The PCR-30/50/80 driver cannot be installed unless OMS or FreeMIDI are installed. Please install

OMS or FreeMIDI. ( "Installation et configuration du pilote (Macintosh)" (p. 27))

PCR-30/50/80 is not detected when making OMS or FreeMIDI settings

Is the PCR-30/50/80 detected?

Turn the power of the PCR-30/50/80 off, then on again.

Reconnect the USB cable.

If other USB devices are connected, connect only the PCR-30/50/80.

It is possible that the Macintosh did not correctly detect and initialize the PCR-30/50/80. Leave the PCR-30/50/80's USB cable connected, and restart your Macintosh. If it is still not detected, shut down your Macintosh, and then restart it.

The PCR-30/50/80 will not be detected if it is connected to the USB connector on the Macintosh keyboard.

Please connect the PCR-30/50/80 to a USB connector on the Macintosh itself.

"Find new hardware wizard" does not execute automatically

The "Insert Disk" dialog box does not appear

"Find new hardware wizard" ends before the process is completed

• It may take about 15 seconds (or more) after the USB cable is connected for the PCR-30/50/80 to be detected.
  Is the USB cable connected correctly?

Make sure that the PCR-30/50/80 and your computer are correctly connected via a USB cable.

Is USB enabled on your computer?

Refer to the operation manual for your computer, and make sure that USB is enabled.

• It has been found that in some cases, not all of the Windows 98 files required to support audio via USB are installed when a computer is shipped.

Please contact the manufacturer of your computer.

• Does your computer meet the USB specifications?

If you are using a computer that does not fulfill the electrical requirements of the USB specifications, operation may be unstable. In this case, you may be able to solve the problem by connecting a USB hub.

If the above actions do not solve the problem, it is possible that the PCR-30/50/80 has been incorrectly detected by the computer. Please reinstall the driver from the beginning of the procedure. () "Installation" (p. 15))

"Found unknown device" appears even though you installed the driver

If your computer or USB hub has two or more USB connectors, and you connect the PCR-30/50/80 to a USB connector to which the PCR-30/50/80 has never been connected before, the “Unknown device” dialog box may appear even on a computer onto which you have already installed the driver. Refer to “Installation” (p. 15), and install the driver once again. This is not a malfunction.

If the "Found unknown device" dialog box appears even though the PCR-30/50/80 is connected to the same USB connector as before, it is possible that the computer has detected the PCR-30/50/80 incorrectly. Please reinstall the driver from the beginning of the procedure. ( "Installation" (p. 15))

An “Unknown driver found” dialog box appears, and you are unable to install the driver

Device Manager shows “?”, “!”, or “USB Composite Device”

Driver is not installed correctly

It is possible that the computer has detected the PCR-30/50/80 incorrectly. Please reinstall the driver from the beginning of the procedure. ( "Installation" (p. 15))

Can't install/delete/use the driver in Windows XP/2000

• Did you log on to Windows as a user with administrative privileges?

In order to install/delete/re-install the driver in Windows XP/2000, you must be logged into Windows as a user with administrative privileges, such as Administrator. For details, please contact the system administrator for your computer system.

• Did you make "Driver Signing Options"?

In order to install/re-install the driver, you must make "Driver Signing Options". (Windows XP p. 16, Windows 2000 p. 20)

Windows XP/2000 displays a "Hardware Installation" or "Digital Signature Not Found" dialog box

• Did you make "Driver Signing Options"?

In order to install/re-install the driver, you must make the settings described in "Driver Signing Options".

(Windows XP p. 16, Windows 2000 p. 20)

Deleting the driver

If you were unable to install the driver according to the procedure given, the PCR-30/50/80 may not be recognized correctly by the computer. In this case, use the following procedure to delete the driver, and then follow the procedure in "Installation" (p. 15) to install the driver once again.

Windows users

Here's how to uninstall the dedicated driver.

1. Start up Windows with the PCR-30/50/80 disconnected. Disconnect all USB cables other than a USB keyboard or USB mouse.
2. If you are using Windows XP Professional/2000, log on as a user that has administrative privileges (e.g., Administrator).
3. Insert the CD-ROM into the CD-ROM drive of your computer.
4. From the Windows Start menu, choose "Run...". In the Run dialog box, input the following into the Open field, and click [OK].

Windows XP/2000 users: D:\DRIVER\USB_XP2K\Uninstal.EXE

Windows Me/98 users: D:\DRIVER\USB_ME98\Uninstal.EXE

• The drive name D : may be different on your system. Use the drive name for your CD-ROM drive.

• Follow the on-screen instructions to uninstall the driver.

Macintosh users

1. Turn off the power of the PCR-30/50/80. Also disconnect the USB cable (by which the PCR-30/50/80 is connected) from your Macintosh.
2. From the system extensions folder, drag "USB PCR" into the trash to delete it.
3. Delete PCR from the OMS Folder inside the System folder, or drag PCR Driver from the FreeMIDI Folder inside the System folder to the trash.
4. Restart the Macintosh.

MIDI implementation

1. Receive data

System exclusive messages

Universal non-realtime system exclusive message

Identity request message

Status	Data byte	Status
F0H	7EH, dev, 06H, 01H	F7H
Byte	Explanation
F0H	Exclusive status
7EH	ID number (Universal non-realtime system exclusive message)
dev	Device ID (10 or 7FH (Broadcast))
06H	Sub ID #1 (PCR-30/50/80)
01H	Sub ID #1 (PCR-30/50/80)
F7H	EOX (End of Exclusive)

Data transmission

The PCR-30/50/80 can use Bulk Dump (p. 97) to transfer its internal memory set data (p. 84).

Data Set 1 (DT1)

These messages transmit the actual data, and are used to transfer data settings to a device.

Status	Data byte	Status
F0H	41H, 10H, 00H, 62H, 12H,aaH, ddH,...eeH, sum	F7H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H Model ID #1 (PCR-30/50/80)

62H Model ID #1 (PCR-30/50/80)

12H Command ID (RQ1)

aaH Address

ddH Data

.

，

：

*

eeH Data

sum Checksum

F7H EOX (End of Exclusive)

• The amount of data that can be transmitted at once is fixed for each type of data. Data that does not have the specified starting address and data size will not be received. Refer to the explanation in 3. Bulk Dump (p. 97).
• There must be an interval of at least 40 ms between each exclusive message that is sent.
• Also, you must leave an interval of at least 500ms after transmitting one set of bulk dump data.

2. Transmit data

■ Channel voice messages

In addition to the channel voice messages that can be transmitted in each mode, the PCR-30/50/80 lets you assign any channel voice message to any controller and transmit it.

Note off

Status	2nd byte	3rd byte
9nH	kkH	00H

n = MIDI channel number:0H-FH (Ch.1-16)

kk = note number: 00H - 7FH (0-127)

• Transmitted when you release a key in Play mode.

Note on

Status	2nd byte	3rd byte
9nH	kkH	vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

kk = note number: 00H-7FH (0-127)

vv = note on velocity: 01H-7FH (1-127)

• Transmitted when you push a key in Play mode.

Polyphonic key pressure

Status	2nd byte	3rd byte
AnH	kkH	vvH

n = MIDI channel number: 0H-FH (Ch.1-16)

kk = note number: 00H-7FH (0-127)

vv = key pressure: 00H-7FH (0-127)

Control change

Status	2nd byte	3rd byte
BnH	cH	vvH

n = MIDI channel number: 0H-FH (Ch.1-16)

cc = controller number: 00H-77H

vv = control value: 00H-7FH

Bank Select (Controller number 0, 32)

Status	2nd byte	3rd byte
BnH	00H	mmH
BnH	20H	IIH

n = MIDI channel number: 0H-FH (Ch.1-16)

mm = Bank number MSB: 00H -7FH

ll = Bank number LSB: 00H - 7FH

• Transmitted in Bank mode.

Modulation (Controller number 1)

Status	2nd byte	3rd byte
BnH	01H	vvH

n = MIDI channel number:0H-FH (Ch.1-16)

vv = Modulation depth:00H-7FH (0-127)

• Transmitted by upward/downward operation of the BENDER lever in Play mode.

Program change

Status

2nd byte

CnH

ppH

n = MIDI channel number: 0H-FH (Ch.1-16)

pp = Program number:

00H-7FH (prog. 1 - prog. 128)

• Transmitted in Program change mode.

Channel pressure

Status

2nd byte

DnH

vvH

n = MIDI channel number: 0H-FH (Ch.1-16)

vv = Channel pressure:

00H-7FH(0-127)

Pitch bend change

Status

2nd byte

11H

3rd byte

mmH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

mm, II = Pitch Bend value:

0000H-4000H-7FH7FH

(-8192 - 0 - +8191)

• Transmitted by rightward/leftward operation of the BENDER lever in Play mode.

■ Channel mode messages

In addition to the channel mode messages that can be transmitted in Panic mode, the PCR-30/50/80 lets you assign any channel voice message to any controller and transmit it.

- Channel mode messages

Status

2nd byte

ccH

3rd byte

vvH

n = MIDI channel number: 0H - FH (Ch.1 - 16)

cc = controller number:

vv = control value:

00H-7FH

All sounds off (Controller number 120)

Status

2nd byte

78H

3rd byte

00H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

• Transmitted in Panic mode.

Reset all controllers (Controller number 121)

Status

2nd byte

79H

3rd byte

00H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

• Transmitted in Panic mode.

All notes off (Controller number 123)

Status

2nd byte

7BH

3rd byte

00H

n = MIDI channel number: 0H - FH (Ch.1 - 16)

• Transmitted in Panic mode.

System common message

On the PCR-30/50/80 you can assign the following system common messages to any controller and transmit them.

MTC quarter frame

Status

2nd byte

F1H

mmH

mm = Message type/value

Song position pointer

Status

2nd byte

3rd byte

F2H

mmH

11H

mm, II = Song position: 0000H-7F7FH (0-16383)

Song select

Status

2nd byte

F3H

mmH

mm = Song number: 00 00H - 7F 7FH (0-16383)

Tune request

Status

F6H

System realtime message

In addition to the Active Sensing messages that are transmitted constantly, the PCR-30/50/80 allows you to assign the following system realtime messages (other than Active Sensing) to any controller and transmit them.

Start

Status

F8H

• Transmitted if the System setting F8 CLOCK is ON.

Start

Status

FAH

Continue

Status

FBH

-Stop

Status

FCH

Active sensing

Status

FEH

• Transmitted at intervals of approximately 250 ms.
• Cannot be assigned to a controller.

System reset

Status

FFH

System exclusive message

The PCR-30/50/80 is able to transmit the following exclusive messages: exclusive messages assigned to the controllers, Identity Reply, V-LINK messages, and Bulk Dump.

Universal non-realtime system exclusive

Oldentity reply

This message will be transmitted when an Identity Request message is received.

Status Data byte Status

F0H 7EH,10H,06H,02H,41H,62H,01H, F7H

00H,00H,00H,01H,00H,00H

Byte Explanation

F0H Exclusive status

7EH ID number (Universal non-realtime message)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

06H Sub ID #1 (General Information)

02H Sub ID #1 (Identity Reply)

41H ID number (Roland)

62H 01H Device family code

00H 00H Device family number code

00H 01H Software revision level

00H 00H

F7H EOX (End of Exclusive)

V-LINK message

OV-LINK ON

Transmitted when entering V-LINK mode.

Status Data byte Status

F0H 41H,10H,00H,51H,12H, F7H

10H,00H,00H,01H,0FH,0FH,51H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H 51H Model ID (V-LINK)

12H Command ID (DT1)

10H 00H 00H Address

01H V-LINK ON

0FH Clip Control Rx. MIDI Ch. (16ch)

0FH Color Control Rx. MIDI Ch. (16ch)

51H Checksum

F7H EOX (End of Exclusive)

OV-LINK OFF

Transmitted when exiting V-LINK mode.

|Status	Data byte	Status
F0H	41H,10H,00H,51H,12H,	F7H
	10H,00H,00H,00H,70H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H 51H Model ID (V-LINK)

12H Command ID (DT1)

10H 00H 00H Address

00H V-LINK OFF

51H Checksum

F7H EOX (End of Exclusive)

○Sender Model Name

Transmitted when entering V-LINK mode.

|Status	Data byte	Status
F0H	41H,10H,00H,51H,12H,	F7H
	10H,71H,00H,45H,44H,49H,52H,4FH,4CH,
	20H,50H,43H,52H,00H,3BH

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (For the PCR-30/50/80, fixed at 10H)

00H 51H Model ID (V-LINK)

12H Command ID (DT1)

aaH Address

10H 71H 00H Data

45H 44H 49H Model name (EDIROL PCR)

52H4FH4CH

20H50H43H

52H 00H

3BH Checksum

F7H EOX (End of Exclusive)

-Data Set 1 DT1 (12H)

Transmitted when you execute Bulk TX in the Bulk mode.

Status Data byte Status

F0H 41H, 10H, 00H, 62H, 12H,

aaH, ddH, ...eeH, sum F7H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID

00H Model ID #1 (PCR-30/50/80)

62H Model ID #1 (PCR-30/50/80)

12H Command ID (RQ1)

aaH Address

ddH Data

：

，

。

eeH Data

sum Checksum

F7H EOX (End of Exclusive)

• The amount of data that can be transmitted at once is fixed for each type of data. Data that does not have the specified starting address and data size will not be received. Refer to the explanation in 3. Bulk Dump.
• There must be an interval of at least 40 ms between each exclusive message that is sent.
• Also, you must leave an interval of at least 500 ms after transmitting one set of bulk dump data.

3. Bulk dump

Bulk dump allows a large amount of data to be transferred in a single operation. For example, this can be used to store all settings of a device into a computer or sequencer.

On the PCR-30/50/80, a bulk dump will be transmitted when you execute the Bulk mode operation BULK TX. The bulk dump is transmitted as several exclusive messages.

Address

• You must leave an interval of at least 40 ms between each exclusive message.
• In the case of ALL BULK, the contents of memories 1--F will be transmitted as the current memory, consecutively from memory 1 through memory F. After transmitting one set of bulk dump data, you must leave an interval of at least 500 ms.
• Please be aware that if you modify the data dumped from the PCR-30/50/80 by changing the order in which the exclusive messages are transmitted, by inserting other messages between the system exclusive messages, or by speeding up the timing of the transmission, the data may not be set correctly when the PCR-30/50/80 receives it.

4. Supplementary material

- Decimal and Hexadecimal table

(An "H" is appended to the end of numbers in hexadecimal notation.)

In MIDI documentation, data values and addresses/sizes of Exclusive messages, etc. are expressed as hexadecimal values for each 7 bits.

The following table shows how these correspond to decimal numbers.

Dec.	Hex.	Dec.	Hex.	Dec.	Hex.	Dec.	Hex.
0	00H	32	20H	64	40H	96	60H
1	01H	33	21H	65	41H	97	61H
2	02H	34	22H	66	42H	98	62H
3	03H	35	23H	67	43H	99	63H
4	04H	36	24H	68	44H	100	64H
5	05H	37	25H	69	45H	101	65H
6	06H	38	26H	70	46H	102	66H
7	07H	39	27H	71	47H	103	67H
8	08H	40	28H	72	48H	104	68H
9	09H	41	29H	73	49H	105	69H
10	0AH	42	2AH	74	4AH	106	6AH
11	0BH	43	2BH	75	4BH	107	6BH
12	0CH	44	2CH	76	4CH	108	6CH
13	0DH	45	2DH	77	4DH	109	6DH
14	0EH	46	2EH	78	4EH	110	6EH
15	0FH	47	2FH	79	4FH	111	6FH
16	10H	48	30H	80	50H	112	70H
17	11H	49	31H	81	51H	113	71H
18	12H	50	32H	82	52H	114	72H
19	13H	51	33H	83	53H	115	73H
20	14H	52	34H	84	54H	116	74H
21	15H	53	35H	85	55H	117	75H
22	16H	54	36H	86	56H	118	76H
23	17H	55	37H	87	57H	119	77H
24	18H	56	38H	88	58H	120	78H
25	19H	57	39H	89	59H	121	79H
26	1AH	58	3AH	90	5AH	122	7AH
27	1BH	59	3BH	91	5BH	123	7BH
28	1CH	60	3CH	92	5CH	124	7CH
29	1DH	61	3DH	93	5DH	125	7DH
30	1EH	62	3EH	94	5EH	126	7EH
31	1FH	63	3FH	95	5FH	127	7FH

• The decimal expression of the MIDI channel, program change, etc., is one greater than the decimal value shown in the table above.
• The hexadecimal expression for each 7 bits allows a maximum of 128 steps (0--127) to be expressed by one byte of data. Multiple bytes are used if the data requires greater resolution than this. For example, a value expressed by two 7-bit bytes "aa" and "bbH" would be aa x 128 + bb.
• In the case of signed (+/-) data, 00H = -64, 40H = +/-0, and 7FH = +63; i.e., a value 64 less than the decimal value shown in the above table is used. In the case of a two-byte value, 00 00H = -8192, 40 00 = +/-0, and 7F 7F = +8191. For example, a value of "aa" and "bbH" would have a decimal expression of aa bbH - 40 00H = aa x 128 + bb - 64 x 128.
• In the case of data indicated as "use nibble data," hexadecimal expression in 4-bit units is used. A nibble-expressed value of the two bytes 0a and 0bH would have a value of a × 16 + b .

What is the decimal expression of 5AH?

From the preceding table, 5AH = 90

What is the decimal expression of the 7-bit hexadecimal value 1234H?

From the preceding table, 12H = 18 and 34H = 52

Thus, this is 18 × 128 + 52 = 2356

What is the decimal expression of the nibble-expressed value 0A 03 09 0D?

From the preceding table, 0AH = 10 03H = 3 09H = 9 ,and 0DH = 13

Thus, this is (10 × 16 + 3) × 16 + 9) × 16 + 13 = 41885

What is the nibble-expressed value of decimal 1258?

1258 ÷ 16 = 78 (quotient) ... 10 (remainder)

78÷ 16 = 4 (quotient) ... 14 (remainder)

4÷ 16 = 0 (quotient) ... 4 (remainder)

From the preceding table, 0 = 00H 4 = 04H 14 = 0EH 10 = 0HA

Thus, the nibble-expressed value is 00 04 0E 0AH

Example of an actual MIDI message

CE 04

CnH is the Program Change status. "n" is the MIDI channel number. EH = 14 , and 04H = 04 . Thus, this is a program change message on MIDI channel 15, for program number 05.

- Checksum calculation

In order to verify that the message was received correctly, Roland exclusive messages (RQ1, DT1) add a checksum following the end of the data (before the F7). The checksum value is determined by the address and data (or size) of the exclusive message that is transmitted.

Calculating the checksum

("H" has been added following hexadecimal values)

The checksum is a value that results in a lower 7 bits of 0 when the address, size, and checksum itself are added together.

Specifically, the calculation will be as follows when the exclusive message you want to transmit has an address of aa bb ccH and data or size of dd ee ffH.

aa + bb + cc + dd + ee + ff = total

total ÷ 128 = quotient...remainder

128 - remainder = checksum

• However, as an exception, the checksum for a remainder of 0 is not 80H but rather 00H .

Function...		Transmitted	Recognized	Remarks
Basic Channel	Default Changed	1 1-16	X X
Mode	Default Messages Altered	Mode 3 OMNI ON/OFF, MONO, POLY**********	X X X
Note Number:	True Voice	0-127**********	X X
Velocity	Note On Note Off	O (9n v=1-127) O (9n v=0)	X X
After Touch	Key's Channel's	O O	X X
Pitch Bend		O	X
Control Change	0-119	O	X
	Change : True Number	O	X
Program Change		O (0-127)**********	X X
System Exclusive		O	O
System Common		O O (0-127) O	X X X
System Real Time		O O	X X
Aux Messages		O *1 (120) O *1 (121) O *1 (123) O	X X X X X X
Notes		*1 When PANIC is transmitted.

Mode 1: OMNI ON, POLY

Mode 3: OMNI OFF, POLY

Mode 2: OMNI ON, MONO

Mode 4: OMNI OFF, MONO

O:Yes

X:No

Information

When you need repair service, call your nearest EDIROL/Roland Service Center or authorized EDIROL/Roland distributor in your country as shown below.

-EDIROL

EUROPE

EDIROL (Europe) Ltd.

Studio 3.4 114 Power Road

London W4 5PY

U.K.

TEL: [phone]

FAX: [phone]

http://www.edirol.com/europe

Deutschland

TEL:[phone]

France

TEL: [phone]

Italia

TEL: [phone]

U.S.A./CANADA

EDIROL Corporation North

America

425 Sequoia Drive, Suite 114

Bellingham, WA 98226

U.S.A.

TEL: [phone]

FAX: [phone]

http://www.edirol.com/

Roland

AFRICA

EGYPT

Al Fanny Trading Office

9, EBN Hagar A1 Askalany Street,

ARD E1 Golf, Heliopolis,

Cairo 11341, EGYPT

TEL: [phone]

REUNION

That Other Music Shop

(PTY) Ltd.

11 Melle St., Braamfontein,

Johannesbourg, SOUTH AFRICA

P.O.Box 32918, Braamfontein 2017

Johannesbourg, SOUTH AFRICA

TEL: [phone]

Paul Bothner (PTY) Ltd.

17 Werdmuller Centre,

Main Road, Claremont 7708

SOUTH AFRICA

P.O.BOX 23032, Claremont 7735

SOUTH AFRICA

TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics

Co., Ltd.

5F.No.1500 Pingliang Road

Shanghai, CHINA

TEL: [phone]

Roland Shanghai Electronics

Co., Ltd.

(BEIJING OFFICE)

10F.No.18 Anhuaxili

Chaoyang District, Beijing,

CHINA

TEL: [phone]

HONG KONG

Tom Lee Music Co., Ltd.

Service Division

22-32 Pun Shan Street, Tsuen

Wan, New Territories,

HONG KONG

TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

409, Nirman Kendra Mahalaxmi

Flats Compound Off. Dr. Edwin

Moses Road, Mumbai-400011,

INDIA

TEL: [phone]

INDONESIA

PT Citra IntiRama

J1. Cideng Timur No. 15J-150

Jakarta Pusat

INDONESIA

TEL: [phone]

KOREA

Cosmos Corporation

1461-9, Seocho-Dong

Seocho Ku, Seoul, KOREA

TEL: [phone]

MALAYSIA

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue

Makati, Metro Manila 1200,

PHILIPPINES

TEL: [phone]

SINGAPORE

CRISTOFORIMUSIC PTE

LTD

Blk 3014, Bedok Industrial Park E,

02-2148, SINGAPORE 489980

TEL: [phone]

TAIWAN

ROLAND TAIWAN

ENTERPRISE CO.,LTD.

Room 5, 9fl. No. 112 Chung Shan

N.Road Sec.2, Taipei, TAIWAN

R.O.C.

TEL: [phone]

THAILAND

Theera Music Co., Ltd.

330 Verng NakornKasem, Soi 2

Bangkok 10100, THAILAND

TEL: [phone]

VIETNAM

Saigon Music

138 Tran Quang Khai St.,

District 1

Ho Chi Minh City

VIETNAM

TEL: [phone]

AUSTRALIA/

NEW ZEALAND

AUSTRALIA

Roland Corporation

Australia Pty., Ltd.

38 Campbell Avenue

Dee Why West. NSW 2099

AUSTRALIA

TEL: [phone]

NEW ZEALAND

Roland Corporation Ltd.

32 Shaddock Street, Mount Eden,

Auckland, NEW ZEALAND

TEL: [phone]

CENTRAL/LATIN

AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055

(1123) Buenos Aires

ARGENTINA

TEL: [phone]

BRAZIL

Roland Brasil Ltda

Rua San Jose, 780 Sala B

Parque Industrial San Jose

Cotia - Sao Paulo - SP, BRAZIL

TEL: [phone]

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1

Nataniel Cox #739, 4th Floor

Santiago - Centro, CHILE

TEL: [phone]

MEXICO

Casa Veerkamp, s.a. de c.v.

Av. Toluca No. 323, Col. Olivar

155, New National Road

Patras 26442, GREECE

TEL: [phone]

HUNGARY

Roland East Europe Ltd.

Warehouse Area DEPO' Pf.83

H-2046 Torokbalint, HUNGARY

TEL: [phone]

IRELAND

Roland Ireland

Audio House, Belmont Court,

Donnybrook, Dublin 4.

Republic of IRELAND

TEL: [phone]

ITALY

Roland Italy S. p. A.

Danvik Center 28, 2 tr.

S-131 30 Nacka SWEDEN

TEL: [phone]

SWITZERLAND

Roland (Switzerland) AG

Atlantic Close, Swansea

Enterprise Park, SWANSEA

SA7 9FJ

UNITED KINGDOM

TEL: [phone]

MIDDLE EAST

BAHRAIN

Moon Stores

No.16, Bab Al Bahrain Avenue,

P.O.Box 247, Manama 304

State of BAHRAIN

TEL:211005

CYPRUS

Radex Sound Equipment Ltd.

17, Diagorou Street, Nicosia,

CYPRUS

TEL: [phone]

IRAN

MOCO, INC.

No.41 Nike St., Dr.Shariyati Ave.,

Roberoye Cerahe Mirdamad

Tehran, IRAN

TEL: [phone]

ISRAEL

Halilit P. Greenspoon &

Sons Ltd.

8 Retzif Ha'aliya Hashnya St.

Tel-Aviv-Yafo ISRAEL

TEL: [phone]

JORDAN

AMMAN Trading Agency

245 Prince Mohammad St.,

Amman 1118, JORDAN

TEL: [phone]

KUWAIT

Easa Husain Al Yousifi Est.

Abdullah Salem Street,

Safat, KUWAIT

TEL: [phone]

LEBANON

Chahine S.A.L.

Gerge Zeidan St., Chahine Bldg.,

Achrafieh, P.O.Box: 16-5857

Beirut, LEBANON

TEL: [phone]

QATAR

Badie Studio & Stores

P.O.Box 62

Doha, QATAR

TEL: 423554

SAUDI AR

aDawliah Universal

Electronics API

Corniche Road, Aldossary Bldg.,

1st Floor, Alkhobar,

SAUDI ARABIA

P.O.Box 2154, Alkhobar 31952

SAUDI ARABIA

TEL: [phone]

SYRIA

Technical Light & Sound

Center

Khaled Ebn Al Walid St.

Bldg.No.47,P.O.BOX 13520,

Damascus, SYRIA

TEL: [phone]

TURKEY

Barkat Muzik alelteri ithalat

ye ihracat Lu

Siraselviler Caddesi Siraselviler

Pasaji No:74/20

Taksim - Istanbul, TURKEY

TEL: [phone]

U.A.E.

Zak Electronics & Musical

Instruments Co. L.L.C.

Zabeel Road, Al Sherooq Bldg.,

No.14, Grand Floor, Dubai, U.A.E.

TEL: [phone]
