USER MANUAL MICRO SCAN JBSYSTEMS

Copyright © 2010 by BEGLEC NV ‘t Hofveld 2C ~ B1702 Groot-Bijgaarden ~ Belgium Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited. Version: 1.0

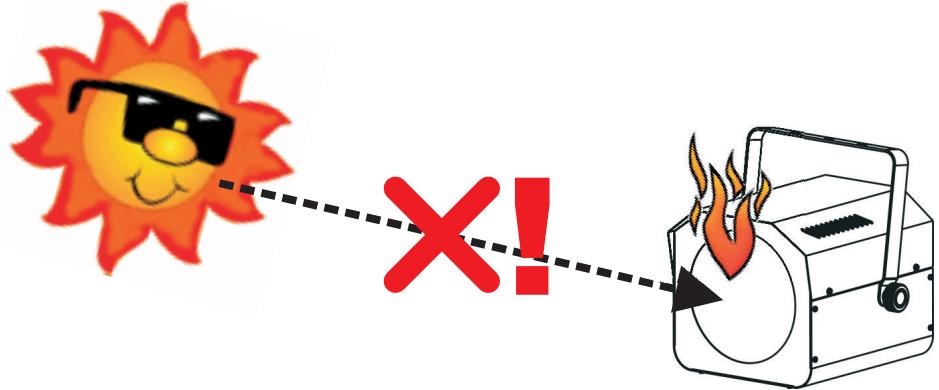

WARNING: DANGER! never expose the lens to direct sunlight, even for a short period. This may damage

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

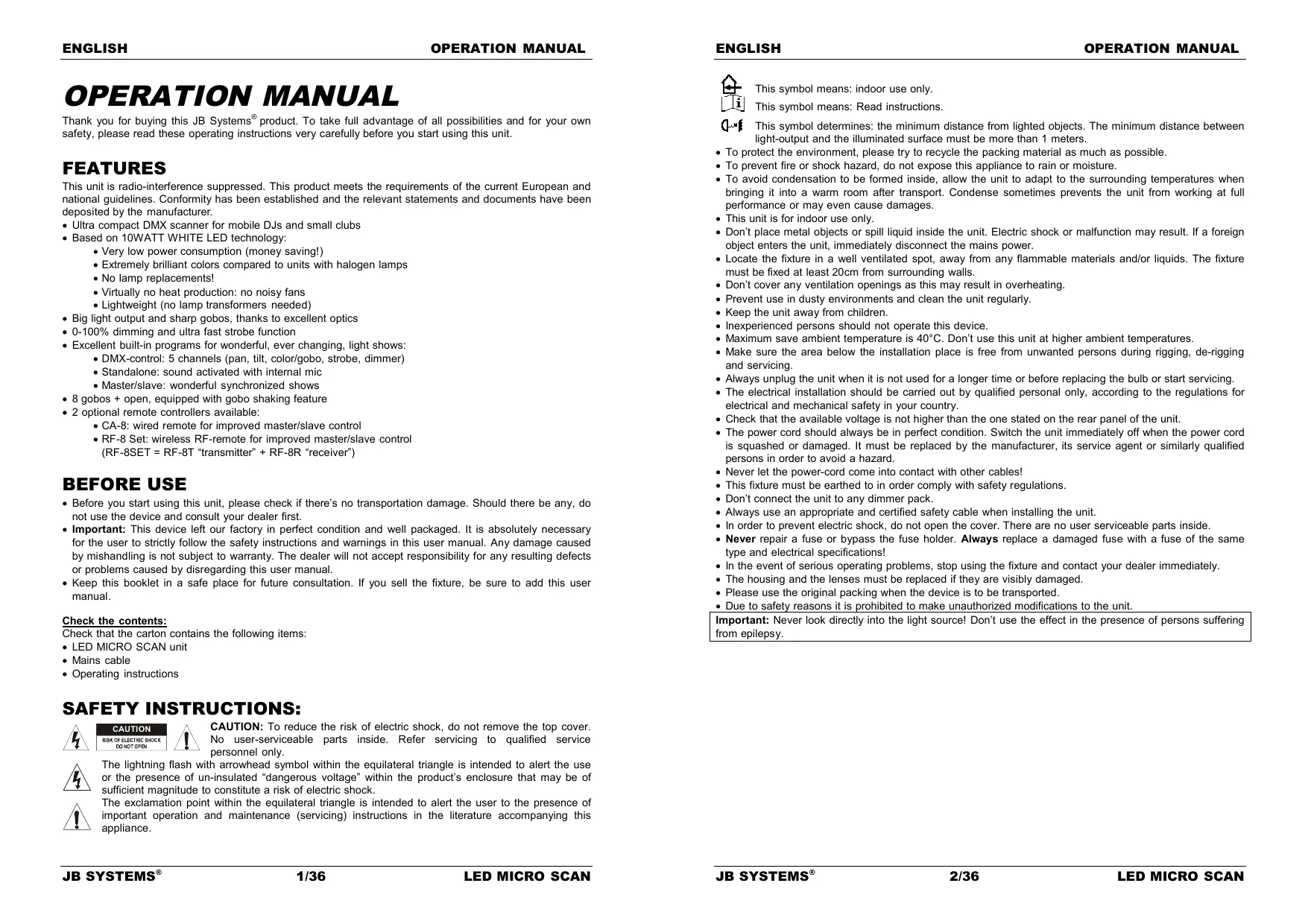

Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. Ultra compact DMX scanner for mobile DJs and small clubs Based on 10WATT WHITE LED technology: Very low power consumption (money saving!) Extremely brilliant colors compared to units with halogen lamps No lamp replacements! Virtually no heat production: no noisy fans Lightweight (no lamp transformers needed) Big light output and sharp gobos, thanks to excellent optics 0-100% dimming and ultra fast strobe function Excellent built-in programs for wonderful, ever changing, light shows: DMX-control: 5 channels (pan, tilt, color/gobo, strobe, dimmer) Standalone: sound activated with internal mic Master/slave: wonderful synchronized shows 8 gobos + open, equipped with gobo shaking feature 2 optional remote controllers available: CA-8: wired remote for improved master/slave control RF-8 Set: wireless RF-remote for improved master/slave control (RF-8SET = RF-8T “transmitter” + RF-8R “receiver”) BEFORE USE Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first. Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. Check the contents: Check that the carton contains the following items: LED MICRO SCAN unit Mains cable Operating instructions This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meters. To protect the environment, please try to recycle the packing material as much as possible. To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages. This unit is for indoor use only. Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power. Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 20cm from surrounding walls. Don’t cover any ventilation openings as this may result in overheating. Prevent use in dusty environments and clean the unit regularly. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing. The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Check that the available voltage is not higher than the one stated on the rear panel of the unit. The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Never let the power-cord come into contact with other cables! This fixture must be earthed to in order comply with safety regulations. Don’t connect the unit to any dimmer pack. Always use an appropriate and certified safety cable when installing the unit. In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside. Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the fixture and contact your dealer immediately. The housing and the lenses must be replaced if they are visibly damaged. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. SAFETY INSTRUCTIONS: CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. CAUTION JB SYSTEMS® 1/36

1. Standalone 1unit:

Just connect the unit to the mains and put on some music. The unit will start working automatically to the rhythm of the music.

2. Two or more units in master/slave setup:

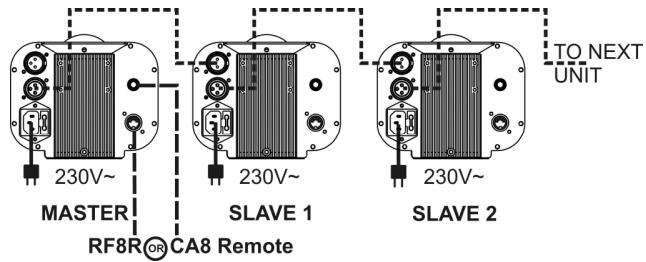

Connect 2 or more units together using good quality balanced XLR microphone cables . The unit that has no cable connected to its input will react as master; the others are the slave units.

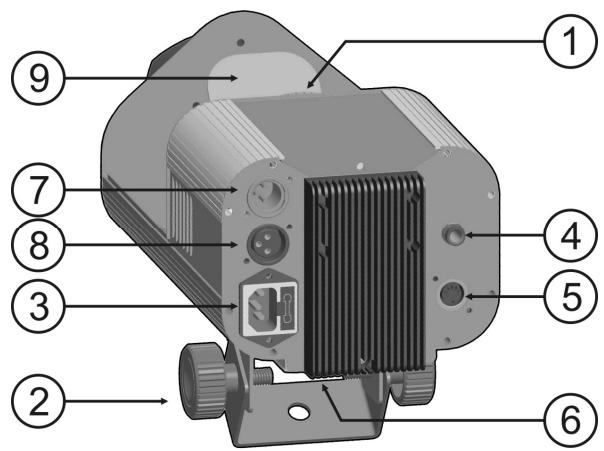

1. Optical lens with manual focus adjustment

2. Hanging bracket with 2 knobs on both sides to fasten the unit and a mounting hole to fix a mounting

3. Mains input with IEC socket and integrated fuse holder, connect the supplied mains cable here.

4. ¼” jack used to connect an optional CA-8 controller.

5. Din-5pin input, used to connect an optional wireless receiver, named RF-8R.

6. DIP switches, used to set the DMX-starting address of the unit.

7. DMX input: 3pin male XLR-connector used to connect universal DMX-cables. This input receives

instructions from a DMX-controller or from another Led Micro Scan light effect when used in master/slave mode.

8. DMX output: 3pin female XLR-connector used to connect the Led Micro Scan with the next unit in the

DMX chain or with another Led Micro Scan when used in master/slave mode.

OVERHEAD RIGGING Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 20cm from surrounding walls. The device should be installed out of reach of people and outside areas where persons may walk by or be seated. Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s weight. Always use a certified safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails. The device should be well fixed; a free-swinging mounting is dangerous and may not be considered! Don’t cover any ventilation openings as this may result in overheating. The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. JB SYSTEMS® 3/36

Don’t forget to set the DMX addresses as follows: Master unit: DMX start address MUST be set to 001. (first DIP switch = ON, all other are OFF) Slave units: DMX start address may have any value but NOT 001 (example: set the first 3 DIP switches to ON) It is possible to inverse the behavior of a slave unit by changing the position of DIP-switch n°10. Just try it and see if the effect becomes better. Changing DIP-switch n°10 on the master has no effect.

3. Connect the optional CA-8 or RF-8 controller for more control:

The CA-8 or RF-8 controller can only be used in standalone or master/slave mode: CA-8 wired remote: Connect the controller to the jack input of the first unit (master). RF-8SET wireless remote: the wireless remote has two parts: RF-8T: small RF-transmitter that can control up to 5 effects. RF-8R: small RF-receiver that should be connected to the DIN 5pin input of the LED MICRO SCAN. See the installation manual of the receiver for more information. Now you can control all the connected units: STANDBY BUTTON: Press this button to start/stop blackout mode on all connected units. MODE/FUNCTION BUTTONS: With the MODE button you can select 3 different modes: The LED is off: with the FUNCTION button you can select 3 different strobe functions. The LED is on: with the FUNCTION button you can select different shows. The LED is blinking: With the FUNCTION button you can select the desired gobo/color.

4. Controlled by universal DMX-controller:

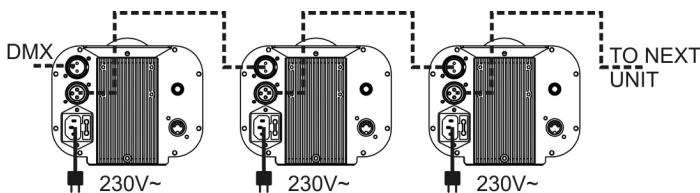

The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to “daisy chain” your DMX controller and all the connected light effects with a good quality XLR M/F JB SYSTEMS® 4/36

ENGLISH OPERATION MANUAL balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this simply won’t work! Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. How to set the DIP-switches to obtain the right starting address: On the back of the Led Micro Scan you will see that each of the first 9 DIP-switches corresponds to certain value: Dip

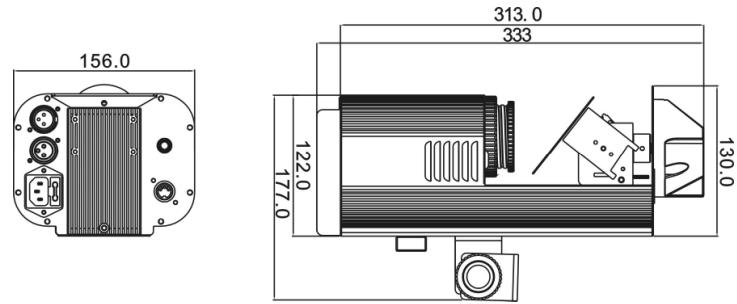

Invert slave You can combine the values of these switches to become any starting address between 1 and 512: Begin address = 01 switch 1=ON values: 1 Begin address = 05 switch 1+3=ON values: 1+4 = 5 Begin address = 09 switch 1+4=ON values: 1+8 = 9 Begin address = 13 switch 1+3+4=ON values: 1+4+8 = 13 Begin address = 62 switch 2+3+4+5+6=ON values: 2+4+8+16+32 = 62 DMX-CONFIGURATION OF LED MICRO SCAN: ENGLISH OPERATION MANUAL The interior of the device should be cleaned annually using a vacuum cleaner or air-jet. The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Clean with a soft cloth using normal glass cleaning products. Always dry the parts carefully. Clean the external optics at least once every 30 days. Clean the internal optics at least every 90 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! SPECIFICATIONS Mains Input: Fuse: Sound Control: DMX connections: DMX channels: Lamp: Size: Weight: AC 100 ~ 240V, 50/60Hz 250V 2A fast blow (20mm glass) Internal microphone 3pin XLR male / female CREE 10W White LED 333 x 156 x 177mm (see drawing) 3,0kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing. Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked: All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded. Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation. When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced. The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected. In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly. JB SYSTEMS® 5/36
