Product Type	NAS (Network Attached Storage)
Brand	BUFFALO
Model	LS-WSGL (LinkStation Pro Duo)
Dimensions (W x D x H)	40 x 82 x 135 mm
Weight	0.5 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	~15 W
Network Interface	RJ-45 Ethernet 10/100/1000 Mbit/s
USB Interface	USB 2.0/1.1
Hard Drives	2 x SATA (internal)
Supported Protocols	TCP/IP, SMB, FTP, HTTP, NTP
Client Operating Systems	Windows 2000/XP/Vista, Mac OS 10.3.9+
Operating Temperature	0 to 35 °C
Operating Humidity	20 to 80 % (non-condensing)
Package Contents	LinkStation, Ethernet cable, AC adapter, installation CD-ROM, quick installation guide, warranty card
Included Software	LinkNavigator, Buffalo NAS Navigator
File Access	SMB/CIFS sharing, FTP, Web access via HTTP interface
Initial Setup	Via LinkNavigator CD-ROM (Easy Setup) or manual
Remote Management	Web interface (Open Web Admin)
Default Credentials	admin / password

Frequently Asked Questions - LS-WSGL BUFFALO

How to install the BUFFALO LS-WSGL for the first time?

Insert the LinkNavigator CD into your computer. If the installation does not start automatically, manually launch setup.exe (Windows) or click the LinkNavigator icon (Mac). Follow the wizard by selecting Easy Setup for quick configuration.

How to access files stored on the NAS?

On Windows, double-click the LinkStation shortcut on the desktop. On Mac, use Go > Connect to Server and enter smb://[IP address]. You can find the IP address in the LS-WSGLSettings.txt file.

What are the default credentials to log in to the Web interface?

The default username is admin and the password is password. It is strongly recommended to change them after the first login.

How to reset the password if I forgot it?

The reset procedure is not described in the manual. Generally, you can hold the reset button on the back for several seconds to restore factory settings. Refer to the full manual on the CD for more details.

Is the NAS compatible with Mac?

Yes, it is compatible with Mac OS 10.3.9 and later. Use LinkNavigator for installation and NAS Navigator for management.

What file sharing protocols are supported?

The LS-WSGL supports SMB (Windows), FTP, and HTTP for browser management. It uses the TCP/IP protocol.

How to configure FTP access?

Log in to the Web interface (Open Web Admin) via your browser. Go to file sharing settings and enable the FTP service. Set users and permissions.

Can I replace the internal hard drives?

Yes, the LS-WSGL contains two internal SATA bays. You can open the case to replace or add drives. Caution: this may void the warranty if done incorrectly. Refer to the manual for precautions.

What to do if the NAS does not appear on the network?

Check that the Ethernet cable is properly connected and that the power switch is in the On position. Make sure your computer's firewall is not blocking traffic. Use NAS Navigator to detect the device.

How to update the firmware?

Firmware update is usually done via the Web interface. Download the latest version from the Buffalo Technology website and follow the instructions in the maintenance menu. The full manual on the CD provides details.

USER MANUAL LS-WSGL BUFFALO

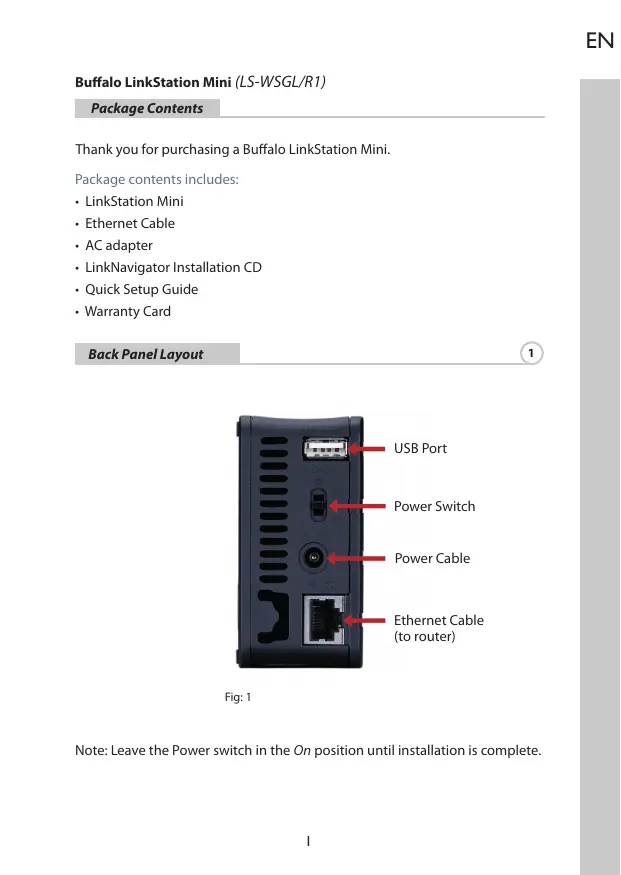

Thank you for purchasing a Buffalo LinkStation Mini.

Package contents include:

• LinkStation Mini
• Ethernet Cable
• AC adapter
• LinkNavigator Installation CD
• Quick Setup Guide
  Warranty Card

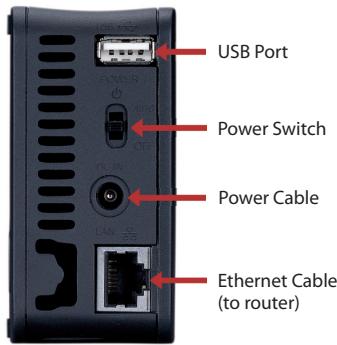

Back Panel Layout

1

Fig:1

Note: Leave the Power switch in the On position until installation is complete.

Insert the LinkNavigator CD into your computer's CD-ROM drive. If Setup doesn't launch automatically, you can launch it manually by clicking Start, then Run.... When the Run dialog opens, type d:\setup.exe (where "d" is the drive letter of your CD-ROM). Press OK to continue. (Fig: 2)

Fig:2

Click on Begin Installation (Fig: 3) and select the Easy Setup option (Fig: 4). The wizard will guide you through the installation.

Fig:3

Fig: 4

Click on the Complete button to finish the setup of your LinkStation (Fig: 5).

Fig:5

If you are installing the software on a Mac, open the CD and click the LinkNavigator icon to begin installation. (Fig: 6)

Fig: 6

The wizard will launch (Fig: 7) and guide you through the installation.

Fig:7 button to finish the setup of your LinkStation (Fig: 8).

Fig: 8

Congratulations! Your LinkStation is ready to use. Please see the LinkStation User Manual on your CD for more help and configuration options.

If you're using a Windows PC, two new icons will be on your desktop: Shortcut for LinkStation and Buffalo NAS Navigator. (Fig: 9)

Fig:9

The LinkStation shortcut will take you directly to the folders on your LinkStation. Share is the main folder that you can put files and folders in. Info contains a copy of your user manual. (Fig: 10)

Fig:10

The Buffalo NAS Navigator icon opens the LinkStation's client utility. (Fig:11) This lets you easily view system information for your LinkStation(s). If you right-click on your LinkStation's icon and choose Open Web Admin, it will take you to the settings configuration GUI, where you may change your LinkStation's settings. Until you change it, the GUI's username is "admin" and the password is "password". Consult your user manual for more information on the Buffalo NAS Navigator and the settings configuration GUI.

Fig:11

After installing the LinkNavigator software, your Mac will have new icons on the desktop and in the Dock. The LS-WSGLSettings.txt file contains the IP address of your LinkStation. NASNavigator is the LinkStation's client utility.

(Fig: 12)

Fig:12

Clicking NASNavigator opens the LinkStation's client utility. (Fig: 13) This lets you easily view system information for your LinkStation and change its settings. Consult your user manual for more information on the Buffalo NAS Navigator.

Fig:13

With the information in the LS-WSGLSettings.txt file, (Fig: 14) you can easily connect to the LinkStation from any of your computers on your local network.

Fig:14

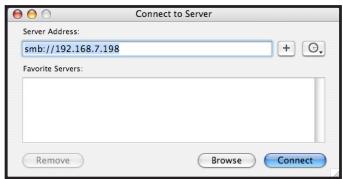

From the Finder, click Go, and then choose Connect to Server. In the Server Address field, enter your LinkStation's IP address in the form smb://ipaddress (where "ipaddress" is your LinkStation's IP address), and click Connect. (Fig: 15) You can get your LinkStation's IP address from the LS-WSGLSettings.txt file on your desktop.

Fig:15

Select Guest and click on Connect. Note: If you have configured share permissions on your LinkStation, select Registered User and enter your login credentials. (Fig: 16)

Fig:16

Select share from the list of folders on the LinkStation. (Fig: 17)

Fig:17

The share will open. A link to it will appear on your desktop, as shown.

Technical Specifications

Data Transfer:	10/100/1000 Mbps
Hard Drives:	(2) SATA
Main Connector:	RJ-45 (Ethernet)
USB Interface:	USB 2.0/1.1
Protocol Support:	TCP/IP
	SMB, FTP (File Sharing)
	HTTP (Management)
	NTP (Time Synchronisation)
Power Supply:	100-240V 50/60Hz
Client OS Support:	Windows®2000, XP, Vista™
	Mac OS 10.3.9 or later
Power Consumption:	~15 W
Dimensions:	40 x 82 x 135 mm
Weight:	0.5 Kg
Operating Temperature:	0-35°C; 20-80% non-condensing

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Environmental Information

• The equipment that you have purchased has required the extraction and use of natural resources for its production.
• The equipment may contain hazardous substances that could impact health and the environment.
• In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.

• If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration.
