Product Type	Monochrome Laser Printer
Brand	Konica Minolta
Model	PagePro 4650EN
Print Speed	Up to 35.7 pages per minute
Resolution	1200 x 1200 dpi
Processor	500 MHz
Standard Memory	128 MB (expandable to 384 MB)
Maximum Duty Cycle	150,000 pages per month
Dimensions (W x D x H)	421.8 x 465.4 x 404.3 mm
Weight	23 kg (with consumables)
Power Supply	120-240 VAC, 50/60 Hz
Power Consumption	623 W operating, 135 W standby
Supported Paper Sizes	Letter, A4, A5, A6, B5, B6, envelopes, postcards, up to 215.9 x 900 mm (multipurpose tray)
Standard Paper Capacity	550 sheets + 150-sheet multipurpose tray
Maximum Paper Capacity	1,800 sheets (with options)
Duplex Printing	Optional (automatic duplexer)
Network Interfaces	Gigabit Ethernet, USB 2.0, parallel, host USB port
System Compatibility	Windows, Mac OS X, Linux
Language Emulations	PostScript 3, PCL 6, XPS, PDF Direct Print
Toner Cartridge	All-in-one cartridge (black): 6,000 pages (standard), 10,000 or 18,000 pages (high-capacity)
Warranty	1 year on-site
Noise Level	≤53.6 dB(A) operating, ≤27 dB(A) standby
Security	SSL, IPsec, IEEE 802.1x, MAC address filter
Remote Management	PageScope Web Connection, Net Care, Status Monitor

Frequently Asked Questions - PAGEPRO 4650EN KONICA

How to install the print driver on Windows?

Download the driver from the Konica Minolta website or use the supplied CD. Launch the installation and follow the on-screen instructions. For a network connection, select 'Network Printer' and enter the printer's IP address.

How to replace the toner cartridge?

Open the front cover, remove the old cartridge by pulling on the handle. Unpack the new cartridge, remove the protective tapes, insert it by sliding it until it clicks. Close the cover. The printer will perform an initialization.

What types of paper can I use?

The printer accepts plain paper, recycled paper, labels, envelopes, transparencies, light cardboard (up to 216 g/m²). The multipurpose tray accepts sizes up to 35.4 inches long (banners).

How to print double-sided automatically?

The automatic duplexer is optional. If installed, in the print settings, select 'Duplex' or 'Double-sided', then choose the binding mode (long edge or short edge). The printer automatically flips the paper.

How to configure the printer on a wireless network?

The PagePro 4650EN does not have built-in Wi-Fi. Connect it via an Ethernet cable to your router. Assign a fixed IP address via the control panel (Menu > Network > TCP/IP) or use DHCP.

What does the 'Toner Empty' message on the screen mean?

The toner cartridge is nearly empty. Replace it as soon as possible. You can continue printing a few pages, but the quality may degrade. The replacement cartridge (black) is available in two capacities: 10,000 or 18,000 pages.

How to print a PDF file directly from a USB flash drive?

Insert the USB flash drive into the host USB port on the front. On the screen, select 'Print from USB' and choose the file (PDF, XPS, JPEG or TIFF). Press Start. This function requires the optional hard disk or a CompactFlash card.

What is the lifespan of the printer?

The maximum duty cycle is 150,000 pages per month. With regular maintenance (cleaning rollers, replacing toner), the printer can last several years. The manufacturer's warranty is one year on-site.

How to clean the printer?

Unplug the printer. Use a soft, lint-free cloth slightly dampened to clean the exterior. Do not use chemicals. For the inside, gently dust off. Do not touch the rollers with your fingers. Refer to the manual for details.

What to do if the printer stops responding?

Check that the printer is on and that the network or USB cable is properly connected. Restart the printer and the PC. Check the Status Monitor for errors. If the problem persists, reset the network settings via the menu or perform a factory reset (Menu > Settings > Reset).

USER MANUAL PAGEPRO 4650EN KONICA

Close-up of a yellow lily flower with visible stamens and petals (no text or symbols)

Close-up of a printer's internal structure showing paper sheets and folders (no visible text or symbols)

Portrait of a bald man in a suit smiling (no text or symbols visible)

BETTER. FASTER. SMARTER.

Rock-solid reliability and high-powered performance come together in the fast pagepro™ 4650EN workgroup laser printer. Packed with a 500 MHz processor and optimized Emperor™ technology, the printer hits speeds of 35.7 pages per minute—first pages out in as fast as 8.8 seconds—and cranks out up to 150,000 prints per month. All varieties of approved paper, including envelopes and special media, can be used. A multiprotocol Gigabit Ethernet interface and suite of management tools make network integration easy. PC, Mac and Linux users are well supported. For fast-paced companies, the pagepro 4650EN is THE choice to keep business on track.

pagepro 4650EN

35.7 PPM FOR FAST NETWORK PRINTING
1200 X 1200 DPI DELIVERS CRISP BLACK TEXT, CLEAR DETAILED GRAPHICS
EMPERON™ PRINT SYSTEM ENSURES VERSATILITY AND HIGH PERFORMANCE
128 MB RAM, OPTIONAL 40 GB HARD DRIVE FOR ENHANCED FUNCTIONS
POSTSCRIPT 3 AND PCL 6 EMULATIONS, MULTI-PLATFORM COMPATIBLE
DIRECT PRINT PDF, XPS, JPEG & TIFF FILES
NATIVE XPS INTERPRETER FOR WINDOWS VISTA, INCLUDING WSD SUPPORT
GIGABIT ETHERNET, USB 2.0, AND PARALLEL INTERFACES
POSTCARD TO LEGAL PRINT SIZES SUPPORTED
▶ HIGH-CAPACITY PAPER OPTIONS FOR WORKGROUP REQUIREMENTS
▶ ROBUST 150,000 PAGE-PER-MONTH MAXIMUM DUTY CYCLE
▶ PAGESCOPE SOFTWARE SUITE SIMPLIFIES NETWORK MANAGEMENT
INFOLINE-STYLE FEATURE PROVIDES AT-A-GLANCE PRINTER STATUS

Black-and-white portrait of a smiling woman and a man in business attire (no text or symbols visible)

Close-up of a white daisy flower with yellow center (no text or symbols)

Stack of rolled-up paper sheets in dark tones, no visible text or symbols

DO BUSINESS_BETTER

Front view of a HP 4650 EN printer with brand logo and control panel (no visible text or symbols beyond branding)

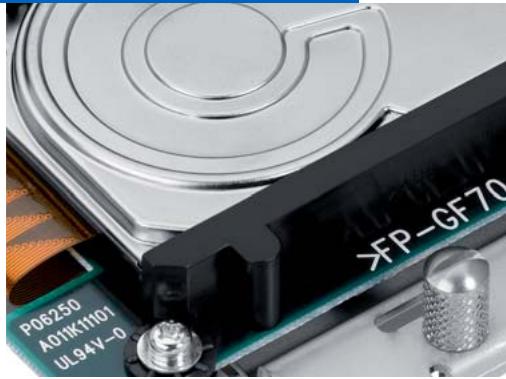

Close-up of a hard disk drive with visible circuit board and sensor components (no readable text or symbols)

pagepro

RELIABILITY THROUGHOUT

In it for the long haul. Outstanding reliability is a critical element of a workgroup resource and the pagepro 4650EN rises to the challenge. Quality is evident throughout the printer's design. Proven laser technology provides dependable service and long-lasting printed documents. And the well-constructed pagepro engine supports an impressive duty cycle of 150,000 pages per month with low operational costs for years of valuable service.

PERFORMANCE DRIVEN

Fast and Productive. The combination of Emperor technology, an advanced 500 MHz processor, and performance-based engine keeps print jobs moving efficiently. Expect first pages in as fast as 8.8 seconds. Entire jobs run up to 35.7 ppm. The pagepro 4650EN comes standard with 128 MB RAM that can be expanded to 384 MB RAM. Advanced functions, such as direct print and secure print services, are supported by an optional 40 GB hard drive.

MORE PAPER OPTIONS

Versatile media support. The pagepro 4650EN offers great output quality and loads of paper handling options. Text is sharp and graphics are beautifully detailed. Great-looking documents come in all varieties. Select thick or thin paper, recycled or new, labels, envelopes, and even transparencies. In fact, use different stocks in each of the printer's two paper trays.

Documents delivered your way. Save time restocking the printer by adding optional trays and more than double the capacity to 1,800 sheets. The print driver offers settings for collation, booklets and n-up printing. A 500-sheet stacker/sorter unit is available to keep multiple documents in neat order. For paper conservation, use the optional duplex unit and cut paper use in half.

NETWORK READY

Workteam ready. The pagepro 4650EN contains an embedded Gigabit Ethernet interface to handle all varieties of computers and applications and multiple protocols—including TCP/IP v6, IPsec and SSL—for the latest in network and security standards. Integration is seamless. A comprehensive suite of PageScope utilities make network installation and printer management fast and easy.

FEATURES, OPTIONS & BENEFITS

Supports mixed computing networks. The pagepro 4650EN handles the diverse range of today's computing environments—PCs, Macs, and Linux—with support for TCP/IP, EtherTalk, NetWare, and NetBEUI protocols and PostScript 3, PCL 6, XPS, and PDF page description languages.

Papers for your business ventures. Business documents come in all sizes. Postcards to legal-size, and even banner paper, can be used safely in the printer. Other media can be used too. Try letterhead, cardstock, and other approved paper types to give projects a custom look.

Direct print options. Conveniently located, the USB 1.1 Host Port enables direct printing of PDF, XPS, JPEG, and TIFF files from a USB flash drive. No computer or additional software required. Or drag and drop files for print using your desktop PageScope Direct Print utility.

Advanced print functions. The printer's powerful 40 GB hard disk (optional) is used to store fonts and forms; retains jobs for easy reprinting; provides secure printing with a 4-digit PIN verification; assists with collation jobs; enables direct print functionality; and holds proof copy for review before printing. An optional Compact Flash Card also supports many of these advanced functions.

Office-friendly design. The pagepro 4650EN features modest proportions and quiet operation—even when duplexing—to fit nicely into any professional environment. The front keypad is easy to read and clearly communicates helpful messages. Printer readiness is shown by the innovative InfoLine-style feature.

Simple setup and operation. The pagepro 4650EN is easy to use and maintain. A single all-in-one toner cartridge is the only consumable. The printer driver is simple to install and understand. Intelligent PageScope network utilities are provided for advanced administration.

Free US-based technical support. With a 1-year on-site warranty and toll-free, US-based support free for five years, the pagepro 4650EN is a printer you can count on.

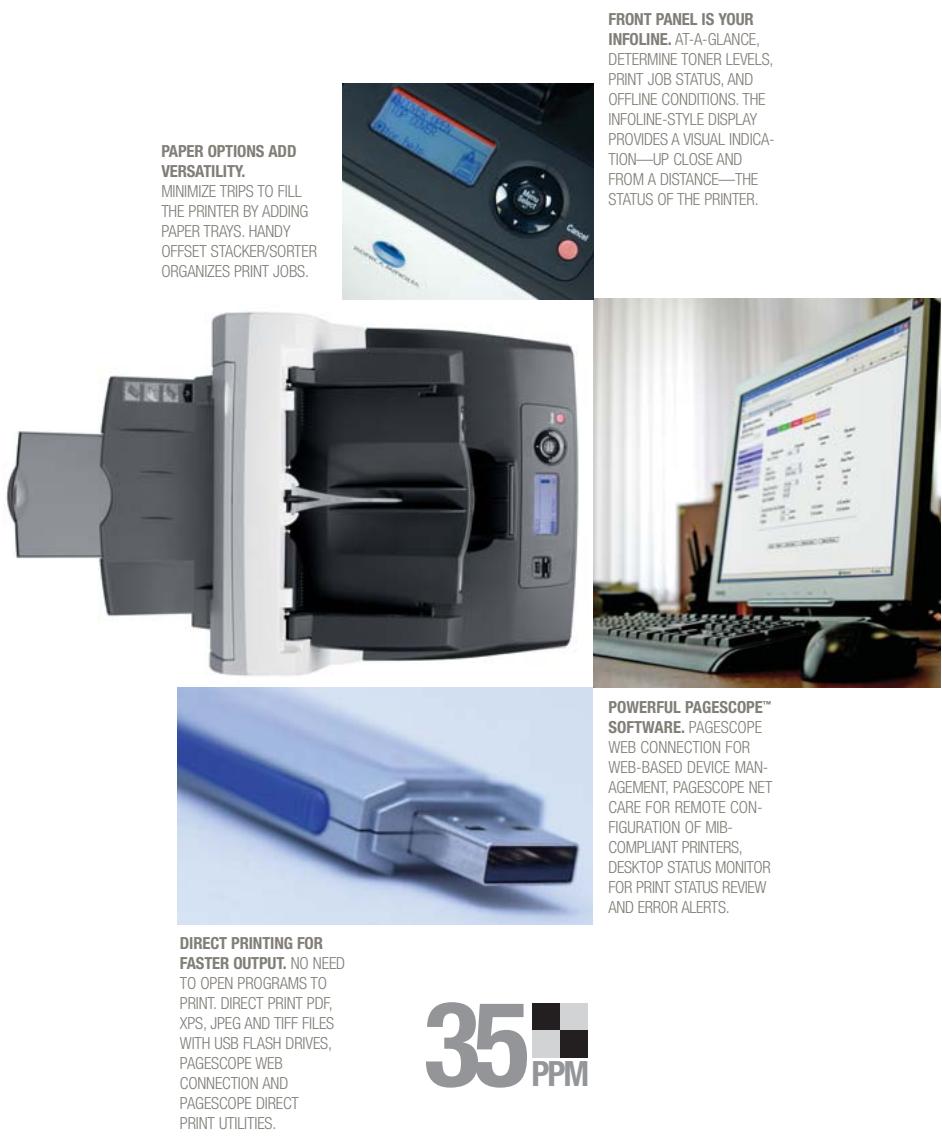

MINIMIZE TRIPS TO FILL THE PRINTER BY ADDING PAPER TRAYS. HANDY OFFSET STACKER/SORTER ORGANIZES PRINT JOBS.
INFOLINE. AT-A-GLANCE, DETERMINE TONER LEVELS, PRINT JOB STATUS, AND OFFLINE CONDITIONS. THE INFOLINE-STYLE DISPLAY PROVIDES A VISUAL INDICATION—UP CLOSE AND FROM A DISTANCE—THE STATUS OF THE PRINTER.
SOFTWARE. PAGESCOPE WEB CONNECTION FOR WEB-BASED DEVICE MANAGEMENT, PAGESCOPE NET CARE FOR REMOTE CONFIGURATION OF MIB-COMPLIANT PRINTERS, DESKTOP STATUS MONITOR FOR PRINT STATUS REVIEW AND ERROR ALERTS.
FASTER OUTPUT. NO NEED TO OPEN PROGRAMS TO PRINT. DIRECT PRINT PDF, XPS, JPEG AND TIFF FILES WITH USB FLASH DRIVES, PAGESCOPE WEB CONNECTION AND PAGESCOPE DIRECT PRINT UTILITIES.

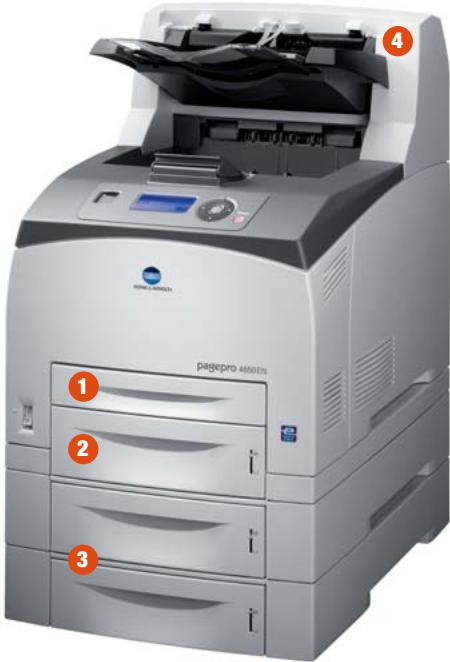

VERSATILE\_OPTIONS

150-sheet multipurpose cassette supports media up to 8.5" x 35.4".
2 550-sheet cassette eliminates frequent paper replenishing.
3 550-sheet cassettes (optional) add up to two for 1,800-sheet max paper input.
4 500-sheet stacker/sorter (optional) keeps multi-page collated documents in order.

Also Available

▶ Automatic duplexer for convenient, two-sided printing.
▶ 70-sheet face-up output tray great for thick stocks.

Two-panel image showing a circuit board and printer with a person silhouette, both without readable text or symbols.

pagepro 4650EN

GENERAL SPECIFICATIONS

PRINTING PROCESS

PRINT METHOD:

Electrophotographic Laser

PRINT SPEED\*:

35.7 ppm

*Exact print speed differs depending on system configuration, software application, driver, and document complexity.

WARM-UP TIME:

≤20 seconds

FIRST-PAGE OUTPUT TIME:

8.8 seconds

RESOLUTION:

1200 x 1200 dpi

600 x 600 dpi

MAXIMUM MONTHLY DUTY CYCLE:

150,000 prints

HARDWARE AND SOFTWARE CAPABILITIES

PROCESSOR:

500 MHz

MEMORY:

128 MB

Upgradeable to 384 MB

HARD DISK DRIVE (optional):

40 GB

COMPACT FLASH CARD (optional)\*:

256 MB, 512 MB, 1 GB, 2 GB, 4 GB

*Requires Compact Flash Card adapter. Cannot be

installed at the same time as Hard Drive option.

pagepro

PAGESCOPE

© 2009 KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., INC. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Konica Minolta and The essentials of imaging are trademarks of KONICA MINOLTA HOLDINGS, INC. PageScope and pagepro are trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.. All other brands and product names are registered trademarks or trademarks of their respective owners.

Design and specifications are subject to change without notice.

KONICA MINOLTA

KONICA MINOLTA

BUSINESS SOLUTIONS U.S.A., INC.

100 Williams Drive

Ramsey, NJ 07446

[phone]

www.kmbs.konicaminolta.us

www.kmbs.konicaminolta.us/solutions

PageScope Peer-to-Peer Printing Tool

PageScope EMS Plug-ins:

Tivoli NetView (2.0)

CA Unicenter 2.0

HP OpenView

Microsoft Management Console (MMC)

HP Web JetAdmin Plug-in

PageScope Plug and Print

PageScope NDPS Gateway

PageScope Direct Print

PageScope Data Administrator

Print Monitor

Status Monitor

Download Manager

INTERFACE SUPPORT

Gigabit Ethernet (10/100/1000BaseTX)

IEEE 1284 Parallel

USB 2.0

USB 1.1. Host Port

ETHERNET PROTOCOLS:

TCP/IP (IPv4/IPv6, IPsec, SSL, IEEE802.1x)

AppleTalk / EtherTalk

IPX/SPX (Netware 4/5/6), NDS Bindery, NDPS

ARP, Ping

Bonjour

DHCP, AutolP, BOOTP

FTP

HTTP, HTTPS

IPP1.1

LPR/LPD

NetBEUI, SMB

RAW Socket

SMTP

SNMP (v1/2/3)

SNTP

SLP

UDP

WSD

PAPER HANDLING

STANDARD PAPER INPUT:

150-sheet multipurpose cassette

550-sheet cassette

OPTIONAL PAPER INPUT:

550-sheet cassettes (add up to 2)

STANDARD PAPER OUTPUT:

500-sheet face-down output tray

OPTIONAL PAPER OUTPUT:

70-sheet face-up output tray

500-sheet stacker/sorter

OPTIONAL AUTOMATIC DUPLEXER:

For two-sided printing (plain paper only)

PAPER SIZES SUPPORTED:

Letter

Legal

Executive

Folio

Govt. Letter

Govt. Legal

Statement

A4, A5, A6

B5, B6

Envelopes:* Monarch, Com 10, DL, B5 (ISO), C6

*Envelopes not supported through optional duplexer

Custom sizes:

Multipurpose cassette*:

(W) 3"-8.5" to (L) 5"-35.4"

(W) 76.2-215.9 mm to (L) 127-900 mm

*Banners in tray 1 only

All other cassettes:

(W) 3.87"-8.5" to (L) 5.83"-14"

(W) 98.4-215.9 mm to (L) 148-355.6 mm

PRINTABLE AREA:

0.17" (4.2 mm) from all edges

35.1" maximum print length

PAPER WEIGHTS:

Plain paper: 16-28 lb. Bond (60-105 g/m ^2 )*

Thick Stock: Up to 80 lb. Cover (106-216 g/m²)*

*Simplex and duplex printing

PRINT MEDIA:

Plain Paper

Recycled Paper

Letterhead

Thick Stock

Transparencies

Laser Quality Labels

Envelopes

Postcards

PHYSICAL

TYPE:

Laser printer with Emperor Print System

DIMENSIONS (WXDXH):

16.6" x 18.3" x 15.9"

(421.8 x 465.4 x 404.3 mm)

WEIGHT:

50.2 lbs. (23 kg) - w/ consumables

46.5 lbs. (21 kg) - w/o consumables

60.1 lbs. (27.3 kg) - as shipped

ELECTRICAL

POWER REQUIREMENTS:

120 VAC, 50/60 Hz

220-240 VAC, 50/60 Hz

POWER CONSUMPTION:

Operating: 623W or less, 1,015W Max.

Standby: 135W or less

ENVIRONMENTAL

TEMPERATURE REQUIREMENTS:

Operating: 50° to 90° F (10° to 32° C)

Non-Operating: 32° to 95° F (0° to 35° C)

HUMIDITY:

Operating: 15% to 85% RH

Non-operating: 15% to 80% RH

NOISE LEVELS:

Operating: ≤53.6 dB(A)

Standby: ≤27 dB(A)

REGULATORY/SAFETY CONFORMITY:

UL

cUL

CDRH

CSA

DOC

FCC-B

CONSUMABLE\*:

In-box Toner: Black (yields 6,000 prints @

5% coverage)

Replacement Toner: Black (yields 10,000

prints or 18,000 prints @ 5% coverage

declared yield value in accordance with

ISO/IEC 19752)

*The stated life expectancy of each consumable is based on printing under specific operating conditions such as page coverage for a particular page size (5% coverage of letter/A4). The actual consumable's life will vary depending on the use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature, and humidity.

TYPEFACES:

137 resident PostScript fonts

93 PCL fonts

10 line printer fonts

WARRANTY:

1-year on-site
