USER MANUAL PAGEPRO 5650EN KONICA

When speed is critical and productivity a top priority, the pagepro™ 5650EN is ready for action. This workgroup laser printer is super fast, printing at 45 ppm—with a first page out in as fast as 8.6 seconds—to keep business running at top speed. It's powered by a 500 MHz processor and Konica Minolta's own Emperor™ printer architecture for total efficiency. More than fast, this printer has an 1,800-sheet maximum input capacity and huge printing potential of up to 200,000 pages per month. That's a lot of letters, invoices, flyers, reports and other documents critical to a successful operation. A smart Gigabit Ethernet interface and PageScope™ management tools are included for easy network integration. The pagepro 5650EN. Faster prints. More documents per day. Greater productivity for all.

pagepro 5650EN

45 PPM FOR FAST NETWORK PRINTING
EMPERON PRINT SYSTEM ENSURES VERSATILITY AND HIGH PERFORMANCE
128 MB RAM, OPTIONAL 40 GB HARD DRIVE FOR ADDED FUNCTIONALITY
POSTSCRIPT 3 AND PCL 6 EMULATIONS, MULTI-PLATFORM COMPATIBLE
DIRECT PRINT PDF, XPS, JPEG & TIFF FILES
NATIVE XPS INTERPRETER FOR WINDOWS VISTA, INCLUDING WSD SUPPORT
1200 X 1200 DPI FOR CRISP TEXT, FINE LINES, AND DETAILED GRAPHICS
GIGABIT ETHERNET, USB 2.0, AND PARALLEL INTERFACES
▶ PAGESCOPE SOFTWARE SUITE SIMPLIFIES NETWORK MANAGEMENT
POSTCARD TO LEGAL PAGE SIZES, PLUS BANNER PRINTING
HIGH-CAPACITY PAPER OPTIONS FOR WORKGROUP REQUIREMENTS

INFOLINE-STYLE FEATURE PROVIDES AT-A-GLANCE PRINTER STATUS
ROBUST 200,000 PAGE-PER-MONTH MAXIMUM DUTY CYCLE

DO BUSINESS_BETTER

pagepro

HIGH PERFORMANCE

Engineered for productivity. With a first page out in as fast as 8.6 seconds and following pages at 45 ppm, the pagepro 5650EN is designed for workteam demands. Its Emperor printer architecture and advanced 500 MHz processor keep print jobs moving efficiently. Advanced functions, such as direct print and secure print services, are supported by an optional 40 GB hard drive.

NETWORK PLAYER

Smart interface juggles mixed network traffic. The pagepro 5650EN's Gigabit Ethernet interface opens a direct line of network communication to PCs, Macs and Linux workstations, alike. Its multi-protocol support includes TCP/IP v6, IPsec and SSL for the latest in network and security standards.

Seamless printing. Support for widely-used emulations, including PCL 6, PostScript 3, PDF and XPS, means printing without a hitch. The pagepro 5650EN's comprehensive set of printer drivers empower users to direct document delivery, while PageScope™ utilities simplify setup and management easily from the desktop.

DEPENDABLE RESOURCE

Well-outfitted for high demand. Reliability is the core of the pagepro 5650EN's design. This well-constructed pagepro offers an immense duty cycle of 200,000 prints per month to serve the most demanding print environments. And it uses proven laser technology that delivers long-lasting printed documents and dependable service for years of office challenges.

DOCUMENT HANDLING VERSATILITY

Your pick of paper handling. The pagepro 5650EN's 700-sheet paper input can be maximized to a hefty 1,800 sheets, to save time restocking during large print runs. The printer features a 500-sheet output tray and a 70-sheet face-up output tray that's perfect for thick stocks and special print runs. A 500-sheet stacker/sorter unit is also available to keep multiple documents in neat order. For paper conservation, use the optional duplex unit and cut paper use in half.

FEATURES, OPTIONS & BENEFITS

Office-friendly features. The printer's keypad is easy to read and clearly communicates helpful messages. Its innovative InfoLine-style display clearly shows printer readiness at a glance. The pagepro 5650EN also has modest proportions and quiet operation to fit nicely into any professional environment.

Handles assortment of business media. Office documents come in all sizes. Postcards to legal-size paper can be used in the printer, and even banner paper up to 35.4". Try other media, too—labels, envelopes, cardstock, transparencies and other approved paper types. Load different medias in each tray for versatile document production.

Professional quality. 1200 × 1200 dpi resolution brings crisp black text, fine lines, and clear details to your documents. Graphics are rendered in rich shades, from the lightest gray to the deepest black.

Direct print files. The pagepro 5650EN has a USB 1.1 Host Port for direct printing PDF, XPS, JPEG, and TIFF files from a USB flash drive. No computer or additional software required. Or drag and drop files for print using your desktop PageScope Direct Print utility.

Advanced print duties. The printer's powerful 40 GB hard disk (optional) initiates advanced features including fonts and forms storage, secure printing, job collation, and direct print functionality. An optional Compact Flash Card also supports many of these advanced functions.

Easy setup and maintenance. For most, setup takes only a few minutes. Helpful administrative software is provided to support more complex network installations. There's just one user-replaceable consumable to install and maintain—a single all-in-one toner cartridge that slides in conveniently from the top.

Free US-based technical support. The pagepro 5650EN is a printer you can rely on, with its 1-year on-site warranty and toll-free, US-based support free for five years.

STATUS AT A GLANCE. THE FRONT PANEL LCD DISPLAYS TONER LEVELS, PRINT JOB STATUS, AND OFFLINE CONDITIONS. THE INFOLINE-STYLE DISPLAY PROVIDES A VISUAL INDICATION OF PRINTER STATUS UP CLOSE OR ACROSS THE ROOM.

MAXIMIZE INPUT.

ADD UP TO 1,800 SHEETS OF DIFFERENT SIZES AND TYPES FOR FLEXIBLE OFFICE PRINTING LOAD A CASSETTE WITH ENVELOPES, ANOTHER WITH LETTERHEAD, AND ANOTHER WITH PLAIN PAPER FOR ALL- PURPOSE PRODUCTION.

POWERFUL PAGESCONE™ SOFTWARE. PAGESCOPE WEB CONNECTION FOR WEB-BASED DEVICE MANAGEMENT, PAGESCOPE NET CARE FOR REMOTE CONFIGURATION OF MIB-COMPLIANT PRINTERS, DESKTOP STATUS MONITOR FOR PRINT STATUS REVIEW AND ERROR ALERTS.

DIRECT PRINT QUICK.
SEND PDF, XPS, JPEG AND
TIFF FILES DIRECTLY TO
THE PRINTER USING A USB
FLASH DRIVE, PAGESCOPE
WEB CONNECTION OR
PAGESCOPE DIRECT
PRINT UTILITY. ITS FAST
AND CONVENIENT.

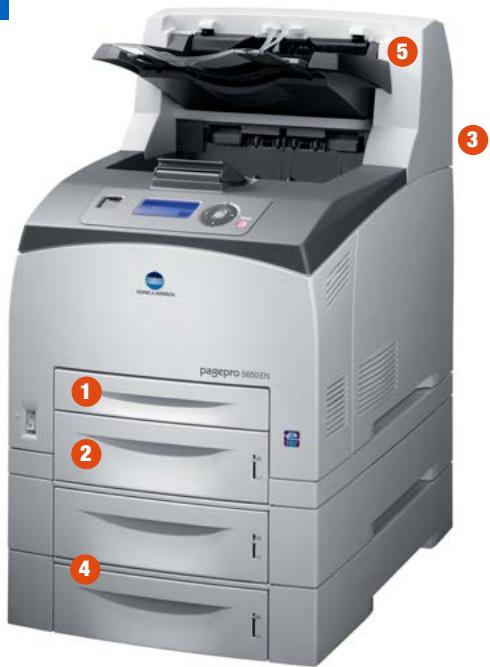

VERSATILE_OPTIONS

150-sheet multipurpose cassette supports media up to 8.5" x 35.4".
550-sheet cassette eliminates frequent paper replenishing.
70-sheet face-up output tray for thick stocks and special projects.
550-sheet cassettes (optional) add up to two for 1,800-sheet max paper input.
500-sheet stacker/sorter (optional) keeps multi-page collated documents in order.

Also Available

Automatic duplexer for convenient, two-sided printing.

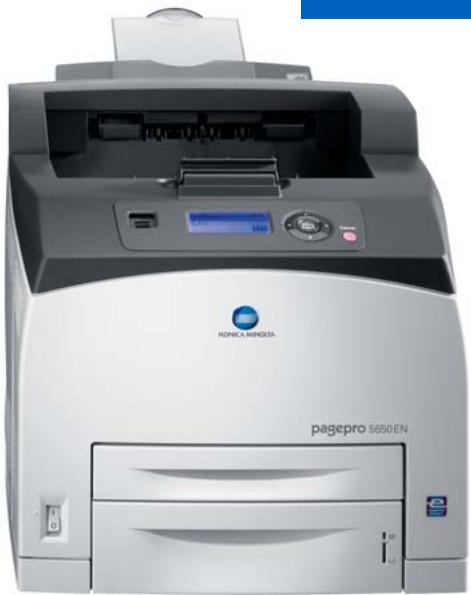

pagepro 5650EN

GENERAL SPECIFICATIONS

PRINTING PROCESS

PRINT METHOD:

Electrophotographic Laser

PRINT SPEED*:

45.6 ppm

*Exact print speed differs depending on system configuration, software application, driver, and document complexity.

WARM-UP TIME:

≤20 seconds

FIRST-PAGE OUTPUT TIME:

8.6 seconds

RESOLUTION:

1200 x 1200 dpi

600 x 600 dpi

MAXIMUM MONTHLY DUTY CYCLE:

200,000 prints

HARDWARE AND SOFTWARE CAPABILITIES

PROCESSOR:

500MHz

MEMORY:

128 MB

Upgradeable to 384 MB

HARD DISK DRIVE (optional):

40GB

COMPACT FLASH CARD (optional):

256MB,512MB,1GB,2GB,4GB

*Requires Compact Flash Card adapter. Cannot be

installed at the same time as Hard Drive option.

pagepro

PAGESCOPE

© 2009 KONICA MINOLTA BUSINESS SOLUTIONS

U.S.A., INC. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Kona Minolta and The essentials of imaging are trademarks of KONICA MINOLTA HOLDINGS, INC. PageScope and pagepro are trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. All other brands and product names are registered trademarks or trademarks of their respective owners.

Design and specifications are subject to change without notice.

KONICA MINOLTA

KONICA MINOLTA

BUSINESS SOLUTIONS U.S.A., INC.

100 Williams Drive

Ramsey, NJ 07446

[phone]

www.kmbs.konicaminolta.us

www.kmbs.konicaminolta.us/solutions

PageScope Peer-to-Peer Printing Tool

PageScope EMS Plug-ins:

Tivoli NetView (2.0)

CA Unicenter 2.0

HP. OpenView

Microsoft Management Console (MMC)

HP Web JetAdmin Plug-in

PageScope Plug and Print

PageScope NDPS Gateway

PageScope Direct Print

PageScope Data Administrator

Print Monitor

Status Monitor

Download Manager

INTERFACE SUPPORT

Gigabit Ethernet (10/100/1000BaseTX)

IEEE 1284 Parallel

USB 2.0

USB 1.1. Host Port

ETHERNET PROTOCOLS:

TCP/IP (IPv4/IPv6, IPsec, SSL, IEEE802.1x)

AppleTalk / EtherTalk

IPX/SPX (Netware 4/5/6), NDS Bindery, NDPS

ARP, Ping

Bonjou

DHCP, AutoIP, BOOTP

FTP

HTTP, HTTPS

IPP1.1

LPR/LPD

NetBFLSMB

BAW Socket

SMTP

SNMP (v1/2/3)

SNTP

SIP

LDF

ODI WOR

W3D

PAPER HANDLING

STANDARD PAPER INPUT:

150-sheet multipurpose cassette

550-sheet cassette

OPTIONAL PAPER INPUT:

550-sheet cassettes (add up to 2)

STANDARD PAPER OUTPUT:

500-sheet face-down output tray

70-sheet face-up output tray

OPTIONAL PAPER OUTPUT:

500-sheet stacker/sorter

OPTIONAL AUTOMATIC DUPLEXER:

For two-sided printing (plain paper only)

PAPER SIZES SUPPORTED:

Letter

Legal

Executive

Folio

Govt. Letter

Govt. Legal

Statement

A4,A5,A6

B5.B6

Envelopes:* Monarch, Com 10, DL, B5 (ISO), C6

*Envelopes not supported through optional duplexer

Custom sizes:

Multipurpose cassette*:

(W) 3'' - 8.5'' to (L) 5'' - 35.4''

(W) 76.2-215.9 mm to (L) 127-900 mm

• Banners in tray 1 only

All other cassettes:

(W) 3.87^ - 8.5^ to (L) 5.83^ - 14^

(W) 98.4-215.9 mm to (L) 148-355.6 mm

PRINTABLE AREA:

0.17'' (4.2 mm) from all edges

35.1" maximum print length

PAPER WEIGHTS:

Plain paper: 20-28 lb. Bond (68-105 g/m)*

Thick Stock: Up to 80 lb. Cover (106-216 g/m³)*

*Simplex and duplex printing

PRINT MEDIA:

Plain Paper

Recycled Paper

Letterhead

Thick Stock

Transparencies

Laser Quality Labels

Envelopes

Postcards

PHYSICAL

TYPE:

Laser printer with Emperor Print System

DIMENSIONS (WXDXH):

16.6" x 18.3" x 15.9"

(421.8 x 465.4 x 404.3 mm)

WEIGHT:

51.6 lbs. (23kg) -w/ consumables

47.9 lbs. (22 kg) - w/o consumables

60.1 lbs. (27.3kg) - as shipped

ELECTRICAL

POWER REQUIREMENTS:

120VAC,50/60Hz

220-240 VAC, 50/60 Hz

POWER CONSUMPTION:

Operating: 910W or less, 1,240W Max.

Standby: 140W or less

ENVIRONMENTAL

TEMPERATURE REQUIREMENTS:

Operating: 50^ to 90^ F (10^ to 32^ C)

Non-Operating: 32^ to 95^ F (0^ to 35^ C)

HUMIDITY:

Operating: 15% to 85% RH

Non-operating: 15% to 80% RH

NOISE LEVELS:

Operating: ≤ 56.1 dB(A)

Standby: ≤ 28 dB(A)

REGULATORY/SAFETY CONFORMITY:

UL

cUL

CDRH

CSA

DOC

FCC-B

CONSUMABLE*:

In-box Toner: Black (yields 6,000 prints @

5% coverage)

Replacement Toner: Black (yields 11,000

prints or 19,000 prints @ 5 % coverage;

declared yield value in accordance with

ISO/IEC 19752

*The stated life expectancy of each consumable is based

on printing under specific operating conditions such as

Page coverage for a particular page size (5% coverage or letter/M) The actual consumables life will vary depending

(see below). The actual cost on the use and other costs

coverage, page size, media

printing, ambient tempera

TYPEFACES:

137 resident PostScript fonts

93 PCL fonts

10 line printer fonts

WARRANTY:

1-year on-site
