| Product type | Monochrome laser A4 multifunction printer |
| Brand | Konica Minolta |
| Model | PagePro 1480MF |
| Dimensions (W x D x H) | 447 x 386 x 344 mm |
| Weight | 11.6 kg |
| Power supply | 220-240 V, 50-60 Hz |
| Power consumption (printing) | 450 W max |
| Power consumption (standby) | 33 W |
| Power consumption (economy) | 10 W |
| Main functions | Print, copy, color scan |
| Print speed | Up to 20 pages per minute (A4) |
| Copy speed | Up to 20 copies per minute |
| Print resolution | 600 x 600 dpi |
| Scan resolution | 600 x 600 dpi optical, 2400 x 2400 interpolated |
| Paper tray capacity | 200 sheets (standard tray) + 1 sheet (manual feed) |
| Supported paper formats | A4, A5, A6, Letter, Legal, Envelope, B5, B6, custom |
| Supported paper weight | 60-105 g/m² (tray), 52-162 g/m² (manual) |
| Processor | 100 MHz |
| Memory | 32 MB |
| Interface | USB 2.0, optional Wi-Fi (WLAN dongle) |
| Toner cartridge | All-in-one cartridge (toner + drum), capacity 1000 pages (pre-installed) / 3000 pages (replacement) |
| Maintenance and cleaning | Clean the exterior with a soft, dry cloth; use the scanner cleaning mode via the Companion Suite Pro software |
| Security | Operation lock code |
| Spare parts and repairability | Toner cartridge consumable; 1-year on-site warranty (EU); technical support via Konica Minolta |
| General information | Compatibility Windows 2000/XP/Vista/7 (32-bit), Mac OS X 10.3-10.5, Linux; Companion Suite Pro software included |
Frequently Asked Questions - PAGEPRO 1480MF KONICA
User questions about PAGEPRO 1480MF KONICA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Multifunction Printer in PDF format for free! Find your manual PAGEPRO 1480MF - KONICA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PAGEPRO 1480MF by KONICA.
USER MANUAL PAGEPRO 1480MF KONICA
pagepro 1480MF pagepro 1490MF
Compact and affordable A4 home office solution
pagepro 1480MF and pagepro 1490MF
providing a cost effective solution
The pagepro 1480MF and 1490MF are the ideal choice for the small office network or home user. The pagepro 1480MF combines monochrome laser printing, fast copying at 20 pages per minute (ppm) and colour scanning, while the pagepro 1490MF adds faxing. These compact all in one printers save space by replacing numerous office devices providing convenience and ease of use with a barely audible operating noise in energy saving mode. An attractive price and low running costs using eco-mode technology, makes them a great addition to your workspace and everything you could need for your home or small office.
Eco-mode, low running costs
Eco-mode allows you to save up to 40% toner, perfect for printing or copying internal documents. Using the digital fax feature on the pagepro 1490MF you can send and receive faxes directly to your PC without printing. In addition, buying and operating a single system costs a lot less than the combined cost of up to four separate devices, as well as taking up far less valuable work space.
Wireless network option with USB
The pagepro 1480MF and 1490MF encourages flexibility utilising the USB port; including print directly from USB, scan to USB and you can even use your USB stick as an extended fax memory. An optional WLAN dongle further boosts flexibility by providing wireless printing and convenient printer sharing without cables. The all in one cartridge which includes the toner and drum is quick and easy to exchange when you eventually have to refill the toner.
| Configuration | pagepro 1480MF | pagepro 1490MF |
| Print Speed | Mono up to 20 ppm | Mono up to 20 ppm |
| X | X | |
| Copy | X | X |
| Scan | X | X |
| Colour Scan | X | X |
| Fax | - | X |
| Automatic document feeder | - | Standard |
| W-Lan Dongle | Optional | Optional |
Clever copying
With a copy speed of 20 pages per minute, the pagepro 1480MF/1490MF are compact copiers which also include a paper saving 2-in-1 and 4-in-1 copy function and lets you zoom in and out between 25 and 400%. The pagepro 1490MF also comes with a user friendly 50 page automatic document feeder which gives you the extra benefit of comfortable hands-free copying of multi-page documents.
Professional printing and media flexibility
As productive GDI printers both the pagepro 1480MF/1490MF offer fast processing of pages in high quality mode. Their generous range of printing features include the n-up feature that allows you to enlarge one page to several pages.
Truly impressive is the pagepro 1480MF/1490MF's media support, from their standard 250-sheet paper input and flexible media handling of 52 to 162 gsm to the processing of labels, envelopes and thick paper – simply everything you might need in your home or small office!
Smooth colour scanning
Although the pagepro 1480MF and 1490MF are monochrome printing devices they have the ability to scan in colour, helping you make the most of brochures, photos, magazine pages and so much more. Their excellent scanning capabilities include TWAIN and Windows WIA scan, as well as scan-to-
USB of PDF, JPEG and TIFF formats. For ease of use the pagepro 1490MF has a QWERTY keyboard which enables you to easily enter document names.
pagepro 1480MF
pagepro 1490MF
User-friendly faxing
The pagepro 1490MF gives you the benefit of versatile fax communication. You can use your PC to send and receive faxes, taking advantage of the comprehensive address book and avoiding having to print every incoming fax.
The already generous memory can be extended with the fax to USB function so even when the internal memory is full no communication is lost. Other benefits include 250 speed dials, a fax transmission speed of 2.5 seconds per page and cost saving features such as memory send and timer transmission. The 1490MF can also ensure complete confidentiality with the password protected fax inbox functionality.
Exciting extras
Further benefits of the pagepro 1480MF/1490MF include the Companion Suite software which provides you with fast and easy management of your printer straight from your PC. Reliable security is also available with the option to lock your device completely by setting up your own personal access code.

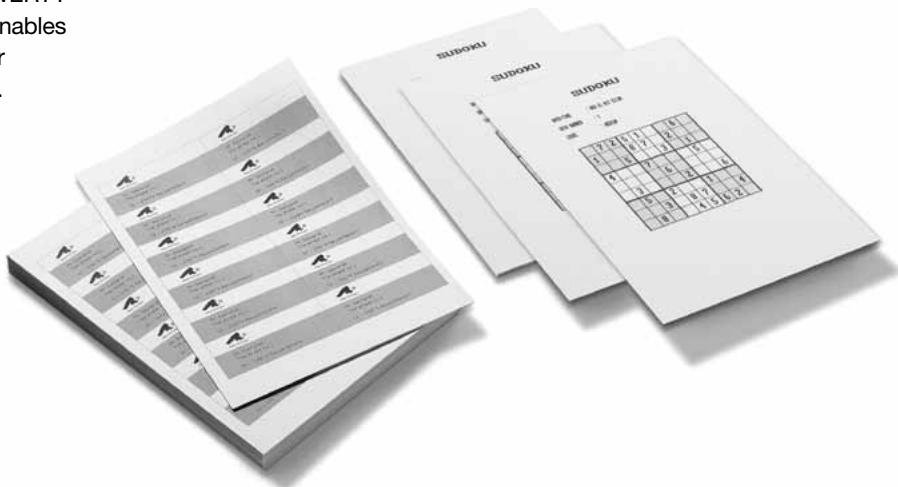

Tea break teasers
As your work now gets done so much faster, why not solve one of the 400 Sudoku puzzles the pagepro 1480MF/1490MF offer you in their system memory? In work as well as leisure, these smart all in ones are your ideal companions!
Designed for
Microsoft® Windows® XP Windows® 2000
Designed for Microsoft® Windows® Server 2003
Mac
Universal
Works with Windows Vista™
CLEAN PLANET PROGRAM
Konica Minolta printer supplies return program
ENERGY STAR
Technical specifications
Print process
Print method
Desktop mono A4 laser beam printer
Page Description language GDI
Print speed A4 Up to 20 ppm
First page out 13 seconds
Warm-up time 21 seconds
Max. resolution 600 dpi x 600 dp
Monthly print volume 750 pages (average) 4,000 pages (maximum)
Print functions
Eco-mode, Direct print from USB media, N-up, poster mode, cover mode, watermark, overlay, Sudoku printing (puzzle + solution)
Copy process
Copy speed Up to 20 cpm
First copy out 15 seconds
Copy resolution 600 dpi x 600 dpi
Copies 1–99
Zoom range 25–400% (b)
Copy functions
Eco-mode, ID card copy, N-up, poster mode, quality adjust
Scan process
Scan technology
CIS image sensor, colour scanner
pagepro 1480MF: flat bed pagepro 1490MF: flat bed, automatic document feeder
Scan speed
Up to 23 opm monochrome Up to 8 opm colour
Resolution
600 dpi x 600 dpi (optical) 2400 dpi x 2400 dpi (interpolated)
Scan size
A4, max. 220 x 300 mm, custom formats
Scan modes
TWAIN scan Windows WIA scan Scan-to-USB media
File formats
PDF, JPEG, TIF
Fax process
(pagepro 1490MF only)
Modem speed 33.6 Kbps V.34
Transmit speed 2,5 seconds
Fax compression MH, MR, MMR, JBIG
Page memory 125 pages
Speed dial 250
Group dial 20
Fax functions
PC-Fax, Receipt to PC, Receipt to USB media, confidential fax receiving, auto redial, timer transmission
Hardware and software capabilities
Processor 100 MHz
Memory 32 MB standard
Interface support
USB 2.0 W-LAN 802.11b/g (optional)
Operating system compatibility
Windows
2000, XP (32), Vista (32), Windows 7 (32), Server 2003 (32)
Macintosh
OS X 10.3-10.5
Linux
Redhat v. 9.0, SUSE v. 8.2
System functions
Qwerty keyboard (pagepro 1490MF only)
Operation lock code
Software utilities
Companion Suite Pro
PaperPort 11 SE (with OCR engine)
Paper handling
Automatic document feeder (pagepro 1490MF only)
50 sheets
Standard paper input
200-sheet paper feeder (250-sheet @ 64 gsm)
1-sheet manual tray
Standard paper output
50-sheet face down output tray
Printable area
Approx. 4 mm from all edges
Media sizes supported
A4, A5, A6, letter, legal, envelope, B5, B6,
Custom sizes
90–148 mm × 216–356 mm
Paper weights
60–105 gsm (paper feeder) 52–162 gsm (manual tray)
Print media
Plain paper, recycled paper, envelope, labels, postcard, thick paper, letterhead, OHP
Physical
Dimensions (W x D x H in mm)
pagepro 1480MF: 447 x 386 x 344 pagepro 1490MF: 447 x 386 x 412
Weight
pagepro 1480MF: 11,6 kg pagepro 1490MF: 13 kg
Electrical
Input voltage range
220\~240V
Frequency
50 \~ 60Hz
Power consumption
pagepro 1480MF
450 W or less (average printing)
33 W or less (stand by)
10 W or less (energy save mode)
Power consumption
pagepro 1490MF
450 W or less (average printing)
35 W or less (stand by)
12 W or less (energy save mode)
Environmental
Temperature
10 \~ 27 °C
Humidity
15 \~ 85% RH
Noise levels
53 dB or less (operation)
30 dB or less (stand by)
0 dB (energy save mode)
Regulatory/
Safety conformity
DOC, CE Marking, GS, EMC, WEEE,
Energy Star (pagepro 1480MF only)
Consumables
Pre-installed
Toner cartridge: up to 1,000 pages
Replacements
Toner cartridge: up to 3,000 pages
Warranty period and conditions
1 year on-site warranty
(within EU; local law applies)
Konica Minolta
Business Solutions (UK) Ltd
Precedent Drive • Rooksley
Milton Keynes • MK13 8HF
Tel. +44 (0) 1908 208 380
Fax. +44 (0) 1908 208 366
www.konicaminolta.co.uk/printer
* Only pagepro 1480MF
- All specifications relating to paper capacity refer to A4-size paper of 80 gsm quality.
- All specifications relating to scanning, copying or printing speeds refer to A4-size paper that is scanned, copied or printed crosswise in multipage, simplex mode.
- The support and availability of the listed specifications varies depending on operating systems, applications, network protocols as well as network and system configurations.
- The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5 % coverage of A4). The actual consumables life will vary depending on the use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
- Some of the product illustrations contain optional accessories.
- Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
- Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
■ Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
- All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
