PAGEPRO 1480MF - Imprimante multifonction KONICA - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Imprimante multifonction monochrome laser A4
Marque	Konica Minolta
Modèle	PagePro 1480MF
Dimensions (L x P x H)	447 x 386 x 344 mm
Poids	11,6 kg
Alimentation	220-240 V, 50-60 Hz
Consommation électrique (impression)	450 W max
Consommation électrique (veille)	33 W
Consommation électrique (économie)	10 W
Fonctions principales	Impression, copie, numérisation couleur
Vitesse d'impression	Jusqu'à 20 pages par minute (A4)
Vitesse de copie	Jusqu'à 20 copies par minute
Résolution d'impression	600 x 600 dpi
Résolution de numérisation	600 x 600 dpi optique, 2400 x 2400 interpolée
Capacité du bac papier	200 feuilles (bac standard) + 1 feuille (bac manuel)
Formats de papier supportés	A4, A5, A6, Letter, Legal, Enveloppe, B5, B6, personnalisés
Grammage supporté	60-105 g/m² (bac), 52-162 g/m² (manuel)
Processeur	100 MHz
Mémoire	32 Mo
Interface	USB 2.0, option Wi-Fi (dongle WLAN)
Cartouche toner	Cartouche tout-en-un (toner + tambour), autonomie 1000 pages (préinstallée) / 3000 pages (remplacement)
Entretien et nettoyage	Nettoyer l'extérieur avec un chiffon doux et sec ; utiliser le mode de nettoyage du scanner via le logiciel Companion Suite Pro
Sécurité	Verrouillage par code d'accès (operation lock code)
Pièces détachées et réparabilité	Cartouche toner consommable ; garantie 1 an sur site (UE) ; support technique via Konica Minolta
Informations générales	Compatibilité Windows 2000/XP/Vista/7 (32 bits), Mac OS X 10.3-10.5, Linux ; logiciel Companion Suite Pro inclus

FOIRE AUX QUESTIONS - PAGEPRO 1480MF KONICA

Comment changer le toner du Konica PagePro 1480MF ?

Ouvrez le capot avant, retirez l'ancienne cartouche tout-en-un (toner + tambour) en tirant sur la poignée, insérez la nouvelle cartouche et refermez le capot. La cartouche de remplacement a une autonomie d'environ 3000 pages à 5% de couverture.

Comment connecter l'imprimante en Wi-Fi ?

Le Wi-Fi nécessite un dongle WLAN optionnel (réf. Konica Minolta). Connectez le dongle au port USB, puis configurez le réseau via le panneau de commande ou le logiciel Companion Suite Pro.

Comment numériser un document vers un ordinateur ?

Placez le document sur la vitre, appuyez sur SCAN, puis choisissez 'Scan to PC' si le logiciel est installé, ou utilisez TWAIN ou WIA depuis votre application de numérisation. Vous pouvez aussi scanner vers une clé USB.

Que faire en cas de bourrage papier ?

Ouvrez le capot avant et retirez le tambour (cartouche). Retirez délicatement le papier coincé en tirant dans le sens d'extraction. Vérifiez aussi le bac d'alimentation et le plateau de sortie. Refermez et imprimez à nouveau.

Comment imprimer en recto-verso automatique ?

Le PagePro 1480MF n'est pas équipé d'un module recto-verso automatique. Vous pouvez imprimer manuellement les pages impaires, puis retourner la pile et imprimer les pages paires via les options du pilote.

Comment utiliser le mode économique (Eco-mode) ?

Dans le pilote d'impression, sélectionnez l'onglet 'Qualité' ou 'Paramètres', puis cochez 'Eco-mode'. Cela réduit la consommation de toner jusqu'à 40%, idéal pour les documents internes.

Quels systèmes d'exploitation sont compatibles ?

L'imprimante fonctionne sous Windows 2000/XP/Vista/7 (32 bits), Mac OS X 10.3 à 10.5 et Linux (Redhat 9.0, SUSE 8.2). Pour les versions plus récentes, vérifiez les pilotes sur le site Konica Minolta.

Comment imprimer directement depuis une clé USB ?

Insérez la clé USB dans le port USB à l'avant de l'imprimante. Utilisez le bouton USB sur le panneau de commande, sélectionnez le fichier et appuyez sur Démarrer. Les formats supportés sont PDF, JPEG et TIFF.

Comment nettoyer la vitre du scanner ?

Utilisez un chiffon doux non pelucheux légèrement humide (eau ou nettoyant vitre non abrasif). Essuyez délicatement la vitre et le couvercle. Évitez tout liquide pénétrant dans l'appareil.

Où trouver le manuel d'utilisation complet ?

Le manuel d'utilisation est disponible gratuitement sur notre site notice-facile.com au format PDF. Vous pouvez le télécharger ou demander une traduction par email.

MODE D'EMPLOI PAGEPRO 1480MF KONICA

pagepro 1480MF pagepro 1490MF

Compact and affordable A4 home office solution

pagepro 1480MF and pagepro 1490MF

Abstract architectural facade with pink and magenta geometric patterns (no text or symbols)

Next generation technology

providing a cost effective solution

The pagepro 1480MF and 1490MF are the ideal choice for the small office network or home user. The pagepro 1480MF combines monochrome laser printing, fast copying at 20 pages per minute (ppm) and colour scanning, while the pagepro 1490MF adds faxing. These compact all in one printers save space by replacing numerous office devices providing convenience and ease of use with a barely audible operating noise in energy saving mode. An attractive price and low running costs using eco-mode technology, makes them a great addition to your workspace and everything you could need for your home or small office.

Eco-mode, low running costs

Eco-mode allows you to save up to 40% toner, perfect for printing or copying internal documents. Using the digital fax feature on the pagepro 1490MF you can send and receive faxes directly to your PC without printing. In addition, buying and operating a single system costs a lot less than the combined cost of up to four separate devices, as well as taking up far less valuable work space.

Front view of a white printer with control panel and paperclip (no visible text or symbols)

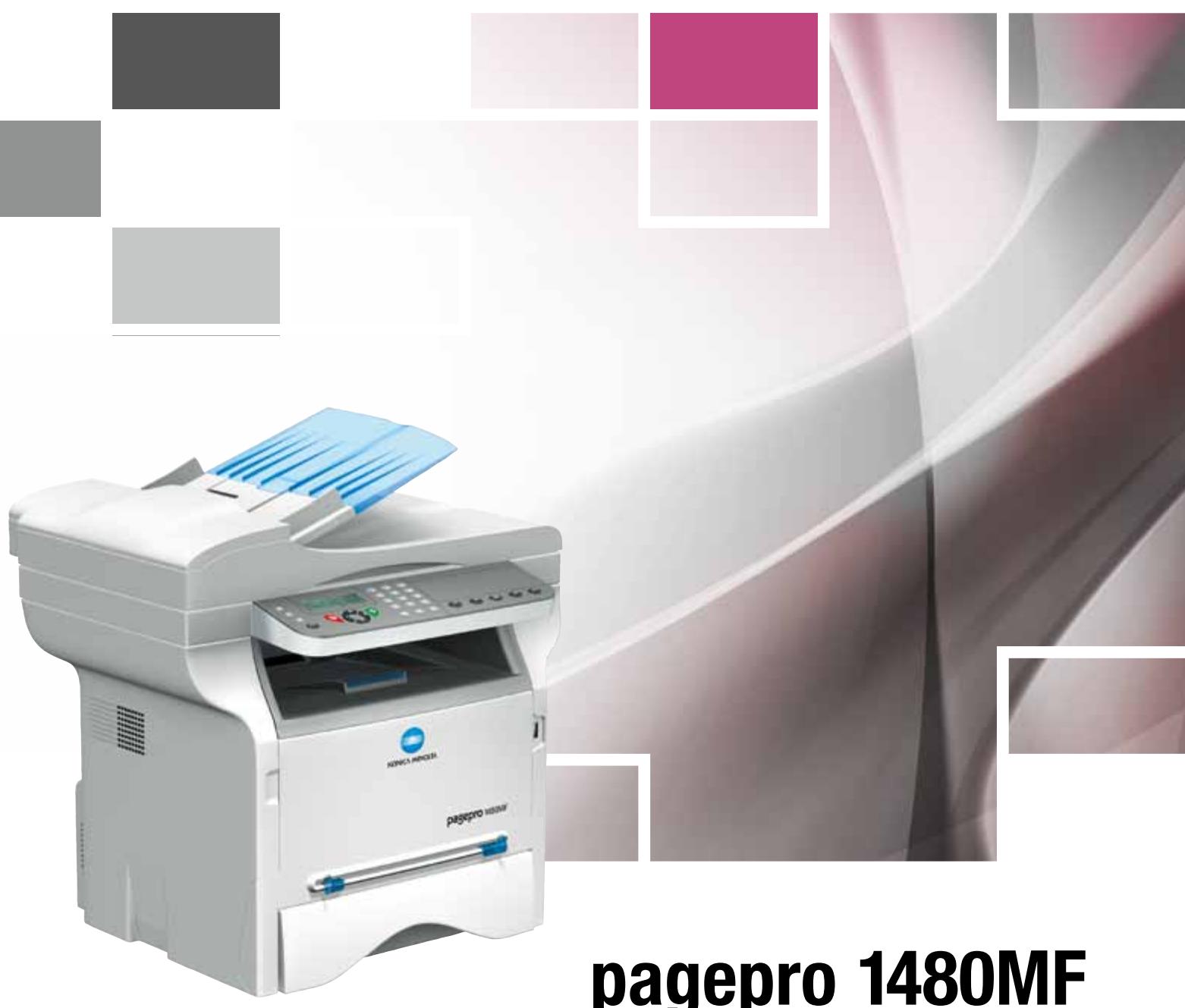

pagepro 1480MF

Exterior view of a white paper printer with a blue handle and control panel (no visible text or symbols)

pagepro 1490MF

Wireless network option with USB

The pagepro 1480MF and 1490MF encourages flexibility utilising the USB port; including print directly from USB, scan to USB and you can even use your USB stick as an extended fax memory. An optional WLAN dongle further boosts flexibility by providing wireless printing and convenient printer sharing without cables. The all in one cartridge which includes the toner and drum is quick and easy to exchange when you eventually have to refill the toner.

Configuration	pagepro 1480MF	pagepro 1490MF
Print Speed	Mono up to 20 ppm	Mono up to 20 ppm
Print	X	X
Copy	X	X
Scan	X	X
Colour Scan	X	X
Fax	-	X
Automatic document feeder	-	Standard
W-Lan Dongle	Optional	Optional

Clever copying

With a copy speed of 20 pages per minute, the pagepro 1480MF/1490MF are compact copiers which also include a paper saving 2-in-1 and 4-in-1 copy function and lets you zoom in and out between 25 and 400%. The pagepro 1490MF also comes with a user friendly 50 page automatic document feeder which gives you the extra benefit of comfortable hands-free copying of multi-page documents.

Professional printing and media flexibility

As productive GDI printers both the pagepro 1480MF/1490MF offer fast processing of pages in high quality mode. Their generous range of printing features include the n-up feature that allows you to enlarge one page to several pages.

Truly impressive is the pagepro 1480MF/1490MF's media support, from their standard 250-sheet paper input and flexible media handling of 52 to 162 gsm to the processing of labels, envelopes and thick paper – simply everything you might need in your home or small office!

Smooth colour scanning

Although the pagepro 1480MF and 1490MF are monochrome printing devices they have the ability to scan in colour, helping you make the most of brochures, photos, magazine pages and so much more. Their excellent scanning capabilities include TWAIN and Windows WIA scan, as well as scan-to-

USB of PDF, JPEG and TIFF formats. For ease of use the pagepro 1490MF has a QWERTY keyboard which enables you to easily enter document names.

pagepro 1480MF

pagepro 1490MF

User-friendly faxing

The pagepro 1490MF gives you the benefit of versatile fax communication. You can use your PC to send and receive faxes, taking advantage of the comprehensive address book and avoiding having to print every incoming fax.

The already generous memory can be extended with the fax to USB function so even when the internal memory is full no communication is lost. Other benefits include 250 speed dials, a fax transmission speed of 2.5 seconds per page and cost saving features such as memory send and timer transmission. The 1490MF can also ensure complete confidentiality with the password protected fax inbox functionality.

Exciting extras

Further benefits of the pagepro 1480MF/1490MF include the Companion Suite software which provides you with fast and easy management of your printer straight from your PC. Reliable security is also available with the option to lock your device completely by setting up your own personal access code.

Tea break teasers

As your work now gets done so much faster, why not solve one of the 400 Sudoku puzzles the pagepro 1480MF/1490MF offer you in their system memory? In work as well as leisure, these smart all in ones are your ideal companions!

Designed for

Microsoft® Windows® XP Windows® 2000

Designed for Microsoft® Windows® Server 2003

Mac

Universal

Works with Windows Vista™

CLEAN PLANET PROGRAM

Konica Minolta printer supplies return program

ENERGY STAR

Technical specifications

Print process

Print method

Desktop mono A4 laser beam printer

Page Description language GDI

Print speed A4 Up to 20 ppm

First page out 13 seconds

Warm-up time 21 seconds

Max. resolution 600 dpi x 600 dp

Monthly print volume 750 pages (average) 4,000 pages (maximum)

Print functions

Eco-mode, Direct print from USB media, N-up, poster mode, cover mode, watermark, overlay, Sudoku printing (puzzle + solution)

Copy process

Copy speed Up to 20 cpm

First copy out 15 seconds

Copy resolution 600 dpi x 600 dpi

Copies 1–99

Zoom range 25–400% (b)

Copy functions

Eco-mode, ID card copy, N-up, poster mode, quality adjust

Scan process

Scan technology

CIS image sensor, colour scanner

pagepro 1480MF: flat bed pagepro 1490MF: flat bed, automatic document feeder

Scan speed

Up to 23 opm monochrome Up to 8 opm colour

Resolution

600 dpi x 600 dpi (optical) 2400 dpi x 2400 dpi (interpolated)

Scan size

A4, max. 220 x 300 mm, custom formats

Scan modes

TWAIN scan Windows WIA scan Scan-to-USB media

File formats

PDF, JPEG, TIF

Fax process

(pagepro 1490MF only)

Modem speed 33.6 Kbps V.34

Transmit speed 2,5 seconds

Fax compression MH, MR, MMR, JBIG

Page memory 125 pages

Speed dial 250

Group dial 20

Fax functions

PC-Fax, Receipt to PC, Receipt to USB media, confidential fax receiving, auto redial, timer transmission

Hardware and software capabilities

Processor 100 MHz

Memory 32 MB standard

Interface support

USB 2.0 W-LAN 802.11b/g (optional)

Operating system compatibility

Windows

2000, XP (32), Vista (32), Windows 7 (32), Server 2003 (32)

Macintosh

OS X 10.3-10.5

Linux

Redhat v. 9.0, SUSE v. 8.2

System functions

Qwerty keyboard (pagepro 1490MF only)

Operation lock code

Software utilities

Companion Suite Pro

PaperPort 11 SE (with OCR engine)

Paper handling

Automatic document feeder (pagepro 1490MF only)

50 sheets

Standard paper input

200-sheet paper feeder (250-sheet @ 64 gsm)

1-sheet manual tray

Standard paper output

50-sheet face down output tray

Printable area

Approx. 4 mm from all edges

Media sizes supported

A4, A5, A6, letter, legal, envelope, B5, B6,

Custom sizes

90–148 mm × 216–356 mm

Paper weights

60–105 gsm (paper feeder) 52–162 gsm (manual tray)

Print media

Plain paper, recycled paper, envelope, labels, postcard, thick paper, letterhead, OHP

Physical

Dimensions (W x D x H in mm)

pagepro 1480MF: 447 x 386 x 344 pagepro 1490MF: 447 x 386 x 412

Weight

pagepro 1480MF: 11,6 kg pagepro 1490MF: 13 kg

Electrical

Input voltage range

220\~240V

Frequency

50 \~ 60Hz

Power consumption

pagepro 1480MF

450 W or less (average printing)

33 W or less (stand by)

10 W or less (energy save mode)

Power consumption

pagepro 1490MF

450 W or less (average printing)

35 W or less (stand by)

12 W or less (energy save mode)

Environmental

Temperature

10 \~ 27 °C

Humidity

15 \~ 85% RH

Noise levels

53 dB or less (operation)

30 dB or less (stand by)

0 dB (energy save mode)

Regulatory/

Safety conformity

DOC, CE Marking, GS, EMC, WEEE,

Energy Star (pagepro 1480MF only)

Consumables

Pre-installed

Toner cartridge: up to 1,000 pages

Replacements

Toner cartridge: up to 3,000 pages

Warranty period and conditions

1 year on-site warranty

(within EU; local law applies)

Konica Minolta

Business Solutions (UK) Ltd

Precedent Drive • Rooksley

Milton Keynes • MK13 8HF

Tel. [phone]

Fax. [phone]

www.konicaminolta.co.uk/printer

* Only pagepro 1480MF

- All specifications relating to paper capacity refer to A4-size paper of 80 gsm quality.

- All specifications relating to scanning, copying or printing speeds refer to A4-size paper that is scanned, copied or printed crosswise in multipage, simplex mode.

- The support and availability of the listed specifications varies depending on operating systems, applications, network protocols as well as network and system configurations.

- The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5 % coverage of A4). The actual consumables life will vary depending on the use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.

- Some of the product illustrations contain optional accessories.

- Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.

- Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.

■ Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.

- All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

For extra information, go to www.konicaminolta.co.uk/printer
