Type de produit	Imprimante multifonction monochrome A4
Marque	Konica Minolta
Modèle	PagePro 1490MF
Dimensions (L x P x H)	447 x 386 x 412 mm
Poids	13 kg
Alimentation électrique	220–240 V, 50–60 Hz
Consommation électrique (impression)	450 W max
Fonctions principales	Impression, copie, scanner couleur, fax
Vitesse d'impression	Jusqu'à 20 ppm (A4)
Résolution d'impression	600 x 600 ppp
Vitesse de copie	Jusqu'à 20 cpm (A4)
Scanner couleur	Oui, capteur CIS, 600 x 600 ppp optique
Fax	Modem 33,6 Kbps, 2,5 s/page, 250 numéros abrégés
Capacité papier	200 feuilles (bac standard), chargeur automatique 50 feuilles
Types de supports	Papier ordinaire, recyclé, enveloppes, étiquettes, cartes postales, papier épais
Grammage support	60–105 g/m² (bac), 52–162 g/m² (manuel)
Connectivité	USB 2.0, Wi-Fi optionnel (dongle WLAN)
Écran et saisie	Clavier QWERTY pour saisie
Fonctions d'économie	Mode éco (économise jusqu'à 40% de toner), veille prolongée
Sécurité	Code de verrouillage de l'appareil
Consommables	Cartouche toner + tambour intégré, jusqu'à 3000 pages (5% couverture)
Entretien	Nettoyer l'extérieur avec un chiffon doux et sec ; remplacer la cartouche selon message
Garantie	1 an sur site (UE, selon législation locale)
Pièces détachées et réparabilité	Cartouche toner disponible ; pour autres pièces, contacter un centre agréé Konica Minolta
Informations générales	Classe énergétique : Energy Star (modèle 1480MF) ; conforme CE, GS, WEEE

FOIRE AUX QUESTIONS - PAGEPRO 1490MF KONICA

Comment utiliser le mode éco pour économiser du toner ?

Le mode éco permet d'économiser jusqu'à 40% de toner. Pour l'activer, accédez aux paramètres d'impression depuis le pilote ou le panneau de commande et sélectionnez l'option Mode éco. Ce mode est idéal pour les documents internes.

Comment numériser un document directement sur une clé USB ?

Insérez une clé USB dans le port avant de l'imprimante. Placez le document sur la vitre du scanner ou dans le chargeur automatique. Utilisez le panneau de commande pour sélectionner Numériser vers USB, choisissez le format (PDF, JPEG ou TIFF) et lancez la numérisation.

Comment configurer le fax pour recevoir des documents directement sur mon PC ?

Le PagePro 1490MF prend en charge la réception de fax vers PC. Vous devez installer le logiciel Companion Suite Pro fourni. Dans les paramètres du fax, activez l'option Réception vers PC. Assurez-vous que l'imprimante est connectée à l'ordinateur via USB ou réseau.

Que faire si l'imprimante affiche 'Vérifier le toner' ?

Ce message indique que le niveau de toner est bas ou que la cartouche est vide. Remplacez la cartouche par une neuve (réf. compatible). Ouvrez le capot avant, retirez l'ancienne cartouche, insérez la nouvelle et fermez le capot. L'imprimante se réinitialisera automatiquement.

Comment effectuer une copie recto-verso manuelle ?

L'imprimante ne possède pas de duplexeur automatique. Pour une copie recto-verso manuelle, copiez d'abord le recto, puis retournez la feuille dans le bac manuel et copiez le verso. Vous pouvez également utiliser la fonction Copie N en 1 pour réduire plusieurs pages sur une seule face.

Quels types de papier puis-je utiliser dans le bac standard ?

Le bac standard accepte du papier de 60 à 105 g/m² au format A4, A5, A6, lettre, legal, B5, B6 ou personnalisé. Les enveloppes et étiquettes doivent être introduits via le bac manuel.

Comment protéger l'imprimante par un code de verrouillage ?

Via le panneau de commande, allez dans le menu Paramètres système puis Code de verrouillage. Saisissez un code à 4 chiffres. Une fois activé, l'imprimante demandera ce code pour toute opération.

Puis-je imprimer directement depuis une clé USB ?

Oui, insérez la clé USB, puis sur l'écran sélectionnez Imprimer depuis USB. Parcourez les fichiers (PDF, JPEG, TIFF) et lancez l'impression. Seuls les formats compatibles sont reconnus.

Comment résoudre un bourrage papier ?

Ouvrez le capot arrière ou le bac d'alimentation selon l'emplacement. Retirez délicatement le papier coincé en tirant dans le sens de l'insertion. Ne déchirez pas le papier. Refermez tous les capots. Si le message persiste, vérifiez le chemin papier complet.

Quelle est la durée de vie de la cartouche de toner ?

La cartouche fournie avec l'imprimante permet d'imprimer jusqu'à 1 000 pages (couverture 5%). Les cartouches de remplacement standard offrent jusqu'à 3 000 pages. La durée réelle dépend du type de documents et de l'utilisation du mode éco.

MODE D'EMPLOI PAGEPRO 1490MF KONICA

pagepro 1480MF pagepro 1490MF

Compact and affordable A4 home office solution

Next generation technology

providing a cost effective solution

The pagepro 1480MF and 1490MF are the ideal choice for the small office network or home user. The pagepro 1480MF combines monochrome laser printing, fast copying at 20 pages per minute (ppm) and colour scanning, while the pagepro 1490MF adds faxing. These compact all in one printers save space by replacing numerous office devices providing convenience and ease of use with a barely audible operating noise in energy saving mode. An attractive price and low running costs using eco-mode technology, makes them a great addition to your workspace and everything you could need for your home or small office.

Eco-mode, low running costs

Eco-mode allows you to save up to 40% toner, perfect for printing or copying internal documents. Using the digital fax feature on the pagepro 1490MF you can send and receive faxes directly to your PC without printing. In addition, buying and operating a single system costs a lot less than the combined cost of up to four separate devices, as well as taking up far less valuable work space.

pagepro 1480MF

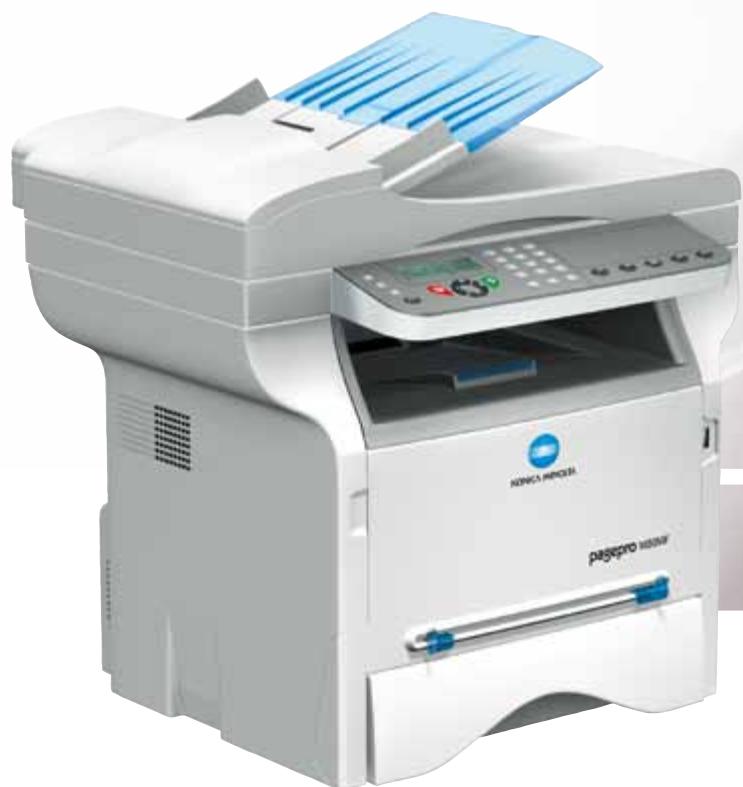

pagepro 1490MF

Wireless network option with USB

The pagepro 1480MF and 1490MF encourages flexibility utilising the USB port; including print directly from USB, scan to USB and you can even use your USB stick as an extended fax memory. An optional WLAN dongle further boosts flexibility by providing wireless printing and convenient printer sharing without cables. The all in one cartridge which includes the toner and drum is quick and easy to exchange when you eventually have to refill the toner.

Configuration	pagepro 1480MF	pagepro 1490MF
Print Speed	Mono up to 20 ppm	Mono up to 20 ppm
Print	X	X
Copy	X	X
Scan	X	X
Colour Scan	X	X
Fax	-	X
Automatic document feeder	-	Standard
W-Lan Dongle	Optional	Optional

Clever copying

With a copy speed of 20 pages per minute, the pagepro 1480MF/1490MF are compact copiers which also include a paper saving 2-in-1 and 4-in-1 copy function and lets you zoom in and out between 25 and 400% . The pagepro 1490MF also comes with a user friendly 50 page automatic document feeder which gives you the extra benefit of comfortable hands-free copying of multi-page documents.

Professional printing and media flexibility

As productive GDI printers both the pagepro 1480MF/1490MF offer fast processing of pages in high quality mode. Their generous range of printing features include the n-up feature that allows you to enlarge one page to several pages.

Truly impressive is the pagepro 1480MF/1490MF’s media support, from their standard 250-sheet paper input and flexible media handling of 52 to 162 gsm to the processing of labels, envelopes and thick paper – simply everything you might need in your home or small office!

Smooth colour scanning

Although the pagepro 1480MF and 1490MF are monochrome printing devices they have the ability to scan in colour, helping you make the most of brochures, photos, magazine pages and so much more. Their excellent scanning capabilities include TWAIN and Windows WIA scan, as well as scan-to-

USB of PDF, JPEG and TIFF formats. For ease of use the pagepro 1490MF has a QWERTY keyboard which enables you to easily enter document names.

pagepro 1480MF

pagepro 1490MF

User-friendly faxing

The pagepro 1490MF gives you the benefit of versatile fax communication. You can use your PC to send and receive faxes, taking advantage of the comprehensive address book and avoiding having to print every incoming fax.

The already generous memory can be extended with the fax to USB function so even when the internal memory is full no communication is lost. Other benefits include 250 speed dials, a fax transmission speed of 2.5 seconds per page and cost saving features such as memory send and timer transmission. The 1490MF can also ensure complete confidentiality with the password protected fax inbox functionality.

Exciting extras

Further benefits of the pagepro 1480MF/1490MF include the Companion Suite software which provides you with fast and easy management of your printer straight from your PC. Reliable security is also available with the option to lock your device completely by setting up your own personal access code.

Tea break teasers

As your work now gets done so much faster, why not solve one of the 400 Sudoku puzzles the pagepro 1480MF/1490MF offer you in their system memory? In work as well as leisure, these smart all in ones are your ideal companions!

KONICA MINOLTA

Works with Windows Vista™

CLEAN PLANET PROGRAM Konica Minolta printer supplies return program

Technical specifications

Print process

Print method

Desktop mono A4 laser beam printer

Page Description language

GDI

Print speed A4

Up to 20 ppm

First page out

13 seconds

Warm-up time

21 second

Max. resolution

600 dpi x 600 dpi

Monthly print volume

750 pages (average)

4,000 pages (maximum)

Print functions

Eco-mode, Direct print from

USB media, N-up, poster mode,

cover mode, watermark, overlay,

Sandbox printing (puzzle + solution)

Copy process

Copy speed

Up to 20 cpm

First copy out

15 seconds

Copy resolution

600 dpi x 600 dpi

Copies

1-99

Zoom range

25-400% (by 1% step)

Copy functions

Eco-mode, ID card copy, N-up,

poster mode, quality adjust

Scan process

Scan technology

CIS image sensor, colour scanner

pagepro 1480MF: flat bed

pagepro 1490MF: flat bed

automatic document feeder

Scan speed

Up to 23 opm monochrome

Up to 8 opm colour

Resolution

600 dpi x 600 dpi (optical)

2400 dpi x 2400 dpi (interpolated)

Scan size

A4,max. 220× 300mm

custom formats

Scan modes

TWAIN scan

Windows WIA scan

Scan-to-USB media

File formats

PDF, JPEG, TIF

Fax process

(pagepro 1490MF only)

Modem speed

33.6 Kbps V.34

Transmit speed

2,5 seconds

Fax compression

MH, MR, MMR, JBIG

Page memory

125 pages

Speed dial

250

Group dial

20

Fax functions

PC-Fax, Receipt to PC, Receipt to

USB media, confidential fax receiving,

auto radial, timer transmission

Hardware and software

capabilities

Processor

100MHz

Memory

32 MB standard

Interface support

USB 2.0

W-LAN 802.11b/g (optional)

Operating system

compatibility

Windows

2000, XP (32), Vista (32)

Windows 7 (32), Server 2003 (32)

Macintosh

OS X 10.3-10.5

Linux

Redhat v. 9.0, SUSE v. 8.2

System functions

Qwerty keyboard

(pagepro 1490MF only)

Operation lock code

Software utilities

Companion Suite Pro

PaperPort 11 SE (with OCR engine)

Paper handling

Automatic document feeder

(pagepro 1490MF only)

50 sheets

Standard paper input

200-sheet paper feeder

(250-sheet @ 64 gsm)

1-sheet manual tray

Standard paper output

50-sheet face down output tray

Printable area

Approx. 4mm from all edges

Media sizes supported

A4,A5,A6,letter,legal

envelope,B5,B6,

Custom sizes

90-148 mm x 216-356 mm

Paper weights

60-105 gsm (paper feeder)

52-162 gsm (manual tray)

Print media

Plain paper, recycled paper

envelope, labels, postcard,

thick paper, letterhead, OH

Physical

Dimensions (W x D x H in mm)

pagepro 1480MF: 447 x 386 x 344

pagepro 1490MF: 447× 386× 412

Weight

pagepro 1480MF: 11,6 kg

pagepro 1490MF: 13kg

Electrical

Input voltage range

220~240V

Frequency

50~60Hz

Power consumption

pagepro 1480MF

450 W or less (average printing)

33 W or less (stand by)

10 W or less (energy save mode)

Power consumption

pagepro 1490MF

450 W or less (average printing)

35 W or less (stand by)

12 W or less (energy save mode)

Environmental

Temperature

10 27^

Humidity

15 ~ 85% RH

Noise levels

53 dB or less (operation)

30 dB or less (stand by)

0 dB (energy save mode)

Regulatory/

Safety conformity

DOC, CE Marking, GS, EMC, WEEE

Energy Star (pagepro 1480MF only)

Consumables

Pre-installed

Toner cartridge: up to 1,000 pages

Replacements

Toner cartridge: up to 3,000 pages

Warranty period and conditions

1 year on-site warranty

(within EU; local law applies)

• Only pagepro 1480MF

• All specifications relating to paper capacity refer to A4-size paper of 80 gsm quality.
  All specifications relating to scanning, copying or printing speeds refer to A4-size paper that is scanned, copied or printed crosswise in multipage, simplex mode.
  The support and availability of the listed specifications varies depending on operating systems, applications, network protocols as well as network and system configurations.
  The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5 % coverage of A4). The actual consumables life will
  vary depending on the use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.

• Some of the product illustrations contain optional accessories.
• Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
• Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
