The magicolor 5650EN and magicolor 5670EN are the perfect high-efficiency A4 colour printing solution for your office. Featuring the latest Emperor™ controller technology these versatile printers leave nothing to be desired when it comes to fast colour printing for networked business teams. The effective toner save mode allows you to save up to 50% toner with no noticeable reduction in text or graphics quality. Extra flexibility is ensured with a range of additional options; including add-on paper feeders, a duplexer, hard disc and finisher. Enjoy versatile media handling and print on thick paper of up to 210 gsm, as well as optional 1.2m banner printing functions.

magicolor 5650EN and magicolor 5670EN

standard configuration
magicolor 5650 EN-d
and magicolor 5670EN-d
with duplexer

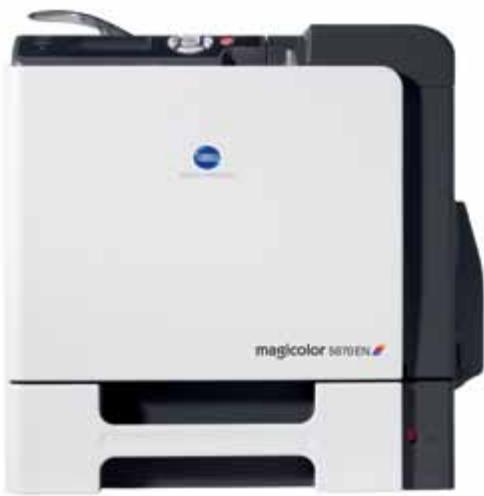

magicolor 5670EN (MPC)
with multi purpose cassette

Speed and power

With 30 ppm for the magicolor 5650EN and 35 ppm for the magicolor 5670EN these printers offer truly fast colour printing. Latest-generation Emperor™ controller technology enables powerful performance, with PCL and PostScript functionality. Both printers support Microsoft Vista™'s XPS file format and have a generous memory of up to 1024 MB, increasing productivity in any environment.

magicolor 5670EN-dth
with duplexer, lower paper
feeder and 40 GB hard disc

magicolor 5670EN-dthf
with duplexer, lower paper feeder,
40 GB hard disc and staple finisher

Outstanding colour quality

Whether you want to produce sales literature, print charts and reports or create documents with high visual impact, these printers give you impressive results every time. Their high-quality Simitri® HD toner ensures a brilliant overall print quality by providing clarity and definition to the smallest detail. Other qualities of Simitri® HD is its increased resistance to withstand UV light and the minimised risk of peeling on folded document edges. Thanks to this much improved durability, all prints produced on the magicolor 5650EN and magicolor 5670EN are impressively long-lasting.

High quality and economical printing

When it comes to saving costs in the office, the magicolor 5650EN and magicolor 5670EN offer you three different print resolution settings that are truly versatile, providing a highly economic operation at all times. Economy mode helps save up to 50% toner on images and graphics without compromising on text quality. High quality mode offers PhotoART- 9600^TM (600x600x4-bit contone) resolution; while glossy mode lets you control the toner adherence up to 250% to obtain an ultra-fine image quality for those really special photo prints.

Direct printing from USB 2.0

PictBridge¹ makes printing simple, fast and easy. Equip your magicolor 5650EN and magicolor 5670EN with the optional hard disc or Compact Flash Card and take advantage of convenient direct printer access. Print documents or photos directly from your USB stick or PictBridge compliant digital camera. This highly convenient functionality supports PDF, JPEG, TIFF and XPS² formats.

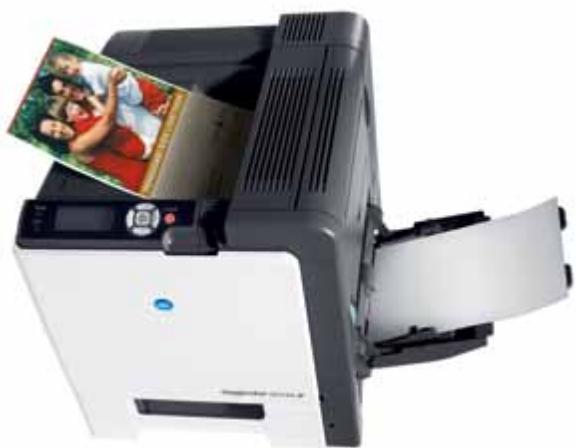

Great versatility

Save on costs and time by producing a wide variety of documents conveniently in-house. With the magicolor 5650EN and magicolor 5670EN you can print professional business cards, 1.2m banners, colourful reports, vivid PowerPoint presentations and more - eliminating the need to outsource printing and point of sale material. The standard multi-manual feed tray processes variable paper sizes from A5 over A4 up to banner format (216 x1,200 mm), as well as a comprehensive range of media types including plain and recycled paper, transparencies, labels, envelopes, and thick or glossy paper. The paper capacity is flexible and can easily accommodate high print volumes. Simply upgrade the standard 500 sheet cassette with one or two optional paper feeders up to the maximum paper capacity of 1,600 sheets. For extra versatility attach the finisher² and have your output conveniently stapled, sorted or grouped. You can manage all your office printing needs with the magicolor 5650EN and magicolor 5670EN.

Protect the environment

Show consideration for the environment with the magicolor 5650EN or magicolor 5670EN. Simitri® HD toner requires a much lower temperature for fusing, saving up to 15% energy. Furthermore the production of this polymerised toner emits 40% less CO2 , NO2 and SO_2 than the production of conventional pulverised toners. The toner cartridges are covered by Kona Minolta's Clean Planet Program – this ensures that 99% of the cartridges are recycled.

PANTONE

CALIBRATED

Designed for

Microsoft®

Windows®

Server 2003

Universal

Works with

Windows

VistaTM

CLEAN PLANET PROGRAM

Konica Minolta printer supplies return program

ProtectPack

Printer process

Print method:

Desktop tandem full colour

A4 laser beam printer

Print speed:

magicolor 5650EN:30/30 ppm

magicolor 5670EN:35/35 ppm

First page out:

14/14 sec. or less (mono/colour)

standard plain paper

Warm-up time:

magicolor 5650EN: 47 sec.

magicolor 5670EN: 52 sec.

Max. resolution:

PhotoART 9600

(600 x 600 dpi x 4 bit contour)

Duty cycle:

120,000 pages per month

Hardware and software capabilities

Processor type:

magicolor 5650EN:733MHz

magicolor 5670EN:867 MHz

Memory:

256 MB standard, 1,024 MB max

Printer emulations:

PostScript 3 (3016), PCL 6 (XL3.0),

PCL 5e/c, XPS (Version 1.0) ^2

Direct print:

PDF (Version 1.6), JPEG/TIFF, XPS

Printer management:

PageScope® NetCare, PageScope®

Web Connection, (Embedded Web

Server), PageScope® Network Setup,

PageScope® EMS Plug-in, Pag

eScope® Plug and Print, PageScope®

NDPS Gateway, PageScope® Direct

Print, PageScope Data Administra

tor, SAP R/3

Colour simulations:

SWOP, Commercial Press, Eurocolor,

DIC, TOYO

CF card:1

CF card slot standard, CF card

optional

Hard disc kit (HDD): 2

40 GB optional

Fonts

137 standard PostScript fonts,

93 PCL scalable fonts,

51 symbol sets.

10 standard line printer fonts

Interface support

10-Base-T/100-Base-TX

1,000-Base-T Ethernet (supports

TCP/IP, Ethertalk, IPX/SPX, UDP, IPv6

IPP 1.1, SNMP, HTTP, HTTPS, WSD)

USB 2.0, IEEE 1284 compatible

Parallel Port, PictBridge 1.0

Operating system

compatibility

Windows®:

2000, 2003, XP, XP64, VistaTM 32/64

Macintosh:

OS X (10.2, 10.3, 10.4, 10.5)

Linux:

Redhat v.9.0, SUSE v.8.2

Netware®:

Netware 4,5,6

Paper handling

Media input magicolor

5650/5670EN

Standard paper input:

500-sheet lower paper feeder and

100-sheet multi manual feed tray

Optional paper input:

2x 500-sheet lower paper feeder

Media input

magicolor 5670EN (MPC):

Standard paper input:

250-sheet multi purpose cassette.

100-sheet multi manual feed tray

Optional paper input:

2x 500-sheet lower paper feeder

Media output:

Standard paper output:

250-sheet face down output tray

Optional paper output:

600-sheet finisher

Finisher (optional): 2

2-bin staple finisher with sorting

function

Printable area:

4,2 mm from all edges

Media support magicolor

5650/5670EN:

Lower paper feeder:

A4,media weight 60-90 gsm

Multi manual feed tray:

A4,A5,A6,B5,B5 (ISO),B6,

letter, executive, photo size,

government letter/legal, envelope,

folio, legal, double postcard

statement, UK Quarto, foolscap,

SP folio, 16K, Kai 16, Kai 32

J-Postcard, custom size (92-216 mm

x 148-1200 mm), media weight

60-210 gsm

Duplexing: A4 (60-90 gsm)

Media support

magicolor 5670EN (MPC):

Multi purpose cassette:

A4,A5,A6,B5,B5 (ISO),B6,

letter, executive, photo size

government letter/ legal, envelope

folio, legal, double postcard

statement, UK Quarto, foolscap,

SP folio, 16K, Kai 16, Kai 32

J-Postcard, custom size

(92-216 mm x 148-297 mm)

media weight 60-210 gsmMulti

manual feed tray:

Identical with magicolor

5650/5670EN

Duplexing:A4 (60-90 gsm)

Print media:

Plain paper, thick paper,

recycled paper, transparency,

letterhead, envelope (C6,C5,

monarch, DL), glossy paper and

long length paper (216 x 1,200 mm)

Physical

Dimensions: (W x D x H mm)

420× 526× 420

Weight:

33.4 kg engine without consumables

45 kg packaged to ship

Electrical

Input voltage range:

220 240V(± 10%)

Frequency:

50 60Hz (± 3Hz)

Power consumption: ^3

Max. 1,450 W or less

Average during printing 750 W or less

Stand by 200 W or less

Energy saving 18 W or less

Environmental

Temperature:

-35°C

Humidity:

15 to 85% RH

Noise levels:

56 dB (A) or less printing

39 dB (A) or less standby

Regulatory/Safety

conformity

Doc, CE Marking, GS, EMC, WEEE

Energy Star, EcoMark

Consumables

Pre-installed:

magicolor 5650EN:

Cyan, Magenta, Yellow and Black

toner - yield up to 6,000 pages

magicolor 5670EN:

Cyan, Magenta, Yellow and Black

toner - yield up to 12,000 pages

Cyan, Magenta, Yellow and Black

print unit - yield up to 30,000 pages

Waste toner bottle - yield up to

36,000 pages (monochrome) and

9,000 pages (colour)

Replacements:

Cyan, Magenta, Yellow and Black

toner - yield up to 6,000 pages

Cyan, Magenta, Yellow and Black

high capacity toner - yield up to

12,000

Cyan, Magenta, Yellow and Black

print unit - yield up to 30,000 pages

Waste toner bottle - yield up to

36,000 pages (monochrome) and

9,000 pages (colour)

Maintenance parts

Transfer roller with Ozone filter:

Yield up to 120,000 pages

Transfer belt:

Yield up to 120,000 pages

Fuser unit:

Yield up to 150,000 pages

Warranty period and

conditions

1 year on-site warranty

(within EU; local law applies).
