Thank you for purchasing the Peavey kosmos!

The kosmos is a low-frequency energy and stereo image enhancement system that turns the minor foreshocks of an input signal into a sound that is off the Richter scale. It can provide planet-rattling bass while simultaneously causing the vocals to stand out in a mix. In operation, its sub-harmonic (QUAKE) processor watches the source material, analyzes the bass, then generates additional low frequencies an octave below the original. The circuitry tracks the original bass without the mud of other bass processors, and is tuned to your speaker size for best performance. The QUAKE's activity is seismically monitored and indicated by an LED. Its output level is fully adjustable. In addition to the QUAKE process, there is an additional bass boost circuit (THUD) tuned an octave above the sub-harmonic range that can be used to fill in and fatten out the low end. The left/right stereo image can also be intensified with the XPANSE control, giving improved separation and clarity (atmosphere).

All inputs and outputs are balanced. To guarantee proper levels, an input gain control is provided. A 0 dBu green signal LED and a +10 dBu red signal LED assist in input level setting. The subwoofer output has a built-in crossover and independent level control allowing an equalized bass signal for systems with subs. The effects, including the added QUAKE and THUD signals sent to the sub woofer, can be bypassed for the occasional reality check, but once you've been to Emerald City – Kansas will never be the same! So ditch the ruby slippers, Dorothy.

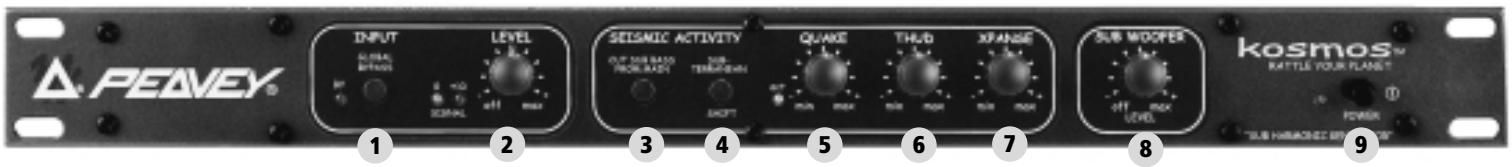

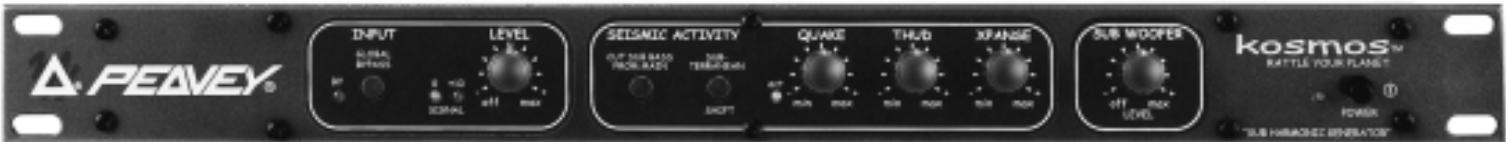

CONTROL IDENTIFICATION AND FUNCTION

1. GLOBAL BYPASS:

This switch disables all functions except the input gain control and the subwoofer level control. When bypassed, the input circuitry still functions so that proper levels are passed through. This is especially necessary if the unit is used to shift signal level from -10 dBV to +4 dBu to match outboard equipment. The subwoofer crossover circuit still operates (without the kosmos ^TM bass effects) when bypassed. The status is indicated by glowing ruby slippers, oops, I mean a red LED. Illumination indicates bypass mode, but after living in color in OZ, the black and white of Aunt Em's farm will appear even more drab than when you left!

2. LEVEL:

This control sets the magnitude of the earthquake (input gain and output level of the unit). For optimum signal to noise and performance, it should be set so that the 0 dBu LED is flickering most of the time and the +10 dBu LED does not blink. The +10 dBu LED indicates bass content in the source material will cause possible output clipping or sanity damage. The detented center position is the unity gain point at which the sensation of a northern California quake can be experienced without the resultant damage.

3. CUT SUB BASS FROM MAIN:

This switch removes the QUAKE sub harmonics and the THUD bass from the main left and right outputs. This allows all the added bass to be sent only to the subwoofer output when a 3-speaker system is used. When the left and right speakers cannot handle the additional bass produced, this is the best way to route low frequency enhancements. The XPANSE is always sent to the mains and is not affected by this switch's setting.

4. SUB-TERRANEAN SHIFT:

This switch changes the sub harmonic tuning between two speaker size settings. The "out" position has a higher epicenter (center frequency) that is more suitable for small speakers. The difference is subtle; listen for its action on bass guitar frequencies. Deeper bass sounds like it is coming from the floor instead of at your chest.

5. QUAKE:

This control adds a synthesized bass signal one octave lower than the source signal. The adjacent yellow LED indicates tectonic activity in the sub bass range. This feature generates bass sub harmonics that would register on a seismograph yet are pleasing to the ear, and does no processing when the input signal is outside of its defined range. It will thicken and deepen the bass of most program material and is especially effective on bass (kick) drums. Since it boosts the low frequency portion significantly, care must be taken to prevent amplifier clipping and speaker damage by excessive bass levels. It's louder than you think.

6. THUD:

This control adds a specific band of bass frequencies (natural, not synthesized) to the sub harmonics generated by the QUAKE process. It is tuned roughly an octave above the sub harmonics and is used to even out the low-end balance.

7. XPANSE:

This is a combination control, simultaneously adjusting high-frequency boost and stereo width. The minimum position is the flat setting. As the control is rotated clockwise, the left/right image becomes wider and clarity is increased. This feature is designed to pull vocals more to the front of the mix while giving them a 3-dimensional quality. Power chords played on guitar benefit as well.

8. SUB WOOFER:

Built into the kosmos™ is a 90 Hz subwoofer crossover. The subwoofer signal is the sum of the QUAKE output, the THUD output, and the low frequencies from the 90 Hz crossover network. This control sets the output level.

9. POWER:

This switch applies AC mains power to the internal power supply. When the unit is functioning, the blue power LED will illuminate. AC power is required even in bypass mode, since the unit has built-in active level shifting capabilities.

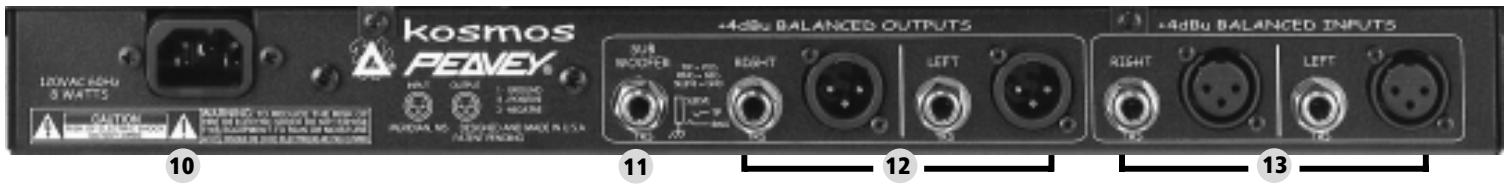

BACK PANEL

10. IEC CONNECTOR:

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included. The mains cord should be connected to the unit before connecting to a suitable AC outlet.

U.S DOMESTIC AC MAINS CORD

The mains cord supplied with the unit is a heavy-duty, 3-conductor type with a conventional 120 VAC plug with ground pin. If the outlet used does not have a ground pin, a suitable grounding adapter should be used, and the third wire should be grounded properly.

Never break off the ground pin on any equipment. It is provided for your safety.

NOTE: FOR UK ONLY

If the colors of the wires in the mains lead of this unit do not correspond with the colored markings identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green, or colored green and yellow. (2) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. (3) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

11. SUB WOOFER OUTPUT:

This is a 1/4" TRS electronically balanced output that can be used either in balanced mode (with a 1/4" TRS jack) or unbalanced (standard 1/4" jack). The levels will automatically change to match the configuration. This output supplies a line level signal to the subwoofer amplifier [pin 2 (and tip) positive].

12. LEFT AND RIGHT OUTPUTS:

The left and right outputs are electronically balanced, with the same configuration as the SUB WOOFER OUTPUT [pin 2 (and tip) positive]. The XLR and 1/4" TRS phone jacks are directly wired in parallel. They should not be used at the same time (on the same channel) since the output balance would not necessarily be maintained, especially if balanced and unbalanced connectors are used.

13. LEFT AND RIGHT INPUTS:

The XLR and 1/4" TRS phone jacks are directly wired in parallel. They should not be used at the same time (on the same channel) since the output balance would not necessarily be maintained, especially if balanced and unbalanced connectors are used [pin 2 (and tip) positive].

kosmos™ Specifications

FREQUENCY RESPONSE:

PROCESS MODE: Program controlled

BYPASSED: <10 Hz to 40 kHz +0/-1 dB

THD + N (10 Hz - 80 kHz BW):

PROCESS MODE: ≤ .003%

BYPASSED: ≤ .002%

SIGNAL TO NOISE:

-101 dBu

CROSSTALK:

<-75 dB @ 1kHz

CMRR:

-60 dB

NOMINAL INPUT LEVEL:

0 dBu (775 VRMS)

MAX OUTPUT:

+22 dBu

MAX INPUT:

+22 dBu

INPUT IMPEDANCE:

20 k Ohms balanced

(Pin 2 positive), 10k Ohms unbalanced

OUTPUT IMPEDANCE:

200 Ohms balanced

(Pin 2 positive), 100 Ohms unbalanced

POWER REQUIREMENTS:

8 Watts @ 120 VRMS 50/60 Hz

8 Watts @ 230 VRMS 50/60 Hz

DIMENSIONS:

19"W x 1.75"H x 9" D

483 mm x 44 mm x 229 mm

NET WEIGHT:

7.1 lbs. (3.22kg)

SHIPPING WEIGHT:

8.7 lbs. (3.95kg)

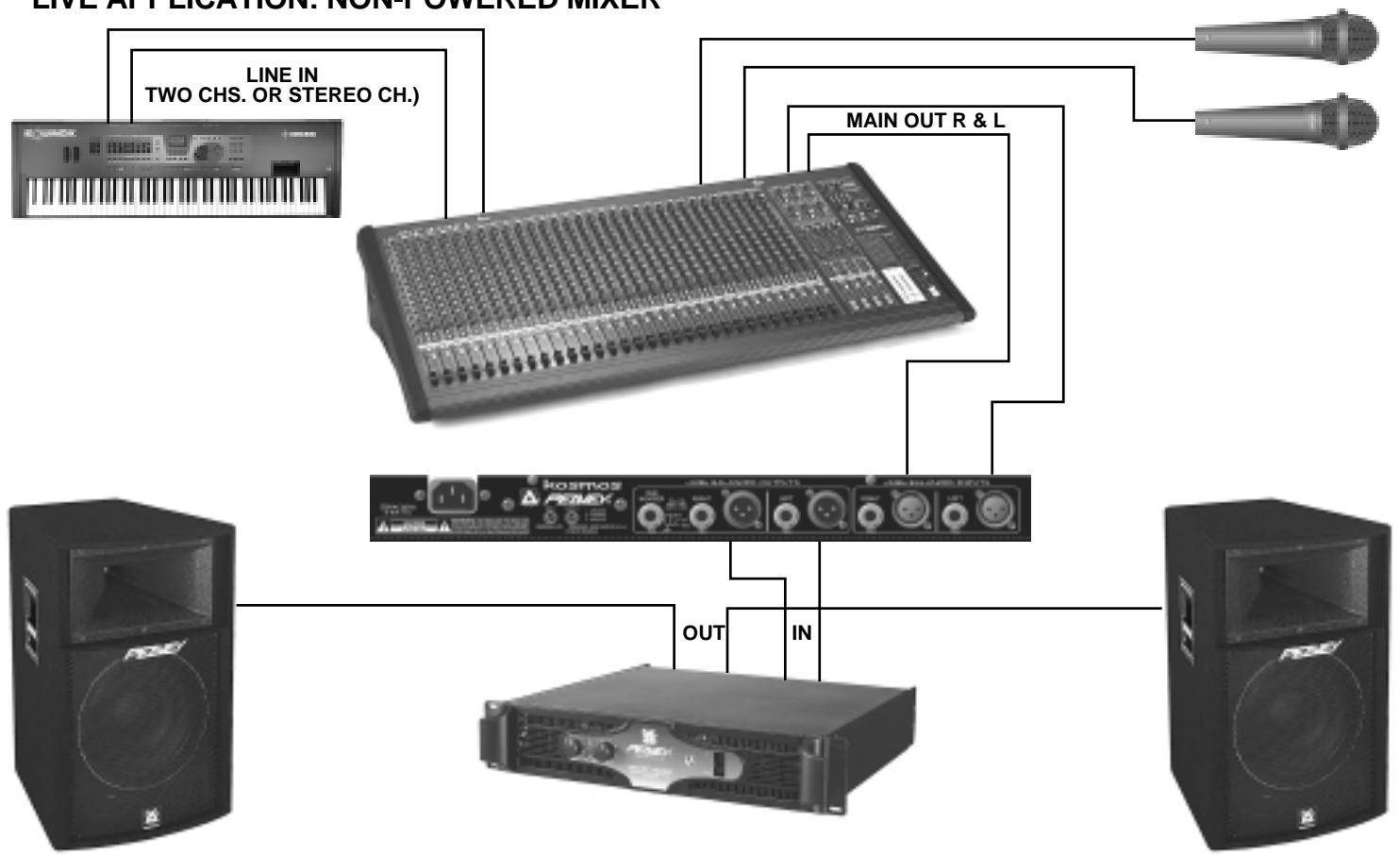

LIVE APPLICATION: NON-POWERED MIXER

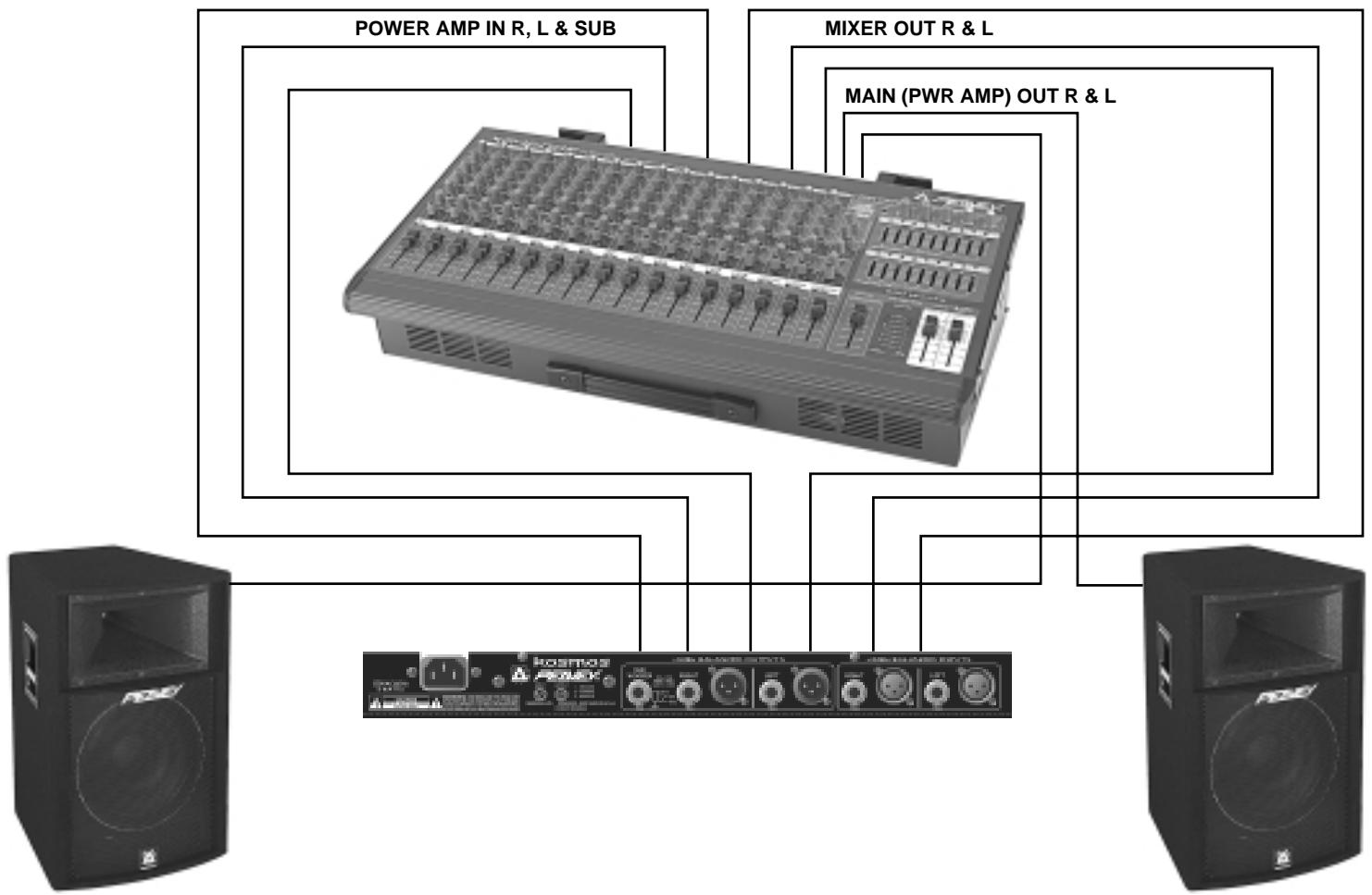

LIVE APPLICATION: POWERED MIXER

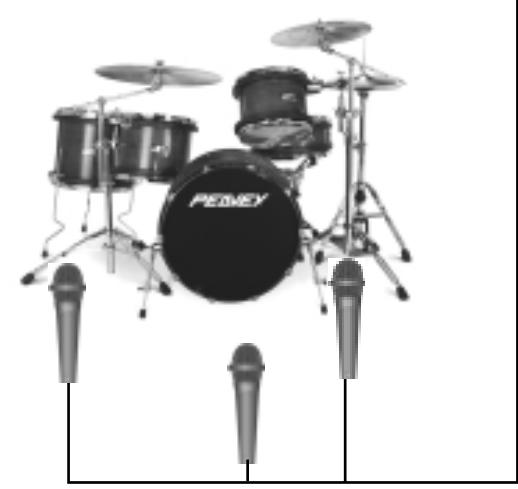

DRUM APPLICATION

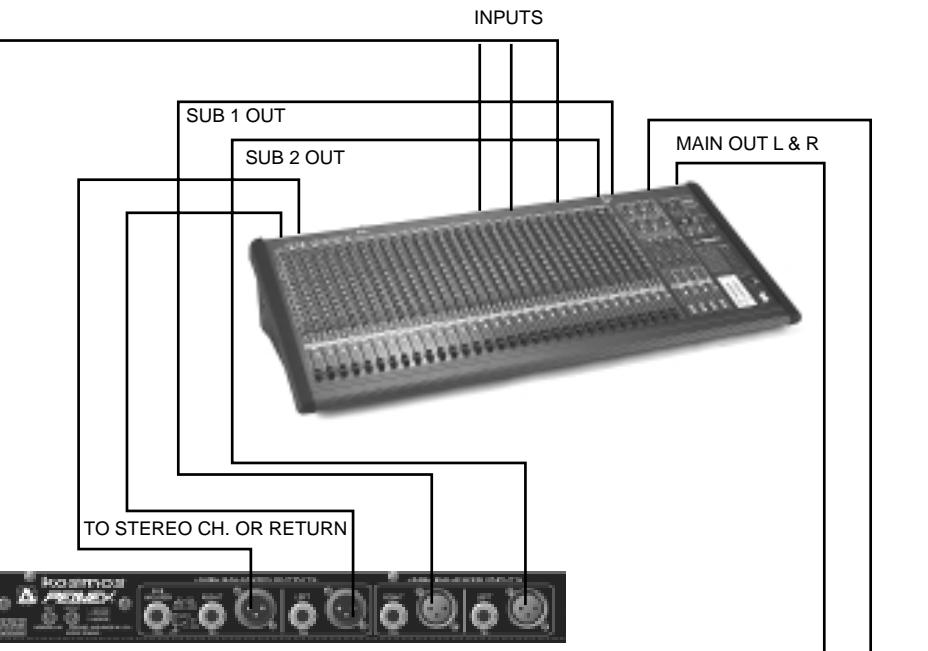

ASSIGN TO SUB 1 & 2

kosmos

THD + N (10 Hz - 80 kHz BW):

MODO DE PROCESO: ≤ .003%

CANCELADO (BYPASSED): ≤ .002%

SEñAL / RUIDO:

-101 dBu

CROSSTALK:

<-75 dB @ 1kHz

CMRR:

-60 dB

NIVEL DE ENTRADA NOMINAL:

0 dBu (775 VRMS)

SALIDA MAXIMA:

+22 dBu

ENTRADA MAXIMA:

+22 dBu

3. CUT SUB BASS FROM MAIN:

kosmos™ Specifications

FREQUENCY RESPONSE:

PROCESS MODE: Program controlled

BYPASSED: <10 Hz to 40 kHz +0/-1 dB

THD + N (10 Hz - 80 kHz BW):

PROCESS MODE: ≤ .003%

BYPASSED: ≤ .002%

SIGNAL TO NOISE:

-101 dBu

CROSSTALK:

<-75 dB @ 1kHz

CMRR:

-60 dB

NOMINAL INPUT LEVEL:

0 dBu (775 VRMS)

MAX OUTPUT:

+22 dBu

MAX INPUT:

+22 dBu

INPUT IMPEDANCE:

20 k Ohms balanced

(Pin 2 positive), 10k Ohms unbalanced

OUTPUT IMPEDANCE:

200 Ohms balanced

(Pin 2 positive), 100 Ohms unbalanced

POWER REQUIREMENTS:

8 Watts @ 120 VRMS 50/60 Hz

8 Watts @ 230 VRMS 50/60 Hz

DIMENSIONS:

19"W x 1.75"H x 9" D

483 mm x 44 mm x 229 mm

NET WEIGHT:

7.1 lbs. (3.22kg)

SHIPPING WEIGHT:

8.7 lbs. (3.95kg)

kosmos™

DAS GROSSE BEBEN SUBHARMONIC-GENERATOR

3. CUT SUB BASS FROM MAIN:

11. SUB WOOFER OUTPUT:

8 Watt @ 120 V RMS 50/60 Hz

8 Watt @ 230 V RMS 50/60 Hz

ABMESSAGEGEN:

B 483 mm x H 44 mm x T 229 mm

NETTOGEWICHT:

3,22 kg

VERSANDGEWICH:

3,95 kg
