Product type	Radio cassette player with CD player
Brand	EBENCH
Model	KH 23
Dimensions (approx.)	400 x 250 x 150 mm
Weight (approx.)	2 kg
Mains power supply	230 V ~ 50 Hz
Battery power supply	8 UM-2 batteries (size C)
Radio	FM / MW (metric and medium waves)
FM stereo display	LED
Bass amplifier	Switchable (on/off)
Compact disc player	20-track programming, repeat
Cassette tape recorder	Automatic level control (ALC), auto stop
Headphone jack	Stereo 3.5 mm
Playback functions	Play, pause, stop, fast forward, rewind
Recording	From radio or CD player
Function switch	Radio / Cassette / CD
Wave selector	FM / MW
FM antenna	Telescopic
Speakers	Stereo (left and right)
Maintenance and cleaning	Regular cleaning of playback and recording heads
Safety	Do not open the device, avoid moisture
Repairability	Entrust any repairs to a specialist
Certificate	Compliant with EC directives (low voltage, EMC)
Certificate date	February 28, 2003

Frequently Asked Questions - KH 23 EBENCH

How to turn on the radio and select a station?

Set the function switch (1) to 'Radio', then choose the waveband with the wave selector (2) (FM or MW). Turn the tuning control (29) to find the desired station and adjust the volume with the volume control (5). To turn off, set the function switch to 'Cassette'.

How to record a radio program on cassette?

First select the radio station as described above. Insert a blank cassette into the cassette compartment (19). Press pause (25), then simultaneously press record (20) and play (21). Release pause to start recording. The automatic level control (ALC) adjusts the level. To stop, press stop/eject (24).

How to program track playback on a CD?

In CD stop mode, press program (9) once: the program indicator (16) lights up. Use the skip forward (7) or skip back (8) keys to select a track, then press program again to memorize it. Repeat up to 20 tracks. To play the program, press play/pause (12). Open the CD lid to clear the program.

What to do if FM reception is poor or noisy?

Fully extend the FM antenna (3) and orient it to improve reception. You can also set the tuning control (29) to mono position (if available) to reduce noise. In weak signal areas, use 'MONO' position for clearer listening.

Can I use rechargeable batteries?

The manual specifies 8 UM-2 (size C) batteries. Rechargeable batteries of the same size can be used, but their nominal voltage (1.2 V instead of 1.5 V) may reduce performance. Ensure correct polarity.

How to clean the tape player heads?

Regularly clean the playback and recording heads with a cotton swab dipped in isopropyl alcohol or use a special cleaning cassette. This prevents loss of sound quality due to dust deposits.

What does the FM stereo indicator correspond to?

The FM stereo LED indicator (18) lights up when receiving a stereo broadcast on the FM band. It flickers or goes out if reception is too weak; switch to mono mode.

How to repeat a track or the whole CD?

During playback, press repeat (10) once to repeat the current track (the repeat indicator (15) flashes). Press twice to repeat the entire CD (steady indicator). Press until the indicator goes out to cancel.

The cassette deck stops by itself, is this normal?

Yes, it is normal: the auto stop activates when the tape reaches the end during playback or recording. Press stop/eject (24) to rewind or change the cassette.

Where to find the full manual for the KH 23?

The full manual is available for free download in PDF format on notice-facile.com. You can also request a translation by selecting your language and providing your email address.

USER MANUAL KH 23 EBENCH

Supply voltage:	230 V ~ 50 Hz (mains operation)
Battery operation:	8 x UM-2 batteries
Radio:	FM / MW
CD player:	20 track programmable
Cassette recorder:	Automatic recording level control (ALC)
Headphones jack:	Stereo, 3.5 mm

Mains operation

Before operating please check that the VOLTAGE of your unit and the local mains supply VOLTAGE are identical.

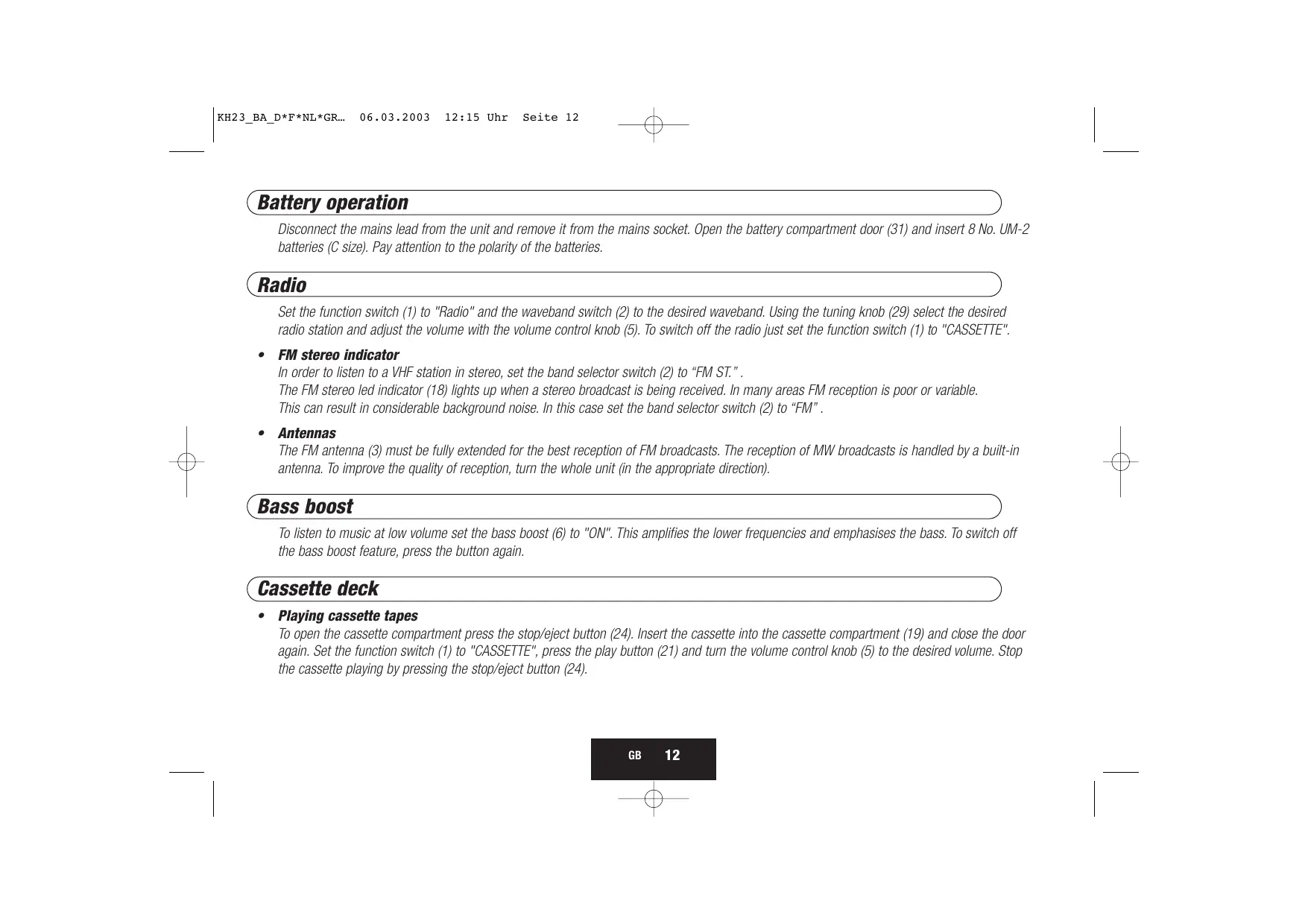

Battery operation

Disconnect the mains lead from the unit and remove it from the mains socket. Open the battery compartment door (31) and insert 8 No. UM-2 batteries (C size). Pay attention to the polarity of the batteries.

Radio

Set the function switch (1) to "Radio" and the waveband switch (2) to the desired waveband. Using the tuning knob (29) select the desired radio station and adjust the volume with the volume control knob (5). To switch off the radio just set the function switch (1) to "CASSETTE".

FM stereo indicator

In order to listen to a VHF station in stereo, set the band selector switch (2) to "FM ST."

The FM stereo led indicator (18) lights up when a stereo broadcast is being received. In many areas FM reception is poor or variable.

This can result in considerable background noise. In this case set the band selector switch (2) to "FM".

Antennas

The FM antenna (3) must be fully extended for the best reception of FM broadcasts. The reception of MW broadcasts is handled by a built-in antenna. To improve the quality of reception, turn the whole unit (in the appropriate direction).

Bass boost

To listen to music at low volume set the bass boost (6) to "ON". This amplifies the lower frequencies and emphasises the bass. To switch off the bass boost feature, press the button again.

Cassette deck

- Playing cassette tapes

To open the cassette compartment press the stop/eject button (24). Insert the cassette into the cassette compartment (19) and close the door again. Set the function switch (1) to "CASSETTE", press the play button (21) and turn the volume control knob (5) to the desired volume. Stop the cassette playing by pressing the stop/eject button (24).

- Fast forward and backward

To move the tape fast forward or backward press the fast forward button (23) or the fast backward button (22).

- Pause

The tape can be stopped temporarily in play or record mode by pressing the pause button (25). Press the pause button (25) again to carry on playing or recording again.

Autostop

The cassette motor is automatically stopped when the tape reaches the end during playing or recording.

CAUTION! Press the stop/eject button (24) every time after use to prolong the life of and prevent damage to the cassettes and cassette drive.

Recording from the built-in radio

1. Tune to the desired radio station (see section "RADIO" for description). Adjust to get the best reception of the radio station.
2. Insert an empty cassette into the cassette compartment (19).
3. Press pause button (25).
4. Press record button (20). When starting to record press the pause button (25). The integral automatic control [Automatic Level Control (ALC)] automatically ensures the best recording quality. Changing the volume has no effect on the recording.
5. To pause the recording press the pause button (25). To continue recording again press the pause button (25) once more.
6. To stop recording press the stop/reject button (24).
7. The cassette drive stops automatically once the end of the tape has been reached.

Compact Disc

- Playing compact disks / start

Note: If skipping of tracks occurs when you play a CD, try turning the volume down. Under no circumstances open the CD compartment whilst the CD is in play mode.

1. To open the CD compartment, lift the cd door (4). Insert a CD into the CD compartment and close the cd door (4) again. Set the function switch (1) to the "CD" position.
2. When the CD compartment is closed following the insertion of a CD, the cd led display (13) shows the total number of tracks on the CD, and then the drive stops.
3. When the CD compartment is open or empty, the cd led display (13) shows "00" and then the drive stops.

- Play/pause

1. After pressing the play/pause button (12) in "STOP" mode, the first track on the CD will be played. The play/pause led display (14) lights up. The cd led display (13) shows the number of the track currently being played.
2. Press the cd play/pause button (12) once for a temporary pause in playing. The LED display indicating play/ pause (14) flashes.
3. Playing is paused but the CD spins faster. A further press on the cd play/pause button (12) continues play from a previous pause.
4. Pressing once on the cd stop button (11) in PLAY or PAUSE mode stops play mode.

Repeat

1. To repeat a track: Pressing the repeat button (10) once causes the repeat led display (15) to light up and flash continuously. The relevant piece of music is repeated.
2. To repeat all the tracks: Pressing the repeat button (10) twice causes the repeat led display (15) to light up continuously. The whole CD is then played again.
3. To cancel the repeat function: Press the repeat button (10) until the repeat led display (15) is turned off.

- Skipping tracks and search mode

1. If during play or pause mode the cd skip forward button ">>" (7) or cd skip backward button "<=" (8) is pressed once, then the next or last track respectively will be played.
2. If during play mode the cd skip forward button >> (7) or cd skip backward button << (8) is pressed and held down, the unit will search forwards or backwards for the track (or within the track) with an audible increase in speed.

- Program mode

1. By pressing the program button (9) once in CD STOP MODE, the program led display (16) lights up. With the cd skip forward button >> " (7) or cd skip backward button << " (8) go to the track you want. The cd led display (13) shows the number of the track currently being played. Then press the program button (9) once more to store the desired title.
2. Repeat the steps above until all the tracks you want are stored. You can store a total of 20 tracks.
3. Press the cd play/pause button (12) once to play the PROGRAMMED track.
4. To erase the PROGRAMMED tracks, just open the cd door (4).

Stereo headphones jack

To listen to the music using the headphones insert the stereo headphone plug into the stereo headphones jack (28) and adjust the volume to suit. During use of the headphones the speakers are automatically switched off.

Recording from the CD

1. Set the function control switch (1) to the "CD" position.
2. Insert the CD with the label uppermost into the CD compartment.
3. Insert a cassette into the cassette compartment (19) and press the cassette deck pause button (25).
4. The unit will record when the record button (20) and the play button (21) are pressed down simultaneously. The unit is automatically set for the best recording quality by the integral ALC facility.
5. Starts the CD and go to the desired TRACK (see CD PLAYER). Release the cassette deck pause button (25) to start recording.
6. To interrupt recording temporarily press the pause button (25). Press the pause button (25) again to continue recording.
7. To stop recording press the cassette deck stop/reject button (24). Finally stop the CD playing by pressing the CD player's cd stop button (11).

WARNING! DANGER OF ELECTRIC SHOCK • DO NOT OPEN

WARNING: Always protect the unit from rain and moisture to avoid the danger of fire or electrical short circuit.

Do not remove the cover under any circumstances. The control lights are spot welded in place. The components inside the unit are not intended to be user-serviceable. Servicing and repair are to be carried out only at a service centre.

Servicing

• Cleaning the tape heads

Remove dust and tape debris from the tape heads regularly. Dirt on the tape heads will reduce the quality of recording and playback.

Statement of conformity

We, Kompermaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product conforms with the following EC regulations: EC low voltage regulations, Electromagnetic compatibility, Applicable harmonised standards.

Type/Description: Portable stereo radio and cassette recorder with CD player KH 23

Bochum, 28.02.03

Hans Kompernaβ

-Managing Director

Radiofunctions: FM / AM
