Product type	Electric deep fryer
Brand	SOLAC
Model	FG6940
Tank material	Stainless steel
Basket	Removable with handle and draining support
Lid	With viewing window
Control panel	Removable for cleaning
Controls	Adjustable rotary thermostat and on/off switch I/O
Indicator lights	Orange (device on) and green (temperature reached)
Safety	Safety thermostat with reset button
Cleaning	Tank and basket dishwasher safe
Power supply	220-240 V ~ 50/60 Hz
Oil capacity	Between min and max marks in the tank
Types of fat	Liquid oil or solid fat
Cord storage	Integrated compartment
Included accessories	Basket, lid, user manual

Frequently Asked Questions - FG6940 SOLAC

What is the oil capacity of the SOLAC FG6940 deep fryer?

The oil capacity is between the minimum and maximum level marks indicated inside the tank. Be careful not to exceed the maximum level.

Can I use solid fat in this deep fryer?

Yes, you can use solid fat. First melt it on low heat in a saucepan, then pour it into the tank. To reuse cooled solid fat, make holes with a fork and melt slowly with the lid closed.

How to clean the deep fryer?

Wait for the oil to cool completely and unplug the appliance. Remove the control panel from above, then the tank. Wash the tank and basket with soapy water or in the dishwasher. Never immerse the control panel in water.

What do the orange and green indicator lights mean?

The orange light indicates the deep fryer is on. The green light turns on when the oil has reached the selected temperature. It turns off when you add food and turns on again when the temperature is reached again.

How to reset the safety system after overheating?

Unplug the deep fryer and let it cool. Press the safety system button (14) using a screwdriver. Plug the appliance back in and check its operation. If the problem persists, contact technical support.

Can I wash the control panel in the dishwasher?

No, never immerse the control panel in water or put it in the dishwasher. Clean it only with a damp cloth.

How long does it take for the oil to heat up?

The heating time depends on the selected temperature and the amount of oil. The green light turns on when the temperature is reached. Generally, a few minutes are enough.

Can I fry frozen foods?

It is advisable to dry the food well before frying to avoid splashes. Frozen foods can be used, but make sure they are not too loaded with ice.

How to empty and store used oil?

Wait for the oil to cool, filter residues with a strainer, then store it in an airtight container. Discard used oil in an appropriate container, do not pour it into the sink or toilet.

Can the basket stay in the deep fryer during storage?

Yes, once the oil has cooled, place the basket inside and turn the handle inward. If you use solid fat, let it solidify in the tank before storing.

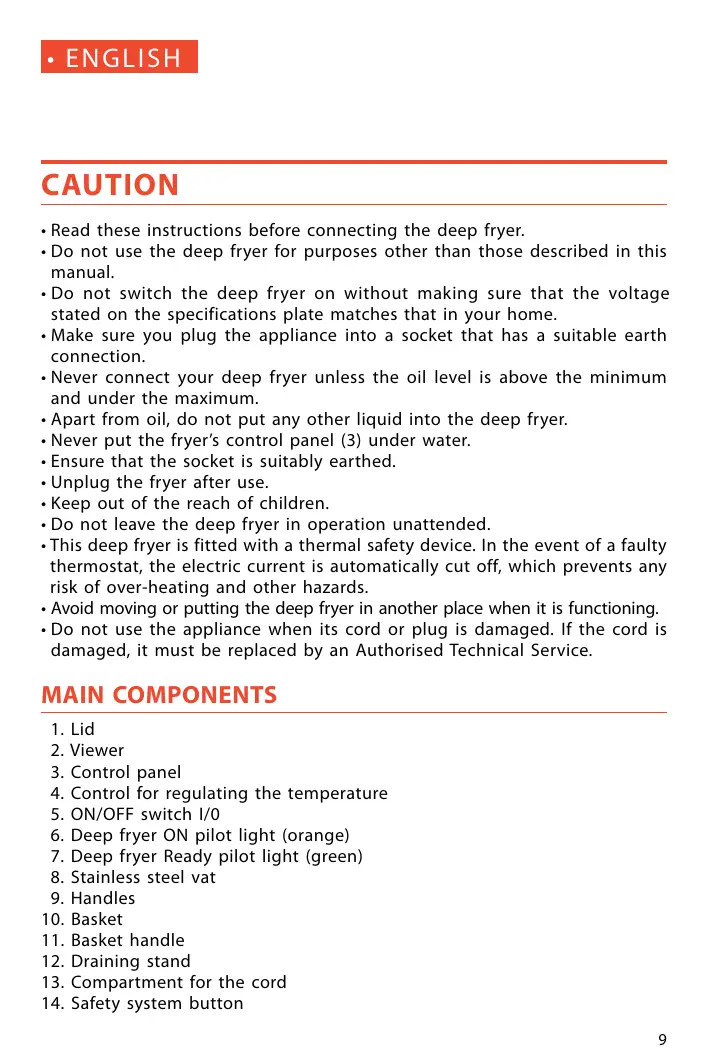

USER MANUAL FG6940 SOLAC

• Read these instructions before connecting the deep fryer.
• Do not use the deep fryer for purposes other than those described in this manual.
• Do not switch the deep fryer on without making sure that the voltage stated on the specifications plate matches that in your home.
• Make sure you plug the appliance into a socket that has a suitable earth connection.
• Never connect your deep fryer unless the oil level is above the minimum and under the maximum.
• Apart from oil, do not put any other liquid into the deep fryer.
• Never put the fryer's control panel (3) under water.
• Ensure that the socket is suitably earthed.
• Unplug the fryer after use.
• Keep out of the reach of children.
• Do not leave the deep fryer in operation unattended.
• This deep fryer is fitted with a thermal safety device. In the event of a faulty thermostat, the electric current is automatically cut off, which prevents any risk of over-heating and other hazards.
• Avoid moving or putting the deep fryer in another place when it is functioning.
• Do not use the appliance when its cord or plug is damaged. If the cord is damaged, it must be replaced by an Authorised Technical Service.

MAIN COMPONENTS

1. Lid
2. Viewer
3. Control panel
4. Control for regulating the temperature
5. ON/OFF switch I/0
6. Deep fryer ON pilot light (orange)
7. Deep fryer Ready pilot light (green)
8. Stainless steel vat
9. Handles
10. Basket
11. Basket handle
12. Draining stand
13. Compartment for the cord

14. Safety system button

15. Before you use the fryer for the first time we recommend you to wash the basket (10) and the vat (8). To do so, take the basket (10) out of the vat, lift out the control panel (3) and take out the vat (8). You can wash the basket and the vat either using soapy water or by putting them into the dishwasher. Never wet the control panel (3). For operation, put all the elements back in their place in reverse order, making sure that the panel guides match the body guides.

16. Place the appliance on a horizontal, flat, stable surface away from the edges and do not allow the cord to hang over the edge of the table or work surface or to come into contact with a hot surface.
17. Pour the oil or liquid fat into the deep fryer and remember that the oil level must be above the minimum and below the maximum. These levels are indicated inside the vat.
18. Place the basket handle (11) in the vertical position and squeeze the metal rods into the basket support holes (fig. A). Next place the handle in the horizontal position until it fits into the basket support.
19. Plug in the fryer and press the I/O switch (5) to the "I" position. At this moment the orange pilot light (6) will come on. Turn the temperature control regulator and select the desired temperature, depending on the food to be fried. When the oil reaches the selected temperature, the green pilot light (7) will come on, and the orange pilot light (6) will remain lit.
20. Place the food in the basket (10) while the basket is out of the fryer.
21. Gently put the basket into the fryer and place it in its frying position (fig. b). When the food is placed inside the fryer the green pilot light (7) will switch off, since the food causes the oil to cool due to the temperature difference, and it will come on again when the oil reaches the temperature indicated on the temperature regulating control.
    The food should always be covered by the oil.
22. Close the lid (1) over the fryer.
23. After frying the food, open the deep fryer lid, lift out the basket and shake it gently. Next, hook it into the draining position (fig. C) for the food to drain off as much oil as possible.
24. Once the food is drained, take the basket out of the deep fryer and empty it.
25. Place the temperature control at the minimum position and press the I/O switch (5) to the "O" position. Then unplug the appliance.
26. When the oil is cold, place the basket inside the fryer and turn the handle towards the inside. If you were using solid fat, leave it to solidify in the vat and store the deep fryer with the fat in it.

USE WITH SOLID FAT

If you use solid fat for frying (when not previously used), you must take the following precautions:

• Melt the pieces of new solid frying fat in a pan at a low heat. Watch over the pan at all times and keep it out of the reach of children.
• Turn off the heat as soon as the fat has melted. Place the deep fryer in the kitchen sink and very carefully pour the melted fat into the vat.
• Remember not to go over the maximum level indicated in the vat.
• If you are going to use fat that is in the deep fryer left over from a previous frying session, make holes in the fat with the help of a fork. When doing so, be careful not to harm the element.
• Close the deep fryer lid to avoid spatters and turn the temperature regulating control (4) to 150^ so that the fat slowly softens. If you wish, you can increase the temperature once the fat has melted.

CLEANING AND MAINTENANCE

• Wait until the oil has completely cooled before proceeding to dismantle and clean the fryer. Unplug the deep fryer.
• The fryer can be completely dismantled for cleaning as described in the "Operation" section.
• The basket, lid and vat can be washed either with soapy water or in the dishwasher.
• The control panel can be cleaned using a damp cloth.
• IMPORTANT: The fryer's control panel must never get wet.

• Replace all the parts and remember that they must be completely dry before you put them back into position. Assemble the fryer in the following order:

• Control panel

• Basket
  -Lid

PRACTICAL HINTS

• Food items must be completely dry before you place them in oil or fat.
• In order to prevent potatoes from sticking together, wash them before you fry them.
• If the fryer is not going to be used continuously, it is best for the oil or liquid fat to be kept in the refrigerator or in a cool place in tightly closed containers. Beforehand, using a strainer, remove all the loose particles that the fried food may have released into the oil.
• Change the oil when it looks dark, smells bad or the food tastes bad. Never add fresh oil or fat to used oil or fat.
• Do not leave oil/fat at a high temperature for longer than necessary.
• Always store the fryer with its lid closed to prevent dust or other products from deteriorating the oil or fat.
• The discarded oil or fat must not be thrown down the WC or the sink. Put them into a closed container and take them to a suitable rubbish container.

This deep fryer has a safety thermostat that cuts off the power in the event of abnormal overheating. If this happens, follow the steps below:

• Unplug the fryer from the mains and allow it to cool.
• Press the button (14) using a screwdriver.
• Plug the fryer in and check that it works correctly. If the problem continues, take the fryer to a Technical Service shop.
