CT8650 - Electric cushion SOLAC - Free user manual and instructions

Brand	SOLAC
Model	CT8650
Product type	Electric cushion
Temperature levels	4 levels: 30°C, 35°C, 40°C, 45°C
Integrated timer	From 10 to 120 minutes (adjustable in 5 or 10 minute increments)
Automatic shut-off	Yes, after the programmed time or manually
Remote control	Yes, with digital display and adjustment buttons
Removable cover	Yes, machine washable at 40°C (delicate cycle)
Cushion washable	Yes, machine or hand wash (max 40°C), air dry
Safety instructions	Do not fold, do not use when wet, do not puncture, automatic shut-off, supervision recommended
Intended use	Localized heating, household use (non-medical)
Maintenance	Cleaning as per instructions, store flat
Repairability	Contact an Authorized Service Center in case of defect

Frequently Asked Questions - CT8650 SOLAC

How to adjust the temperature of the SOLAC CT8650 electric cushion?

To adjust the temperature, press the temperature button (4.6) on the remote control. Use the increase (4.8) or decrease (4.9) buttons to choose from 4 levels: 30°C, 35°C, 40°C or 45°C. Confirm by pressing the temperature button again or wait a few seconds.

How to set the timer?

Press the timer button (4.7) on the remote control. Use the increase (4.8) or decrease (4.9) buttons to set the time from 10 to 120 minutes. Up to 50 minutes, the adjustment is in 5-minute increments, then in 10-minute increments. Confirm by pressing the timer button again. The device will automatically turn off at the end of the set time.

What to do if the cushion does not heat up?

First check that the remote control is in the On (ON) position and that the power cord is properly plugged in. If the remote control indicator flashes, unplug and replug the device. Make sure the connector is fully inserted. If the problem persists, contact an Authorized Service Center.

How to wash the cushion and cover?

Always unplug the power cord before washing. The cover and cushion can be machine washed at 40°C (delicate cycle) or hand washed with a mild detergent. Do not wring them; rinse with cold water and air dry flat until completely dry before reuse.

Can I leave the cushion on all night?

No, it is not recommended to leave the cushion on unattended. The manual states that the user must turn off the pillow before falling asleep. Use the timer for automatic shut-off, but do not use it continuously while sleeping.

What to do if the remote control stops responding?

Check that the remote control is on and the connection is correct. If the screen remains off, unplug and replug the device. If the problem persists, contact an Authorized Service Center. Do not attempt to repair it yourself.

What is the maximum temperature of the cushion?

The maximum temperature is 45°C, corresponding to position 4. The other positions are: 30°C (position 1), 35°C (position 2) and 40°C (position 3).

How long before the default automatic shut-off?

By default, the operating time before automatic shut-off is 120 minutes. You can modify this time via the timer from 10 to 120 minutes.

Is the cushion safe for children?

The cushion should not be used by young children unless the control has been adjusted by an adult. It requires close supervision, especially for people insensitive to heat. Do not use under the influence of alcohol or sleeping pills.

How to store the electric cushion?

Store the cushion in a dry place with as few folds as possible, and avoid placing heavy objects on it. Unplug it and let it cool before folding slightly. Follow the storage instructions to avoid creases.

USER MANUAL CT8650 SOLAC

ALMOHADILLAS ELECTRICAS

ELECTRIC PILLOWS

WARNING: When you want to dispose of the appliance, NEVER throw it in the rubbish. Take it to your nearest RECYCLING POINT or waste collection centre for treatment. If you do that, you will be helping to look after the environment.

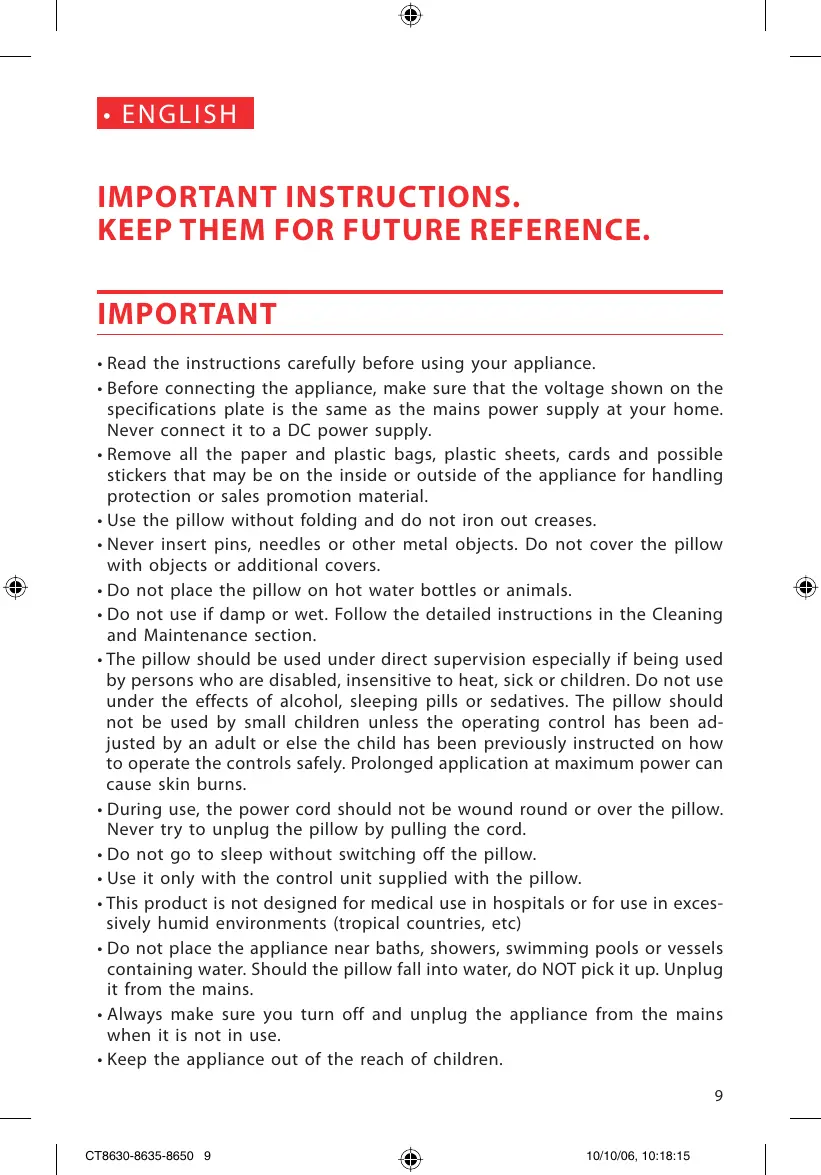

IMPORTANT INSTRUCTIONS. KEEP THEM FOR FUTURE REFERENCE.

IMPORTANT

• Read the instructions carefully before using your appliance.
• Before connecting the appliance, make sure that the voltage shown on the specifications plate is the same as the mains power supply at your home. Never connect it to a DC power supply.
• Remove all the paper and plastic bags, plastic sheets, cards and possible stickers that may be on the inside or outside of the appliance for handling protection or sales promotion material.
• Use the pillow without folding and do not iron out creases.
• Never insert pins, needles or other metal objects. Do not cover the pillow with objects or additional covers.
• Do not place the pillow on hot water bottles or animals.
• Do not use if damp or wet. Follow the detailed instructions in the Cleaning and Maintenance section.
• The pillow should be used under direct supervision especially if being used by persons who are disabled, insensitive to heat, sick or children. Do not use under the effects of alcohol, sleeping pills or sedatives. The pillow should not be used by small children unless the operating control has been adjusted by an adult or else the child has been previously instructed on how to operate the controls safely. Prolonged application at maximum power can cause skin burns.
• During use, the power cord should not be wound round or over the pillow. Never try to unplug the pillow by pulling the cord.
• Do not go to sleep without switching off the pillow.
• Use it only with the control unit supplied with the pillow.
• This product is not designed for medical use in hospitals or for use in excessively humid environments (tropical countries, etc)
• Do not place the appliance near baths, showers, swimming pools or vessels containing water. Should the pillow fall into water, do NOT pick it up. Unplug it from the mains.
• Always make sure you turn off and unplug the appliance from the mains when it is not in use.

• Keep the appliance out of the reach of children.

• Do not use your pillow if the power cord is damaged or the appliance is faulty. Take it to an Authorized Service Centre to have it repaired or replaced, as proper tools are required to do so.

• If you decide not to use the pillow again, it is best to put it out of service. To do so, unplug the appliance and cut the power cord. In addition, it is best to disable the parts of the appliance that could be dangerous, especially for children, as they might use it improperly during play.
• Check the pillow frequently for signs of wear or damage. If these signs appear, or if the product has been used improperly, take it to an Authorised Service Shop.
• Electrodomesticos Solac, S.A. hereby disclaims all liability for injuries or damage that could be caused to persons, animals or property due to the failure to heed these warnings.

MAIN COMPONENTS

• Connect the power cord (3) first to the product and then connect it to the mains.
• Place the switch on the control (4.1) in the ON position.
• The selection that appears on the screen automatically is the minimum temperature position 1 and 120 minutes of operation before the appliance switches off automatically.

10

SELECTING THE TEMPERATURE

• To change the temperature selection, press the temperature button (4.6); you can increase the temperature position by pressing the selection increase button (4.8). If a position higher than 1 is selected, you can reduce the temperature position by pressing the selection reduction button (4.9).
• To confirm your selection, press the temperature button again (4.6) or else it confirms automatically after a few seconds. The temperature that corresponds to the selected temperature position appears on the screen when you confirm the selection (4.2).
• There are 4 temperature positions that correspond to the following temperatures:

Position 1: 30^

Position 2: 35^

Position 3: 40^

Position 4: 45^ C

• The selected temperature will be reached after 10 minutes and it will remain stable after this time regardless of how long the appliance is left running.

• When the appliance is switched on, the time selected by default before the product switches off is 120 minutes. It is possible to reduce this time by pressing the timer button (4.7) and then pressing the selection reduction button (4.9). If a time of less than 120 min. is selected, you can use the selection increase button (4.8) to increase the time before the appliance switches off automatically.
• From 10 to 50 minutes, these buttons allow you to increase/reduce the time by five minutes every time they are pressed. After 50 minutes these buttons change the time by 10 minutes.
• To confirm your selection, press the timer button again (4.7) or else it confirms automatically once a few seconds have passed since your last selection.
• When you confirm the selection, the selected time appears on the screen (4.5) and the time starts to count down one minute at a time; this also appears on the screen (4.4).
• Once the selected time has passed, the appliance stops heating up, the screen shows the FF symbol and the light on the control flashes until any button is pressed.
• If any operating error is detected or the power cord is not properly connected to the product, the screen shows the ER symbol and the light flashes. Make sure the cord is properly connected, switch off the control and switch it back on.

• The light of the screen is blue; it comes on while the control is being used and switches off automatically after 5 seconds. If you want it to light up again, press the selection increase button 4.8 or the selection reduction button 4.9.

• To switch the appliance off, select the OFF position on the control (4.1). Unplug the appliance.

CLEANING AND MAINTENANCE

• Both the cover (1) and the pillow (2) can be washed by machine using a setting for delicate garments (maximum temperature: 30^ ).
• To wash the pillow, ALWAYS unplug the power cord (3); it must never come into contact with water.
• It is advisable to wash the pillow only if it becomes dirty or dusty. If you wash it too often the product can wear out very quickly.

To wash the pillow by hand, follow these instructions:

• Use neutral soap in warm water (maximum temperature: 30^ ). Soak the pillow in water for 15 minutes.
• Carefully rinse the pillow with cold water, without wringing or squeezing it: simply shake it to remove the excess water.
• Hang the pillow in the air in horizontal position and allow it to drip dry until completely dry.
• After washing the pillow or its cover, make sure they are completely dry before using them again.
• Storage: Keep this product in a dry place with as few folds as possible and do not place any heavy objects on it that could cause permanent creases.

FRANÇAISE

INSTRUCTIONS IMPORTANTES CONSERVÉZ-LES POUR TOUTE CONSULTATION ULTÉRIEURE.

ATTENTION
