USER MANUAL ACTIS ELECTRO 7741 ROBLIN

FITTING THE APPLIANCE

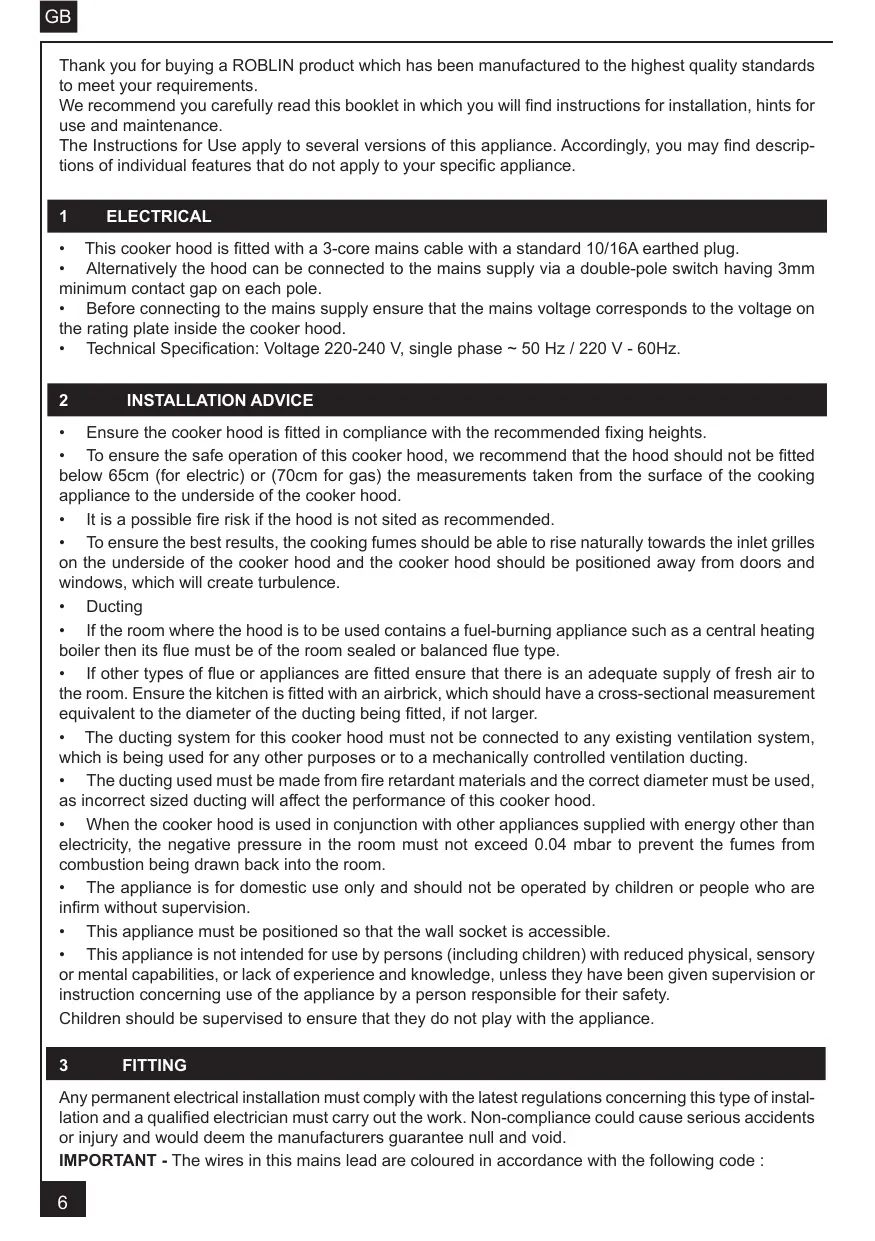

Thank you for buying a ROBLIN product which has been manufactured to the highest quality standards to meet your requirements. We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance. The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descrip- tions of individual features that do not apply to your specific appliance. 1 ELECTRICAL + This cooker hood is fitted with a 3-core mains cable with a standard 10/16A earthed plug. + Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole. + Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. + Technical Specification: Voltage 220-240 V, single phase - 50 Hz / 220 V - 60Hz. 2 INSTALLATION ADVICE + Ensure the cooker hood is fitted in compliance with the recommended fixing heights. + To ensure the safe operation of this cooker hood, we recommend that the hood should not be fitted below 65cm (for electric) or (70cm for gas) the measurements taken from the surface of the cooking appliance to the underside of the cooker hood. + _Itis a possible fire risk if the hood is not sited as recommended + To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence. + Ducting + __Ifthe room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type. + Ifother types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not larger. + The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting. + The ducting used must be made from fire retardant materials and the correct diameter must be used, as incorrect sized ducting will affect the performance of this cooker hood + When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room: + The appliance is for domestic use only and should not be operated by children or people who are infirm without supervision. + This appliance must be positioned so that the wall socket is accessible. + This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. FITTING Any permanent electrical installation must comply with the latest regulations concerning this type of instal lation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void. IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

green / yellow : earth blue : neutral brown : live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. - The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol + or coloured green or green and yellow. - The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. - The wire which is coloured brown must be connected to the terminal which is marked with the letter Lor coloured red. ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manu- facturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a faulty hanging due to the drilling and the setting up of plugs. The extractor unit is fitted into the base board of the cooker hood (thickness: 12 to 22 mm). (Fig 1) Connect the electrical plug and set the extractor tube in place. Clip the appliance into the cutout; the 4 adjustable fastening clips are made flexible to allow quick assembly without the need for any complicated prior dismounting. Retighten the screws if necessary. Ducting The hood is more effective when used in the extraction mode (ducted to the outside). When the cooker hood is ducted to the outside, charcoal filters are not required.The ducting used must be 150 mm (6 INS), rigid circular pipe and must be manufactured from fire retardant material, produced to BS.476 or DIN 4102-B1. Wherever possible use rigid circular pipe which has a smooth interior, rather than the expanding concertina type ducting. Maximum length of ducting run: - 4 metres with 1 x 90° bend. = 3 metres with 2 x 90° bends. - 2 metres with 3 x 90° bends. The above assumes our 150 mm (6 INS) ducting is being installed. Please note ducting components and ducting kits are optional accessories and have to be ordered, they are not automatically supplied with the chimney hood. *RECYCLING The air is recirculated into the kitchen through the opening located on the upper side of the cabinet or of the hood (Fig. 2). Install the charcoal fiers inside the canopy (Fig 3). 4 OPERATION Receiver Remote control Led 4 Led5 (Option)

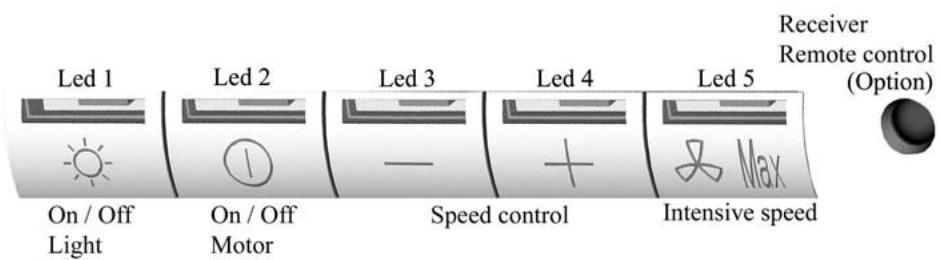

On/ Of On/Of Speed control Intensive speed Light Motor A-EXTRACTION OR RECYCLING :Your cooker hood is supplied in the extraction mode. To use the cooker hood in the recycling mode re-programme the hood as follows:

Starting in the recycling mode (the contaminated air passes into the hood through the grease filters and the purifying activated charcoal filter and back out into the kitchen through grilles). Press the “+ button (while the motor and lights are switched ‘OFF') until the five LED lights will flash twice to indicate confirmation that the cooker hood is in the recycling mode. Reverting to the extraction mode (The cooker hood is ducted to the outside). Press the ‘+’ button (while the motor and lights are switched ‘OFF') until the five LED lights will flash once to indicate confirmation that the cooker hood is in the extraction mode.

B - BASIC INSTRUCTIONS

Lighting Press LED button 1 to switch ‘ON’ the lights and the LED wil iluminate to confirm the lights are switched “ON. Motor Press LED button 2 to switch ‘ON' the fan motor (and adjust the speed of the fan motor by pressing the LED button + and ‘-‘) and the LED lights 2, 3 and 4 will iluminate. The fan speed will be increased if constant pressure is kept on the (+) button. LED 2 : Minimum speed - cooking with one pan or simmering LED 2 & 3: Medium speed - normal cooking with up to 4 pans LED 2, 3 & 4 : Maximum speed - frying and cooking foods with strong odours Press LED button 5 to obtain the boost position for maximum effect and the LED will illuminate to confirm fan is switched ‘ON.

C - COMPLEMENTARY INSTRUCTIONS

+ Boost spee To obtain the best performance it is advisable to switch ‘ON' the cooker hood a few minutes (in the boost setting) before you start cooking. To program the complementary function, proceed as follows: - Press LED button 2 to switch ‘ON' the fan motor and adjust the speed of the fan by pressing the LED button “#' and *. You should keep applying pressure to the ‘+’ and ‘- button until the required speed is selected. - Press LED button 5 (boost speed) to switch ‘ON' the fan motor in the boost setting. Press LED button 5 to switch "OFF" the boost setting immediately. Itis advisable too that you should leave it running in the boost setting for approximately 5 minutes after finishing. + Pre-set stop of the boost speei Apre-set stop after 5 minutes of the boost speed is available. Your cooker hood is supplied with a deactivated pre-set stop of the boost speed. To use the cooker hood with a pre-set stop of the boost speed re-programme the hood as follows: The lights and the fan motor should be switched OFF' to set the timer. Push the LED button “until the LED lights wil flash : One flash of the LED lights 2,3, and 4 = function is switched ‘OFF’. Two flashes of the LED lights 2,3, and 4 = function is switched ‘ON’. While the 5 minutes timer is running, It is available to stop immediately the boost speed by pressing the led button 5. While the 5 minutes timer is running, the indication of saturation of the fiers is switched "OFF". If a pre-set stop for the hood is switched ‘ON and the 5 minutes timer is still running, the boost speed will be switched 'OFF' together with the pre-set stop for the hood after the count down of 5, 10 or 15 minutes. Itis available to stop the boost speed before the count down of the preset stop of the hood by pressing the led button 5. + Pre-set stop for the hood : This function allows you to program the cooker hood to automatically stop cooking after a pre-set period.

The lights and the fan motor should be switched "OFF" to set the timer. Proceed by repeatedly pressing the LED button 5 (Boost speed): Two flashes of the LED button 1 & 5 = 5 minutes delay. Three flashes of the LED button 1 & 5 = 10 minutes delay. Four flashes of the LED button 1 & 5 = 15 minutes delay. One flash of the LED button indicates the function is switched ‘OFF'. You can switch the cooker hood ‘ON’ and adjust the speed. The LED buttons 2, 3 and 4 will flash to indicate the fan motor is switched ‘ON and which speed has been selected. One flash = stop after 15 minutes. Two flashes = stop after 10 minutes. Three flashes = stop after 15 minutes. + Indication of saturation of the metal grease filters : After 200 hours use, one quick flash of the LED 1 will indicate that you must clean the metal grease filters. (See chapter on ‘Maintenance '). To reset the 200 hours timer back to zero requires the motor and lights must be switched "OFF": then and proceed as follows: Press the LED button “#' for 3 to 4 seconds and the LED lights 1,2,3, 4 and 5 will flash to confirm the programme has been reset to zero. + Indication of saturation of the active charcoal filter : After 400 hours use, two quick flash of the LED 1 will indicate that you must replace the active charcoal filter and clean the metal grease fiers. (See chapter on Maintenance’). To reset the 400-hour timer the motor and lights must be switched ‘OFF. Push the LED button ‘+ for 10 seconds. One flash of the LED lights 1,2,3,4 and 5 = function is switched ‘OFF' Two flashes of the LED lights 1,2,3,4 and 5 = function is switched ‘ON. Instructions for replacing the active charcoal filer are given in the chapter on ‘Recycling'. : Pre-set remote control handset Your cooker hood is supplied with a deactivated remote control receiver. To use the cooker hood with a remote control re-programme the hood as follows: Press the LED button (Lighting) ‘1’ while the motor and lights are switched ‘OFF’, until the LED lights 1 will flash to confirm the programme has been activated : One flash of the LED lights 1 = function is switched ‘OFF’. Two flashes of the LED lights 1 = function is switched ‘ON’. Caution, the remote control handset must be fitted with standard LRO3-AAA size 1.5V zinc-carbon alkaline batteries as illustrated Fig. 5. These batteries should give a long life and constant discharge throughout their life. These batteries must be disposed of properly and could explode if damaged or exposed to heat. Do not dispose of on fire. Dispose of batteries in the appropriate sort container to protect the environment. 5 USEFUL HINTS +__ To obtain the best performance we recommend you to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing. + _ IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD + Do not leave frying pans unattended during use as over-heated fat and oil might catch fire. + Do not leave naked flames under this cooker hood. + Switch ‘OFF’ the electric and gas before removing pots and pans. + Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate

and cooker hood simultaneously. 6 MAINTENANCE Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply. The cooker hood must be kept clean: a build up of fat or grease may cause a fire hazard Casing + Wipe the cooker hood frequentiy with a clean cloth, which has been immersed in warm water contain- ing a mild detergent and wrung out. + Never use excessive amounts of water when cleaning particularly around the control panel. + Never use scouring pads or abrasive cleaners. + Always wear protective gloves when cleaning the cooker hoodi Metal Grease Filters : The metal grease filters absorb grease and dust during cooking in order to keep clean the cooker hood inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day. To remove and replace the metal grease filters + Remove the metal grease filters one at a time by releasing the catches on the fiers: the filters can now be removed + _ The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher. + Allow to dry before replacing. Active Charcoal Filter : The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day. To remove and replace the filter + Remove the metal grease fiers. + Press againstthe two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed. + Clean the surrounding area and metal grease filters as directed above. + Insert the replacement filter and ensure the two retaining clips are correctly located + Replace the metal grease filters. Extraction tube : Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regulations with regard to the extraction of ventilated air. Lighting : If the lamp fails to function check to ensure it is fitted correctiy into the holder. If lamp failure has occurred then it should be replaced with identical replacement Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

GUARANTEE AND AFTER SALES SERVICE

+ _Inthe event of any malfunction or anomaly, notify your fitter who will have to check the ap- pliance and its connection. +_ In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who will have the required tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee. + Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood. + When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease fiers inside the hood. + Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced. This Guarantee does not cover : = Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or fiers or removable parts of glass or plastic. These items are considered to be consumable under the terms of this guarantee.

REMARKS This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compat- ibility and Directive 93/68 on EC marking. When this crossed-out wheeled bin symbol X is attached to a product it means the product is cov- ered by the European directive 2002/96/EC. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.Please inform yourself about the local separate collection system for electrical and electronic product. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

LED 2 = NIVEL MINIMO

LED2Y3 = NIVEL INTERMEDIO

LED 2, 3 Y 4 = NIVEL MAXIMO

ACCESSOIRES ACCESSORI ACCESSORIES ACCESORI

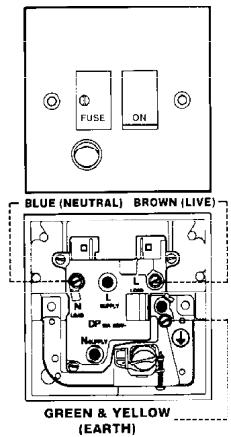

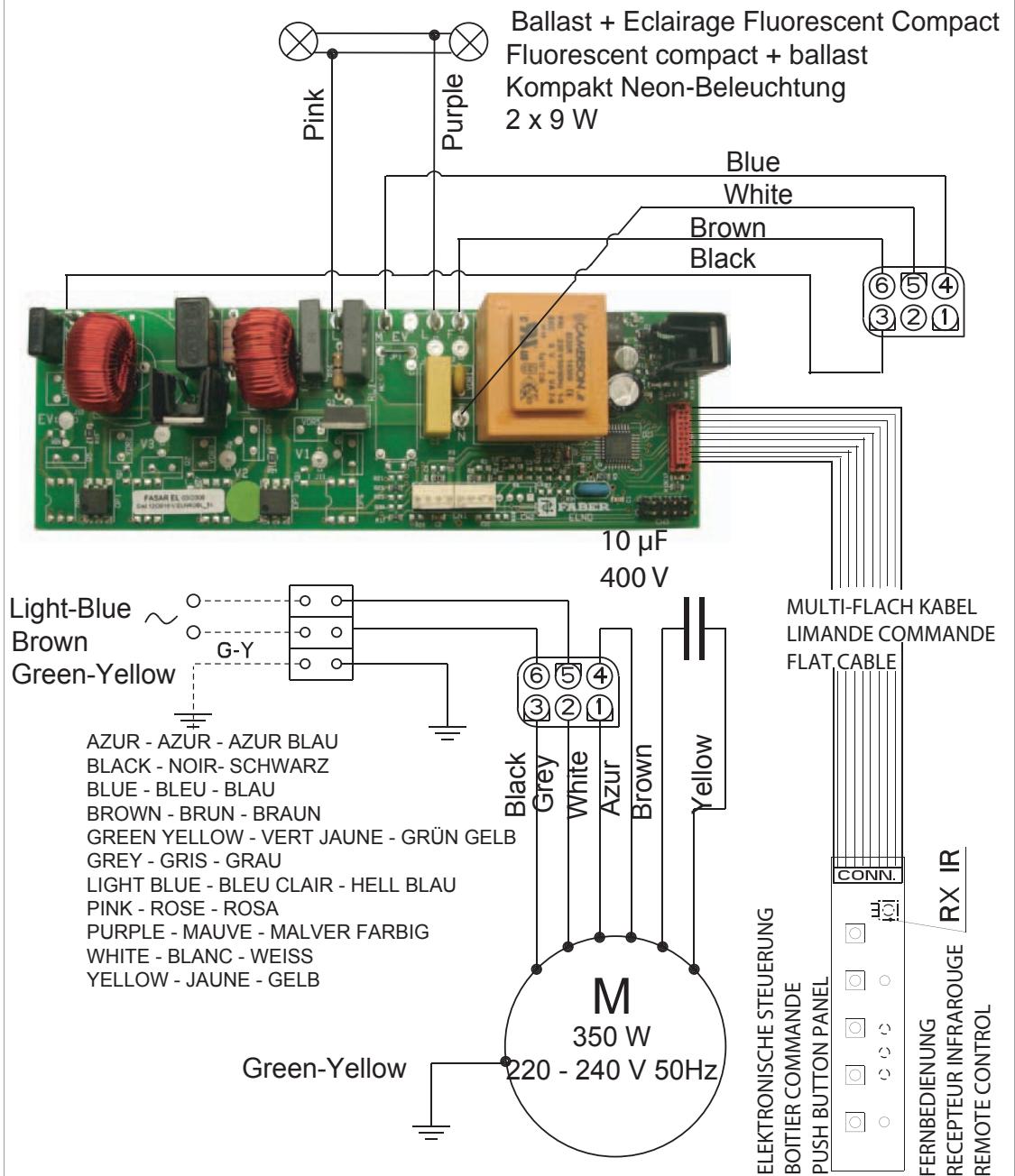

ELECTRICAL REQUIREMENTS Any permanent electrical installation must comply withthe latest .E.E. Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electrcity Board, or a contractor whois on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC). ELECTRICAL CONNECTION Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage onthe rating plate inside the cooker hood. This appliance is fitted with a 2 core mains cable and must be permanentiy connected to the electricity supply via a double-pole switch having 3mm minimum contact gap on each pole. À Switched Fuse Connection Unit to BS.1363 Part 4, fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure compliance with the Safety Requirements applicable to fixed wiring instructions. The wires in this mains lead are coloured in accordance with the following code Green & Yellow Earth Blue Neutral Broun Lie Asthe colours ofthe wires: inthe mains lead of this appliance may not correspond with the coloured markings identif/ing the terminals in your connection unit, proceed as follows: The wire which is coloured blue must be connected tothe terminal which is marked with the letter ‘N' or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L'or colouredred.
