USER MANUAL MECABLITZ 24 AF-1 METZ

2.4 mecablitz 24 AF-1 P ©

5.43 mecablitz 24 AF-1 © .

Foreword Welcome to the large family of Metz customers! We congra- tulate you on purchasing this flash unit and thank you for your confidence in our products. Itis only natural that you should want to use your flash unit straight away. However, we recommend that you study these Operating Instructions beforehand to be able to fully exploit and utlize all the capabilities offered. ‘This flash unit is only suitable for the following camera brands: + 24 AF-1 C only for Canon EOS/Power shot cameras + 24 AF-1 N only for Nikon TTL and iTTL-cameras + 36. AF-4 O onfy for Olympus digital cameras with TTL flash control and flash socket system, as well as compatible digital cameras from Panasonic and Leica

+ 24 AF-1 P only for analogue and digital Pentax cameras with TTL or PTIL control and flash socket system, as well as compatible digital cameras from Samsung, + 24 AF-1 S only for digital Sony alpha - reflex cameras with TTL., TTL: pre-flash function and ADI metering as well as analogue and digital Konica - Minolta Dynax / Dimage cameras.

2.5 mecoblitz 24 AF-1 $......................68

3 Mounting the mecablitz. .88

3.1 Mounting the mecablitz on the camera... 88

3.2. Removing the mecablitz from the camera . 89 4 Power supply 4.1. Suitable batteries. ........................90

4.2 Replacing batteries Le. 90

4.3 Switching the flash unit on and off... 91

4.4 Auto OFF for the flash unit..................91

Dedicated functions and flash mode Flash readiness indication . Automatic flash sync speed control. Correct exposure indication Displays in the camera viewfinder

5.5 AF auxiliary light .

5.6 _ TTL flash mode

5.6.1 Automatic TTL filein Hash in digh

5.6.6 Pre-flash TTL and ADI metering (Sony).

1 Safety instructions + The Aash uni is exclusively intended and approved for photographic usel + Never fre a flash in the viciity of Rammable gases or liquid (petrol, solvents, etc.}! DANGER OF EXPLOSION! + Never take flash shots of car, bus or train drivers, or of motorcycle and bicydle riders, whilst they are travellinc They could be lindech by the ight and cause an accident + Never fire a flash in the immediate vicinity of the eyes! Flosh fired direcly in front of the eyes of a person or ani- mal can damage the retina and lead to severe visual disorders - even blindness! + Only use the approved power sources listed in the Operaling Instructions! + Do not expose batteries to excessive heat, sunshine, fire and the like!

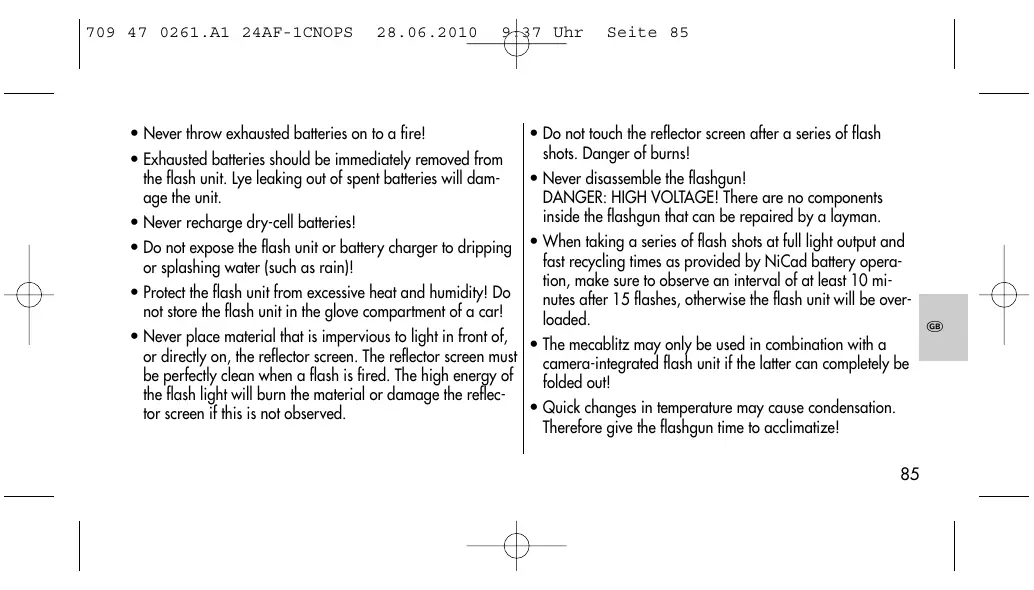

+ Never throw exhausted batteries on to a firel Exhausted batteries should be immediately removed from the flash unit. Lye leaking out of spent batteries will dam- age the unit. « Never recharge dry-cell batteries! + Do not expose the flash unit or battery charger to dripping or splashing water [such as rain]! + Protect the flash unit from excessive heat and humidity! Do not store the flash unit in the glove compariment of a car! + Never place material that is impervious to light in front of, or direcily on, the reflector screen. The reflector screen must be perfecily clean when a flash is fred, The high ae cf the flash light will burn the material or damage the reflec- tor screen if this is not observed. + Do not touch the reflector screen after a series of flash shots. Danger of burns! + Never disassemble the Rashgun!

DANGER: HIGH VOLTAGE! There are no components

inside the flashgun that can be repaired by a layman. + When taking a series of flash shots at full light output and fast recycling times as provided by NiCad battery opera- fion, make sure to observe an interval of at least 10 mi- nutes after 15 fashes, otherwise the flash unit will be over- loaded. + The mecablitz may gi be used in combination with a camera-integrated flash unit if the latter can completely be folded outl + Quick changes in temperature may cause condensation. Therefore give the flashgun time to acclimatize!

2 Supported dedicated functions 2.2 mecablitz 24 AF-1 N

2.1 mecablitz 24 AF-1 C + Flash ready indication in camera viewfinder

+ Automatic flash sync speed + Flash ready indication in camera viewfinder à M Anh cart raie ohne pee -TTLlash control + E-TIL flash control + Automatic TTL flash exposure correction A Manual TTL-flash exposure correction A Manual TTL-flash exposure correction A Flash exposure storage FE + AF auxiliary light control Programmed auto flash mode A st or 2nd curtain synchronisation + Wake-up function for Aash unit A = Dedicated function is performed by the. camera or must be set @ * AF auxiliary light control Programmed auto Hash mode + Wake-up function for flash unit A = Decated function is performed by the_ camera or must be set on the camera on the camera x= Some cameras only support he AF illuminator integrated in the x = Some cameras only support the AF illuminator integrated in the camera. camera.

Flash ready indicator in camera viewinder/camera display + Automatic flash sync speed control + Four Thirds system compatible + Automatic flash / triggering control TTL flash control (TTL with pre-flash function] + Automatic fill-in flash control A Manual flash exposure correction with TTL A Synchronisation to the 1stor 2nd_ shutter curtain [2nd curtain / SLOW2) x Auto-focus measurement flash control A Pre-flash function for reducing red-eye effect + Wake-up function for flash unit A = Dedicated function is performed by the camera or must be set on the camera.

x = Some cameras only support the AF illuminator integrated in the camera

2.4 mecablitz 24 AF-1 P

+ Flash read indicator in camera viewinder/camera display + Exposure control indicator in the camera viewfinder with TTL + Automatic flash sync speed control + Automafic flash / triggering control Pan + TTL flash control 7 + PTTL flash control œ + Automatic TTL / P-TIL fillin Aash control A Manual flash exposure correction with TTL + Auto-focus measurement flash control A Pre-flash function for reducing red-eye effect « Wake-up function for the flash unit

A = Dedicatedl function is performed by the_ camera or must be set on the camera.

2.5 mecablitz 24 AF-1 S

• Flash ready indicator in camera viewinder + Automatic flash sync speed control + Automatic flash / triggering control ‘+ TTL flash control [standard TTL without measuring pre-Alash function) + Pre-flash TTL and ADI metering + Automatic fill-in flash control A Manual flash exposure correction with TTL A Synchronisation to the 1st or 2nd shutter curtain + Auto-focus measurement flash control + Wake-up function for the flash unit A = Dedicatedl function is performed by the_ camera or must be set on the camera.

3 Mounting the mecablitz

3.1 Mounting the mecablitz on the camera

1 Switch off camera and mecablitz with the main switch! mecablitz 24 AF-1 C, 24 AF-1 N and 24 AF-1 P + Push the mecablitz with the connection foot as far as it will go into the camera accessory shoe. Then press the FLOCK button” to secure.

mecablitz 24 AF-1 S Ÿ + Push the mecablitz with the connection foot as far as it will o into the camera accessory shoe. The safety catch can be feard to snap into place on the hot shoe. + Lightly press the unlaïching button “PUSH” upward to clamp the mecablitz in the cameras accessory shoe.

mecablitz 24 AF-1 O + Push the mecablitz with the connection foot as far as it will go into the camera accessory shoe. Then press the *LOCK buiton” to secure.

3.2 Removing the mecablitz from the camera

& Turn off the camera and the mecablitz by their main switch. mecablitz 24 AF-1 C, 24 AF-1 N and 24 AF-1 P + Press both side psie caches D 4 on the connection foot in the direction indicated by the arrows and pull off the meca- blitz at the same time from the camera accessory shoe.

mecablitz 24 AF-1 S + Press the unlatching button “PUSH” towards the flash unit and at the same time hold it lighily down until the “PUSH” button locks in place. + Withdrow fhe mecabliz from the cameras accessory shoe. mecablitz 24 AF-1 O + Press both side lose catches à 4 on the connection foot in the direction indicated by the arrows and pull off the meca- € blitz at the same time from the camera accessory shoe. ù.

4.1 Suitable batteries

The mecablitz can be operated with any of the following bat- feries: + 2 NiCad batteries, type IEC KR6 [AA). They permit very fost recycling and are economical in use because they are rechargeable. + 2 nickel metal hydride batteries IEC HR6 (AA). They have a significantly higher capacity than NiCad batteries and are less harmful to the environment [no cadmium]. + 2 alkaline manganese dry-cell batteries, type IEC LR6 (AA) Maintenance-free power source for moderate power re- quirements.

15 Do not use lithium batteries! Their higher cell voltage may damage the electronic system of the flash unit. Remove the batteries from the mecablitz if the Alash unit is not going to be used for an extended period of time.

4.2 Replacing batteries

The batteries are exhausted if the recycling time (elapsing from the triggering of a full-power flash to the moment the flash ready indicator lights up again) exceeds 60 seconds. + + Turn off the mecablitz by its main switch + Slide the battery compariment cover in the direction of the arrow.

\L/ + Insert the batteries lnghvise in conformity with the indicated battery symbols and close the battery compariment cover.

1 When loading batteries ensure correct polarity, as indi- cated by the symbols in the battery compartment. Mixed up battery poles may destroy the flash unit! Replace all batteries at a time and make sure that the batteries are of the same brand and type and have the same capacity! 1% Exhausted batteries must not be thrown in the dustbin! Help protect the environment and dispose of run-down batteries at the appropriate collecting points.

4.3 Switching the flash unit on and off

The flash unit is switched on by its main switch. In the right “ON” position, the mecablitz is on. To turn off the flash unit reset the main switch to its “OFF” position.

4.4 Auto OFF for the flash unit

To save battery power and prevent inadvertent battery drain, the flash unit is factory-set to automatically switch to standby mode (Auto OFF) 10 minutes after + being switched on, + a Aash is fired + the shutter release is actuated + the cameras exposure metering system is switched off.

\L/ The green Rashrread light 4 is extinguished e The flash unit can be reactivated by pressing the shutter release (wake up function) t& The flash unit should ahways be turned off using the main switch if it is not going to be used for an exten- ded period.

5 Dedicated functions and flash mode

5.1 Flash readiness indication

The flash readiness symbol %_ lights up on the mecablitz when the flash capacitor is charged, thereby indicating that lashes can be fired for the next shot. Flash readiness is trans- mitted to the camera and displayed in the viewfinder [see camera manual). ù Ifa picture is shot before flash readiness is signalled in the d camera viewfinder, then the flash unit will not be triggered © so that the exposure may be incorrect. 1% If flash readiness is established, a test flash can be trig- gered with the manual fring button on the mecablitz.

Depending on the camera model and the selected mode, the cameras shuler peed automalical}y changes o flach sync speed when flash readiness is reached (see operating instruc- tions for the given camera). Shutter speeds faster than the flash sync speed cannot be set or wilautomatcal}y be changed to Dash sync speed, Various eameras feure a ne speed range, eg 1/60 sec. 1e 1/250th sec. (see the cameras operating instructions]. The actual sync speed used by the camera depends on the camera mode, the prevailing ambient light and the focal length of he lens. Shutter speeds that are slower than the flash sync speed can be used, depending on the operating mode selected on the camera.

5.3 Correct exposure indication

The “o.k.” correct exposure confirmation briefly lights up on ihe mecablit when ie shot was corecly exposed in TIL flash mode. IF'0.k” is not indicated after an exposure, then his means that the shot was underexposed. The shot will then have to be repeated with the next smaller f-number [e.g. /8 instead of f/11] or the distance to the subject or the reflecting surface e.g. when bouncing the flash} must be shortened.

5.4 Displays in the camera viewfinder

&3 The actual display in the camera viewfinder can deviate from the subsequent description or some symbols are only possible with certain camera models (see operating instructions for the given camera]. ur)

5.4.1 mecablitz 24 AF-1 C

Flash symbol à 5 £ flashes: User is requested to use or switch on the flash unit. Flash symbol 4 lighis up: mecablitz is read for opertion. Some cameras have a warning function in the viewfinder to indicate incorrect exposure. For instance, if the f-number or shutter speed or both of them flash in the viewfinder, then this will indicate either under- or overexposure. Basic information concerning incorrect exposure: + Inthe event of overexposure: Do not use the flash! eo + In the event of underexposure: Switch on the flash unit or mount the camera on a tripod and set a slower shutter speed The reasons for incorrect exposure can vary in the different exposure and automatic programmes.

+ Green flash symbol # illuminated and 2 blinks: User is requested to use or switch on the flash unit. + Green flash symbol % iluminated: Flash unit is read) for firing. + Green flash symbol % remains illuminated after shooting or is brief switched of. The shot was correclly exposed + A arrow symbol % blinks after shooting: The shot was underexposed.

+ Flash symbol 3 # £ flashes: Prompt indicating that the flash unit is to be switched on and used or that the flash unit is not flash ready {on some cameras). + Flash symbol # is illuminated!: The flash unit is flash-ready on some cameras). Flash symbol is not iluminated: In the case of lash-ready flash unis: The camera suppresses ash execution when À the ambient light is too right. Ü

5.4.4. mecablitz 24 AF-1 P

+ Flash symbol % is illuminated: The flash unit is flash-ready + Flash symbol is not illuminated: The flash unit is not Hlash-ready. Or in the case of a flash-reody flash uni: The camera sup- presses flash execution when the ambient light is too bright.

Flash symbol © $ € flashes: The flash unit is not flash-ready. + Flash symbol #is illuminated: The flash unit is Alash-ready. 1 For information applicable to the displays in the view- finder of your camera model, refer to the camera's operating instructions.

5.5 AF auxiliary light

The AF auxiliary light is activated by the camera electronics when the ambient lighting conditions are insufficient for auto- maïic focusing. The AF beam emitter then projects a striped after on to the subject, and the camera uses this pattern to Rcus automatically. 1& D enable activation of the AF auxiliary light by the camera, the camera lens must be set to AF. On the camera, the AF mode “Single-AF” or “ONE-SHOT-AF” must be selected, Low-speed zoom lenses may signifi- cantly reduce the distance range of the AF auxiliary light. The striped pattern of the AF auxiliary light only supports the cameras central AF sensor. When using cameras with seve- ral AF metering areas we therefore recommend to activate the camera's central AF metering zone. Some cameras may only activate the AF illuminator inte- grated in the camera. In such an event, the AF auxiliary light emitter of the mecablitz will not be activated. Please refer to the coresponding information given in operating instructions for the individual camera

The mecablitz is only suitable for the TTL flash mode. ‘The TTL flash mode is a very simple way to achieve excellent flash shok, In Hhis mode exposure readings are taken by a sensor built into the camera which measures the light reach- ing the film through the camera lens (TTL). The electronic con- trol circuit within the camera transmits a stop signal to the mecablit as soon as fe film has been expose by he cor- rect amount of light, thereby instanily interrupting the flash. ‘The advantage of this flash mode is that all factors in- fluencing correct jure and fal lngl wi zoom lenses, xensins ler dose. ups, ec.) are automatically taken into account. You need not worry about seing the flash, the camera's electronic system automatically determines the correct amount of flash light required

I lash exposure was correct, the “ok.” exposure confirma- tion lights up. The TIL ash mode is supported by all camera modes [eg Full Auto Mode, Program P, Aperture Priority Mode “Av” or “A, Shutter Priority Mode Tv” or “8”, Programmed Image Control Modes, Manual Mode “M, etc.]. LS Do test the TTL function a film must be loaded in the camera. When selecting the film please check whether limits regarding maximum film speed are applicable to the given camera when in TL mode {refer to the camera's operating instructions).

Most camera models automatically activate the fill-in flash mode when in Full Auto Mode, Program P. and the Programmed Image Control Modes in daylight (see the camera's operating instructions). Fill-in lash overcomes troublesome dense shadows and pro- duces a more balanced exposure between subject and back- ground with contre-jour shots. The cameras computer-con- trolled metering system sets the most suitable combination of shutter speed, working aperture and flash output. 1& Ensure that the contre-jour light source does not shine directly into the lens as this will mislead the camera's TIL metering system! In this instance there is no setting or display on the mecablitz for automatic TTL fill-in flash.

5.6.2 Canon E-TIL flash mode

The E-TTL flash mode is an advanced variant of the “normal” TTL flash mode. Prior to shooting, the reflection of the subject is measured by way of a preflash. The camera evaluates the reflected preflash light so that the subsequent flash exposure is optimally adapted to the prevailing photographic situation [see operating instructions of your camera). Settings and displays À « Switch on the flash unit and the camera. € + Lighily touch the cameras shutter release for data exchan- | @ ge beïween flash unit and camera + The E-TTL flash mode is automatically activated when the camera supports this mode. E-TTL then lights up on the Aash unit.

FE flash exposure storage Some Canon cameras offer the possibiliy of FE Aash expo- sure storage. This is supported by the flash unit in the E-TTL flash mode. FE flash exposure storage in E-TTL mode permits the amount of light required for the subsequent shot to be determined and sored prior to exposure. This can be expehent when Hash exposure hos o be adapted 0 spece details Hha may not necessarily be identical with the main subject. @æ Focus the cameras AF sensor metering area on the zone whose flash exposure is to be predetermined. When the FE button on the camera is aciuated [the designation may vary with individual camera models - see camera's operating instructions] the flash unit will fire an FE test flash. The electro- nic measuring circuit inside the camera assesses the reflected light of the FE test flash to determine the light output required

for the subsequent exposure. The main subject can thereafter be focused with the AF sensor metering area of the camera. When the shutter release is pressed the picture will be expo- sed with the previously determined light output. ation after the FE test flash has been fired will not be taken into account when the picture is shot. Some cameras do not Spor FE flash exposure storage in the “green” full auto mode or programmed image control modes (see camera's operating instructions].

5.6.3 Nikon i-TTL flash mode

i-TTL flash mode is an advanced variant of the standard TTL flash control of analog cameras. When shooting a picture, several weakly visible preflashes are fred by the Aash unit prior to exposure. The camera then evaluates the reflecied preflash light so that the subsequent flash exposure is opti-

NPA Due to system-inherent reasons any changes in the light situ-

mally adapted to the prevailing photographic situation. When the TTL flash mode is selected, the flash unit automati- cally activates standard TTL or i-TTL flash mode, depending on fhe type of camera. Flash exposure memory Some cameras have flash exposure memory (FV memory]. This is supported by the flash unit in i-TTL ash mode. lt can be used to define and store the exposure level for the subse- quent hot before the chats actually taken, This can be usell when, for example, the flash exposure has to be adjusted to specific details that may not necessarily be identical with the main subject. This function is activated on the camera, in some instances as an individual function.

5.6.4 TIL flash mode with measurement pre-flash

function (Olympus) During the shot and before the actual exposure, one or more re-flashes are executed by the flash unit. The camera eva- fates the measurement pre-flash and controls the light output of the flash unit for the main flash. The flash unit is set to this mode by the camera automatically.

5.6.5 P-TIL flash mode (Pentax)

With P-TTL flash mode a measuring pre-flash is ired before the actual exposure. The camera evaluates the measurement | @ pre-flash and. controls the light output for the main flash The flash unit is set to this mode by the camera automatically.

5.6.6 Pre-flash TTL and ADI metering (Sony)

These pes of flash mode are used with Sony digital cameras and adjusted on the camera. During shooting, a measurement pre-flash is executed before the actual exposure. The camera evaluates the measurement pre eh and control the light oufput or he main fac 1n the case of ADI metering, additional distance data from the lens is incorporated into the flash exposure process. The flash unit automatically adapts itself to the mode selected on the camera.

5.6.7 Manual TTL flash exposure correction

‘The TTL auto flash mode of most cameras is matched to a 25% degree of light reflection by the subject (average amount of light reflected by lash-shot subjects). Consequenily, a dark background that absorbs a great deal of light, or a right background that reflecis a great deal of light, can result in

ur) under- or overexposure, respectively. To offset this effect a correction value can be set on some cameras to manually match the TTL flash exposure to the photographic situation. The actual extent of correction depends on the contrast prevailing between subject and background. The correction value is set on the camera. Please refer to the camera's operating instructions for details concerning the settings. 1 À dark subject in front of a bright background: Positive correction value [approx. 1 to 2 EV]. Light subject in front of a der background: Negative correction value (approx. :1 to -2 EV. Exposure correction by changing the lens diaphragm is not possible because the camera's automatic exposure system will automatically regard the changed diaphragm as the nor- mal working aperture.

1 After the exposure do not forget to reset the TTL flash exposure correction back to the normal value on the camera! 6 Programmed Auto Flash Mode In the programmed auto flash mode the camera automatical- ly controls the cporure, the shutter speed, and the mecablitz r opfimal results in most photographic situations, including fillin Aash. Settings on the camera Set your camera to Full Auto Mode, Program Pora Programmed Image Control Mode (landscape, poriraiture, sport, etc.). Select the auto-focus mode on the camera.

Settings on the flash unit Having completed the above settings, you can commence flash photography as soon as the mecablitz indicates flash readiness. 7 Flash techniques

Photos shot with full frontal flash are easily recognized by Ps their harsh, dense shadows. This is often associated with a V7 sharp drop in light from he foreground to he background. Len This phenomenon can be avoided with bounce flash because the diffused light will produce a soft and uniform rendition of ofh the subject and ke background. For this situation the reflector is tumed in such a manner that the flash is bounced off a suitable reflctive surface {eg ceïling or wall of the room)

‘The reflector can be turned vertically up to 90°. When turning the reflector vertically, it is essential to ensure that it is moved by a sufficienily wide angle so that direct light can no longer fall on the subject. Consequently, always turn the reflector at least to the 60° lock-in position. The light bounced off the reflecting surfaces produces a soft and uniform illumination of the subject. The reflecting surface must be white or have a neutral colour, and it must not be structured, e.g. wooden beams in a ceiling as these might cause shadows. For colour effects just select the reflective surface in the des- ired colour. 1 Take into account that the maximum flash range is considerably diminished when bouncing the Aash. The following rule of thumb will help you determine the

In normal synchronisation the mecablitz is triggered at the beginning of the exposure time (1st curtain synchronisation] Normal synchronisation is the standard mode on all cameras, and is suitable for most flash shots. Depending upon the given mode, the camera is changed over to flash sync speed, the customary one being between 1/30th sec and 1/125th sec. (see the camera's operating instructions). No settings have to be made on the mecablitz, nor is there any display for His mode Maximum flash range =

Some cameras offer the facility of second-curiain synchroniso- tion (REAR mode) triggering the mecablitz by the end of the exposure lime. Second-curtain synchronisation is particularly adhentageous when using slow shutter speedks (slower than 1/30 sec.) or when shooting moving objects that have their own source of light. Second-curtain synchronisation gives a more realistic impression of movement because the light stre- a behind he ght source instead of building up in ont of, as is the case when the flash is synchronised Wah the 1st shut- ter curtain! Depending on its operating mode, the camera uses shutter speeds slower than its sync speed. 1 The REAR function is only possible with cameras fea- turing this facility. The corresponding seing is made on the camera [see operating instructions of the given camera]. ur)

7.2.3 Slow synchronisation / SLOW

In certain operating modes, some cameras permit slow flash synchronisation (SLOW] which will provide added prominen- ce to the background at lower ambient light levels. This is achieved by matching the shutier speed to the ambient light. Accordingly, shutter speeds slower than he flash sync speed are automatically adjusted by the camera. Some cameras automatically activate SLOW synchronisation in connection with certain programs (e.g. aperture priority “Av” or “A, night shots program, etc] or permit slow synchronisation to be set (see cameras instruction manual) 1& Use a fripod to avoid camera shake with slow shutter Is!

8 Maintenance and care Remove any grime and dust with a soft, dry or silicon-treated cloth. Never use detergents that could damage plastic parts. Forming the flash capacitor The flash capacitor incorporated in the flash unit undergoes a physical change when the flash unit is not switched on prolonged periodk of time. For this reason it is necessary to switch on the mecablitz for approx. 10 minutes every 3 months. The batteries must supply sufficient power for flash readiness to be indicated within 1 minute fer the mecablitz was switched on. 15 Metz does not accept any liability for faulty functions or damage to the mecablitz caused by the use of accessories from other manufacturers! 9 Technical data The flash unit can be updated by the METZ customer service department. Tilting range and locking positions of Hash head: vertically 45° - 60° - 75° - 90° Flash duration: 1/500 s - 1/30,000 s Coleur temperature: approx. 5500 K pl Synchronisation: Low-voltage ignition Number of flashes [at full light output): approx. 200 with high-capacity alkaline manganese batteries approx. 250 with NiMH batteries (2100 mAh)

Recycling time (at full light output]: approx. 5 s with high-capacity alkaline manganese batteries approx. 6 s with NiMH batteries (2100 mAh] Dimensions [w x h x dj: 64 x 95 x 67 mm Weight: 182 g without batteries Included: mecablitz, Operating Instructions Disposal of batteries Do not dispose of spent batteries with domestic rubbish Please return spent batteries to collecting points should they exist in your country. Please return only fully discharged bat- feries. Normal}, batteries are fuly discharged + They no longer funclion properly after prolonged use. To ensure short-circuit safety please cover the battery poles À with adhesive tape Ü [ Errors excepted. Subject to changes ! |

Your Metz product was developed and manufactured with high-quality materials and components which can be recycled and / or reused This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.
