Fastfurious 9040 Absolute - Iron CECOTEC - Free user manual and instructions

Product type	Steam iron
Brand	Cecotec
Model	Fastfurious 9040 Absolute
Power supply	220-240 V ~ 50/60 Hz
Power	2400 W
Water tank capacity	1.5 L
Soleplate	Smooth and durable soleplate
Continuous steam	Yes, with adjustable flow
Intermittent steam	Yes, for delicate fabrics
Steam selector	Allows you to choose between different steam modes
Low water indicator	Indicator light
Anti-limescale system	Built-in descaling with drain valve
Hanger support	Height-adjustable rod
Vertical use	Steam ironing of hanging garments
Operating indicator	Operating indicator light
Power cord	Cable with grounded plug
Weight	Approximately 1.5 kg
Dimensions	Approximately 30 x 20 x 15 cm
Maintenance	Clean the soleplate with a soft cloth
Spare parts	Available through the official Cecotec after-sales service

Frequently Asked Questions - Fastfurious 9040 Absolute CECOTEC

How do I install the hanger support rod?

Insert the rod vertically into the notch of the mounting frame until it clicks into place. Check that it is securely attached by pulling upward. Adjust the height by releasing the rod and sliding it to the desired height.

Why is there water in the tank on first use?

During quality control, the tank is filled with water to check for leaks. After the test, it is emptied and dried, but some water may remain. This residual water is normal and harmless.

How do I adjust the steam while ironing?

Use the steam setting to adjust the flow according to the fabric type. Activate continuous steam for a steady flow or intermittent steam for occasional bursts of steam.

Can I iron hanging garments with this iron?

Yes, thanks to the integrated hanger support. Hang the garment on the hanger and use the iron in a vertical position to remove creases without placing the garment on the ironing board.

What should I do if the iron drips?

Make sure the temperature is suitable for the steam level used. If the iron drips, turn it off, unplug it, and wait for it to cool down. Empty the tank and dry the soleplate with a soft cloth. Consult the manual to avoid excess water.

How do I descale and clean the iron?

Use the drain valve to empty the tank and the built-in anti-limescale system to remove scale. Clean the soleplate with a soft, non-abrasive cloth. Do not use harsh chemicals.

What type of water should I use in the tank?

Use tap water without additives. If your water is very hard, mix it with demineralized water to extend the life of the appliance and the anti-limescale system.

How can I avoid burns during use?

Never touch the hot soleplate and do not iron clothes that are being worn. Do not direct steam at people or animals. Use the iron on a stable, heat-resistant surface and wait for it to cool completely before storing it.

What should I do if the appliance falls or is damaged?

If the iron has fallen, shows visible signs of damage, or is leaking, do not use it. Contact the official Cecotec after-sales service immediately for repair.

How do I maintain the iron's soleplate?

Regularly clean the soleplate with a soft, non-abrasive cloth. Avoid ironing over rough surfaces that could scratch it. Store the iron on its base to protect the soleplate.

USER MANUAL Fastfurious 9040 Absolute CECOTEC

1. Parts and components 40
2. Before use 40
3. Operation 40
4. Cleaning and maintenance 43
5. Technical specifications 45
6. Disposal of old electrical and electronic appliances 45
7. Technical support and warranty 46
8. Copyright 46

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• The appliance must not be left unattended while connected to the power supply.
• The plug must be removed from the socket before filling up the water tank.
• The filling opening must not be open during use.
• The appliance must be used and placed on a flat, stable, and heat-resistant surface.
• When placing the iron on the base, make sure the surface on which the base is placed is stable.
• Do not use the appliance if it has been dropped, shows visible damage, or is leaking.

• Keep the appliance and its power cable out of reach of children under 8 years old when plugged in or cooling down.

• This symbol means “Caution: hot surface”. The temperature of accessible surfaces may be high while the appliance is in use and could cause burns. Do not touch hot surfaces during operation or immediately after.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• If the appliance falls accidentally in water, unplug it immediately. Do not touch the water!
• Do not expose the appliance to atmospheric agents.
• Do not use the iron on very wet fabrics.
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the surface or worktop.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cable, to disconnect it from the outlet.

• This appliance is designed to iron textiles. It is designed for domestic use only and, therefore, not suitable for commercial use. Do not use outdoors.

• To protect against burns or injuries to persons, do not iron textiles while being worn on the body.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• To protect against burns or injuries, do not direct steam toward persons or animals when ironing.
• Keeping the iron at maximum temperature for too long may cause discolouration, which will not affect the performance of the appliance.
• Do not try to repair the device by yourself. Contact the official Cecotec Technical Support Service for advice.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it. Make sure the iron has completely cooled down before storing it.
• Cecotec takes no responsibility for any damage caused by misuse of the machine. Any misuse or non-compliance with these instructions voids the warranty and Cecotec's liability.
• Warning: all our ironing range products have undergone quality control tests previous to their commercialisation. These tests consist of filling the water tank in order to check tightness and to ensure the correct operation of the appliance. Once the test has been carried out, the tank is emptied and dried, but some water may still remain inside.

INSTRUCTIONS DE SÉCURITÉ

1. Hanger
2. Indicator light
3. Intermittent steamer
4. Continuous steam
5. Steam adjustment
6. Power cable
7. Water knob
8. Outlet valve
9. Lack of water
10. Descaling
11. Operation indicator light
12. Switch
13. Water tank
14. Main body
15. Base

2. BEFORE USE

Note

You may notice a slight burning smell or smoke when using the appliance for the first time, caused by the excess of lubricants from the manufacturing process. Smoke will disappear after a short time.

• Take the appliance out of the box.
• Make sure all parts and components are included and in good conditions. If any sign of visible damage is observed, immediately contact the official Cecotec Technical Support Service.
• Remove packaging material, stickers, and labels from the soleplate.
• Clean the iron's soleplate with a soft cloth.

3. OPERATION

Product installation

Hanger support rod installation

- Take out the support rod assembly and insert it into the body vertically through the hole

of the support rod fixing frame. Follow the indications on the figure. The support rod will click into place. Fig. 2.

- Insert it int the direction shown by the arrow and check if it is in place by pulling it back after clicking into place.

Support rod height adjustment

• Release the support rod lock, adjust to the desired height, and then fasten the support rod lock again. Fig. 3.
• Once the height is adjusted, you may use a hanger to iron sheets, dresses or delicate garments comfortably. (Only included in Fast&Furious 9050 X-Treme)

Note

Before use, check whether there is deposits in the water pump inlet tank of the machine body. If there is any deposit, please remove it. If the steam hose outlet is blocked, clear it.

Filling up the water tank

• Open the water tank by pulling upward from the handle and add water.
• Then place the water tank in the main unit and cover the water tank handle. Fig. 4
• It is recommended to use tap water at room temperature to use the appliance.
• Do not use hot water, vinegar, starch, detergent, additives or other chemical products.
• If water in your zone contains high amounts of scale, mix demineralised water or distilled water with tap water.

Warning

Do not use distilled, descaled, or perfumed water only.

How to use the steam station

Note

• Be careful of hot water from the steam outlet of the iron before use to prevent burns.
• When using the appliance, pay attention to prevent the danger caused by steam spray.

Horizontal ironing

1. Place the clothes horizontally on the ironing board.
2. Plug the appliance into a power supply. The device will beep and the lack of water and descaling indicators will blink and turn off.
3. The operation light indicator will turn on and then enter standby mode. Press the main switch, the operation light indicator will blink.
4. The device will start preheating, this process will take 110 seconds approximately. During this process, no steam will be emitted.
5. Once the device is preheated, the operation light indicator will remain steady on.

ENGLISH

1. Press the manual steam switch to release steam or press the automatic steam switch. At this time, the iron knob can be adjusted.

There are 6 modes: Dry clothes, chemical fibre, silk, wool, cotton and linen. Select the desired one according to the type of garment to be ironed.

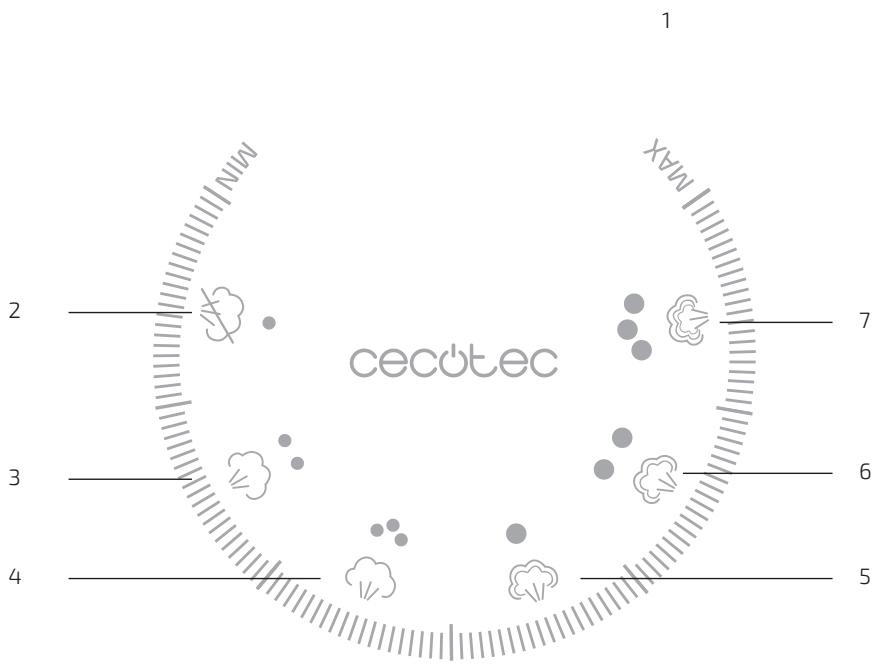

Fig. 5

1. Steam levels
2. Clothes drying
3. Fibre
4. Silk
5. Wool
6. Cotton
7. Linen

Vertical steam ironing

1. Hang the clothes or garment from the device.
2. Plug the appliance into a power supply. The device will beep and the lack of water and descaling indicators will blink and turn off.
3. The operation light indicator will turn on and then enter standby mode. Press the main switch, the operation light indicator will blink.
4. The device will start preheating, this process will take 110 seconds approximately. During this process, no steam will be emitted.
5. Once the device is preheated, the operation light indicator will remain steady on.
6. For hanging curtains and clothes (coats, suits, jackets, etc.), use the vertical ironing function. To do so, the iron is lifted and the steam is sprayed on the clothes.
7. Spray back and forth several times to remove creases.

Warning

The iron will spray hot steam. Never try to use it on clothing that someone is wearing. Never use steam on yourself or others.

After use

• After using the device, turn it off from the main switch and unplug it from the power supply.
• Let the iron rest on its heel.
• Wind the power cord around the base and fix it with the clamp.
• Allow the machine to cool naturally before storing.

4. CLEANING AND MAINTENANCE

• After using the product for a certain period of time (after 10 hours of operation or after 10 tanks of water have been used), it should be cleaned.
• To avoid the risk of burns, remove the power plug and allow the machine to cool down for at least two hours before descaling.
• Unplug the power plug when servicing, cleaning, or repairing the product.
• In case fabric is adhered to the soleplate due to heat, use a damp cloth and vinegar to detach it.
• Do not use abrasive cleaners or scouring pads to clean the device.

Decalcifying the iron

We divide the descaling process into two phases: manual cleaning and programmed cleaning (using a button on the iron).

Manual cleaning: the following steps are to be carried out:

1. Mix 40 g of descaling product (if there is a lot of limescale, increase the amount of product as necessary) and 1 litre of water. Pour the mixture into the drain valve port, close the drain valve and shake 3-5 times. You may also use white vinegar with water in a 1:1 solution. If there is more scale, please increase the amount of vinegar as appropriate.
2. Pour the mixture into the hole in the drain valve and close the valve so that the mixture does not spill out (always use clean water for cleaning, otherwise bad odours may occur).
3. Let the mixture stand at room temperature for 1-2 hours (if there is more scale, let it sit for longer, but do not exceed 8 hours).
4. Empty the mixture through the drain valve.
5. Pour clean water through the drain valve port and then drain the mixture. Repeatedly inject clean water until the residual scale and organic acid smell disappear.
6. Rinse well.

Scheduled cleaning: to do so, we will proceed with the following steps:

• Residual water in the part where the water tank is connected to the body must be cleaned up to prevent scale from building up.
• During use, once the appliance has accumulated 10 hours of operation, the descaling indicator will light up and the device will start beeping to remind you that the descaling process is advisable. There are two options:

• If you live in an area with high water hardness (to find out the hardness in your area, look for a map of lime hardness in Spain), it is highly recommended that you carry out a decalcification process on your iron. Follow the steps below:

• Fill the water tank to the maximum.

• Press and hold both buttons on the iron and at the same time press and hold the start button on the appliance. After 5s, the lights will start flashing and the descaling process

ENGLISH

will start.

1. Place the iron in a container or in a safe place (to collect the liquids that are generated during the process), as the iron will carry out a complete process of the water through the internal circuit dragging the lime sediments that may have been generated during its use and the water tank will be partially emptied.
2. Once the descaling process is finished, the appliance will switch itself off and you can continue ironing.

Note: in case the power supply is interrupted during the process, the steam station must follow the following procedure:

• In the descaling process, if the programme is stopped or switched off, the descaling indicator light will stay on and the descaling indicator light will stay on and the appliance will emit an alarm when the machine is switched on next time. The entire machine may not be used and may only be used after descaling. First press the automatic iron button and the manual button at the same time, then press the machine start button, hold down these three buttons for 5 seconds, the buzzer will beep 3 times and the descaling indicator light keeps flashing. The descaling process will begin.
• If you live in a town with a very low water hardness (to find out the hardness in your area, look for a map of lime hardness in Spain), and you do not think it is advisable to carry out the decalcification process, you can omit it at your own risk. To do this, you can first press the automatic button on the iron, and then press the switch button on the machine, and hold the two buttons for 5 seconds to cancel the alarm. The signs of descaling will disappear and you can continue ironing.

• During use, once the appliance has been running for 20 hours, the descaling indicator will light up and beep to remind you that the iron needs to be descaled. To start the descaling process of the iron, follow the steps below:

• Fill the water tank to the maximum.

• Press and hold both buttons on the iron and at the same time press and hold the start button on the appliance. After 5 seconds, the lights will start flashing and the descaling process will start.
• Place the iron in a container or in a safe place (to collect the liquids that are generated during the process), as the iron will carry out a complete process of the water through the internal circuit dragging the limescale sediments that may have been generated during use, and the water tank will be partially emptied.
• Once the descaling process is finished, the appliance will switch itself off and you can continue ironing.

Note

- When selecting synthetic fibres (130 °C and steam) or silk (140 °C and steam), when the

room temperature is low, the soleplate may leak when steaming after preheating.

- After 150-200 hours of operation in synthetic fibre or silk mode, some scale may appear due to the type of water. Use purified water to avoid this from happening.

5. TECHNICAL SPECIFICATIONS

05595 Fast&Furious 9040 Absolute

05596 Fast&Furious 9050 X-Treme

2600 W, 220-240 V\~, 50 Hz

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

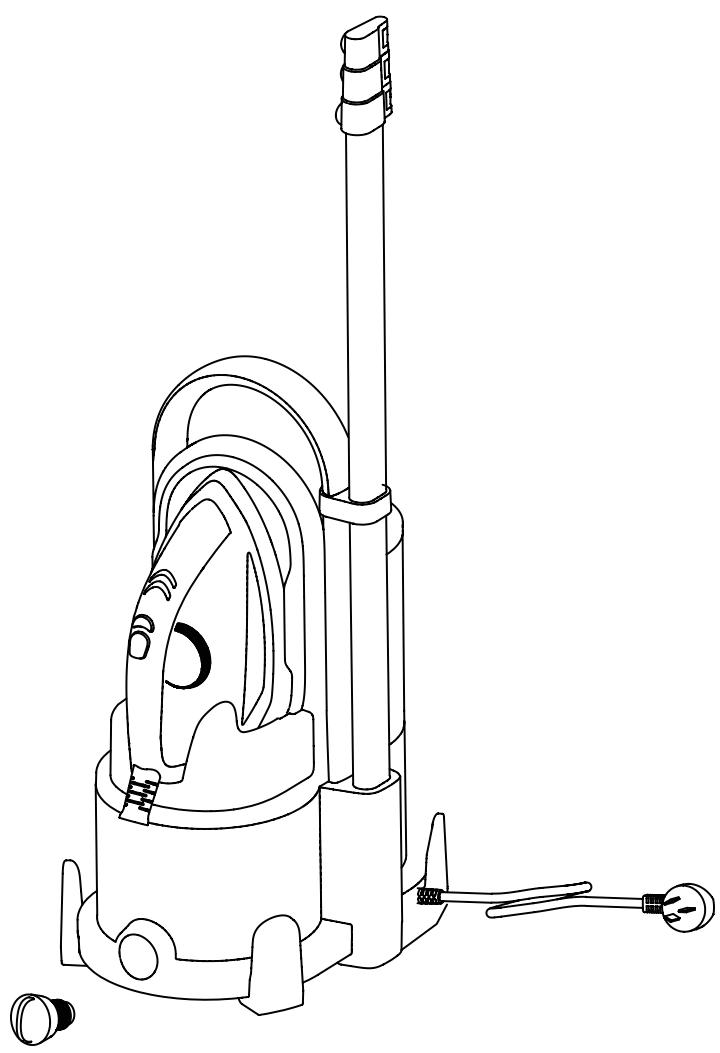

Img. 1.

Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./Rys. 6
