USER MANUAL Drumfit Indoor 24000 Magnetic Connected CECOTEC

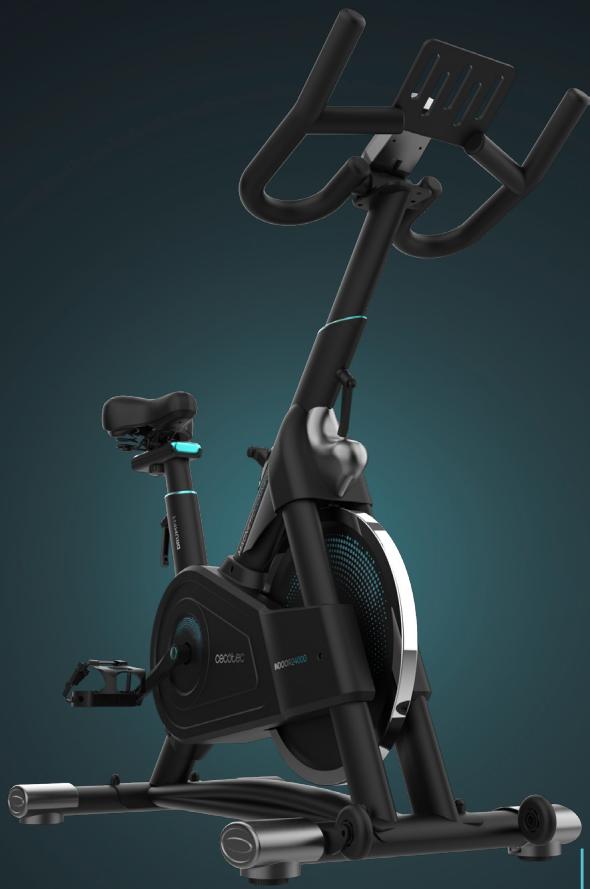

Indoor bicycle with magnetic resistance.

DRUMFIT

Safety instructions 10

1. Parts and components 73

2. Before use 73

3. Assembly 74

4. Operation 75

5. Information on exercising 77

6. Cleaning and maintenance 78

7. Troubleshooting 78

8. Recycling of electrical

and electronic equipment 79

1. Copyright 79

2. Simplified Declaration of Conformity 79

SOMMAIRE

07247 - Drumfit Indoor 2400 Magnetic Connected

EN • The coding in this manual is generic and applies to all code variants of the appliance.

ESPAÑOL

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Read the entire manual before assembling and using the machine. The product will only be safe if it is properly assembled, cared for and used correctly. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• Before starting a training session, it is recommended that you consult your doctor if you have any adverse health or physical condition that may pose a risk to your safety or make it difficult to use the exercise bike properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
• Be aware of your body signals. Incorrect or excessive exercise can deteriorate your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, dizziness, or nausea. If you experience any of these conditions, you should consult your doctor before continuing with your training.

• This machine can be used by children aged 14 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the machine in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• Keep children and animals away from the assembling area, as small parts could cause risk of suffocation if swallowed.

• Keep children and pets away from the machine. Do not allow children to use it and/or play with the machine. It is designed for adults only.
• Use the exercise bike on a solid, even surface with a protective cover for your floor or carpet.
• Ensure all screws and nuts are properly tightened before using the machine.
• The safety level of the machine can only be ensured through regular examination for damage or signs of wear and tear.
• Use the machine as indicated in this instruction manual. If you find any defective component while assembling or checking the machine, or if you hear any unusual noise coming from the equipment during use, stop using it. Do not use the equipment until the problem has been solved.
• Make sure you have enough space to lay out the parts before starting. Leave a free space of at least 0.6 m in front of all access areas of the machine in case of emergency. You can share the access areas with other machine nearby. Always ensure there are not any objects blocking the entrance and exit of the machine.

ENGLISH

• Wear suitable clothing while using the machine. Avoid wearing loose clothing which may get caught in the equipment.
• WARNING: this training machine is not suitable for high-precision purposes. This equipment is HC class.
• WARNING: this machine operates by means of a flywheel. Be careful when in motion and ensure that it completely stops before getting down, as the inertia of the flywheel and pedals could cause injury to yourself or others.
• Maximum user weight: 120 kg.
• It is not recommended for outdoor use. This machine is designed for indoor use.
• This machine is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• The machine is not suitable for therapeutic use.
• Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting techniques and/or assistance.
• WARNING: the heart rate sensors may be inaccurate, as it is not a medical device. Sensors can give you estimated heart rate information. If you feel any discomfort, stop exercising immediately. It may be dangerous for your health. If it persists, go immediately to the nearest medical centre.
• If repairs are required, please consult your supplier for further information or contact Cecotec Customer Service.
• If any parts protrude from the machine, they may interfere with the users movement.

Instructions on batteries

- Do not burn or expose the batteries to high temperatures, as they may explode.

• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Do not tamper with the batteries in any way.
• The batteries must be removed for safe disposal of the machine.
• Keep the batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• The batteries' power supply terminals must not be short-circuited.
• If the machine is to be stored for a long period of time, it is advisable to remove the batteries.
• The batteries must be inserted in the correct position. When replacing batteries, check the polarity.

INSTRUCTIONS DE SÉCURITÉ

ITALIANO

PORTUGUÊS

TÜRKÇE

ΕΛΛΗΝΙΚΑ

CATALÀ

MAGYAR

ESPAÑOL

c. Zwift:

https://cecotec.es/es/information/declaration-of-conformity

1. PARTS AND COMPONENTS

Parts list. Fig. 1

NUMBER	PART	AMOUNT
1	Handlebar	1
2	Handlebar washer	4
3	Handlebar bolt S1	4
4	Handlebar stem	1
5	Main frame	1
6	L-shaped adjustment knob M1	2
7	Stabiliser cap nut	4
8	Front stabiliser	2
9	Allen bolt T1	4
10	Saddle	1
11	Saddle adjustment bracket	1
13	Adjustment knob	1
13	Adjustment knob	1
14	Pedal (set)	1
15	Rear stabiliser	2
16	Fixed spanner	1
17	Allen key	1
18	Stabilisers washer	4

NOTE:
The graphics in this manual are schematic representations and may not exactly match the product.
NOTE: the screws, nuts and washers of the stabilisers are larger than those of the handlebar.

2. BEFORE USE

- This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.

ENGLISH

• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.
• Do not remove the product's serial number to ensure proper traceability of your equipment in case assistance is required.

Box content

• DrumFit Indoor 24000 Magnetic Connected indoor bike
• Instruction manual
• Assembly kit
• 2 AA batteries for the monitor

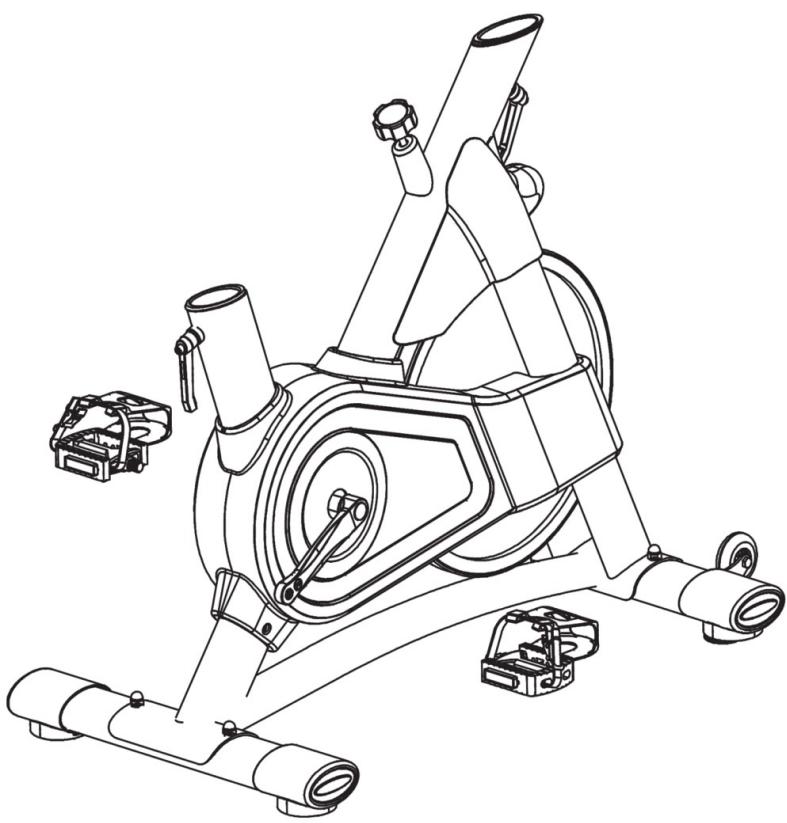

3. ASSEMBLY

Step 1

Place the front (8) and rear (15) stabilisers on the main frame (5).

The nuts (7), stabilisers washers (18) and the Allen bolts (9) are pre-fixed to the stabilisers.

Remove them with the fixed spanner (16) and replace them as shown in the figure.

Caution: the front stabiliser is the one with the transport wheels. Fig. 2

Step 2

Put the L-shaped adjustment knobs.

Fit the adjustment knobs (6) in the holes provided on the main frame (5). To fix them in place, turn them clockwise several times. You do not need any tools. Fig. 3

Step 3

Place the pedals (14) on the cranks and secure them using the fixed spanner (16).

Caution: The right pedal is marked with the R letter; the left one, with the L letter. Make sure you place them on the correct side. The right pedal is screwed in by turning clockwise and the left pedal counterclockwise. Fig. 3

Step 4

Fit the saddle post (13) into the main frame (5). To do this, loosen the L-shaped adjustment knob by turning it counterclockwise. Then, choose the desired height and adjust the knob again. Fig. 4

Step 5

Place the saddle (10) on its post (13). To do this, remove the screws under the saddle (10) using the fixed spanner (16) and put the saddle on its adjustment bracket (11). Next, replace the screws. Remove the adjustment knob and gasket from the saddle adjustment bracket (11) and

connect this part to the saddle post (13). Then, retighten the knob. Fig. 4

Step 6

Put the handlebar stem (4). To do this, loosen the L-shaped adjustment knob by turning it counterclockwise. Then, choose the desired height and adjust the knob again. Fig. 5.

Step 7

Place the handlebar (1) onto its stem (4). To do this, align the holes of both parts and insert the bolts (3) and handlebar washers (2) using the provided Allen key (17). Fig. 5.

Step 8

Insert the batteries into the back of the console. After that, place the console on the handlebar (1). Connect the three cables at the back of the console. Fig. 6

4. OPERATION

Getting on and off the exercise bike

Before getting on the bicycle, make sure the pedals are properly attached. Stand next to the bike and pass the leg that is closer to it over the frame to sit on the saddle; then, insert your feet in the pedals.

To get off the exercise bike, do the previous step in reverse order.

Adjusting the resistance

The pedalling resistance can be adjusted with the resistance lever located on the main frame. To increase resistance, set the lever in the lowest positions. To reduce resistance, set the lever in the highest positions

Assembling the saddle

To adjust the height of the saddle, remember that the correct position is the one in which your waist is not tilted to the side when the pedal is in the lower position and the foot is perfectly inserted in the toe clips.

Adjust the saddle properly to ensure maximum efficiency and comfort during exercise. The saddle is in the correct position if the user has a slightly bent knee when one of the pedals is at a 90 degree angle relative to the ground.

To adjust the saddle height, simply loosen the L-shaped height adjustment knob, raise or lower the saddle to the desired height, and tighten the knob.

Adjusting the handlebar

Make sure the handlebar height is approximately at the same height as the saddle. Remember that this parameter will depend on the biomechanics and physiology of the user. If you feel

ENGLISH

uncomfortable in this position or your knees touch the handlebar, you should increase the height slightly.

To adjust the handlebar height, simply loosen the L-shaped height adjustment knob, adjust the handlebar to the desired height, and tighten the knob.

Console operation

1. Auto On/Off

a. The console automatically switches on if it detects a signal from the speed sensor or if a button is pressed.
b. The console automatically switches off when no signal is sent from the speed sensor or if a button is not pressed for 4 minutes.

2. Functions

a. SCAN: it displays the different functions one by one, stopping for 6 seconds at each one. It follows the next sequence: CAL-DIST-TIME-PULSE-RPM/SPEED
b. SPEED: 0-70 km/h. If no signal is received for 3 seconds, the speed becomes 0.0 km/h.
c. RPM: 0-999
d. TIME: 0-99.59 seg. If there is no set target time, the time acts as a counter. If, on the contrary, a target time is set, the counter displays the time remaining to achieve the goal.
e. DISTANCE: 0-99.9 km. If there is no target distance, the console accumulates distance. If a target value has been set, the console displays the distance remaining until the target distance is reached.
f. CALORIES: 0–999 cal. If there is a target calorie value, the display shows the remaining calories to reach the target. If no target has been set, the display counts calories.
g. PULSE: 0-230. The pulse takes 6 seconds to be shown on the display after detection. The pulse alarm will sound if the current pulse is above the target.

3. Buttons

a. UP. Press UP to increase the target value. If you press and hold the button, the value increases more quickly.
b. MODE/ENTER. Press to select a function. If you press and hold MODE for more than 2 seconds, all functions are reset.
c. UP. Press UP to increase the target value. If you press and hold the button, the value increases more quickly

4. Auto On/Off

a. The monitor will automatically switch on when pressing any key or when exercise begins.
b. The monitor will automatically switch off when the speed sensor receives no signal

input or no keys are pressed for approximately 1 minute.

5. App connectivity

The bike can connect to Fitshow, Kinomap and Zwift via Bluetooth.

a. Fitshow:

Step 1: Download the FitShow app and create an account.
Step 2: Select your equipment type for your workout.
Step 3: Ensure the equipment tab on the workout page matches your equipment.
Step 4: Go to the «Workout» page and click the «Quick Start» button.
Step 5: After searching, your equipment name should appear in the equipment list. Click «Connect» next to your equipment name.

Fig. 7

b. Kinomap:

Scan the following QR code to access the manual explaining how to pair the bike with the Kinomap app.

c. Zwift:

Step 1: Sign up, select «PEDAL» mode, then click on «Power source» or «Speed sensor».
Step 2: Select paired devices as our chip name;

(XXX... represents random digits)

Step 3: Click the «OK» button.

Step 4: Find the corresponding map to start your preferred workout.

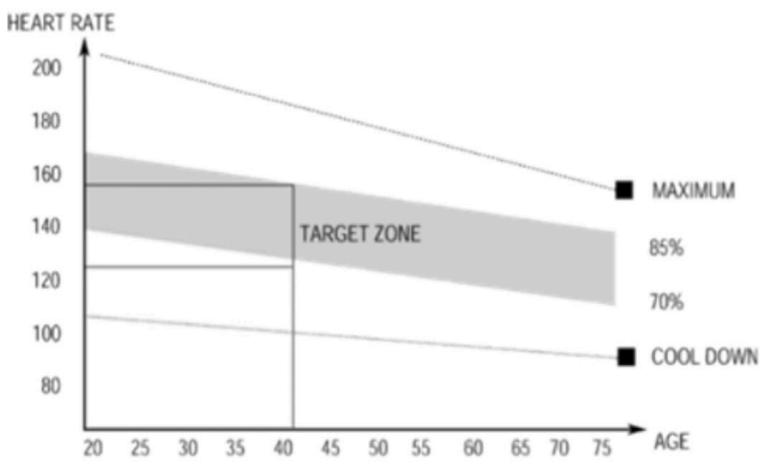

5. INFORMATION ON EXERCISING

A proper workout should consist of the following phases:

- Warm-up: consists of a session of stretching and low-intensity exercise lasting 5 to 10

ENGLISH

minutes. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. Fig. 8

- Training: consists of 20 to 30 minutes of exercise.

(Note: during the first few weeks of exercise do not keep your heart rate high for more than 20 minutes). Fig. 9

- Cool-down: consists of 5 to 10 minutes of stretching exercises. This will increase the flexibility of your muscles and will help prevent injuries. Fig. 8

6. CLEANING AND MAINTENANCE

• Lubricate the moving parts periodically to prevent premature wear.
• Inspect and tighten all parts before using the machine. Replace any defective parts immediately, and do not use the equipment again until it is in perfect working condition.
• The machine can be cleaned using a slightly damp cloth and mild non-abrasive detergent. Do not use solvents.
• Avoid exposing the machine to direct sunlight, especially the monitor.
• Do not try to repair the machine by yourself. Should you have any difficulty with the assembly or operation of the exercise bike, or if you think that any part is missing, contact the official Cecotec Technical Support Service.
• To move the machine, either pull down on the handlebars until the rear of the bike is in the air or lift the bike by grasping the rear stabiliser. This allows you to move the bike to the desired position in complete safety.

Note:

The cleaning and maintenance frequency depends on the use frequency and intensity.

7. TROUBLESHOOTING

Problem	Possible causes	Solution
The machine wobbles during use	Feet are not level.	Rotate the feet until the bike is level.
The console does not work properly	1- The batteries are dead.2- Cables are connected incorrectly.	1- Change the batteries.2- Connect them properly.
The handlebar is not stable	The bolts are loose.	Tighten the bolts.
Loud noise from moving parts.	The parts are not tightened properly.	Tighten them.

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its useful life, you should remove the batteries/accumulators and take them to a collection point designated by local authorities. For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their

local authorities.

Compliance with the above guidelines will help to protect the environment.

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this stationary bike, model 07247

DrumFit Indoor 24000 Magnetic Connected, is in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following

website:

https://cecotec.es/es/information/declaration-of-conformity
