Product type	Connected spinning bike
Brand	Cecotec
Model	Drumfit Indoor 7000 Magno Connected
Flywheel weight	7 kg
Dimensions (L × W × H)	110 × 55 × 120 cm
Device weight	32 kg
Maximum user weight	120 kg
Power supply	12 V DC power adapter
Resistance system	Magnetic friction
Resistance levels	16 levels
Connectivity	Bluetooth, Cecotec app
Screen	Backlit LCD 7 × 5 cm
Display	Time, distance, speed, heart rate, calories
Sensors	Heart rate grips
Programs	12 predefined programs plus high-intensity program
Saddle	Adjustable in height and horizontally
Handlebar	Adjustable with phone holder
Pedals	Automatic toe clips with straps
Maintenance	Clean with damp cloth and check screws
Safety	Integrated emergency brake
Spare parts	Available from customer service
Warranty	2 years

Frequently Asked Questions - Drumfit Indoor 7000 Magno Connected CECOTEC

How to assemble the bike?

The assembly of the Drumfit Indoor 7000 Magno Connected must be carried out following the instructions in the manual. Start by fixing the stabilizer feet to the frame, then install the handlebar and saddle. Make sure all screws are properly tightened before use.

How to adjust the resistance?

The resistance is adjusted using the tension knob located on the handlebar. Turn it clockwise to increase difficulty and counterclockwise to decrease it. The resistance level is displayed on the screen.

How to connect the Cecotec app?

Download the Cecotec app from the App Store or Google Play, enable Bluetooth on your smartphone, then press the bike's sync button. The app will automatically detect the device.

How to measure heart rate?

Place your hands on the heart rate grips integrated into the handlebar. Maintain constant contact and the heart rate will appear on the screen within a few seconds.

How to maintain the bike?

For maintenance, regularly clean the frame and grips with a damp cloth. Periodically check that all screws are properly tightened. Lightly oil the moving parts if necessary.

The bike makes noise, what to do?

An unusual noise can be caused by loose screws. Check and tighten all fastenings. If the noise persists, contact customer service to have the flywheel and bearings checked.

What is the maximum user weight?

The maximum user weight is 120 kg. It is important not to exceed this limit to ensure the safety and durability of the bike.

Does the bike require electrical power?

Yes, the Drumfit Indoor 7000 Magno Connected is equipped with a connected screen that requires power via a 12 V DC power adapter included in the box.

How to transport or move the bike?

Use the transport wheels located on the front foot. Tilt the bike toward you and push it gently. Avoid pulling the bike by the handlebar or cables.

What to do in case of Bluetooth problems?

Make sure that the device's Bluetooth is enabled and that the bike is properly connected to the app. Also restart the app and the bike. If the problem persists, reset the connection by removing the device from your smartphone's Bluetooth list.

USER MANUAL Drumfit Indoor 7000 Magno Connected CECOTEC

Instrucciones de seguridad 4
Instrucciones sobre las pilas 6
Safety instructions 8
Instructions on cells 10
Instructions de sécurité 12
Instructions pour les piles 14
Sicherheitshinweise 16
Anleitungen der Batterien 19
Istruzioni di sicurezza 21
Istruzioni relative all'uso delle pile 23
Instruções de segurança 25
Instruções sobre as pilhas 27
Veiligheidsvoorschriften 29
Instructies over de batterijen 31
Instrukcje bezpieczeństwa 33
Instrukcje dotyczące baterii 35
Bezpečnostní pokyny 37
Instrukce ohledně baterií 39

ÍNDICE

1. Parts and components 49
2. Before use 49
3. Product assembly 50
4. Operation 51
5. Cleaning and maintenance 53
6. Troubleshooting 54
7. Technical specifications 54
8. Disposal of old electrical and electronic appliances 54
9. Technical support and warranty 55
10. Copyright 55
11. Simplified EU Declaration of Conformity 55

SOMMAIRE

Please, keep this instruction manual in a safe place for future reference or new users.

• Read the entire manual before assembling and using the equipment. Safe and efficient use can be only achieved if the product is properly assembled, maintained, and used. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• Before training, it is recommended that you consult your doctor if you have any adverse health or physical condition that may pose a risk to your safety or make it difficult to use the bike properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
• Be aware of your body signals. Incorrect or excessive exercise can deteriorate your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, dizziness, or nausea. If you experience any of these conditions, you should consult your doctor before continuing with your training.
• Keep children and pets away from the machine. Do not allow children to use it and/or play with the machine. It is designed for adults only.
• Use the equipment on a solid, even, and flat surface with a protective cover for your floor or carpet. Leave some free space around the bike so that you can train in complete comfort and safety.
• Check that the screws and nuts are securely fastened before using the equipment.
• The safety level of the device can be only maintained

through regular examination for damage and/or wear and tear signals.

• Always use the equipment as indicated in this instruction manual. If you find any defective component while assembling or checking the product, or if you hear any unusual noise coming from the equipment during use, stop using it. Do not use the equipment until the problem has been solved.
• Make sure you have enough space to lay out the parts before starting. For safety reasons, leave at least 0.6 m of free space around the machine. You can share this space with other equipment nearby. Always ensure there are not any objects blocking the entrance and exit of the machine.

• Wear suitable clothing while using the bike. Avoid wearing loose clothing which may get caught in the equipment or that may restrict or prevent movement.
• WARNING: be careful when in motion and ensure that pedals are completely still before getting down, as the inertia of the flywheel and pedals could cause injury to yourself or others.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices. Not recommended for outdoor use.

• Maximum user weight: 130 kg.

• The bike is not suitable for therapeutic use.
• WARNING: this training device is not suitable for high-precision purposes. This equipment is HC class.
• Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting techniques and/or assistance.
• WARNING: the heart rate sensors may be inaccurate, as it is not a medical device. Sensors can give you estimated heart rate information. If you feel any discomfort, stop exercising immediately. It may be dangerous for your health. If it persists, go immediately to the nearest medical centre.
• If repairs are required, please consult your supplier for further information or contact Cecotec's Customer Service.
• If any parts protrude from the device, they may interfere with the user's movement.

INSTRUCTIONS ON CELLS

• Do not burn or expose the cells to high temperatures, as they may explode.
• Leaks from the cells can occur under extreme conditions. Do not touch any liquid that leaks from the cells. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the cell and dispose of it immediately in accordance with local regulations.
• Avoid contact between the cells and small metal objects such as paper clips, coins, keys, nails, or screws.
• Cells must be removed for safe disposal.

• Keep the cells out of the reach of children when there is a risk of ingestion.

• Cell ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.

• In case of cell ingestion, please seek medical help immediately.
• The cells must be inserted in the correct position. Check polarity when replacing them.
• Always change all cells at the same time and do not use cells of different types or different capacity.
• Remove the cells from the device when they are discharged or when the device is not going to be used for a long time.
• Do not tamper with the cells in any way. Cells should not be recharged or reactivated, dismantled, thrown into fire, immersed in fluids, or short-circuited.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This device includes a packaging designed to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec.

Box contents

- DrumFit Indoor 7000 Magno Connected indoor bike

• Assembly tools
• Instruction manual

3. PRODUCT ASSEMBLY

By scanning the following QR code, you can view the product's complete assembly, as well as the QR codes for downloading the APP on Android and iOS.

Kinomap

Kinomap

Step 1. Fig. 2

Use 4 bolts (12) and 4 washers (13) to assemble the front anti-roll bar (5) and the rear anti-roll bar (6) to the main frame (1). Use the S6 Allen key (8) to tighten the screws.

Step 2. Fig. 3

1. First, attach connector 2 (17) to the main frame (1) with connector 1 (16) above the main bar, and then insert the bar into the frame (1).
2. Remove 4 screws (10) and 4 washers (11) from the kit (7) and use them to fix the handlebar (4). Use the S6 Allen key (8) to tighten the screws and fit the plastic trim (2).
3. Attach connectors (4) and (16) to the monitor (15). Then install the monitor (15) on the main frame (1).

Step 3. Fig. 4.

1. First, tighten the pedal (3) on the crank with your hand.
2. Use the S15 of the lug wrench (9) to install the pedals (3) on the left and right cranks of the main frame (1). Distinguish between left (L) and right (R) and follow the direction of the arrow in Figure 4. Use the S19 of the wrench (14) to tighten the parallel nuts 3L and 3R backwards (according to the direction of the arrow in Figure 4).

Step 4. Fig. 5

Attach the bottle holder (18) to the handlebar (4) using three screws (19) as shown in Figure 5.

4. OPERATION

Adjusting the bike

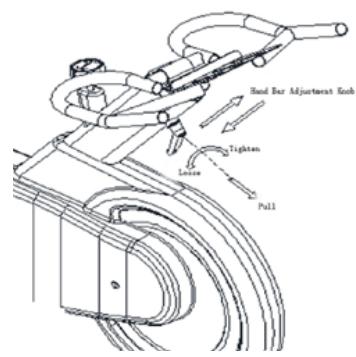

Adjusting the handlebar height

Fig. 6

• Make sure the handlebar's height is approximately at the same height as the saddle. Remember that this parameter will depend on the biomechanics and physiology of the user. If in this position you feel uncomfortable or your knees touch the handlebar, you should increase the height slightly.
• Use one hand to loosen the crank handle on the main frame and pull it outwards, while holding the centre part of the handlebar with the other hand to lift (or press down) to adjust it to the desired position.
• Loosen the crank and move it gently up and down.
• Move the handlebar post to allow it to readjust automatically (a click is heard, indicating that it has slipped into the hole in the stem) and then turn the crank until it is tight.
• The adjustment cannot exceed the minimum insertion mark in the handlebar (marked with the word STOP in the post).

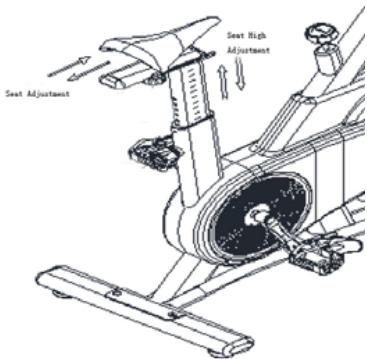

Adjusting the height and position of the saddle

Fig. 7

• To adjust the height of the saddle, remember that the correct position is the one in which your waist is not tilted to the side when the pedal is in the lower position and the foot is perfectly inserted in the toe clips.
• For a correct use of the device and to avoid possible injuries in the knees, the horizontal adjustment of the saddle is extremely important. The correct position is the one in which, when the two pedal cranks are in the horizontal position, your front knee is right over the pedal centre.
• Use one hand to loosen the adjustment knob on the main frame and pull it outwards, while holding the centre part of the saddle stem with the other hand to lift it (or press it down) to adjust it to the desired position.
• Loosen the adjustment knob and move it gently up and down.
• Move the seat post so that the spring automatically readjusts (it clicks, indicating that the crank has slipped into the hole in the seat post), then tighten the crank until it is tight.
• Loosen the adjustment knob under the saddle, slide the saddle back and forth, adjust it to the desired position and turn the adjustment knob until it is tight.
• The adjustment cannot exceed the minimum insertion mark in the saddle (marked with the word STOP in the post).

Adjusting the main body

Fig. 8

There are four adjustment feet distributed under the front and rear anti-roll bars. Turn the adjustment feet to bring them closer to or farther from the ground until there is no vibration.

How to get on and off the bike

• To get on the bike, the first thing to do is to make sure that the bike is at a complete standstill. Stand next to the bike and pass the leg that is closer to it over the frame to sit on the saddle, then insert your feet in the toe clips in the pedals.
• To get off the bike, do the previous step in reverse order.

Adjusting the resistance

Fig. 9

Turn the resistance adjustment wheel clockwise to increase the resistance and counterclockwise to decrease the resistance. A high resistance makes it more difficult to pedal, while a low resistance makes it easier. For best results, set the tension while the bike is in use. Make sure your feet are correctly adjusted in the toe clips to prevent any undesired movement.

Emergency brake

In the event of an emergency requiring a complete braking of the bike, the resistance selector knob must be pushed inwards firmly until it stops, and the machine will completely stop.

Moving the bike

Fig. 10

Hold the front anti-roll bar of the main frame with your feet first, grab the handlebar with both hands, and firmly press down the front of the bike. After lifting the rear anti-roll bar, you can move the bike.

Information on exercising

A proper workout should consist of the following three activities:

• Warm-up: consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. Fig. 12
• Training: exercise for 20 to 30 minutes (note: during the first weeks of exercise, do not keep your heart rate high for more than 20 minutes). Fig. 13
• Cool-down: 5 to 10 minutes of stretching exercises. This will increase the flexibility of your muscles and will help prevent injuries. Fig. 12

Workout routine

To maintain or improve your physical condition, exercise three times per week, with at least one day of rest between workouts. After a few months of regular exercise, you may exercise up to five times per week, if desired. For best results you must be consistent when exercising.

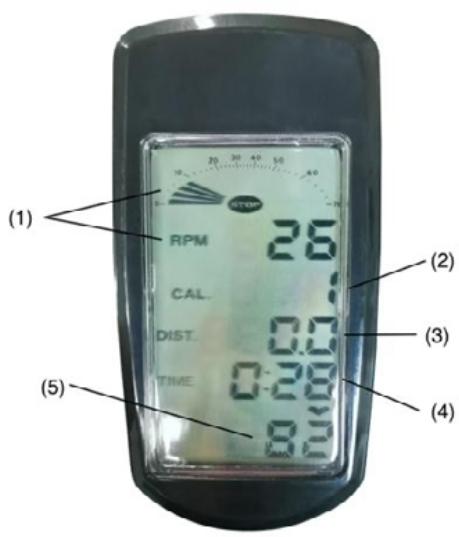

Monitor

Fig. 11

• (1) SPEED (RPM): measures instantaneous speed, reflecting movement speed.
• (2) CALORIES (CAL): measures the calories burned from start to end of the exercise.
• (3) DIST: measures the distance travelled from start to end of movement.
• (4) TIME: measures the time elapsed from start to end of the exercise.
• (5) Heart rate: displays heart rate when hands are on the sensors located on the handlebars.
• The display switches on automatically when you start pedalling and switches off approximately 30 seconds after the end of the exercise.

Note:

Note that if you stop the exercise for approximately 30 seconds, the device will turn off and all values will be reset.

Bluetooth APP

To link compatible applications, follow the below steps:

Kinomap

Fig. 14

1. After downloading the Kinomap APP, turn on Bluetooth on your mobile phone, access the APP, and click on Gestión del equipo (device management).
2. Add a new training machine.
3. Select bicicleta estática (exercise bike) and then click on "Cecotec".
4. Tap on the device displayed as "DrumFit-XXXX" to pair the machine.
5. Look for videos to start the training.

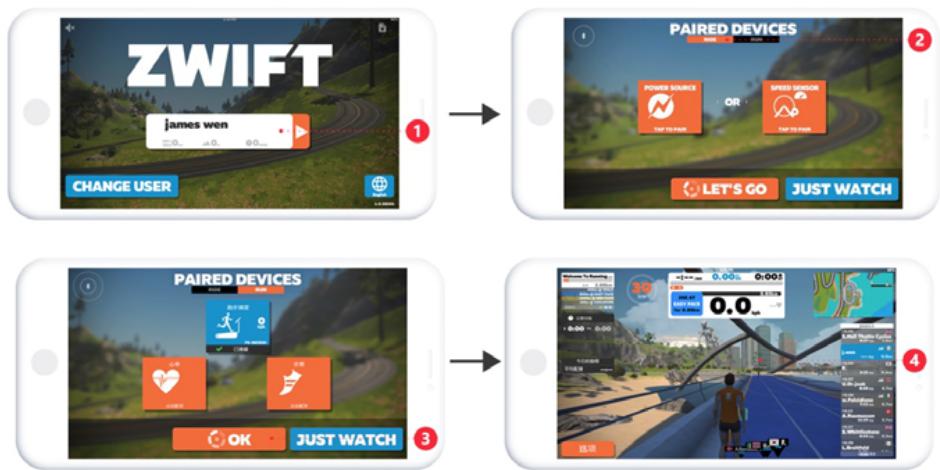

Zwift

Fig. 15

1. After downloading the Zswift application, open it to create an account.
2. Log in and select Pedalear (pedal).
3. Turn on Bluetooth on your mobile phone and pedal to pair the device. Press "OK" once paired with your mobile phone.
4. Pedal to start the training.

5. CLEANING AND MAINTENANCE

- It is recommended to wipe off the sweat after each use and to regularly adjust nuts and bolts.

ENGLISH

• Inspect and tighten all parts before using the equipment. Should any part be faulty, contact Cecotec's official Technical Support Service immediately and do not use the appliance until it is in perfect condition.
• The equipment can be cleaned using a slightly damp cloth and mild non-abrasive detergent. Do not use solvents.
• Do not try to repair the product by yourself. Should you have any difficulty with its assembly or operation, or if you think that any part is missing, contact the official Technical Support Service of Cecotec.

Replacing the cells

• Open the cell compartment at the bottom of the control panel.
• Insert the cells. Pay attention to polarity.
• Close the cell compartment by sliding the cover. Make sure it fits properly.

6. TROUBLESHOOTING

• If no number appears on the monitor, make sure all connections are correct.
• If the problem persists, replace the cells with new ones.
• If the data on the display can't be seen clearly, replace the cells; this monitor uses two "AAA" cells. When replacing the cells, replace them all at the same time.

7. TECHNICAL SPECIFICATIONS

Product name: DrumFit Indoor 7000 Magno Connected

Reference: 07000

Net weight: 32,9 kg

Maximum size: 112.3 x 57.2 x 109.8 cm

Maximum user weight: 130 kg

HC Class

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose

of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for detailed information concerning the correct disposal of old electrical and electronic appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovations hereby declares that this indoor bike, model 07000 DrumFit Indoor 7000 Magno Connected, is in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website:

www.cecotec.es

1. PIÈCES ET COMPOSANTS

Img. 1

- Heimtrainer DrumFit Indoor 7000 Magno Connected

- Cyclette indoor DrumFit Indoor 7000 Magno Connected

- Hometrainer DrumFit Indoor 7000 Magno Connected

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 12

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./Rys./Obr. 13

Fig./Img./Abb./Afb./Rys./Obr. 14

Fig./Img./Abb./Afb./Rys./Obr. 15

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_01220914
