USER MANUAL BASE PRIMA RED CASTLE

THIS INSTRUCTION MANUAL SHOULD BE KEPT IN THE PRIMA WHILE IT IS IN USE. READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE ARTICLE AND KEEP THEM FOR FUTURE REFERENCE. THE CHILD’S SAFETY MAY BE AT RISK IF THESE INSTRUCTIONS ARE NOT FOLLOWED.

1.This is a “UNIVERSAL” retention system. It is approved under Regulation Nº 44, series of amendments 04, for general use in vehicles and is suitable for most, although not all, vehicle seats. 2.It can be correctly installed if the vehicle manufacturer has stated in the instruction manual that a “UNIVERSAL” retention system for this age group can be installed in the vehicle. 3.This retention system has been classed as “UNIVERSAL” under stricter conditions than those applied to previous designs that do not carry this warning. 4.If in doubt consult the seat manufacturer or retailer. WARNING ONLY USE WITH THE PRIMA SAFETY SEAT IMPORTANT Only suitable for use in vehicles fitted with a three-point seat belt with or without retractor, approved under UN/ECE 16 or equivalent standard.

WARNINGS AND SAFETY NOTES

• The Base Prima is a base belonging to Group 0 (up to 10 kg). • Never install the base on seats fitted with a frontal AIRBAG without disconnecting it first. • This base should always be installed facing backwards. It should be secured with the three-point seatbelt of the vehicle with or without retractor, approved under regulation UN/ECE-16 or equivalent standards. • The safest position for the base is on the rear seat of your vehicle. • The original equipment should not be modified. • After an accident the base should be inspected or changed. • Make sure that the fold-down seat or the doors of the vehicle can not damage any part of the base. • The inside of the vehicle can reach very high temperatures in sunlight. It is advisable to cover the base up, when it is not in use, to prevent the child from possibly getting burnt. • The straps should never be twisted. • Always use the base, even on short journeys, and never leave the child unattended in the vehicle. • Take the base out of the vehicle whenever it is not going to be used and keep it out of the reach of children. • Make sure that any luggage or other objects that could cause injuries in the event of a collision are securely fastened. • In the event of an emergency it is important that the child can be unfastened quickly, therefore the seat belt clasp should never be covered up. It is advisable to teach the child never to play with the clasp. • We guarantee the safety of the product when it is used by the original buyer, do not use second-hand safety seats or devices. • The other passengers in the vehicle should also wear their seat belts, since in the event of an accident they may get flung about and injure the baby. • Regularly check the clasp, harness and other parts that may become loose or suffer from wear and tear through use. • Make sure that the upholstery on the vehicle seat does not make it difficult to tighten the seat belt correctly. • Remember that you are responsible for the child’s safety.

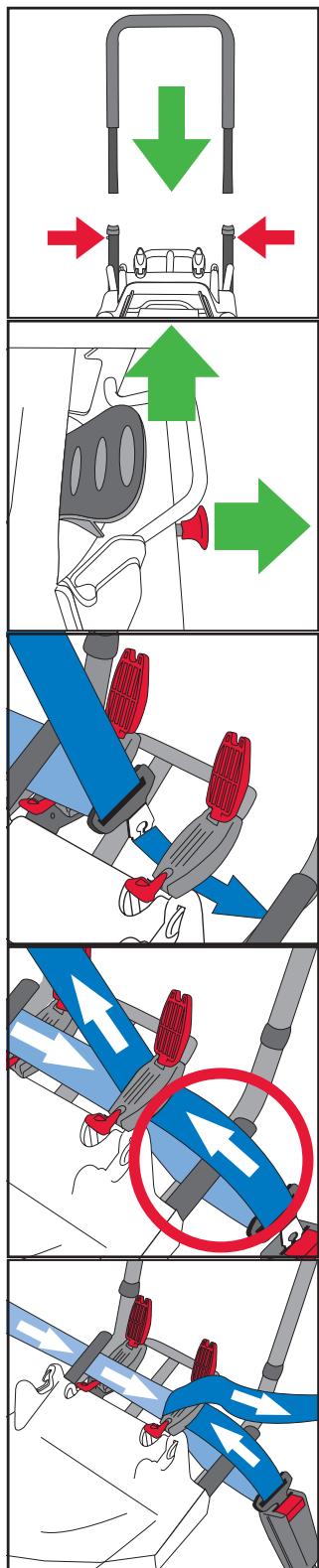

Fit the “U” shaped tube into the slots on the base, until you hear the fastening click of the side buttons.

Pull the front handle until the rocking platform is released. Pull the button to make sure it is released.

Open the two red belt guides on the base. Take the abdominal part of the three-point seat belt of the vehicle and pass it underneath the side tube of the base and over the top of the first belt guide. The diagonal part of the seat belt should go over the top of this side tube. Then pass the seat belt clasp underneath the second belt guide.

Pass the abdominal part of the seat belt underneath the side tube and the diagonal part underneath the belt guide. Pull the diagonal part to tighten the belt. Fasten the car seat belt clasp.

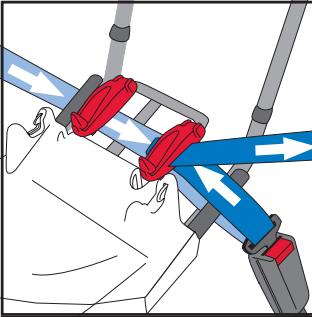

Pass the abdominal part of the three-point seat belt of the car through the belt guide, pulling it at the same time for maximum tightness. Close the belt guide.

Check the belt is tightened correctly to prevent the base from moving and then close the other belt guide.

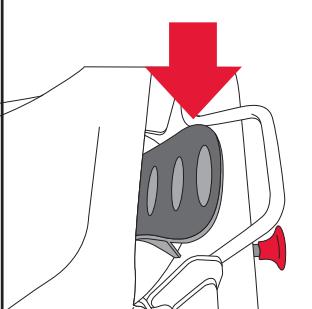

Press the lever to complete the tightening operation. It will click when fastened.

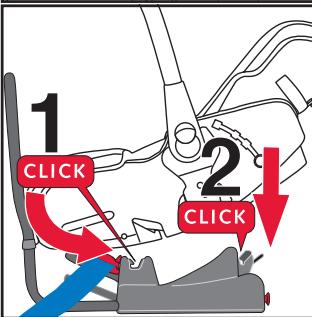

Fit the RC/RCS groupe 0 into the fasteners of the base using the rods situated on the lower part. First insert the front part

(movement 1) and then the rear part (movement 2). When pressed, it will click when fastened correctly. To remove the RC/RCS groupe 0, pull the front handle with one hand and with the other hand remove it from the base.

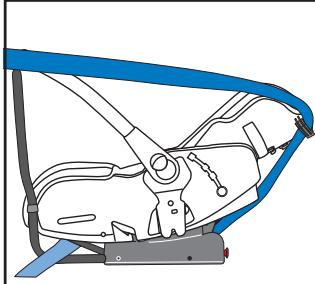

Set the RC/RCS groupe 0 handle to the forward position. Pass the chest strap through the upper belt guide on the side of the retractor.

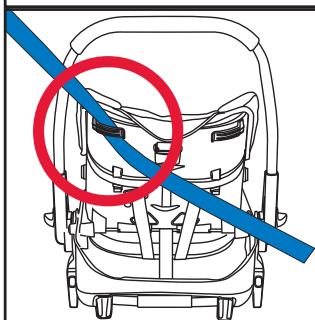

• Check that the strap does not go underneath the backrest adjusting mechanism. • Bear in mind the baby’s weight when choosing the position of the backrest in the vehicle: A: up to 5 kg. B: up to 5 kg. C: CAN NOT BE USED D: from 5 to 10 kg. IMPORTANT: Adjust the seat belt tension every time you change the position of the backrest.
