NUTRIBABY - Baby food processor BABYMOOV - Free user manual and instructions

Product type	Baby food steamer blender
Brand	BABYMOOV
Model	NUTRIBABY
Power	220-240 V, ~50/60 Hz
Power	800 W (estimate)
Bottle warming capacity	Up to 3 bottles simultaneously
Steam cooking capacity	400 g per basket, 2 baskets max
Mixing bowl capacity	400 g cooked fruits/vegetables or 300 g meat/vegetable mix, max 200 ml juice
Functions	Bottle warming (fridge or room temperature), jar warming, steam cooking, sterilization, defrosting, blending
Display	LCD with function and time selection
Controls	Mode buttons, +/-, OK, On/Off
Included accessories	2 steam baskets, 2 removable trays, juice collector, mixing bowl, lids, spatula, isolation grid, cooking dome
Main material	Plastic, stainless steel for blades
Maintenance	Bases (cooking and mixing units) wipe with a damp cloth; other parts dishwasher safe
Descaling	Every 5 cycles with white vinegar (100 ml water + 100 ml vinegar)
Safety	Alarm if water shortage, if incorrect connection; mixing bowl lock; sharp blades
Warranty	Lifetime warranty (conditions apply, online activation, France)
Dimensions (approx.)	30 x 30 x 40 cm
Weight (approx.)	3 kg

Frequently Asked Questions - NUTRIBABY BABYMOOV

How to warm a bottle with the Nutribaby?

Connect the cooking unit to the mixing unit. Remove the juice collector. Pour 60 ml of water into the tank. Place the bottles on the isolation grid, lid closed. Turn on the appliance, select the bottle icon (fridge or room temperature) with the Mode button, choose the water quantity with +/- then OK. An audible alarm signals the end of the cycle.

How to sterilize bottles?

Pour 150 ml of water into the tank. Place bottles upside down on the plate above the water. Close the lid. Select the sterilization icon on the display and press OK. The alarm indicates the end of the cycle.

How to steam cook?

Pour 350 ml of water. Replace the juice collector. Cut food into 15 mm cubes and place them in the baskets (max 400 g per basket). Close the lid. Select the steam cooking icon, adjust the time with +/- then OK. You can add a second basket during cooking for foods with different cooking times.

How to blend food?

After cooking, transfer the food to the mixing bowl (max 400 g fruit/vegetables, 300 g meat/vegetables). Add the cooking juice (max 200 ml). Lock the lid and bowl onto its base. Select the blending function. Blend in 5-second pulses, pause 5 seconds, repeat up to 30 seconds. Let rest for 30 minutes before a new blending cycle.

How to defrost with the Nutribaby?

Proceed as for steam cooking, but select the defrosting icon on the display. The appliance will use an adapted cycle.

What to do if the appliance stops heating or an alarm sounds?

The alarm may indicate a water shortage or incorrect connection between the units. Check that the tank contains water (add more if necessary) and that the cooking unit is properly connected to the mixing unit. Press OK to stop the alarm and restart the cycle.

How to clean the Nutribaby?

Unplug and let cool. The bases (cooking unit and mixing unit) are not dishwasher safe: wipe them with a damp cloth. The baskets, trays, juice collector, lids, spatula and mixing bowl can be washed by hand or in the dishwasher. Never immerse the appliance in water.

Are the Nutribaby parts dishwasher safe?

Yes, except for the two bases (cooking unit and mixing unit). All other accessories (baskets, trays, mixing bowl, spatula, etc.) can go in the dishwasher.

How to descale the Nutribaby?

Every 5 cycles approx., pour a mixture of 100 ml hot water and 100 ml white vinegar onto the heating element. Let it sit for at least 1 to 2 hours without plugging in. Empty and rinse the cooking dome with a damp cloth.

What is the warranty on the Nutribaby?

Babymoov offers a lifetime warranty under conditions (valid in France). You must return the warranty card with a copy of the receipt within 15 days of purchase and activate the warranty online at www.service-babymoov.com. The warranty does not cover normal wear, consumables or damage due to improper use.

USER MANUAL NUTRIBABY BABYMOOV

• Heats up to three baby bottles at the same time
• Heats all baby food jar sizes
• Sterilises up to three baby bottles
• Steam cooks all foods
  Thaws
• Blends

SAFETY INSTRUCTIONS

Read all the instructions below carefully before using Nutribaby.

• To prevent the risk of electric shock, do not immerse the apparatus or its electrical cord in water or any other liquid.
• Use the apparatus only to cook/heat/blend/sterilise or thaw. Any other use may be dangerous.
• Take care when handling the blender blades, especially when removing the blades from the bowl, and emptying or washing the bowl.
• The apparatus contains no parts useful to the user for repairs. Do not disassemble the apparatus.
• Monitor the apparatus when in use with children nearby. Keep the apparatus out of reach of children.

• This apparatus is for indoor use only. Do not use outdoors.

• Do not allow electrical cord to hang over the edge of the table or counter. Do not place near hot surfaces.

• Use the apparatus on a flat, stable and dry surface.
• Do not place the apparatus on a hot surface or near an oven or gas burner, or any other heat source.
• Do not touch the hot surfaces on the apparatus (heating chamber).
• Do not move the apparatus during use, once it has been plugged in, or if it contains hot water.
• Unplug the apparatus when not in use, before washing and when storing.

WARNING

• WARNING: To avoid danger, if the electrical cable is damaged, it must be replaced by the manufacturer, its after-sales service department or a qualified electrician.
• This apparatus is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or by persons lacking experience or knowledge, unless they are monitored by a person responsible for their safety, or instructed by them on the use of the apparatus. Monitor children to ensure they do not play with the apparatus.
• Respect heating times, and ensure the baby bottle and its contents are at a suitable temperature before feeding your baby.

• Use plastic or glass baby bottles suitable for boiling, or other heat-resistant recipients with this apparatus.
  Always check your utensils prior to using them with Nutribaby.

• This appliance is designed to be used for domestic and suchlike applications such as:

• kitchen areas reserved for personnel in stores, offices and other professional environments,
  -farms,

• use by hotel, motel customers and other accommodation environments,

• bed and breakfast environments.

• Electrical and electronic equipment can be recycled. Do not throw electrical or electronic apparatuses away with your household waste. Ensure they are recycled.

Throughout the European Union, this symbol indicates that the product must not be disposed of with household waste, but must be recycled.

COMPONENTS

a. Cooker lid
b. Cooking basket
c. Removable cooking tray
d. Cooking juices receptacle
e. Insulating grill

f. Water tank
g. Cooking base
h. Mixing bowl lid
i. Blender switch
i. Mixing bowl

k. Blender connector
I. LCD screen
m. Cooker and blender connecter
n. Spatula

Heating time or baby bottle capacity selector

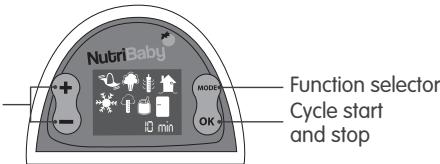

LCD SCREEN

Meaning of the function icons

A. HEATING A BABY BOTTLE

A1. Connect the cooker to the blender.
A2. Remove the cooking juices receptacle.
A3. Pour 60ml of water into the tank using the measuring marks on the mixing bowl (level C).
A4. Remove the trays from each steam basket.
A5. Stack the trays, and place them on the base of the apparatus.
A6. Place the baby bottles on the insulating grill above the water tank.
A7. Place the lid on the cooker.
A8. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up.
A9. Press the "Mode" button one or more times to choose the desired function.

• If cold water is to be heated, select the baby bottle + refrigerator icon
• If lukewarm water is to be heated, select the baby bottle + house icon

A10. Press the + or - buttons to select the quantity of water to be heated.
A11. Press OK to start.
A12. At the end of the cycle, an alarm will sound to inform you that the baby bottle is ready. Press OK to turn off the alarm.

B. HEATING A BABY FOOD JAR

Follow steps 1 to 5 of the baby bottle heating function.

B6. Place the baby food jar to be heated on the insulating grill.
B7. Place the lid on the cooker.
B8. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up.
B9. Press the "Mode" button one or more times to choose the desired function.

• If cold baby food is to be heated, select the baby food jar + refrigerator icon
• If lukewarm baby food is to be heated, select the baby food jar + house icon

B10. Press OK to start.

CAUTION: To prevent the risk of burns, always check the temperature of the food before feeding your baby. Shake baby bottles well to mix, then pour a drop of milk on the inside of your wrist to check the temperature.

CAUTION: The pre-programmed cycles are based on the average heating time of a baby bottle or baby food jar. The material and thickness of the baby bottle, a removable bottom and the size of the baby food jar may affect the temperature of the food. Heating more than one bottle at once may also affect heating times. If the food is too hot or too cold, reduce or increase the heating time, using the "steam cooking" function.

Quantity of water/milk in the baby bottle	90 ml	120 ml	150 ml	180 ml	210 ml	240 ml	270 ml	300 ml	330 ml
Time for a baby bottle prepared with lukewarm water	2 min 35	2 min 45	3 min	3 min	3 min 10	3 min 10	3 min 10	3 min 15	3 min 25
Time for a baby bottle prepared with cold water	3 min 40	3 min 50	4 min 30	4 min 40	5 min	5 min 05	5 min 10	5 min 15	5 min 30

C. STERILISING

C1. Connect the cooker to the blender.
C2. Remove the cooking juices receptacle.
C3. Pour 150ml of water into the tank using the marks on the mixing bowl (level B).
C4. Remove the trays from each steam basket.
C5. Stack the trays, and place them on the base of the apparatus.
C6. Place the baby bottles upside down on the tray above the water tank. Add any accessories you also wish to sterilise.
C7. Place the lid on the cooker.
C8. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up.
C9. Press the "Mode" button one or more times to choose the desired function. Select the "sterilisation" icon
C10. Press OK to start.
C11. At the end of the cycle, an alarm will sound to inform you that the baby bottles are ready. Press OK to turn off the alarm.

D. STEAM COOKING

D1. Connect the cooker to the blender.

D2. Remove the cooking juices receptacle.

D3. Pour 350ml of water into the tank using the marks on the mixing bowl (level A).

D4. Replace the cooking juices receptacle: it will collect the juices from the food, allowing you to preserve its nutritional value.

D5. Place the trays in the basket as desired.

D6. Cut the ingredients into small cubes measuring approx. 15mm× 15mm and place them in the cooking baskets. Ingredients can be separated by type (vegetables/meat), or cooking time. For example, place potatoes, which require a relatively long cooking time in the bottom basket, and courgettes, which cook more quickly, in the upper basket, which you will add during the cooking cycle: no more overcooked vegetables!

• Place no more than 400 g of food in each basket.
• Thanks to the removable trays, you can adjust the capacity according to need: one small basket (a), two baskets (b), or one large basket (c) by removing the tray for the upper basket Once the baskets are in place, place the lid on top.

D7. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up.
D8. Press the "Mode" button one or more times to choose the desired function. Select the "steam cooking" icon
D9. Select the desired cooking time using the + and - buttons. The time will depend on the type and amount of food you wish to cook. Refer to the cooking-time table.
D10. Press OK to start cooking.
D11. At the end of the cycle, an alarm will sound to inform you that cooking is complete. Press OK to turn off the alarm. If you wish to continue cooking, press + or - to add minutes, then press OK to start.
D12. Use the handle to remove the lid. Take care not to burn yourself.
D13. Use the handles to remove the steam baskets.
D14. You can also cook eggs. Place the eggs in the egg supports built into the trays.

COOKING TIMES see page 9

Cooking times are based on cooking in the bottom basket. These times may vary according to the size of the pieces of food, their quantity, the amount of empty space left in the basket, and the initial temperature of the food. You must increase the cooking time if you use the second cooking basket.

To cook ingredients requiring different cooking times, place the foods that need to cook the longest in the bottom basket. During cooking, add the second basket with the foods requiring a shorter cooking time.

E. DEFROSTING

Proceed in the same way, choosing the "defrosting" icon .

F. BLENDING

F1. Once your ingredients are cooked, open the lid of the cooking bowl and let the food cool for a few minutes.
F2. Transfer the cooked food to the mixing bowl, using the spatula provided. For best results, do not blend more than 400g of cooked fruit or vegetables, or a total of 300g of meat/vegetables, mix at a time.
F3. Hold the receptacle using the side opposite the spatula, which you will use as a pincer.
F4. Pour the cooking juices into the mixing bowl, dosing them according to the desired texture. Do not add more than 200 ml of cooking juices.
F5. Place the lid on the mixing bowl and lock.
F6. Lock the mixing bowl onto the base. For your safety, the apparatus will not operate if the bowl is not locked on the base.
F7. Use the mode button to select the "blend" function on the screen
F8. Blend the preparation, pressing on the button for 5 seconds, then waiting 5 seconds, then blending again for 5 seconds. Do not blend for more than 30 seconds to prevent overheating. Repeat this operation up to three times. We recommend you then allow the apparatus to cool for 30 minutes prior to blending again.

G. ALARMS

• An alarm will sound if, during the cooking cycle, the apparatus tank runs out of water: remove the steamer baskets and add water. Press OK to shut off the alarm, ensuring you reconnect the cooker to the blender, and restart the heating cycle to finish cooking.
• An alarm will sound if, during the cooking cycle, the blender and the cooker are not correctly connected: Press OK to shut off the alarm, reconnect the blender and cooker and restart the cooking cycle.
• An alarm will sound at the end of the cycle to notify you that cooking is complete.

H. CLEANING NUTRIBABY

H1. Unplug Nutribaby and ensure it is cool before cleaning.

CAUTION: The bases of the cooker and blender must not be washed in a dishwasher.

• Wipe off the cooking dome inside the tank, and the base of the mixing bowl with a damp cloth or sponge. Do not use detergents or cleaners. Allow to dry. Do not immerse Nutribaby in water or any other liquid. Do not wash Nutribaby under running water. Do not allow water to enter parts containing electrical components.
• Do not use abrasive or scouring cleansers for cleaning as they may damage the apparatus and its surfaces.
• The cooking baskets, removable trays, cooking juices receptacles, lids, spatula and mixing bowl may be washed using a sponge, hot water and dish detergent. Rinse well and allow to dry. These elements are also dishwasher safe.

Descaling the cooking tank

After Nutribaby has been used for a certain time, mineral deposits may form on the cooking dome and damage it. You should descale the cooking tank regularly (after five cycles), pouring 100 ml of hot water and 100 ml of white vinegar on the resistance. Let it sit for one to two hours (or more if necessary), without plugging in the apparatus. Pour off the mixture and wipe off the cooking dome with a wet cloth.

H2. Removing the blades
