USER MANUAL Bolero Squad I 3300 CECOTEC

BOLERO SQUAD I 3300 FULLFLEX

BOLERO SQUAD I 4300 FULLFLEX

Safety instructions 8

1. Parts and components 61

2. Before use 62

3. Installation 63

4. Operation 65

5. Cleaning and maintenance 73

6. Troubleshooting 75

7. Fault display and inspection 76

8. Technical specifications 77

9. Disposal of old electrical

and electronic appliances 78

1. Technical support and warranty 79

2. Copyright 79

SOMMAIRE

Before using the device, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• The installation and connection of the appliance must be carried out by authorised specialists. The manufacturer is not liable for damage caused by installation or connection errors.
• The appliance must be properly fitted and installed in a suitable and approved kitchen unit and worktop.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: if the surface is cracked, unplug the appliance to avoid electric shock.
• The appliance heats up during use. Avoid touching the heating elements inside.
• WARNING: the appliance and its accessible parts may heat up during use. Avoid touching the heating elements. Children under 8 years of age should be kept away from the appliance unless continuously supervised.
• Do not steam-clean the appliance.
• Metal objects such as knives, forks, spoons, and lids should not be placed on the surface of the hob, as they could become hot.
• Stop operation of the hob by means of its power touch icon and not by means of the cookware detection feature after use.
• The appliance is not intended to operate by means of an external timer or a separate remote-control system.
• WARNING: unattended cooking on a greasy or oily hob can

be dangerous and may cause a fire. NEVER try to extinguish the fire with water. You must switch off the appliance and cover the flames with, e.g., a fireproof lid or blanket.

• CAUTION: the cooking process must be supervised. Constantly monitor short cooking processes.
• WARNING: risk of fire. Do not place objects on the hob surface.
• WARNING: only use hob protectors designed by the kitchen-appliance manufacturer or found to be suitable by the latter in the instructions for use, or corresponding built-in hob protectors. The use of unsuitable protectors can cause accidents.
• The appliance must not be installed behind a decorative door to avoid overheating.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Remove all labels and stickers from the ceramic glass.
• Do not modify the appliance in any way.
• The induction hob cannot be used as a support or work surface.
• The appliance must be earthed in accordance with local regulations.
• Do not place the appliance on top of a dishwasher or tumble dryer to avoid steam damage.
• Turn off the cooking zones after use.
• Monitor the cooking of very fatty or oily foods to avoid fire.
• Be careful not to burn yourself while or after using the

appliance.

• Make sure that no cords of any fixed or mobile appliance touch the glass or hot cookware.
• Magnetic objects (credit cards, calculators, etc.) must not be placed near the appliance when plugged-in.
• Never cover the appliance with a cloth or protective film to prevent overheating and fire.
• Cookware with worn or damaged bottoms can damage the ceramic glass.
• Sand or other abrasive materials may damage the ceramic glass.
• Prevent objects of any size from falling onto the ceramic-glass panel.
• Avoid hitting the edges of the hob with cookware.
• Ensure that the appliance is sufficiently ventilated in accordance with these instructions.
• Do not place or leave empty cookware on the induction hob.
• Sugar, synthetic materials, or aluminium foil must not come into contact with the cooking zones. These may cause breakage or other damage to the ceramic-glass panel due to cooling: switch on the appliance and remove them from the cooking zone immediately (being careful not to burn yourself).
• Never place hot containers on the control panel.
• If there is a drawer under the built-in appliance, make sure there is enough space between the contents of the drawer and the bottom of the appliance (at least 2 cm). This is essential to ensure proper ventilation.
• Never store flammable objects (e.g., aerosols) in the drawer under the induction hob. Drawers and their contents must be heat resistant.
• Precautions in the event of a fault: if you notice a fault, switch

off and unplug the appliance.

• The appliance must be repaired by qualified professionals. Do not try to fix the appliance yourself.
• Always make sure that cookware is well centred on the cooking zone. The bottom of the cookware should cover as much of the cooking zone as possible.
• The magnetic field of the appliance may affect the operation of pacemakers. For further information, please contact the purchase store or refer to a doctor. These devices must comply with EU Council Directive 90/385/EEC of 20 June 1990 and with EN 45502-2-1, EN 45502-2-2.
• Do not use aluminium or synthetic containers to prevent them from melting due to the residual heat of the cooking zones.
• NEVER try to put out the fire with water. Turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.

USING POOR QUALITY COOKWARE OR ANY INDUCTION ADAPTER FOR NON-MAGNETIC COOKWARE IS A BREACH OF WARRANTY. CECOTEC IS NOT LIABLE FOR ANY DAMAGE CAUSED TO THE INDUCTION HOB AND/OR ITS SURROUNDINGS.

INSTRUCTIONS DE SÉCURITÉ

1. Cooking zone 1
2. Cooking zone 2
3. Cooking zone 3
4. Cooking zone 4
5. Bridge Zone 1

ENGLISH

1. Bridge Zone 2
2. Control panel
3. Stop&Go touch icon
4. BBQ touch icon
5. Keep Warm touch icon
6. Cooking-zone selection touch icon
7. Timer touch icon
8. Power/time slider
9. Lock touch icon
10. Power touch icon
11. Booster touch icon
12. Bridge-function touch icon

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Bolero Squad I 3300 / 3300 FullFlex / 4300 FullFlex
• hob Instruction manual

Before first use

Clean the induction hob with a dampened cloth and thoroughly dry the surface. Do not use detergents that may taint the glass surface blue.

3. INSTALLATION

Gluing the adhesive sealing gasket

The gasket supplied with the induction hob prevents liquid from seeping into the cabinet below. The gasket must be carefully glued, as shown in Figure 4. For this purpose:

1. Clean the surface of the edge of the hob where the sealing gasket is to be fitted.
2. Install the sealing gasket along the outer edge of the induction hob. Make sure that the end of the cut sealing gasket reaches the end of the hob edge. When cutting the gasket, try to leave a few extra millimetres. To fit the gasket, push the two ends together at a corner and do not leave a gap between both ends. The sealing gasket must be installed to ensure that no liquid leaks inside the induction hob.

Installation

• The product must be installed by authorised specialists.
• The installer must comply with the legislation and standards in force in the country where the product is to be installed.
• The distance between the induction hob and the surrounding walls must be at least 50 mm.
• Figure 5 and the following table show the size for the installation of the induction hob.

Model	I Length (mm)	W Width (mm)	H Height (mm)	D Depth (mm)
03279	590	520	60	56
03280	590	520	60	56
03281	590	520	60	56

Model	A (mm)	B (mm)	X (mm)
03279	560	490	Min. 50
03280	560	490	Min. 50
03281	560	490	Min. 50

• When installing the induction hob, there may be a wall or a tall cabinet at the rear or on one side. Should it be the case, there must not be any furniture or appliances that are higher than the cooking surface on the opposite side (opposite to the rear or one of the sides).
• The installation worktop and the objects close to it must be heat resistant (100 °C). The sealing gaskets at the edges of the wall must be heat-resistant.

• Do not install the induction hob on top of a dishwasher or a non-ventilated oven.

• Allow for at least 30 mm of free space under the induction hob to ensure good ventilation.

• The installation worktop must be able to withstand a minimum weight of 20 kg.
• If there is a drawer under the induction hob, do not use it to store flammable objects (such as sprays) or objects that aren't heat resistant.
• The worktop may swell due to moisture. To protect the trimmed edge, apply a layer of special varnish or sealant. Pay special attention when applying the adhesive gasket supplied with the induction hob to prevent any leakage into the supporting furniture. The gasket ensures good sealing when applied on smooth worktops.
• The safety distance between the induction hob and the kitchen hood above must comply with the kitchen hood manufacturer's recommendations. If there are no instructions given, maintain a minimum distance of 760 mm. Fig. 6

A (mm)	B (mm)	C (mm)	D	E
760	Min. 50	Min. 20	Air inlet	Air outlet 5 mm

• The connection cord must not be subjected to any mechanical stress after installation.
• Secure the hob to the worktop by screwing the four brackets on the underside of the hob as shown in Figure 7-8.

Fig. 7 key:

A. Screw
B. Bracket
C. Screw gap
D. Inside housing

Fig. 8 key:

1. Glass plate
2. Retaining bracket
3. ST3 5*8 screw
4. Bottom edge
5. Worktop

Electrical connections

• Refer only to a qualified electrician who is familiar with, and strictly adheres to, the applicable regulations when making electrical connections.
• Ensure that parts subjected to mechanical stress are properly protected after assembly.
• Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.

• Connect the hob to an earthed socket or by means of an omnipolar circuit breaker with a minimum opening of 3 mm between contacts.

• The electrical circuit must be separated from the mains by suitable devices, e.g., circuit breakers, fuses, or contactors.

• If the appliance is not equipped with an accessible plug, disconnecting means must be implemented in the fixed installation in accordance with installation regulations.
• The inlet hose must be positioned so as not to touch any of the hot parts of the induction hob.
• Follow the connection method shown in Figure 9.

Phase: black and brown wires.

Neutral: grey and blue wires.

Earth: yellow/green wire.

WARNING:

If the junction-box screws are frequently unscrewed and screwed in, the tightness could be affected once they are screwed back in. It is therefore suggested to screw and unscrew as rarely as possible.

• Make sure that the cords are properly fastened and tensioned.
• Cecotec will not be held responsible for any incident resulting from incorrect connection or use of an appliance that has not been earthed or an appliance fitted with a faulty earth connection.

4. OPERATION

Control panel

• The icons are touch sensitive, so there is no need to apply excessive pressure in them.
• Use the base of your finger, not the tip. Fig. 10
• You will hear a beep every time the hob detects a finger.
• Make sure the icons are always clean and dry and that no object (e.g., cookware or a cloth) is covering them. Even a thin layer of water can hinder the proper operation of the touch icons.

Operation

1. Press the power touch icon.

After switch-on, you will hear an acoustic signal and the control panel will display “-” or “-” to indicate that the induction hob has entered Standby mode. The icons will light up on the panel.

1. Place suitable cookware on the cooking zone you wish to use.

Make sure the bottom of the cookware and the cooking-zone surface are clean and dry.

1. When touching the cooking-zone selection touch icon, the indicator will flash.

2. Adjust the power level by sliding your finger on the power/time slider.

NOTES:

A. If power is not set within 1 minute, the induction hob will switch off automatically.
B. You can change the power setting at any time during cooking.
C. Slide your finger on the slider to adjust the power level from 0 to 9.

and the power setting alternately flash on the display

This can mean that

• you have not placed the cookware on the correct cooking zone;
• the cookware you are using is not suitable for the induction hob;
• the cookware is too small or is not correctly centred on the cooking zone.

If no suitable cookware is placed on the cooking zone, the latter will not switch on.

The display will automatically switch off after 1 minute if no cookware is placed on the hob.

After cooking

1. Press the cooking-zone selection touch icon of the zones you wish to switch off.
2. Turn off the cooking zone by sliding the slider to the left.

Make sure that the control panel displays "0" and then "H" for the corresponding cooking zone.

1. Switch the induction hob off by pressing the Power touch icon.
2. Use caution with hot surfaces.

The “H” symbol indicates that the corresponding cooking zone is still hot. The H symbol will disappear once the surface has cooled down and reached a safe temperature.

Cookware detection

The cookware detection system ensures product safety. The induction hob will not work in the following cases:

• If no cookware is on the cooking zone or if the cookware is not suitable for induction, it will be impossible to increase the power and the display will show [U]. This symbol disappears when the cookware is placed on the induction cooking zone.
• If the cookware is removed from the cooking zone, operation stops and the symbol [U] appears. The symbol [U] disappears when the cookware is placed back on the cooking zone. Cooking continues at the previously selected power level.

After use, make sure that the cooking zones are switched off. Do not leave the [U] symbol active for too long.

Booster function

The Booster function allows to increase the power of a cooking zone for 5 minutes, this way reducing cooking time.

Enabling the Booster function

1. Press the cooking-zone selection touch icon to select the cooking zone whose power you wish to increase: the corresponding indicator will flash.
2. Press the Booster touch icon to increase the power of the selected cooking zone.

The control panel will display "P" to indicate that the corresponding cooking zone is running in Booster mode.

1. The Booster function will last for 5 minutes, after which the cooking zone will return to the power level selected before enabling the Booster function.
2. If during these 5 minutes you wish to disable the Booster function, press the cooking-zone selection touch icon: an indicator next to the corresponding icon will flash. Then, press the Booster touch icon or touch the slider. The cooking zone will return to the power level selected before enabling the Booster function or to the power level of choice.

Operating instructions

The cooking zones are divided in two groups. If you want to enable the Booster function for a single cooking zone of a group, you must first ensure that the other cooking zone in that same group is running at power level 5 or lower to avoid overloading the hob.

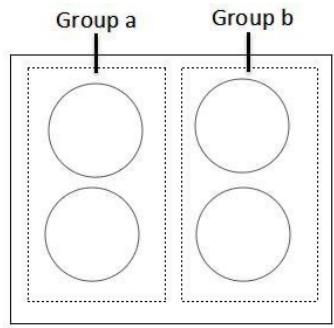

Figure 11 shows how the cooking zones of models 03279_Bolero Squad I 3300 and 03280_Bolero Squad I 3300 FullFlex are grouped.

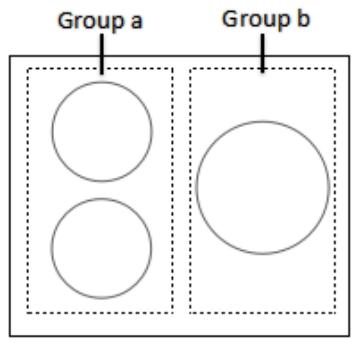

Figure 12 shows how the cooking zones of model 03281_Bolero Squad I 4300 FullFlex are grouped.

Bridge Zone for models 03280_Bolero Squad I 3300 FullFlex and 03281_Bolero Squad I 4300 FullFlex

• The Bridge Zone can be used as a single cooking zone or as two separate cooking zones based on your cooking needs.
• The Bridge Zone consists of two independent inductors that can be controlled separately. If the Bridge Zone is used as two separate cooking zones, the cookware can be moved from one zone to another while maintaining the same power level as the zone where the cookware was originally placed, and the empty cooking zone will switch off.

Please note:

If you use the Bridge Zone as a single cooking zone, be sure to place the cookware in the centre. In case of large, oval, rectangular, and oblong cookware, make sure to place it in such a way that it covers both “+” as shown in Figure 13 (examples of good and bad cookware placements).

Using the Bridge Zone as a single large cooking zone:

1. To use the Bridge Zone as a single large cooking zone, press the corresponding Bridge-function touch icon.

2. Power is adjusted as with any other cooking zone.

Using the Bridge Zone as two separate cooking zones:

To use the Bridge Zone as two separate cooking zones with different power settings, press the Bridge-function touch icon again: the cooking zones will revert to the previous settings.

Using the Bridge Zone

1. Select one of the Bridge Zone cooking zones and adjust the power level. Then, press the Bridge-function touch icon. The power setting will be applied to both Bridge Zone cooking zones, as well as any setting changes (Fig. 14).
2. To disable the Bridge function, select one of the Bridge Zone cooking zones, then press the Bridge-function touch icon: the Bridge function will be disabled, and the power level of the cooking zone(s) will return to "0" (Fig. 15).

Using the BBQ function for models 03279_Bolero Squad I 3300 FullFlex and 03280_Bolero Squad I 4300 FullFlex

The BBQ function can be used in the Bridge Zone and allows the surface temperature of cookware to be maintained at an ideal level for grilling.

1. Press the cooking-zone selection touch icon to select the desired cooking zone: the icon and the corresponding indicator will flash. Then press the BBQ touch icon to enable the BBQ function. The control panel will display "b" and "q".
2. To disable the BBQ function, first select the cooking zone, then press the BBQ touch icon to disable it. The power level of the cooking zone will return to 0.

Using the Keep Warm function

The Keep Warm function is useful for keeping food warm.

1. Press cooking-zone selection touch icon of the cooking zone on which you wish to apply the Keep Warm function: the corresponding indicator will flash.
2. Press the Keep Warm touch icon: the cooking zone indicator will show "A".
3. If you wish to disable the Keep Warm function, press the cooking-zone selection touch icon, then press the Keep Warm touch icon. The power level of the cooking zone will return to 0.

Using the Stop&Go function

The Stop&Go function can be enabled at any time during cooking. It allows you to pause the induction hob and then resume cooking.

1. Make sure the cooking zone is running.
2. Press the Stop&Go touch icon: the indicator of the corresponding cooking zone will show "II" and all cooking zones will be switched off. However, it will still be possible to use the Stop&Go touch icon, the Power touch icon, and the Lock touch icon.
3. To resume cooking, press the Stop&Go touch icon: the cooking zone will return to the previously selected power setting.

Locking the touch icons

• The icons can be locked to, e.g., prevent children from accidentally switching on the cooking zones.
• By pressing the Lock touch icon, all icons will be locked, except the Power touch icon

Locking the hob

Press the Lock touch icon. The timer indicator will show "Lo".

Unlocking the hob

1. Make sure the induction hob is switched on.
2. Hold down the Unlock icon for three seconds to unlock.
3. Resume use of the hob.

When the hob is locked, all touch icons are disabled except the Power touch icon for possible emergency shutdown. Should it be the case, it will be necessary to unlock the icons upon switching the hob back on.

Using the timer

The timer can be used in two ways:

• You can use it as a minute counter. In this case, no cooking zone will be switched off once time elapses.
• In minute-counter mode, the timer can be set to switch off a cooking zone after the set time has elapsed.
• The timer can be set for up to 99 minutes.

Using the timer as a minute counter

If no cooking zone is selected:

1. Make sure the hob is on.
2. Press the Timer touch icon: the corresponding indicator will flash, and the control panel will display "00" flashing.
3. Adjust the time by sliding your finger on the slider.
4. Press the Timer touch icon again: "0" will flash.
5. Adjust the time by sliding the slider. Time can be set for up to 65 minutes.
6. Once the set time has elapsed, an acoustic signal will sound for 30 seconds, and the indicator will show “- - ”

Setting the timer to switch off a cooking zone

To set a cooking zone to switch off:

1. Press the cooking-zone selection touch icon of the cooking zone you wish to set the timer for (for example, cooking zone 2).

2. Press the Timer touch icon: the corresponding indicator will flash, and the control panel will display "00" flashing.

3. Adjust the time by sliding your finger on the slider.

4. Press the Timer touch icon again: "0" will flash.
5. Adjust the time by sliding the slider. Time can be set for up to 65 minutes.
6. After a few seconds, the time will be confirmed, and the countdown will start.

NOTE: The red dot next to the power indicator will light up, indicating the selected cooking zone.

1. When the countdown is finished, the corresponding cooking zone will automatically switch off, and the control panel will display "H".

The other cooking zones will continue running if previously switched on.

Setting the timer to switch multiple cooking zones

- If you use this function in more than one cooking zone, the timer indicator will show the shortest time (e.g., zone 1 set to 3 minutes, zone 2 set to 6 minutes: the timer indicator will show "3").

NOTE: The flashing red dot next to the power level indicator means that the timer indicator is showing the cooking zone time.

- If you wish to check the time set for another cooking zone, press the corresponding cooking-zone selection touch icon once. The timer indicator will display the set time.

- When the countdown is finished, the corresponding cooking zone will automatically switch off, and the control panel will display "H".

Overheating protection

This hob features a temperature sensor for internal thermal control. The hob will automatically switch off if the sensor detects an excessive temperature.

Detection of small objects

If you place an unsuitably sized or non-magnetic cookware (e.g., aluminium) or any other small object (e.g., knife, fork, key) on the induction hob, the latter will automatically enter Standby mode within 1 minute. The fan will continue to run for a further 1 minute.

Automatic protection shutdown

The induction hob features an automatic protection shutdown function. The hob switches off automatically if you forget to switch it off. The default operating times for different power levels are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9	A	II
Default operation time (hours)	8	8	8	4	4	4	2	2	2	2	2

When you remove the cookware, the induction hob will stop heating immediately and the hob will turn off automatically after 2 minutes.

Tips

Cookware quality

• Suitable materials: steel, enamelled steel, cast iron, ferromagnetic stainless steel, aluminium with ferromagnetic base.
• Unsuitable materials: aluminium and stainless steel without ferromagnetic base, copper, brass, glass, ceramic, porcelain.

The cookware manufacturer must specify whether the product is induction compatible. To check if they are compatible:

- Pour a little water inside the cookware and place it on one of the cooking zones with heating power [9]. The water should boil within a few seconds.

- A magnet should stick to the cookware bottom.

Some cookware may emit noise when placed on a cooking zone. This noise is normal and does not imply a fault, nor does it affect the cooking process.

Cookware size

• The cooking zones adapt to the size of the cookware. However, the diameter of the bottom of the cookware should match that of the cooking zone as closely as possible.
• To get the most out of the induction hob, place the cookware in the centre of the cooking zone.

03279_Bolero Squad I 3300
Cooking zone (mm)	Minimum (mm)
1 (180)	120
2 (160)	100
3 (300)	180

03280_Bolero Squad I 3300 FullFlex
Cooking zone (mm)	Minimum (mm)
1 and 2 (180)	120
3 (300)	180
Bridge Zone	160 mm*, 270 mm, or 240 mm
03281_Bolero Squad I 4300 FullFlex
Cooking zone (mm)	Minimum (mm)
1, 2, 3, and 4 (180)	120
Bridge Zone	160 mm*, 270 mm, or 240 mm

Cooking guidelines

Be careful when frying, as oil and fat heat up very quickly, especially if you use the Booster function. At extremely high temperatures, oil and grease can spontaneously combust, creating a serious fire hazard.

Cooking tips

• When food starts boiling, reduce the power.
• Using a lid will reduce the cooking time and save energy by retaining heat.
• Use less liquid or grease to shorten cooking times.
• Start cooking with a high power setting and reduce it as food heats up.

Temperature settings

The following settings are for guidance only. The exact setting will depend on different factors, such as cookware and the amount of food cooked. Test the induction hob to find the settings that suit you best.

Temperature setting	Use
1 - 2	• Slightly heating small amounts of food.• Melting chocolate, butter, and food that burns quickly.• Simmering.• Heating food gradually.
3 - 4	• Reheating.• Fast cooking.• Cooking rice.
5 - 6	• Pancakes.
7 - 8	• Stir-frying.• Cooking pasta.
9	• Stir-frying.• Browning.• Boiling broth.• Boiling water.

5. CLEANING AND MAINTENANCE

• Turn off and unplug the appliance before cleaning it.
• Allow the induction hob to cool down before cleaning to avoid burns.
• Wipe the stains with a damp cloth with detergent diluted in a little water. Then wet with cold water and dry the surface thoroughly. You can use specific cleaning products for induction / glass ceramic hobs.
• Always avoid using corrosive or abrasive detergents and cleaning utensils that may scratch the surface.
• Never use a steam or pressure cleaner.
• Do not use any objects that could scratch the ceramic glass.
• Make sure that the cookware to be used is clean and dry. Make sure that the control panel and the cookware are not dusty. Sliding cookware with damaged or worn bottoms will damage the surface.
• Spilled sugar, jam, etc. should be cleaned up immediately. This will prevent the surface from getting damaged.

Dirt	Cleaning	Important details
Usual dirt on the glass (fingerprints, marks, food stains, etc.).	1. Unplug the induction hob from the mains.2. Apply a worktop cleaner while the glass is still warm (not hot).3. Rinse and dry with a clean cloth or a paper towel.4. Unplug the induction hob from the mains.	- When the induction hob is switched off, there will be no “hot surface” indication, but the cooking zone may still be hot. Be especially careful.- Abrasive cloths, some nylon scouring pads, and strong/ abrasive cleaning products may scratch the glass. Always read the label to check if your cleaning product or scouring pad is suitable.- Never leave cleaning product residues on the induction hob to avoid staining the glass.
Hot sugar spills on the glass.	Remove them immediately with a spatula or razor blade scraper suitable for induction hobs but be careful with the hot cooking zones.1. Unplug the induction hob from the mains.2. Hold the scraper or cookware at a 30° angle and scrape the dirt or spillage onto a cool area of the induction hob.3. Wipe up the dirt or spillage with a kitchen or paper towel.4. Follow steps 2 to 4 in the section “Usual dirt on the glass”.	- Remove melted and sugary food stains or spills as soon as possible. If left to cool down on the glass, they may be difficult to remove or may even permanently damage the glass surface.- Cutting hazard: when the safety cover is retracted, the blade of the scraper may be as sharp as a razor. Use it with extreme care and always store it safely and out of the reach of children.
Spills on touch icons.	1. Unplug the induction hob from the mains.2. Blot the spill.3. Wipe the touch icons with a clean, damp sponge or cloth.4. Dry the area completely with a paper towel.5. Unplug the induction hob from the mains.	- The induction hob may emit an acoustic signal and switch off, and the touch icons may not work if wet.- Be sure to dry the touch icons before switching the induction hob back on.

6. TROUBLESHOOTING

Problem	Possible causes	Possible solution
The induction hob does not turn on.	There is no electricity.	Make sure that the hob is connected to the power supply and switched on.Check if there has been a power failure.If the problem persists, please contact the official Cecotec Technical Support Service.
The touch controls do not work.	The icons are locked.	Unlock the icons. See section “Operation/Unlocking the hob” for instructions.
It is difficult to use the touch icons.	The touch icons may be slightly wet, or you may be pressing them with your fingertip.	Make sure the touch icons are dry and press them with the base of your finger.
The glass is damaged.	Cookware with rough edges.Use of inappropriate and abrasive scouring pads or cleaning products.	Use cookware with flat and smooth bases. See the “Cookware quality” section.Read the “Cleaning and maintenance” section.
Some frying pans make crackling or popping noises.	This is normal and may be due to the construction of the cookware (layers of different metals vibrating differently).
The induction hob makes a slight buzzing sound when used at high power.	This is normal and is due to the induction technology, but the noise should decrease or disappear completely by reducing the power setting.
Fan noise from the induction hob.	The fan of the induction hob helps prevent overheating. It can continue to run even after the induction hob has been switched off.	This is normal and not a cause for concern. Do not unplug the hob from the mains if the fan is still running.
The cookware does not heat up and the control panel shows no indication that the cookware is on the hob.	The induction hob cannot detect the cookware because the cookware is incompatible.The induction hob does not detect the cookware because it is too small for the cooking zone or not well centred on it.	Use only cookware compatible with the induction hob. See the “Cookware quality” section.Centre the cookware and make sure its base matches the size of the cooking zone.
The induction hob or a cooking zone has unexpectedly switched off, a sound is emitted, and an error code is displayed (usually alternating one or two digits on the timer indicator).	Technical fault.	Write down the letters and numbers of the error, unplug the induction hob from the mains, and contact the official Cecotec Technical Support Service.

7. FAULT DISPLAY AND INSPECTION

If a fault occurs, the induction hob will automatically go into protection mode and display the corresponding fault codes:

Problem	Possible causes	Possible solution
F3/F4	Induction-coil temperature sensor fault.	Contact the official Cecotec Technical Support Service.
F9/FA	Fault in the temperature sensor of the IGBT transistor.	Contact the official Cecotec Technical Support Service.
E1/E2	Abnormal supply voltage.	Check if the status of the power supply is normal and if the induction hob can be switched on without any issues.
E3	The induction-coil sensor temperature is too high.	Contact the official Cecotec Technical Support Service.
E5	The IGBT sensor temperature is too high.	Let the hob cool down and restart it.

Refer to these instructions to repair common faults.

Do not try to disassemble the unit on your own to avoid hazards and damages to the induction hob.

8. TECHNICAL SPECIFICATIONS

Product		03279
Reference:		Bolero Squad I 3300
Cut size		560 x 490 mm
Total power		6600- 7400 W
Energy consumption of the EChob* induction hob		192.9 Wh/Kg
	Cooking zone 1	Cooking zone 2	Cooking zone 3
Dimensions	180 mm	160 mm	300 mm
Minimum detection	120 mm	100 mm	180 mm
Rated power*	2000 W	1500 W	2500 W
Booster power*	2600 W	1800 W	3500 W

Product		03280
Reference:		Bolero Squad I 3300 FullFlex
Cut size		560 x 490 mm
Total power		6600-7400 W
Energy consumption of the EChob* induction hob		191.8 Wh/Kg
	Cooking zone 1	Cooking zone 2	Cooking zone 3	Bridge Zone
Dimensions	180 mm	180 mm	300 mm	-
Minimum detection	120 mm	120 mm	180 mm	160 *, 270, or 240 mm
Rated power*	2000 W	1500 W	2500 W	2800 W
Booster power*	2600 W	2000 W	3500 W	3500 W
Product		03281
Reference:		Bolero Squad I 4300 FullFlex
Cut size		560 x 490 mm
Total power		6600- 7400 W
Energy consumption of the EChob* induction hob		193.0 Wh/Kg
	Cooking zone 1	Cooking zone 2	Cooking zone 3	Cooking zone 4	Bridge Zone
Dimensions	180 mm	180 mm	180 mm	180 mm	-
Minimum detection	120 mm	120 mm	120 mm	120 mm	160 *, 270, or 240 mm
Rated power*	2000 W	1500 W	2000 W	1500 W	2800 W
Booster power*	2600 W	2000 W	2600 W	2000 W	3500 W

* The power indicated may vary depending on the size and material of the frying pan or pot.

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life,

you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./ Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./ Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./Rys./Obr. 13

Fig./Img./Abb./Afb./ Rys./Obr. 14

Fig./Img./Abb./Afb./ Rys./Obr. 15

www.cecotec.es
