Brand	BELKIN
Model	F5U217
Product type	High-speed USB 2.0 Hub
Number of ports	4 (1 upstream + 3 downstream)
Maximum data rate	480 Mbps (USB 2.0)
Compatibility	USB 2.0 and USB 1.1
Power	AC adapter included or bus-powered (for low-power devices)
Adapter input voltage	100-240 V AC
Adapter output voltage	5 V DC, 2.4 A
LED indicators	1 power LED (red); 3 port LEDs (green/amber)
Protection	Overcurrent detection and protection
Supported operating systems	Windows 98 SE, Me, 2000, XP
Package contents	Hub, AC adapter, user manual
Certifications	FCC, CE
Warranty	Belkin Limited Lifetime Warranty
Operating temperature	5°C to 40°C
Storage temperature	-20°C to 60°C
Housing material	Plastic
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.

Frequently Asked Questions - F5U217 BELKIN

How to install the BELKIN F5U217 hub?

Connect the AC adapter to a wall outlet, then connect the hub’s USB cable to a USB port on your computer. USB devices can then be connected to the downstream ports.

Which operating systems are compatible with this hub?

The hub is compatible with Windows 98 SE, Me, 2000, and XP. For later versions, drivers may be required.

Can I connect USB 1.1 devices to this USB 2.0 hub?

Yes, the hub is USB 1.1 backward compatible. USB 1.1 devices will operate at their native speed (12 Mbps).

What do the different LED colors mean?

The power LED is red when the hub is operational. The port LEDs are green for normal operation, amber for an error, and blinking in case of software or hardware throttling.

Does the hub require an external power supply?

For high-power devices (hard drives, etc.), the included AC adapter is necessary. For low-power devices (mouse, keyboard), the hub can operate without the adapter.

How many devices can I connect in total?

The hub allows connecting up to 127 USB devices by daisy-chaining multiple hubs, provided the per-port current limit (500 mA max) is respected.

Does the hub work with a computer that only has USB 1.1 ports?

Yes, but it will then be limited to USB 1.1 speed (12 Mbps). To take advantage of high speed (480 Mbps), the computer must have a USB 2.0 controller.

What should I do if my computer does not detect the hub?

Check the connections, plug the hub directly into a computer port (not through another hub). Restart the computer or reinstall USB drivers. If the AC adapter is supplied, use it.

Where can I find drivers for USB 2.0 mode?

Drivers are included with USB 2.0 PCI cards. You can also download the latest Belkin drivers from www.belkin.com.

What is the warranty period for the hub?

Belkin offers a limited lifetime warranty against defects in materials and workmanship. To benefit from the warranty, keep the proof of purchase.

USER MANUAL F5U217 BELKIN

Congratulations and thank you for purchasing the Belkin Hi-Speed USB 2.0 Pocket Hub (the Hub). The Hub provides three downstream USB ports that are compatible with both USB 1.1 (low-speed and full-speed) devices, as well as with USB 2.0 (high-speed) devices.

This means that the Hub is backward-compatible with all of your current USB 1.1 devices as well as the new generation of Hi-Speed USB 2.0 devices. This may include such peripherals as scanners, printers, mass storage devices, and high-resolution cameras. The Hub is self-powered, which allows the cascading of devices with additional hubs, so that up to 127 USB devices can be connected to a single port. The Hub also provides a multicolored status LED for each individual port, and a master power LED. For additional information, refer to the Technical Specifications section.

FEATURES

• Compliant with Universal Serial Bus specification 2.0 (data rate 1.5/12/480Mbps)
• Backward-compatible with Universal Serial Bus specification 1.1 (data rate 1.5/12Mbps)
• Compatible with Windows® 98 SE, Me, 2000, and XP
• Approved by USB Implementers Forum (USB-IF)
  Supports Plug-and-Play specifications
  Supports hot swapping of USB devices
  Over-current detection and protection
• Individual port-status indicator LEDs
• Three 480Mbps downstream ports
• Fully compatible with USB 1.1 and USB 2.0 devices
• Operates without power supply when used with low-power devices such as keyboards and mice
• Compact slim-line design
• Convenient storage/mounting clip
  Built-in USB device cable

Package Contents

Hi-Speed USB 2.0 Pocket Hub
- AC Power Adapter
- User Manual

TECHNICAL SPECIFICATIONS

En

Upstream Ports 1

Downstream Ports 3

Per-Port Voltage DC+5V

Per-Port Current 500mA (max)

Power Mode Self-powered

Operating Temperature 5^ 40^

Storage Temperature -20°C ~ 60°C

Enclosure Plastic

Power Supply Output: DC 5V 2.4A

Plug Size: 3.5mm (outer)

1.0mm (center)

Plug Polarity: Center Positive

Main Power LED

Color Definitions:

Off Not Operational

Red Operational

Port-Status LED

Color Definitions:

Off Not Operational

Amber Error Condition

Green Fully Operational

Blinking Off/Green Software Attention

Blinking Off/Amber Hardware Attention

INSTALLATION

1. Plug the AC adapter into a wall outlet or surge suppressor. Plug the DC connector into the DC power jack found on the side of the Hub.

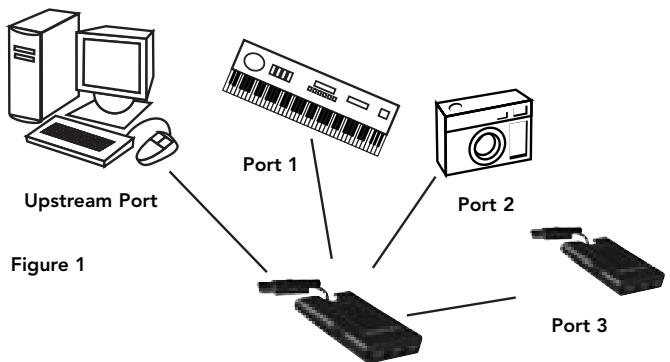

Note: The Hub may be used without the power supply when connecting low-power devices such as keyboards and mice. Remove the USB A cable connector from its built-in storage bay, then plug it into the downstream port of your computer, or downstream port of another hub (see Fig. 1).

Important Note: The Hub must be connected to a USB 2.0-compliant host in order to function in high-speed mode (480Mbps data rate). If the Hub is connected to a USB 1.1-compliant host, it will operate only in low-speed or full-speed mode (1.5Mbps/12Mbps).

1. Your Windows operating system will now detect your Hub and install the required driver support. (The Windows

INSTALLATION (CONTINUED)

"Install New Hardware Wizard" may prompt you to provide your Windows Installation CD to complete the driver installation process).

Important Note: Hi-Speed USB 2.0 hub drivers are included with most USB 2.0 PCI upgrade cards, and are pre-installed along with the PCI card drivers. If you purchased an upgrade card prior to the release of Hi-Speed USB 2.0 hub support, please check with your PCI card vendor for an updated USB 2.0 driver. The Belkin Hi-Speed USB 2.0 driver supports all competitive cards based on the NEC host controller with the exception of Adaptec. The most recent Belkin driver is available at www.belkin.com.

1. Plug the USB A connector of the USB device, or an additional hub, into any of the downstream ports of the Hub (see Fig. 2).

USB-A Connector
Figure 2

Important Note: When plugging a USB device into the Hub for the first time, it may be necessary to reinstall the USB drivers for that device. Likewise, if you move the device to another port on the Hub, it may be necessary to reinstall the drivers.

INFORMATION

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin Components, of 501 West Walnut Street, Compton CA 90220, declare under our sole responsibility that the product: FSU217

to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

We, Belkin Components, declare under our sole responsibility that the F5U217, to which this declaration relates, is in conformity with Generic Emissions Standard EN550022 1998 and with Generic Immunity Standard EN550024 1998, EN61000-3-2, and EN61000-3-3.

Belkin Components Limited Lifetime Product Warranty

Belkin Components warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMplied. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTYES, INCLUDING, WITHOUT LIMITATION, WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

TABLE DES MATIÈRES

Introduction 1

501 West Walnut Street

Compton · CA · 90220 · USA

Tel: [phone]

Fax: [phone]

Belkin Components, Ltd.

Express Business Park

Shipton Way • Rushden • NN10 6GL

United Kingdom

Tel: [phone]

Fax: [phone]

Belkin Components B.V.

Starparc Building • Boeing Avenue 333

1119 PH Schiphol-Rijk · The Netherlands

Tel: [phone]

Fax: [phone]

Belkin Components Ltd.

7 Bowen Crescent • West Gosford

NSW 2250 · Australia

Tel: [phone]

Fax: [phone]

Belkin Tech Support

US: 310.898.1100 ext. 2263

800.223.5546 ext. 2263

Europe: 0080022355460

Australia: 1800 666 040

© 2002 Belkin Corporation. All rights reserved.

All trade names are registered trademarks of respective manufacturers listed.

P74081ea
