F5U237vuk1 - USB Hub BELKIN - Free user manual and instructions

Product Type	USB 2.0 7-Port Hub
Brand	Belkin
Model	F5U237vuk1
Number of Downstream Ports	7 (5 horizontal, 2 vertical)
Upstream Port	1 (USB Mini-B)
USB Standard	USB 2.0 Hi-Speed (480 Mbps), backward compatible USB 1.1
Power Supply	DC 6V, 4A (center positive, 3.5mm outer / 1.0mm inner plug)
Power Mode	Self-powered (requires AC adapter)
Per-Port Current	500 mA max
Operating Temperature	5°C to 40°C
Storage Temperature	-20°C to 60°C
Enclosure Material	ABS plastic
LED Indicators	1 master power LED (red when operational), 7 port status LEDs (green when operational)
Over-Current Protection	Yes (per port)
Hot Swapping	Supported
Compatible Operating Systems	Windows 98SE, Me, 2000, XP; Mac OS (with USB 2.0)
Dimensions (approx.)	15.2 x 5.1 x 2.5 cm (6 x 2 x 1 in)
Weight (approx.)	200 g (7 oz)
Warranty	Limited lifetime warranty

Frequently Asked Questions - F5U237vuk1 BELKIN

Is the Belkin F5U237vuk1 compatible with USB 1.1 devices?

Yes, the hub is backward-compatible with USB 1.1 devices, but they will operate at lower speeds (1.5 or 12 Mbps).

What is the maximum number of devices I can connect using this hub?

The hub itself provides 7 downstream ports. With cascading (connecting additional hubs), up to 127 USB devices can be connected to a single computer port.

Do I need an external power supply?

Yes, the hub is self-powered and requires the included AC adapter (DC 6V, 4A) to operate and deliver full power to connected devices.

What do the LED indicators mean?

The master power LED glows red when the hub is operational. Each port LED glows green when the port is fully operational. If a port LED is off, it indicates an over-current condition on that port.

Can I hot-swap devices?

Yes, the hub supports Plug and Play and hot swapping, allowing you to connect or disconnect USB devices without restarting your computer.

How do I install the hub?

Connect the AC adapter to the hub and a power outlet. Then, connect the provided USB cable from the hub's upstream port to your computer's USB port. Windows will detect and install drivers automatically. Finally, connect your USB devices.

Can I stack two hubs for more ports?

Yes, the hub's compact slim-line design allows two hubs to be stacked on top of one another for space-saving.

Does the hub work with Mac computers?

Yes, it works with USB-enabled Macs. For Hi-Speed (480 Mbps) mode, you need a Mac with USB 2.0 support (PowerMac G5 and above or a USB 2.0 upgrade card). Older Macs will only support USB 1.1 speeds.

What driver is required?

For Windows 98SE/Me/2000/XP, drivers are built-in. If you use a USB 2.0 PCI upgrade card, you may need updated drivers from the card vendor. Belkin provides drivers for NEC host controllers (excluding Adaptec) on their website.

What is the warranty coverage?

Belkin offers a limited lifetime warranty against defects in materials and workmanship. The warranty does not cover damage from accident, abuse, misuse, or modification.

USER MANUAL F5U237vuk1 BELKIN

Two people gathered around a laptop displaying a digital interface (no visible text or symbols)

Connect up to 7 Hi-Speed USB 2.0 or USB 1.1 devices

EN

Close-up of a black rectangular electronic device with a white internal slot, labeled 'DELKIN' on the side (no other text or symbols visible)

F5U237vuk1 Use

Table of Contents

Introduction ....1

Overview 2

Features 2

Package Contents 2

System Requirements for Mac ^® ……3

Technical Specifications ....3

Installation 4

Information 5

Welcome to Belkin USB 2.0!

Congratulations and thank you for purchasing the Belkin Hi-Speed USB 2.07 Port hub (the Hub). The hub provides 7 downstream USB ports that are compatible with both USB 1.1 (Low Speed and Full Speed) devices, as well as with USB2.0 (Hi-Speed) devices.

This means that the Hub is “backward-compatible” with all of your current USB 1.1 devices as well as the new generation of “Hi-Speed” USB 2.0 devices. This may include such peripherals as scanners, printers, mass storage devices, and high resolution cameras. The Hub is self powered, which allows the cascading of devices with additional hubs, so that up to 127 USB devices to be connected to a single port.

Overview

The Belkin Advantage

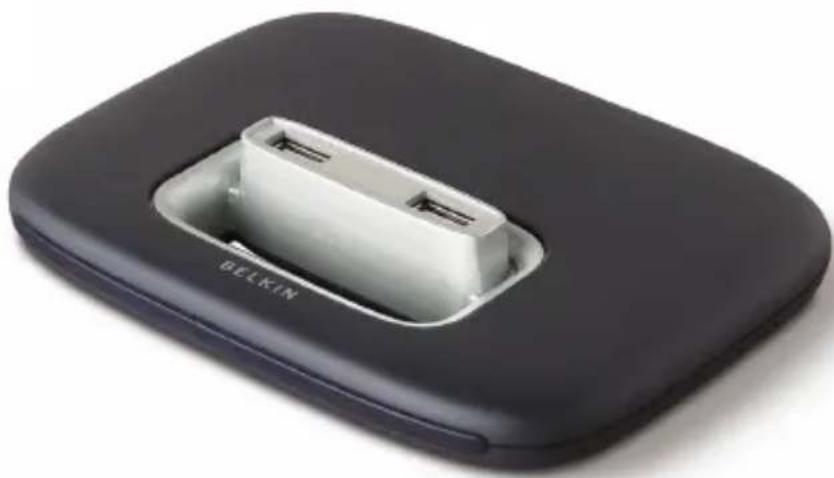

An exciting new feature unique to the Belkin 7 port hub are the two vertically mounted downstream USB ports that offer easy access for temporary connections such as USB thumb drives, media readers, and personal convenience accessories such as USB lights and fans. The Hub also provides 7 port status LEDs, and 1 master power LED.

Features

• Compliant with Universal Serial Bus Specification 2.0 (data rate 1.5/12/480 Mbps)
• Backward-compatible with Universal Serial Bus Specification 1.1 (Data Rate 1.5/12 Mbps)
• Compatible with Windows 98SE, Me, 2000, and XP
  • Approved by USB Implementers Forum (USB-IF)
  • Supports Plug and Play specifications
  • Supports "hot swapping" of USB devices
  • Over-current detection and protection
• Individual Port Status Indicator LED's
• Five horizontally mounted 480 Mbps downstream ports
• Two vertically mounted 480 Mbps downstream ports
  • Fully compatible with USB 1.1 and USB 2.0 devices
• Compact slim-line design
• Two hubs may be stacked on top of one another

Package Contents

• High Speed USB 2.0 compliant 7 Port Hub
- AC Power Adapter
- User Manual
- USB device cable

System Requirements for Mac ^®

• Supports low- (1.5Mbps) and full-speed modes (12Mbps) on USB-enabled Mac computers prior to PowerMac ^ G5
• Supports low- (1.5Mbps), full- (12Mbps), and high-speed modes (480Mbps) on PowerMac G5 and above, or on other Mac computers equipped with a USB 2.0 upgrade card

Technical Specifications

Upstream Ports (1)

Downstream Ports (7)

Per-port Voltage DC +5V

Per Port Current 500mA (max)

Power Mode Self-Powered

Operating Temperature 5°C \~ 40°C

Storage Temperature -20°C \~ 60°s

Enclosure ABS

Power Supply

Output: DC 6V, 4A

Plug Size: 3.5mm (outer) 1.0mm (center)

Plug Polarity: Center Positive

Main Power LED Color Definitions:

Off Not Operational

Red Operational

Port Status LED Color Definitions:

Off Over Current Condition

Green Fully Operational

Installation

Important Note: Do not connect USB devices to the hub until you are instructed to do so in step 4 of this user guide.

1. Plug the AC adapter into a wall outlet, or surge suppressor. Plug the DC connector into the DC Power Jack found on the rear of the hub
2. Plug the flat end (USB A connector) of the provided USB device cable into the downstream port of your computer, or downstream port of another hub, then plug the other end (USB mini B connector) of the device cable into the upstream port on the rear of the hub.

Important Note: The hub must be connected to a USB 2.0 compliant host in order to function in Hi-Speed mode (480Mbps data rate). If the hub is connected to a USB 1.1 compliant host, it will operate only in Low Speed or Full Speed mode (1.5 Mbps/12 Mbps).

1. Windows will now detect your hub and install the required driver support. (The Windows "Install New Hardware Wizard" may prompt you to provide your Windows Installation CD to complete the driver installation process).

Important Note: Hi-Speed hub drivers are included with most USB 2.0 PCI upgrade cards, and are pre-installed along with the PCI card drivers. If you purchased an upgrade card prior to the release of Hi-Speed hub support, please check with your PCI card vendor for an updated USB 2.0 driver. The Belkin USB 2.0 driver supports all competitive cards based on the NEC host controller with the exception of Adaptec. The most recent Belkin driver is available at www.belkin.com.

1. Plug the USB-A connector of the USB device, or an additional hub, into any of the downstream ports of the F5U237.

Important Note: When moving a device from one port on the hub to another, it may be necessary to re-install the USB drivers for that device

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product:

F5U237vuk1 to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

We, Belkin Corporation, declare under our sole responsibility that the F5U237vuk1, to which this declaration relates, is in conformity with Generic Emissions Standard EN 55022:1998 Class B, EN50081-1 and with Generic Immunity Standard EN50082-1 1992.

Belkin Corporation Limited Lifetime Product Warranty

Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.
