USER MANUAL MARINE BINOCULARS 137500 BUSHNELL
The BUSHNELL MARINE is the perfect binocular for sailors and outdoorsmen. Your model features a liquid-filled compass built into the viewing optics. Compass swing stops immediately due to advanced damping design. Compass bearings are called out in easy-to-read precise 1^ increments. Ideal for shipboard navigation work or locating objects accurately. A range-finding scale allows the viewer to estimate the range of objects to a known size. The BUSHNELL MARINE is fully waterproof/fogproof and shock protected with suregrip rubber armoring, and has roll-down eyecups for use with sunglasses and prescription eyeglasses. Optics feature multi-coated lenses for excellent light transmission. The BUSHNELL MARINE comes complete with rugged nylon case and neck strap. Built to last, with a lifetime limited warranty.
SPECIFICATIONS
| Magnification............7 x | Relative brightness..........51 |
| Objective lens diameter.....50 mm | Interpupillary distance...56~72 mm |
| Eye Relief..........18 mm | Maximum width..........3 in |
| Real field of view..........7° | Minimum width..........2.5 in |
| Field of view @ 1000 yds.....350 ft. | Length..........7 in |
| Exit pupil diameter......7.1 mm | Weight..........37 oz / 1049 g |
HOW TO USE
First, adjust the width (interpupillary distance) of your binoculars with the central hinge, so that when you look through them, you see a single circular image. Then focus the binocular for one eye at a time by turning the oculars (eyepieces) until you see an equally sharp image with each eye. If more than one person will be using the binoculars, you should mark the left and right eyepieces for your own vision to permit quick readjustment.
USING THE COMPASS
The compass is a precision unit. It has extremely fast damping so that there is almost no 'swing' and is corrected for dip (Latitude). The compass scale is in one degree increments and is aligned with the vertical range finding scale. When using the compass, always keep in mind the local variation between magnetic and true north.
HOW TO USE THE RETICLE
The vertical scale (reticle) visible through the left half of the binocular, above the compass display, allows you to calculate distance to an object if you know its height, or to calculate the height of an object if you know its distance from you.
Each mark on the vertical scale has a value of 5 MIL (1 Mil is equivalent to an angle that can determine an object one meter in height at a distance of 1000 meters). Therefore, if a navigation chart gives the height of an object, by sighting on it and counting the number of MILs, you can determine how far away it is. Here are the two formulas:
To measure distance when the height is known:
$$ \frac {\text {O B J E C T H E I G H T (M) X 1 0 0 0 M}}{\text {S C A L E R E A D I N G}} = \text {D I S T A N C E I N M E T E R S} $$
To measure object height when the distance is known:
$$ \frac {\text {D I S T A N C E (M) X S C A L E R A D I N G}}{1 0 0 0} = \text {O B J E C T H E I G H T I N M E T E R S} $$
USING THE COMPASS ILLUMINATOR
The BUSHNELL MARINE compass model comes with built-in LED compass illuminator for use at night and in low light conditions. (Incidentally, the compass is built into the left tube of the binocular but the push button control for the light and the battery are located in the right tube. This was done to minimize the chance that electrical interference might affect compass performance.) When the ambient light does not permit

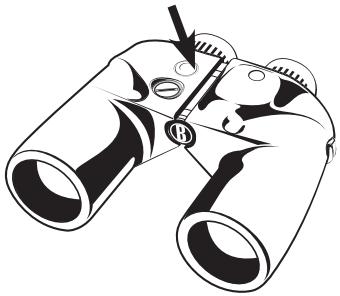

you to see the compass heading clearly, press the button atop the right tube. If the light is dim or does not come on, replace the batteries. If the light does not operate after
replacing the batteries, please contact the Bushnell dealer nearest you.
HOW TO CHANGE THE BATTERIES

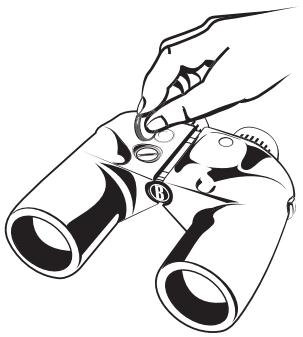

To change the battery, use a thin coin to remove the battery cover by turning it counter-clockwise. Remove the two batteries. The batteries have a (+) on the front and a (-) on the back. Be sure to insert the new batteries with (+) signs in the same direction. Replace the battery cover by turning it clockwise.
BATTERY EQUIVALENTS
| MANUFACTURER | TYPE |
| Toshiba, Maxell, Panasonic | LR43 |
| Varta | 12GA |
| Eveready | 186 |
| Duracell | D188AB |
| Rayovac | 186-1 |
IMPORTANT
AFTER EXPOSURE TO SALTWATER OR SPRAY, FLUSH THE BINOCULARS THOROUGHLY WITH FRESH WATER AND WIPE DRY. AVOID EXTENDED EXPOSURE TO BRIGHT SUNLIGHT AND SEVERETEMPERATUREFLUCTUATIONS.FOREXAMPLE,IFTHE BINOCULAR HAS BEEN USED UNDERVERY COLD CONDITIONS,BRINGIT INTO A HEATED ENVIRONMENT COULD CAUSE CONDENSATIONBUILD UP.ALLOW TIME FOR GRADUAL CHANGE IN TEMPERATURE.
LIFETIME LIMITED WARRANTY
Your Bushnell" product is warranted to be free of defects in materials and workmanship for lifetime after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below:
1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:
IN U.S.A. Send To:
Bushnell Outdoor Products
Attn.: Repairs
9200 Cody
Overland Park, Kansas 66214
IN CANADA Send To:
Bushnell Outdoor Products
Attn.: Repairs
25A East Pearce Street, Unit 1
Richmond Hill, Ontario L4B 2M9
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at:
Bushnell Germany GmbH
European Service Centre
Mathias-Bruggen-Str. 80
D-50827 Köln
GERMANY
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2010 Bushnell Outdoor Products
FRANÇAIS
$$ \frac {\text {H A U T E U R D E L O B J E T (M) X 1 0 0 0 M}}{\text {R E L E V E D ' E C H E L L E}} = \text {D I S T A N C E E N M E T R E S} $$
$$ \frac {\text {D I S T A N C E (M) X R E L E V E D E C H E L L E}}{1 0 0 0} = \text {H A U T E U R D E L O B J E T E N M E T R E S} $$

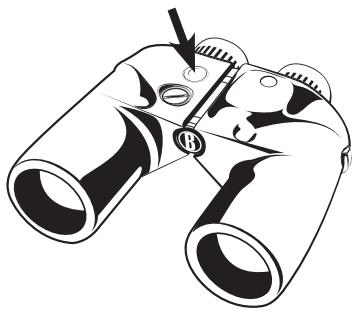

UTILISATION DU DISPOSITIF D'ÉCLAIRAGE DU COMPAS
