USER MANUAL KZ 1224 TRISTAR

You can find all information and spare parts at service.tristar.eu

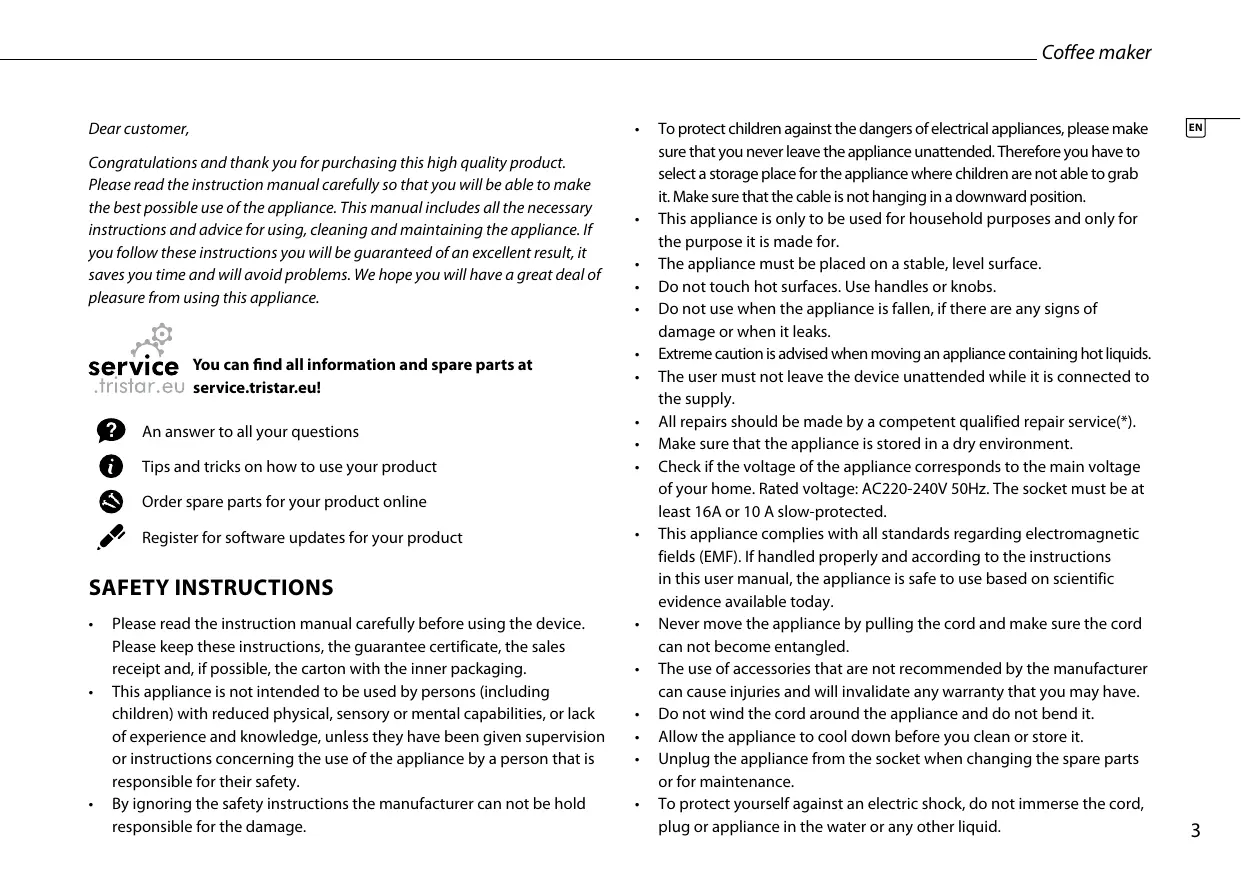

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

Service You can find all information and spare parts at .tristar.eu service.tristar.eu!

An answer to all your questions

Tips and tricks on how to use your product

Order spare parts for your product online

Register for software updates for your product

SAFETY INSTRUCTIONS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.

• To protect children against the dangers of electrical appliances, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.

• This appliance is only to be used for household purposes and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• Do not touch hot surfaces. Use handles or knobs.
• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.
  Extreme caution is advised when moving an appliance containing hot liquids.
• The user must not leave the device unattended while it is connected to the supply.
• All repairs should be made by a competent qualified repair service ^(*) .
• Make sure that the appliance is stored in a dry environment.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The use of accessories that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
• Do not wind the cord around the appliance and do not bend it.
• Allow the appliance to cool down before you clean or store it.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an Competent qualified repair service (^*) . Do not repair this appliance yourself.

• Unplug the appliance from the socket when you are not using it.
• Note: To avoid danger by accidental resetting the thermal protection, this appliance may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or off.
• Allow the device to cool down before you are going to remove or replace spare parts.
• Do not use this appliance near direct heat sources.
• Make sure the cord does not touch the hot parts of the appliance.
• Do not use this appliance in the bathroom or near a sink filled with water. If this appliance has fallen into the water do not under no circumstances directly grab this appliance, but first pull the plug from the socket.
• Never use the appliance if the jug shows any signs of damage. Only use the jug with this appliance. The glass of the jug is very fragile, so handle with care.
• Be careful, do not get burned by the steam which is evaporating from the coffee filter.
• Only use vinegar or a dedicated product for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
• Make sure that the maximum level will never be exceeded.
• Children should be supervised to ensure that they do not play with the appliance.

• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.

• Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

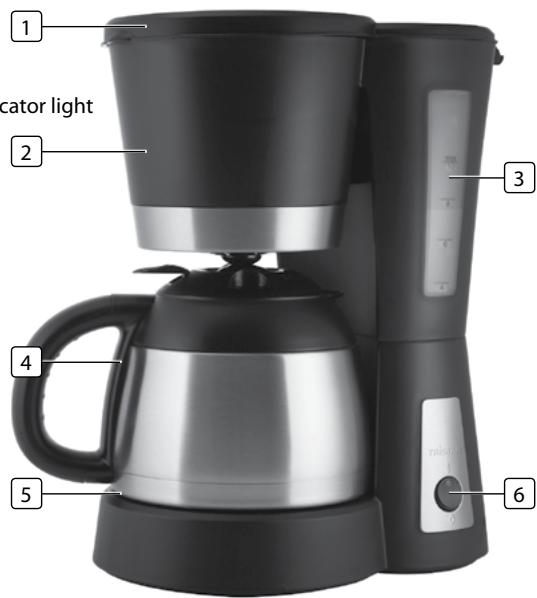

PARTS DESCRIPTION

1. Cover
2. Funnel
3. Water tank
4. Thermos flask
5. Hot plate
6. On/off switch with power indicator light

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz)
• Place the device on a flat stable surface and ensure a minimum of 10cm . free space around the device. This device is not suitable for installation in a cabinet or for outside use.
• For a perfect taste, carry out 2 or 3 boil processes with fresh water (without coffee). Once all the water has passed through, switch the appliance off and let it cool down during 5 minutes. Then repeat the process with fresh water.

USE

• Pour the desired volume of water into the water reservoir. The number of cups can be read on the water level indicator.
• Add the desired quantity of ground coffee. Replace the filter holder. To switch on, press the on/off button, the coffee maker will start working and the red pilot light will light on.
• Place the vacuum flask, under the filter and switch the device to ON. Switch off the device when it is ready.
• When you remove the can from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the can automatically opens the non-drip valve and allows any remaining coffee to filter through into the can.

• Wait until the brewing process is finished and the filter is empty. To switch off the coffee machine, press the on/off button.. The red pilot light will go off to indicate that the coffee maker has been switched off.

• The can can remain on the hotplate, which begins to heat up as soon as the coffee maker is switched on. The hotplate will keep the coffee hot until the coffee maker is switched off (red pilot light goes off).

CLEANING AND MAINTENANCE

• Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.
• Remove the filter holder regularly and rinse it with warm water.
• Decalcifying the coffee maker prolongs its life span. For decalcification only use products especially made for decalcification of coffee makers.
• Never use a dishwasher to clean the can.

GUARANTEE

Tristar is not liable for damages occurred through:
o In case the appliance has fallen.
o In case the appliance has been technically changed by the owner or another third party.
o In case of improper use of the appliance.
o In case of normal wear of the appliance.
- By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 2011/83/EU.
- Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
- Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
  This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. You can find all information and spare parts www.service.tristar.eu. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
  The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC. This appliance is designed to come into contact with food and is designed in accordance with EC Directive1935/2004/EEC
