KZ2248 - Coffee machine TRISTAR - Free user manual and instructions

Product type	Espresso coffee machine
Brand	TriStar
Model	KZ2248
Power supply	230 V, 50 Hz
Power	Approximately 850 W
Water tank capacity	Approximately 1 L
Pump pressure	15 bar
Functions	Espresso, cappuccino, steam
Cup warming plate	Yes, on top of the appliance
Filters included	Small filter (1 cup) and large filter (2 cups)
Filter holder	Removable with special lever
Steam wand	Swivel, for frothing milk
Drip tray	With level indicator (floating ball)
Water tank	Removable with handle
Main material	Plastic and stainless steel
Dimensions (W x D x H)	Approximately 25 x 30 x 25 cm
Net weight	Approximately 3 kg
Color	Black / silver (type)
Warranty	24 months
Certifications	CE
Cleaning	Manual, do not wash in dishwasher
Safety	Anti-overflow system (level ball)
Use	Household only
Included accessories	Measuring spoon, instruction manual

Frequently Asked Questions - KZ2248 TRISTAR

How to prepare an espresso with this machine?

Fill the water tank, place the filter with ground coffee in the filter holder, turn on the appliance, wait for the READY light to turn off, then turn the selector to the cup symbol. Coffee flows. Turn the selector to 0 at the end.

How to prepare a cappuccino?

First prepare an espresso. Then froth cold milk using the steam wand: immerse the wand just under the surface of the milk, turn the selector to steam, lower the container, then stop. Pour the foam over the espresso.

How to clean the steam wand after use?

Wash the wand immediately after use to avoid milk deposits. You can soak it in water or run steam through a container of water. Wipe with a damp cloth.

What to do if the READY light turns on during brewing?

This indicates that the water temperature has dropped. Turn the selector to 0 and wait for it to turn off again before continuing.

How to descale the machine?

The manual does not specify descaling, but it is recommended to use a special descaler for espresso machines. Run a descaling solution followed by several rinses with fresh water.

What is the warranty of the appliance?

The warranty is 24 months from the date of purchase (receipt). It covers material or manufacturing defects. Wear parts are not covered.

Can I use store-bought ground coffee?

Yes, the machine is designed for ground coffee. Use one to two measuring spoons per filter, pressing lightly.

How to change the filter?

The filter holder can be removed by turning the handle to the left. Replace the small or large filter as needed.

Why doesn't the milk foam rise?

Use fresh cold milk, immerse the wand just under the surface, and make sure not to boil the milk. Warm or hot milk does not foam well.

How to empty the drip tray?

Remove the drip tray by pulling it outward. Lift the grid to empty the water. The level ball indicates fullness.

USER MANUAL KZ2248 TRISTAR

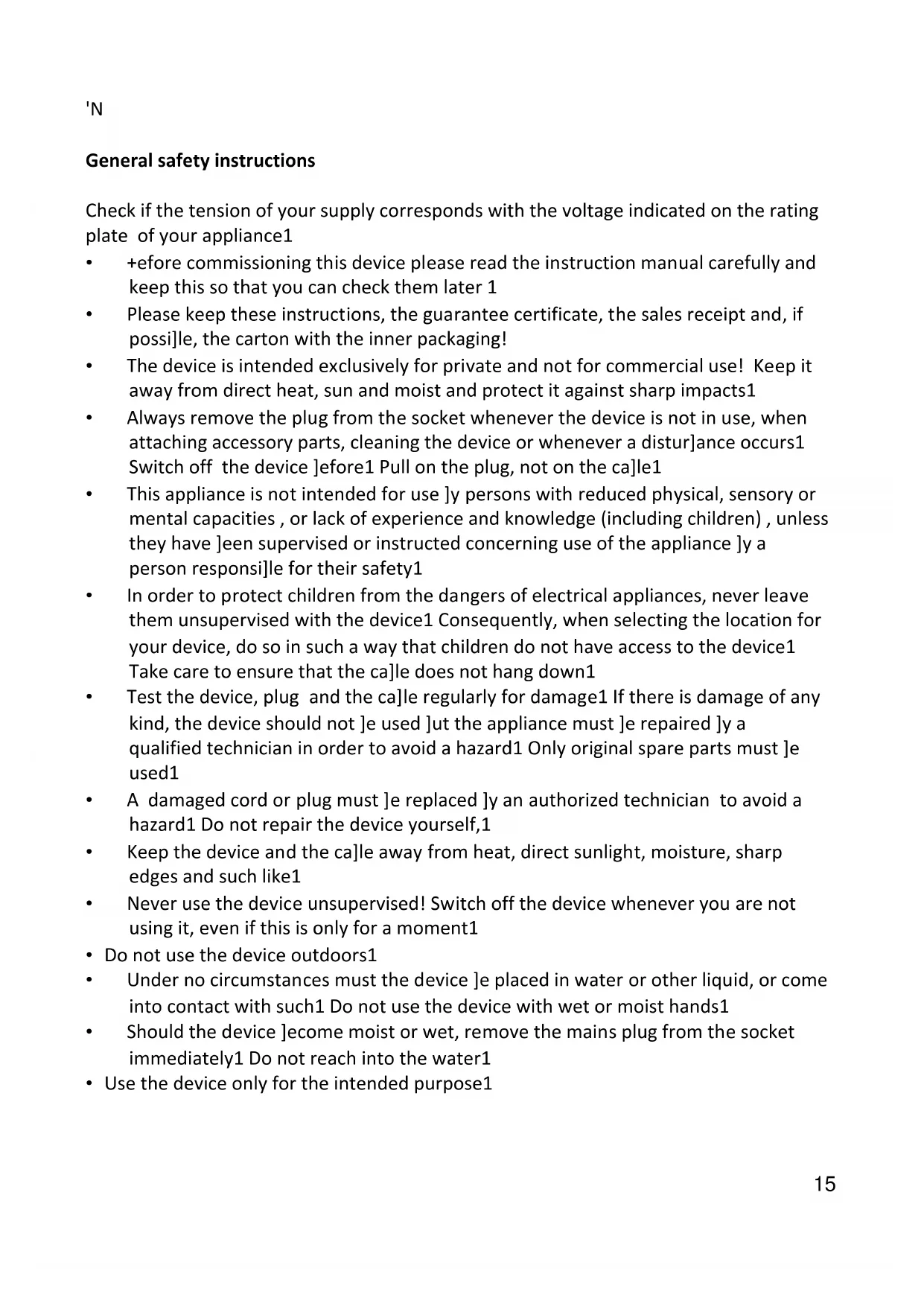

General safety instructions

Check if the tension of your supply corresponds with the voltage indicated on the rating plate of your appliance1

+efore commissioning this device please read the instruction manual carefully and keep this so that you can check them later 1
- Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging!
- The device is intended exclusively for private and not for commercial use! Keep it away from direct heat, sun and moist and protect it against sharp impacts1
Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a distur]ance occurs1 Switch off the device ]efore1 Pull on the plug, not on the ca]le1
This appliance is not intended for use]y persons with reduced physical, sensory or mental capacities, or lack of experience and knowledge (including children), unless they have]een supervised or instructed concerning use of the appliance]y a person responsi]le for their safety1
- In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device1 Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device1 Take care to ensure that the caJIe does not hang down1
- Test the device, plug and the ca]le regularly for damage1 If there is damage of any kind, the device should not ]e used ]ut the appliance must ]e repaired ]y a qualified technician in order to avoid a hazard1 Only original spare parts must ]e used1
- A damaged cord or plug must ]e replaced ]y an authorized technician to avoid a hazard1 Do not repair the device yourself,1
- Keep the device and the ca]le away from heat, direct sunlight, moisture, sharp edges and such like1
- Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment1
- Do not use the device outdoors1
- Under no circumstances must the device]e placed in water or other liquid, or come into contact with such1 Do not use the device with wet or moist hands1
- Should the device]come moist or wet, remove the mains plug from the socket immediately1 Do not reach into the water1
- Use the device only for the intended purpose1

Overview of the Components

1. Tank opening 9. Water level scale
2. Hotplate 10. Filter holder
3. Function selector 11. Special lever
4. POWER LED 12. Small filter (1 cup)
5. READY LED 13. Large filter (2 cups)
6. On/Off (011) switch 14. Drip tray
7. Steam nozzle 15. Float

Before Start-up

Unpack the Espresso machine carefully. Take out all the accessories and the packing material. Wash the accessories in a sink. To clean the device, carry out 2-3 complete cycles with clean water before brewing the first espresso. Proceed as described in item 1 to 7 of Making an Espresso" without using espresso coffee though.

Making an Espresso

1. Connect the machine to a correctly installed 230 V, 50 Hertz safety socket.
2. Ensure that the on/off switch (0/1) (6) is in the 0 position.
3. Place the draining grid in the indentation of the draining tray.
4. Open the lid and remove the water tank by the handle.
5. Fill the required amount of fresh clear water into the tank.
6. Release the filter holder(10)by turning the handle to the left(INSERT).
7. Place the filter(12or13) into the filterholder'(10). Now add one to two level measuring spoons of coffee. Distribute the coffee evenly and press the coffee powder lightly with a measuring spoon or other spoon. The aim of pressing the coffee powder with the spoon is to distribute it evenly in the coffee bowl rather than compressing it. We recommend a flat surface plunger, Ensure that the filter holder is firmly fixed in the percolating head.
8. In order to preheat your espresso cups, place them on the warming plate (2) above the percolating head.
9. Switch the machine on using the on/off switch (0/1) (6). The control lamps (4 + 5) located on the right and left in the function control light up.
10. When the water has reached the required temperature, the control lamp (5) on the right-hand side (READY) switches off. Note: if the control lamp lights up again before percolation is finished, the water temperature is no longer high enough. Turn the function selection switch (3) to 0 and wait for the lamp to go out again. You can now continue preparing the espresso.
11. Remove the espresso cup(s) from the warming plate (2) and place them under the percolating head.
12. Turn the function switch (3) to the symbol showing the espresso cup.
13. The espresso is now ready and is poured into the cup(s).

14. When percolation is finished, turn the function switch (3) back to the 0 position.

15. Switch the machine off using the on9off switch (011) (6).

16. After brewing wait for a few seconds before removing the filter. Turn the handle of the filter holder from right to left. Pay attention to the steam! To remove the used coffee, hold the filter by using the special lever (11) on the handle in the relevant position. Turn the filter holder (10) and knock out the used coffee. Remove the filter holder (10) after making an espresso. +y doing so, you will extend the service life of the rubber seal in the brewing head. To make other espressos, fill the coffee bowl (12 or 13) with coffee powder again and carry out the brewing procedure as described above.

Making a Cappuccino

To make a cappuccino, you must first make an espresso. Proceed as described under "Making an Espresso" from steps 1 to 13. To froth the milk, proceed as follows:

1. Make sure that the function selector (3) is in 0 position.
2. Swing the steam nozzle (8) out so that you can position the container (please use a heat-resistant container) comfortably under the nozzle.
3. Fill the container up to a 193 with fresh cold milk (warm, hot or steel milk does not froth).
4. Dip the steam nozzle (8) slightly below the surface of the milk in the container and turn the function selector (3) to the left (Steam symbol).
5. Move the container slightly up and down. Once the milk reaches the desired volume, you can warm the milk more by lowering the steam nozzle (8) to the bottom of the container. Do not make the milk boil or the froth will] be ruined.
6. Turn the function selector (3) back to the 0 position and switch the device off with the On9Off (011) (6) switch.
7. Scoop out the froth jnto the espresso. Add liquid milk. A cappuccino is usually composed of 113 coffee, 193 hot milk and 113 frothed milk
8. Your cappuccino is now ready; improve the flavour by adding some cinnamon or chocolate powder.

Cleaning

After frothing milk, the steam nozzle is to be immediately cleaned from all milk residues. If the milk dries, it becomes difficult to remove. Soak the steam tube in a container with water over night so that the milk residue softens. Place a heat-resistant container full of water under the nozzle so that the nozzle is dipped in the water. Turn the function selector to Steam position. Wipe the steam nozzle with a moist cloth to remove the m residue before it hardens. The water tank, drip tray, drip tray cover, filter, filter holder and the hotplate can be washed by hand in a sink with warm water. Do not use abrasive detergents. Wash the parts regularly. If the filter's holes are clogged, clean it with a fine brush. Do not wash the machine. Never wash the parts or accessories in a dishwasher. The drip tray has an overflow protection. A white-marked float is found in the tray. The more water the drip tray contains, the higher the float rises. To empty the tray you can remove the drip tray completely and lift the grid.

This appliance conforms-with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice!

Guarantee

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge.

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance!

The cleaning, servicing and replacement of wear parts are not covered by this warranty and hence are to be paid for.

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.

PT

Guidelines for protection of the environment

This appliance should not ]e put into the domestic gar]age at the end of its useful life, ]ut must ]e disposed of at a central point for recycling of electric and electronic domestic appliances1 This sym]ol on appliance, instruction manual and packaging puts your attention to this important issue1 The materials used in this appliance can ]e recycled1 +y recycling used domestic appliances you contribute an important push to the protection of our environment1 Ask your local authorities for information regarding the point of recollection11
