USER MANUAL ENZO FERRARI FORCE GT THRUSTMASTER

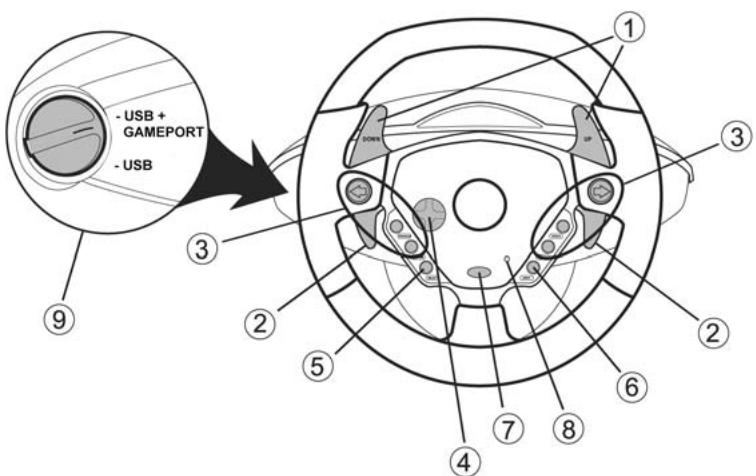

TECHNICAL FEATURES 1 2 digital gearshift levers 2 2 progressive analog gas and brake levers 3 Action buttons 4 D-pad
Start button Mode button Mode LED USB / USB + GAMEPORT switch

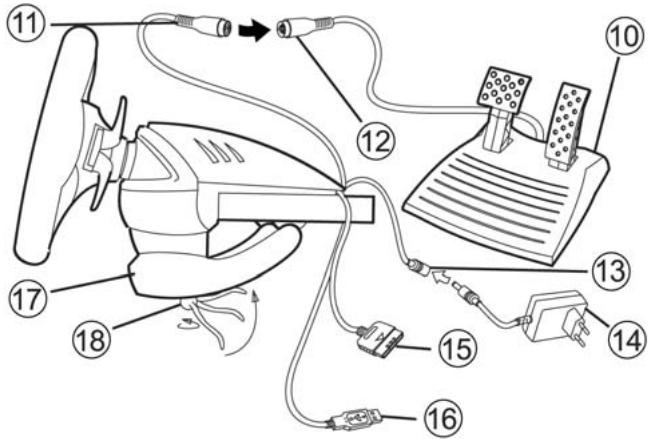

Pedal connector Pedal cable Adapter connector Power adapter
Console connector (GAMEPORT)
USB connector Table clamp Clamp screw
INSTALLING THE WHEEL Fixing the wheel in place
1. Place the wheel on a table or other flat surface. 2. Place the clamp screw (18) in the table clamp (17) and then screw the clamping unit into the hole on the underside of the wheel until firmly fixed in place. Do not turn the screw too tightly, as you risk damaging the clamping unit and/or the table. Preparing the wheel 1. Connect the pedal cable (12) to the pedal connector (11). 2. Connect the adapter connector (13) to the power adapter (14) and plug the adapter into an electrical outlet. Connecting the wheel A - To play a standard racing game with your Enzo wheel recognized as a wheel: 1. Switch off your console before connecting the wheel. 2. Connect the GAMEPORT console connector (15) to port 1 of your console and connect the USB connector (16) to the upper USB port. 3. Set the USB / USB + GAMEPORT switch (9) to the position corresponding to the type of game you will be playing. (Please refer to the Settings chart provided in the appendix.)
SELECTING A SWITCH POSITION Switch in “USB” position
This position should be selected for games which do not require you to connect a gamepad in addition to the USB wheel. However, in order to avoid having to repeatedly connect/disconnect the GAMEPORT connector, we recommend that you simply connect it to your console as well as your wheel’s USB connector. Most recent games will use this position. Switch in “USB + GAMEPORT” position This position should be selected for games which require you to connect a gamepad in addition to the USB wheel (the gamepad allows you to access the setup options and have the game recognize your Force Feedback wheel). With the Enzo wheel, simply connect both the USB and GAMEPORT connectors simultaneously to replace the gamepad.
4. Switch on your console. Your wheel will auto-calibrate (the wheel will move during this procedure) and the Mode LED (8) will turn red to indicate that Force Feedback mode is enabled.
5. In your game’s controller setup options, identify the Enzo as a Force Feedback wheel. You are now ready to play! B - To play a motorbike, quad or other type of racing game with your Enzo wheel emulating a gamepad: 1. Switch off your console before connecting the wheel. 2. Connect the GAMEPORT console connector (15) to port 1 of your console and connect the USB connector (16) to the upper USB port. The position of the USB / USB + GAMEPORT switch (9) is not important. 3. Switch on your console. While the game is loading up, disconnect the USB connector (16) once the Playstation 2 logo is displayed, and then reconnect it immediately. (USB RESET) 4. Your wheel will auto-calibrate (the wheel will move during this procedure) and the Mode LED (8) will turn red to indicate that Force Feedback mode is enabled. 5. In this type of game, your wheel will be recognized as a gamepad. If necessary, verify and modify its configuration in the controller setup options (the left analog stick for steering, the right analog stick for the pedal set). Note: in this type of game, it will not be possible to disable Force Feedback mode, or use “Precision Drive” mode. You are now ready to play!
ADVANCED FUNCTIONS Calibrating the wheel
Your wheel is auto-calibrated by default for console use. Nevertheless, we recommend that you calibrate both the wheel and the pedal set manually if your game offers this function.
Enabling/disabling Force Feedback
By default, Force Feedback and auto-recentering are enabled. In some games and on some courses, however, it may be helpful to disable Force Feedback in order to improve your performance. Press the Mode button (7) to enable/disable Force Feedback: - Auto-recentering enabled only: the Mode LED (8) turns green. - Force Feedback and auto-recentering enabled: the Mode LED (8) turns red. “Sequential gearbox inversion” function In most games, gearshift functions are assigned to either the L1, R1 buttons or the L2, R2 buttons by default. The “Sequential gearbox inversion” function allows you to assign gear shifting directly to the 2 digital gearshift levers (1) in 100% of games. To switch from “Normal sequential gearbox” mode to “Inverted sequential gearbox” mode, press the A,Band Mode buttons simultaneously. The Mode LED (8) flashes red for 2 seconds when you switch to “Inverted” mode. The Mode LED (8) flashes green for 2 seconds when you return to “Normal” mode.
Normal Sequential Gearbox
Inverted Sequential Gearbox
Please refer to the Settings chart provided in the appendix to find the type of sequential gearbox that corresponds to your racing game.
Precision Drive mode Precision Drive mode has been specially developed with a view to enhancing performance. Depending on the game, it may help you to beat your best times (and those of your opponents) or make it easier to successfully complete the different driving events. This new exclusive mode calculates and redistributes your Enzo wheel’s various analogy points without generating any dead zones (as may be the case with other wheels which allow you to adjust their sensitivity). How appropriate and effective this mode will be depends on the game you are playing and the course you are racing on. In this mode, the wheel is more sensitive and will allow you to powerslide more easily and thus avoid an excessive loss of speed, in courses with hairpin turns for example. In games where the wheel’s reactions are very sensitive (such as F1 racing, for example), you will therefore probably want to avoid using this mode. We recommend that you use this mode with an interior view for maximum effectiveness.
Please refer to the Settings chart provided in the appendix to find out whether this mode is recommended for your game.
To switch to Precision Drive mode, press the D-pad (4) and the Mode button (7) simultaneously. If Force Feedback mode is enabled, the Mode LED (8) flashes red. If Force Feedback mode is disabled, the Mode LED (8) flashes green. TROUBLESHOOTING - My wheel doesn’t work in the game: Change the position of the USB / USB + GAMEPORT switch (9) and then restart your console with the switch in the new position. - My wheel doesn’t seem to be calibrated properly: Please consult the section in your game’s manual regarding settings for details on how to configure your wheel in the game. - My wheel moves on its own: This is normal. The auto-recentering function starts up each time you switch on the console and/or let go of the wheel in an uncentered position. Recentering is characterized by back-and-forth movements (left-right-left…) which do not affect playability. To stop these movements, simply place your hands on the wheel. If you will be taking an extended break, unplug the wheel’s power adapter. Plug it back in again before returning to your game. - My wheel stays turned to one side (left or right) after auto-calibration: This is normal in some games. The wheel will recenter itself once you have identified it as a wheel in the game’s setup options. If the problem persists, disconnect your wheel and repeat the installation. TECHNICAL SUPPORT If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click Technical Support. From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the latest versions of drivers and software) that may help to resolve your problem. If the problem persists, you can contact the Thrustmaster products technical support service (“Technical Support”): By email: In order to take advantage of technical support by email, you must first register online. The information you provide will help the agents to resolve your problem more quickly. Click Registration on the left-hand side of the Technical Support page and follow the on-screen instructions. If you have already registered, fill in the Username and Password fields and then click Login. By telephone: United Kingdom United States / Canada Australia Denmark Finland Norway Sweden
price of a national phone call, Monday to Friday from 12PM to 10PM
price of a long distance phone call, Monday to Friday from 7AM to
82 33 28 58 09 81 71 01 54 23 50 01 16 08-51992032
$1.98/min, Monday to Friday from 9AM to 6PM price of a national phone call, Monday to Friday from 1PM to 10PM price of a national phone call, Monday to Friday from 2PM to 11PM price of a national phone call, Monday to Friday from 1PM to 10PM price of a national phone call, Monday to Friday from 1PM to 11PM
Warranty information
Worldwide, Guillemot Corporation S.A. (“Guillemot”) warrants to the consumer that this Thrustmaster product will be free from material defects and manufacturing flaws for a period of two (2) years from the original date of purchase. Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support). Within the context of this warranty, the consumer’s defective product will, at Technical Support’s option, be either repaired or replaced. Where authorized by applicable law, the full liability of Guillemot and its subsidiaries (including for indirect damages) is limited to the repair or replacement of the Thrustmaster product. The consumer’s legal rights with respect to legislation applicable to the sale of consumer goods are not affected by this warranty. This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause not related to a material defect or manufacturing flaw; (2) in the event of failure to comply with the instructions provided by Technical Support; (3) to software not published by Guillemot, said software being subject to a specific warranty provided by its publisher. Additional warranty provisions In the United States of America and in Canada, this warranty is limited to the product’s internal mechanism and external housing. Any applicable implied warranties, including warranties of merchantability and fitness for a particular purpose, are hereby limited to two (2) years from the date of purchase and are subject to the conditions set forth in this limited warranty. In no event shall Guillemot Corporation S.A. or its affiliates be liable for consequential or incidental damage resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of incidental/consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from State to State or Province to Province. COPYRIGHT
