USER MANUAL FR 2889 CLATRONIC

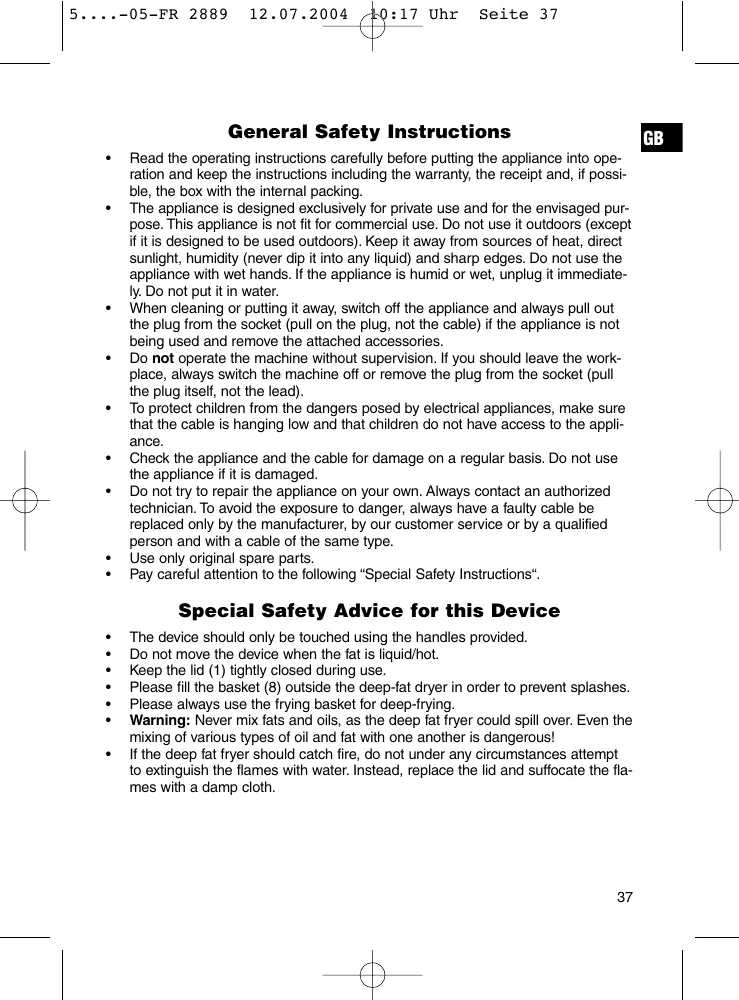

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water. When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories. Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead). To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance. Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged. Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type. Use only original spare parts. Pay careful attention to the following “Special Safety Instructions“. Special Safety Advice for this Device

The device should only be touched using the handles provided. Do not move the device when the fat is liquid/hot. Keep the lid (1) tightly closed during use. Please fill the basket (8) outside the deep-fat dryer in order to prevent splashes. Please always use the frying basket for deep-frying.

Warning: Never mix fats and oils, as the deep fat fryer could spill over. Even the

mixing of various types of oil and fat with one another is dangerous! If the deep fat fryer should catch fire, do not under any circumstances attempt to extinguish the flames with water. Instead, replace the lid and suffocate the flames with a damp cloth.

10:17 Uhr Seite 38 Overview of the Components

Lid (removable) Viewing window Button to open the lid Housing POWER - on/off control lamp TIMER

Temperature regulator Deep frying basket Handle Knob for lowering the deep frying basket 11 Frying fat container Introduction The deep fryer is equipped with an adjustable thermostat, so that the temperature can be adapted to the food being fried. The optimal and safe use of the deep fryer requires that the use instructions be read carefully. Connection The fryer must be connected to a properly installed 230 V, 50 Hz socket with earthing protection. Putting into use Before using for the first time

1. Remove the packaging. Open the deep fryer by pressing the button.

The frying basket is in the deep fryer.

2. It is highly recommended to clean the lid, casing, container and frying basket as

described in Cleaning. Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of French fries).

Change the oil after using it 8-10 times.

2. Deep frying fat must be capable of being heated to high temperatures. Use high

quality frying oil or frying grease. Do not use margarine, olive oil or butter: they are not fit for frying, because they start to smoke already at low temperatures. In order to reduce the acrylamide content of food containing starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 170° C (or possibly 175° C). Furthermore, the frying time should be kept as short as possible and the food only fried until it turns golden yellow.

3. Choose the right frying temperature and check the conditions of the food to be

fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.

4. Do not carry or move the deep fryer if the oil or grease is still hot.

5. When frying dough-like foods scrape off the excess dough and put the pieces

carefully into the oil.

6. Do not overfill the frying basket.

7. Rub dry humid foods with a cloth before frying.

1. Make sure that the appliance is unplugged and switched off.

2. Unlock the lid by pressing the release button (3).

3. Remove the frying basket and fill the container with oil or grease (maximum

2.0 l). The filling level must be located between the minimum and the maximum

level. Please note the following important information! If you use fat, divide it up into small pieces and place it on the floor of the deep frying vessel. Under no circumstances should you place the fat in the deep frying basket!

4. Please insert the plug into a 230 V, 50 Hz power socket and switch the deep fat

fryer on with the timer button. You can adjust the deep-frying time with the TIMER. The red LED lights up. Adjust the temperature control device to the desired temperature.

5. Once the set temperature is reached, the LED switches off. Now fill the deep-fry

basket. Please ensure that the basket is not filled above the hot fat.

6. Open the lid and fill the frying basket with the food to be fried. Make sure that

the handle snaps upward into place and that the frying basket is located above the hot frying grease.

7. Close the lid. Now lower the frying basket into the hot frying grease by pulling

back the button on the handle.

8. At the end of the frying time (the frying time is specified on the package of the

food or in the recipe) open carefully the lid (Warning! Hot steam may be released!). Remove the frying basket.

9. Let the oil drip from the food being fried.

10. To switch off the device, turn the timer to OFF and remove the plug from the

1. Make sure that the plug is pulled out.

2. Wait until the deep fryer is completely cool before cleaning. Wait in any case for

1 to 2 hours after use before using again to avoid burns.

3. In order to change the oil, pull the deep frying container out by the handles and

pour the oil out at the side.

4. Please do not immerse the device in water.

5. The lid can be pulled off upwards. This makes cleaning easier.

6. In order to replace the filters, pull the filter cover located in the lid of the device

7. Clean the deep frying fat container, the lid and the housing with a damp cloth

and household detergent if necessary. Please do not immerse in water.

8. The deep frying basket can be cleaned in the usual way in soapy water.

9. Avoid using abrasive detergents or sharp objects to avoid damaging the deep

fryer! This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
