BQ 2849 - Electric grill CLATRONIC - Free user manual and instructions

Product type	Electric grill
Brand	CLATRONIC
Model	BQ 2849
Power supply	230 V, 50 Hz
Water tank capacity	1.5 liters
Temperature adjustment	Continuous dial with settings: warm, simmer, MAX
Indicator light	Yes, turns off when set temperature is reached
Adjustable height grid	Yes
Cooking surface	Metal grid
Maximum weight on grid	2 kg
Safety	Device preventing operation of heating element outside of tank; minimum distance of 15 cm from walls; do not use charcoal
Cleaning	Grid, reflector plate and tank washable with soapy water; heating part wiped with damp cloth; never immerse the heating element
Warranty	24 months
Included accessories	Drip tray, reflector plate, grid, legs
Outdoor use	Possible only in dry weather; do not leave the appliance outside after use

Frequently Asked Questions - BQ 2849 CLATRONIC

How to use the grill for the first time?

Before first use, remove packaging, clean the grid and reflector plate with a damp cloth. Fill the drip tray with 1.5 liters of cold water up to the MAX mark. Install the reflector plate. Plug in the appliance and set the dial to MAX for about 15 minutes to remove the protective film. Slight smoke may appear. Then let it heat for 5 minutes before use.

Can I use charcoal?

No, never use charcoal or other fuels with this appliance. It is designed only for electric operation.

How much water to put in the tank?

Pour 1.5 liters of cold water up to the MAX mark. The water level must exceed the reflector plate. Never operate the appliance without water.

What if the heating element does not heat?

Check that the power cord is plugged in and that the heating element is properly installed in the tank. The heating element has a safety device that prevents operation if it is not in place.

How to clean the grill?

Unplug the appliance and let it cool. The grid, reflector plate and tank can be washed with soapy water. The heating part should be cleaned with a slightly damp cloth. Do not use a metal brush and never immerse the heating element in water.

Can I use the grill outdoors?

Yes, but only in completely dry weather. Never leave the appliance outside after use. Place it on a flat, heat-resistant surface, at least 15 cm away from any flammable object.

How to adjust the temperature?

Use the temperature dial: low or medium setting to keep warm or simmer, MAX setting to grill quickly. The indicator light turns off when the set temperature is reached.

What is the maximum weight the grid can support?

Do not place more than 2 kg on one side of the grid. Do not place plates, trays or aluminum foil directly on the grid.

What if the water level drops during use?

If the water level drops below the MIN mark, first unplug the appliance, then fill with cold water up to MAX. Never pour cold water onto the hot heating element to avoid damaging it.

How to store the appliance after use?

Let the appliance cool completely. Clean it as instructed. Assemble all parts as shown in the diagram. Store in a dry place, away from heat and sunlight.

USER MANUAL BQ 2849 CLATRONIC

Consultez la figure 1.

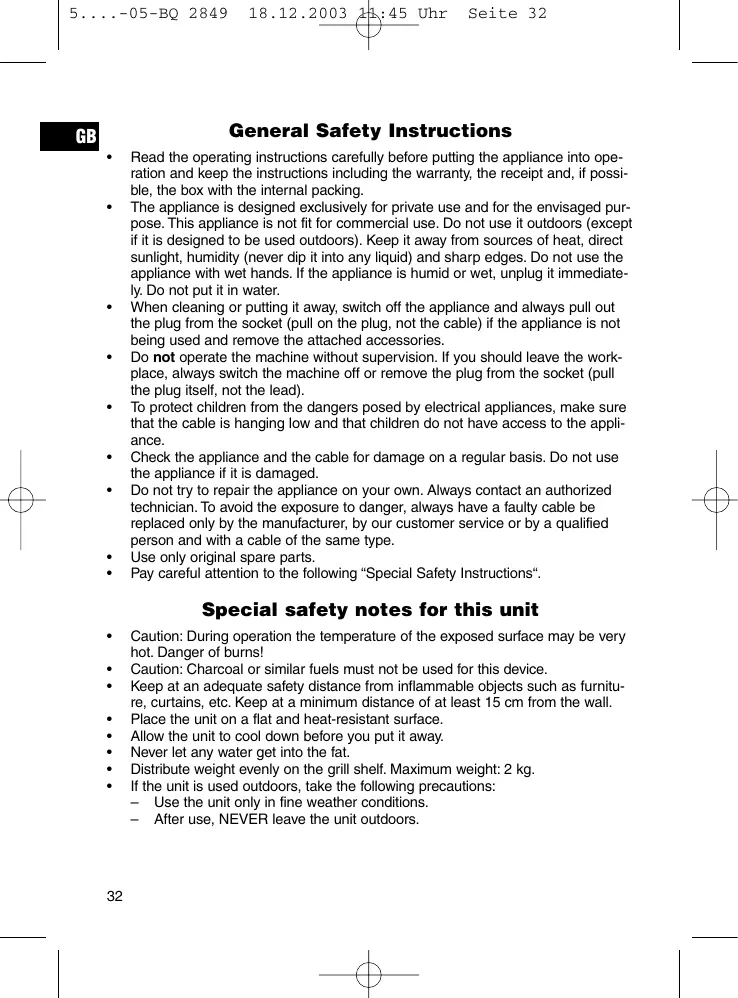

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety notes for this unit

• Caution: During operation the temperature of the exposed surface may be very hot. Danger of burns!
• Caution: Charcoal or similar fuels must not be used for this device.
• Keep at an adequate safety distance from inflammable objects such as furniture, curtains, etc. Keep at a minimum distance of at least 15cm from the wall.
• Place the unit on a flat and heat-resistant surface.
• Allow the unit to cool down before you put it away.
• Never let any water get into the fat.
• Distribute weight evenly on the grill shelf. Maximum weight: 2 kg.
  If the unit is used outdoors, take the following precautions:

Use the unit only in fine weather conditions.

• After use, NEVER leave the unit outdoors.

Preliminary Operations

Overview of the Components

1 Heating element

5 Grill grid

2 Thermostat

6 Handle

3 Control lamp

7 Reflective metal sheet

4 Grill tray

8 Stand

Please see illustration 1.

• First remove the heating element (1).
• Remove any packaging material that may be present.
• Clean the grill grid (5) and the reflective metal sheet (7) with a moist cloth.
• Turn the grill tray (4) upside down.
  Use the threaded screws to attach the feet (8) to the grill tray (4).
• Assemble the grill as shown in illustration 1.
• Pour 1.5 litres of cold water into the grill tray up to the "MAX" Mark.

Note: Pour in the water until it covers the reflective metal sheet (7). The water bath and the metal sheet prevent excessive heat radiation in the area of the standing surface of the grill.

Therefore you should always grill food using water and with the reflective metal sheet in place.

Before using for the first time, fill the grill tray with water and use it for 15 minutes to remove the protective film from the heating coil. Select the MAX thermostat position. The presence of smoke is normal. Make sure that a sufficient level of ventilation is available.

Preheat the device before use for approximately 5 minutes.

Usage

• Insert the plug in a duly installed 230V/50Hz protective contact socket.
• Fill in 1.5 l of cold water up to the "MAX" mark in the trough.
• Set the thermostat for the desired use: a low or medium temperature for warming or cooking, MAX. for rapid cooking and grilling. The LED shuts off when the desired temperature is reached.
• Lay the food directly on the grill grid. Never use plates, trays or aluminum foil beneath the food. The grilling time depends on the thickness of the food and the set temperature. Thick foods are grilled more quickly by piercing it with metal skewers. Turn the food from time to time.
  The height of the grill grid can be varied. Please see illustration 2.
• Should the water level drop below the MIN mark after continuous use, pull the plug from the socket and fill with water until the MAX mark is reached. Do not pour any cold water over the hot heating element. Otherwise this may be damaged.

GB

Switching-off: Turn the thermostat to 0^ and pull the plug.

Troubleshooting

The heating element is fitted with a safety switch. This prevents the heating element being operated outside the grill tray. If the heating does not switch on, please check the mains connection and whether the heating element is fitted correctly into the grill tray.

Cleaning

• Always pull the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Clean the unit with a slightly dampened cloth. Never dip the heating element into water!
• The gridiron, reflective metal sheet and trough can be cleaned in soapy water.
• Never use a steel brush or other scratching objects.
• Assemble all the parts as shown in the diagram.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as

well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

GB

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

PL

YdaJIeHne HeNCpPaBHOCTe

HarpReBaTeIbIbI JIeMeHT OChaIeH NpeOxpaHITeIbIbIM BByKIOHaTeIeM. OH npEOTBpaIaET BKLIOUeHHe HarpReBaTeIbHOrO 3JIeMeHTa 3a IpeJeAMn NOndaHO.

EcnHarpBeTeJIbIyIJIeMeHT He BkJIOHaTcTc, IpOKOHrPoIpyIte IOKJIIOUeHHe cTeI IN paBnJIbHyIO NocAky HarpBeTeJIbHOro 3JIeMeHTa BOIOJDo.

YxOa 3a yctpoiCTBOM

• Penei YIcTko BCerDa BaBHHMaHTe BUNKy n3 pOzETKn NxJnTe noka npN6Op OCTbHET.
• Пострпто прибор сегka влажно травков. He noprужайтейнагревателовий заlementВ Вody!
• Помонге рашлес, peфлесст и похшюю ваньу Гилья в мошем pactворе.
  He npimehnTe dIy quCTKnpoBOJIOHbIe 1eTKn nIu dpYrue capaiaoune npedMeTbl.
  Co6epnte rpiNb kak yka3aHO ha pncyHke.

3To n3JeIeHHe npOoiNo BCE Heo6xOIMbIe I aKtUaJIbIbIe npOBepKn, npEiINCAHbIe DnEKTNBO CE, K npIM. Ha 3NeKtPOMarHmTHyO COBMeCTMOCbI h COOTBeTcBVe Tpe6OBAHnM K Hn3KOBoJIbTHoI TEXHnke, OHO bIoI ToKaXe CkOHCTpUPOBaHO n NoCTpoEHO c yYeToM NOcIeHNx Tpe6OBAHnIO TEXHnke Be3OaNCHOnT.

MbOCTaBJIeM 3a cO6oI npaBO Ha TexHnueckne n3MeHeHnra!

TapaHTnHoe o63aTeJIbCTBO

TapaHTnHbCpOK Ha TepPITOpIN Pocnckoi ΦePaun yCTaHbNBAeTcI NJIHOMOHbIMN IpeDCTaBNTeJIaM.

Kaccobby uek yBJIeTcra rapaHTnHbIM TaIOHOM. Be3 Hero HeBO3MOxeh 6ecIpaTHb peMOHT nJIN 3aMeHa n3dEInr.

B Cnyae BO3NHKOBXHNI PnITeHNI NO rapaHTMI, npeJbYBIte N3dJIeN B IIOJIHOI KOMJIeKTaUMC, C OPIINHAJIbHOI YNAKOBOKII N KACCObIM YekOM TROPORI TOUKe, pOJdABWSe 3TO N3JIeNe.

*) DepeKtby npHaadJeXHcTeH He cnykat pnpHInOH dIy ABToMaTHeCKO3aMeHb CBeO r3dJIa. B 3OTm cJyae No3BOnHTe HAM, NOxAJyNCTa, no TropAeHnHn! PA63bTbe cTeKJIHNHe I NOJOMaHbIe I NaCTMaccBOBIE DetAIN BO3MeuAOTcTOJbKO 3a DOnOJIHnTeJbHyO ONlATy!

DepeKbI N3HaJIbMaEBMbX npHAnJLekHoCTeN IIN TpyUxxCr DeTalei (HaPIMep KOHTAChBte UcTKMOTOPOB, CMEcTIeBbHbe KpIOKn, PnIBOdHbe peMHN, 3aNaChbIyIypaBHeN, 3aNaChbIe 3y6bHe IcTKn, nIIbHbe NOLOTHa N T.D.), a TAKCe HcTKe, TeXoCZynkBaHBe NII 3aMeHa TpyUxxCr DeTaleI He nonaAdHO TIOI rapaHTnIO, I NoOTOMy PPOBOaTc 3a OTJeBHyIO ONIaTy!

TapaHTy TepaETc npu BCKpbITn IN3dEINN IOCTOpOHHmN JInCaMn.

Pocne rapaHTn

Iocne OKOHuaHnCpoka rapaHTn, peMOHT n3dJIIN pON3BOUNTc 3a OJNaTy, COOTBETCTBYUOUMM MaCTepCKHM NII INyHKtAMN CepBNCHO 6cbLyKbAHn.

Technische Daten

Modell: BQ 2849
